Guide to Using Excel For Basic Statistical Applications
Guide to Using Excel For Basic Statistical Applications To Accompany Business Statistics: A Decision Making Approach, 6 th Ed. Chapter 11: Analysis of Variance By Groebner, Shannon, Fry, & Smith Prentice-Hall Publishing Company Copyright, 2005

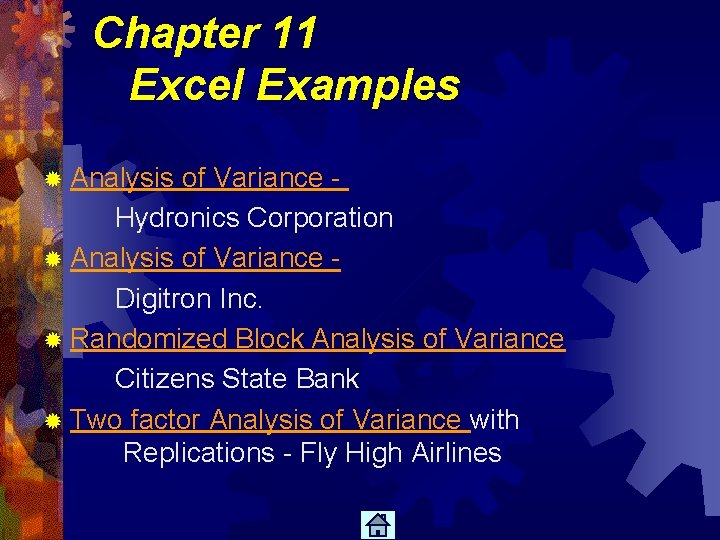

Chapter 11 Excel Examples ® Analysis of Variance Hydronics Corporation ® Analysis of Variance Digitron Inc. ® Randomized Block Analysis of Variance Citizens State Bank ® Two factor Analysis of Variance with Replications - Fly High Airlines

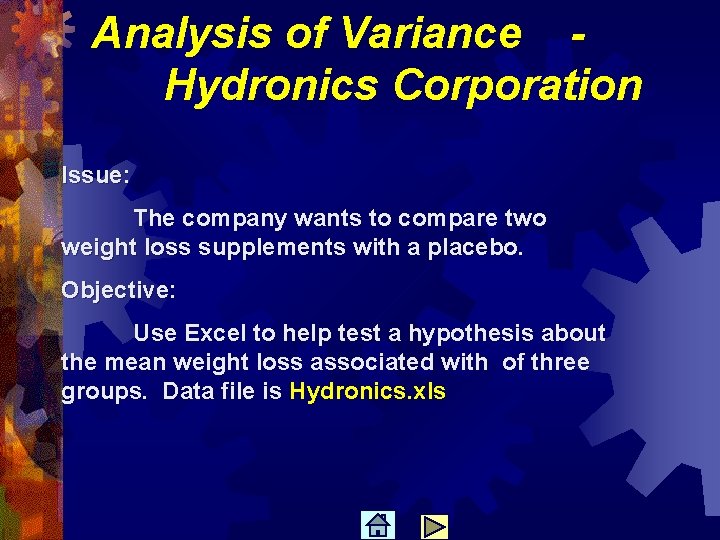

Analysis of Variance Hydronics Corporation Issue: The company wants to compare two weight loss supplements with a placebo. Objective: Use Excel to help test a hypothesis about the mean weight loss associated with of three groups. Data file is Hydronics. xls

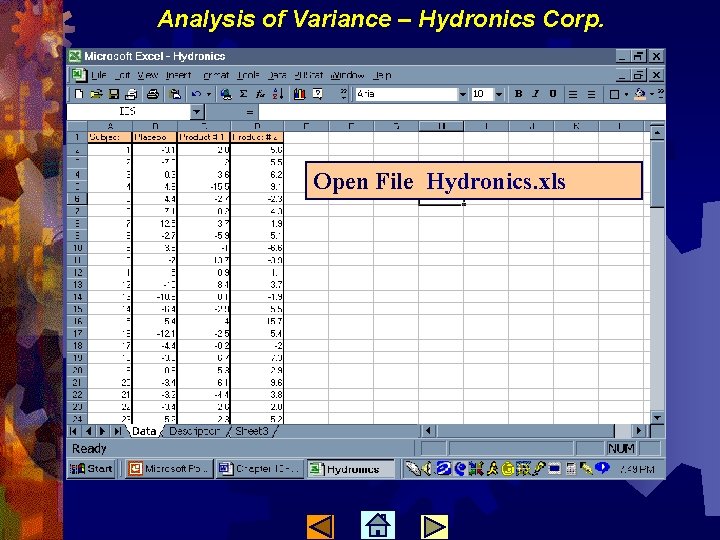

Analysis of Variance – Hydronics Corp. Open File Hydronics. xls
Analysis of Variance – Hydronics Corp. First click on Tools, then Data Analysis and finally on Anova Single Factor.
Analysis of Variance – Hydronics Corp. Define ranges for Variables and select the Alpha value (. 05). Click on O. K.

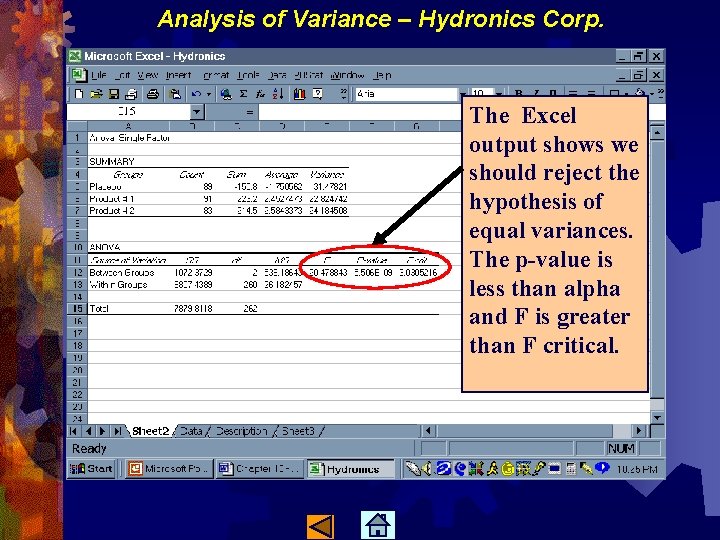

Analysis of Variance – Hydronics Corp. The Excel output shows we should reject the hypothesis of equal variances. The p-value is less than alpha and F is greater than F critical.
Analysis of Variance Digitron Inc. - Issue: The company wants to compare the stopping distance of four brake systems. Objective: Use Excel to help test a hypothesis about the mean stopping distance associated with the four brake systems. Data file is Digitron. xls

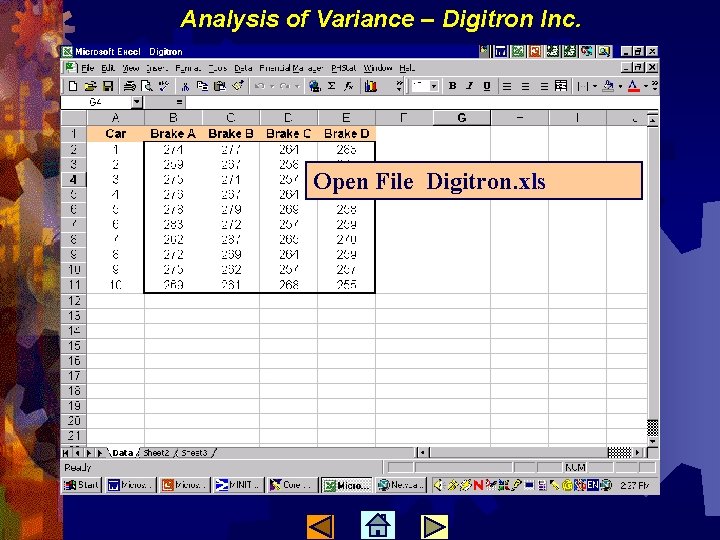

Analysis of Variance – Digitron Inc. Open File Digitron. xls

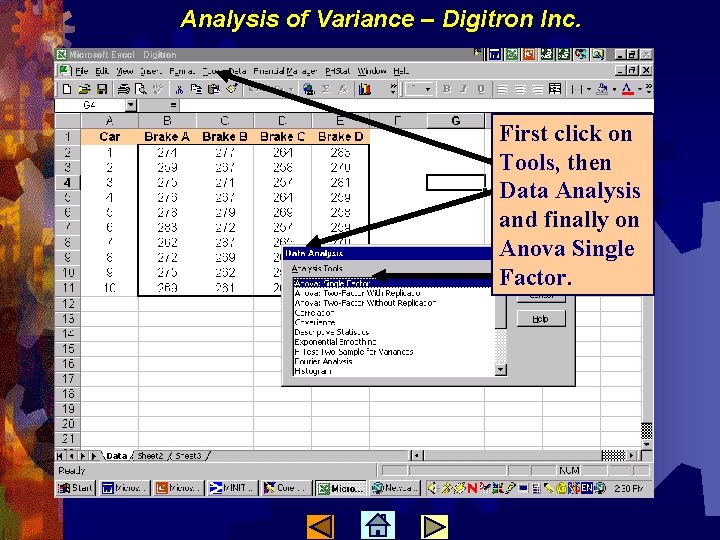

Analysis of Variance – Digitron Inc. First click on Tools, then Data Analysis and finally on Anova Single Factor.

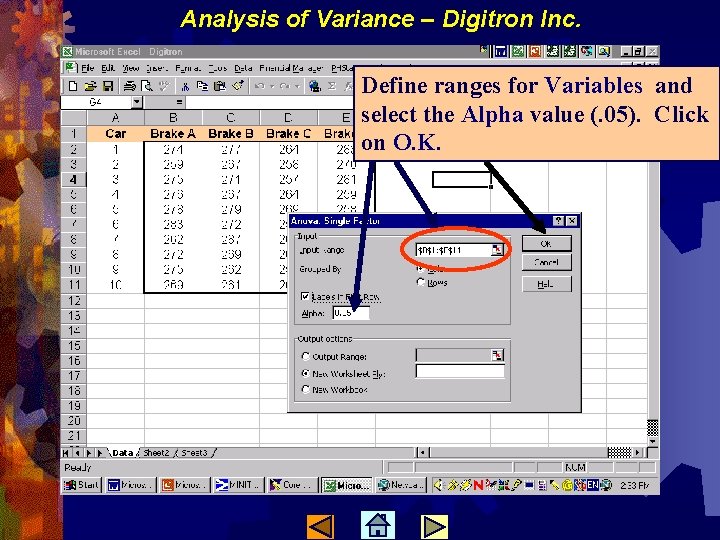

Analysis of Variance – Digitron Inc. Define ranges for Variables and select the Alpha value (. 05). Click on O. K.

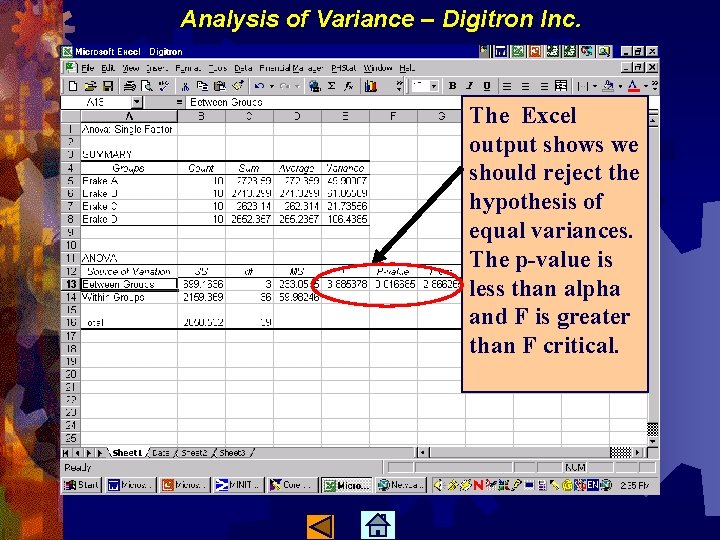

Analysis of Variance – Digitron Inc. The Excel output shows we should reject the hypothesis of equal variances. The p-value is less than alpha and F is greater than F critical.
Randomized Block ANOVA – Citizens State Bank Issue: Bank managers wish to test the hypothesis that there is no difference in the average house appraisal by three different appraising companies. Objective: Use Excel to test the hypothesis there is no difference in average appraisal price. Data file is Citizens. xls
Randomized Block ANOVA – Citizens State Bank Open File Citizens. xls File contains appraisal values for 5 houses.

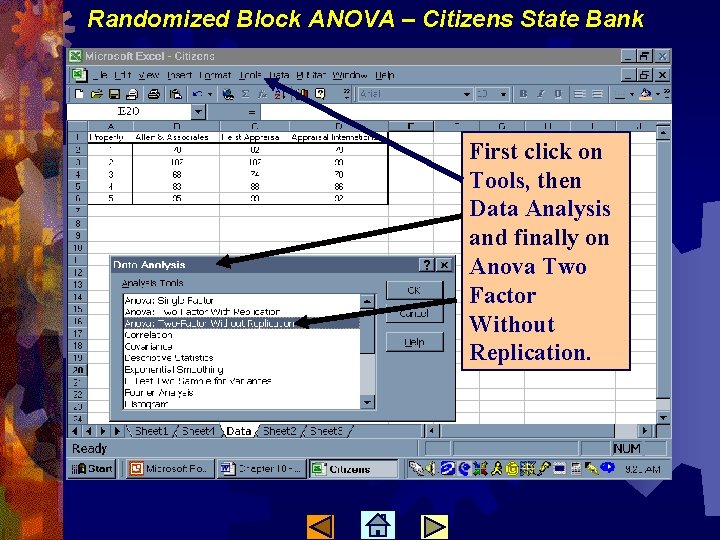

Randomized Block ANOVA – Citizens State Bank First click on Tools, then Data Analysis and finally on Anova Two Factor Without Replication.

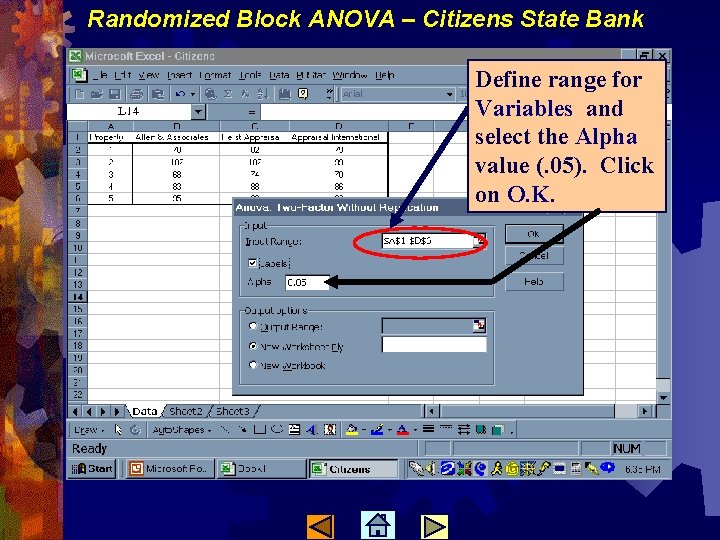

Randomized Block ANOVA – Citizens State Bank Define range for Variables and select the Alpha value (. 05). Click on O. K.

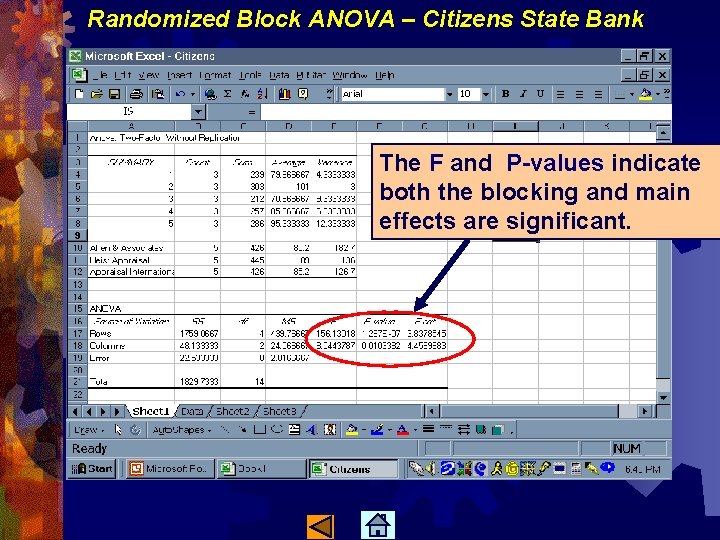

Randomized Block ANOVA – Citizens State Bank The F and P-values indicate both the blocking and main effects are significant.
Two Factor ANOVA With Replications - Fly High Airlines Issue: The airline is interested in determining the effect of redemption offers on the number of miles that would be redeemed. Objective: Use Excel to test the hypothesis there is no difference in average redemption rate. Data file is Fly. High. xls

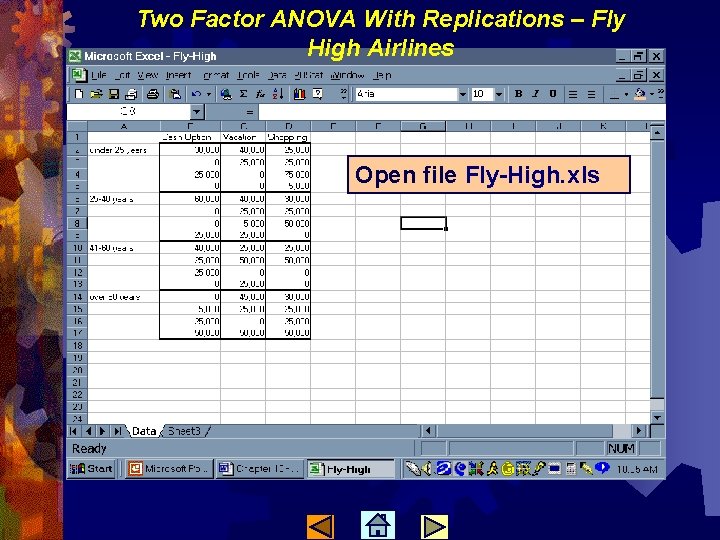

Two Factor ANOVA With Replications – Fly High Airlines Open file Fly-High. xls
Two Factor ANOVA With Replications – Fly High Airlines First click on Tools, then Data Analysis and finally on Anova Two Factor With Replication.

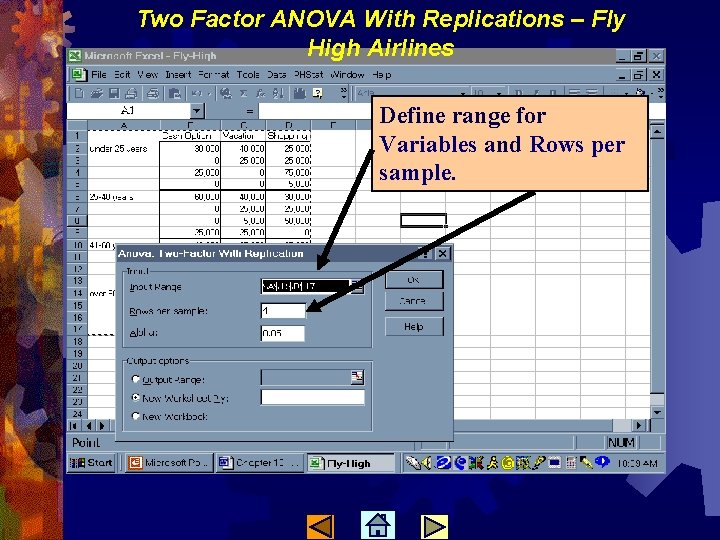

Two Factor ANOVA With Replications – Fly High Airlines Define range for Variables and Rows per sample.
Two Factor ANOVA With Replications – Fly High Airlines This is last part of the Excel output. Note the low F values and that all P -values are large.
