Guest Clustering with commodity storage Cluster Shared Volumes
- Slides: 61

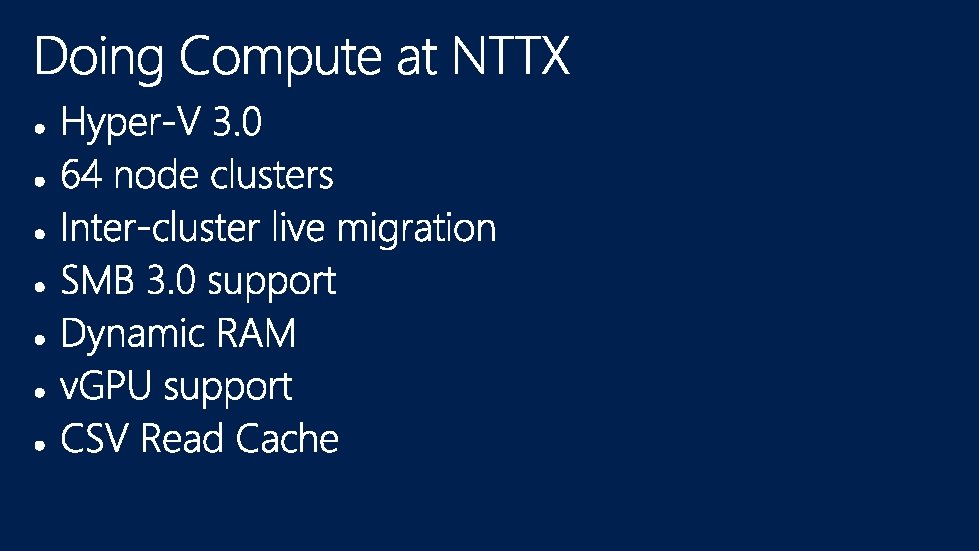

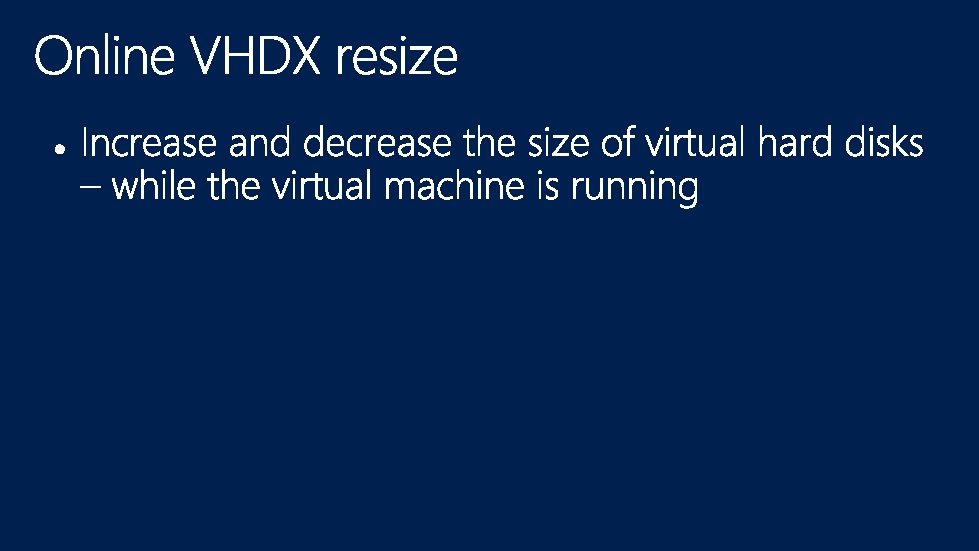

Guest Clustering with commodity storage Cluster Shared Volumes (CSV) on block storage Scale-Out File Server for file based storage Sharing VHDX files provides shared storage for Hyper-V Failover Clustering Guest Clustering Maintains separation between infrastructure and tenants VM presented a shared virtual SAS disk Appears as shared SAS disk to VM Virtual SAS Used for data disk only VHDX Block Storage VHDX File Based Storage
DR Platform Enterprise Scale DR

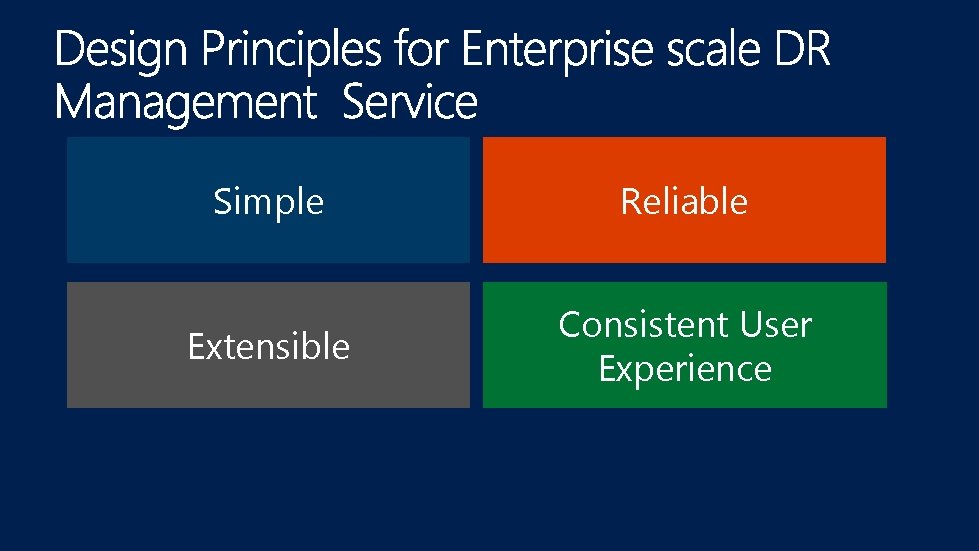

Simple Reliable Extensible Consistent User Experience

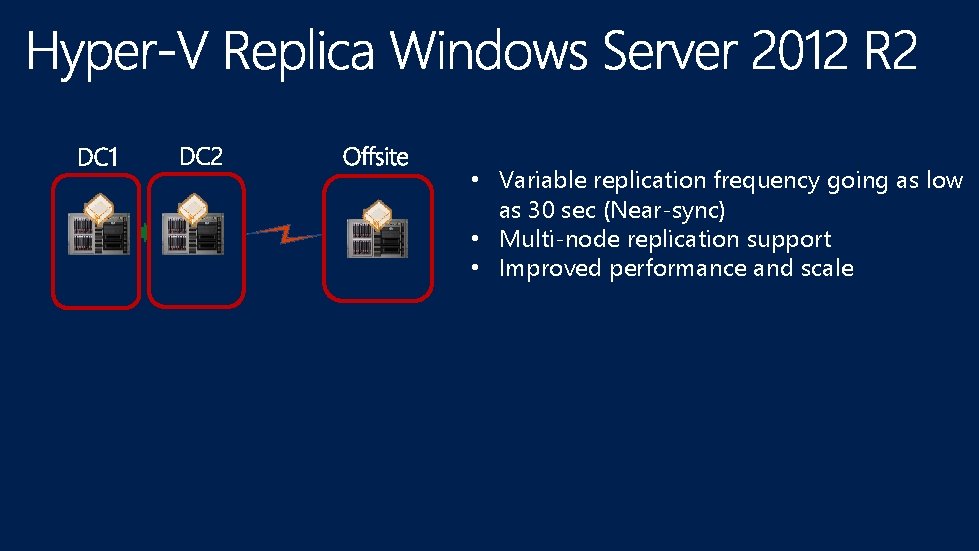

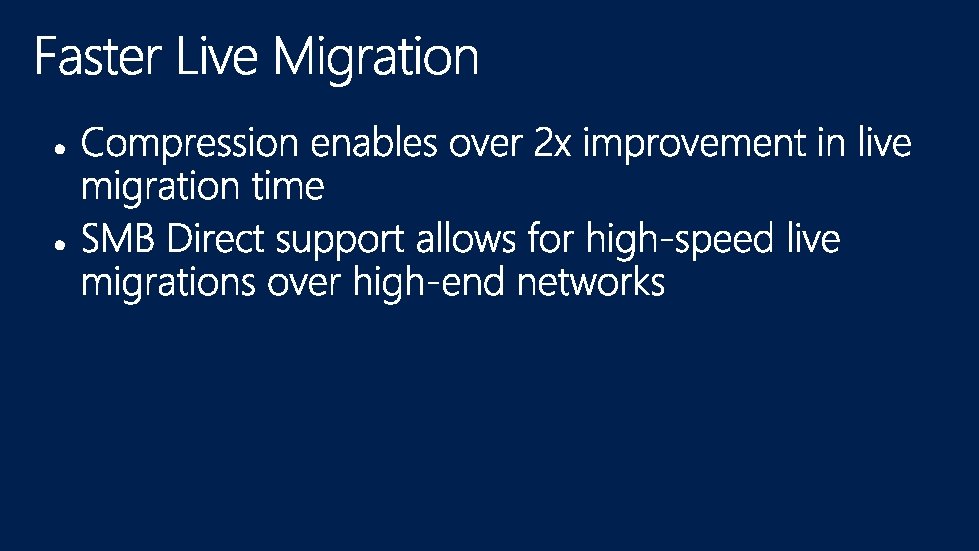

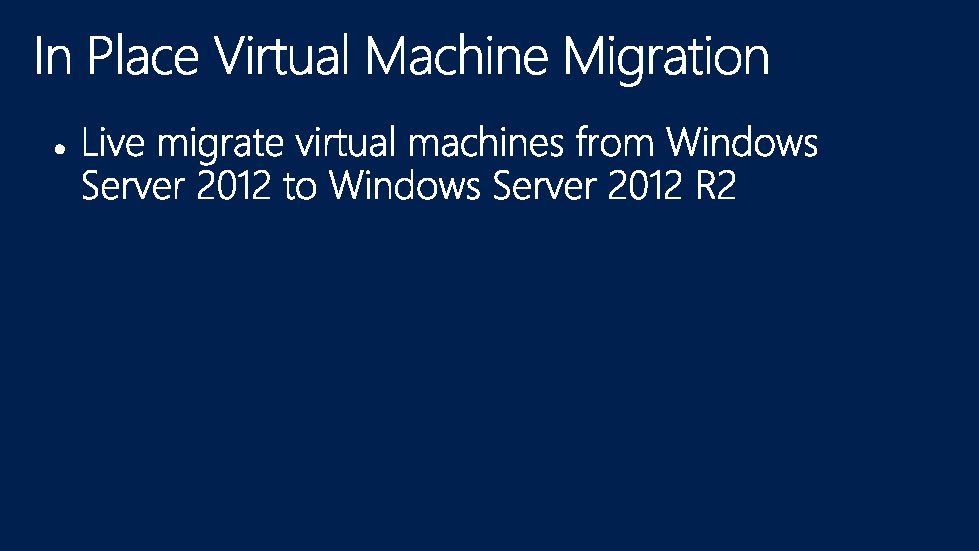

• Variable replication frequency going as low as 30 sec (Near-sync) • Multi-node replication support • Improved performance and scale

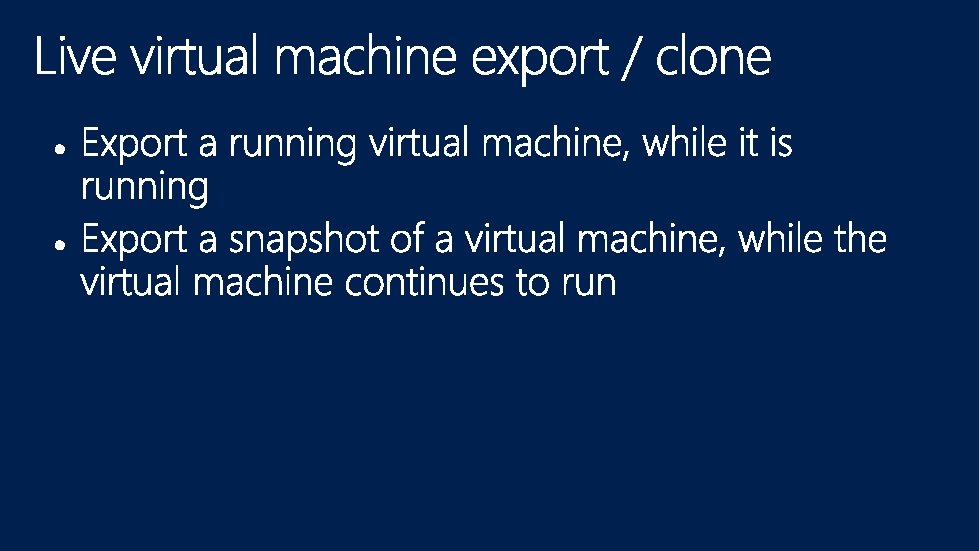

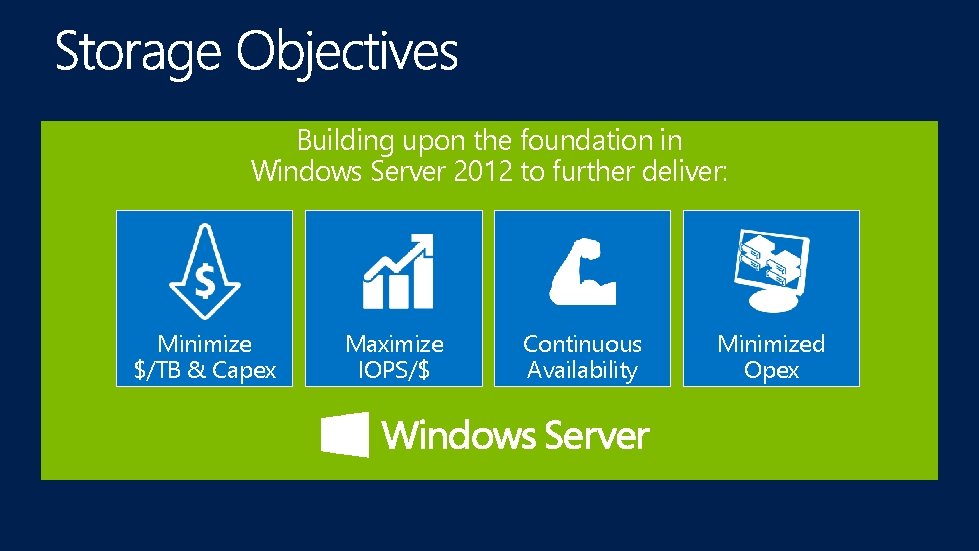

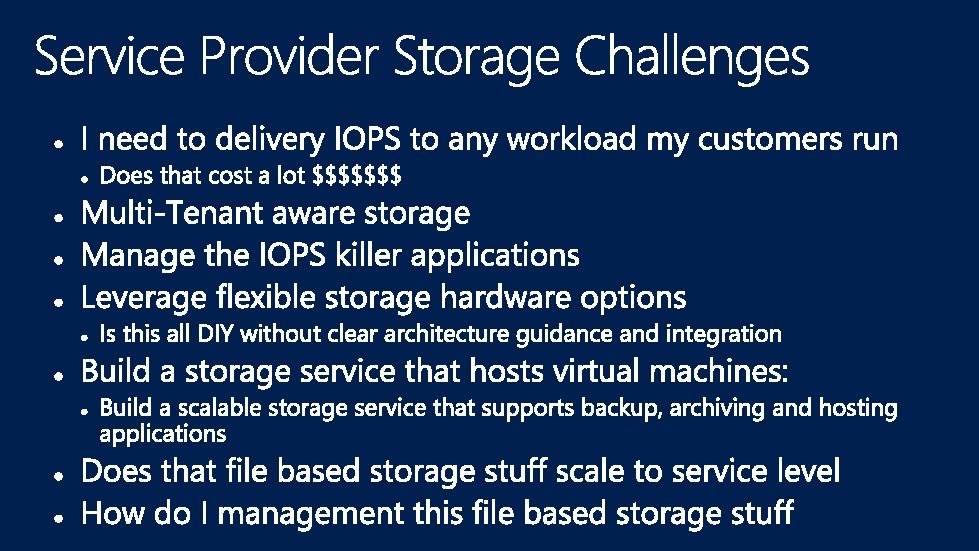

Building upon the foundation in Windows Server 2012 to further deliver: Minimize $/TB & Capex Maximize IOPS/$ Continuous Availability Minimized Opex

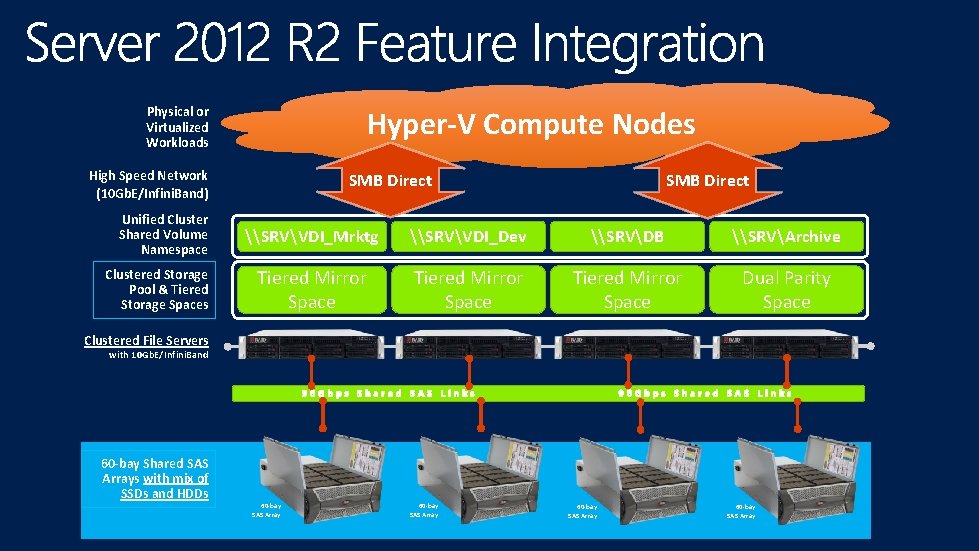

Physical or Virtualized Workloads Hyper-V Compute Nodes High Speed Network (10 Gb. E/Infini. Band) Unified Cluster Shared Volume Namespace Clustered Storage Pool & Tiered Storage Spaces SMB Direct \SRVVDI_Mrktg \SRVVDI_Dev \SRVDB \SRVArchive Tiered Mirror Space Dual Parity Space Clustered File Servers with 10 Gb. E/Infini. Band 60 -bay Shared SAS Arrays with mix of SSDs and HDDs 60 -bay SAS Array

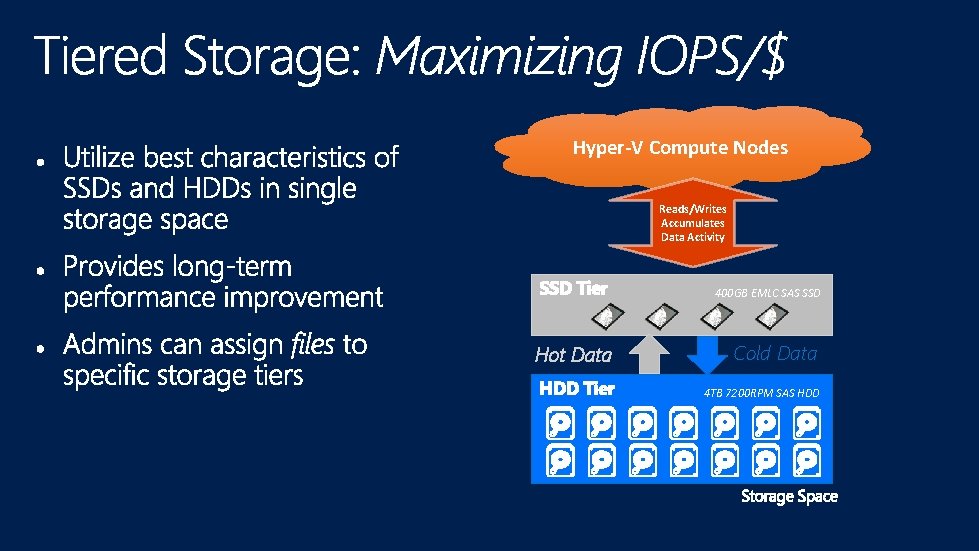

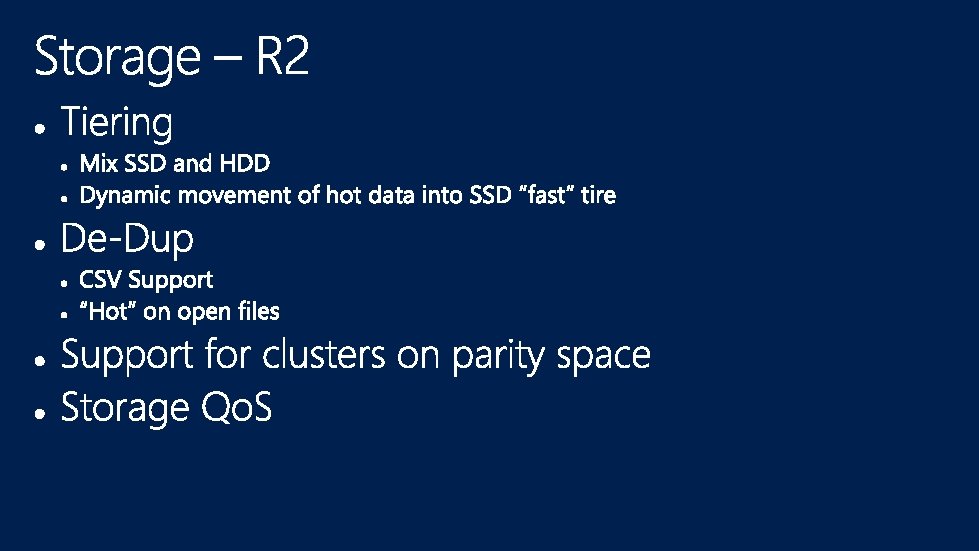

Hyper-V Compute Nodes Reads/Writes Accumulates Data Activity 400 GB EMLC SAS SSD Hot Data Cold Data 4 TB 7200 RPM SAS HDD

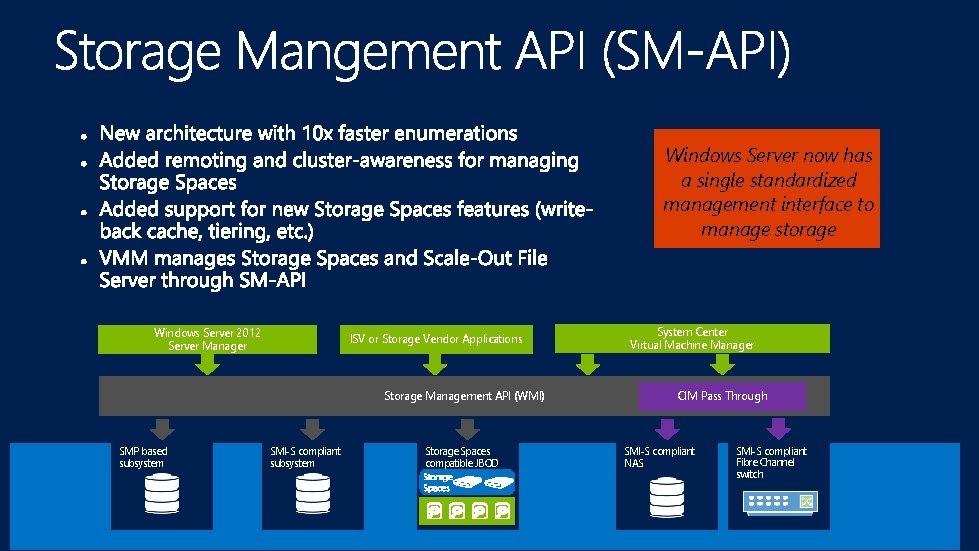

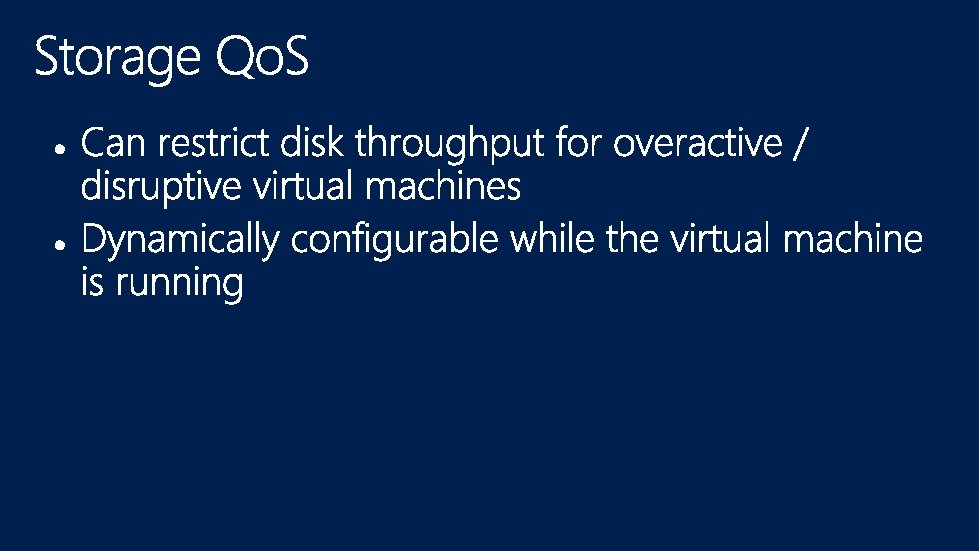

Windows Server now has a single standardized management interface to manage storage Windows Server 2012 Server Manager ISV or Storage Vendor Applications Storage Management API (WMI) SMP based subsystem SMI-S compliant subsystem Storage Spaces compatible JBOD Storage Spaces System Center Virtual Machine Manager CIM Pass Through SMI-S compliant NAS SMI-S compliant Fibre Channel switch

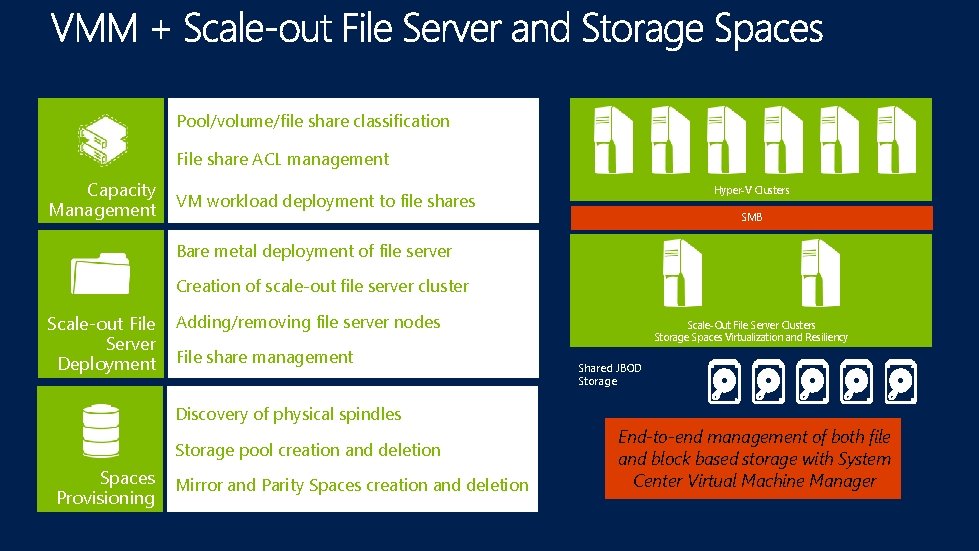

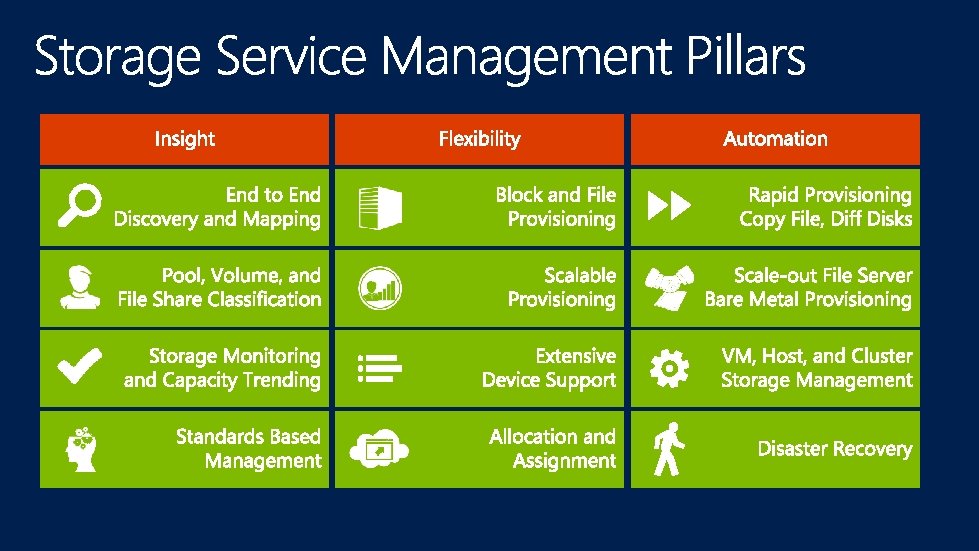

Pool/volume/file share classification File share ACL management Capacity Management Hyper-V Clusters VM workload deployment to file shares SMB Bare metal deployment of file server Creation of scale-out file server cluster Scale-out File Server Deployment Adding/removing file server nodes File share management Discovery of physical spindles Storage pool creation and deletion Spaces Provisioning Mirror and Parity Spaces creation and deletion Scale-Out File Server Clusters Storage Spaces Virtualization and Resiliency Shared JBOD Storage End-to-end management of both file and block based storage with System Center Virtual Machine Manager

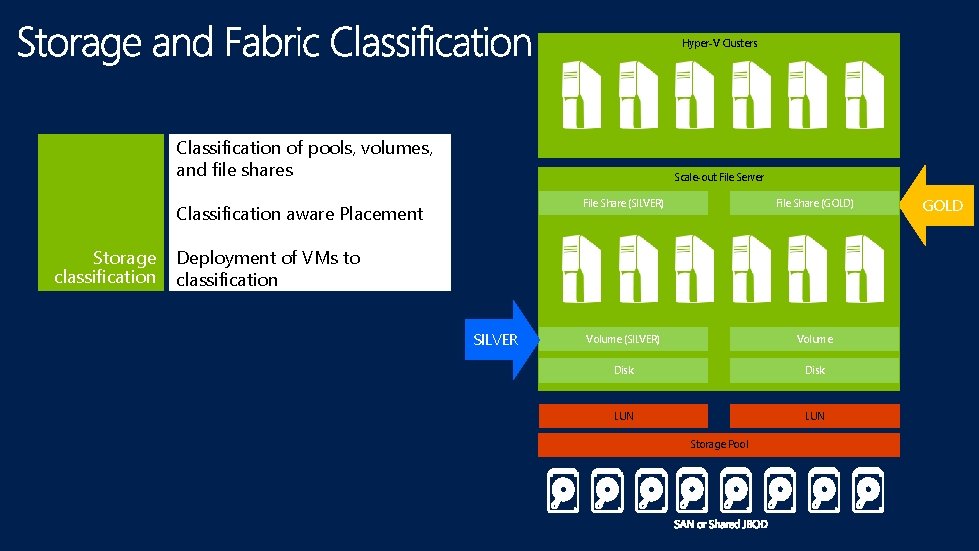

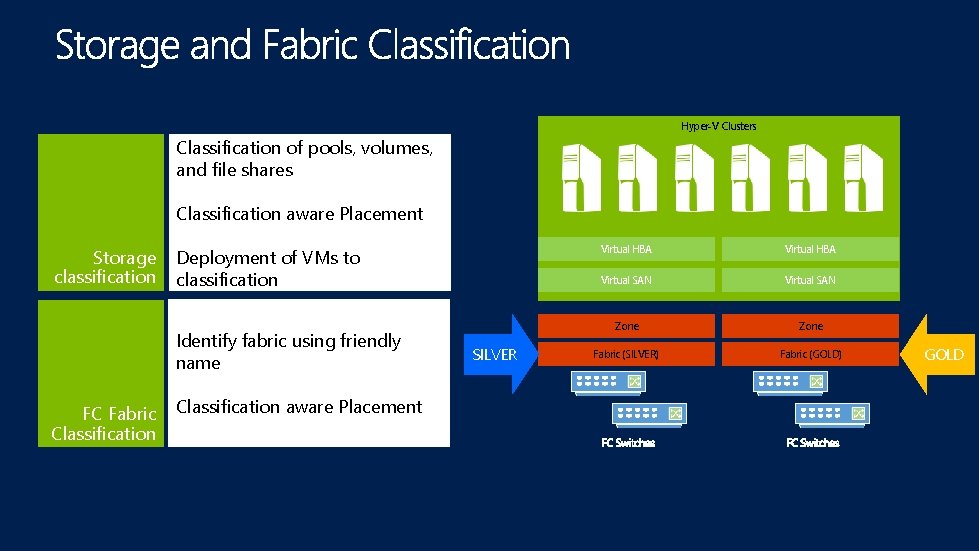

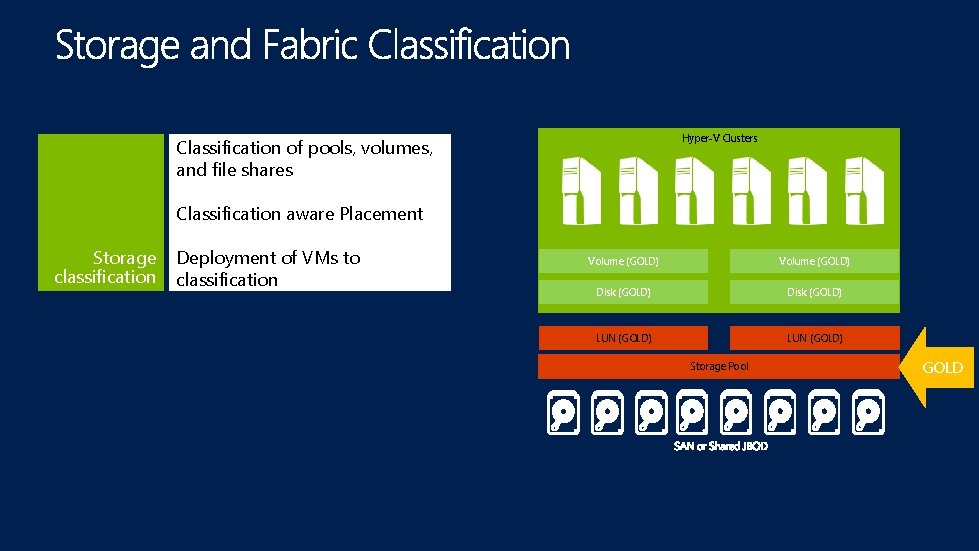

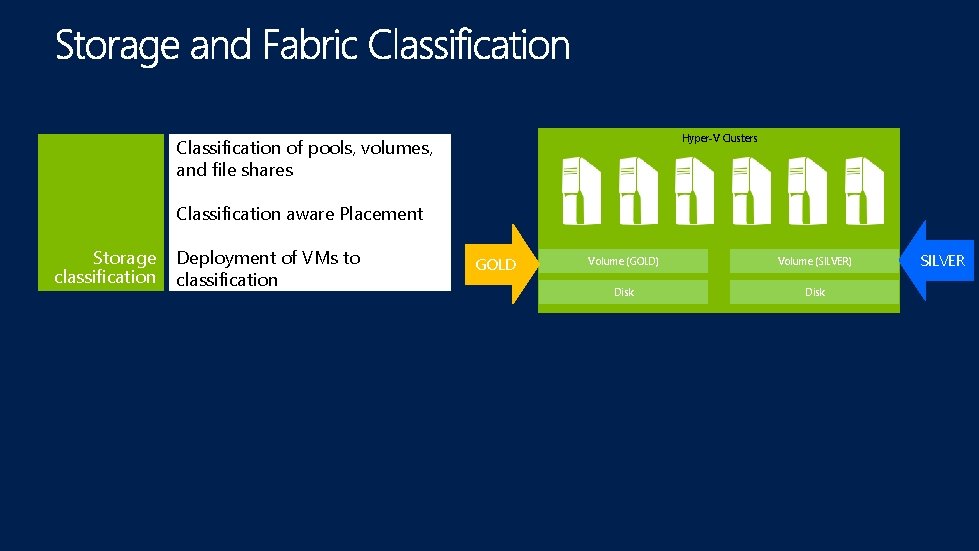

Hyper-V Clusters Classification of pools, volumes, and file shares Classification aware Placement Storage classification Deployment of VMs to classification Volume (GOLD) Disk (GOLD) LUN (GOLD) Storage Pool GOLD
Hyper-V Clusters Classification of pools, volumes, and file shares Classification aware Placement Storage classification Deployment of VMs to classification GOLD Volume (GOLD) Volume (SILVER) Disk SILVER
Hyper-V Clusters Classification of pools, volumes, and file shares Scale-out File Server Classification aware Placement Storage classification File Share (SILVER) File Share (GOLD) Volume (SILVER) Volume Disk LUN Deployment of VMs to classification SILVER Storage Pool GOLD
Hyper-V Clusters Classification of pools, volumes, and file shares Classification aware Placement Storage classification Deployment of VMs to classification Identify fabric using friendly name FC Fabric Classification aware Placement SILVER Virtual HBA Virtual SAN Zone Fabric (SILVER) Fabric (GOLD) GOLD

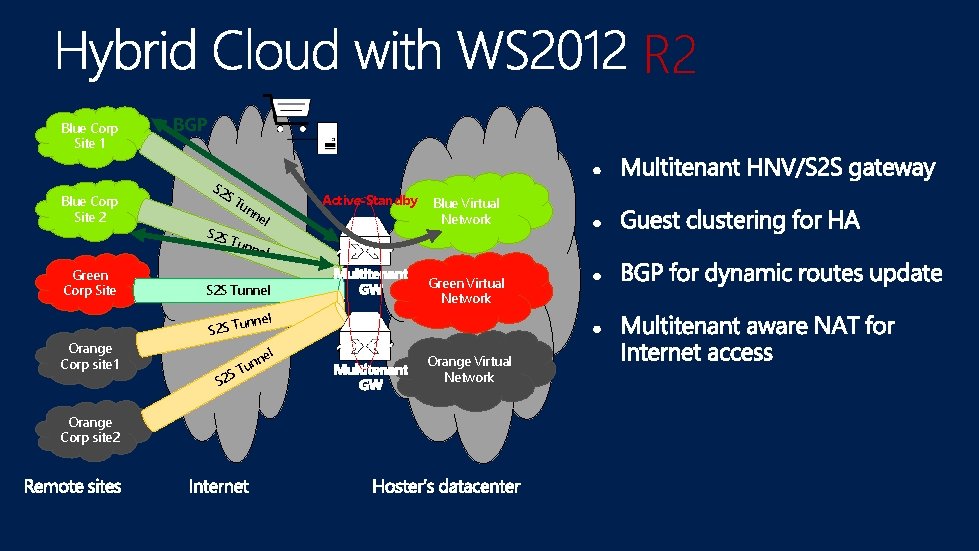

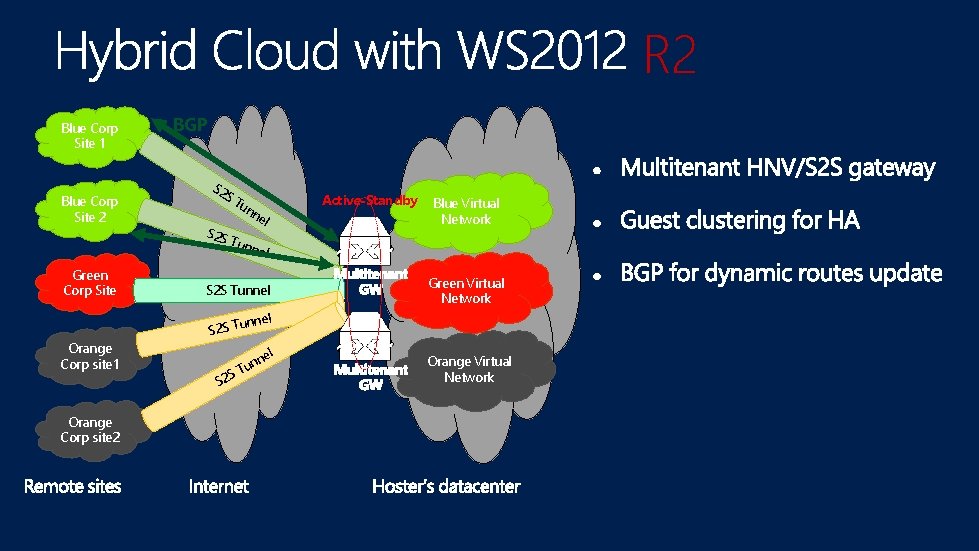

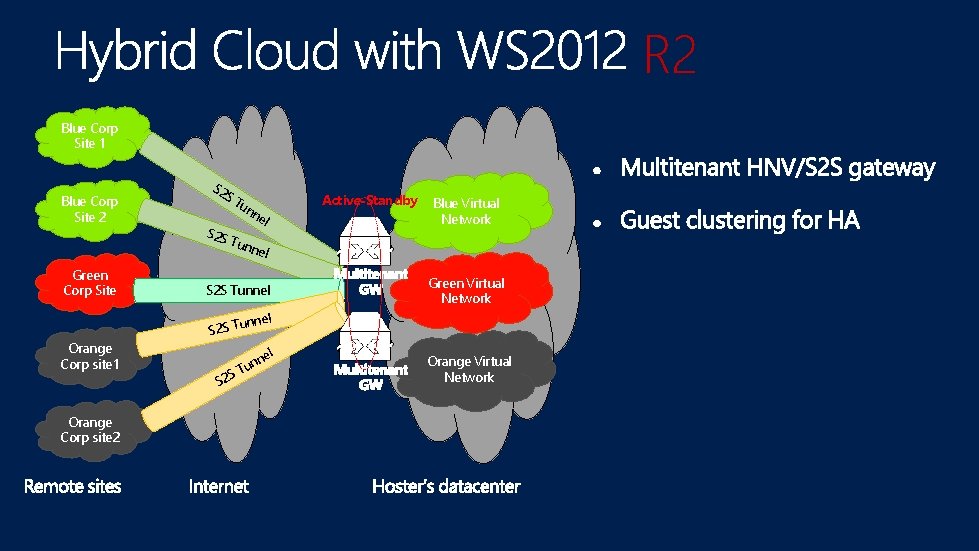

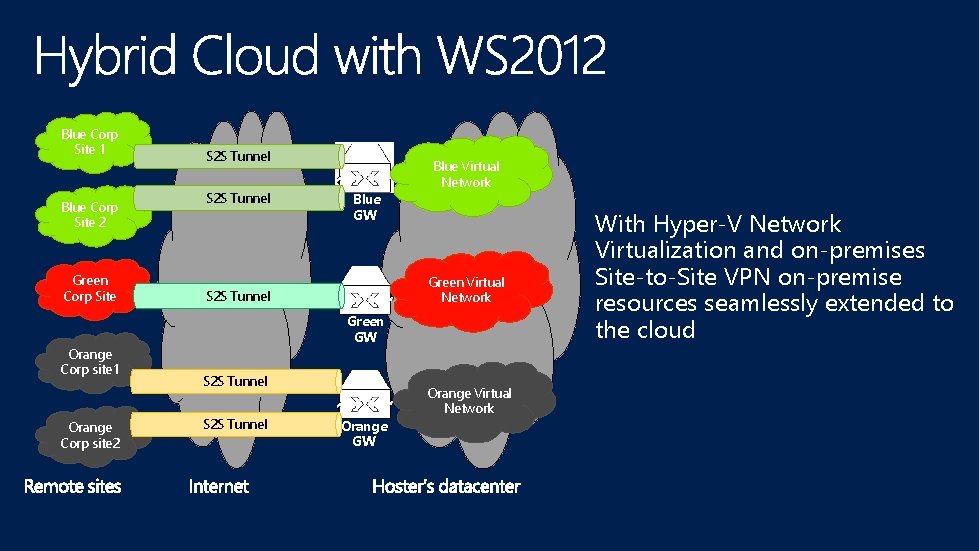

Blue Corp Site 1 Blue Corp Site 2 Green Corp Site Orange Corp site 1 Orange Corp site 2 S 2 S Tunnel Blue GW Blue Virtual Network Green Virtual Network S 2 S Tunnel Green GW S 2 S Tunnel Orange GW Orange Virtual Network With Hyper-V Network Virtualization and on-premises Site-to-Site VPN on-premise resources seamlessly extended to the cloud

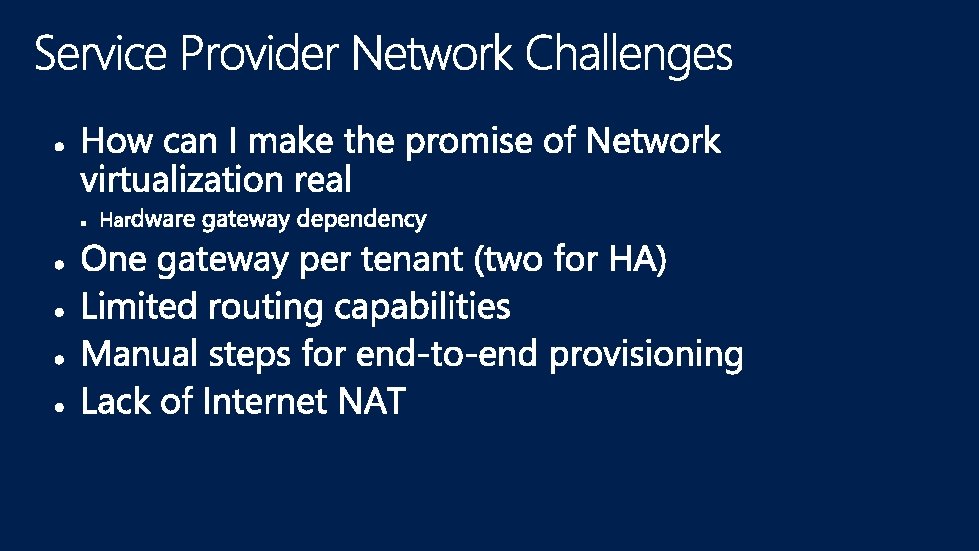

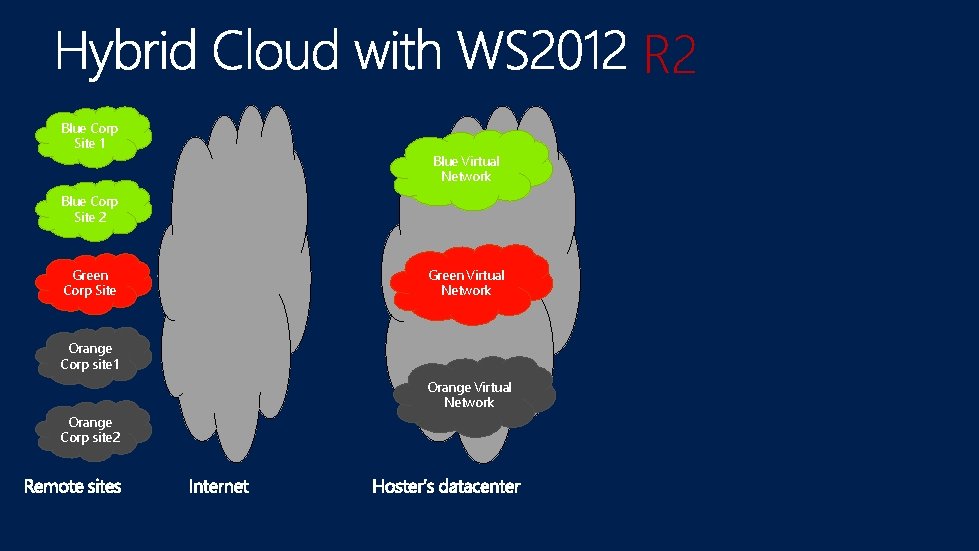

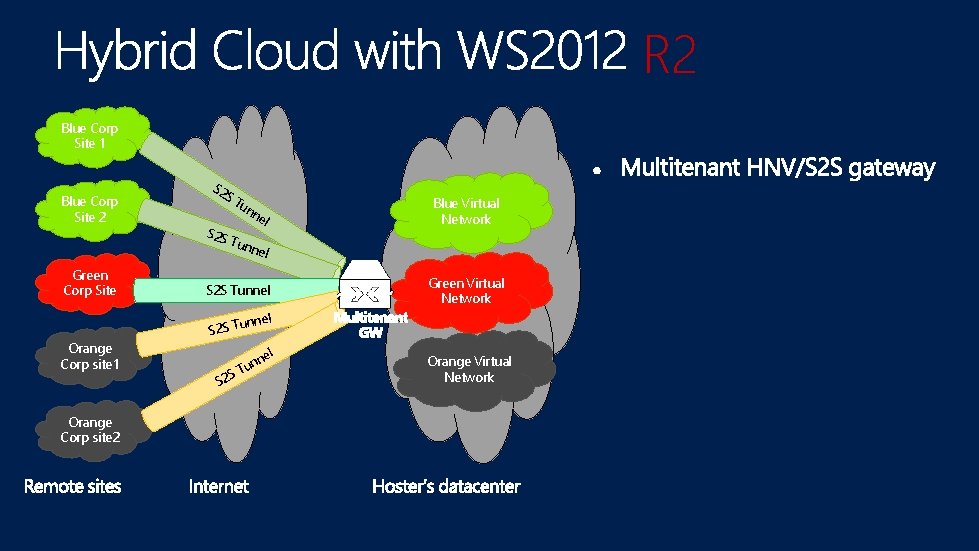

R 2 Blue Corp Site 1 Blue Virtual Network Blue Corp Site 2 Green Corp Site Green Virtual Network Orange Corp site 1 Orange Virtual Network Orange Corp site 2
R 2 Blue Corp Site 1 Blue Corp Site 2 Green Corp Site Orange Corp site 1 Orange Corp site 2 ST un ne l S 2 S Tun nel S 2 S Tunnel Blue Virtual Network Green Virtual Network nnel S 2 S Tu nel n u T S 2 S Orange Virtual Network
R 2 Blue Corp Site 1 Blue Corp Site 2 Green Corp Site Orange Corp site 1 Orange Corp site 2 ST un ne l S 2 S Tun nel S 2 S Tunnel Active-Standby Blue Virtual Network Green Virtual Network nnel S 2 S Tu nel n u T S 2 S Orange Virtual Network
R 2 Blue Corp Site 1 Blue Corp Site 2 Green Corp Site Orange Corp site 1 Orange Corp site 2 BGP S 2 ST un ne l S 2 S Tun nel S 2 S Tunnel Active-Standby Blue Virtual Network Green Virtual Network nnel S 2 S Tu nel n u T S 2 S Orange Virtual Network
R 2 Blue Corp Site 1 Blue Corp Site 2 Green Corp Site Orange Corp site 1 Orange Corp site 2 BGP S 2 ST un ne l S 2 S Tun nel S 2 S Tunnel Active-Standby Blue Virtual Network Green Virtual Network nnel S 2 S Tu nel n u T S 2 S Orange Virtual Network

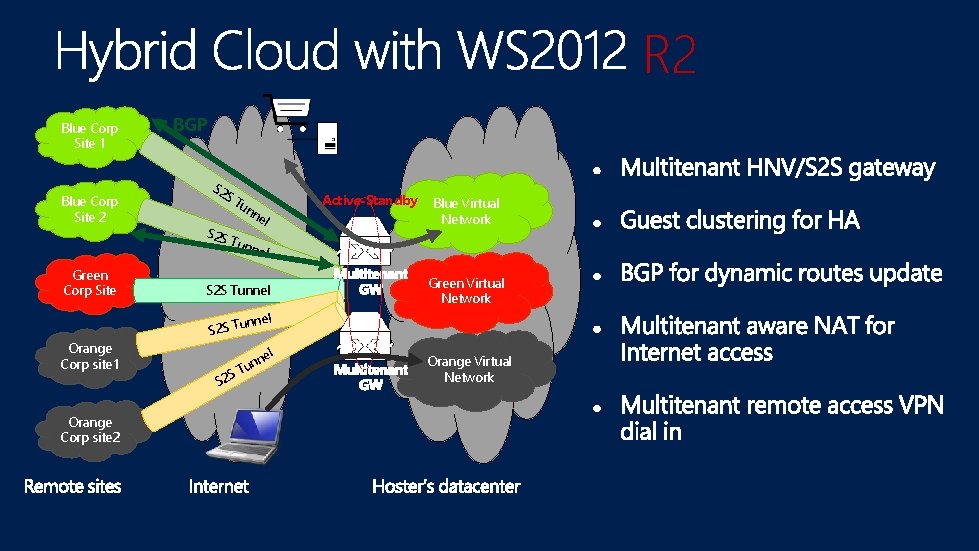

R 2 Blue Corp Site 1 Blue Corp Site 2 Green Corp Site Orange Corp site 1 Orange Corp site 2 BGP S 2 ST un ne l S 2 S Tun nel S 2 S Tunnel Active-Standby Blue Virtual Network Green Virtual Network nnel S 2 S Tu nel n u T S 2 S Orange Virtual Network

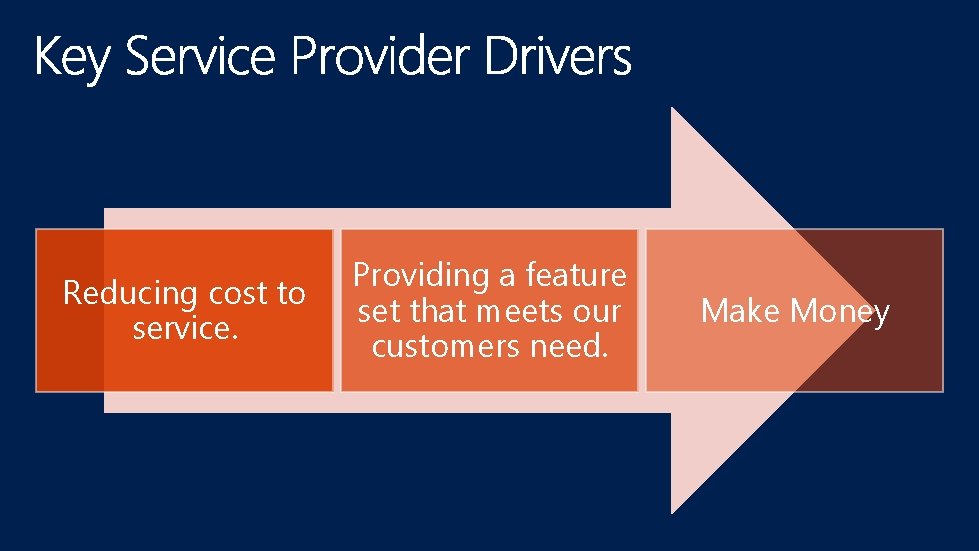

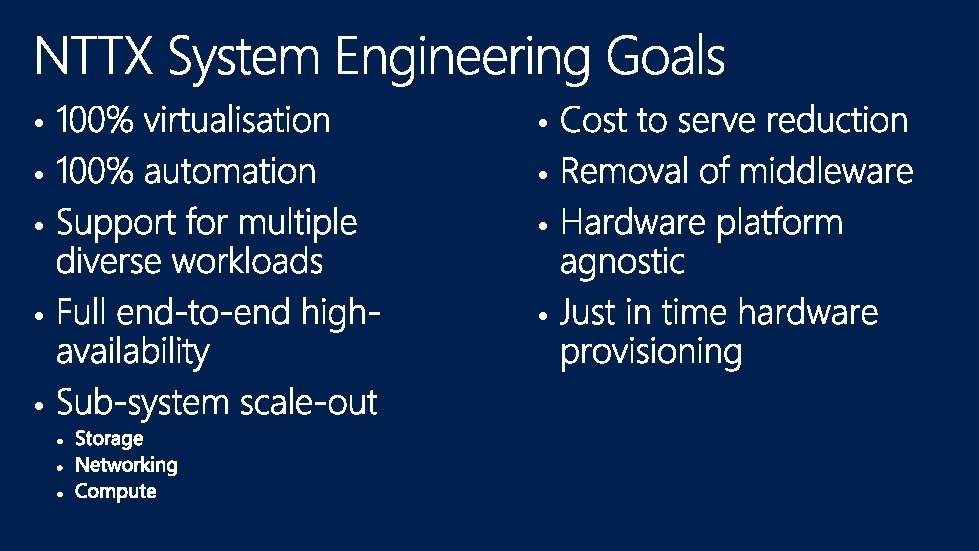

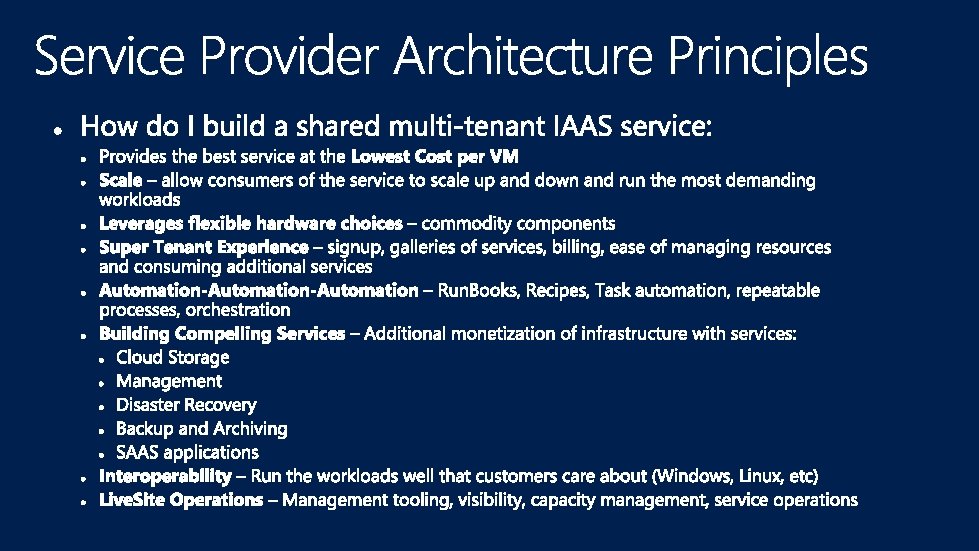

Reducing cost to service. Providing a feature set that meets our customers need. Make Money

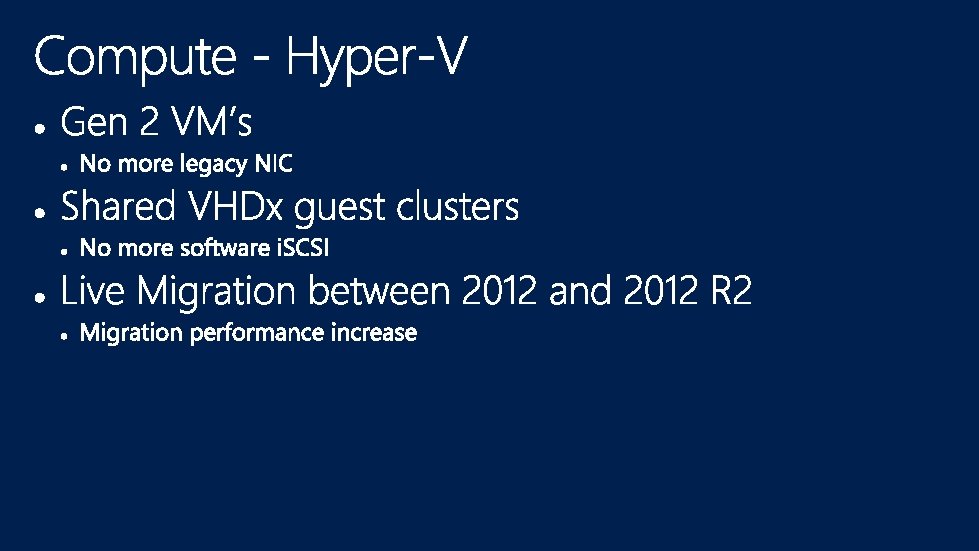

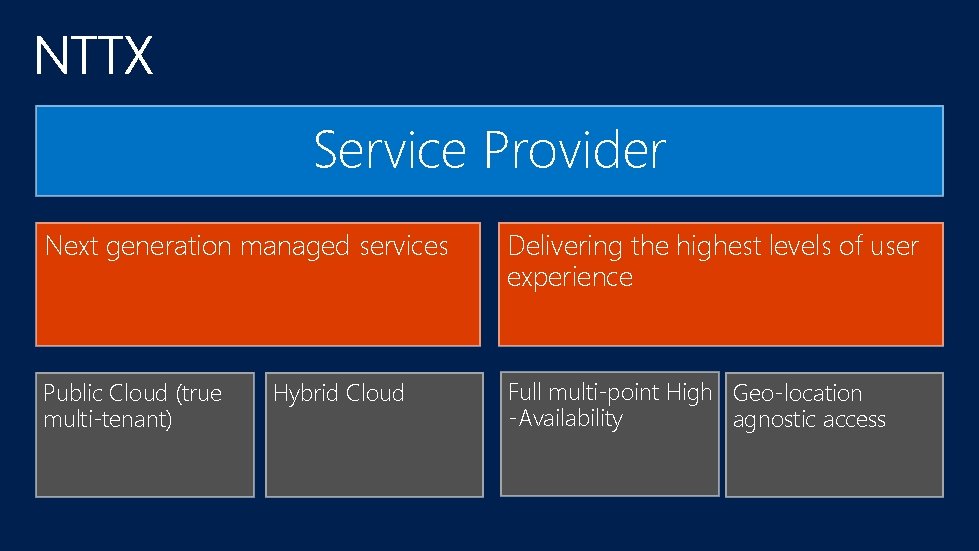

Service Provider Next generation managed services Delivering the highest levels of user experience Public Cloud (true multi-tenant) Full multi-point High Geo-location -Availability agnostic access Hybrid Cloud

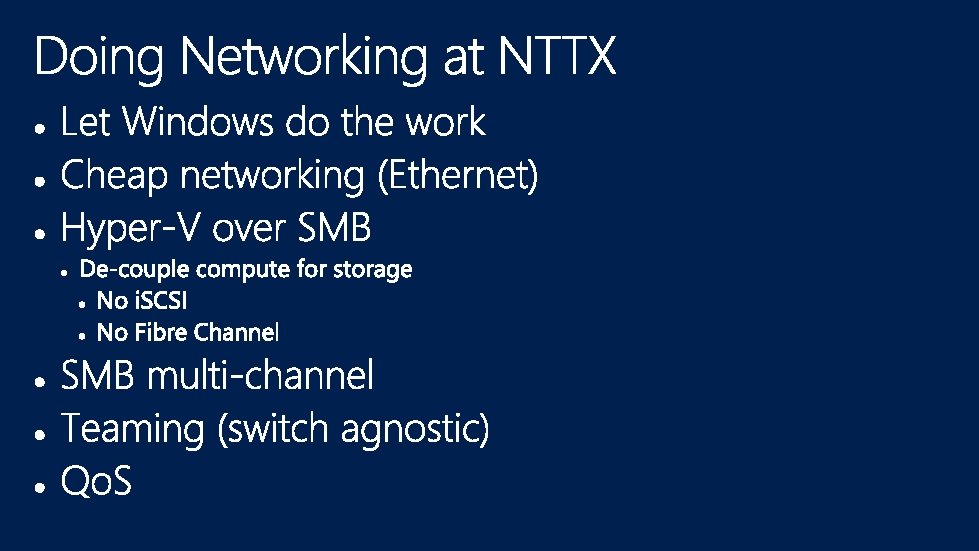

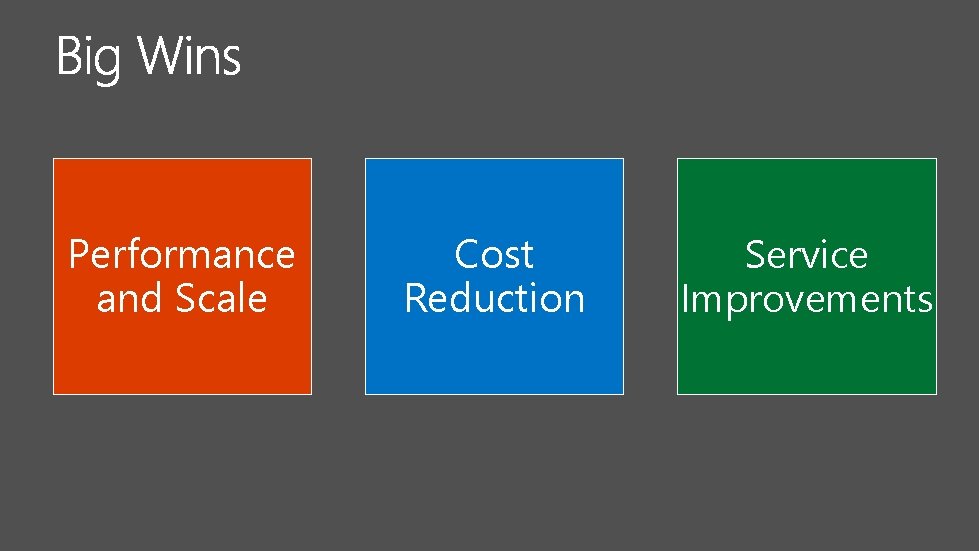

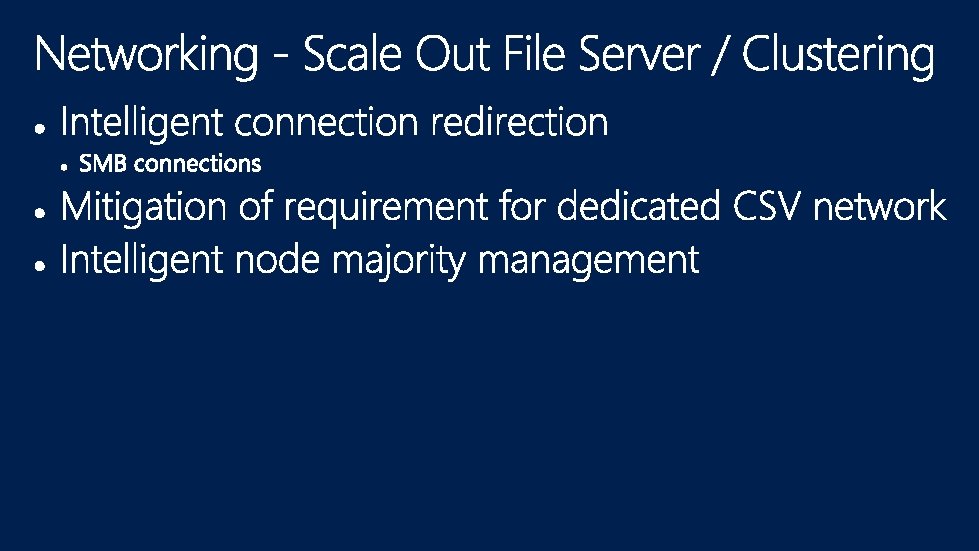

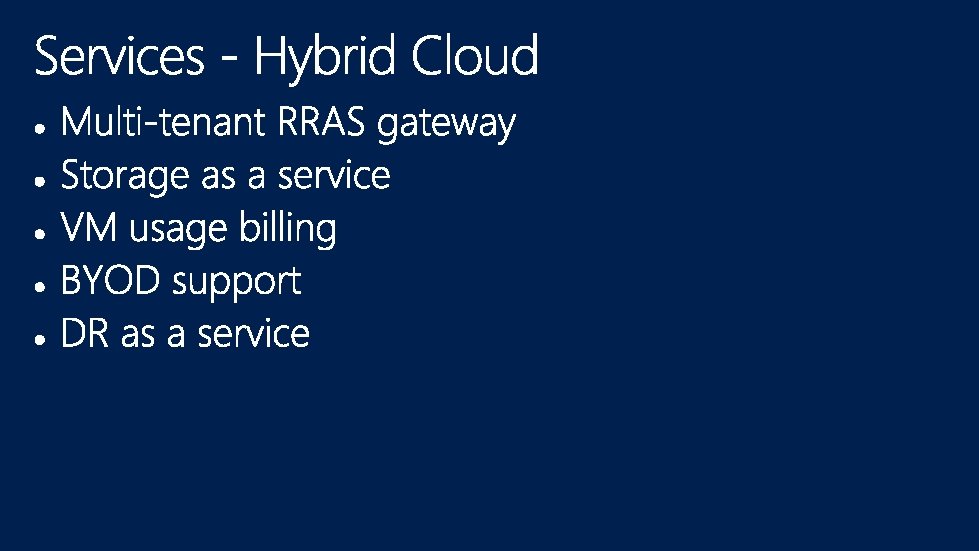

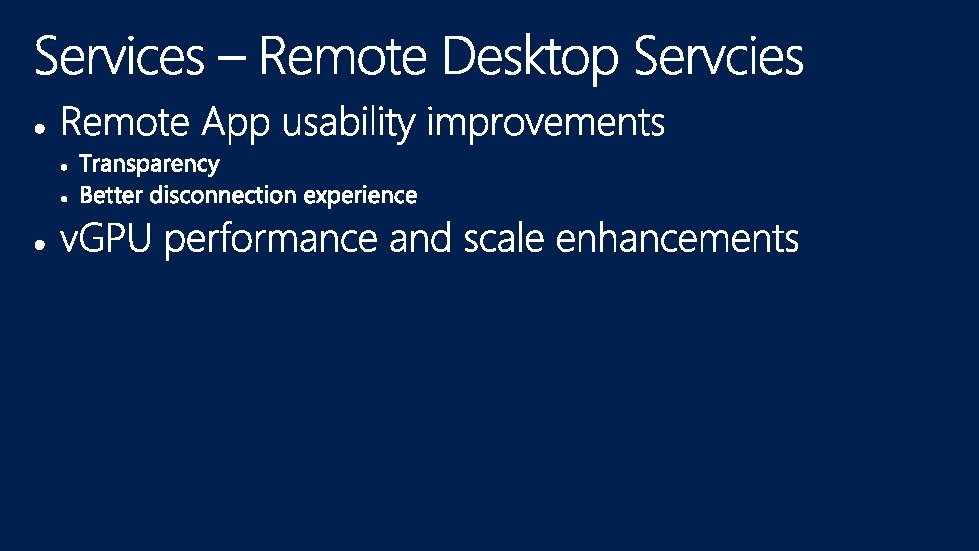

Performance and Scale Cost Reduction Service Improvements

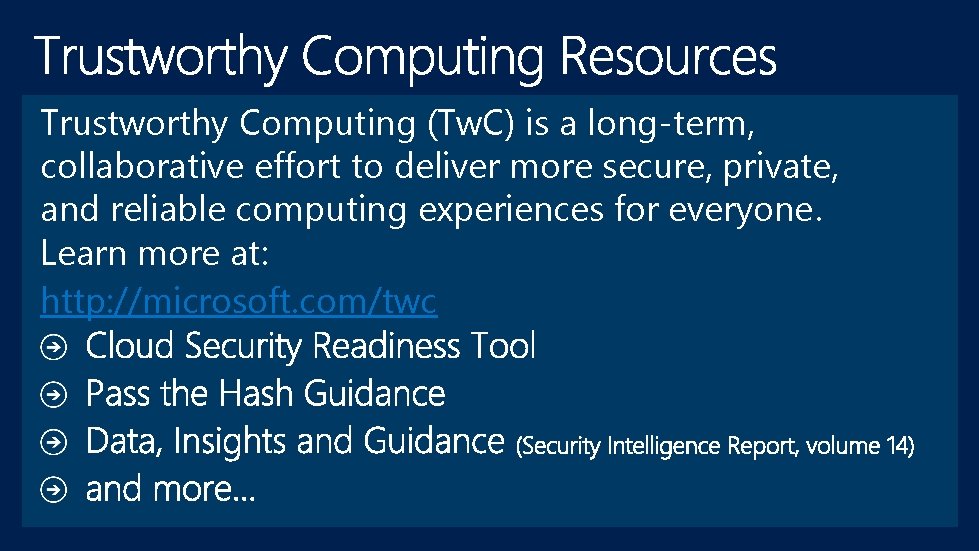

Trustworthy Computing (Tw. C) is a long-term, collaborative effort to deliver more secure, private, and reliable computing experiences for everyone. Learn more at: http: //microsoft. com/twc
http: //channel 9. msdn. com/Events/Tech. Ed www. microsoft. com/learning http: //microsoft. com/technet http: //microsoft. com/msdn
