GSM BASED PATIENT HEALTH MONITORING SYSTEM WHY MONITORING

GSM BASED PATIENT HEALTH MONITORING SYSTEM

WHY MONITORING? “ India has just one doctor for every 1, 700 people” ~ Survey, 2014 § Statistics reveal that every minute a human is losing his/her life across the Globe. § More close in India, everyday many lives are affected by heart attacks and more importantly because the patients did not get timely and proper help. § Majority of ICUs in India are being run as open or semi closed units, with unaccountable custodians.

OBJECTIVES AND APPROACH § To design and develop a reliable, energy efficient patient monitoring system, that is able to send parameters of patient in real time. § It enables the doctors to monitor patient’s health parameters (temperature, heartbeat, position) in real time. § Here the parameters of patient are measured continuously (temperature, heartbeat) and wirelessly transmitted using Zig. Bee. § Any abnormality felt by the patient is indicated by an alarm signal. § This project provides a solution for enhancing the reliability and flexibility by improving the performance and power management of the patient monitoring system.

ALGORITHM 1. Different sensors are connected to the patient’s body at appropriate positions to collect real time data about his health. 2. These data are then compared to standard threshold values to check if the patient is in normal condition. 3. Accordingly, the information about the patient is updated in the database on doctors PC. 4. Continuous monitoring of health parameters of the patient is being achieved by wireless transmission of sensors output through Zig. Bee technology. 5. In case of any emergency condition, an alarm is also sent to the doctor’s mobile in the form of a SMS alert, through GSM modem describing that immediate visit is required by the doctor.

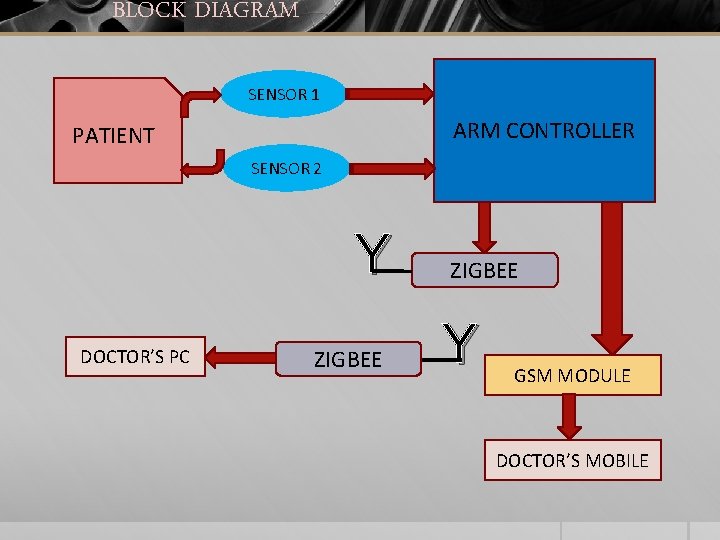

BLOCK DIAGRAM SENSOR 1 ARM CONTROLLER PATIENT SENSOR 2 Y DOCTOR’S PC ZIGBEE Y GSM MODULE DOCTOR’S MOBILE

IMPLEMENTATION 1. ARM PROCESSOR § ARM is a general purpose 32 -bit microprocessor. § The parameters to be monitored are sensed using respective sensor and data is feed to ARM. § This unit is the heart of the complete system. § It will monitor & control all the peripheral devices or components connected in the system

2. HEART SENSOR

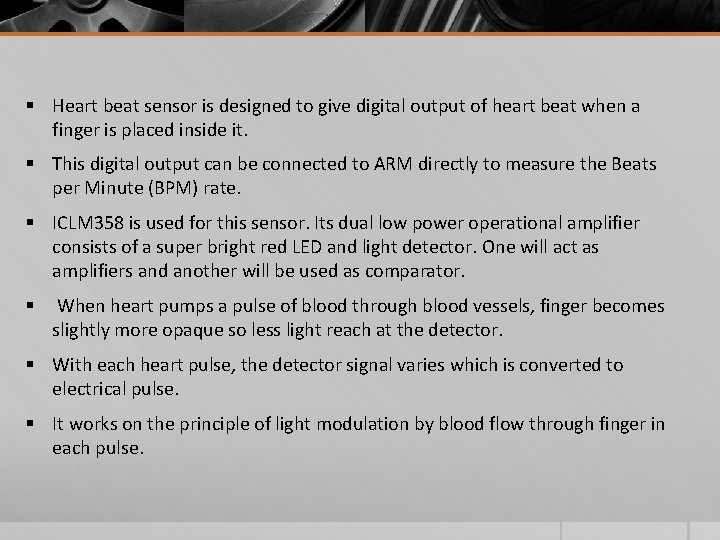

§ Heart beat sensor is designed to give digital output of heart beat when a finger is placed inside it. § This digital output can be connected to ARM directly to measure the Beats per Minute (BPM) rate. § ICLM 358 is used for this sensor. Its dual low power operational amplifier consists of a super bright red LED and light detector. One will act as amplifiers and another will be used as comparator. § When heart pumps a pulse of blood through blood vessels, finger becomes slightly more opaque so less light reach at the detector. § With each heart pulse, the detector signal varies which is converted to electrical pulse. § It works on the principle of light modulation by blood flow through finger in each pulse.

3. TEMPERATURE SENSOR- LM 35 § LM 35 series are precision integration-circuit temperature sensors whose output voltage is linearly proportional to the Celsius temperature. § The LM 35 does not require any external calibration or trimming to provide typical accuracies. § This is three legs IC that directly gives analog output. § This unit requires +5 V DC for it properation.

4. ZIGBEE § Zig. Bee is Wireless Networking Technology and is an established set of specifications for wireless personal area networking (WPAN), i. e. , digital radio connections between computers and related devices. § Data rates of 250 kbps with 10 -100 meter range(@2. 4 Ghz) § Two addressing modes; 16 -bit short and 64 -bit IEEE addressing. § CSMA-CA channel access. § Power management to ensure low power consumption. § 16 channels in the 2. 4 GHz ISM band. § Low latency.

ADVANTAGES § Easy and Reliable for Doctors: Ø In a hospital, either the nurse or the doctor has to move physically from one person to another for health check, which may not be possible to monitor their conditions continuously. Ø Thus any critical situations cannot be found easily unless the nurse or doctor checks the person’s health at that moment. Ø Reduces strain of the doctors who have to take care of a lot number of people in the hospital. § Increase efficiency: Ø The number of nurses required for keeping a check on patients in ICU can be reduced to a large extent. § More Accurate: Ø Chances of human error in checking different health parameters is also reduced, also the database can be updated time to time.

CONCLUSION § From the above designed project we can conclude that we are able to transmit the data which is sensed from remote patient to the doctor’s PC by using wireless transmission technology, Zig. Bee. § This can be of great use in the field of medicine and helps the doctors to keep a keen eye on the patients health. "To get rich never risk your health. For it is the truth that health is the wealth of wealth. “ ~ Richard Baker

REFERENCES 1. Neha Mahajan, K. T. V. Reddy, “Wireless Monitoring of Physiological parameters using Zig. Bee technology, ” in CIT journal of Research, Volume 1, Issue 3, Nov. 2010, Pages: 154 -162. 2. Y. Hao and J. Foster, “Wireless sensor networks for health monitoring applications, ” Physiological Meas. , vol. 29, no. 11, pp. R 27–R 56, 2008. 3. S. Ohta, H. Nakamoto, Y. Shinagawa, and T. Tanikawa, “A Health monitoring system for elderly people living alone, ” J. Telemedicine and Telecare, vol. 8, no. 3, pp. 151– 156, Jun. 2002. 4. N. Hamza, F. Touati, and L. Khriji, “Wireless biomedical system design based on Zig. Bee technology for autonomous healthcare, ” in Proc. Int. Conf. Commun. , Comput. , Power (ICCCP’ 09), Muscat, Feb. 15– 18, 2009, pp. 183– 188.
