GSI Broiler Cage Simple System Simple Operation August
GSI Broiler Cage Simple System, Simple Operation August 2014 Marketing Department

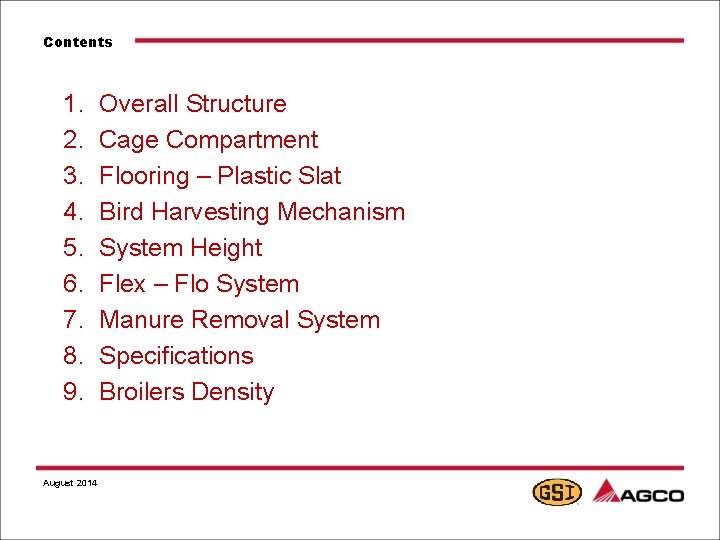

Contents 1. 2. 3. 4. 5. 6. 7. 8. 9. August 2014 Overall Structure Cage Compartment Flooring – Plastic Slat Bird Harvesting Mechanism System Height Flex – Flo System Manure Removal System Specifications Broilers Density
1. Overall Structure August 2014
2. Cage Compartment Adjustable drinking and feeding height August 2014
3. Flooring – Plastic Slat § Sample o Sample § Sample Plastic Flooring Feature: • Made of Polypropylene plastic material. • Better ventilation for higher survival rate. • Symmetrical design. • Easy to manage, remove and sanitize. • Interlock design. Self Locking Design August 2014
4. Broilers Harvesting Mechanism Simple Operation ! “Lift and pull” plastic slat for easy bird harvesting. August 2014 The broilers will drop easily onto the belt and transfer to the end section.

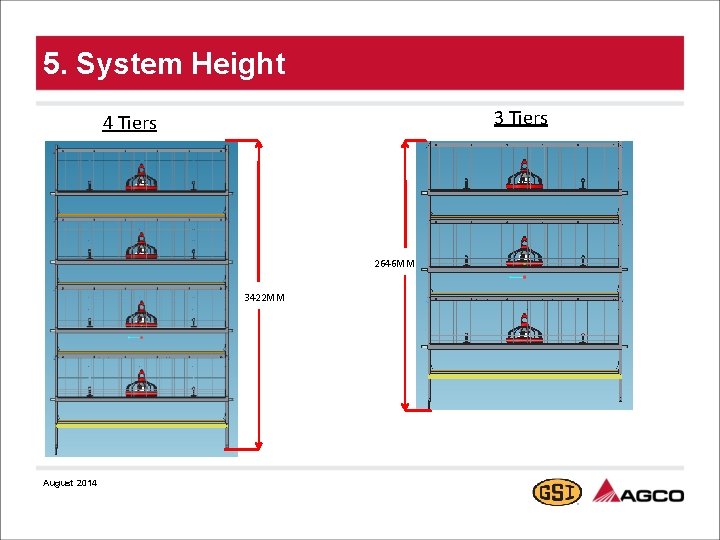

5. System Height 3 Tiers 4 Tiers 2646 MM 3422 MM August 2014
6. Flex – Flo System 4 th Tier 3 rd Tier 2 nd Tier 1 st Tier Actual Arrangement August 2014 • Fair and efficient distribution of feed. • Ensure all birds are adequately fed.
7. Manure Removal System Simple Installation! • Stacked Design of manure & catching belt drive unit for compact packaging and easy for the installation. • Equipped with 0. 75 Kw gear motor for each tier. • Rubber coated, drive roller and press roller. Splice Plate August 2014
8. Specifications B A D August 2014 C Cage Section Width (A) 1750 MM Cage Section Length (B) 2400 MM Compartment Height (C) 530 MM Tier Height (D) 775 MM

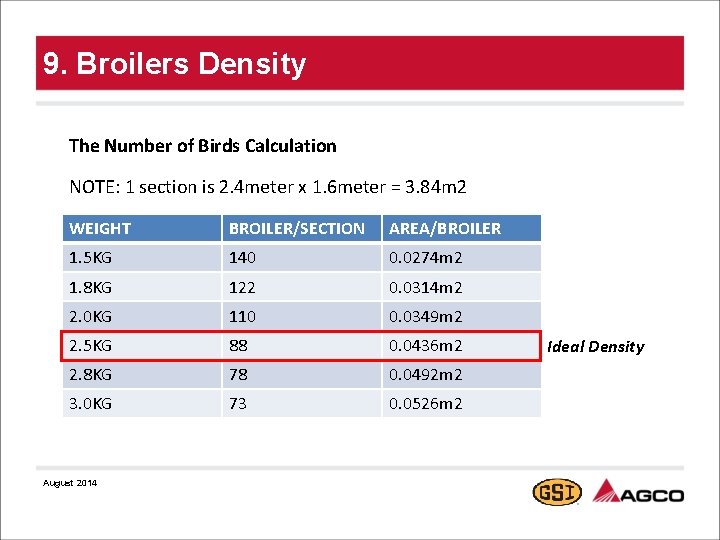

9. Broilers Density The Number of Birds Calculation NOTE: 1 section is 2. 4 meter x 1. 6 meter = 3. 84 m 2 WEIGHT BROILER/SECTION AREA/BROILER 1. 5 KG 140 0. 0274 m 2 1. 8 KG 122 0. 0314 m 2 2. 0 KG 110 0. 0349 m 2 2. 5 KG 88 0. 0436 m 2 2. 8 KG 78 0. 0492 m 2 3. 0 KG 73 0. 0526 m 2 August 2014 Ideal Density
THANK YOU Contact your local dealer or sales representatives today. GSI Tel: +604 508 3319 ( Mon - Fri : 8: 30 am - 5: 30 pm ) Fax: +604 508 4876 Email: customerservice@gsiasia. com. my August 2014
