GSFC/Wallops Flight Facility Small Satellite Opportunities at Wallops Flight Facility Dr. John Campbell Director, Wallops Flight Facility 1
GSFC/Wallops Flight Facility The Small Satellite Paradox Small satellites are not funded (nor built) because of a lack of affordable launch opportunities and Affordable small satellite launch capabilities have been slow to emerge due to a limited market 2
GSFC/Wallops Flight Facility Small Satellite Launch Enablers 1. Low-cost small launch vehicles 2. Inexpensive & responsive launch ranges 3. Ride sharing 3

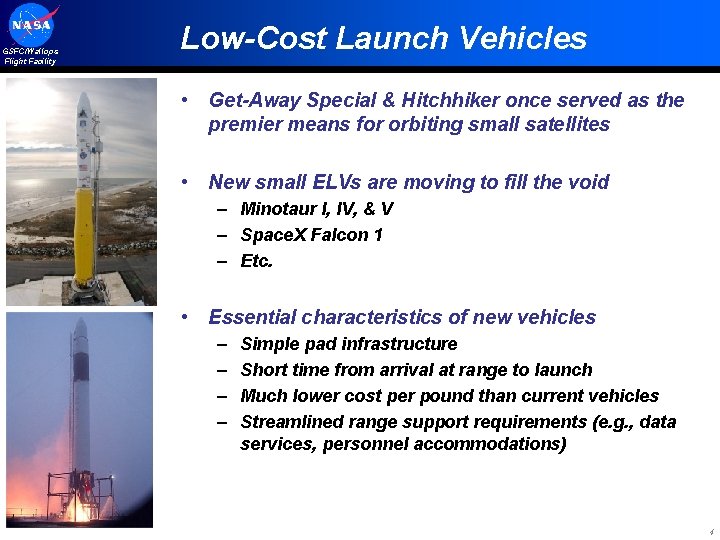

GSFC/Wallops Flight Facility Low-Cost Launch Vehicles • Get-Away Special & Hitchhiker once served as the premier means for orbiting small satellites • New small ELVs are moving to fill the void – Minotaur I, IV, & V – Space. X Falcon 1 – Etc. • Essential characteristics of new vehicles – – Simple pad infrastructure Short time from arrival at range to launch Much lower cost per pound than current vehicles Streamlined range support requirements (e. g. , data services, personnel accommodations) 4

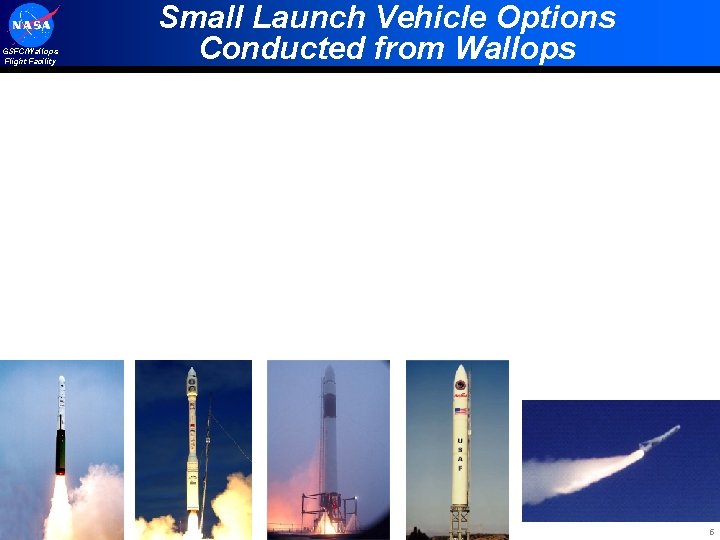

GSFC/Wallops Flight Facility Small Launch Vehicle Options Conducted from Wallops 5
Small Satellites to the Moon GSFC/Wallops Flight Facility • Small ELVs (e. g. , Minotaur V) launched from Wallops can transport 350 -500 kg (payload is ~50%) to the Moon • Can provide low-cost options for Science and Exploration needs – – Remote sensing orbiters Impacters Small landers Communication & navigation orbiters 6
GSFC/Wallops Flight Facility Small Satellite Launch Enablers 1. Low-cost small launch vehicles 2. Inexpensive & responsive launch ranges 3. Ride sharing 7
GSFC/Wallops Flight Facility Launch Site on Wallops Island 8
Mid-Atlantic Regional Spaceport (MARS) GSFC/Wallops Flight Facility • MARS owns 2 launch complexes at Wallops • Used for Wallops small-to-medium class ELV missions • MARS is a VA & MD sponsored partnership with NASA chartered to pursue commercial aerospace opportunities at Wallops • Current agreements enable efficient work with Wallops, using multiple business models: • NASA support of MARS commercial launches • MARS support of NASA’s government launches 9
GSFC/Wallops Flight Facility Wallops Operating Areas • Wallops operational areas offer nearly unlimited mission capabilities – Restricted NASA-controlled airspace encompasses Launch Range & Research Airport – NASA airspace provides direct access to Atlantic Ocean for hazardous mission operations • Wallops location & geography provides the most efficient access to desirable mid-inclination orbits of 3860 degrees 10

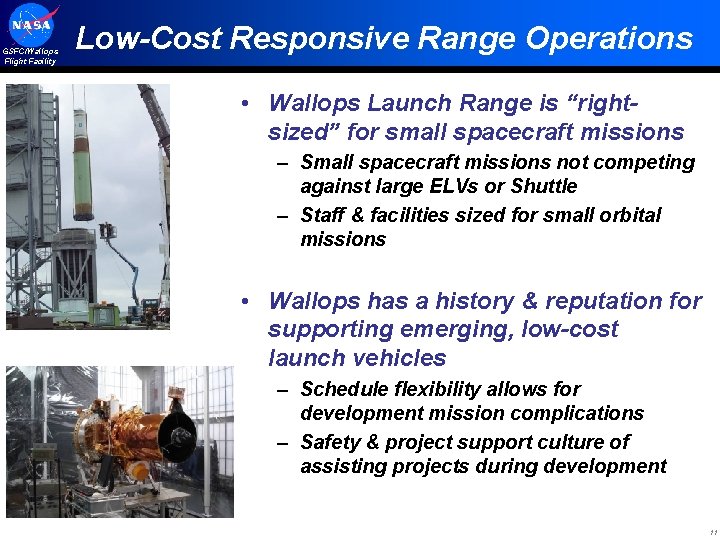

GSFC/Wallops Flight Facility Low-Cost Responsive Range Operations • Wallops Launch Range is “rightsized” for small spacecraft missions – Small spacecraft missions not competing against large ELVs or Shuttle – Staff & facilities sized for small orbital missions • Wallops has a history & reputation for supporting emerging, low-cost launch vehicles – Schedule flexibility allows for development mission complications – Safety & project support culture of assisting projects during development 11

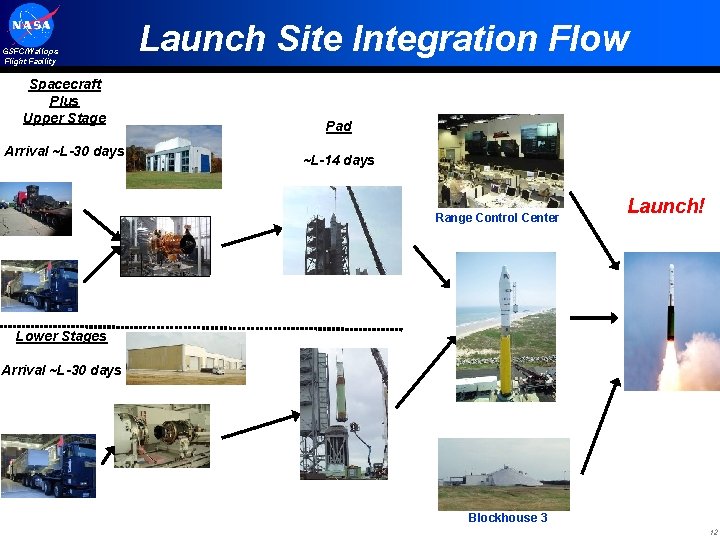

GSFC/Wallops Flight Facility Spacecraft Plus Upper Stage Arrival ~L-30 days Launch Site Integration Flow Pad ~L-14 days Range Control Center Launch! Lower Stages Arrival ~L-30 days Blockhouse 3 12

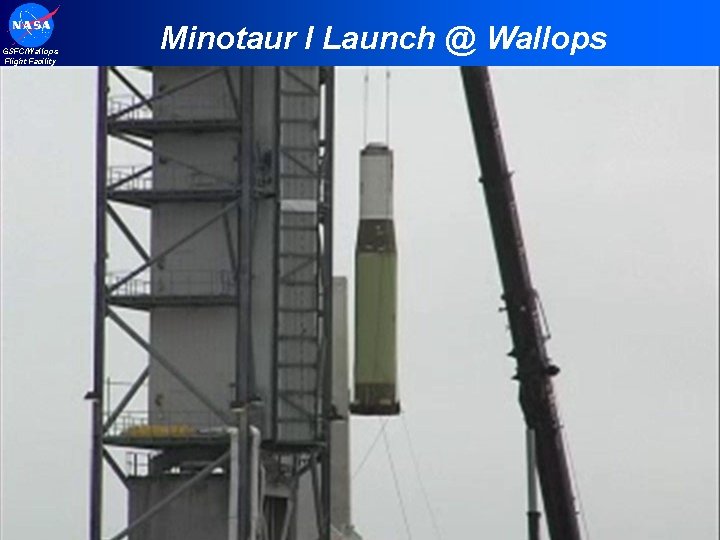

GSFC/Wallops Flight Facility Minotaur I Launch @ Wallops 13

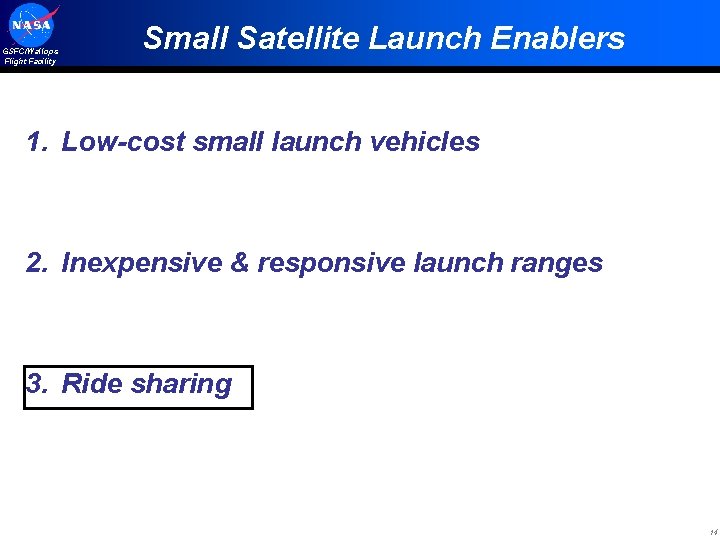

GSFC/Wallops Flight Facility Small Satellite Launch Enablers 1. Low-cost small launch vehicles 2. Inexpensive & responsive launch ranges 3. Ride sharing 14

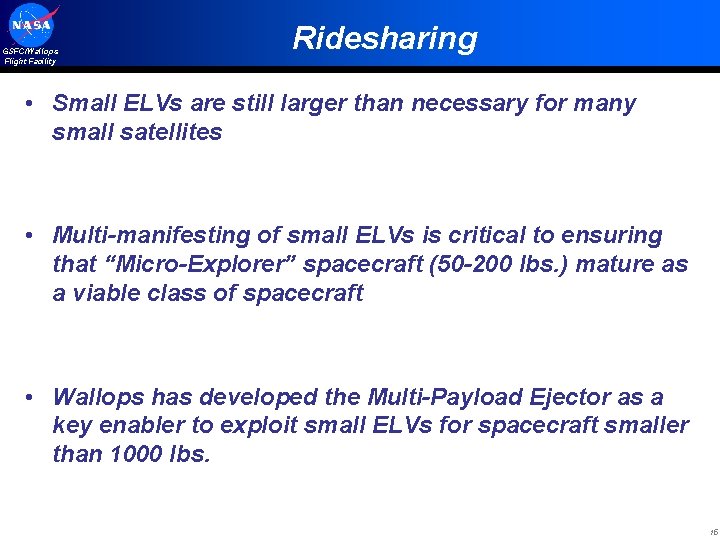

GSFC/Wallops Flight Facility Ridesharing • Small ELVs are still larger than necessary for many small satellites • Multi-manifesting of small ELVs is critical to ensuring that “Micro-Explorer” spacecraft (50 -200 lbs. ) mature as a viable class of spacecraft • Wallops has developed the Multi-Payload Ejector as a key enabler to exploit small ELVs for spacecraft smaller than 1000 lbs. 15
Multi-Payload Ejector GSFC/Wallops Flight Facility • MPE able to carry >800 lbs. of individual spacecraft – 1 primary (up to 200 lbs. ) – 6 secondaries (up to 100 lbs. each) – 12 Cube. Sat tertiaries (up to 3 lbs. each) • Flexible – Configurable for any launch vehicle, as primary for smaller ELV & secondary for larger ELVs – Can be flown as 1, 2, or 3 segments allowing trade-offs on individual spacecraft masses/volume & orbital altitude • Low-cost & simple – – – • Completes payload deployments within ½ orbit Motorized spring deployments (no pyrotechnics) Sounding rocket qualified timers Single input from launch vehicle initiates all MPE events Launch vehicle provides only necessary guidance/control Rapid Integration 16
MPE Integration Flow GSFC/Wallops Flight Facility Spacecraft I&T MPE Integration Vehicle Integration & Test . . . Spacecraft (S/C) Development & Test S/C Arrival @ Wallops S/C Receiving & Inspection T-4 weeks S/C Integration with MPE T-3 weeks MPE Integration with ELV T-2 weeks T-1 week Launch Day 17
GSFC/Wallops Flight Facility MPE Simulation 18

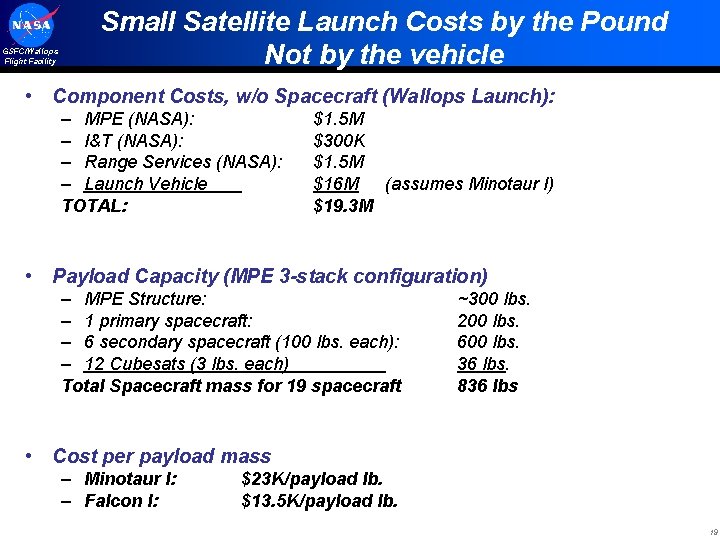

GSFC/Wallops Flight Facility Small Satellite Launch Costs by the Pound Not by the vehicle • Component Costs, w/o Spacecraft (Wallops Launch): – MPE (NASA): – I&T (NASA): – Range Services (NASA): – Launch Vehicle TOTAL: $1. 5 M $300 K $1. 5 M $16 M (assumes Minotaur I) $19. 3 M • Payload Capacity (MPE 3 -stack configuration) – MPE Structure: – 1 primary spacecraft: – 6 secondary spacecraft (100 lbs. each): – 12 Cubesats (3 lbs. each) Total Spacecraft mass for 19 spacecraft ~300 lbs. 200 lbs. 600 lbs. 36 lbs. 836 lbs • Cost per payload mass – Minotaur I: – Falcon I: $23 K/payload lb. $13. 5 K/payload lb. 19
GSFC/Wallops Flight Facility Small Satellite Launch Enablers 1. Low-cost small launch vehicles 2. Inexpensive & responsive launch ranges 3. Ride sharing 20
