GSC 9/Joint_017 a SOURCE: TTA TITLE: Issues for Global Roaming in All IP based Networks AGENDA ITEM: 4. 5 (Joint) CONTACT: Beomjoon Kim, beom@lge. com, +82 -31 -450 -7188, +82 -31 -450 -7912 Issues for Global Roaming in All IP based Networks GSC-9, Seoul 1

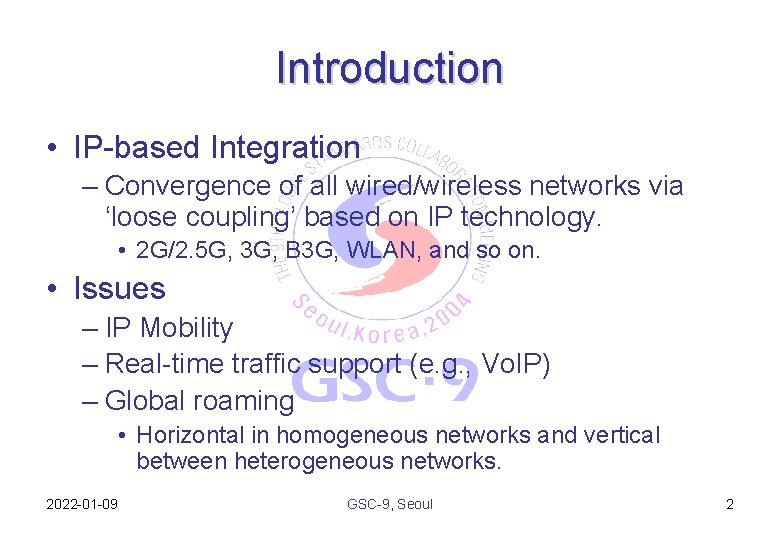

Introduction • IP-based Integration – Convergence of all wired/wireless networks via ‘loose coupling’ based on IP technology. • 2 G/2. 5 G, 3 G, B 3 G, WLAN, and so on. • Issues – IP Mobility – Real-time traffic support (e. g. , Vo. IP) – Global roaming • Horizontal in homogeneous networks and vertical between heterogeneous networks. 2022 -01 -09 GSC-9, Seoul 2

Common Requirements • Non-real-time and real-time services in a single packet-switched network – Vo. IP and IP-based session control (e. g. , SIP) – End-to-end Qo. S with call control • Mobility Management • IP-enable terminal GSC-9, Seoul

Standardization Bodies • Almost all standardization bodies consider ‘a convergence’ on IP-based common platform. IETF IEEE 802. 21 Handoff 2 G/2. 5 G Cellular 3 G (3 GPP, 3 GPP 2) B 3 G-related Bodies (WWRF, m. ITF, WWC, 4 GMF. . ) GSC-9, Seoul WLAN (IEEE 802. 11, Hiper. LAN. . ) WMAN (IEEE 802. 16)

IETF’s Activity • Develops protocols used in IP networks • Activities related to wireless IP – Mobility support in IP networks (e. g. , MIPv 4, MIPv 6) – Multimedia support (Vo. IP, Qo. S control, SIP) – Enhancements to TCP for wireless links • Facilitates interworking and roaming with other IP networks. GSC-9, Seoul

Issues for Discussion (1) • Different scenarios of evolution between existing wireless networks. • For example, each PP adopts two different schemes for mobility management. – GPRS-based (3 GPP) – Mobile IP-based (3 GPP 2) GSC-9, Seoul

Issues for Discussion (2) • Global Roaming – Due to limited capabilities of 2 G and coverage of 3 G, vertical roaming between 2 G and 3 G is expected. – However, there are no criteria for switching back a mobile to the 3 G/2 G network when it has been switched to 2 G/3 G network. 3 G coverage 2 G Coverage GSC-9, Seoul 3 G coverage

Issues for Discussion (3) • Inter-Operability between L 2 related standards and L 3 related standards – IEEE 802. xx focuses on specifying L 2 protocols. – RFCs of IETF focuses on L 3 protocols. • For realizing a convergence based on IP, a sub-layer (e. g. , so-called L 2. 5) may be needed. GSC-9, Seoul

Proposal • It is needed to discuss what the role of the PSOs of GSC is in order to harmonize the global activities toward a common IP-based convergence. PSOs New Body (? ) IETF GSC-9, Seoul Standard bodies (3 GPP/PP 2, IEEE…etc)
