GSBPM GSIM and CSPA Overview Acronyms Background Acronyms
GSBPM, GSIM, and CSPA
Overview • Acronyms • Background
Acronyms • It’s all about acronyms: – UNECE- United Nations Economic Commission for Europe – CES – Conference of European Statisticians – HLG – The High Level Group… – GSBPM – Generic Statistical Business Process Model – GSIM – Generic Statistical Information Model – CSPA – Common Statistical Production Architecture – DDI – Data Documentation Initiative – SDMX – Statistical Data and Metadata Exchange
Organizational Acronyms • UN/ECE – The United Nations Economic Commission for Europe – Based in Geneva (Palais de Nations) – Not strictly European in Scope • CES – The Committee of European Statisticians – Not strictly European in Scope – Coordinates statistical activity among national and supranational statistical agencies • HLG – The High Level Group for the Modernization of Statistical Production and Services – What do you think?
Acronyms for Standards and Models • GSBPM – Generic Statistical Business Process Model – Conceptual process model – Originally produced by the METIS Workshop – Now a product of the HLG (version 5. 0) • GSIM – Generic Statistical Information Model – Conceptual information model – Produced by HLG – Now in version 1. 1 • CSPA – Common Statistical Production Architecture – Shared architecture for interoperable services – Produced by HLG – Now in version 1. 1 • DDI – The Data Documentation Initiative – Implementation model in XML – Produced by the DDI Alliance – Now in version 3. 3 • SDMX – The Statistical Data and Metadata Exchange – Implementation model in UML, XML, and other formats – Produced by the SDMX Initiative – Now in version 2. 1
BACKGROUND
The Perceived Problem • In the age of Google, “Big Data”, and Open Data, statistical agencies fear they may become irrelevant • The demand for data is huge, but traditional statistical production is relatively slow, and very expensive • Budgets are shrinking, but the legal requirements for official data are not changing
Addressing the Problem • The HLG was formed to address this problem • New sources of data – Increased use of registers – Possible use of “big data” • Modernization of statistical production – Based on standard models – Get away from hand-crafted statistics – Emphasis on metadata-driven processes • Shared software – “Plug-and-play” services – Shared architecture
GSBPM
A Reference Model for Process • Over the past few years, the CES community produced a “reference model” describing the statistical production process • GSBPM – the Generic Statistical Business Process Model – Very effective in allowing statistical agencies to describe their processes, and to communicate among themselves – Defines a non-linear process model, with clear terms and definitions
GSBPM
GSBPM Detail • GSBPM 5_0. docx
GSBPM Implementation • More than 50 statistical agencies have implemented GSBPM • Used as the basis for analyzing the processes which are used for statistical production locally • Additions, edits, and deletions are made to the standard GSBPM to produce a national version – For example, The “Norwegian Statistical Business Process Model” • Sequence of steps may be ordered to produce a linear description of processes
Using GSBPM with Other Standards • GSBPM can be implemented directly using DDI XML Lifecycle Events – These link to an external process model – The DDI Alliance has even taken GSBPM and used it to describe longitudinal research: LGBPM • GSBPM can be implemented using the SDMX Process Model – Process Steps link to specific GSBPM steps
Success Leads to Success… • Following the GSBPM model. The HLG decided to create an information model… • GSIM – the Generic Statistical Information Model – One year to produce version 1. 0 in a series of “sprints” – Version 1. 1 delivered December 2013 – A reference model for data and metadata
GSIM
GSIM • Version 1. 0 was organized into four areas:
GSIM History • GSIM first developed in 2012 through a series of 2 -week “Sprints” – Development timeline was a year – 3 sprints: Slovenia, South Korea, Netherlands – Lots of conference calls – Produced GSIM 1. 0 in December 2012 • GSIM was revised in 2013 – 1 -year timeline – Conference calls and sprint in Geneva at UN/ECE – Produced GSIM 1. 1 in December 2013

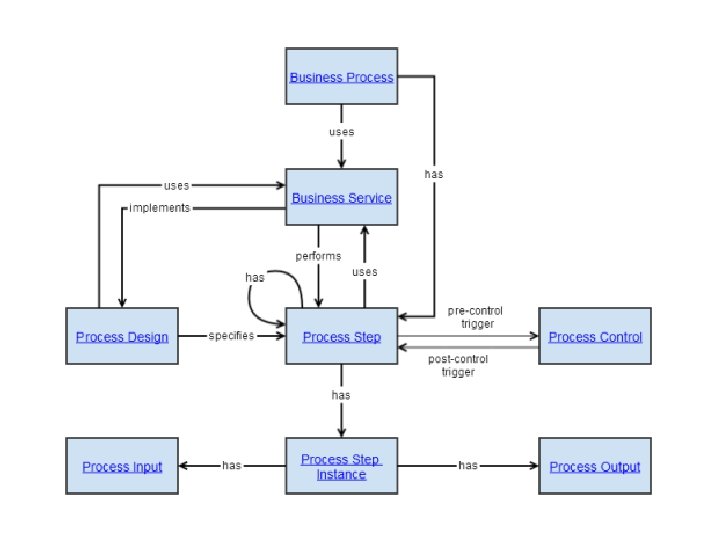

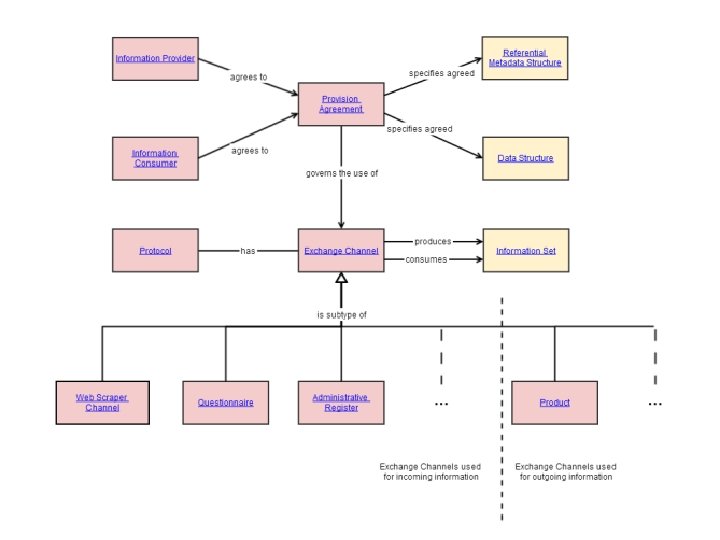

Version 1. 1 • Version 1. 1 re-organized and simplified the model: – Task-based models • • Identifying statistical needs Managing statistical programs Designing and running statistical processes Collecting, processing, and disseminating statistical information – “Foundational” information • Concepts, populations, codelists and classifications, variables, data sets, quality metadata • Neuchatel Classification model is now part of GSIM • DDI 4 is aligning with the GSIM model – Some parts of DDI 3. 2 and 3. 3 were influenced by GSIM
Aligning with GSBPM • GSIM models all of the information needed for the statistical production process • It therefore provides full support for GSBPM • It does not require the use of GSBPM – It can function as a stand-alone model or with any business process model
“Full” GSIM Model
Resources • There is an easy-to-use “Clickable GSIM” available on the UN/ECE site: – http: //www 1. unece. org/stat/platform/display/GSI Mclick/Clickable+GSIM – Users can add “views” • Specification is available • Includes some profiles of DDI for implementing GSIM (more to come)
RAIRD: An Example of a GSIM Implementation
CSPA
Statistical Architecture • To increase efficiency, statistical agencies want to share IT development resources by sharing services • CSPA – Common Statistical Production Architecture – “Plug and play” services using standard interfaces – Standard architecture model was developed – CSPA Services Catalog has been developed
Services today are hard to share and reuse! Proc ess Anal yse Disse mina te Sweden Canada Coll ect ? ?
…but if statistical organisations work together?
This makes it easier to share and reuse! Proc ess Analy se Disse minat e Sweden Canada Colle ct ? ?
CSPA: Three Major Parts • CSPA Architecture – Now in version 1. 1 • CSPA Services – Produced by many different countries – Same service shared/implemented by multiple stats agencies (“plug and play”) • CSPA Services Catalog – So agencies can see what services are being developed using the CSPA architecture
Three Levels of Abstraction
CSPA Architecture • Very much a “service-oriented architecture” (SOA) – Individual pieces of application functionality implemented as services – Services are loosely coupled – Functionality uses GSBPM to describe what functions a service performs – Interfaces (inputs, outputs) are described using GSIM
CSPA is Platform-Independent • Like many SOA architectures, CSPA is intended to work for any technology platform • Standard interfaces implemented in platformindependent syntaxes (XML, JSON) • Communications between services are handled by the implementing agency omn whatever platform they choose – Windows, Linux, Mac, etc.
Services and Communication Platform
CSPA Services Development • 2013 – Initial year-long proof of concept • 2014 – Year-long production prototyping • 2015 – Initial full production services development • CSPA is developed using the same “sprint” mechanism as GSIM – 1 or 2 -week meetings, with delivery at the end of the year
Roles for Developing CSPA Services
CSPA Proof of Concept • A number of shared services were developed in 2013 – Based on DDI interfaces – “Wrapping” existing production processes • The POC was a success! – Proved the idea is feasible – Feedback to DDI is being incorporated into the DDI 4 development
Prototyping • More complete services were developed • Feedback from 2013 incorporated into a revised CSPA architecture • Provided additional confidence in the idea • Initial services catalog was developed
Looking Forward • HLG has now focused on two areas: – Big Data (from a statistical office perspective) – More CSPA services • Several are now being developed, based not only on DDI but also on SDMX • Emphasis is on production • DDI-related work is now being coordinated by the Modernization Committee on Standards – Emphasis is placed on having standard profiles and mappings from GSIM to DDI – Work now being organized for 2014 – DDI Alliance is represented on this committee • CSPA is also working on a GSIM-based implementation model
CSPA Services Catalog - Layers
The Catalogue • http: //www 1. unece. org/stat/platform/display /CSPA+Global+Artefacts+Catalogue
Questions?
