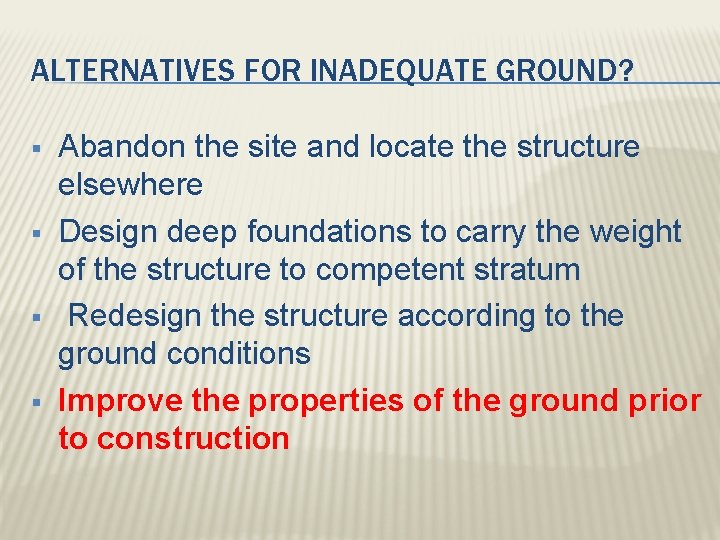

ALTERNATIVES FOR INADEQUATE GROUND? § § Abandon the site and locate the structure elsewhere Design deep foundations to carry the weight of the structure to competent stratum Redesign the structure according to the ground conditions Improve the properties of the ground prior to construction

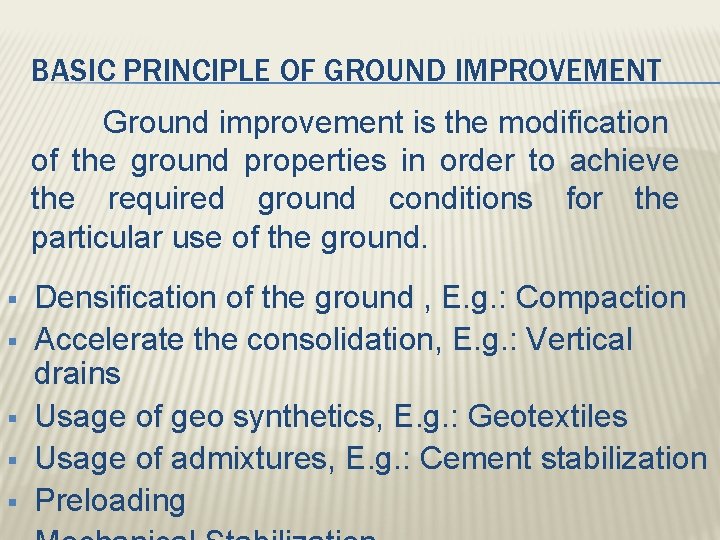

BASIC PRINCIPLE OF GROUND IMPROVEMENT Ground improvement is the modification of the ground properties in order to achieve the required ground conditions for the particular use of the ground. § § § Densification of the ground , E. g. : Compaction Accelerate the consolidation, E. g. : Vertical drains Usage of geo synthetics, E. g. : Geotextiles Usage of admixtures, E. g. : Cement stabilization Preloading

BAND DRAIN TECHNOLOGY

BAND DRAIN TECHNOLOGY - PVD § § § Used in loose, compressible and water saturated clay and silty clays. Soils are characterized by very loose skeleton and a large pore sizes filled with water Requires about ten or more years to consolidate on preload. PVD – Prefabricated Vertical Drain.

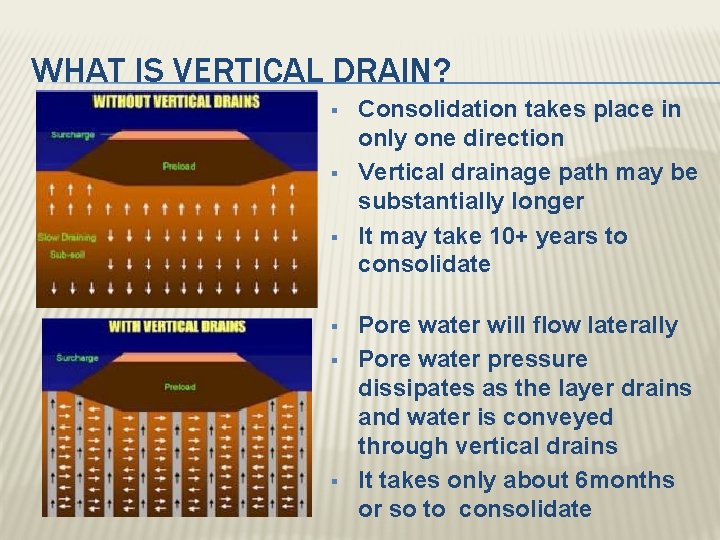

WHAT IS VERTICAL DRAIN? § § § Consolidation takes place in only one direction Vertical drainage path may be substantially longer It may take 10+ years to consolidate Pore water will flow laterally Pore water pressure dissipates as the layer drains and water is conveyed through vertical drains It takes only about 6 months or so to consolidate

COMPONENTS OF PVD? § § Core : It is called drained body corrugated, flexible and made of polypropylene, designed to provide high discharge capacity, high tensile and compressive strength. Filter Jacket: Non – woven , thermically bonded polypropylene wrapped around the core. Acts as the filter to allow ground water to the core. Filter

ADVANTAGES OF BAND DRAIN TECHNOLOGY: § § § Minimum disturbance to the soil layers during installation High water discharge capacity High tensile strength prevents the collapse of flow path. Fast and easy installation Deep installation up to 40 m.

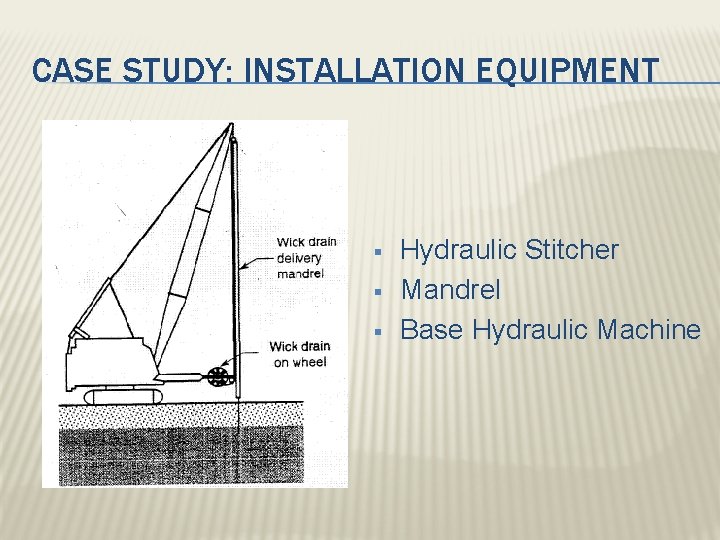

CASE STUDY: INSTALLATION EQUIPMENT § § § Hydraulic Stitcher Mandrel Base Hydraulic Machine

CASE STUDY: BAND DRAIN INSTALLATION

CASE STUDY: BAND DRAIN INSTALLATION

CASE STUDY: BAND DRAIN TECHNOLOGY After the installation of band drains, Casagrande peizometer and plate type settlement recorders where installed in order to check the settlements
