Ground Based LISP (GBL) IETF 100, Singapore draft-haindl-ground-lisp-atn November, 2017
Background • Use of LISP to address the requirements of the worldwide Aeronautical Telecommunications Network with Internet Protocol Services (ATN/IPS) • International Civil Aviation Organization (ICAO) is proposing to replace existing services with an IPv 6 based infrastructure for Air Traffic Management (ATM). • ATN/IPS handles Air Traffic Controllers (ATC) and Airline Operation Controllers (AOC) • draft-haindl-ground-lisp-atn was presented at the ICAO IPS Mobility Sub-Group • Builds on mechanisms defined in draft-ietf-lisp-eid-mobility

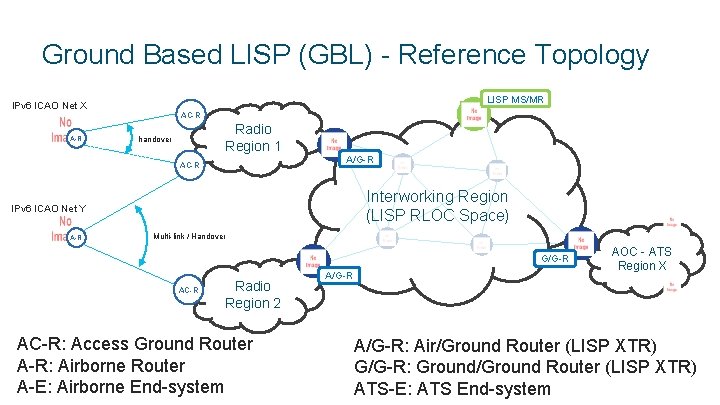

Ground Based LISP (GBL) - Reference Topology LISP MS/MR IPv 6 ICAO Net X A-R AC-R Radio Region 1 handover AC-R A/G-R Interworking Region (LISP RLOC Space) IPv 6 ICAO Net Y A-R Multi-link / Handover G/G-R AC-R Radio Region 2 AC-R: Access Ground Router A-R: Airborne Router A-E: Airborne End-system A/G-R AOC - ATS Region X A/G-R: Air/Ground Router (LISP XTR) G/G-R: Ground/Ground Router (LISP XTR) ATS-E: ATS End-system
Aircraft registration and ground-to-air traffic Aircraft attaches to one or more A/G Networks A/G Network advertises reachability of the aircraft delegated prefix (EID) A-R Each A/G-R has RLOC address AC-R Radio Region 1 LISP MS/MR A/G-R IPv 6 ICAO Net X Aircraft preference and link Qo. S can be signalled over A/G Network (region 2 preferred) Mapping Server maintains RLOC-EID mapping AC-R Radio Region 2 A/G-R Interworking Region Traffic tunnelled over Internetwork (LISP RLOC Space) G/G-R AC-R Radio Region 3 A/G-R G/G-R needs to query which RLOC(s) serve destination EID AOC - ATS Region X
Default Forwarding Path LISP MS/MR + RTR IPv 6 ICAO Net X AC-R Radio Region 1 A-R AC-R Default Forwarding Nodes (RTR) may be separate from MS/MR Map-request/reply A/G-R Interworking Region (LISP RLOC Space) IPv 6 ICAO Net Y A-R G/G-R AC-R Radio Region 2 A/G-R AOC - ATS Region X Forwarding path before Map Resolution is complete
Optimized Multi-link mobility (1) LISP MS/MR IPv 6 ICAO Net X G/G-R-X is subscribed to Net. Y AC-R Radio Region 1 A-R AC-R A/G-R 1 Map-request + subscribe Map-reply Interworking Region (LISP RLOC Space) IPv 6 ICAO Net Y A-R G/G-R X AC-R Radio Region 2 A/G-R 2 AOC - ATS Region X Forwarding path via best metric
Optimized Multi-link mobility (2) G/G-R-X is subscribed to Net. Y IPv 6 ICAO Net X AC-R Advertise Net-Y with better metric LISP MS/MR Radio Region 1 A-R Map-Notify Regional Peers A/G-R 1 AC-R Map-Notify Subscribers Interworking Region (LISP RLOC Space) IPv 6 ICAO Net Y A-R G/G-R X AC-R Advertise Net-Y with poorer metric Radio Region 2 A/G-R 2 AOC - ATS Region X Forwarding path via best metric Better metric pushed to subscribers Regional Peers are notified Only subscribers and regional peers are updated

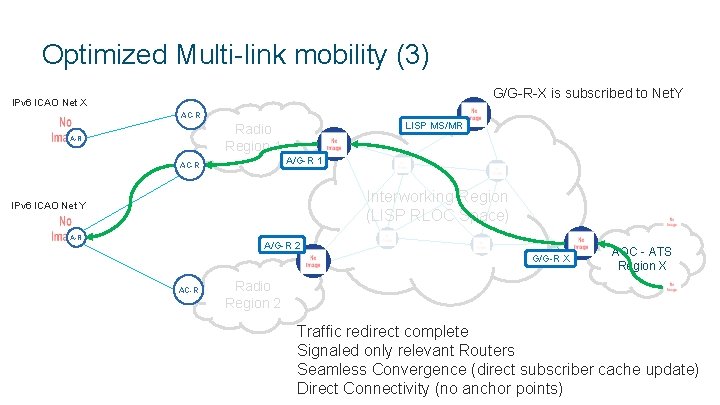

Optimized Multi-link mobility (3) G/G-R-X is subscribed to Net. Y IPv 6 ICAO Net X AC-R LISP MS/MR Radio Region 1 A-R A/G-R 1 AC-R Interworking Region (LISP RLOC Space) IPv 6 ICAO Net Y A-R A/G-R 2 G/G-R X AC-R AOC - ATS Region X Radio Region 2 Traffic redirect complete Signaled only relevant Routers Seamless Convergence (direct subscriber cache update) Direct Connectivity (no anchor points)
High Availability • Resilient Map-Servers based on parallel registrations • Resilient G/G and A/G Routers • Mobility without anchor points mobile end-point fate from anchor point • Leverage underlay multi-pathing LISP MS/MR G/G-R X 1 A/G-R 2 A IPv 6 ICAO Net Y A-R AC-R Radio Region 2 Interworking Region (LISP RLOC Space) G/G-R X 2 A/G-R 2 B AOC - ATS Region X
Security • Control Plane message exchange can be secured as specified in ietflisp-sec • Data Plane traffic may be secured as specified in RFC 8061 • Do. S Mitigation: Control Plane rate limiting • Covering prefix calculation for offload of requests • Scoping of IP addresses to regions (domestic aircraft) •
Next Steps • Looking for comments from LISP WG
