Gross Morphology of Permanent Tooth DR SUMAIYA SHARMIN

  • Slides: 13
Download presentation
Gross Morphology of Permanent Tooth DR. SUMAIYA SHARMIN ORAL AND DENTAL SURGEON, DR M

Gross Morphology of Permanent Tooth DR. SUMAIYA SHARMIN ORAL AND DENTAL SURGEON, DR M R KHAN SHISHU HOSPITAL AND INSTITUTE OF CHILD HEALTH Lecture 03 Gross Morphology of Permanent Tooth 1

Previously we have learned In thisabout lecture we will start learning to Basic Anatomicalidentify

Previously we have learned In thisabout lecture we will start learning to Basic Anatomicalidentify tooth. Structures. 2

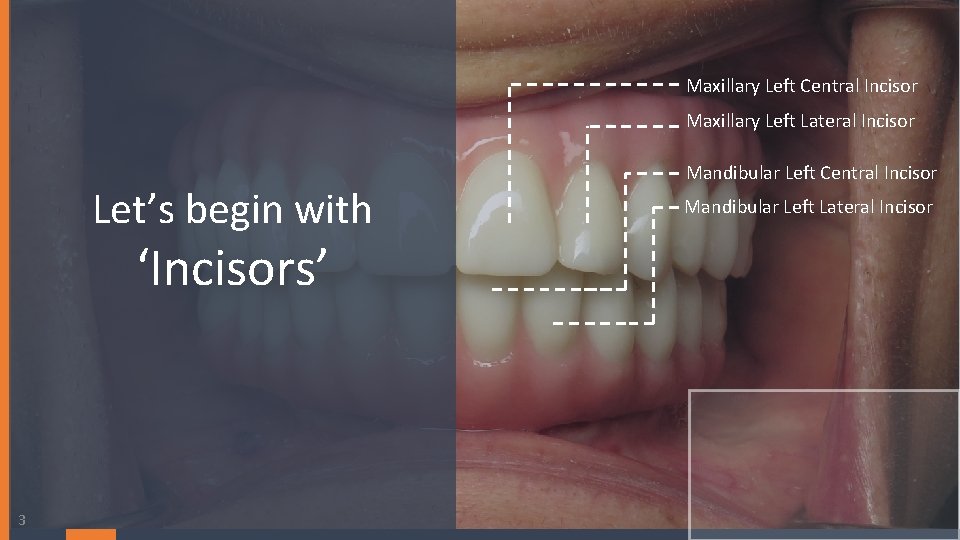

Maxillary Left Central Incisor Maxillary Left Lateral Incisor Let’s begin with ‘Incisors’ 3 Mandibular

Maxillary Left Central Incisor Maxillary Left Lateral Incisor Let’s begin with ‘Incisors’ 3 Mandibular Left Central Incisor Mandibular Left Lateral Incisor

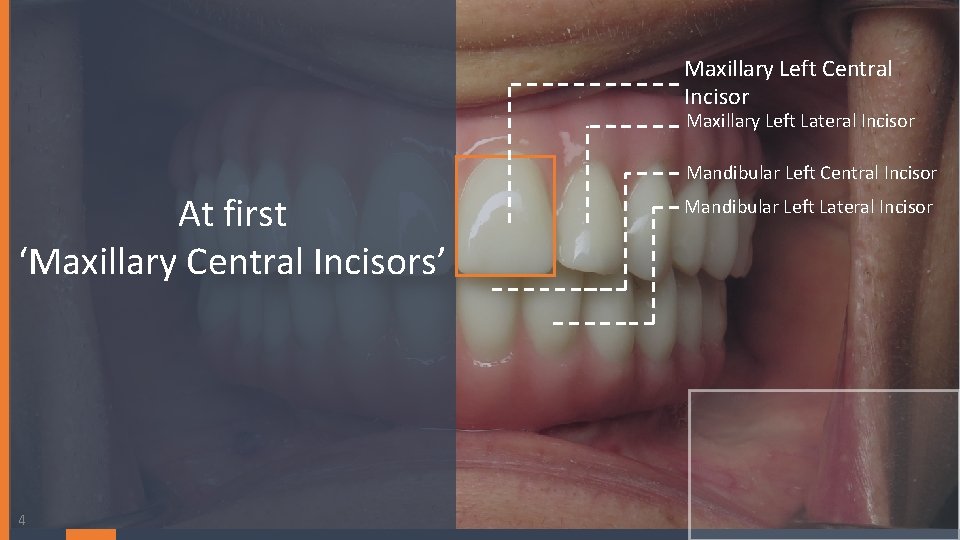

Maxillary Left Central Incisor Maxillary Left Lateral Incisor Mandibular Left Central Incisor At first

Maxillary Left Central Incisor Maxillary Left Lateral Incisor Mandibular Left Central Incisor At first ‘Maxillary Central Incisors’ 4 Mandibular Left Lateral Incisor

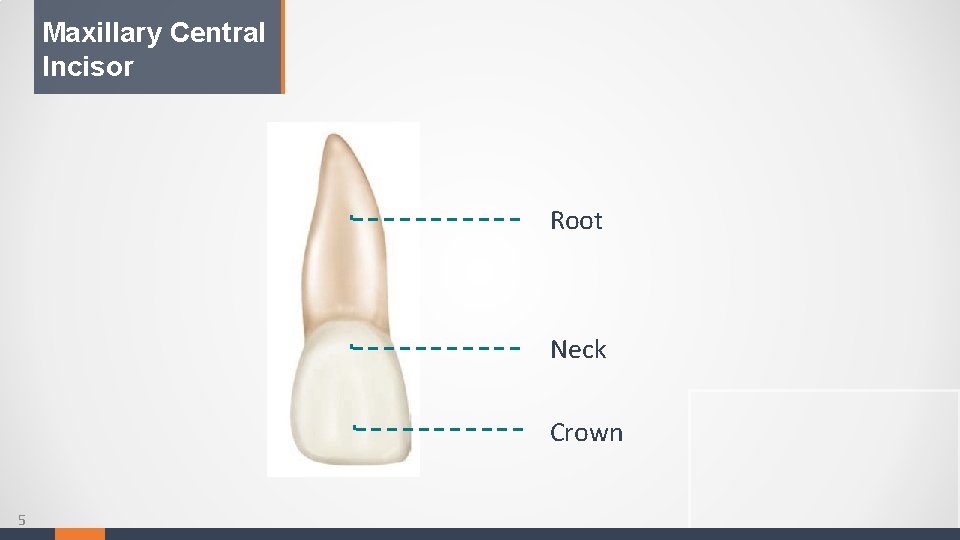

Maxillary Central Incisor Root Neck Crown 5

Maxillary Central Incisor Root Neck Crown 5

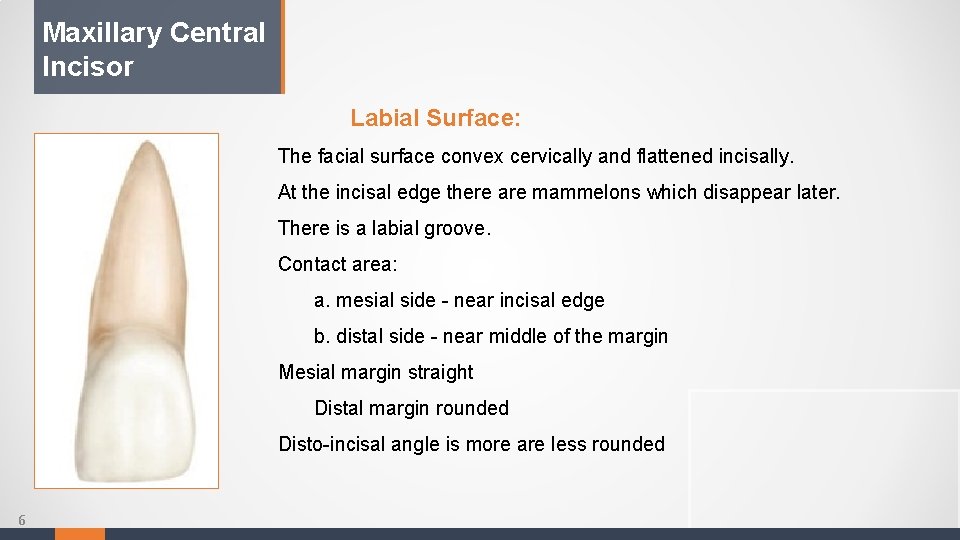

Maxillary Central Incisor Labial Surface: The facial surface convex cervically and flattened incisally. At

Maxillary Central Incisor Labial Surface: The facial surface convex cervically and flattened incisally. At the incisal edge there are mammelons which disappear later. There is a labial groove. Contact area: a. mesial side - near incisal edge b. distal side - near middle of the margin Mesial margin straight Distal margin rounded Disto-incisal angle is more are less rounded 6

Maxillary Central Incisor Lingual surface Crown profile almost of labial surface. 1. Lingual fossa

Maxillary Central Incisor Lingual surface Crown profile almost of labial surface. 1. Lingual fossa present & is a broad depression on central portion. 2. Cingulum present on cervical side. 3. 2 marginal ridge 4. Mesial marginal ridge (MMR) 5. Distal marginal ridge (DMR) 6. Cervical line is more convex than labial surface. 7

Maxillary Central Incisor Mesial surface: 1. Triangular in outline 2. Lingual margin is 'S'

Maxillary Central Incisor Mesial surface: 1. Triangular in outline 2. Lingual margin is 'S' shape. 3. Labial margin is convex and curves smoothly from cervical margin to mesial edge. 4. Distal surface & 8

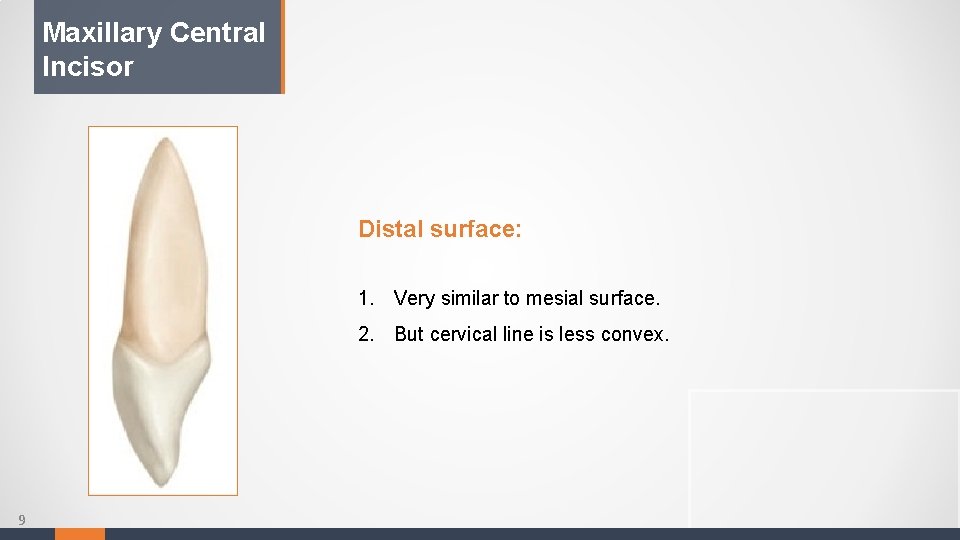

Maxillary Central Incisor Distal surface: 1. Very similar to mesial surface. 2. But cervical

Maxillary Central Incisor Distal surface: 1. Very similar to mesial surface. 2. But cervical line is less convex. 9

Maxillary Central Incisor Incisal aspect/surface: 1. Formed by meeting of labial & lingual surface

Maxillary Central Incisor Incisal aspect/surface: 1. Formed by meeting of labial & lingual surface and extends from mesial to distal angles of tooth, 2. Mammelons are present: 3. Incisal surface inclined lingually. 10

Maxillary Central Incisor Cervical margin: Outlined by cemento enamel pendant. Root: Single, cone shaped

Maxillary Central Incisor Cervical margin: Outlined by cemento enamel pendant. Root: Single, cone shaped and slightly longer than crown. (23. 5 mm) 11

Maxillary Left Central Incisor What is the next ‘Incisor’ Maxillary Lateral Incisor Maxillary Left

Maxillary Left Central Incisor What is the next ‘Incisor’ Maxillary Lateral Incisor Maxillary Left Lateral Incisor Mandibular Left Central Incisor Mandibular Left Lateral Incisor

Thank You… DR. SUMAIYA SHARMIN ORAL AND DENTAL SURGEON DR. M R KHAN SHISHU

Thank You… DR. SUMAIYA SHARMIN ORAL AND DENTAL SURGEON DR. M R KHAN SHISHU HOSPITAL AND INSTITUTE OF CHILD HEALTH 13
