GROSS ANATOMY The temporomandibular joint TMJ is formed

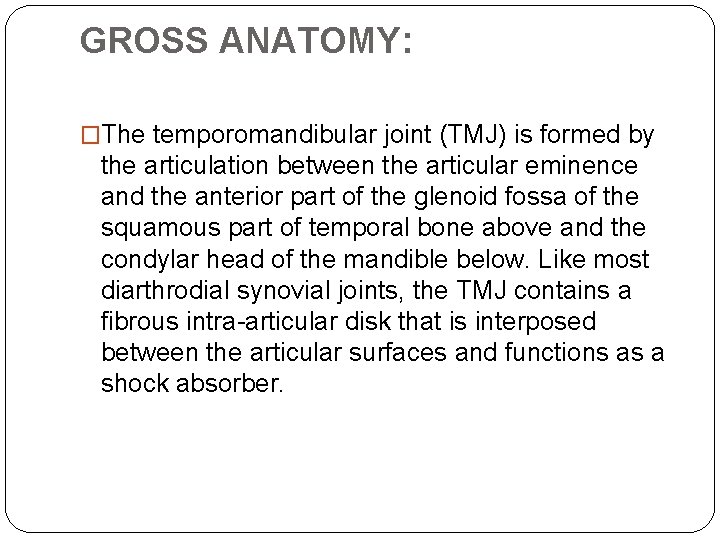

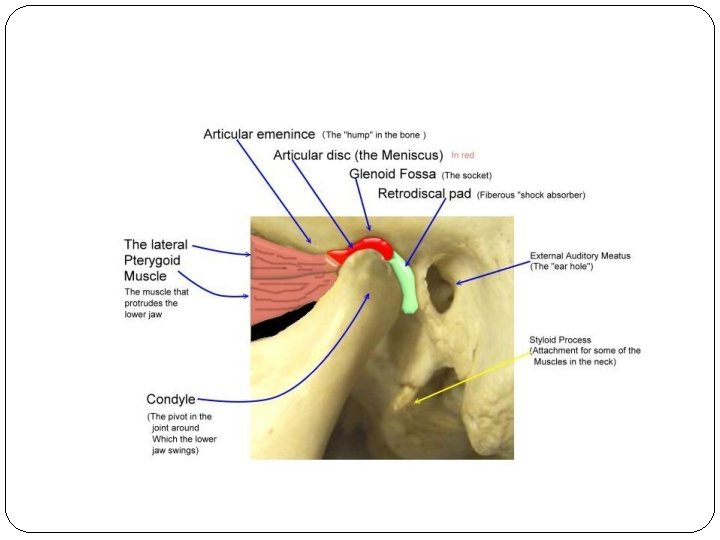

GROSS ANATOMY: �The temporomandibular joint (TMJ) is formed by the articulation between the articular eminence and the anterior part of the glenoid fossa of the squamous part of temporal bone above and the condylar head of the mandible below. Like most diarthrodial synovial joints, the TMJ contains a fibrous intra-articular disk that is interposed between the articular surfaces and functions as a shock absorber.

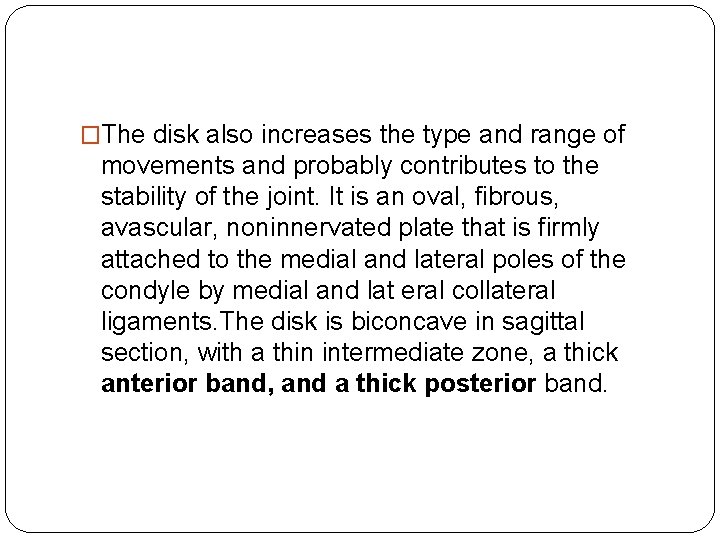

�The disk also increases the type and range of movements and probably contributes to the stability of the joint. It is an oval, fibrous, avascular, noninnervated plate that is firmly attached to the medial and lateral poles of the condyle by medial and lat eral collateral ligaments. The disk is biconcave in sagittal section, with a thin intermediate zone, a thick anterior band, and a thick posterior band.

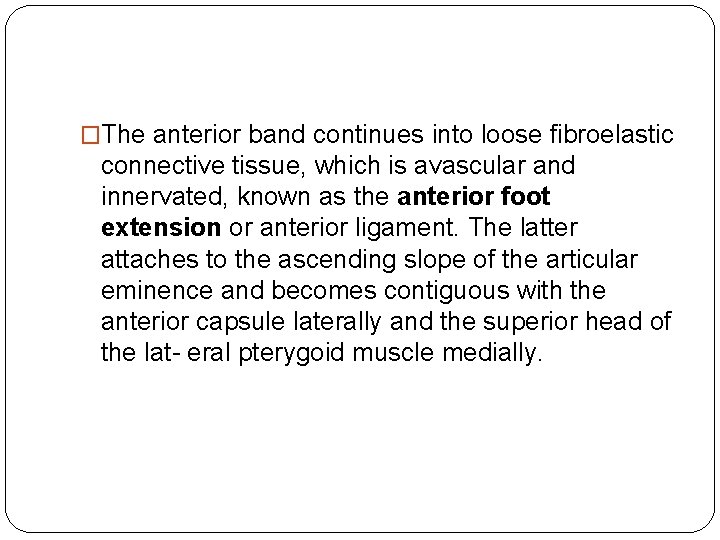

�The anterior band continues into loose fibroelastic connective tissue, which is avascular and innervated, known as the anterior foot extension or anterior ligament. The latter attaches to the ascending slope of the articular eminence and becomes contiguous with the anterior capsule laterally and the superior head of the lat- eral pterygoid muscle medially.

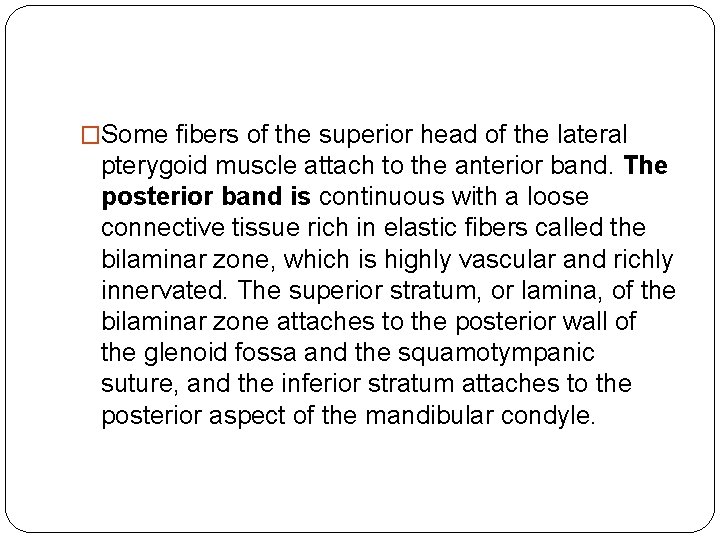

�Some fibers of the superior head of the lateral pterygoid muscle attach to the anterior band. The posterior band is continuous with a loose connective tissue rich in elastic fibers called the bilaminar zone, which is highly vascular and richly innervated. The superior stratum, or lamina, of the bilaminar zone attaches to the posterior wall of the glenoid fossa and the squamotympanic suture, and the inferior stratum attaches to the posterior aspect of the mandibular condyle.

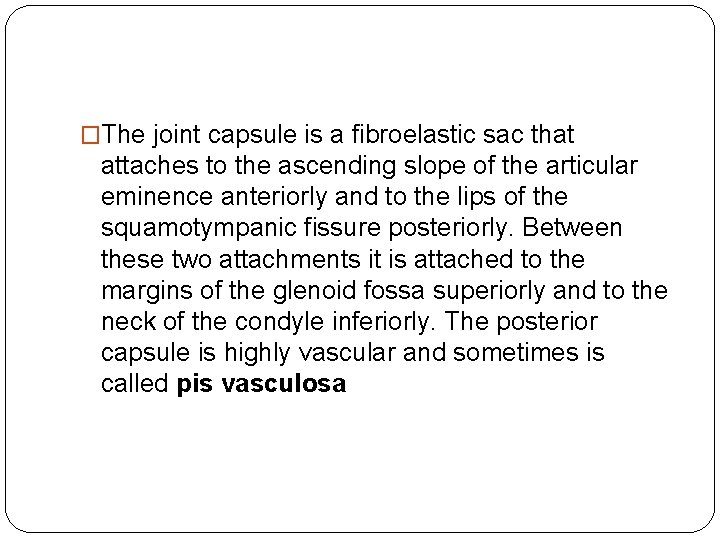

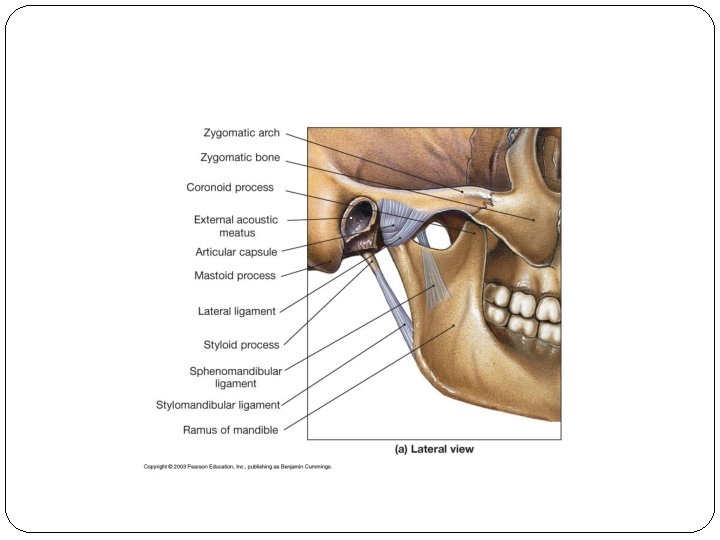

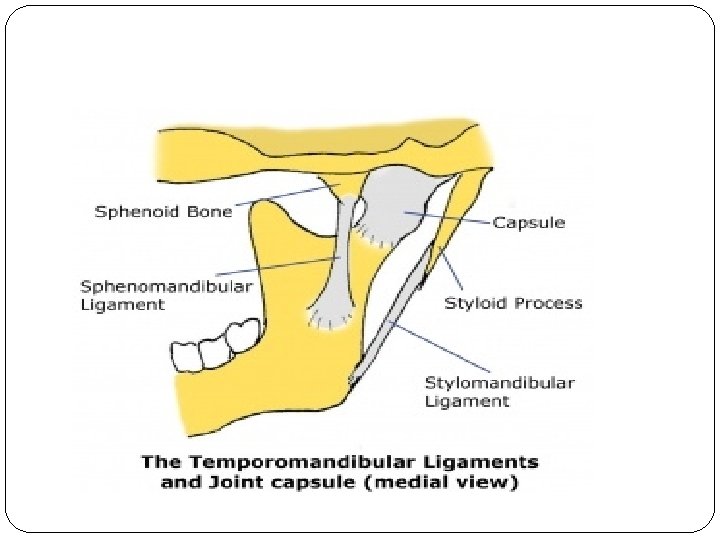

�The joint capsule is a fibroelastic sac that attaches to the ascending slope of the articular eminence anteriorly and to the lips of the squamotympanic fissure posteriorly. Between these two attachments it is attached to the margins of the glenoid fossa superiorly and to the neck of the condyle inferiorly. The posterior capsule is highly vascular and sometimes is called pis vasculosa

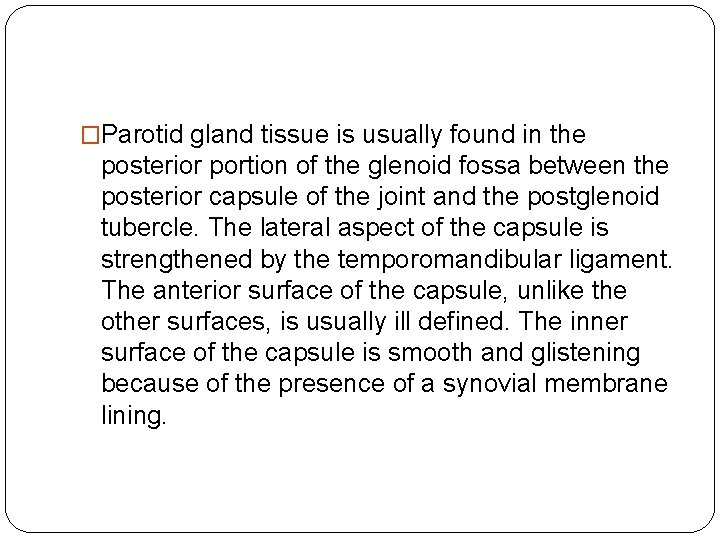

�Parotid gland tissue is usually found in the posterior portion of the glenoid fossa between the posterior capsule of the joint and the postglenoid tubercle. The lateral aspect of the capsule is strengthened by the temporomandibular ligament. The anterior surface of the capsule, unlike the other surfaces, is usually ill defined. The inner surface of the capsule is smooth and glistening because of the presence of a synovial membrane lining.

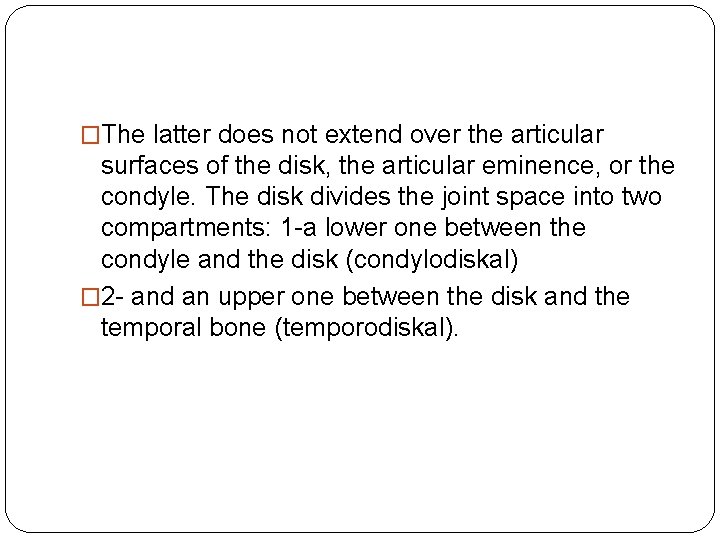

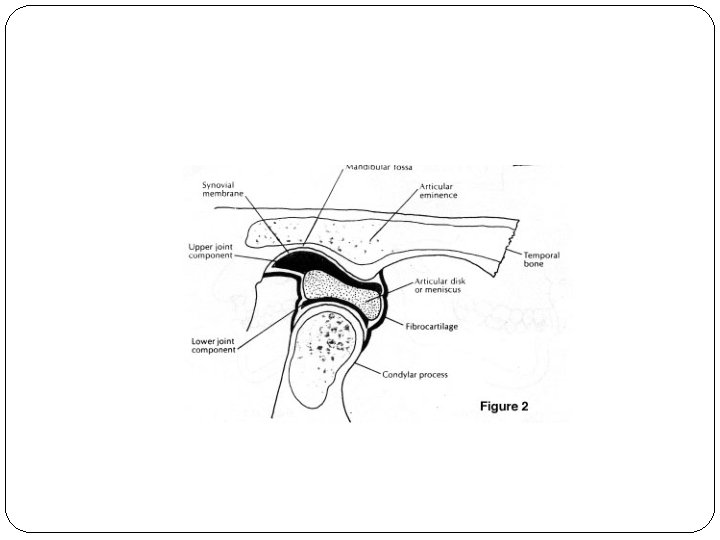

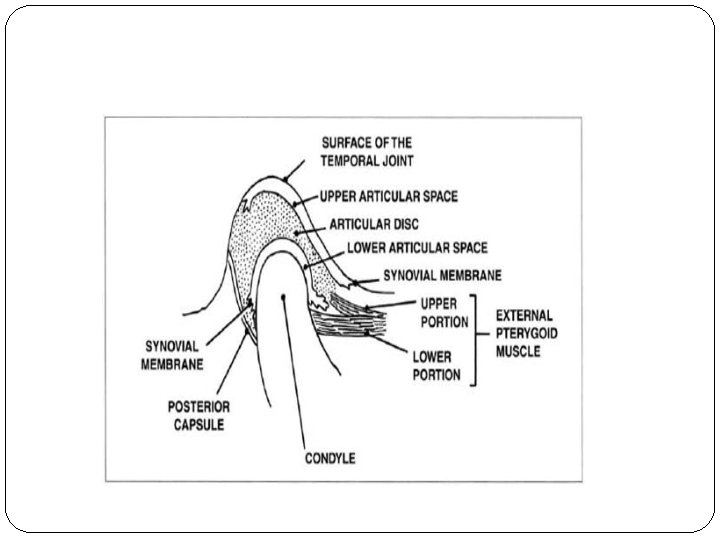

�The latter does not extend over the articular surfaces of the disk, the articular eminence, or the condyle. The disk divides the joint space into two compartments: 1 -a lower one between the condyle and the disk (condylodiskal) � 2 - and an upper one between the disk and the temporal bone (temporodiskal).

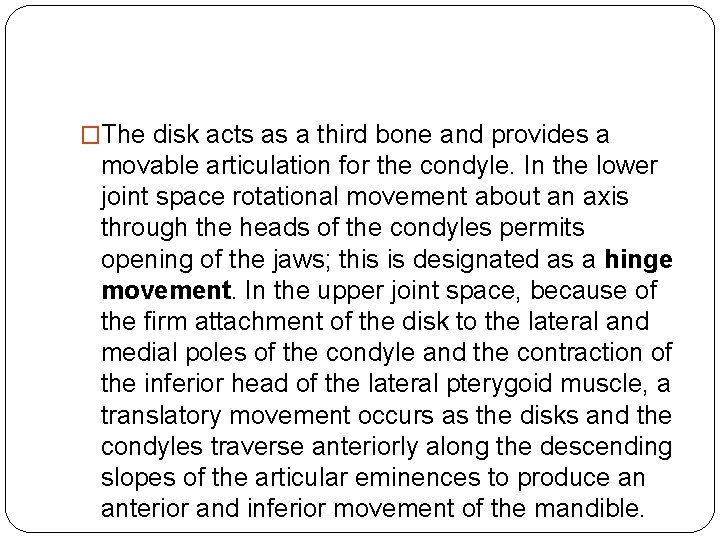

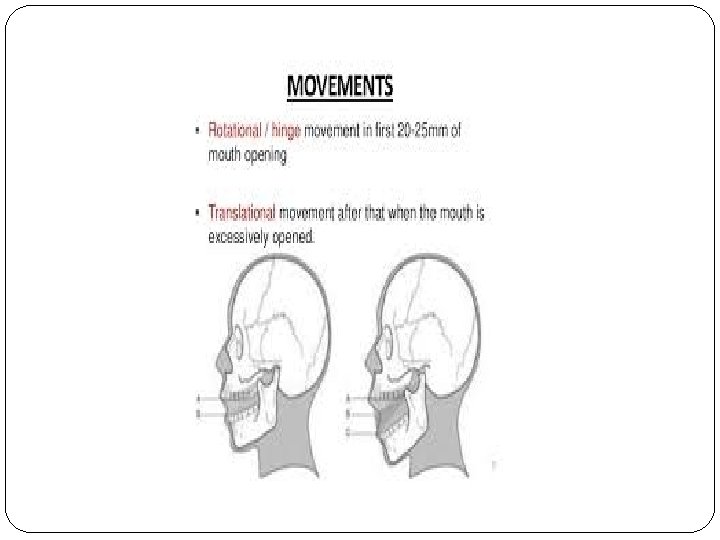

�The disk acts as a third bone and provides a movable articulation for the condyle. In the lower joint space rotational movement about an axis through the heads of the condyles permits opening of the jaws; this is designated as a hinge movement. In the upper joint space, because of the firm attachment of the disk to the lateral and medial poles of the condyle and the contraction of the inferior head of the lateral pterygoid muscle, a translatory movement occurs as the disks and the condyles traverse anteriorly along the descending slopes of the articular eminences to produce an anterior and inferior movement of the mandible.

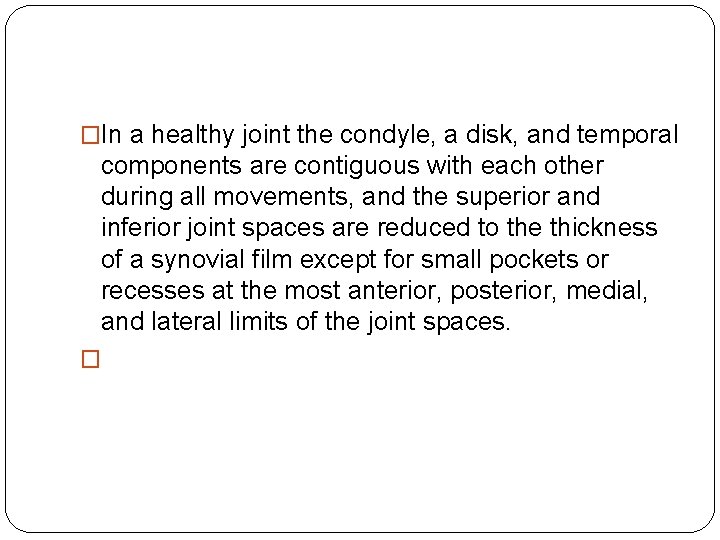

�In a healthy joint the condyle, a disk, and temporal components are contiguous with each other during all movements, and the superior and inferior joint spaces are reduced to the thickness of a synovial film except for small pockets or recesses at the most anterior, posterior, medial, and lateral limits of the joint spaces. �

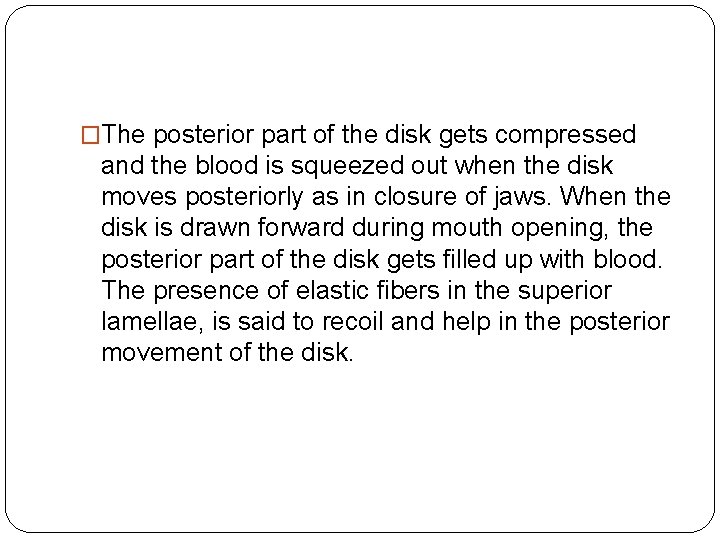

�The posterior part of the disk gets compressed and the blood is squeezed out when the disk moves posteriorly as in closure of jaws. When the disk is drawn forward during mouth opening, the posterior part of the disk gets filled up with blood. The presence of elastic fibers in the superior lamellae, is said to recoil and help in the posterior movement of the disk.

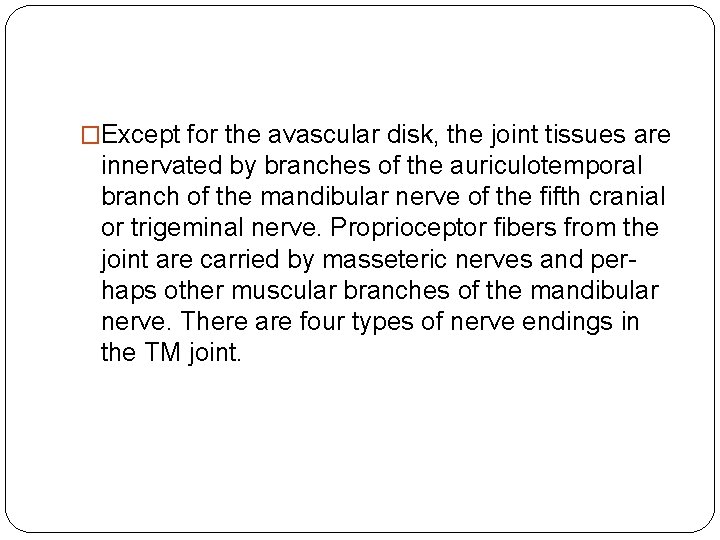

�Except for the avascular disk, the joint tissues are innervated by branches of the auriculotemporal branch of the mandibular nerve of the fifth cranial or trigeminal nerve. Proprioceptor fibers from the joint are carried by masseteric nerves and perhaps other muscular branches of the mandibular nerve. There are four types of nerve endings in the TM joint.

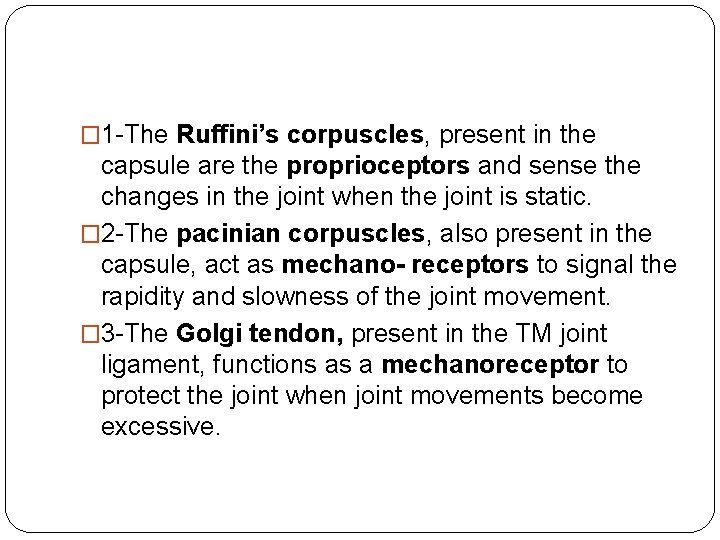

� 1 -The Ruffini’s corpuscles, present in the capsule are the proprioceptors and sense the changes in the joint when the joint is static. � 2 -The pacinian corpuscles, also present in the capsule, act as mechano- receptors to signal the rapidity and slowness of the joint movement. � 3 -The Golgi tendon, present in the TM joint ligament, functions as a mechanoreceptor to protect the joint when joint movements become excessive.

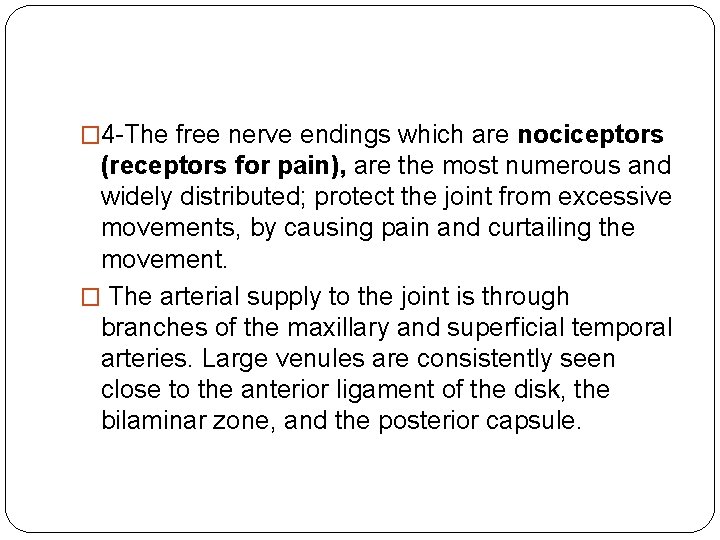

� 4 -The free nerve endings which are nociceptors (receptors for pain), are the most numerous and widely distributed; protect the joint from excessive movements, by causing pain and curtailing the movement. � The arterial supply to the joint is through branches of the maxillary and superficial temporal arteries. Large venules are consistently seen close to the anterior ligament of the disk, the bilaminar zone, and the posterior capsule.

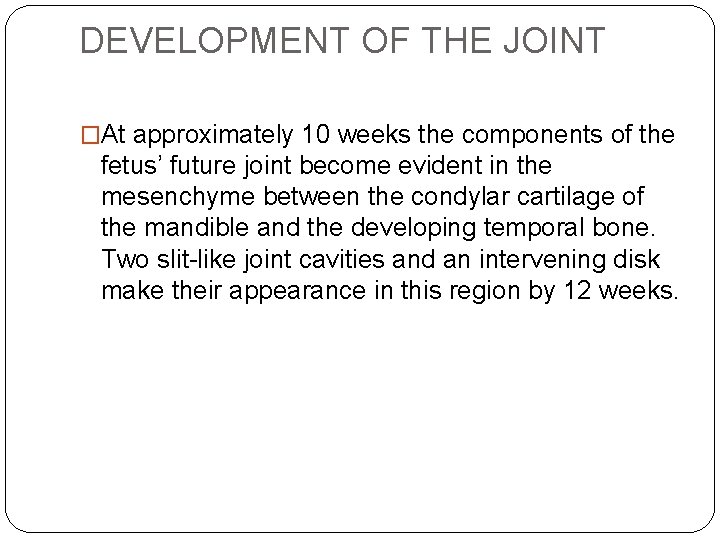

DEVELOPMENT OF THE JOINT �At approximately 10 weeks the components of the fetus’ future joint become evident in the mesenchyme between the condylar cartilage of the mandible and the developing temporal bone. Two slit-like joint cavities and an intervening disk make their appearance in this region by 12 weeks.

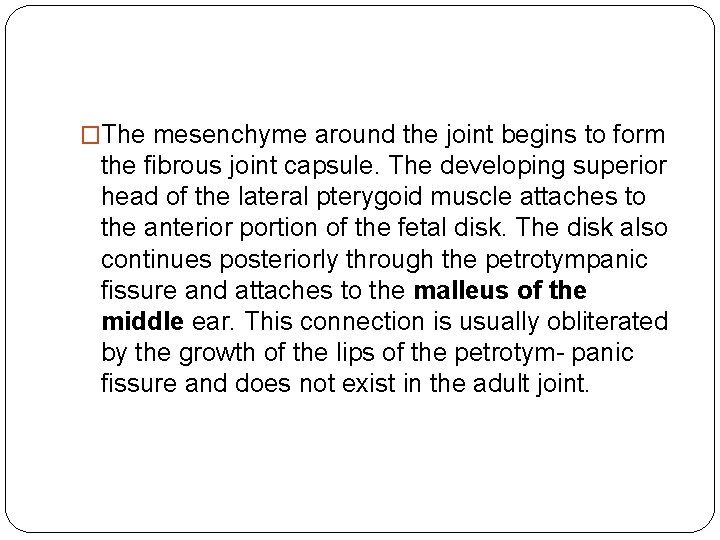

�The mesenchyme around the joint begins to form the fibrous joint capsule. The developing superior head of the lateral pterygoid muscle attaches to the anterior portion of the fetal disk. The disk also continues posteriorly through the petrotympanic fissure and attaches to the malleus of the middle ear. This connection is usually obliterated by the growth of the lips of the petrotym- panic fissure and does not exist in the adult joint.

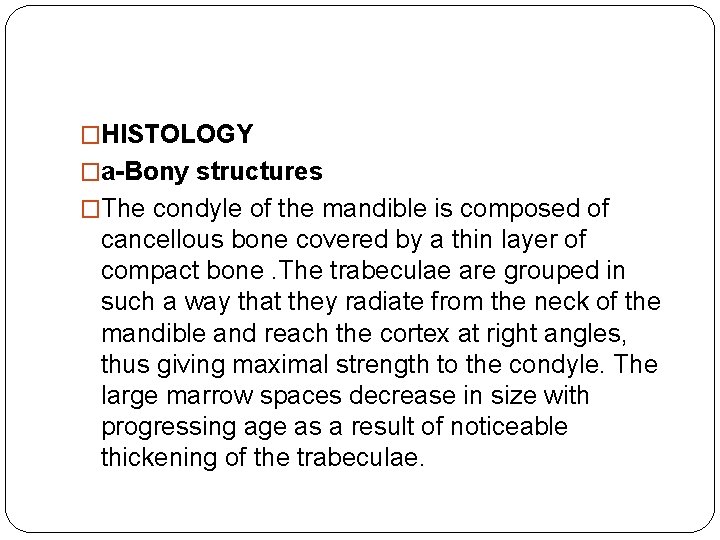

�HISTOLOGY �a-Bony structures �The condyle of the mandible is composed of cancellous bone covered by a thin layer of compact bone. The trabeculae are grouped in such a way that they radiate from the neck of the mandible and reach the cortex at right angles, thus giving maximal strength to the condyle. The large marrow spaces decrease in size with progressing age as a result of noticeable thickening of the trabeculae.

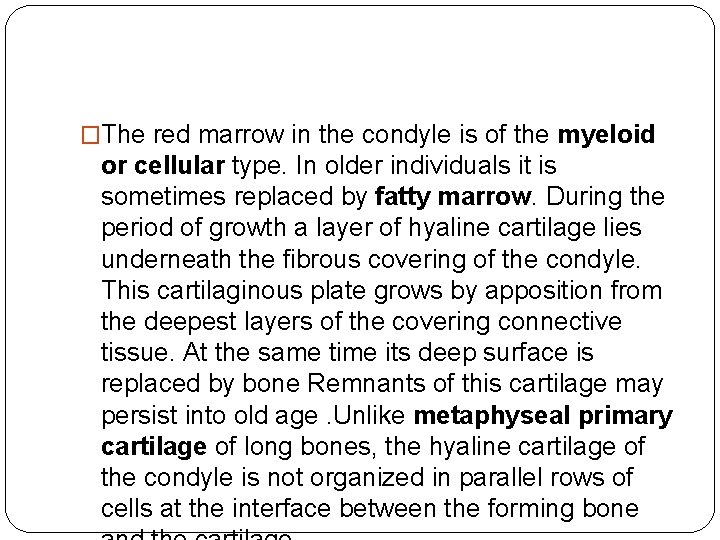

�The red marrow in the condyle is of the myeloid or cellular type. In older individuals it is sometimes replaced by fatty marrow. During the period of growth a layer of hyaline cartilage lies underneath the fibrous covering of the condyle. This cartilaginous plate grows by apposition from the deepest layers of the covering connective tissue. At the same time its deep surface is replaced by bone Remnants of this cartilage may persist into old age. Unlike metaphyseal primary cartilage of long bones, the hyaline cartilage of the condyle is not organized in parallel rows of cells at the interface between the forming bone

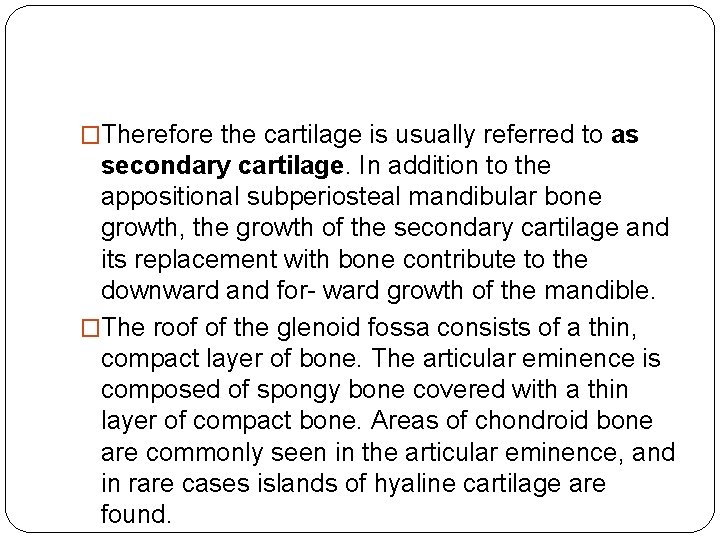

�Therefore the cartilage is usually referred to as secondary cartilage. In addition to the appositional subperiosteal mandibular bone growth, the growth of the secondary cartilage and its replacement with bone contribute to the downward and for- ward growth of the mandible. �The roof of the glenoid fossa consists of a thin, compact layer of bone. The articular eminence is composed of spongy bone covered with a thin layer of compact bone. Areas of chondroid bone are commonly seen in the articular eminence, and in rare cases islands of hyaline cartilage are found.

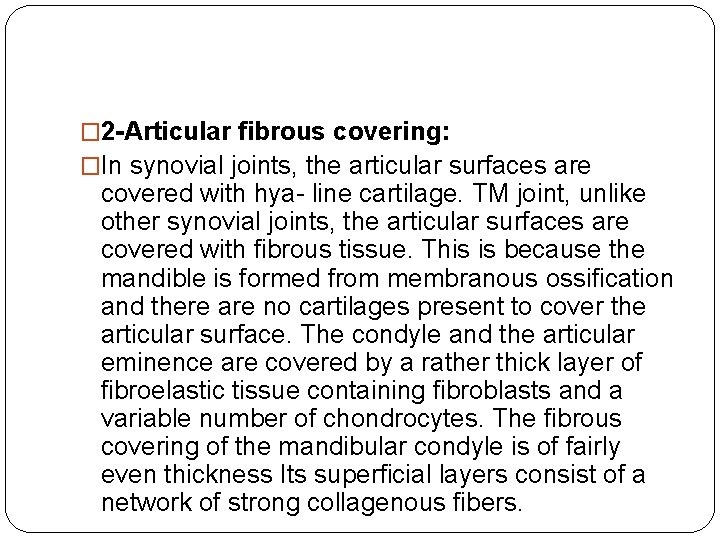

� 2 -Articular fibrous covering: �In synovial joints, the articular surfaces are covered with hya- line cartilage. TM joint, unlike other synovial joints, the articular surfaces are covered with fibrous tissue. This is because the mandible is formed from membranous ossification and there are no cartilages present to cover the articular surface. The condyle and the articular eminence are covered by a rather thick layer of fibroelastic tissue containing fibroblasts and a variable number of chondrocytes. The fibrous covering of the mandibular condyle is of fairly even thickness Its superficial layers consist of a network of strong collagenous fibers.

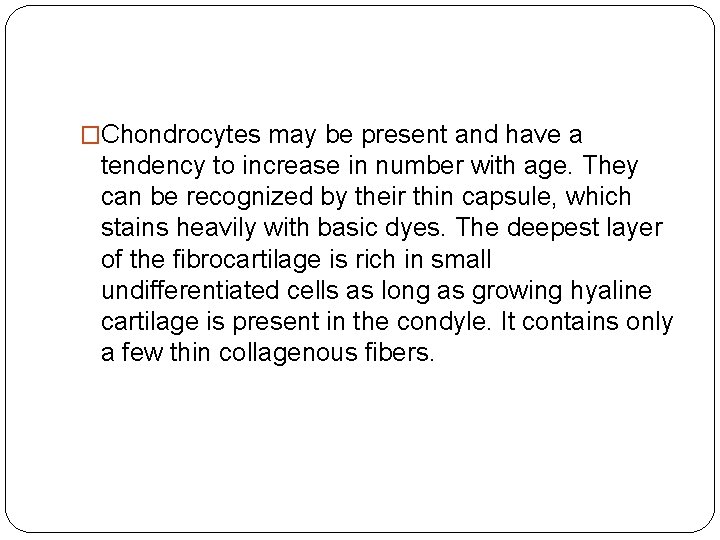

�Chondrocytes may be present and have a tendency to increase in number with age. They can be recognized by their thin capsule, which stains heavily with basic dyes. The deepest layer of the fibrocartilage is rich in small undifferentiated cells as long as growing hyaline cartilage is present in the condyle. It contains only a few thin collagenous fibers.

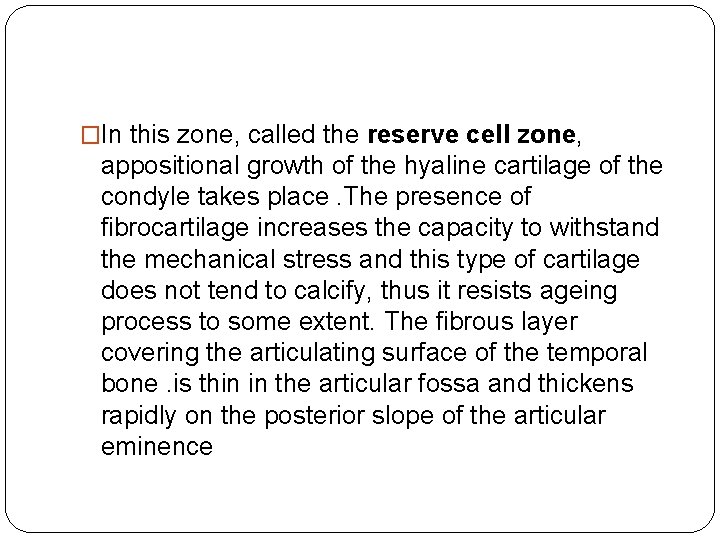

�In this zone, called the reserve cell zone, appositional growth of the hyaline cartilage of the condyle takes place. The presence of fibrocartilage increases the capacity to withstand the mechanical stress and this type of cartilage does not tend to calcify, thus it resists ageing process to some extent. The fibrous layer covering the articulating surface of the temporal bone. is thin in the articular fossa and thickens rapidly on the posterior slope of the articular eminence

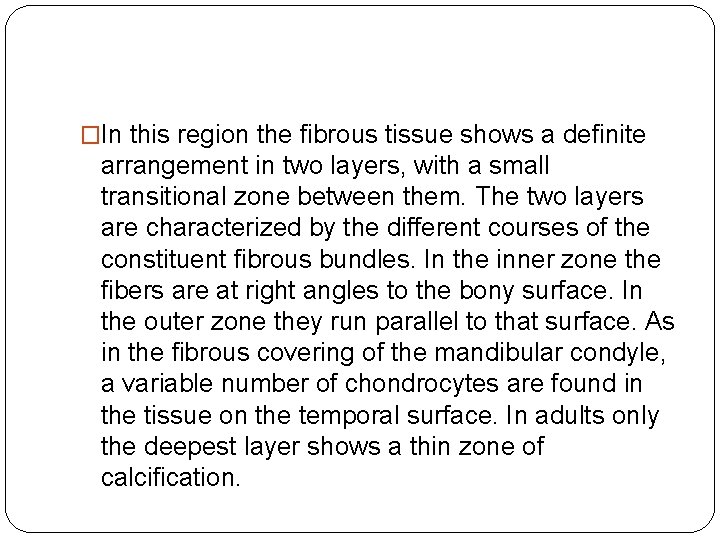

�In this region the fibrous tissue shows a definite arrangement in two layers, with a small transitional zone between them. The two layers are characterized by the different courses of the constituent fibrous bundles. In the inner zone the fibers are at right angles to the bony surface. In the outer zone they run parallel to that surface. As in the fibrous covering of the mandibular condyle, a variable number of chondrocytes are found in the tissue on the temporal surface. In adults only the deepest layer shows a thin zone of calcification.

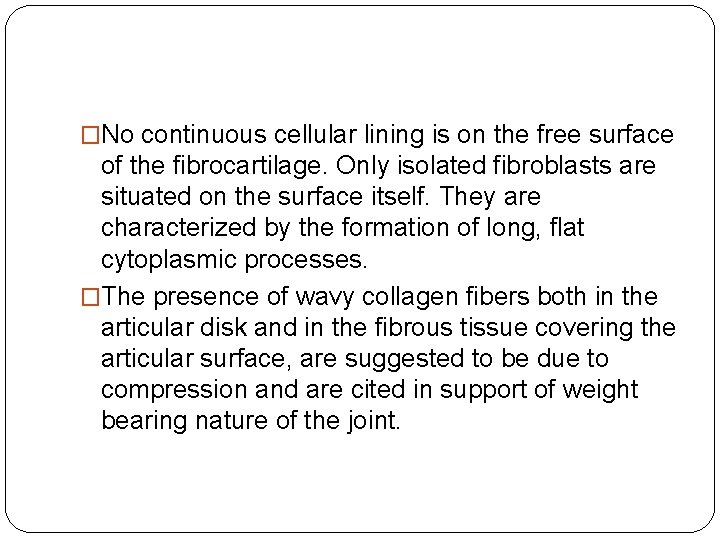

�No continuous cellular lining is on the free surface of the fibrocartilage. Only isolated fibroblasts are situated on the surface itself. They are characterized by the formation of long, flat cytoplasmic processes. �The presence of wavy collagen fibers both in the articular disk and in the fibrous tissue covering the articular surface, are suggested to be due to compression and are cited in support of weight bearing nature of the joint.

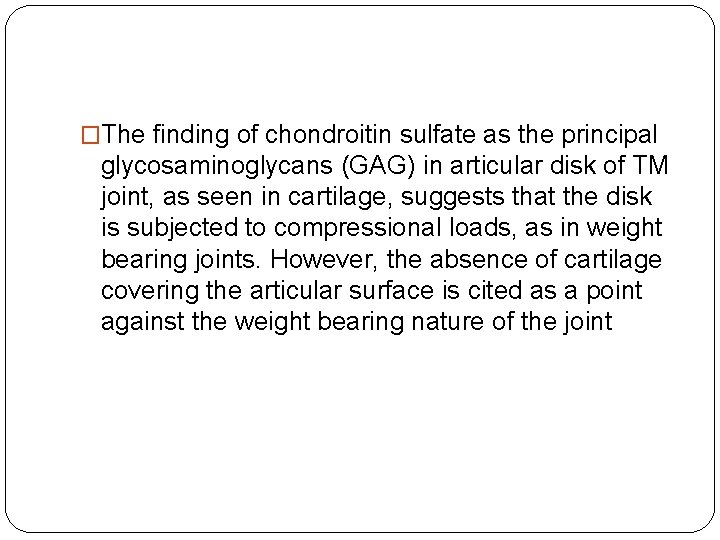

�The finding of chondroitin sulfate as the principal glycosaminoglycans (GAG) in articular disk of TM joint, as seen in cartilage, suggests that the disk is subjected to compressional loads, as in weight bearing joints. However, the absence of cartilage covering the articular surface is cited as a point against the weight bearing nature of the joint

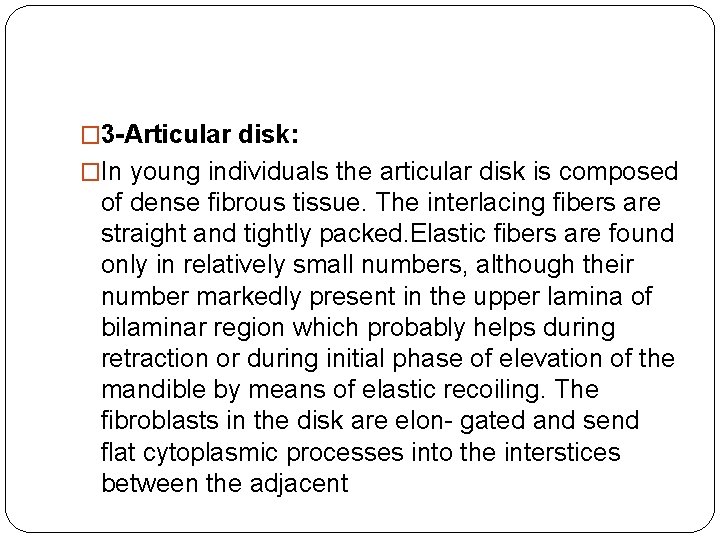

� 3 -Articular disk: �In young individuals the articular disk is composed of dense fibrous tissue. The interlacing fibers are straight and tightly packed. Elastic fibers are found only in relatively small numbers, although their number markedly present in the upper lamina of bilaminar region which probably helps during retraction or during initial phase of elevation of the mandible by means of elastic recoiling. The fibroblasts in the disk are elon- gated and send flat cytoplasmic processes into the interstices between the adjacent

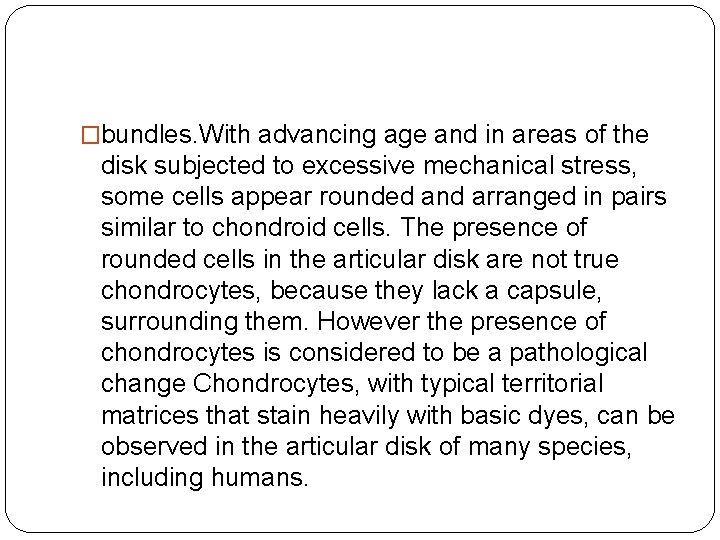

�bundles. With advancing age and in areas of the disk subjected to excessive mechanical stress, some cells appear rounded and arranged in pairs similar to chondroid cells. The presence of rounded cells in the articular disk are not true chondrocytes, because they lack a capsule, surrounding them. However the presence of chondrocytes is considered to be a pathological change Chondrocytes, with typical territorial matrices that stain heavily with basic dyes, can be observed in the articular disk of many species, including humans.

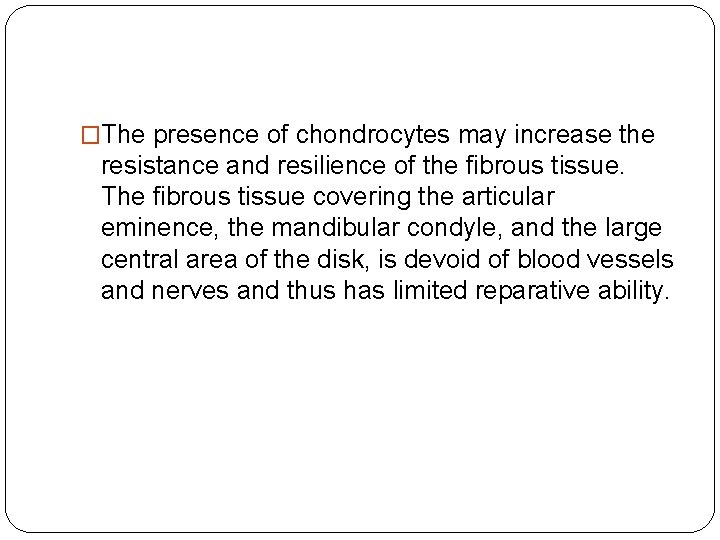

�The presence of chondrocytes may increase the resistance and resilience of the fibrous tissue. The fibrous tissue covering the articular eminence, the mandibular condyle, and the large central area of the disk, is devoid of blood vessels and nerves and thus has limited reparative ability.

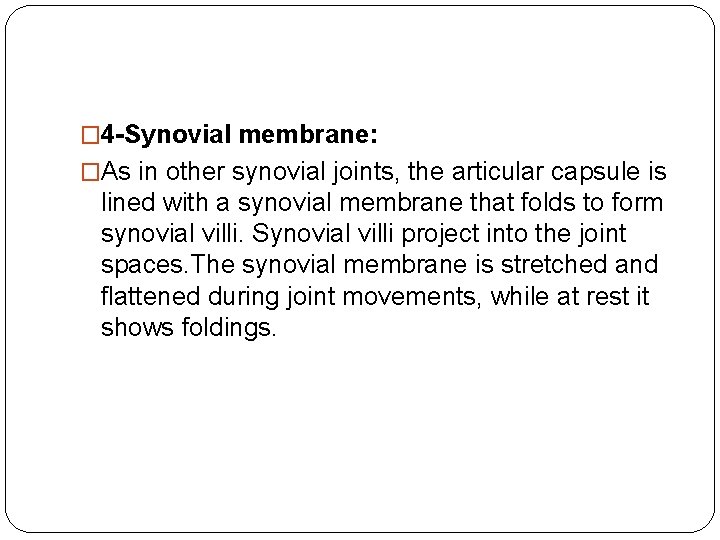

� 4 -Synovial membrane: �As in other synovial joints, the articular capsule is lined with a synovial membrane that folds to form synovial villi. Synovial villi project into the joint spaces. The synovial membrane is stretched and flattened during joint movements, while at rest it shows foldings.

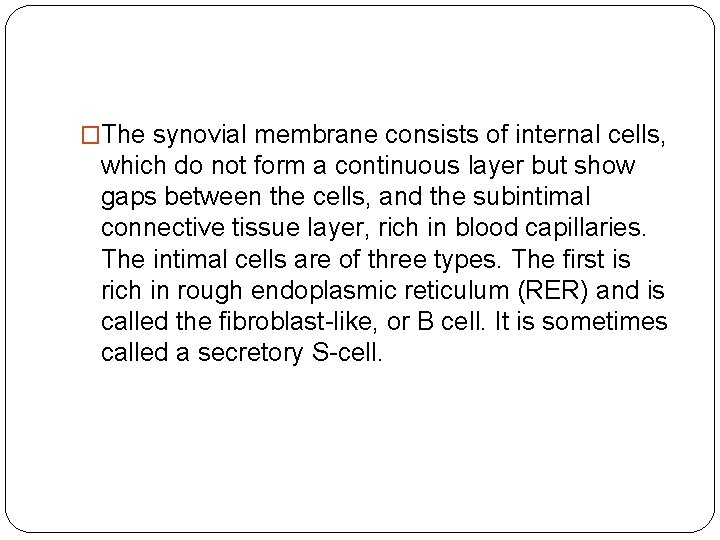

�The synovial membrane consists of internal cells, which do not form a continuous layer but show gaps between the cells, and the subintimal connective tissue layer, rich in blood capillaries. The intimal cells are of three types. The first is rich in rough endoplasmic reticulum (RER) and is called the fibroblast-like, or B cell. It is sometimes called a secretory S-cell.

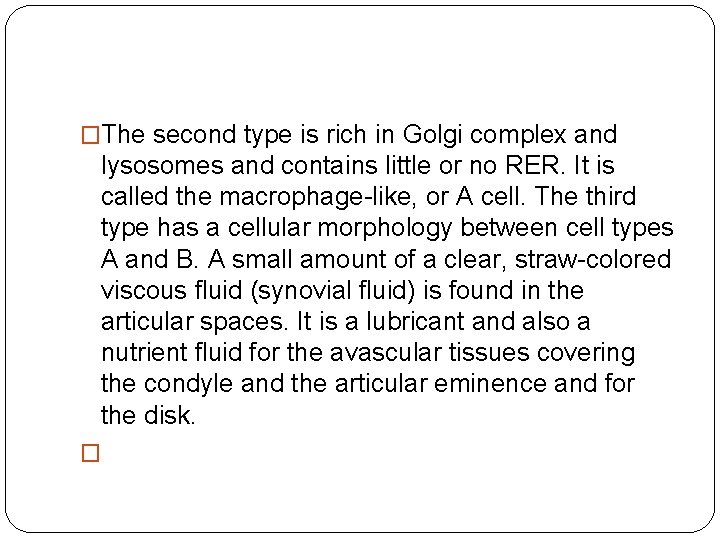

�The second type is rich in Golgi complex and lysosomes and contains little or no RER. It is called the macrophage-like, or A cell. The third type has a cellular morphology between cell types A and B. A small amount of a clear, straw-colored viscous fluid (synovial fluid) is found in the articular spaces. It is a lubricant and also a nutrient fluid for the avascular tissues covering the condyle and the articular eminence and for the disk. �

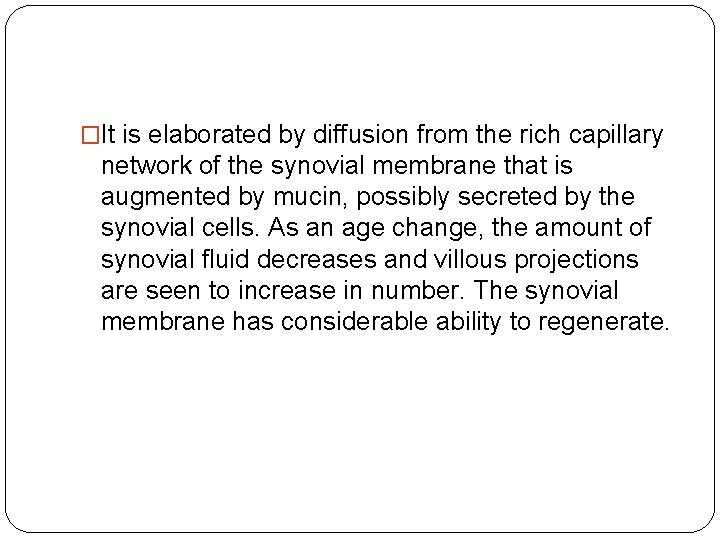

�It is elaborated by diffusion from the rich capillary network of the synovial membrane that is augmented by mucin, possibly secreted by the synovial cells. As an age change, the amount of synovial fluid decreases and villous projections are seen to increase in number. The synovial membrane has considerable ability to regenerate.

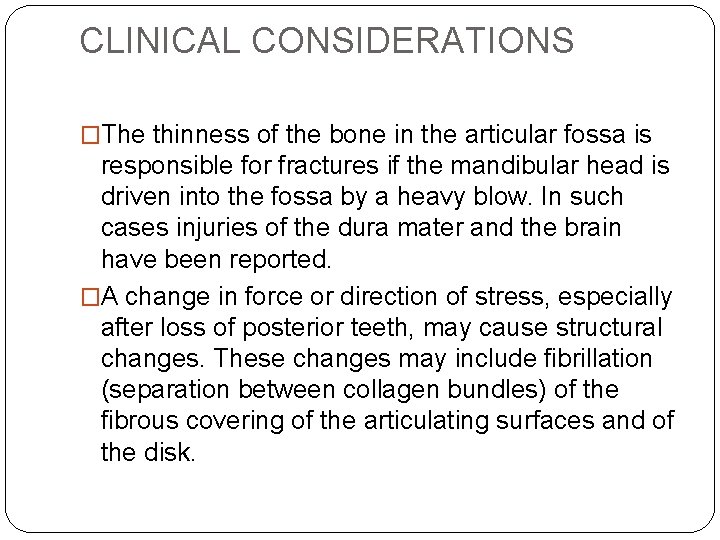

CLINICAL CONSIDERATIONS �The thinness of the bone in the articular fossa is responsible for fractures if the mandibular head is driven into the fossa by a heavy blow. In such cases injuries of the dura mater and the brain have been reported. �A change in force or direction of stress, especially after loss of posterior teeth, may cause structural changes. These changes may include fibrillation (separation between collagen bundles) of the fibrous covering of the articulating surfaces and of the disk.

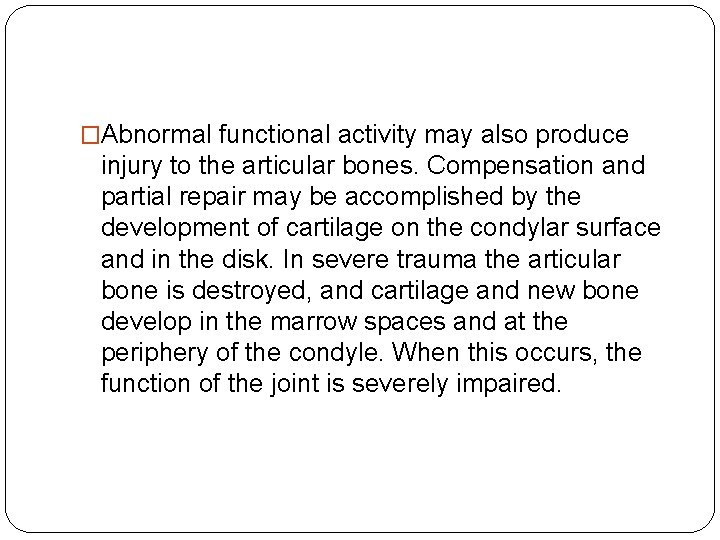

�Abnormal functional activity may also produce injury to the articular bones. Compensation and partial repair may be accomplished by the development of cartilage on the condylar surface and in the disk. In severe trauma the articular bone is destroyed, and cartilage and new bone develop in the marrow spaces and at the periphery of the condyle. When this occurs, the function of the joint is severely impaired.

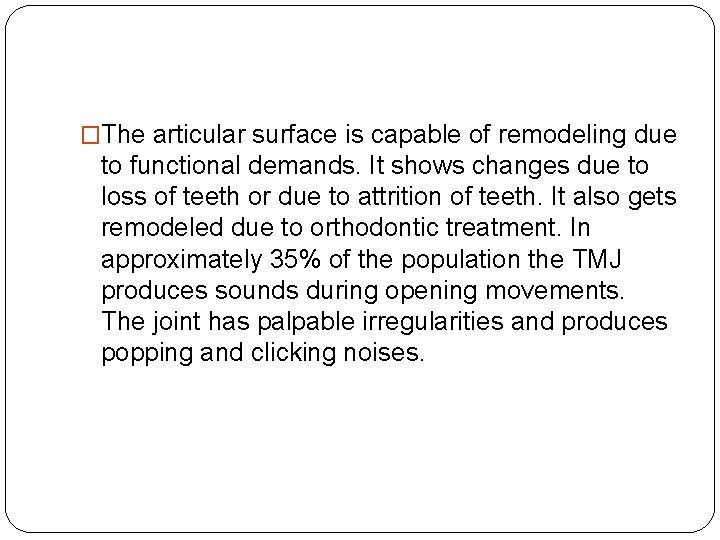

�The articular surface is capable of remodeling due to functional demands. It shows changes due to loss of teeth or due to attrition of teeth. It also gets remodeled due to orthodontic treatment. In approximately 35% of the population the TMJ produces sounds during opening movements. The joint has palpable irregularities and produces popping and clicking noises.

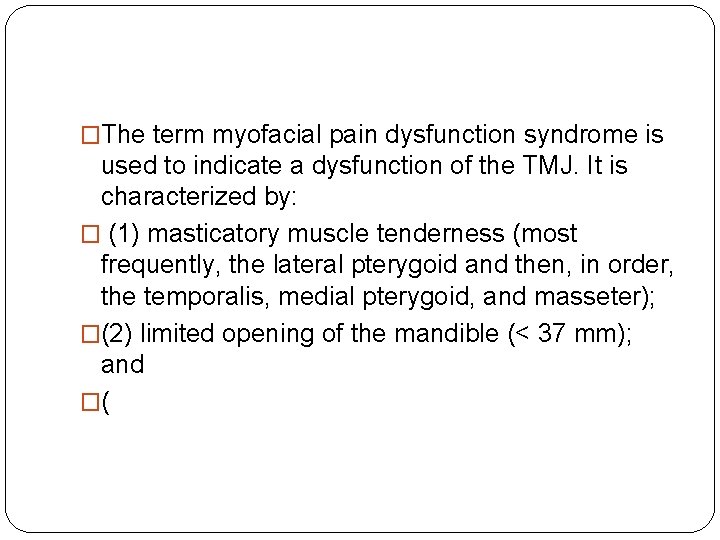

�The term myofacial pain dysfunction syndrome is used to indicate a dysfunction of the TMJ. It is characterized by: � (1) masticatory muscle tenderness (most frequently, the lateral pterygoid and then, in order, the temporalis, medial pterygoid, and masseter); �(2) limited opening of the mandible (< 37 mm); and �(

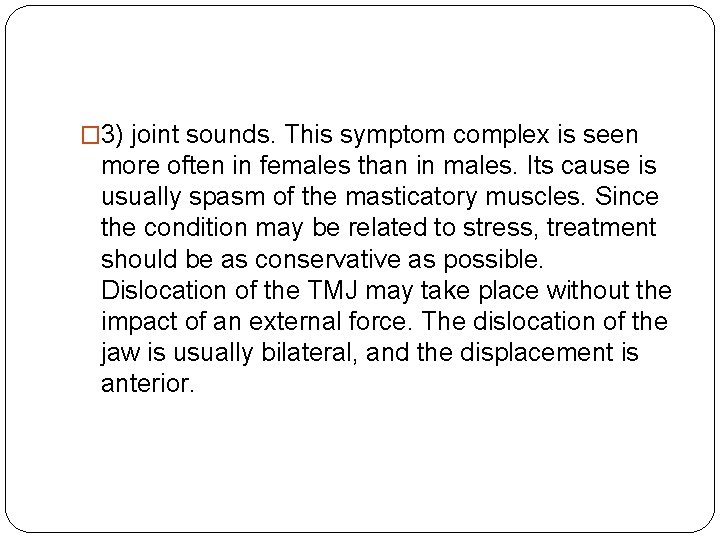

� 3) joint sounds. This symptom complex is seen more often in females than in males. Its cause is usually spasm of the masticatory muscles. Since the condition may be related to stress, treatment should be as conservative as possible. Dislocation of the TMJ may take place without the impact of an external force. The dislocation of the jaw is usually bilateral, and the displacement is anterior.

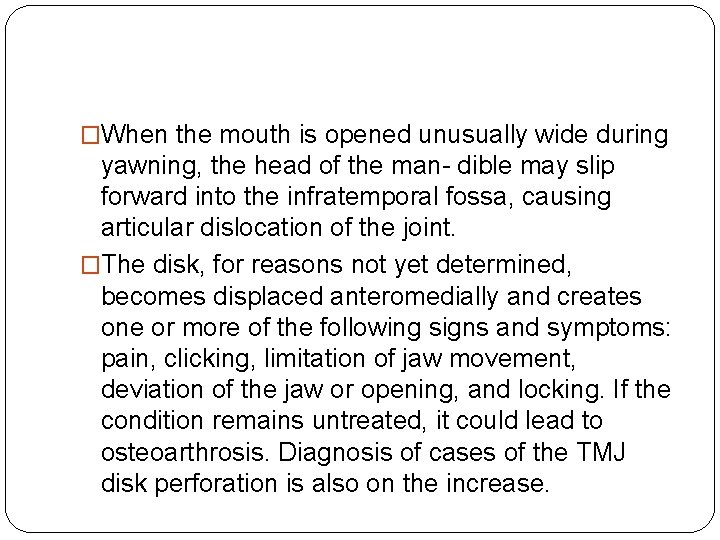

�When the mouth is opened unusually wide during yawning, the head of the man- dible may slip forward into the infratemporal fossa, causing articular dislocation of the joint. �The disk, for reasons not yet determined, becomes displaced anteromedially and creates one or more of the following signs and symptoms: pain, clicking, limitation of jaw movement, deviation of the jaw or opening, and locking. If the condition remains untreated, it could lead to osteoarthrosis. Diagnosis of cases of the TMJ disk perforation is also on the increase.
