GROSS ANATOMY RADIOLOGY IMAGING MODALITIES OF THE SPINE

GROSS ANATOMY RADIOLOGY IMAGING MODALITIES OF THE SPINE CERVICAL SPINE IMAGES • CERVICAL PLAIN FILMS • CERVICAL MYELOGRAM • CERVICAL CT • CERVICAL MRI

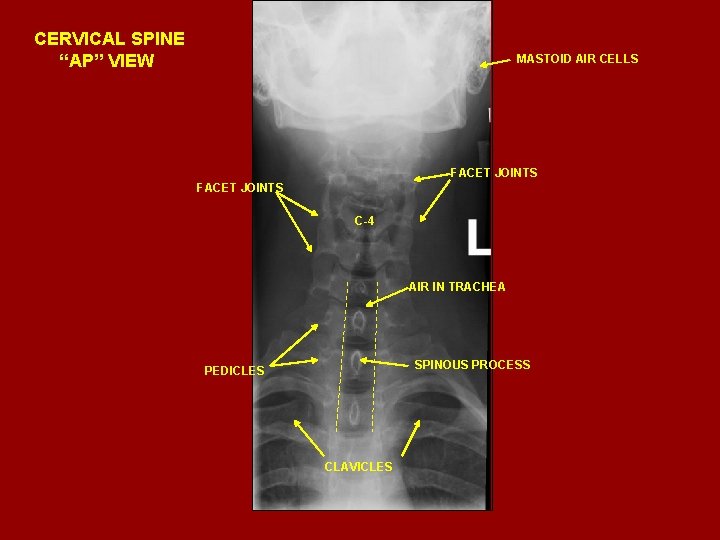

CERVICAL SPINE “AP” VIEW MASTOID AIR CELLS FACET JOINTS C-4 AIR IN TRACHEA SPINOUS PROCESS PEDICLES CLAVICLES

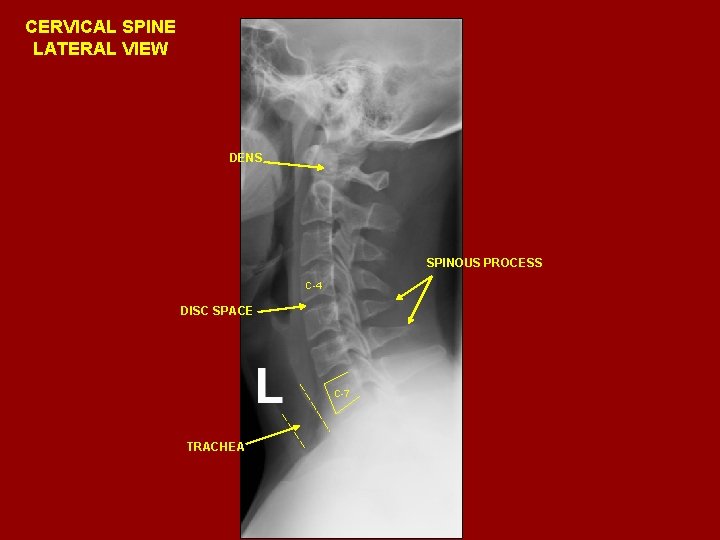

CERVICAL SPINE LATERAL VIEW DENS SPINOUS PROCESS C-4 DISC SPACE C-7 TRACHEA

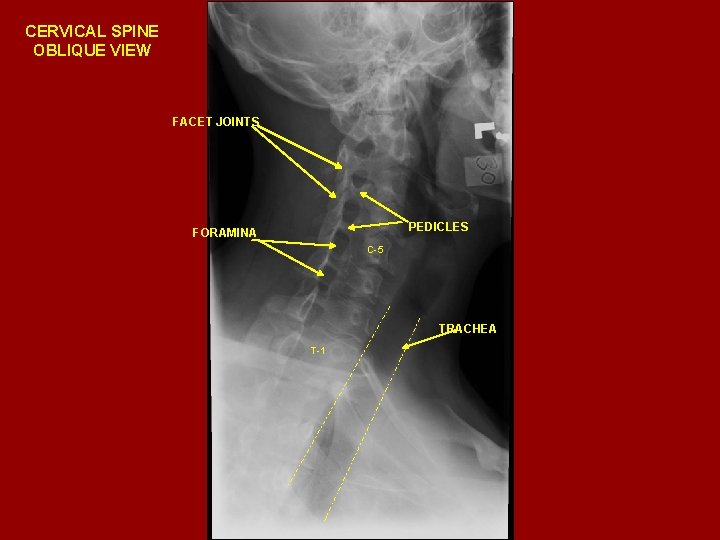

CERVICAL SPINE OBLIQUE VIEW FACET JOINTS PEDICLES FORAMINA C-5 TRACHEA T-1

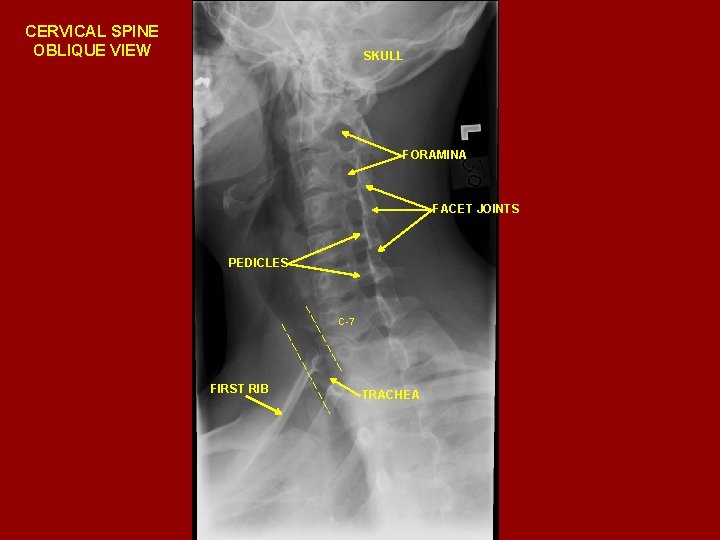

CERVICAL SPINE OBLIQUE VIEW SKULL FORAMINA FACET JOINTS PEDICLES C-7 FIRST RIB TRACHEA

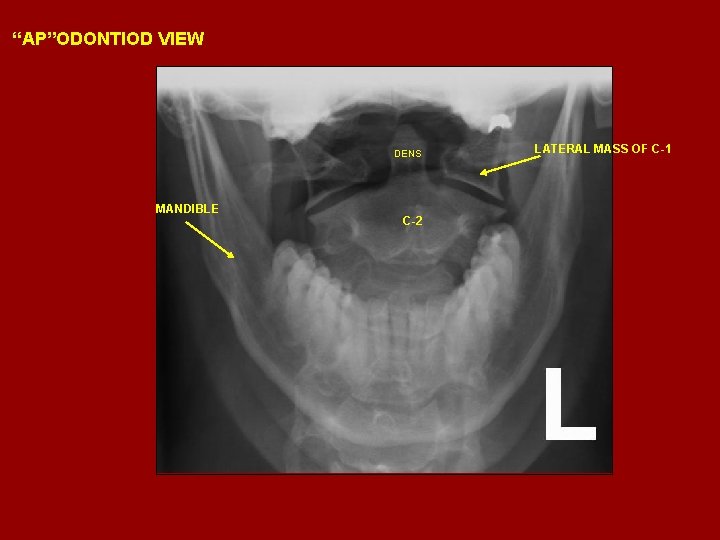

“AP”ODONTIOD VIEW DENS MANDIBLE C-2 LATERAL MASS OF C-1

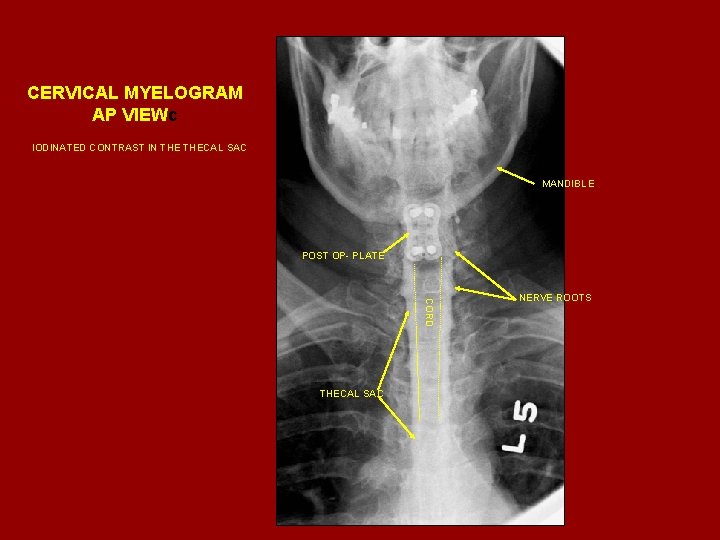

CERVICAL MYELOGRAM AP VIEWc IODINATED CONTRAST IN THECAL SAC MANDIBLE POST OP- PLATE CORD THECAL SAC NERVE ROOTS

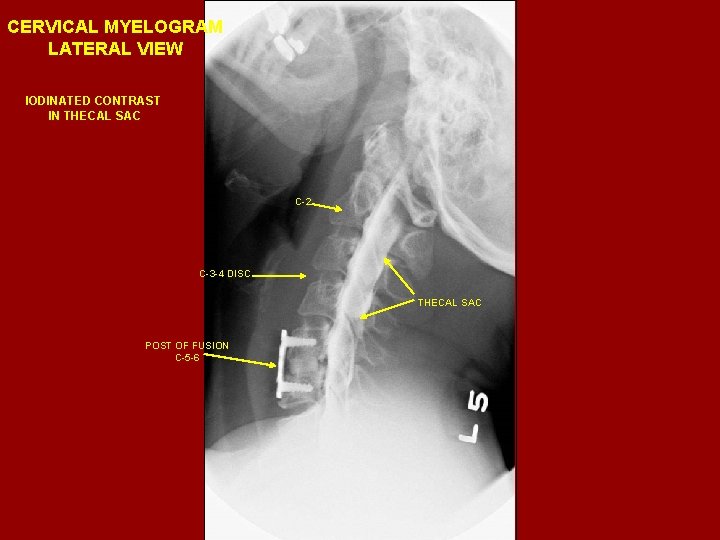

CERVICAL MYELOGRAM LATERAL VIEW IODINATED CONTRAST IN THECAL SAC C-2 C-3 -4 DISC THECAL SAC POST OF FUSION C-5 -6

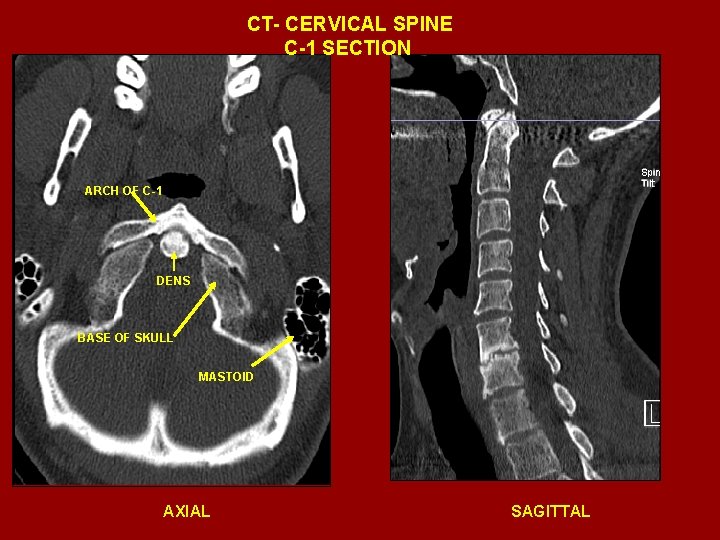

CT- CERVICAL SPINE C-1 SECTION ARCH OF C-1 DENS BASE OF SKULL MASTOID AXIAL SAGITTAL

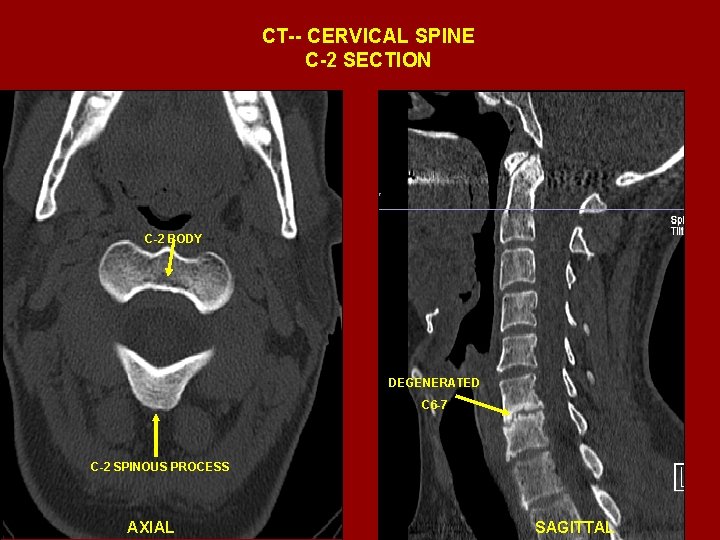

CT-- CERVICAL SPINE C-2 SECTION C-2 BODY DEGENERATED C 6 -7 C-2 SPINOUS PROCESS AXIAL SAGITTAL

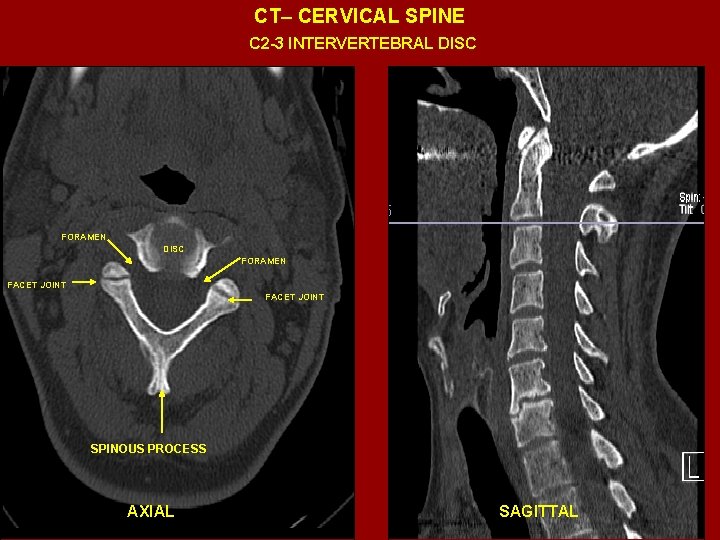

CT– CERVICAL SPINE C 2 -3 INTERVERTEBRAL DISC FORAMEN FACET JOINT SPINOUS PROCESS AXIAL SAGITTAL

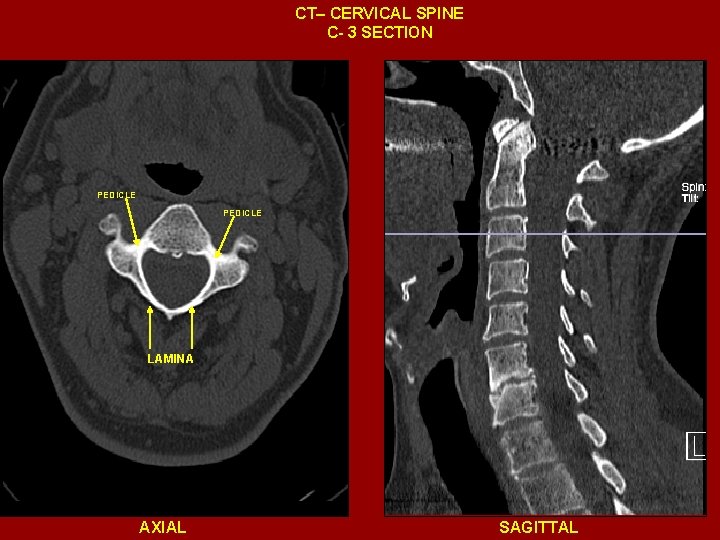

CT– CERVICAL SPINE C- 3 SECTION PEDICLE LAMINA AXIAL SAGITTAL

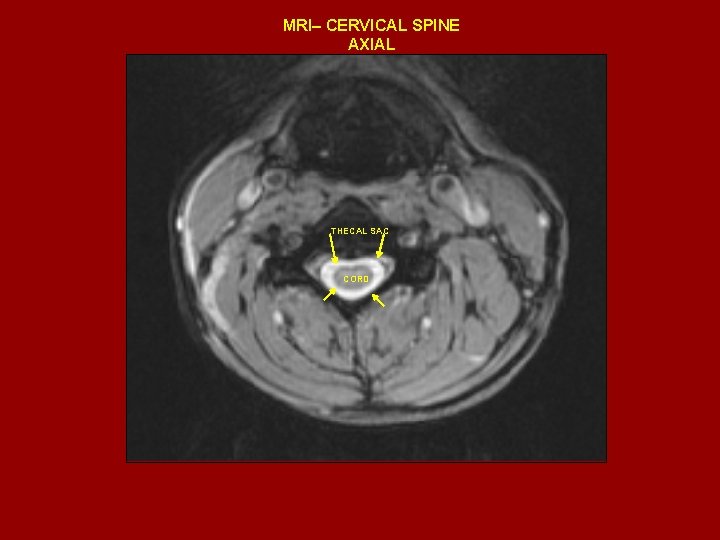

MRI– CERVICAL SPINE AXIAL THECAL SAC CORD

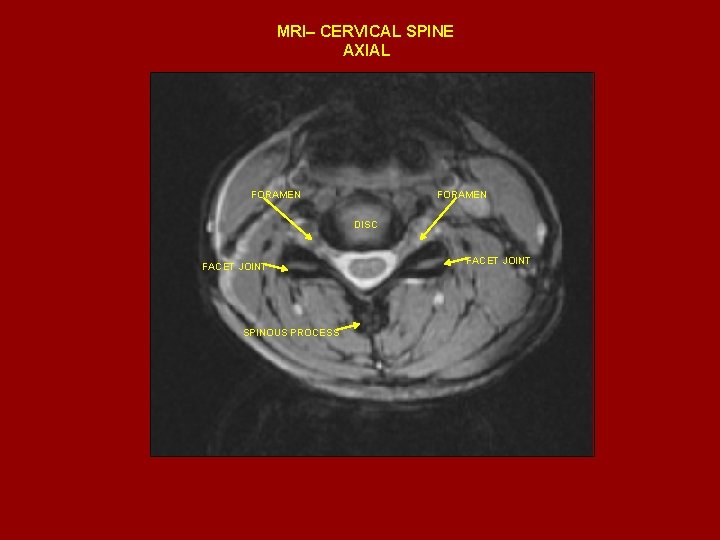

MRI– CERVICAL SPINE AXIAL FORAMEN DISC FACET JOINT SPINOUS PROCESS FACET JOINT

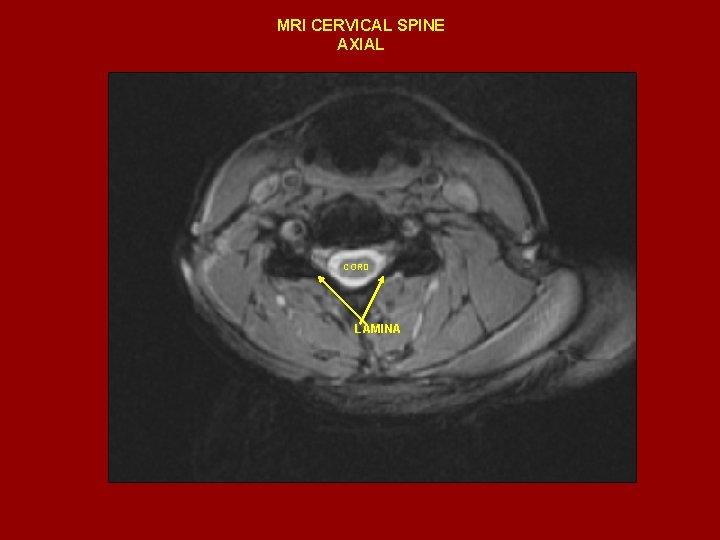

MRI CERVICAL SPINE AXIAL CORD LAMINA

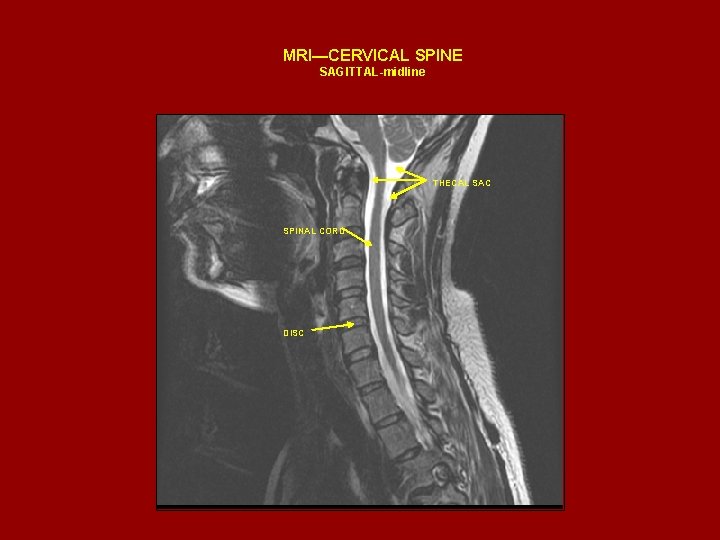

MRI—CERVICAL SPINE SAGITTAL-midline THECAL SAC SPINAL CORD DISC

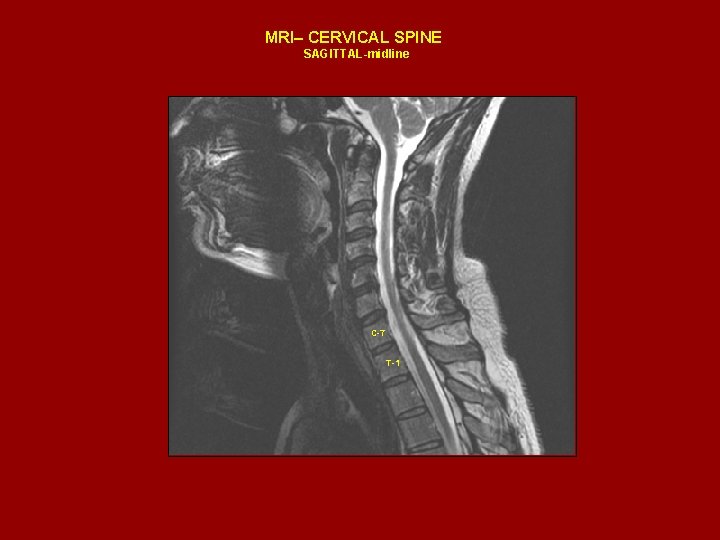

MRI– CERVICAL SPINE SAGITTAL-midline C-7 T-1

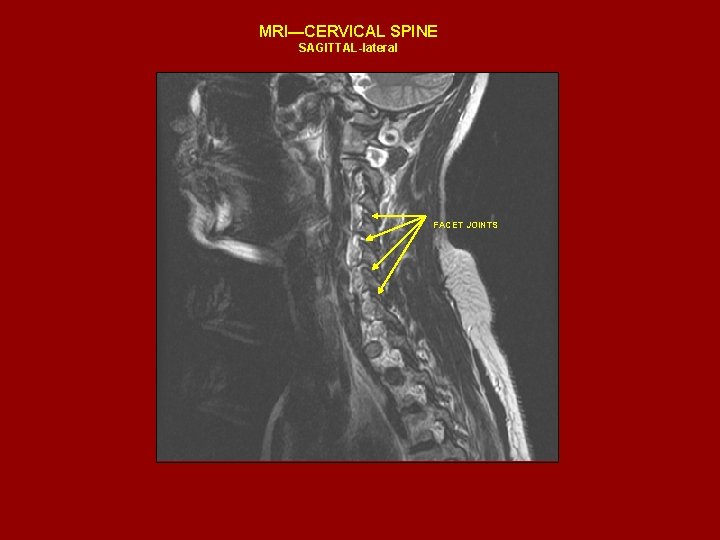

MRI—CERVICAL SPINE SAGITTAL-lateral FACET JOINTS

THORACIC SPINE IMAGES • THORACIC PLAIN FILMS

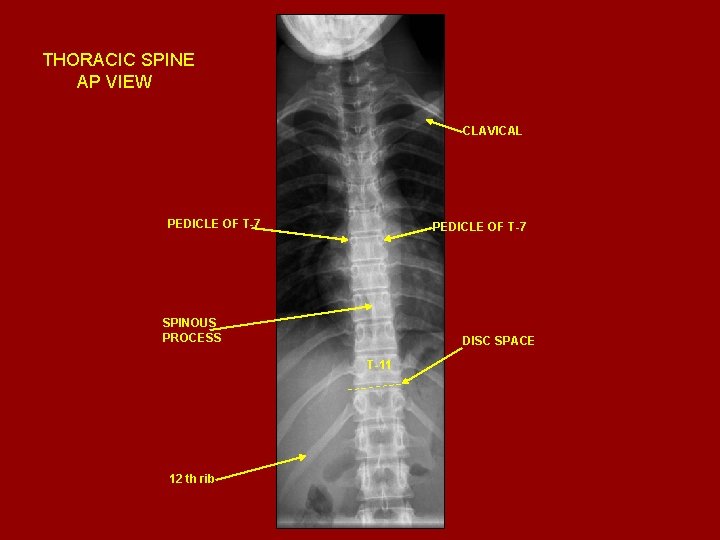

THORACIC SPINE AP VIEW CLAVICAL PEDICLE OF T-7 SPINOUS PROCESS DISC SPACE T-11 12 th rib

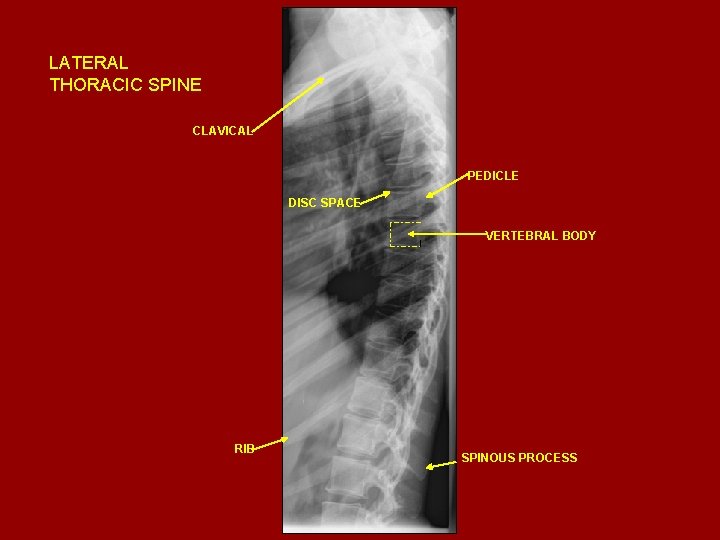

LATERAL THORACIC SPINE CLAVICAL PEDICLE DISC SPACE VERTEBRAL BODY RIB SPINOUS PROCESS

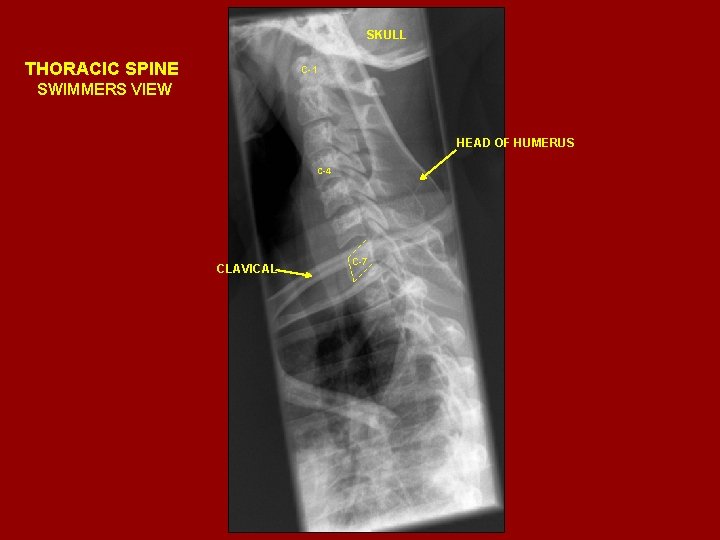

SKULL THORACIC SPINE C-1 SWIMMERS VIEW HEAD OF HUMERUS C-4 CLAVICAL C-7

LUMBAR SPINE IMAGES • LUMBAR PLAIN FILMS • LUMBAR MYELOGRAM • LUMBAR CT— POST MYELOGRAM • LUMBAR MRI

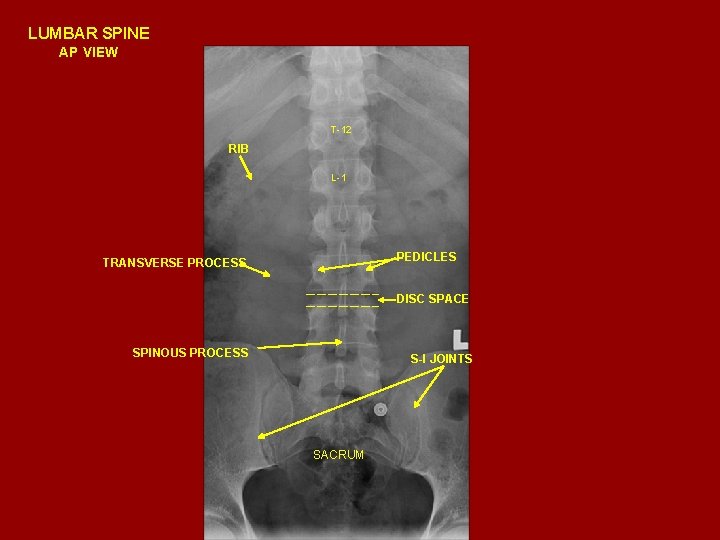

LUMBAR SPINE AP VIEW T-12 RIB L-1 PEDICLES TRANSVERSE PROCESS DISC SPACE SPINOUS PROCESS S-I JOINTS SACRUM

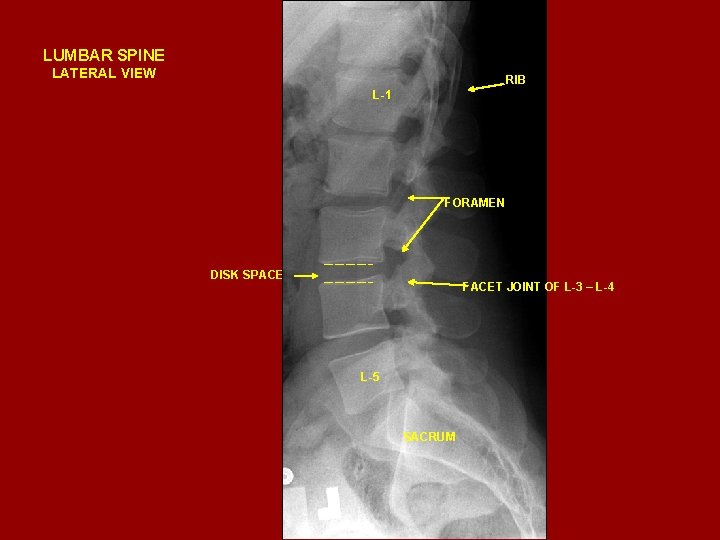

LUMBAR SPINE LATERAL VIEW RIB L-1 FORAMEN DISK SPACE FACET JOINT OF L-3 – L-4 L-5 SACRUM

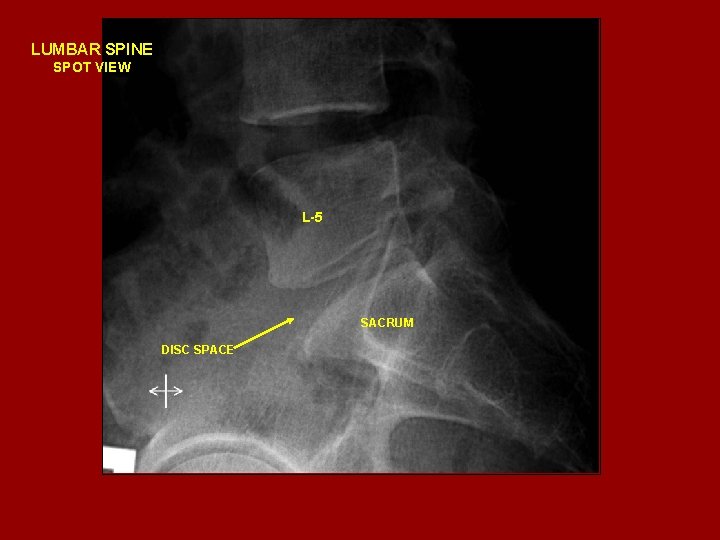

LUMBAR SPINE SPOT VIEW L-5 SACRUM DISC SPACE

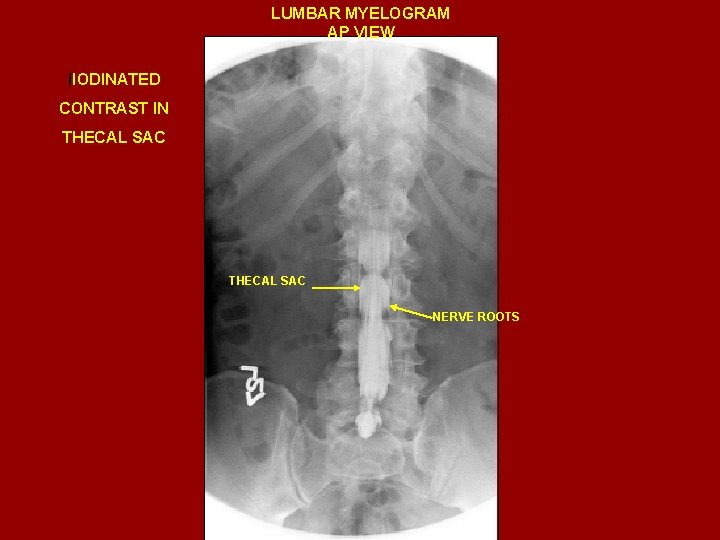

LUMBAR MYELOGRAM AP VIEW IIODINATED CONTRAST IN THECAL SAC NERVE ROOTS

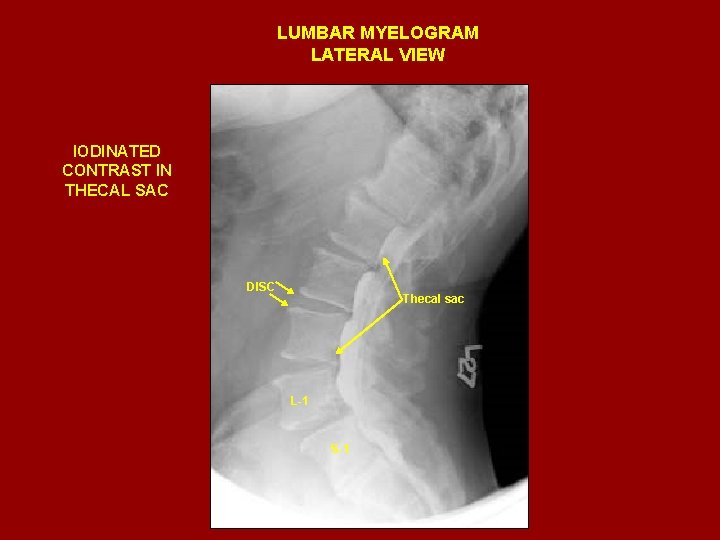

LUMBAR MYELOGRAM LATERAL VIEW IODINATED CONTRAST IN THECAL SAC DISC Thecal sac L-1 S-1

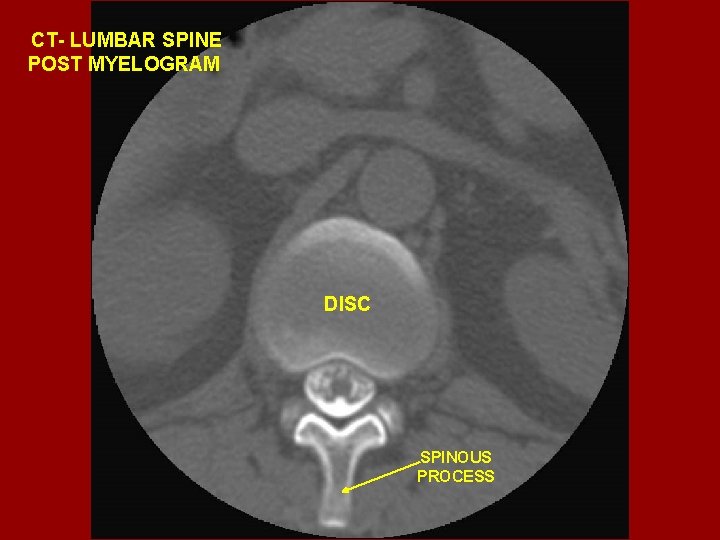

CT- LUMBAR SPINE POST MYELOGRAM DISC SPINOUS PROCESS

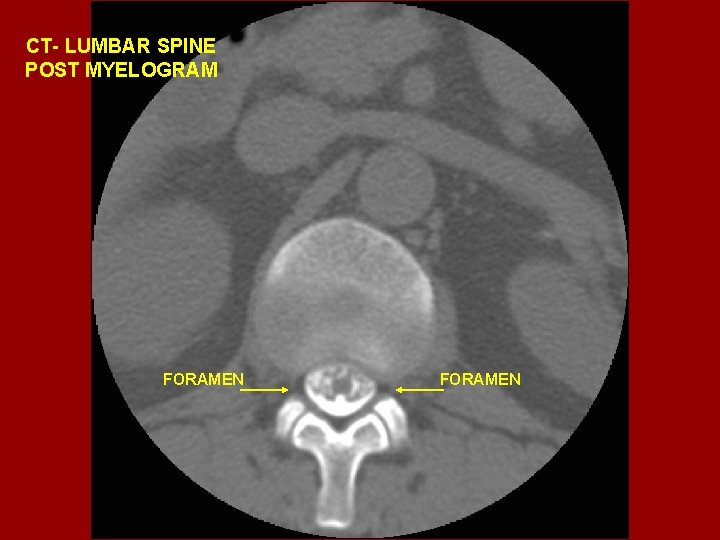

CT- LUMBAR SPINE POST MYELOGRAM FORAMEN

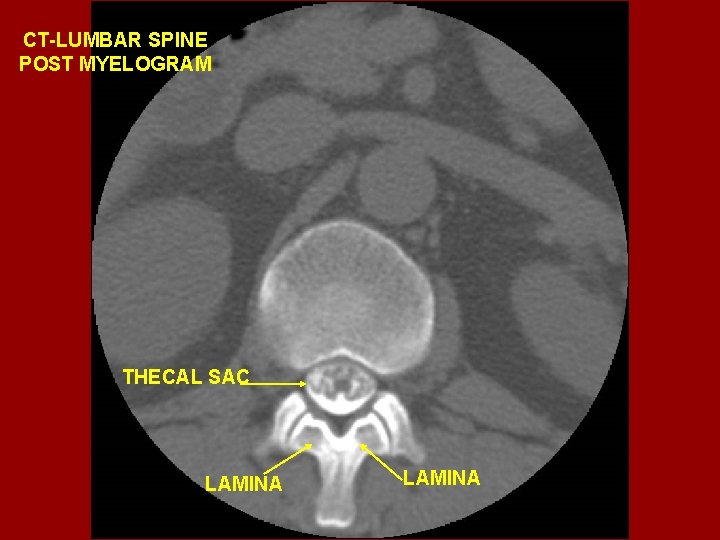

CT-LUMBAR SPINE POST MYELOGRAM THECAL SAC LAMINA

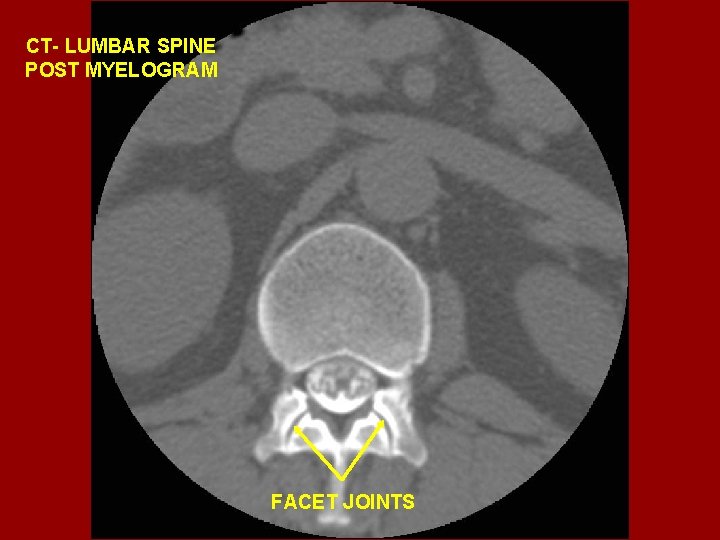

CT- LUMBAR SPINE POST MYELOGRAM FACET JOINTS

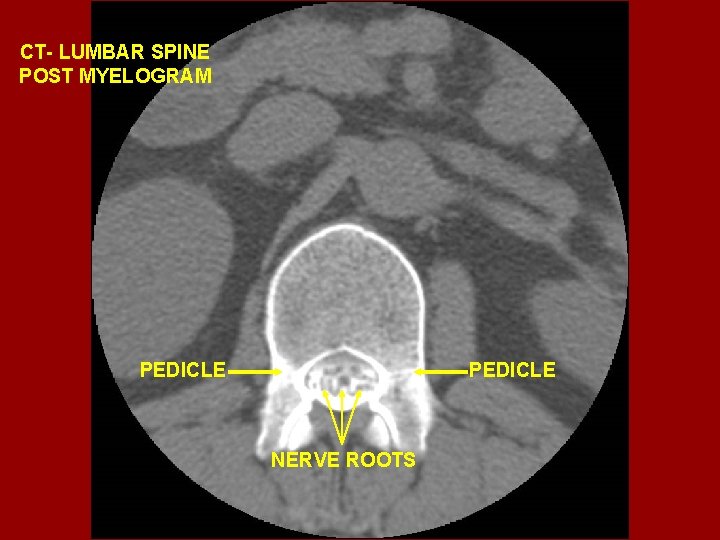

CT- LUMBAR SPINE POST MYELOGRAM PEDICLE NERVE ROOTS

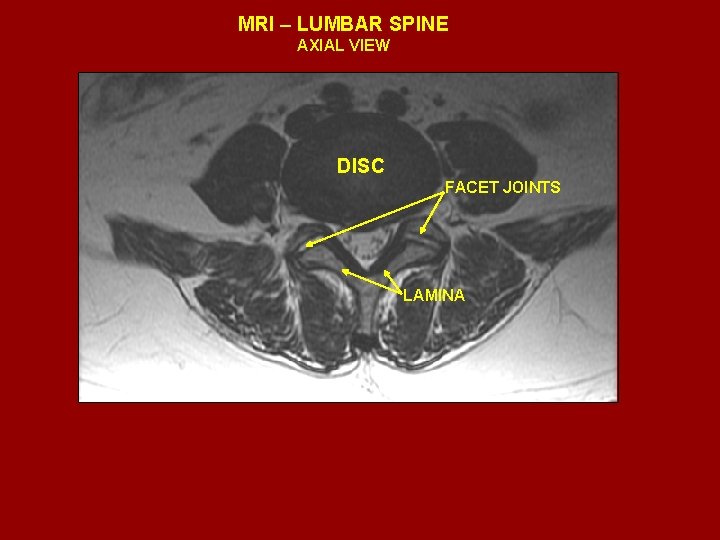

MRI – LUMBAR SPINE AXIAL VIEW DISC FACET JOINTS LAMINA

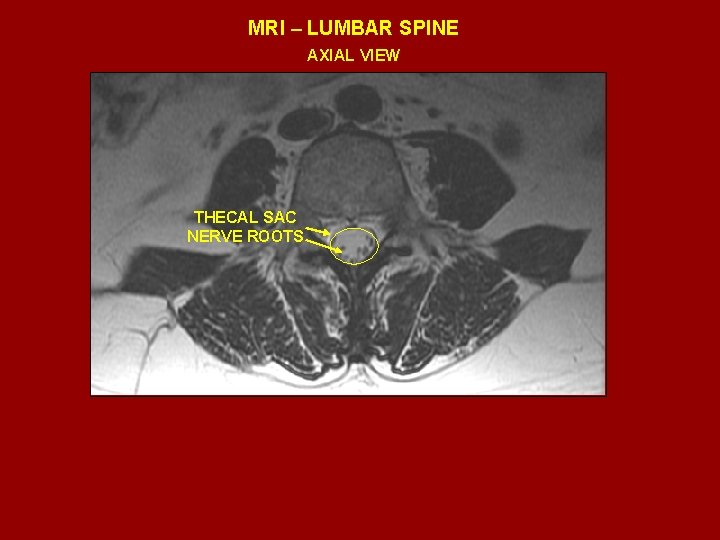

MRI – LUMBAR SPINE AXIAL VIEW THECAL SAC NERVE ROOTS

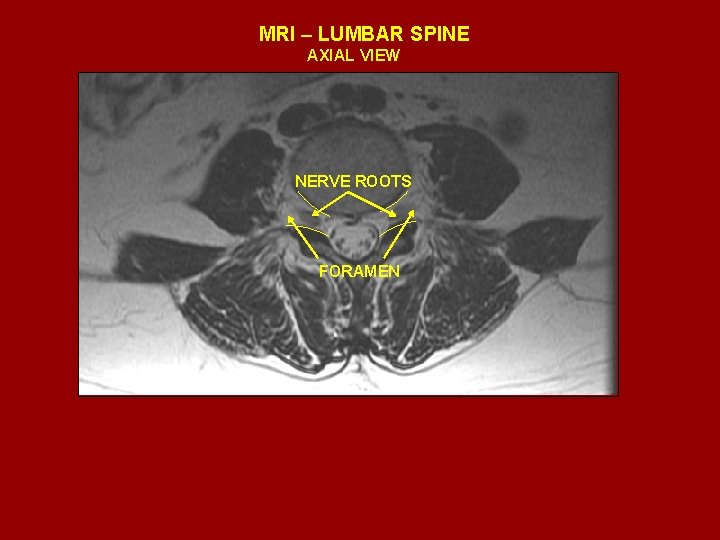

MRI – LUMBAR SPINE AXIAL VIEW NERVE ROOTS FORAMEN

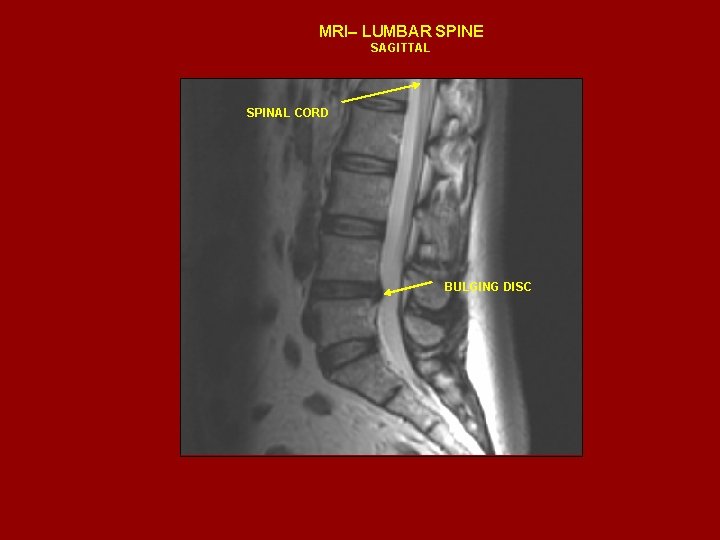

MRI– LUMBAR SPINE SAGITTAL SPINAL CORD BULGING DISC

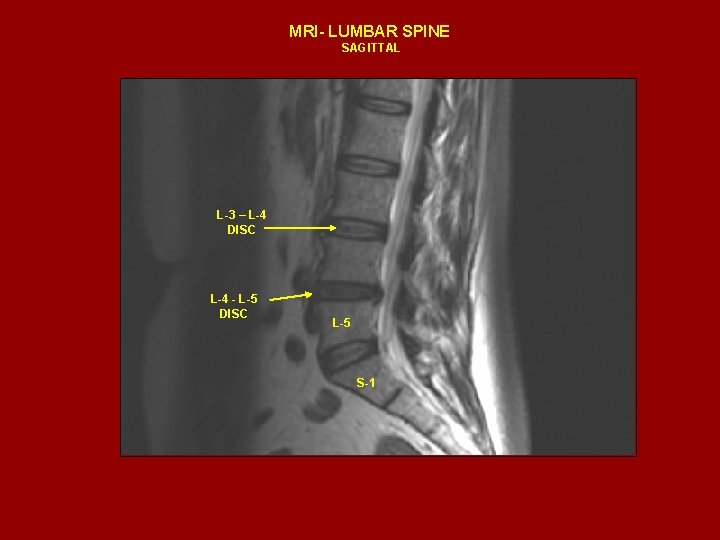

MRI- LUMBAR SPINE SAGITTAL L-3 – L-4 DISC L-4 - L-5 DISC L-5 S-1
