Grid(Lab) Resource Management System …and general Grid Resource Management Jarek Nabrzyski et al. naber@man. poznan. pl Poznan Supercomputing And Networking Center

Grid. Lab EU funded project, involving 11 European and 3 American partners (Globus and Condor teams), January 2002 – December 2004 Main goal: to develop a Grid Application Toolkit (GAT) and set of grid services and tools. . . resource management (GRMS), data management, monitoring, adaptive components, mobile user support, security services, portals, . . . and test them on a real testbed with real applications CGW 2003

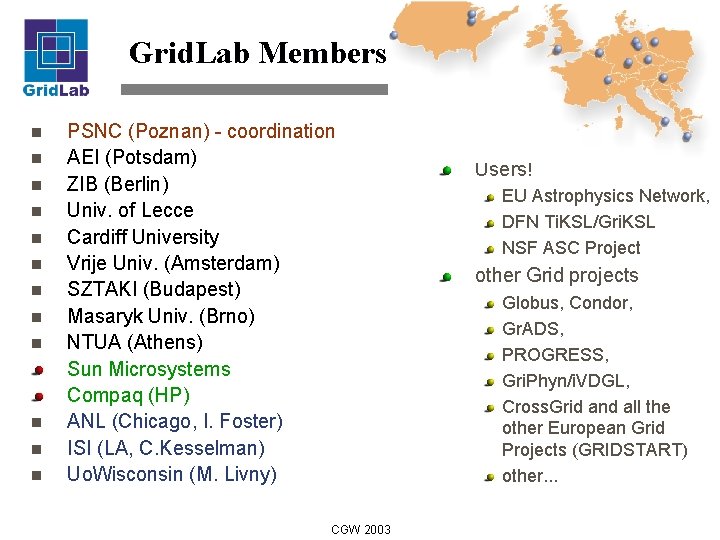

Grid. Lab Members n n n PSNC (Poznan) - coordination AEI (Potsdam) ZIB (Berlin) Univ. of Lecce Cardiff University Vrije Univ. (Amsterdam) SZTAKI (Budapest) Masaryk Univ. (Brno) NTUA (Athens) Sun Microsystems Compaq (HP) ANL (Chicago, I. Foster) ISI (LA, C. Kesselman) Uo. Wisconsin (M. Livny) CGW 2003 collaborating with: Users! EU Astrophysics Network, DFN Ti. KSL/Gri. KSL NSF ASC Project other Grid projects Globus, Condor, Gr. ADS, PROGRESS, Gri. Phyn/i. VDGL, Cross. Grid and all the other European Grid Projects (GRIDSTART) other. . .

It’s Easy to Forget How Different 2003 is From 1993 Ubiquitous Internet: 100+ million hosts Collaboration & resource sharing the norm Ultra-high-speed networks: 10+ Gb/s Global optical networks Enormous quantities of data: Petabytes For an increasing number of communities, gating step is not collection but analysis Huge quantities of computing: 100+ Top/s Ubiquitous computing via clusters Moore’s law everywhere: 1000 x/decade Instruments, detectors, sensors, scanners Courtesy of Ian Foster CGW 2003

And Thus, The Grid “Problem” (or Opportunity) Dynamically link resources/services From collaborators, customers, e. Utilities, … (members of evolving “virtual organization”) Into a “virtual computing system” Dynamic, multi-faceted system spanning institutions and industries Configured to meet instantaneous needs, for: Multi-faceted Qo. X for demanding workloads Security, performance, reliability, … Courtesy of Ian Foster CGW 2003

Integration as a Fundamental Challenge Many sources of data, services, computation Discovery R RM Access Registries organize services of interest to a community RM RM Security service Data integration activities may require access to, & exploration of, data at many locations Courtesy of Ian Foster Security & policy must underlie access & management decisions CGW 2003 RM Resource management is needed to ensure progress & arbitrate competing demands Policy service Exploration & analysis may involve complex, multi-step workflows

Grid Scheduling Current approach: Extension of job scheduling for parallel computers Resource discovery and load-distribution to a remote resource Usually batch job scheduling model on remote machine But actually required for Grid scheduling is: Co-allocation and coordination of different resource allocations for a Grid job Instantaneous ad-hoc allocation not always suitable This complex task involves: “Cooperation” between different resource providers Interaction with local resource management systems (interfaces and functions of many LRM differ from each other) Support for reservations and service level agreements Orchestration of coordinated resource allocations CGW 2003

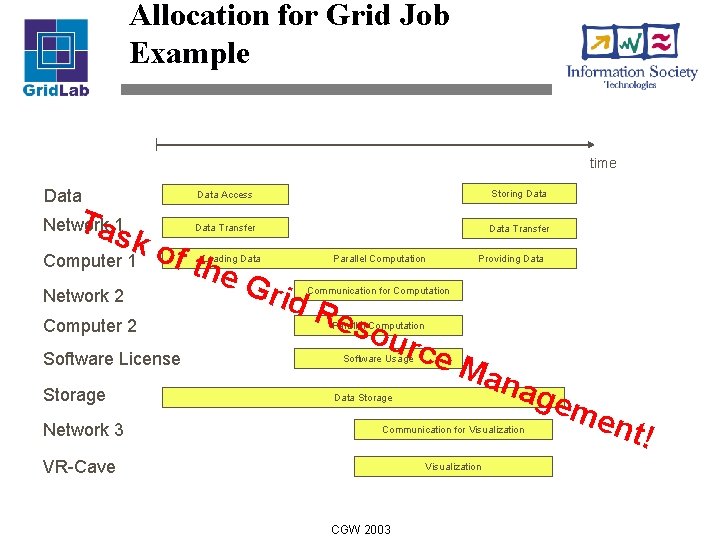

Allocation for Grid Job Example time Data Tas Network 1 k o Computer 1 Computer 2 Software License Network 3 Storing Data Transfer f th Network 2 Storage Data Access Loading Data Parallel Computation Providing Data e G r id R Communication for Computation eso u Parallel Computation rce Software Usage Data Storage Ma nag e Communication for Visualization VR-Cave Visualization CGW 2003 me nt !

Local Scheduling Systems Observation: Local resource management (LRM) systems exist require extension for Grids by additional software or will directly support Grids in the future DRMAA is available today for some LRM systems Different LRM systems will be part of the Grid and will perform a lower-level scheduling In addition the Grid will require some higher-level scheduling for coordinating the user’s jobs. Multi-level scheduling model CGW 2003

Multi-level Grid Scheduling Architecture Higher-level Grid Scheduling Grid. Scheduler time Scheduler Schedule local Job-Queues Resource 1 Resource 2 Resource n Courtesy of Ramin Yahyapour CGW 2003 Grid Scheduling Architecture Lower-level Scheduling time Grid. User

User Objective Local computing typically has: A given scheduling objective as minimization of response time Use of batch queuing strategies Simple scheduling algorithms: FCFS, Backfilling Grid Computing requires: Individual scheduling objective better resources faster execution cheaper execution More complex objective functions apply for individual Grid jobs! CGW 2003

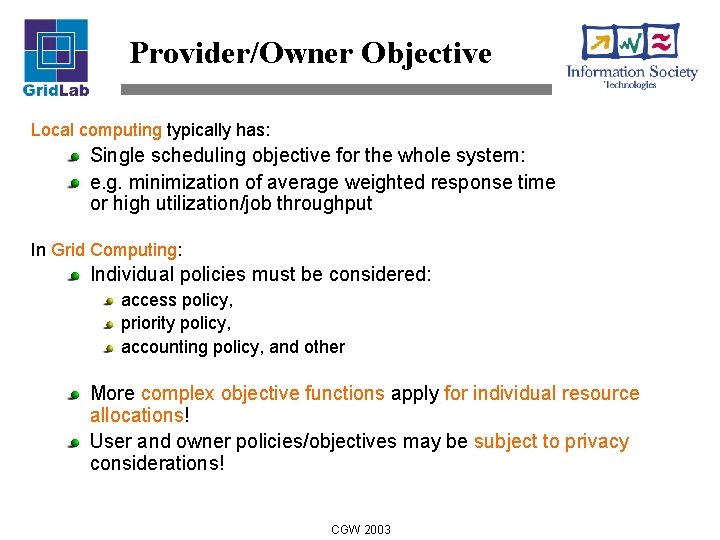

Provider/Owner Objective Local computing typically has: Single scheduling objective for the whole system: e. g. minimization of average weighted response time or high utilization/job throughput In Grid Computing: Individual policies must be considered: access policy, priority policy, accounting policy, and other More complex objective functions apply for individual resource allocations! User and owner policies/objectives may be subject to privacy considerations! CGW 2003

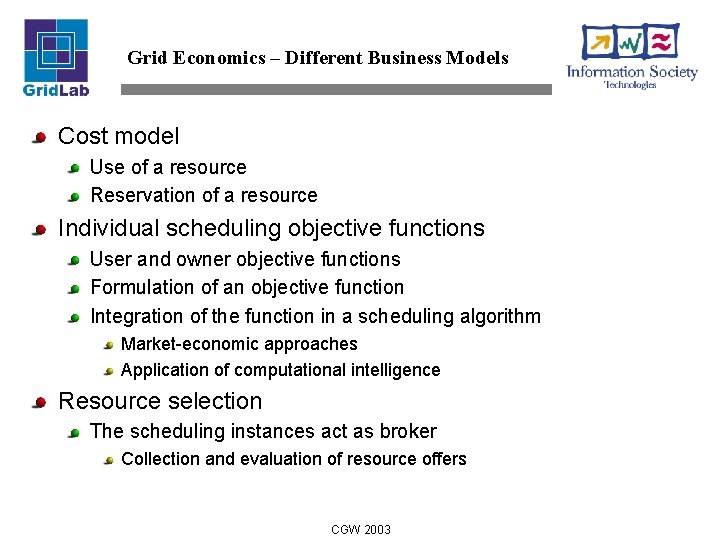

Grid Economics – Different Business Models Cost model Use of a resource Reservation of a resource Individual scheduling objective functions User and owner objective functions Formulation of an objective function Integration of the function in a scheduling algorithm Market-economic approaches Application of computational intelligence Resource selection The scheduling instances act as broker Collection and evaluation of resource offers CGW 2003

Scheduling Model Using a Brokerage/Trading strategy: Submit Grid Job Description Discover Resources Query for Allocation Offers Consider individual user policies Coordinate Allocations Higher-level scheduling Select Offers Collect Offers Consider community policies Generate Allocation Offer Lower-level scheduling Analyze Query CGW 2003 Consider individual owner policies

Properties of Multi-Level Scheduling Model Multi-level scheduling must support different RM systems and strategies. Provider can enforce individual policies in generating resource offers User receives resource allocation optimized to the individual objective Different higher-level scheduling strategies can be applied Multiple levels of scheduling instances are possible Support for fault-tolerant and load-balanced services CGW 2003

Negotiation in Grids Multilevel Grid scheduling architecture Lower level local scheduling instance Implementation of owner policies Higher level Grid scheduling instance Resource selection and coordination (Static) Interface definition between both instances Different types of resources Different local scheduling systems with different properties Different owner policies (Dynamic) Communication between both instances Resource discovery Job monitoring CGW 2003

GGF WG Scheduling Attributes Define the attributes of a lower-level scheduling instance that can be exploited by a higher-level scheduling instance. Attributes of allocation properties Guaranteed completion time of allocation, Allocations run-to-completion, … Attributes of available information Access to tentative schedule, Exclusive control, … Attributes for manipulating allocation execution Preemption, Migration, … Attributes for requesting resources Allocation Offers, Advance Reservation, … CGW 2003

Towards Grid Scheduling Methods: Support for individual scheduling objectives and policies Economic scheduling methods to Grids Multi-criteria scheduling models (most general) Architectural requirements: Generic job description Negotiation interface between higher- and lower-level scheduler Economic management services Workflow management Integration of data and network management Interoperability is a key! CGW 2003

Data and Network Scheduling Most new resource types can be included via individual lowerlevel resource management systems. Additional considerations for Data management Select resources according to data availability But data can be moved if necessary! Network management Consider advance reservation of bandwidth or SLA Network resources usually depend on the selection of other resources! Coordinate data transfers and storage allocation User empowered/owned lambdas! CGW 2003

Example of a Scheduling Process Scheduling Service: 1. receives job description 2. queries Information Service for static resource information 3. prioritizes and pre-selects resources 4. queries for dynamic information about resource availability 5. queries Data and Network Management Services 6. generates schedule for job 7. reserves allocation if possible otherwise selects another allocation 8. delegates job monitoring to Job Manager/Network and Data Management: service, monitor and initiate allocation CGW 2003 Example: 40 resources of requested type are found. 12 resources are selected. 8 resources are available. Network and data dependencies are detected. Utility function is evaluated. 6 th tried allocation is confirmed. Data/network provided and job is started

Conclusions for Grid Scheduling Grids ultimately require coordinated scheduling services. Support for different scheduling instances different local management systems different scheduling algorithms/strategies For arbitrary resources not only computing resources, also data, storage, network, software etc. Support for co-allocation and reservation necessary for coordinated grid usage (see data, network, software, storage) Different scheduling objectives cost, quality, other Grid resource management services are a key to success of the Grid vision! …so are the applications that could show the Grid benefit! CGW 2003

Integration of a Grid Scheduling System Globus as de-facto standard but no higher-level scheduling services available Many projects include scheduling requirements Focus on a running implementation for a specific problem No attempt to generate a general solution è Grid scheduling cannot be developed by single groups Requirements for several other services Community effort is key! è Requires open Grid standards that enables Grid scheduling Support for different implementations while being interoperable CGW 2003

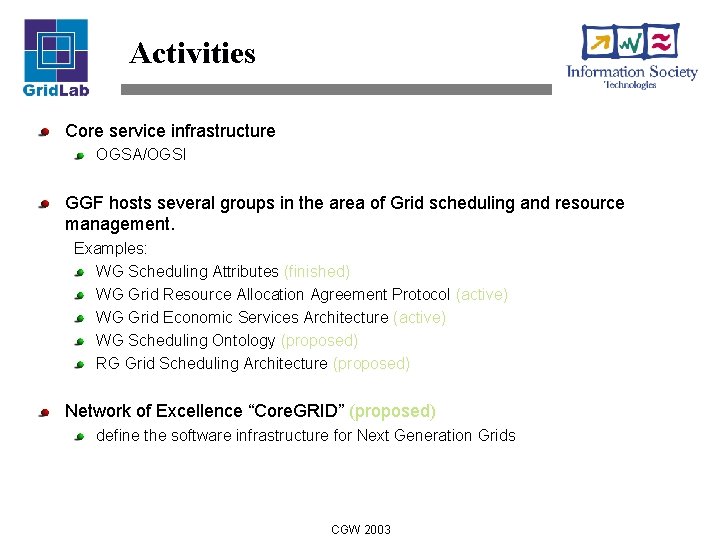

Activities Core service infrastructure OGSA/OGSI GGF hosts several groups in the area of Grid scheduling and resource management. Examples: WG Scheduling Attributes (finished) WG Grid Resource Allocation Agreement Protocol (active) WG Grid Economic Services Architecture (active) WG Scheduling Ontology (proposed) RG Grid Scheduling Architecture (proposed) Network of Excellence “Core. GRID” (proposed) define the software infrastructure for Next Generation Grids CGW 2003

What are Basic Blocks for a Grid Scheduling Architecture? Information Service Scheduling Service static & scheduled/forecasted Query for resources Reservation Job Supervisor Service Data Management Service Network Management Service Data Manager Courtesy of Ramin Yahyapour Data-Resources Maintain information Network Manager Management System Network Management System Compute/ Storage /Visualization etc Data Network Accounting and Billing Service Compute Manager Maintain information Network-Resources CGW 2003 Basic Blocks and Requirements are still to be defined!

Conclusion Resource management and scheduling is a key service in an Next Generation Grid In a large Grid the user cannot handle this task Nor is the orchestration of resources a provider task System integration is complex but vital Individual results may be of limited benefit without being embedded in a larger project Basic research is required in this area. No ready-to-implement solution is available (although EDG, Cross. Grid, Grid. Lab etc. work on it) New concepts are necessary A significant joint effort is needed to support Grid Scheduling! Also research is still necessary! CGW 2003

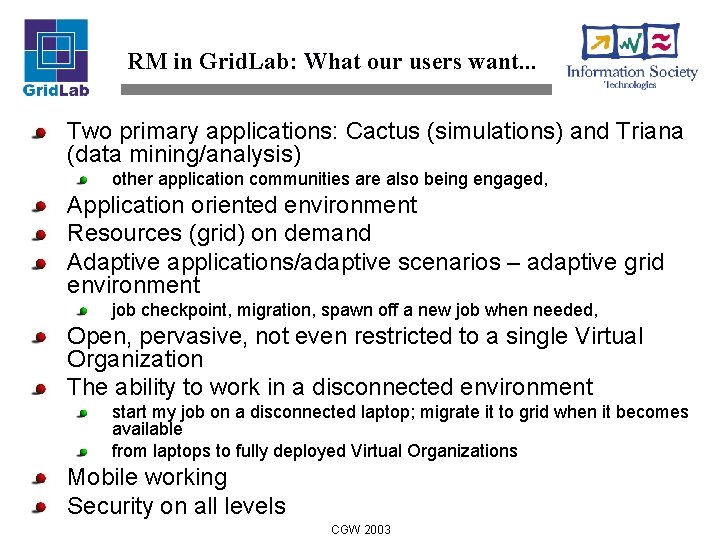

RM in Grid. Lab: What our users want. . . Two primary applications: Cactus (simulations) and Triana (data mining/analysis) other application communities are also being engaged, Application oriented environment Resources (grid) on demand Adaptive applications/adaptive scenarios – adaptive grid environment job checkpoint, migration, spawn off a new job when needed, Open, pervasive, not even restricted to a single Virtual Organization The ability to work in a disconnected environment start my job on a disconnected laptop; migrate it to grid when it becomes available from laptops to fully deployed Virtual Organizations Mobile working Security on all levels CGW 2003

What our users want. . . (cont. ) The infrastructure must provide capabilities to customise choice of service implementation (e. g. using efficiency, reliability, first succeeding, all) Advance reservation of resources, To be able to express their preferences regarding their jobs on one hand to understand the resource and VO policies on the other hand, Policy information and negotiation mechanisms what is a policy of usage of the remote resources? Prediction-based information How long will my job run on a particular resource? What resources do I need to complete the job before deadline? CGW 2003

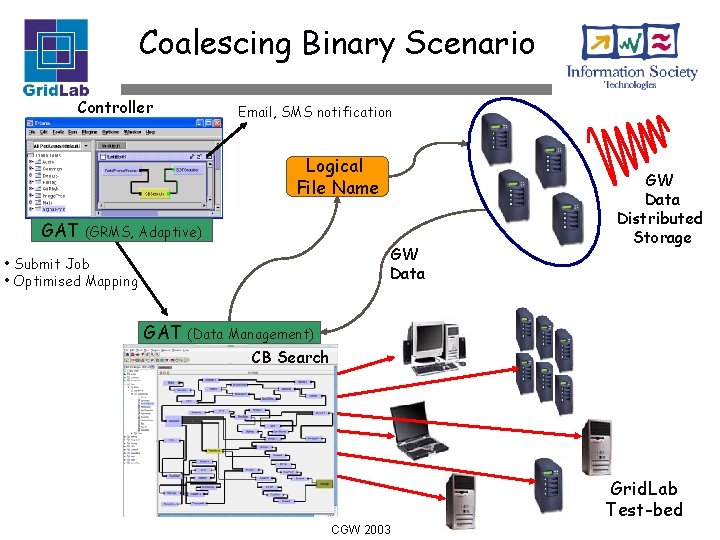

Coalescing Binary Scenario Controller Email, SMS notification Logical File Name GAT (GRMS, Adaptive) GW Data • Submit Job • Optimised Mapping GAT GW Data Distributed Storage (Data Management) CB Search Grid. Lab Test-bed CGW 2003

Grid. Lab RMS approach Grid resources are not only the machines, but also databases, files, users, administrators, instruments, mobile devices, jobs/applications. . . Many metrics for scheduling: throughput, cost, latency, deadline, other time and cost metrics. . . Grid resource management consists of job/resource scheduling, security (authorization services, . . . ), local policies, negotiations, accounting, . . . GRM is both, user and resource owner driven negotiation process and thus, multicriteria decision making process WS-Agreement is badly needed Two ongoing implementations: production keep-up and future full-feature CGW 2003

GRMS - the VO RMS GRMS is a VO (community) resource management system Component and pluggable architecture allows to use it as a framework for many different VOs Components include: Resource discovery (now MDS-based, other solutions easy to be added: now adding the Grid. Lab testbed information system: see Ludek’s talk tomorrow) Scheduling (Multicriteria, economy, workflow, co-scheduling, SLA -based scheduling) - work in progress Job Management Workflow Management Resource Reservation CGW 2003

GRMS - the plan Authorization System Information Services Data Management Resource Discovery File Transfer Unit BROKER Execution Unit Adaptive Jobs Queue Job Receiver Monitoring SLA Negotiation GRMS Scheduler Resource Reservation Workflow Manager Prediction Unit GLOBUS, other Local Resources (Managers) CGW 2003

Current implementation submit. Job - submits new job, migrate. Job - migrates existing job, get. My. Jobs. List - returns list of jobs belonging to the user, register. Application. Access - registers application access, get. Job. Status - returns GRMS status of the job, get. Host. Name - returns host name, on which the job is/was running get. Job. Info - returns a structure describing the job, find. Resources - returns resources matching user's requirements, cancel. Job - cancels the job, get. Service. Description - returns description of a service. CGW 2003

GRMS - overview User Access Layer Resource Management System Resource Discovery (GAT) Application Broker Grid Environment Grid. Lab Services • Data Management • Adaptive Components • Grid. Lab Authorization Service Globus Infrastructure Grid. Lab Portal Job Manager CGW 2003 • MDS • GRAM • Grid. FTP • GASS

GRMS –detailed view DB Resource Discovery Grid. Lab Services User Access Layer Web Service Interface Workflow Mgmt. Job Queue Task Registry CGW 2003 Broker System Layer Services Job Manager

GRMS –detailed view DB Web Service Interface User Access Layer Web Service Interface Workflow Mgmt. Web Service Interface Job Queue Web Service Interface Task Registry CGW 2003 Resource Discovery Web Service Interface Grid. Lab Services Web Service Interface Broker System Layer Services Job Manager Web Service Interface

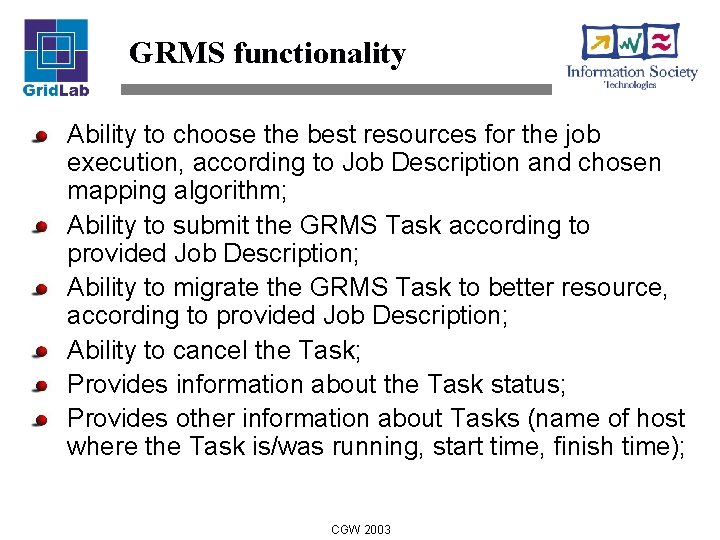

GRMS functionality Ability to choose the best resources for the job execution, according to Job Description and chosen mapping algorithm; Ability to submit the GRMS Task according to provided Job Description; Ability to migrate the GRMS Task to better resource, according to provided Job Description; Ability to cancel the Task; Provides information about the Task status; Provides other information about Tasks (name of host where the Task is/was running, start time, finish time); CGW 2003

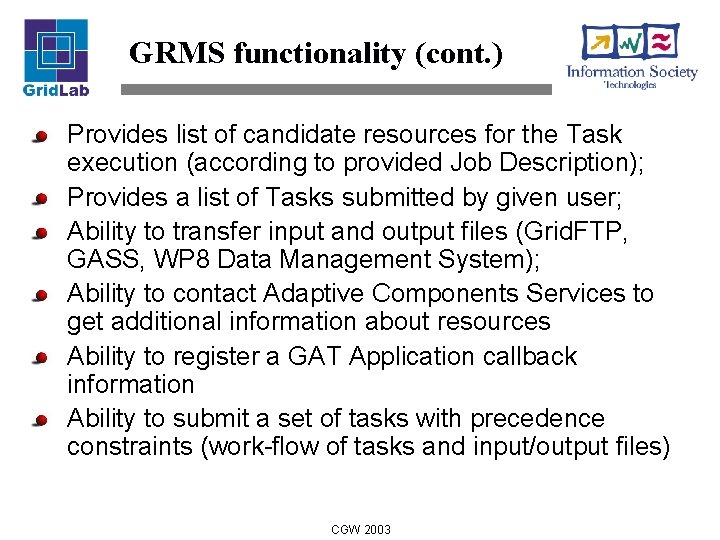

GRMS functionality (cont. ) Provides list of candidate resources for the Task execution (according to provided Job Description); Provides a list of Tasks submitted by given user; Ability to transfer input and output files (Grid. FTP, GASS, WP 8 Data Management System); Ability to contact Adaptive Components Services to get additional information about resources Ability to register a GAT Application callback information Ability to submit a set of tasks with precedence constraints (work-flow of tasks and input/output files) CGW 2003

GRMS modules Broker Module Steers process of job submittion Chooses the best resources for job execution (scheduling algorithm) Transfers input and output files for job's executable Resource Discovery Module Finds resources that fullfills requirements described in Job Description Provides information about resources, required for job scheduling CGW 2003

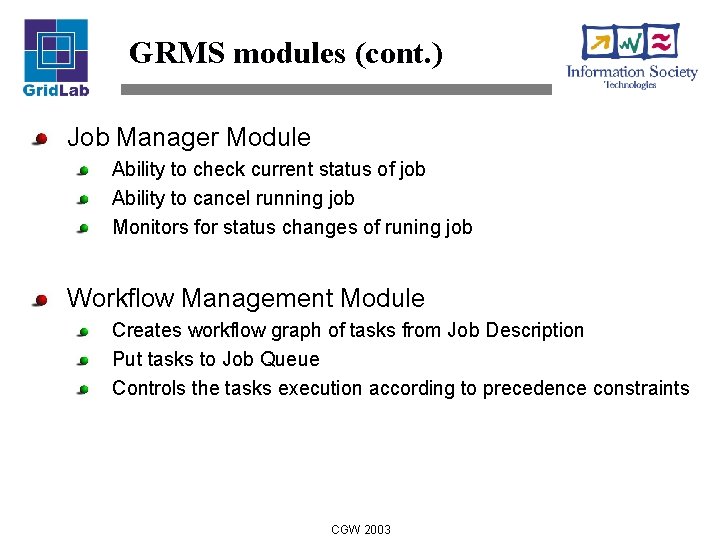

GRMS modules (cont. ) Job Manager Module Ability to check current status of job Ability to cancel running job Monitors for status changes of runing job Workflow Management Module Creates workflow graph of tasks from Job Description Put tasks to Job Queue Controls the tasks execution according to precedence constraints CGW 2003

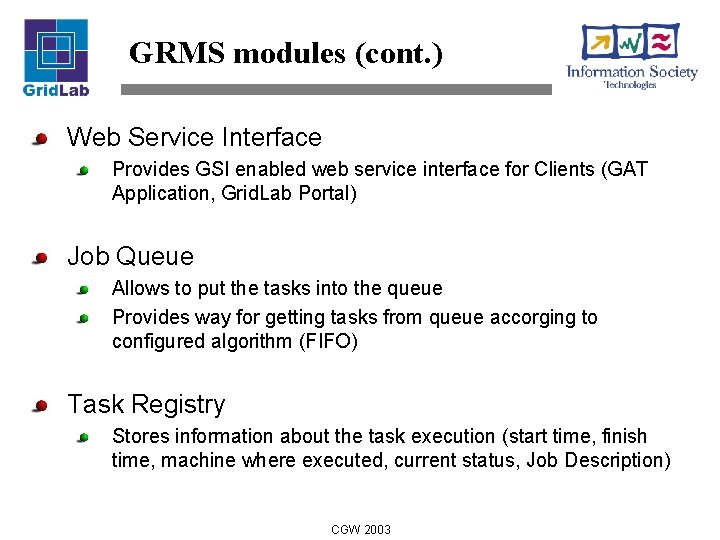

GRMS modules (cont. ) Web Service Interface Provides GSI enabled web service interface for Clients (GAT Application, Grid. Lab Portal) Job Queue Allows to put the tasks into the queue Provides way for getting tasks from queue accorging to configured algorithm (FIFO) Task Registry Stores information about the task execution (start time, finish time, machine where executed, current status, Job Description) CGW 2003

Job Description Task executable file location arguments file argument (files which have to be present in working directory of running executable) environment variables standard input standard output standard error checkpoint files CGW 2003

Job Description (cont. ) Resource requirements of executable name of host for job execution (if provided no scheduling algorithm is used) operating system required local resource management system minimum memory required minimum number of cpus required minimum speed of cpu other parameter passed directly to Globus GRAM CGW 2003

Job Description – new elements Job Description consists of one or more Task descriptions Each Task can have a section which denotes parent tasks CGW 2003

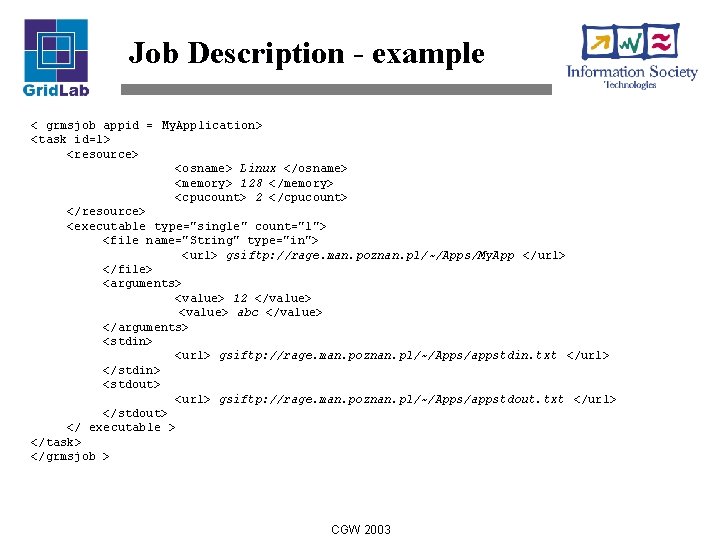

Job Description - example < grmsjob appid = My. Application> <task id=1> <resource> <osname> Linux </osname> <memory> 128 </memory> <cpucount> 2 </cpucount> </resource> <executable type="single" count="1"> <file name="String" type="in"> <url> gsiftp: //rage. man. poznan. pl/~/Apps/My. App </url> </file> <arguments> <value> 12 </value> <value> abc </value> </arguments> <stdin> <url> gsiftp: //rage. man. poznan. pl/~/Apps/appstdin. txt </url> </stdin> <stdout> <url> gsiftp: //rage. man. poznan. pl/~/Apps/appstdout. txt </url> </stdout> </ executable > </task> </grmsjob > CGW 2003

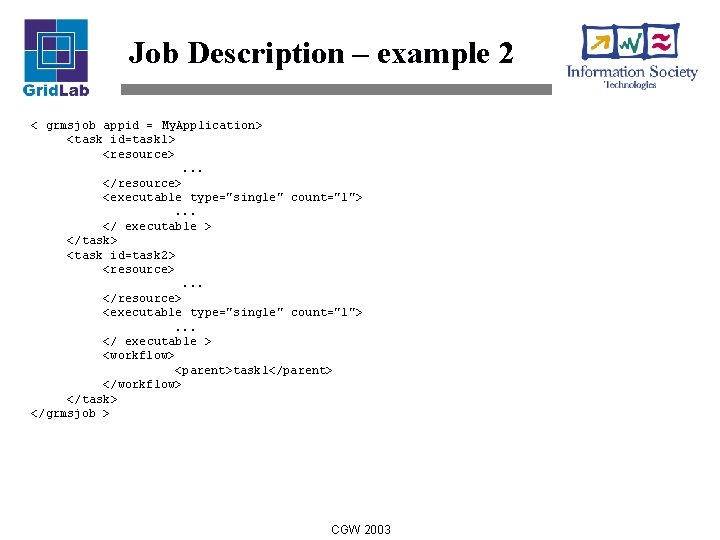

Job Description – example 2 < grmsjob appid = My. Application> <task id=task 1> <resource> . . . </resource> <executable type="single" count="1">. . . </ executable > </task> <task id=task 2> <resource> . . . </resource> <executable type="single" count="1">. . . </ executable > <workflow> <parent>task 1</parent> </workflow> </task> </grmsjob > CGW 2003

Research focus of GRMS Focus on the infrastructure is not enough for the efficient GRM Focus on policies Focus on multicriteria aspects of the GRM users, their preferences and applications contradictory in nature resource owners’ preferences preference models, multicriteria decision making, knowledge will be crucial for efficient resource management Focus on AI techniques for GRM Focus on business models, economy grids Cost negotiation mechanisms could be part of the SLA negotiation process (WS-Agreement) CGW 2003

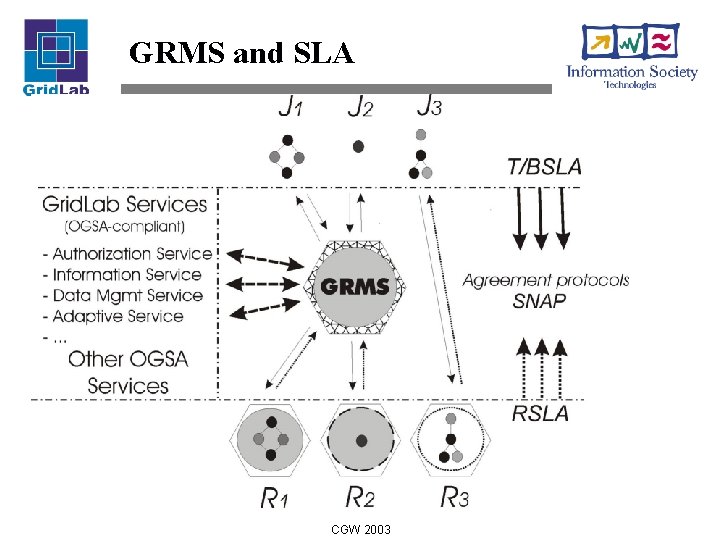

GRMS and SLA CGW 2003

GRMS and SLA (cont. ) CGW 2003

STAKEHOLDERS OF THE GRID RESOURCE MANAGEMENT PROCESS End-users (consumers) having requirements concerning their applications (e. g. expect a good performance of their applications, expect a good response time) have requirements concerning resources (e. g. prefer machines with a big storage, machines with certain configurations) Resource Administrators and Owners (providers) share resources to achieve some benefits VO Administrator (criteria and preferences must be secure) requires robust and reliable provisioning of resources manages and controls VO by making global policies (community policies) CGW 2003

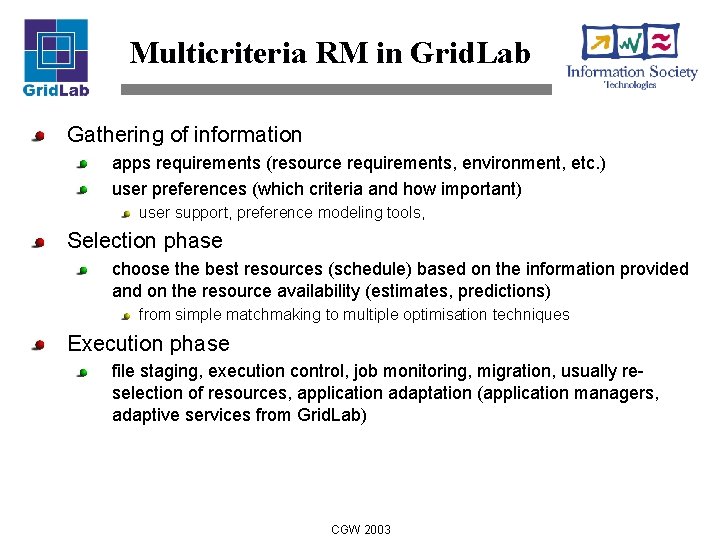

Multicriteria RM in Grid. Lab Gathering of information apps requirements (resource requirements, environment, etc. ) user preferences (which criteria and how important) user support, preference modeling tools, Selection phase choose the best resources (schedule) based on the information provided and on the resource availability (estimates, predictions) from simple matchmaking to multiple optimisation techniques Execution phase file staging, execution control, job monitoring, migration, usually reselection of resources, application adaptation (application managers, adaptive services from Grid. Lab) CGW 2003

Multicriteria approach in GRMS Many different research fields, e. g. Multicriteria Optimization, Project Scheduling, Artificial Intelligence, Decision Support Systems We consider a resource management problem as a multicriteria decision making process with various stakeholders Various stakeholders have different point of views and criteria (along with preferences) We need to aggregate somehow (negotiation and agreement processes are required) various criteria and stakeholders’ preferences We focus on a compromise solution rather then the optimal one (does it exist? ) We want to satisfy many stakeholders rather than the particular one CGW 2003

MULTICRITERIA (1) End user 1 End user 2 Application 1 (e. g. Data analysis ) Application 2 (e. g. Data mining) Hard constraints (e. g. RSL) <Mem = 100 MB>, <Storage = 1 G> Memory ? ? ? R 1 R 2 R 3 R 4 Storage CGW 2003 R 4 Storage

MULTICRITERIA (2) End user 1 End user 2 Application 1 (e. g. Data analysis ) Application 2 (e. g. Data mining) MAX Z = 1*Mem + 2*Storage MAX Z = 2*Mem + 1*Storage (where z is the objective function) Memory R 1 R 2 R 3 R 4 Storage CGW 2003

PROPOSALS We have added only two parameters to hard constraints: priority and min/max (optimization direction) NEW : <Mem = 100 MB><Priority = 2><Opt = Max> <Storage = 1 G><Priority = 1> <Opt = Max> End users are able to express their preferences in a very simple way End users’ preferences are taken into account (compromise solutions are chosen) CGW 2003

MULTIPLE CRITERIA - Concerning particular resources (e. g. memory, flops) or schedules (e. g. estimated processing time, maximum lateness) Specific for end-users (e. g. mean response time, mean tardiness, cost of computations), resource owners (e. g. machine idleness) and administrators (e. g. throughput, makespan) Time criteria (e. g. mean response time, makespan, mean tardiness), cost criteria (e. g. weighted resource consumption, cost of computations) and resource utilization criteria (e. g. load balancing, machine idleness) But. . . (in practice : -(, Lack or limited set of low level mechanisms which support e. g. advanced reservation, Negotiation protocols and agreements Prediction tools which provide advanced analysis and estimations (e. g. execution time, queue wait time), Reliable information sources which describe behaviors of applications and resources, etc. CGW 2003

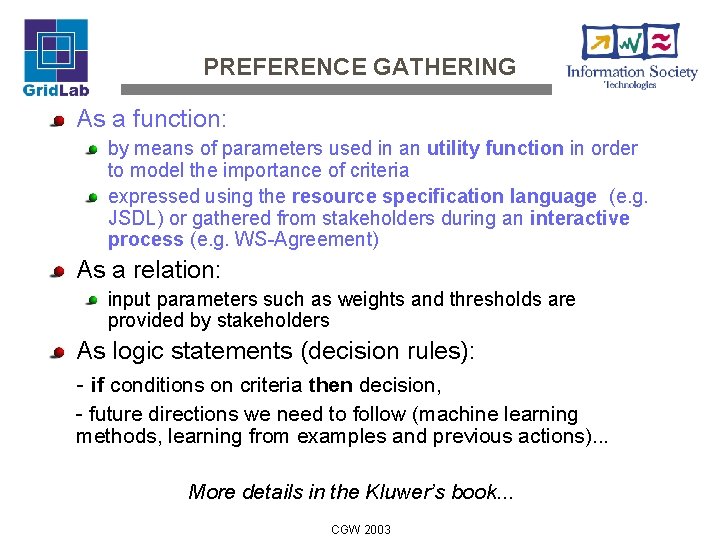

PREFERENCE GATHERING As a function: by means of parameters used in an utility function in order to model the importance of criteria expressed using the resource specification language (e. g. JSDL) or gathered from stakeholders during an interactive process (e. g. WS-Agreement) As a relation: input parameters such as weights and thresholds are provided by stakeholders As logic statements (decision rules): - if conditions on criteria then decision, - future directions we need to follow (machine learning methods, learning from examples and previous actions). . . More details in the Kluwer’s book. . . CGW 2003

STEPS OF MULTICRITERIA RESOURCE MANAGEMENT Our approach extends and is based on many scheduling strategies. . . Gathering of information applications requirements (resource requirements, environment, etc. ) users’ preferences (which criteria and how important) user support, preference modeling tools Selection choice of the best resources or schedules based on the information provided and on the resource availability (estimates, predictions) from simple matchmaking to multiple optimization techniques Execution file staging, execution control, job monitoring, migration, usually reselection of resources, application adaptation CGW 2003

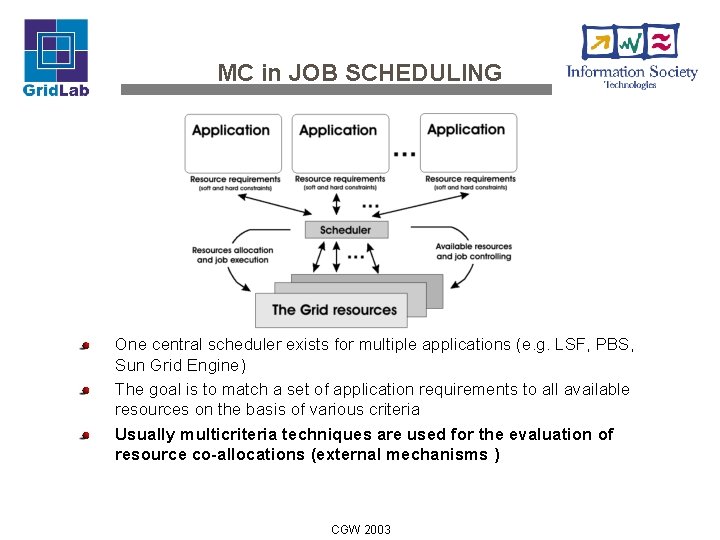

MC in JOB SCHEDULING One central scheduler exists for multiple applications (e. g. LSF, PBS, Sun Grid Engine) The goal is to match a set of application requirements to all available resources on the basis of various criteria Usually multicriteria techniques are used for the evaluation of resource co-allocations (external mechanisms ) CGW 2003

MC in APPLICATION LEVEL SCHEDULING • • • Each application is scheduled by an internal scheduler and forms a selfcontained system The goal is to match particular application requirements with one (or some) good resource(s) based on various criteria Multicriteria techniques are used for the evaluation resources as well as resource co-allocations (internal mechanisms) CGW 2003

SIMPLE EXAMPLE (THEORY) Mathematical models: Assumptions: R = 7 resources NEU = 3 end-users (eu 1, eu 2, eu 3) tasks t 11, t 22, t 31 resources are maintained by NRO = 3 resource owners (ro 1, ro 2, ro 3), each task has to be assigned to one resource stakeholders’ preferences are expressed in the form of utility functions More details in the Kluwer’s book. . . CGW 2003

SELECTED CRITERIA The average execution time (T) - an average execution time of all tasks submitted by a given end-user The cost of resource usage (C) - the sum of costs of the resources’ usage by end-user's tasks The income (I) - the total income for a given resource owner More details in the Kluwer’s book. . . CGW 2003

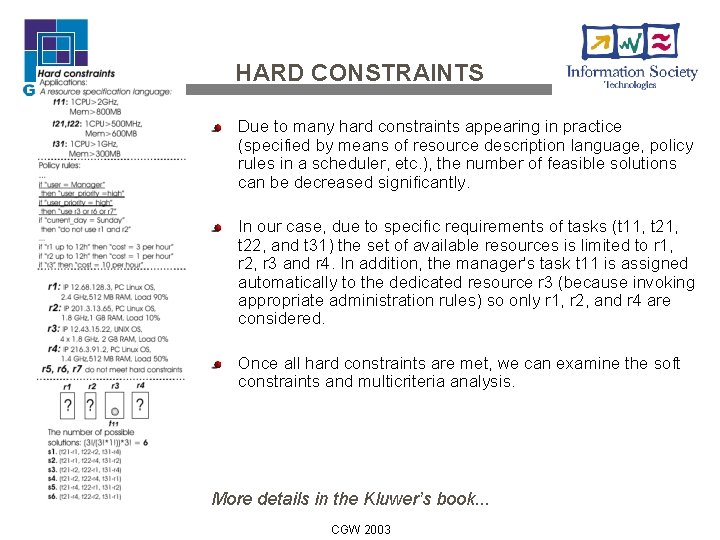

HARD CONSTRAINTS Due to many hard constraints appearing in practice (specified by means of resource description language, policy rules in a scheduler, etc. ), the number of feasible solutions can be decreased significantly. In our case, due to specific requirements of tasks (t 11, t 21, t 22, and t 31) the set of available resources is limited to r 1, r 2, r 3 and r 4. In addition, the manager's task t 11 is assigned automatically to the dedicated resource r 3 (because invoking appropriate administration rules) so only r 1, r 2, and r 4 are considered. Once all hard constraints are met, we can examine the soft constraints and multicriteria analysis. More details in the Kluwer’s book. . . CGW 2003

SOFT CONSTRAINTS AND MULTICRITERIA ANALYSIS Gathering preferences from all stakeholders • Evaluation of solutions (schedules) for each stakeholder using local utility functions • Aggregation of local evaluations (in the example using global utility function) • The best compromise solution is chosen (in the example with the best value of utility function) More details in the Kluwer’s book. . . CGW 2003

GRID SERVICES AND OGSIAGREEMENT OGSA defines Grid as a service-oriented environment OGSA model represents all entities of Grid as a Grid service (resources, brokers, applications) Interoperability between high-level community schedulers and local resource managers is supported, There must be agreement on how these entities will interact with each other (e. g. many different resource managers could provide different functionalities) CGW 2003

MULTICRITERIA AND WS-AGREEMENT End Users VO Administrator Resource Owners The goal is to negotiate the best contracts for a set of applications based on various additional criteria e. g. level of service capability, quality, deployment and dynamic reconfiguration level of commitment, service agreement and satisfaction Multicriteria techniques are used for the evaluation of resources/services and brokering negotiations CGW 2003

SIMPLE EXAMPLE (MC in JSDL) In order to implement multicriteria scenarios (simple) we have to add some new tags (describing various criteria and preferences) to the existing job specifications: JSDL example: <jsdl: name. Of. Term wsp: Usage="wsp: Required"> <jsdl: criterion jsdl: type=type> <jsdl: preference=value/> {or jsdl: preferences = a>b, b<d, c>d, a=c} </jsdl: criterion> </jsdl: name. Of. Term> where: jsdl: type is one of two types: jsdl: minimization or jsdl: maximization jsdl: priority expresses an end user’s preference More complicated and advanced MC scenario could be implemented, new tags and mechanisms are required) CGW 2003

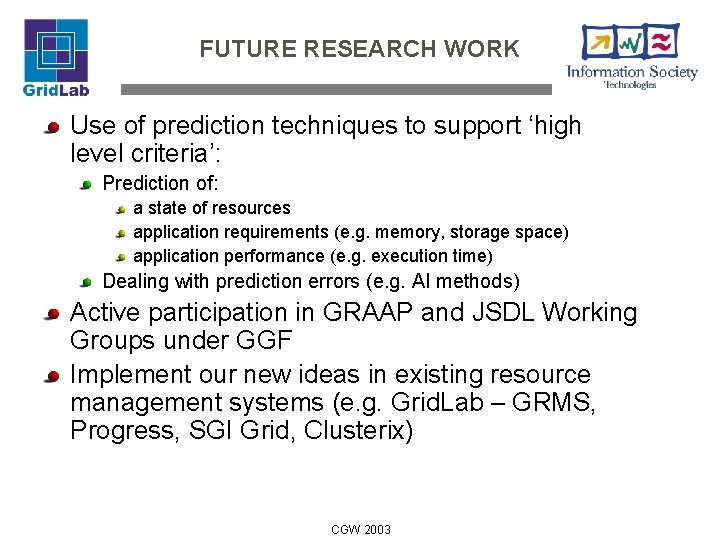

FUTURE RESEARCH WORK Use of prediction techniques to support ‘high level criteria’: Prediction of: a state of resources application requirements (e. g. memory, storage space) application performance (e. g. execution time) Dealing with prediction errors (e. g. AI methods) Active participation in GRAAP and JSDL Working Groups under GGF Implement our new ideas in existing resource management systems (e. g. Grid. Lab – GRMS, Progress, SGI Grid, Clusterix) CGW 2003

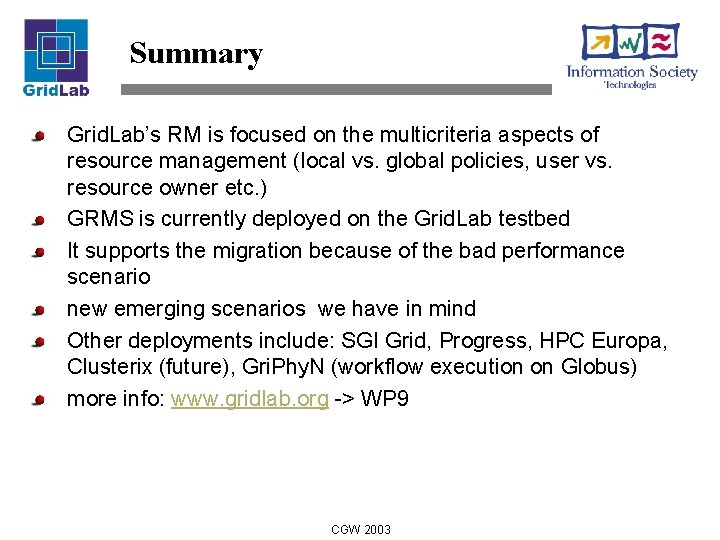

Summary Grid. Lab’s RM is focused on the multicriteria aspects of resource management (local vs. global policies, user vs. resource owner etc. ) GRMS is currently deployed on the Grid. Lab testbed It supports the migration because of the bad performance scenario new emerging scenarios we have in mind Other deployments include: SGI Grid, Progress, HPC Europa, Clusterix (future), Gri. Phy. N (workflow execution on Globus) more info: www. gridlab. org -> WP 9 CGW 2003

The GRM book Published in October 2003 by Kluwer www. kap. nl CGW 2003
