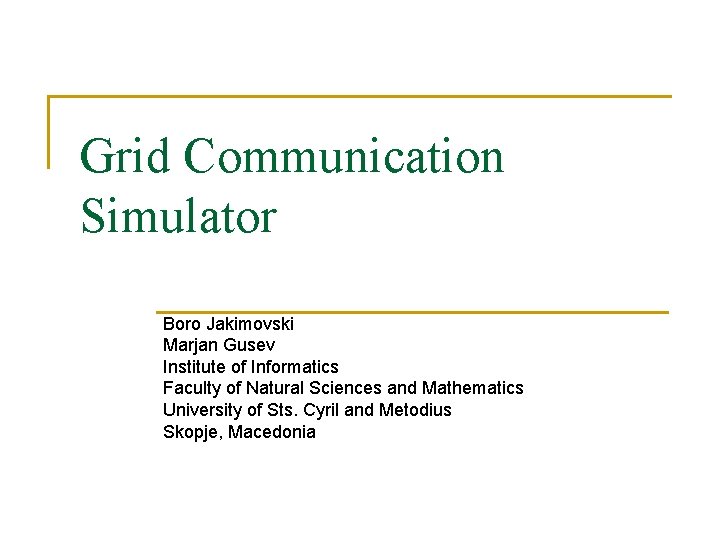

Grid Communication Simulator Boro Jakimovski Marjan Gusev Institute of Informatics Faculty of Natural Sciences and Mathematics University of Sts. Cyril and Metodius Skopje, Macedonia

Grid Programming Models n n There has been significant development of parallel programming models They cannot be applied directly to the Grid Infrastructure q q MPI Java RMI Corba …

MPI on the Grid n n n MPI – Message Passing Interface MPICH – Well known MPI implementation MPICH-G 2 – Globus device implemented

MPICH-G 2

Performance Consideration n n Usage of TCP/IP as main transport protocol introduces lower performance Wide Area Network performance compared to specialized Cluster Network performance hence Trying to increase the overall performance

Performance Techniques n n MPICH-G 2 over vendor MPI Better communication patterns q Topology aware collective communications n n n Broadcast Gather/Scatter Barrier Reduce …

Example 0 1 2 3 n 4 5 Binomial Tree q Optimal broadcast algorithm 8 6 7 9 10 11

Example n Topology Unaware Solution 2 4 8 7 5 3 0 11 10 1 6 9

Example n Topology Aware Solution 7 8 2 4 3 11 0 5 1 9 6 10

Grid Communication Simulator n n Implemented using Java 1. 4 Purpose q q q Visual representation of communication patterns Has implemented collective communications In development

Grid Communication Simulator n The programs executed on the virtual processors are Java programs q Example: import java. util. *; import edu. ii. grid. simulator. *; public class Flat. Tree. Broadcast extends edu. ii. grid. simulator. Program { public void run(){ if (processor. get. ID() == 0){ for (int i = 1; i < Processor. get. Count(); i++){ Integer[] data = {new Integer(1)}; processor. send( new Packet( data, new GRIDAddress(i) ) ); } } else { Packet p = null; p = processor. recieve(); } } }

Grid Communication Simulator n Grid simulator main window

Grid Communication Simulator n Grid simulator usage

Grid Communication Simulator

Grid Communication Simulator for (int i = 0; i < matrice. A. length; i++) for (int j = 0; j < matrice. A[i]. length; j++) matrice. A[i][j] = new Integer((int)(Math. random()*100)); row = Collective. Communication. flat. Tree. Scatter(processor, matrice. A);
