Grégoire Fabrèges 18/01/19 CSPEC detector tank & detectors integration

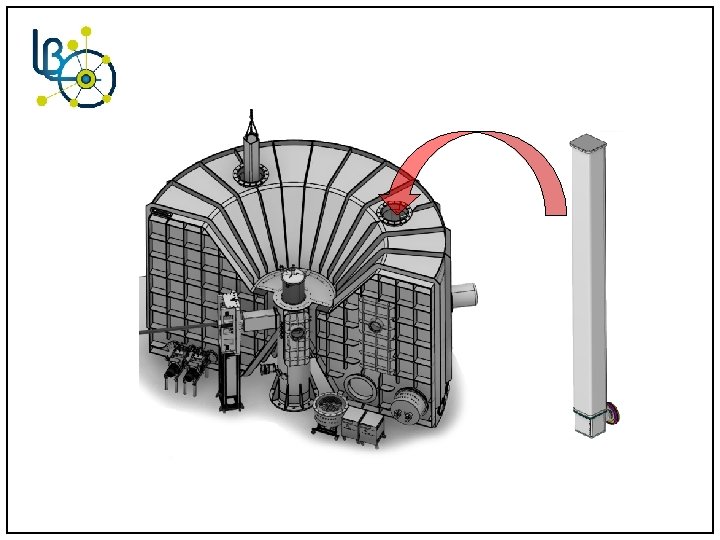

Introduction One detector every 5, 349° 27 starting detectors, ~145° coverage + 5 detectors to add to reach ~175° coverage Half ones to build around the beam dump

Introduction One detector every 5, 349° 27 starting detectors, ~145° coverage + 5 detectors to add to reach ~175° coverage Half ones to build around the beam dump

Introduction One detector every 5, 349° 27 starting detectors, ~145° coverage + 5 detectors to add to reach ~175° coverage Half ones to build around the beam dump

Introduction One detector every 5, 349° 27 starting detectors, ~145° coverage + 5 detectors to add to reach ~175° coverage Half ones to build around the beam dump

Introduction One detector every 5, 349° 27 starting detectors, ~145° coverage + 5 detectors to add to reach ~175° coverage Half ones to build around the beam dump

Detector insertion

Detector insertion

Detector insertion Lifting eyes Bolted to the back Mounting port

Step by step positioning

Step by step positioning

Step by step positioning Radial positioning

Step by step positioning Height positioning

Step by step positioning Last motion

Mounting Fixed X Y Z Relative angle must be right at manufacturing 3° rotation 3 possible rotations to adjust alignement Cone groove flat

Vanes

Separable components Insertion rails Insertion kart Ball joints Bottom adjustements plate Top plate Bottom bracket

Suggestion Bottom plate & adjustements Tank tender Bottom bracket Detector tender Ball joint Tank tender Top plate Detector tender Insertion rails Tank tender Insertion kart Built in house
