MODERNIZATION OF OBSERVATION NETWORK IN TURKEY Ercan Büyükbaş Manager Electronic Observing Systems Division

CONTENTS 1. 2. 3. 4. INTRODUCTION OBSERVATION NETWORK MODERNIZATION STUDIES CONCLUSION

1. INTRODUCTION In line with the increasing needs of the developing world, it has become a necessity to obtain more reliable and continuous meteorological data and transfer these data in due course to those

Turkish State Meteorological Service (TSMS) started in 1997 the modernisation studies of meteorological systems, prepared investments projects of great importance and got down to execution of them at a very high speed with a view to rendering the best service to all users who demand meteorological support, and furnish the users with more reliable data continually and to put to the service of the domestic and international users the products and innovations developed by modern technology in the field of meteorology.

One of those modernisation studies is the renovation of the existing observation network and establishment of automated measuring and reporting systems. Those systems consist of; Automated weather observing systems - Doppler weather radars - Upper air observing systems -

2. OBSERVATION NETWORK TSMS has been operating a meteorological observation network spread all over the country consisting of: µ µ µ µ climatologic stations – 339 (161 automated) synoptic stations – 110 (45 automated) airport stations – 65 ( 22 automated) automated wind measuring and monitoring systems - 41 weather radars – 4 radiosonde stations – 7 satellite receiving system -1

The observation network before the implementation of modernization program; Mainly un-automated q Conventional meteorological instruments q A few automated observation instruments q

3. MODERNIZATION STUDIES While TSMS has been executing its own projects, a flash flod occurred in Western Black Sea Region on 21 st May, 1998. Our government prepared a project and put into implementation for reconstruction of existing damaged infrastructure and establishing monitoring and early warning systems to reduce the risk of future floods. This project has been financed by the loan from the Worldbank and called as Turkey Emergency Flood and Earthquake Recovery (TEFER) Project. Stations in the western part of Turkey have been equipped with automated weather observing systems, weather radars and satellite based communication system (VSAT) within the scope of that project. Modernization program ise still in progress and remain part of the network is planned to be equipped with automated systems by 2010.

Some of the proposed systems within the scope of modernization program have already been installed and put into the service. These are: n n n n C-Band Meteorological Doppler Radar (4) Automated Weather Observation Systems (228) Electronic Wind Measuring Systems (41) GPS based radiosonde stations (7) Satellite Based Communication System (VSAT-228) Meteorological Satellite Receiving System (1) Message Switching System (1)

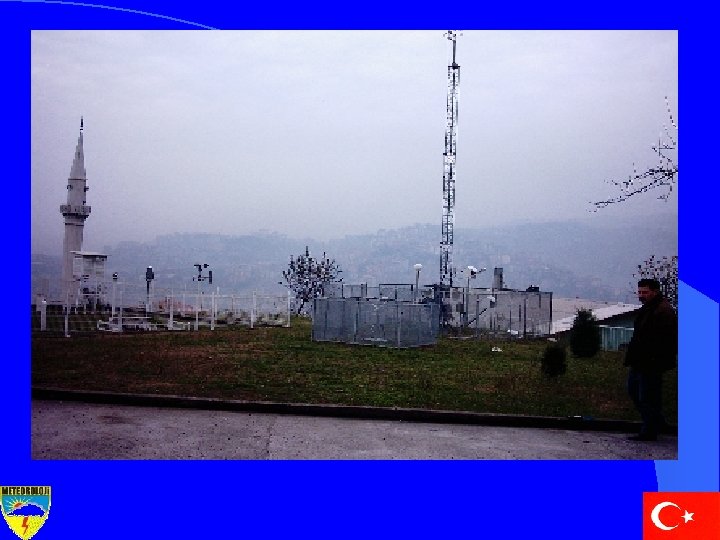

3. 1. Automated Weather Observing Systems (AWOS) Automated Weather Observing Station is a complete observing set consisting of: t t t sensors and sensor interfaces data collection unit central control and processing unit display unit communication interfaces power supplies

3. 2. Site selection Determination of the correct locations to install AWOSs is the first and the most important step for overall success of the project. These locations have been determined by TSMS considering WMO recommendations. During that determination study following criteria were considered: n types of meteorological parameters to be measured n purpose of obtaining those parameters

n variability of parameters according to the other places around the station n the size of the area presented by the station n suitability for meteorological observation n infrastructure and communication facilities

3. 3. General system architecture u. A general architecture and system components of AWOS network is shown below. This configuration uses the VSAT network as the primary communications medium. A secondary communication channel using PSTN is proposed for maintenance purposes as well as a backup line if the VSAT network becomes unserviceable.

3. 4. Sensors in AWOS network Following parameters are measured automatically by the sensors connected to DCU: Wind speed Wind direction Air temperature Relative humidity Air pressure Precipitation Height of Cloud Base

Visibility Soil Temperatures Soil moisture Global radiation Direct radiation Snow depth

In addition to measured parameters, some parameters are calculated by using measured data. These are: u Wet bulb temperature u Dew point u Vapour pressure u Evaporation u Diffuse radiation u Sunshine duration u Runway Visual Range

u The Observer console is a user friendly system that displays meteorological information coming from a Data Collection Unit (DCU) as well as allow an observer to manually supplement other meteorological variables such as cloud, visibility, weather, phenomena, etc. into the overall station observation process. The console automatically accepts data from a DCU and log this information in its local database.

Observer Console Screen

u The Network Monitor Terminal is a centralised computer system used by operational staff in the forecasting centre to view and control automated surface observation network. That terminal allows the operators to interrogate a station and upload highresolution (10 min. , 1 min. ) data that is logged within the Observer console or DCU in the remote station to support forecasting activities, scientific research and data management activities.

u The Network Maintenance Terminal is a centralised computer system used by the maintenance staff to assist in the maintenance of the automated surface observation network. By using this terminal, maintenance staff can analyse status and diagnostics information on the operational network. The system would also allow central connection to any observational site to perform remote first-in maintenance or further system diagnosis. The system is also used to remotely upgrade outstation software on both the Observer Console and the DCU equipment.

STATION IN FAILURE CHECK THE PARAMETERS NORMAL

3. 5. Advantages of automated weather observing systems Advantages of automated systems can be summarised as follows: Ø Standardisation of observations (both time and quality) Ø Continuous measuring of parameters day-time and night-time Ø More accurate Ø More reliable

Ø Higher resolution Ø Collection of data in a greater volume Ø Adjustable sampling interval for different parameters Ø Free from reading errors Ø Free from subjectivity Ø Automatic QC in both collection and reporting stages Ø Automatic message generation and transmission

Ø Monitoring of meteorological data Ø Access of archived data locally or remotely Ø Data collection from harsh environments

3. 6. Disadvantages of automated observations Automated observations have also some disadvantages. Those systems require; u u u Ongoing periodic maintenance Periodic test and calibration Well trained technicians and specialists Well trained operators High cost of instrumentation and operation

3. 7. Features of AWOS Network The AWOS network is capable of: v Collecting, processing and displaying meteorological data v Performing automated generation and transmission of meteorological reports such as SYNOP, METAR, SPECI, etc. v Being configured to support a wide range of sensor configurations

v Supporting a vast range of data communication options v Managing all communication protocols for the various sensors and other data communication equipment v Storing all relevant data for subsequent retrieval as required v Allowing for manual input of additional information unable to be automatically measured v Providing Quality Control on both data measurements and message generation v Allowing authorised users to access remotely for any tasks to be performed

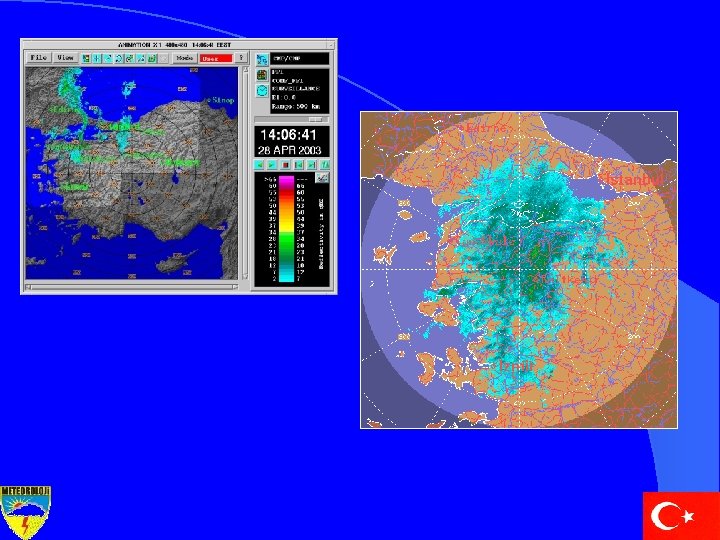

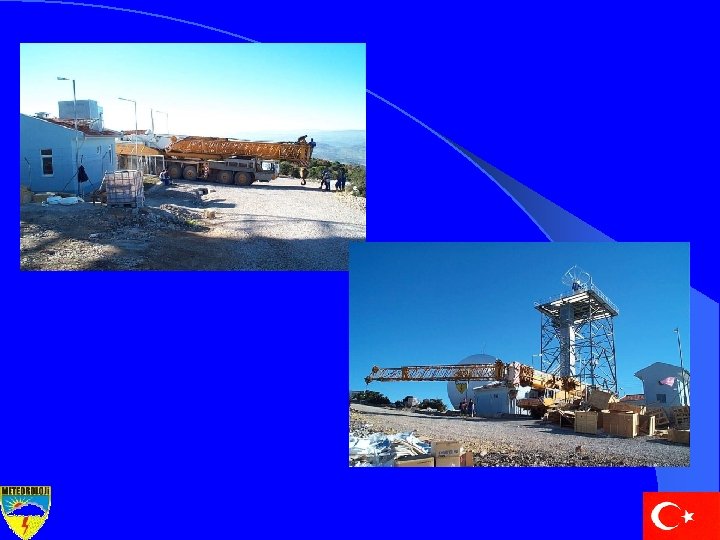

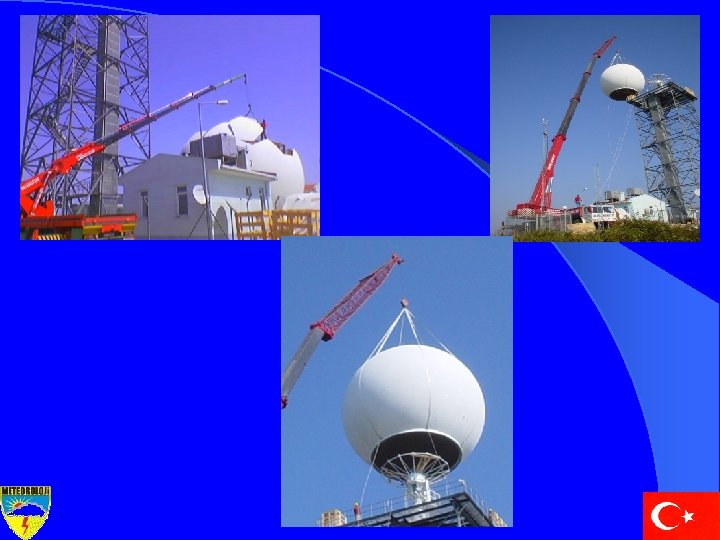

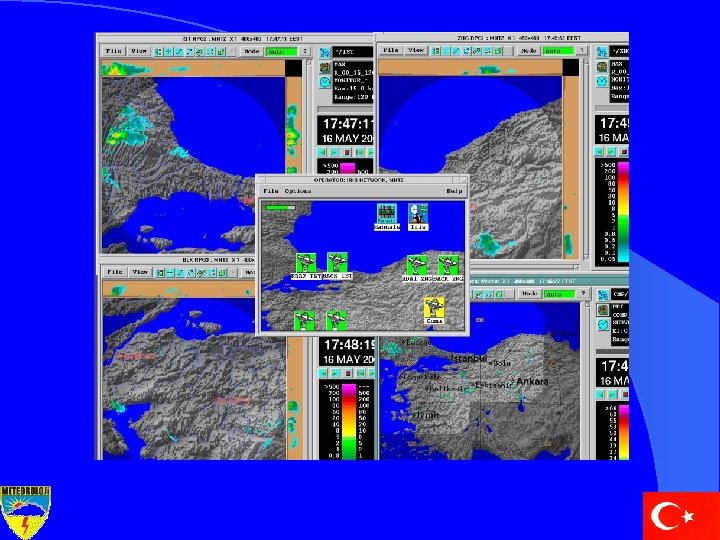

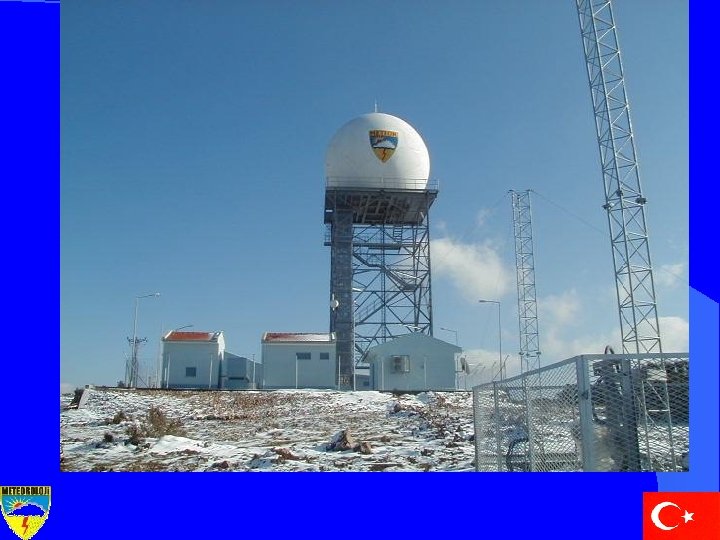

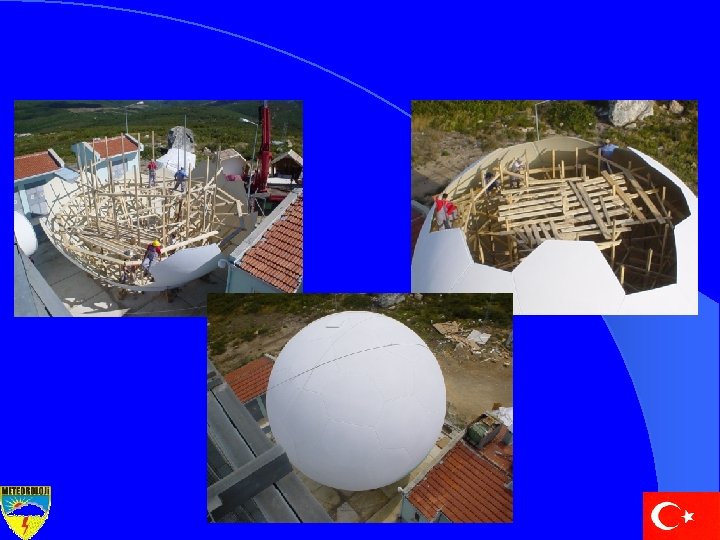

3. 8. Weather radars l TSMS has been operating four radars -C band, one dual polarity -Klystron amplifier -Digital receiver -Beam width less than 1 degree

TRABZON SAMSUN ZONGULDAK EDİRNE KARGI ERZURUM İSTANBUL ERZİNCAN BİTLİS SİVAS ANKARA BALIKESİR DİYARBAKIR ESKİŞEHİR NEVŞEHİR KÜTAHYA İZMİR ADANA DENİZLİ ANTALYA KARAMAN ADIYAMAN

Before the implementation of the project

After the implementation of the project

3. 9. Network Maintenance In a very near future, TSMS will be operating a very large observation network consisting of 600 automated stations, 15 weather radars, communication equipment, etc. The most important process after the installation of such systems is regular maintenance of the network and each sub component.

Maintenance policy: Ø -Protective maintenance Ø -Corrective maintenance Ø -Calibration

3. 9. 1. Protective maintenance l Daily maintenance: uby local technicians and/or operators ugeneral system control uchecking data transmission, recorders, printers, etc. ucleaning of components ureporting to the centre

l Weekly-monthly maintenance: uby local technicians ugeneral system control uchecking data transmission, printers, etc. ucleaning of components u. Quality control of data ureporting to the centre recorders,

l 6 month-and yearly maintenance: u. By trained technicians from centre ugeneral system control u. System performance test u. Field calibration uchecking data transmission, printers, etc. u. Correction of failures if any recorders,

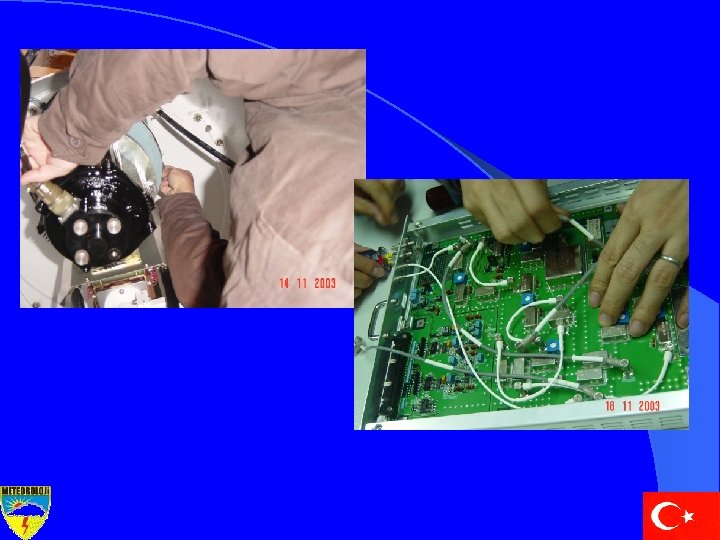

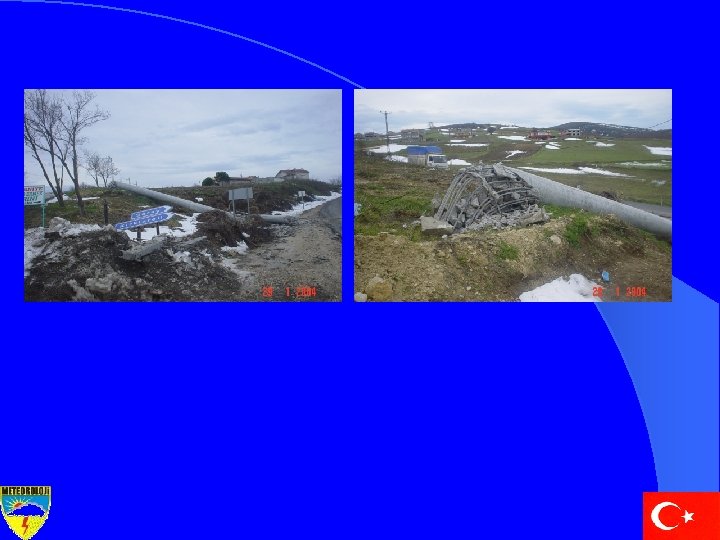

3. 9. 2. Corrective maintenance Any system failure can be repaired by two ways: | Locally: System failures in certain level shall be repaired by local technicians with remote support from maintenance centre.

| From Ø The centre: failures which can not be repaired by local technicians shall be under the responsibility of system specialists and technicians in the centre. Ø In case of such a failure, these specialists or technicians will reach the station as soon as possible and solve the problem.

3. 9. 3. Calibration v It is necessary to calibrate the systems to maintain the quality of data. v TSMS has planned to upgrade its instrument laboratory to support that network. v This laboratory is proposed to be of sufficient standard and staffing to act as the country’s national standard for meteorological observations and to possess linkages to the WMO Regional Instrument Centre , and other national laboratories.

4. CONCLUSION ® Atmosphere is alive and dynamic. So, Using of modern observation systems seems to be a necessity to meet the requirements. ® While operating automated system we should also keep the manual systems in operation for a certain period as a back-up system as well for comparison.

® The observers should be trained for new systems. ® Technicians should have basic knowledge of meteorology with the knowledge of related science. ® Such systems require periodic maintenance and technical service to maintain the system in operation properly. ® As the members of same community, cooperation between the meteorological services should be improved to be able to share the information and experiences which are the most expensive and valuable issue.

THANK YOU TSMS is ready and open for any cooperation.
