Green roofs future of urban life Jure umi
Green roofs future of urban life Jure Šumi

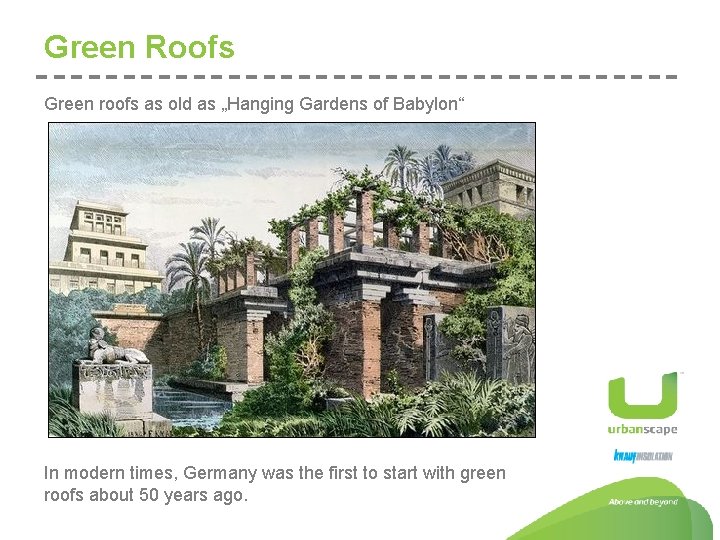

Green Roofs Green roofs as old as „Hanging Gardens of Babylon“ In modern times, Germany was the first to start with green roofs about 50 years ago.

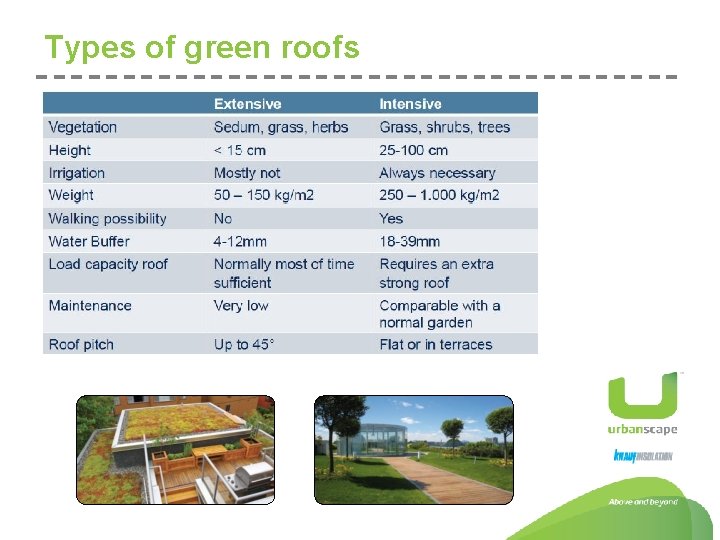

Types of green roofs
Why green roofs
Main positive effects of green roofs • Energy Efficiency – green roofs reduce the energy consumption: – Up to 25% for heating* – Up to 75% for cooling* – Collective positive effect in „Central Europe-alike“ climate zones averages 7 k. Wh per sqm/year (considering already pre-insulated roofs) • Lower Urban Heat Island Effect Temperature differences between a Green and Conventional Roof ** The infra–red image shows that on a typical day, the Chicago City Hall green roof measures almost 80°F (40°C) cooler than the neighbouring conventional roof * National Research Council of Canada ** national center of excellence/ASU

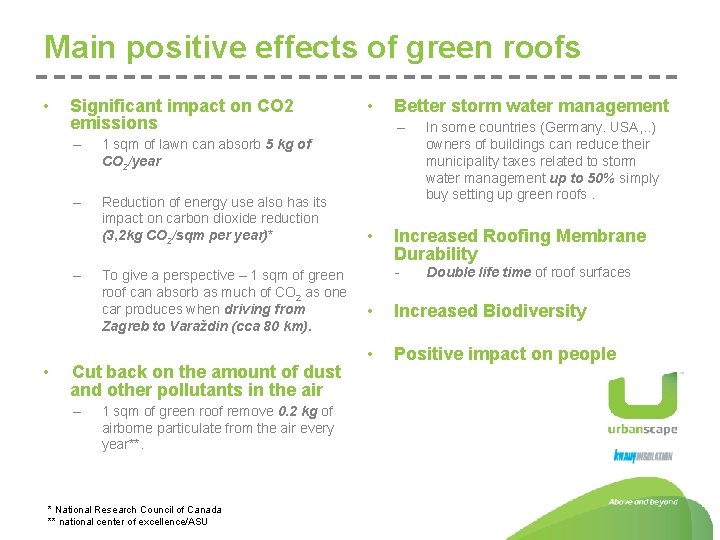

Main positive effects of green roofs • Significant impact on CO 2 emissions – 1 sqm of lawn can absorb 5 kg of CO 2/year – Reduction of energy use also has its impact on carbon dioxide reduction (3, 2 kg CO 2/sqm per year)* – • To give a perspective – 1 sqm of green roof can absorb as much of CO 2 as one car produces when driving from Zagreb to Varaždin (cca 80 km). Cut back on the amount of dust and other pollutants in the air – 1 sqm of green roof remove 0. 2 kg of airborne particulate from the air every year**. * National Research Council of Canada ** national center of excellence/ASU • Better storm water management – • In some countries (Germany. USA, . . ) owners of buildings can reduce their municipality taxes related to storm water management up to 50% simply buy setting up green roofs. Increased Roofing Membrane Durability - Double life time of roof surfaces • Increased Biodiversity • Positive impact on people
Traditional extensive green roof systems Standard basic components / layers: • Vegetation • Growing media • Filter membrane • Drainage • Root barrier • Waterproofing

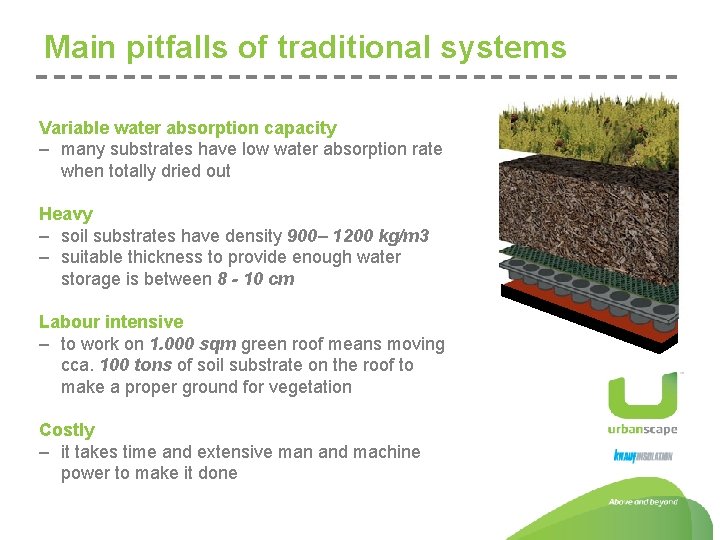

Main pitfalls of traditional systems Variable water absorption capacity – many substrates have low water absorption rate when totally dried out Heavy – soil substrates have density 900– 1200 kg/m 3 – suitable thickness to provide enough water storage is between 8 - 10 cm Labour intensive – to work on 1. 000 sqm green roof means moving cca. 100 tons of soil substrate on the roof to make a proper ground for vegetation Costly – it takes time and extensive man and machine power to make it done
What to change? It is all about substrate and its quality & performance! Good substrate: • is light weighted • has high constant high water absorption rate • provides long-term water retention stability • offers good thermal insulation property and • is easy to install. Needled rock mineral wool fibres combined with superabsorbent polymers
Advantages of Urbanscape extensive green roof system High and constant water absorption rate with long-term water retention stability - Suitable thickness to provide enough water storage is between 2 and 4 cm Lightness – Urbanscape substrate density is 110 kg/m 3 which allows to build green roofs also on buildings where existing systems cannot be successfully implemented. Low labour intensity – to work on 1. 000 sqm green roof means moving between 2 - 4 tons of Urbanscape substrate on the roof Low cost installation – due to easy set-up process up to 30% lower cost for installation
The new world of new applications to tackle

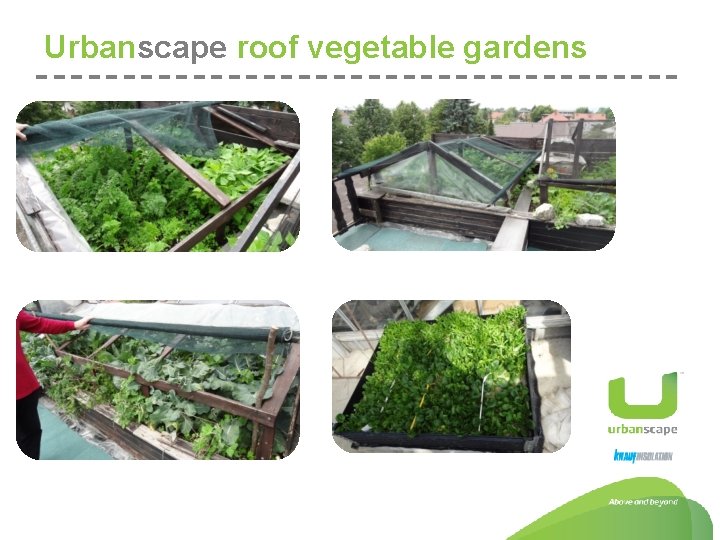

Urbanscape roof vegetable gardens
Landscaping applications Slope greening Agriculture in dry areas Gardens, Parks, Graveyards
Simple system
Urbanscape in-house gardens
Q&A
