Green Chill Advanced Refrigeration Partnership EPA the Supermarket

Green. Chill Advanced Refrigeration Partnership EPA & the Supermarket Industry: Partners in Environmental Protection

Agenda Supermarket Refrigeration & the Environment Green. Chill Advanced Refrigeration Partnership Purpose Partner Benefits Supermarket Partner Responsibilities Small Businesses Achievements in 2007/2008 Ongoing Projects

Supermarket Refrigeration & the Environment R-22 is primary refrigerant Harms the ozone layer (ODP of. 055) Contributes to climate change (GWP of 1810) Phase-out in 2010 of R-22 production for new equipment; Limited production allowed until 2020 to service existing refrigeration equipment DX systems are the dominant technology Lg. refrigerant charges (ave. spmkt. = 4000 lbs. ) High leak rates (ave. 20 -25% = about 1000 lbs. of refrigerant emitted PER SUPERMARKET per year)

Green. Chill’s Purpose EPA cooperative alliance with the supermarket industry Promotes the adoption of advanced refrigeration technologies, strategies, and practices Reduce charges & emissions of ozonedepleting substances (potent greenhouse gases) Help protect the ozone layer and protect against global warming

Why Adv. Refrigeration Tech. ? Montreal Protocol’s goal is ozone layer recovery – reduces ozone-depleting substances (CFCs & HCFCs) Substitute refrigerants (HFCs) are ozonesafe, but they are greenhouse gases Leaking 1000 pounds of greenhouse gas instead of 1000 pounds of ozone-depleting gas is just substituting one environmental problem for another

Benefits of Joining Green. Chill Benchmarking to evaluate progress Recognition for actions beyond regulatory requirements Build brand equity Tools to attain corporate environmental stewardship and sustainability goals Prepare for HCFC phaseout and other deadlines Access to latest information on state-of-the-art refrigeration technologies, alternative refrigerants, and best practices Networking & information sharing among partners

Supermarket Partner Responsibilities Commit to using only non-ozone-depleting refrigerants in both newly constructed stores and major remodels Report a baseline of corporate-wide refrigerant stocks and emissions Commit to an annual emissions reduction goal Develop a corporate Refrigerant Management Plan and emissions reduction strategy Report annual aggregate corporate-wide refrigerant stock and emissions

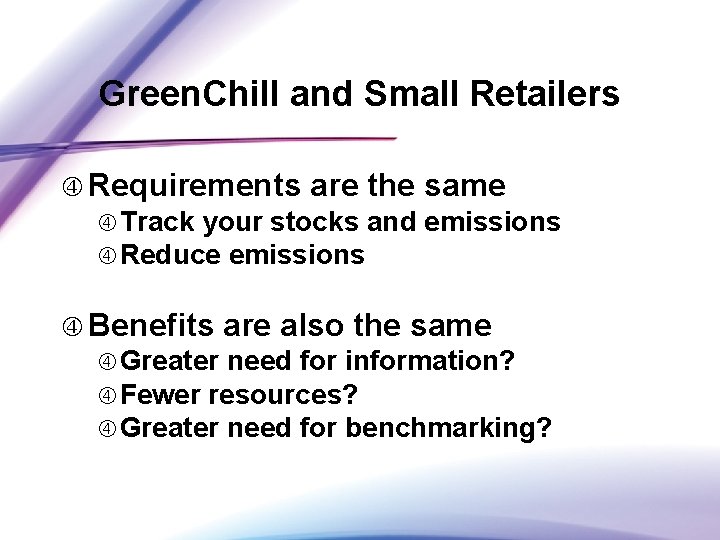

Green. Chill and Small Retailers Requirements are the same Track your stocks and Reduce emissions Benefits emissions are also the same Greater need for information? Fewer resources? Greater need for benchmarking?

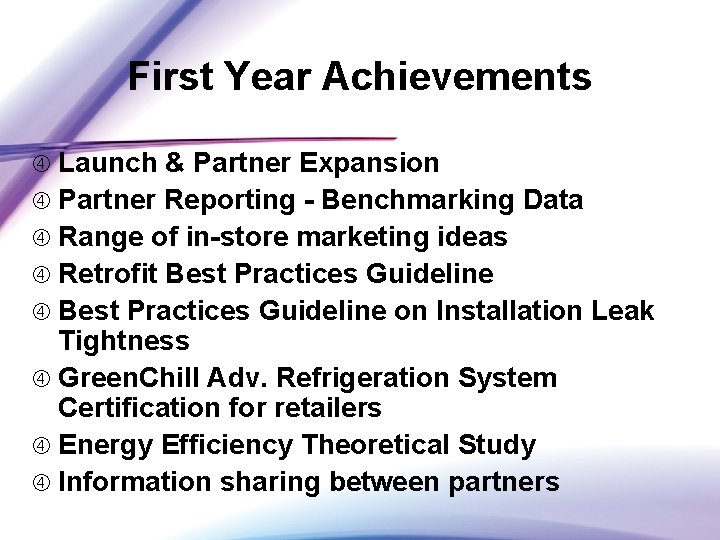

First Year Achievements Launch & Partner Expansion Partner Reporting - Benchmarking Data Range of in-store marketing ideas Retrofit Best Practices Guideline on Installation Leak Tightness Green. Chill Adv. Refrigeration System Certification for retailers Energy Efficiency Theoretical Study Information sharing between partners

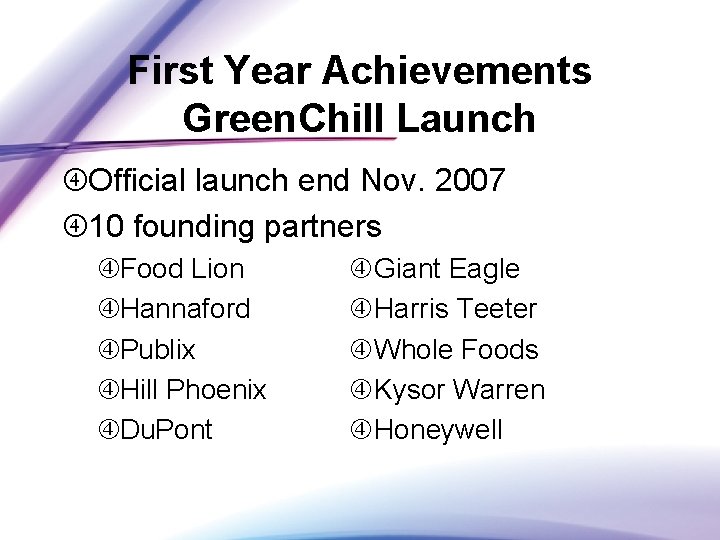

First Year Achievements Green. Chill Launch Official launch end Nov. 2007 10 founding partners Food Lion Hannaford Publix Hill Phoenix Du. Pont Giant Eagle Harris Teeter Whole Foods Kysor Warren Honeywell

First Year Achievements Green. Chill Supermarket Partners

First Year Achievements ART Systems Manufacturers

First Year Achievements Chemical Manufacturing Partners

First Year Achievements Green. Chill Supermarket Partners 5824 stores (17% of total)* In 46 of 50 states, plus DC $115+ billion in annual sales** *35, 000 U. S. supermarkets – FMI ***Does not include Hannaford and Price Chopper sales (part of larger holding companies)

First Year Achievements Supermarket Data Reporting Partner Corporate Emissions Rates Partner Average = 13. 7% (Industry Average = 23. 5%) Green. Chill partners saved 30 ODP tons Refrigerant greenhouse gas emissions equal to 2, 500, 000 metric tons of CO 2 (same as 500, 000 passenger cars)

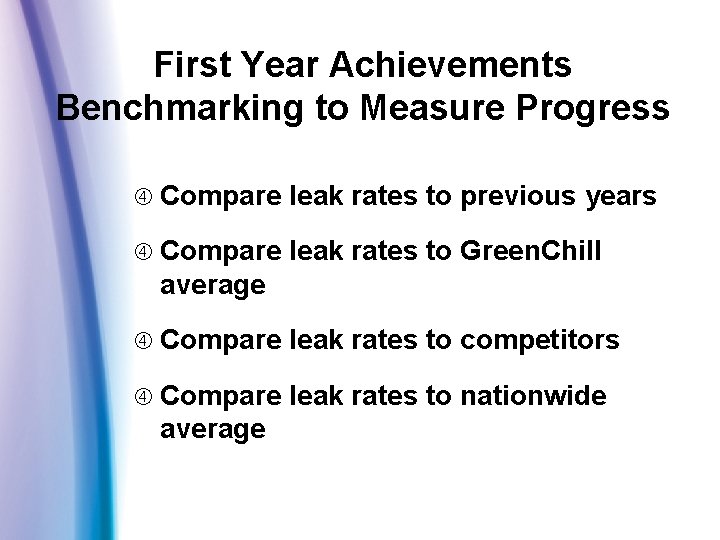

First Year Achievements Benchmarking to Measure Progress Compare leak rates to previous years Compare leak rates to Green. Chill average Compare leak rates to competitors Compare leak rates to nationwide average

First Year Achievements In-Store Marketing Ideas

First Year Achievements Retrofit Best Practice Guidelines Retrofits = most widespread strategy to prepare for HCFC-22 phaseout in existing stores Opportunity Green. Chill Leak to reduce leaks Retrofit Best Practices Guidelines tightness improvements during retrofits Conversion checklists Best practices for handling recovered HCFC-22 Case studies

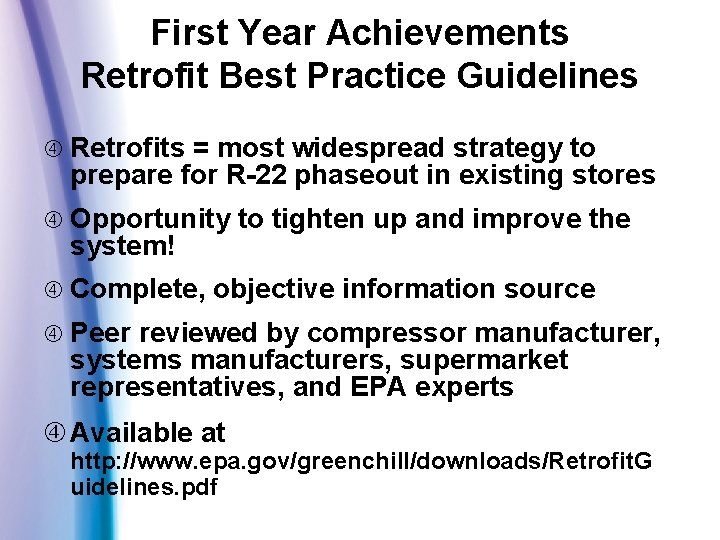

First Year Achievements Retrofit Best Practice Guidelines Retrofits = most widespread strategy to prepare for R-22 phaseout in existing stores Opportunity system! Complete, to tighten up and improve the objective information source Peer reviewed by compressor manufacturer, systems manufacturers, supermarket representatives, and EPA experts Available at http: //www. epa. gov/greenchill/downloads/Retrofit. G uidelines. pdf

First Year Achievements Retrofit Best Practice Guidelines Range New of Retrofit Options Refrigerant Retrofitting Leak with New Mechanicals and New Refrigerant Tightness Improvements during Retrofits

First Year Achievements Retrofit Best Practice Guidelines Factors to consider when assessing the available retrofit chemicals on the market Explanation Cooling of factors and watch-outs capacity Efficiency Mass flow of refrigerant Lubricant compatibility Compressor Estimated Store manufacturer’s approval retrofit cost disruption Global warming potential

First Year Achievements Retrofit Best Practice Guidelines Performance Data on Retrofit Refrigerants vs. R-22 Global warming potential & ozone depleting potential Degree of Subcooling at TXV Inlet Superheat at Evaporator Outlet Compressor Isentropic & Volumetric Efficiency Lubricant Glide Standard Performance Capacity & Efficiency Compressor Suction Gas Temperature Mass Flow Condenser Temperature Evaporator pressure & temperature Discharge temperature without demand cooling Added Subcooling Capacity & Efficiency

First Year Achievements Retrofit Best Practice Guidelines Step-by-step practices list of procedural best Changing oil, removing R-22, charging system with new refrigerant, leak testing, adjusting TXV settings, material compatibility watch-outs, etc. Differences in retrofit procedures for various substitute chemicals

First Year Achievements Retrofit Best Practice Guidelines Value/Cost Calculation Best Practices - HCFC-22 End of Life Options for Refrigerants Best Practices – Recovery, Reclamation Safety Information Case Studies for R-422 D, R 407 A, and 427 A Retrofits Specific Conversion Checklists for each HFC Substitute Chemical

First Year Achievements Best Practices for Installation Leak Tightness Step-by-step guideline to ensure newly installed equipment is leak tight Best practices for leak tightness testing Available at http: //www. epa. gov/greenchill/downloads/Le ak. Guidelines. pdf

First Year Achievements Green. Chill Store Certification Sets standards for store recognition for “Green. Chill Certified” advanced refrigeration technology Gold Level Certification & Silver Level Certification Reduced Refrigerant Charge (lbs. of refrigerant p. 1000 BTUs/hr. ) Low Emissions Rate No Ozone-Depleting Refrigerants Only allowed to use refrigerants found acceptable for retrofits by EPA’s SNAP Program More details at http: //www. epa. gov/greenchill/certcenter. html

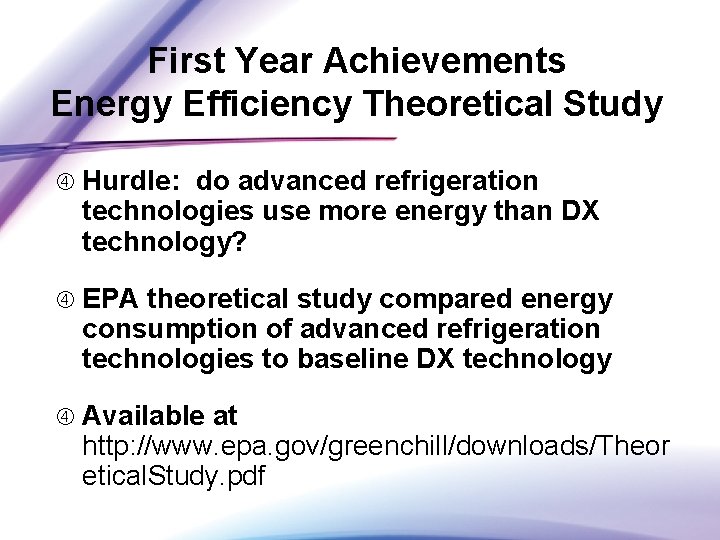

First Year Achievements Energy Efficiency Theoretical Study Hurdle: do advanced refrigeration technologies use more energy than DX technology? EPA theoretical study compared energy consumption of advanced refrigeration technologies to baseline DX technology Available at http: //www. epa. gov/greenchill/downloads/Theor etical. Study. pdf

First Year Achievements Energy Efficiency Theoretical Study Secondary Loop and Distributed Systems are good alternatives to centralized Direct Expansion systems. Secondary Loop Systems can reach energy parity with DX at a minimum Better energy efficiency in some climates Distributed Systems can exceed the energy efficiency of DX Systems

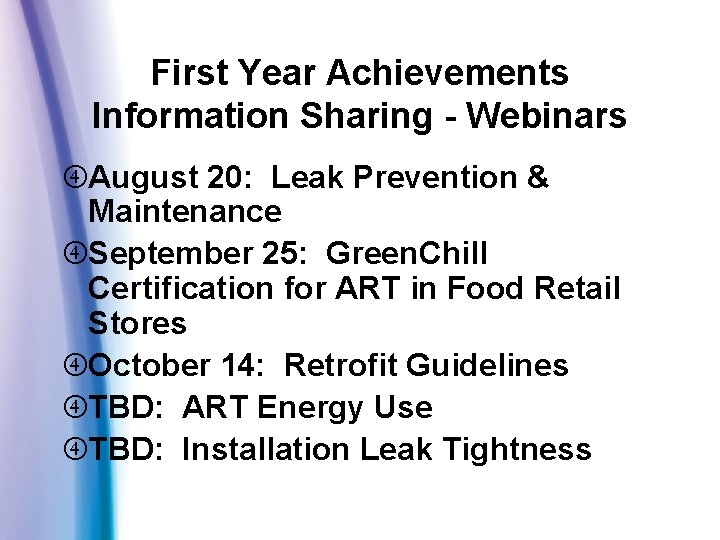

First Year Achievements Information Sharing - Webinars August 20: Leak Prevention & Maintenance September 25: Green. Chill Certification for ART in Food Retail Stores October 14: Retrofit Guidelines TBD: ART Energy Use TBD: Installation Leak Tightness

Green. Chill Projects 2008/2009 Implementation of Green. Chill Store Certification Advanced refrigeration technology best practices guideline Quantifiable goals for ART systems manufacturers Service Tech & Contractor Environmental Best Practices Certification Program Quantifiable goals for chemical manufacturers Increase supermarket recovery & reclamation

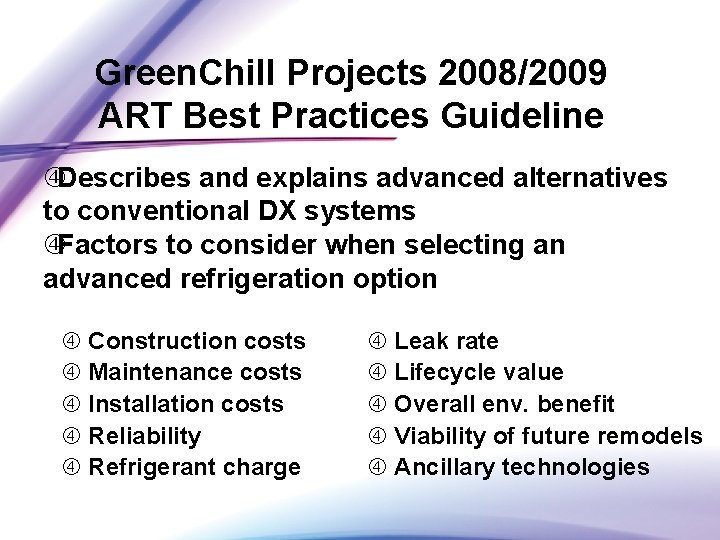

Green. Chill Projects 2008/2009 ART Best Practices Guideline Describes and explains advanced alternatives to conventional DX systems Factors to consider when selecting an advanced refrigeration option Construction costs Maintenance costs Installation costs Reliability Refrigerant charge Leak rate Lifecycle value Overall env. benefit Viability of future remodels Ancillary technologies

Green. Chill Projects 2008/2009 ART Best Practices Guideline Best practices to reduce refrigerant charge Best practices for ongoing leak tightness Selecting primary & secondary refrigerants Case studies

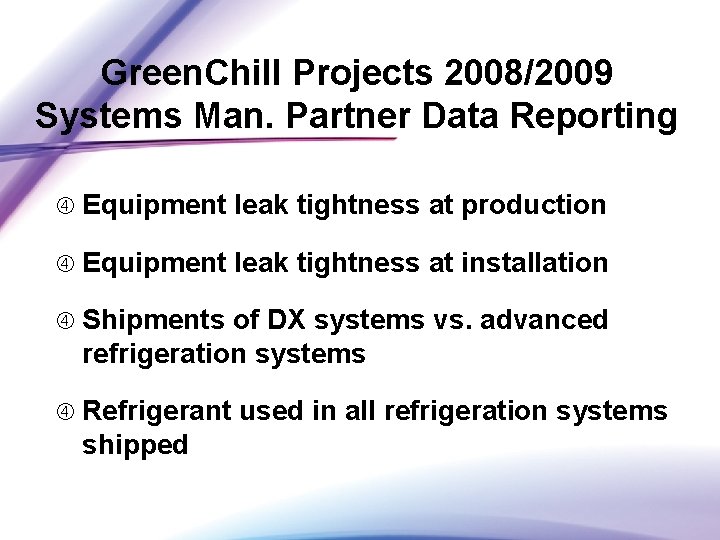

Green. Chill Projects 2008/2009 Systems Man. Partner Data Reporting Equipment leak tightness at production Equipment leak tightness at installation Shipments of DX systems vs. advanced refrigeration systems Refrigerant shipped used in all refrigeration systems

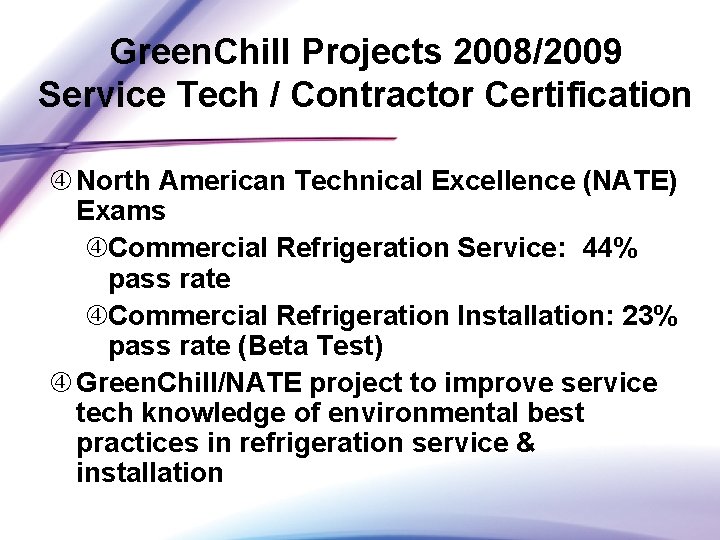

Green. Chill Projects 2008/2009 Service Tech / Contractor Certification North American Technical Excellence (NATE) Exams Commercial Refrigeration Service: 44% pass rate Commercial Refrigeration Installation: 23% pass rate (Beta Test) Green. Chill/NATE project to improve service tech knowledge of environmental best practices in refrigeration service & installation

Svc. Tech Certification Program Environmental Best Practices Training & testing on Green. Chill best environmental practices Green. Chill certification for Service Techs / Contractors passing grade on NATE exam Agree to report installation leak tightness statistics to Green. Chill

Green. Chill Projects 2008/2009 Chem. Man. Partner Data Reporting Baseline & annual reporting of supermarket HCFC-22 & HFC recovery & reclamation Annual goal to increase refrigerant recovery & reclamation Best practices for recovery & reclamation Chemical manufacturer “Corporate Recovery & Reclamation Plan” HCFC-22 end-of-life guidelines Safety information

For More Info Keilly Witman Stratospheric Protection Division, US EPA Tel: (202) 343 -9742 witman. keilly@epa. gov www. epa. gov/greenchill Supermarket News Webinar – the Green. Chill Advanced Refrigeration Partnership Michael Garry – Supermarket News Keilly Witman – U. S. E. P. A. Wayne Rosa – Food Lion George Ronn – Supervalu September 18 th at 2 pm Register at Supermarket News’ website
