Gravity and Orbits Not Free Fall What happens

Gravity and Orbits – Not Free Fall • What happens when something holds you up. – Gravity pulls you down – Floor pushes you up • Forces balance - you don’t go anywhere. • You know which way is up because that is the way the floor is pushing you

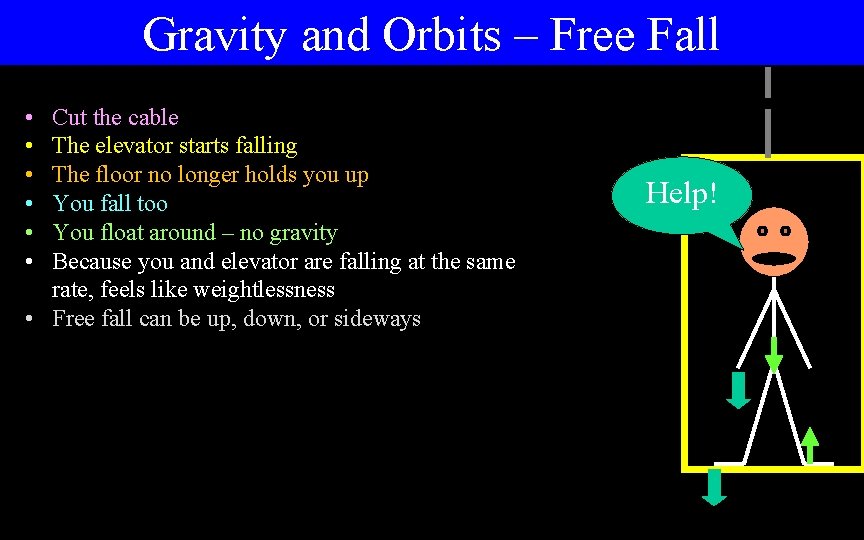

Gravity and Orbits – Free Fall • • • Cut the cable The elevator starts falling The floor no longer holds you up You fall too You float around – no gravity Because you and elevator are falling at the same rate, feels like weightlessness • Free fall can be up, down, or sideways Help!

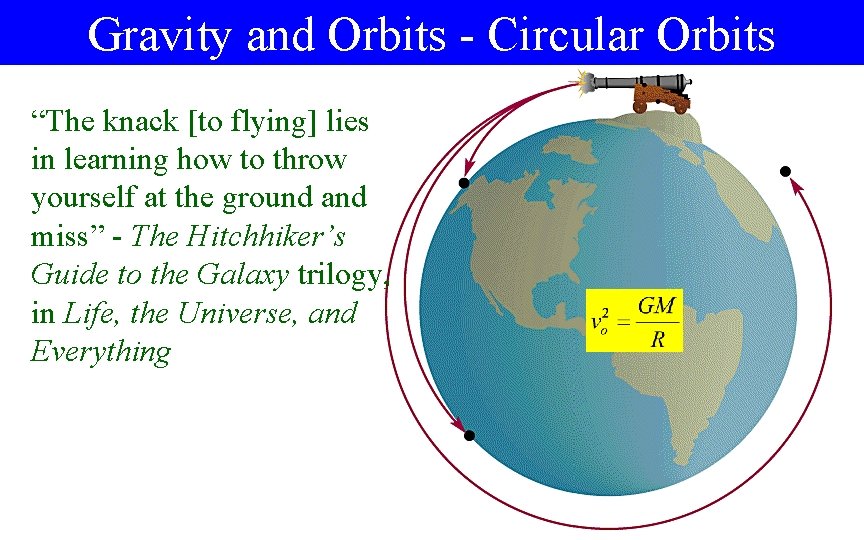

Gravity and Orbits - Circular Orbits “The knack [to flying] lies in learning how to throw yourself at the ground and miss” - The Hitchhiker’s Guide to the Galaxy trilogy, in Life, the Universe, and Everything

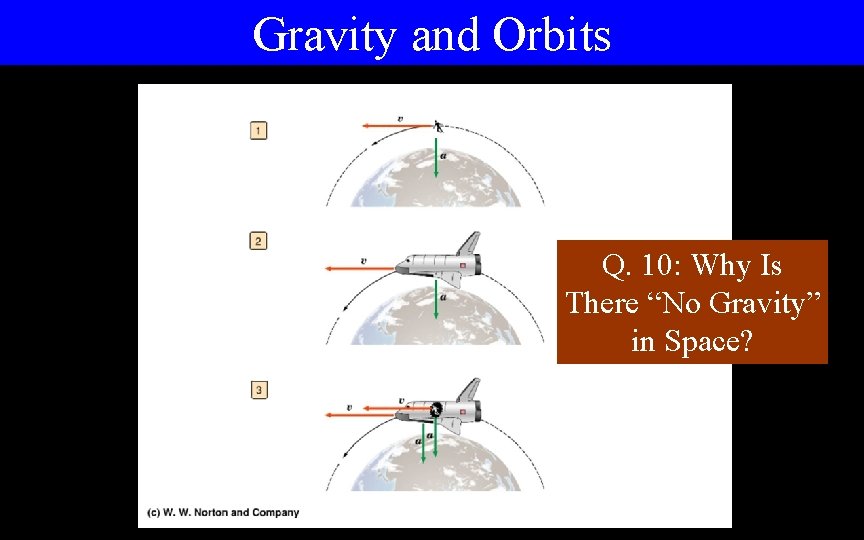

Gravity and Orbits Q. 10: Why Is There “No Gravity” in Space?

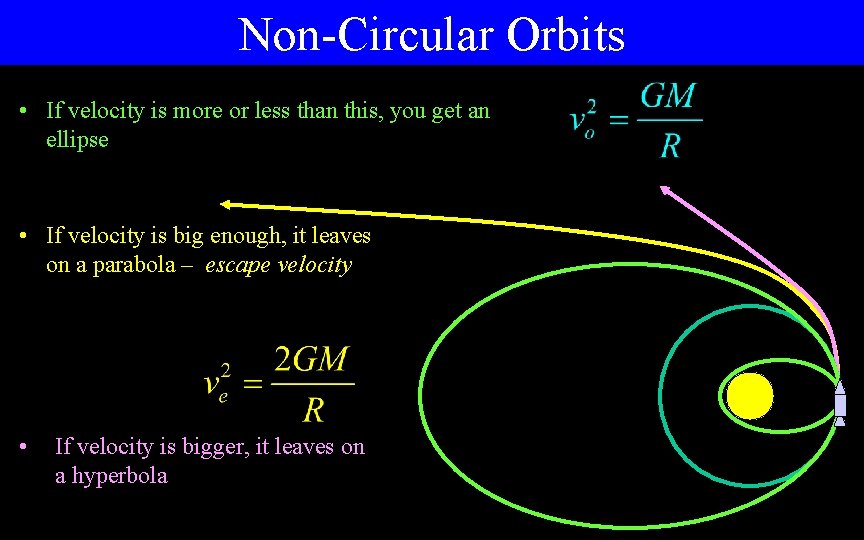

Non-Circular Orbits • If velocity is more or less than this, you get an ellipse • If velocity is big enough, it leaves on a parabola – escape velocity • If velocity is bigger, it leaves on a hyperbola

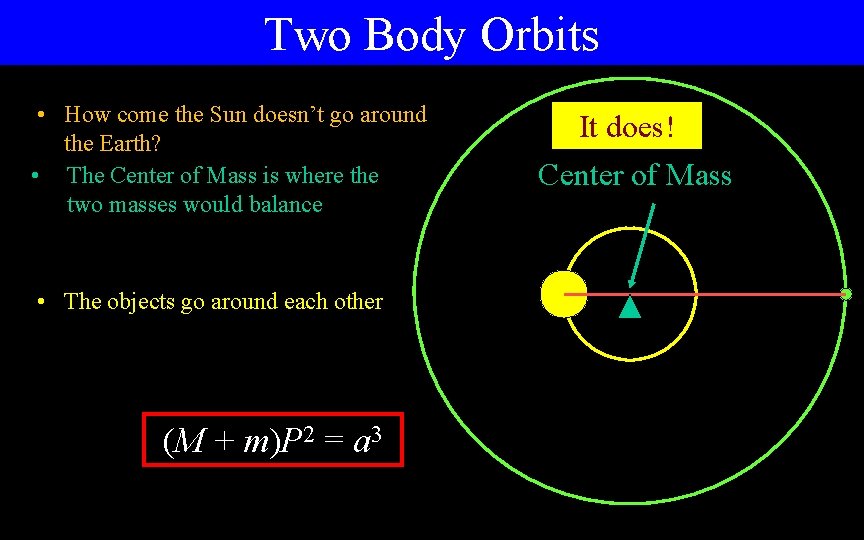

Two Body Orbits • How come the Sun doesn’t go around the Earth? • The Center of Mass is where the two masses would balance • The objects go around each other (M + m)P 2 = a 3 It does! Center of Mass

Kepler Vs. Newton P 2 = a 3 (M + m)P 2 = a 3 Applies to planets around the Sun Always applies • Masses in Solar Masses Sun + Earth M + m = 1 +. 000003 1

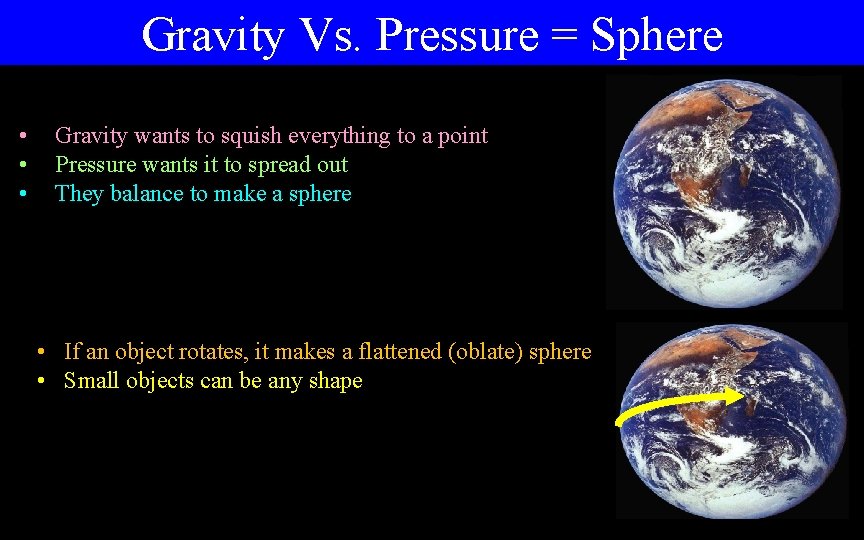

Gravity Vs. Pressure = Sphere • • • Gravity wants to squish everything to a point Pressure wants it to spread out They balance to make a sphere • If an object rotates, it makes a flattened (oblate) sphere • Small objects can be any shape

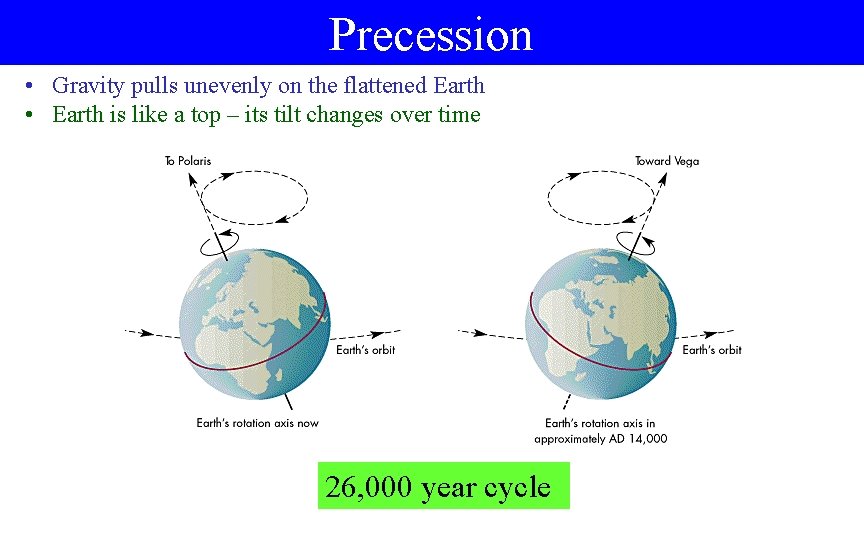

Precession • Gravity pulls unevenly on the flattened Earth • Earth is like a top – its tilt changes over time 26, 000 year cycle

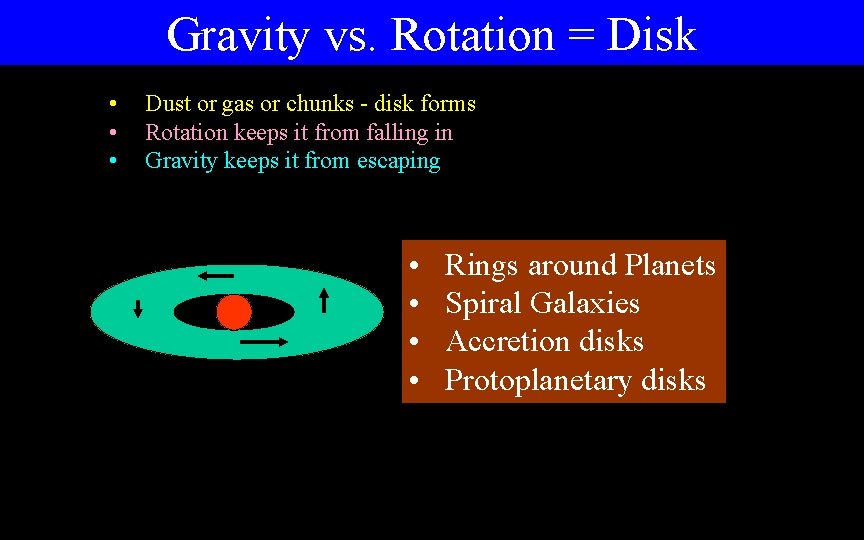

Gravity vs. Rotation = Disk • • • Dust or gas or chunks - disk forms Rotation keeps it from falling in Gravity keeps it from escaping • • Rings around Planets Spiral Galaxies Accretion disks Protoplanetary disks

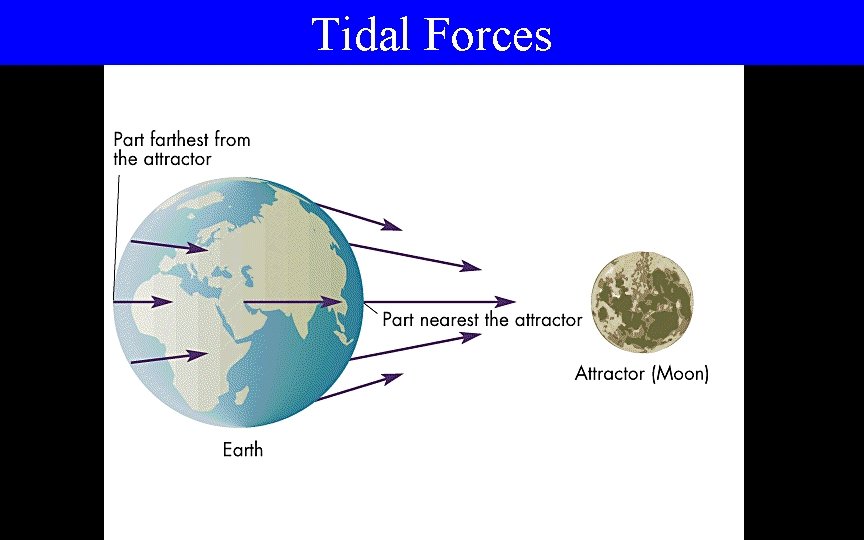

Tidal Forces

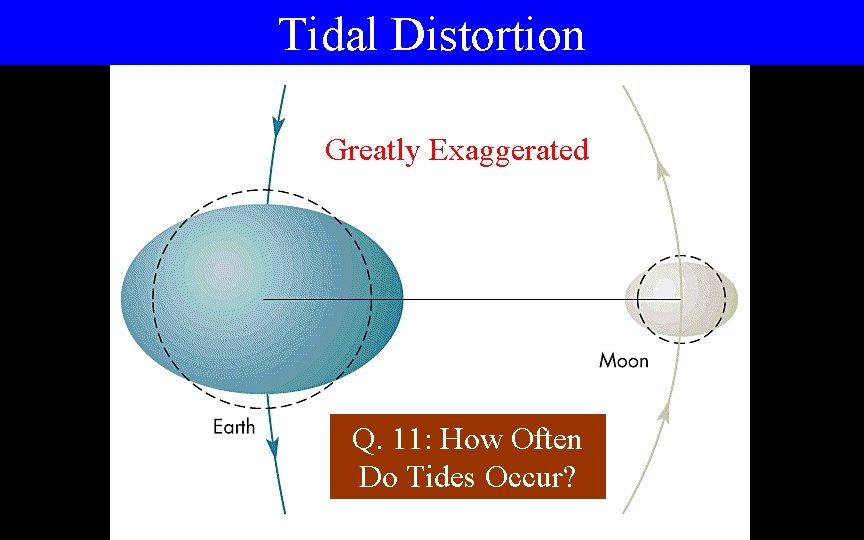

Tidal Distortion Greatly Exaggerated Q. 11: How Often Do Tides Occur?

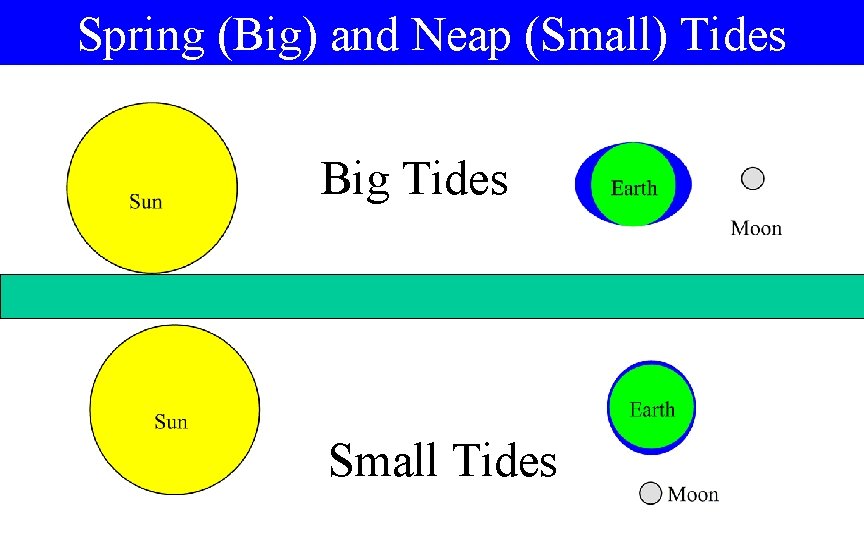

Spring (Big) and Neap (Small) Tides Big Tides Small Tides

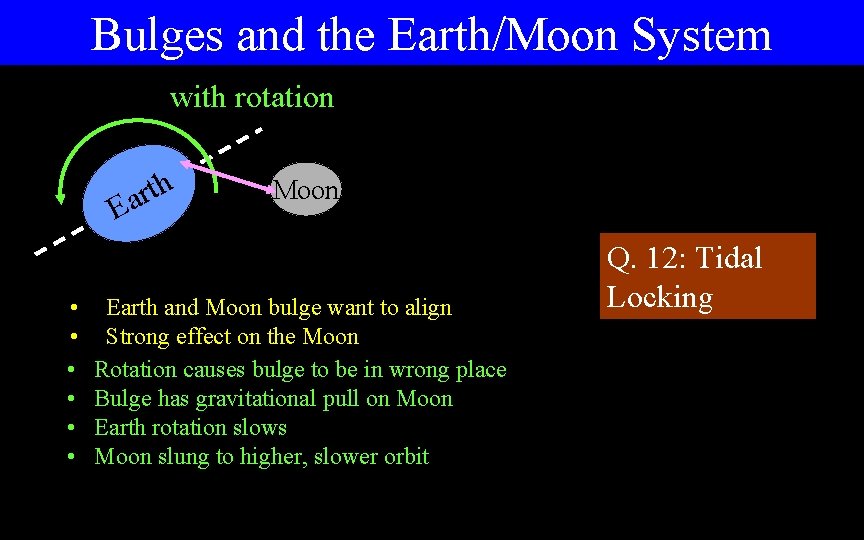

Bulges and the Earth/Moon System without with rotation h t Earth r Ea • • • Moon Earth and Moon bulge want to align Strong effect on the Moon Rotation causes bulge to be in wrong place Bulge has gravitational pull on Moon Earth rotation slows Moon slung to higher, slower orbit Q. 12: Tidal Locking

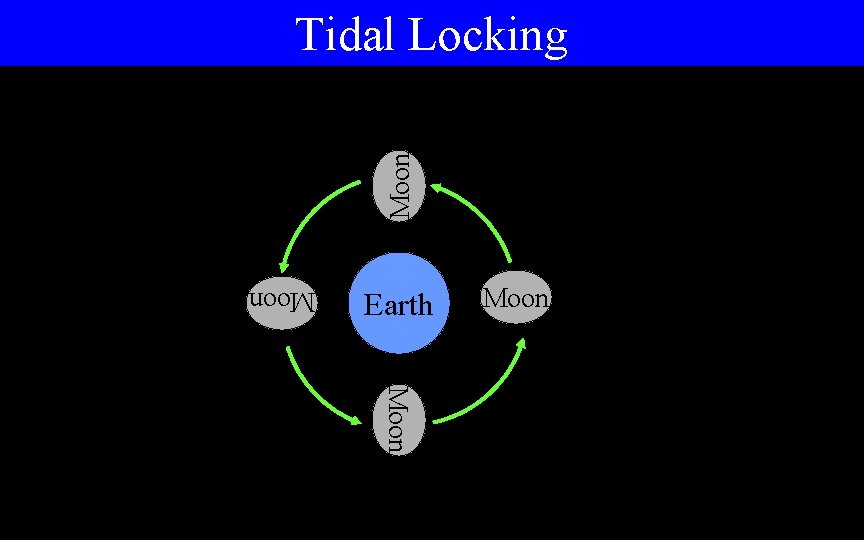

Moon Tidal Locking Earth Moon

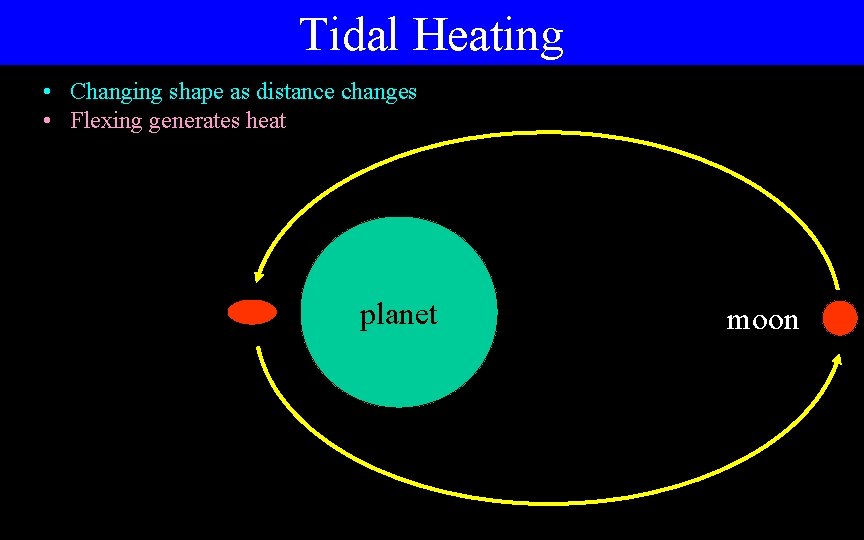

Tidal Heating • Changing shape as distance changes • Flexing generates heat planet moon

Roche Limit Planet Moon

Roche Limit - Rings Q. 13: Titan and Tidal Forces
