GRASP: Designing Objects with Responsibilities Chapter 17 Applying UML and Patterns Craig Larman 1

GRASP : Designing Objects With Responsibilities n Learning aid to help understand essential object design n Apply design reasoning in a methodical, rational, explainable way 2

Design Activities n During design and coding we apply various OO design principles, among them software design patterns such as the GRASP and Go. F (Gang of Four) patterns. n Our metaphor is Responsibility Driven Design (RDD), because our chief design emphasis is on assigning responsibilities to objects. 3

Design Model Relationships Business Model Domain Model Requirements Use Case Model System Sequence Diagram Events and functional requirements Some object names and attributes Glossary Item details Supplementary Specification Domain rules Non-func reqs Interaction Diagrams Design 4

Responsibilities and Methods n Responsibilities are realized as methods n Approach to understanding and using design principles is based on patterns of assigning responsibilities. n Definition of Responsibility: “A contract or obligation of a classifier” n Responsibility types are Knowing or Doing 5

Responsibilities and interaction diagrams n Interaction diagrams show choices in assigning responsibilities to objects. n Decisions in responsibility assignment are reflected in the messages sent to different classes of objects 6

Patterns n Principles and idioms codified in a structured format describing the problem, solution, and given a name are called patterns. n A “New Pattern” is an oxymoron. Patterns are tried and true, established ways of doing things. They are not new things or new ways of doing things. 7

Definition of a Pattern n Pattern is a named problem/solution pair that can be applied in new contexts, n Includes advice on how to apply it in novel situations and discussion of its trade-offs. 8

Naming Patterns n All Patterns have suggestive names. n Naming a pattern, technique, or a principle has the following advantages : It supports chunking and incorporating that concept into our understanding and memory n It facilitates communication n 9

GRASP n Name chosen to suggest importance of grasping principles to successfully design object-oriented software n It is an acronym for General Responsibility Assignment Software Patterns n Describes fundamental principles of object design and responsibility assignment, expressed as patterns 10

Five GRASP Patterns : n Information Expert n Creator n High Cohesion n Low Coupling n Controller 11

UML Class diagram notation n Three sections: Class Name attributes Third section is for methods 12

Creator Pattern n Problem: Who should be responsible for creating a new instance of some class ? n Object creation is one of the most common activities in an object-oriented system. n It is useful to have a general principle for assignment of creation responsibilities. n Supports low coupling, increased clarity, encapsulation, and reusability. 13

Solution to Creator Problem n Assign class B the responsibility to create an instance of class A if one or more of the following is true : B aggregates A objects. n B contains A objects. n B records instances of A objects. n B closely uses A objects. n B has the initializing data that will be passed to A when it is created n B is a creator of A objects. n 14

Creator Discussion n Creator guides assigning responsibilities related to creation of objects, a very common task. n Intent is to find a creator that needs to be connected to the created object in any event. Aggregator aggregates Part n Container contains Content n Recorder records. n n Sometimes a creator is found by looking for the class that has the initializing data that will be passed in during creation. 15

Information Expert Pattern n Problem: What is a general principle of assigning responsibilities to objects? n Solution: Assign a responsibility to the information expert – a class that has the information necessary to fulfill the responsibility n Also known as Expert pattern. 16

Information Expert Discussion n A basic guiding principle used continuously in object design. n Objects do things related to information they have n Often requires information spread across different classes of objects n Objects will need to interact via messages to share the work 17

Contraindications Using Expert n Solution suggested by expert may be undesirable, n Usually because of problems in coupling and cohesion. n Keep the application logic in one place, database in another n Rather than intermingling different system concerns in the same component. 18

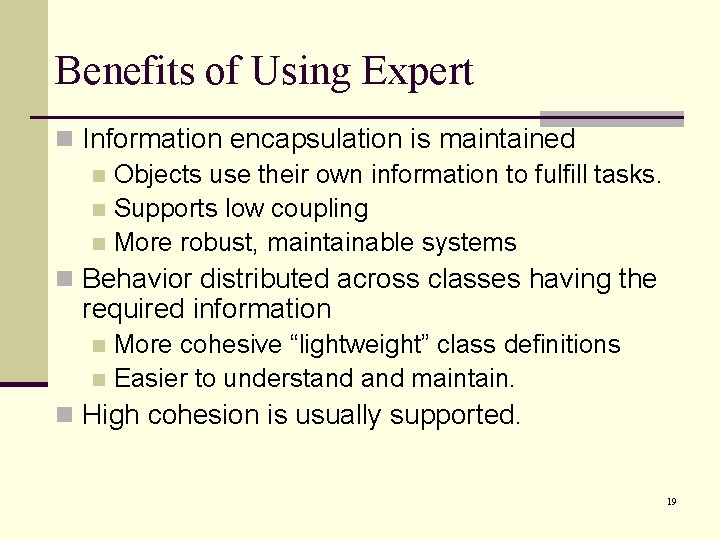

Benefits of Using Expert n Information encapsulation is maintained n Objects use their own information to fulfill tasks. n Supports low coupling n More robust, maintainable systems n Behavior distributed across classes having the required information More cohesive “lightweight” class definitions n Easier to understand maintain. n n High cohesion is usually supported. 19

Low Coupling Pattern n Coupling is a measure of how strongly one element is connected to, has knowledge of, or relies on other element. n Problem: How to support a low dependency, low change impact , and increased reuse? n Solution: Assign a responsibility so that coupling remains low. n Is an underlying goal to continually consider 20

Benefits of Low Coupling n Objects are not affected by changes in other components n Objects are simple to understand in isolation n Objects are convenient to reuse 21

Controller Pattern n A non–user interface object n Responsible for receiving or handling a system event n Defines methods for system operation. 22

Controller Problem n Problem: Who should be responsible for handling an input system event? n Assumes the Model-View-Controller architectural (not software) pattern Separates the user interface (Views) from the functionality of the system n Uses controllers to access other functionality (Models). n 23

Controller Solution n Solution: Assign the responsibility for receiving or handling a system event message to a class representing either: The overall system, device, or subsystem n A use case scenario (or group of use cases) within which the system event occurs n 24

Controller Discussion n Controller pattern provides guidance for generally accepted, suitable choices. n Often desirable to use the same controller class for all system events of one use case n Controller maintains information about the state of the use case 25

Facade Controller n Suitable when there are not “too many” system events n Suitable when it is not possible for the user interface (UI) to redirect system event messages to alternating controllers n such as in message processing system. 26

Use–Case controller n When placing the responsibilities in a façade controller leads to design with low cohesion or high coupling, Use Case Controller is preferred as an alternative. n When there are many system events across different processes; it factors their handling into manageable separate classes. 27

High Cohesion Pattern n Problem: How can complexity be kept manageable? n Solution: Assign responsibility so that cohesion remains high n Is a measure of how strongly related the responsibilities of something are n High Cohesion: An element with highly related responsibilities, which does not do a tremendous amount of work n This is an underlying goal to consider constantly. 28

High Cohesion Benefits n Clarity and ease of comprehension of design is increased. n Maintenance and enhancements are simplified n Low coupling is often supported. 29

High Cohesion Contraindications n Sometimes desirable to create fewer and larger, less cohesive server objects n If they provide an interface for many operations 30

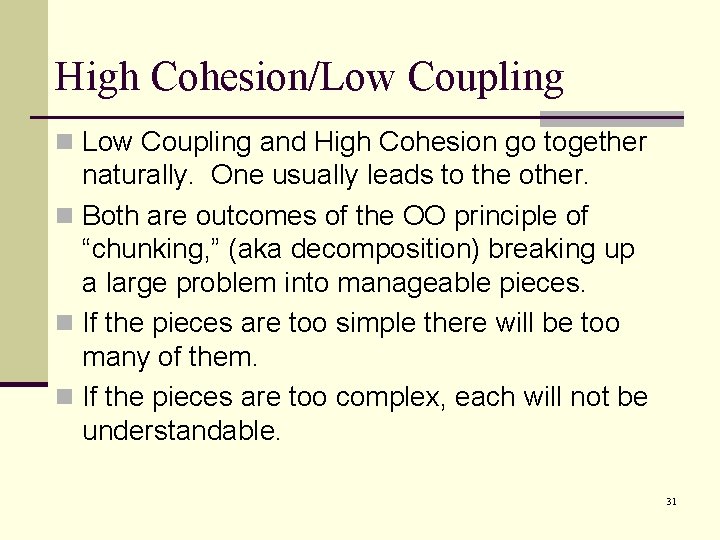

High Cohesion/Low Coupling n Low Coupling and High Cohesion go together naturally. One usually leads to the other. n Both are outcomes of the OO principle of “chunking, ” (aka decomposition) breaking up a large problem into manageable pieces. n If the pieces are too simple there will be too many of them. n If the pieces are too complex, each will not be understandable. 31

Varying Degrees of Functional Cohesion n Very Low Cohesion – Class is solely responsible for many different functional areas. n Low Cohesion – Class has sole responsibility for a complex task in one functional area. n Moderate Cohesion – Class has lightweight and sole responsibilities in few areas that are logically related to class concept, but not to each other n High Cohesion – Class has moderate responsibilities in one functional area and collaborates with other classes to fulfill tasks. 32

Summary n The skillful assignment of responsibilities is extremely important in object design. n Determining the assignment of responsibilities often occurs during the creation of interaction diagrams , and certainly during programming. n Patterns are named problem/solution pairs that codify good advice and principles often related to assignment of responsibilities. 33
