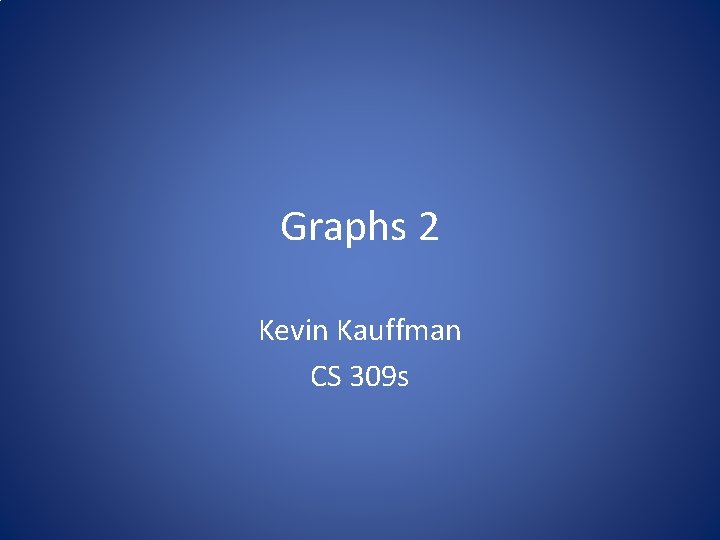

Graphs 2 Kevin Kauffman CS 309 s Problem

Graphs 2 Kevin Kauffman CS 309 s

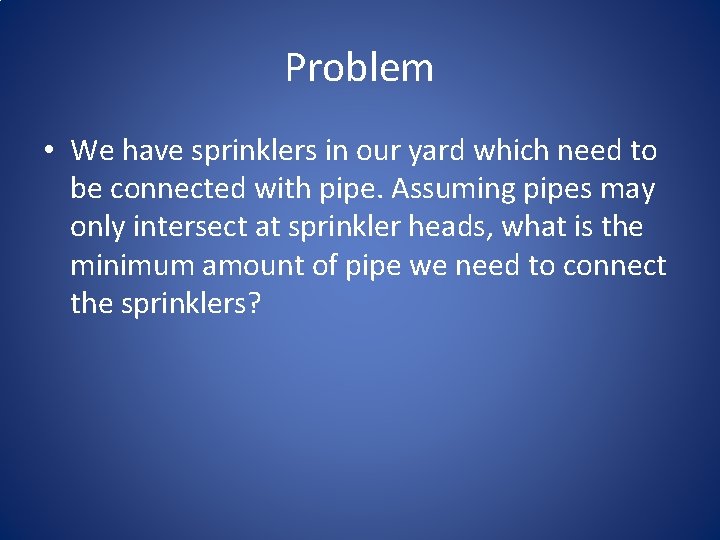

Problem • We have sprinklers in our yard which need to be connected with pipe. Assuming pipes may only intersect at sprinkler heads, what is the minimum amount of pipe we need to connect the sprinklers?

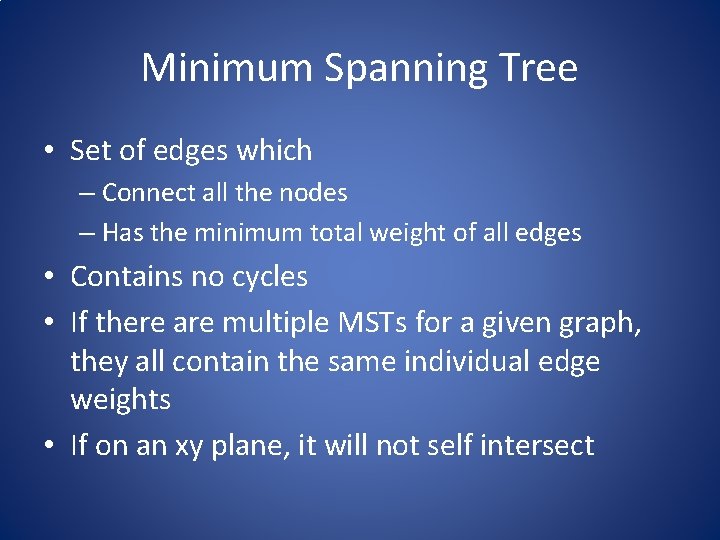

Minimum Spanning Tree • Set of edges which – Connect all the nodes – Has the minimum total weight of all edges • Contains no cycles • If there are multiple MSTs for a given graph, they all contain the same individual edge weights • If on an xy plane, it will not self intersect

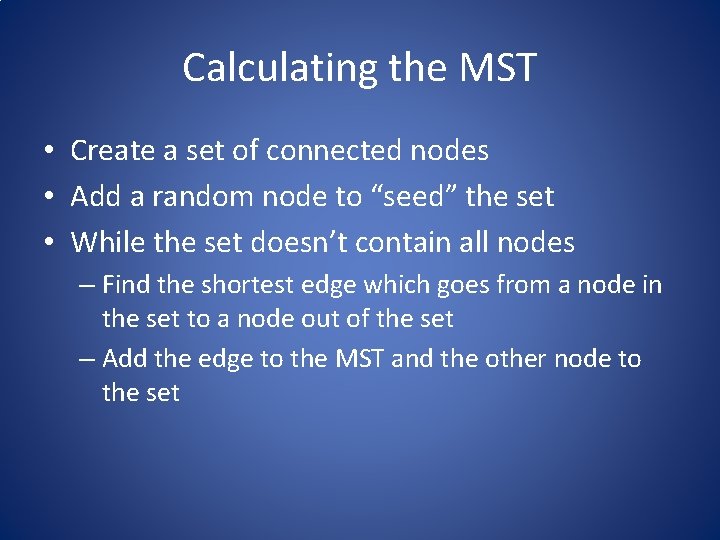

Calculating the MST • Create a set of connected nodes • Add a random node to “seed” the set • While the set doesn’t contain all nodes – Find the shortest edge which goes from a node in the set to a node out of the set – Add the edge to the MST and the other node to the set

Implementation • Naïve: iterate through all edges in each cycle, and take the minimum which satisfies the in/out requirement – O(V*E) • Better: maintain sorted list of edges which touch the nodes in the set, add to it as we go – O(E*log(E))

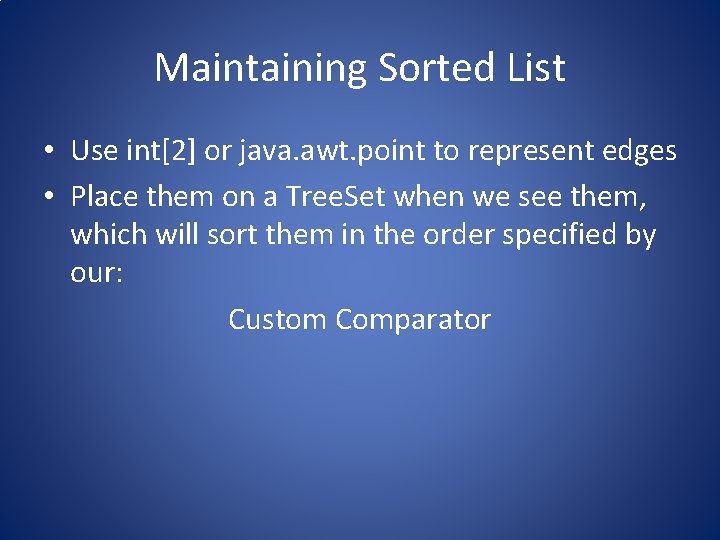

Maintaining Sorted List • Use int[2] or java. awt. point to represent edges • Place them on a Tree. Set when we see them, which will sort them in the order specified by our: Custom Comparator

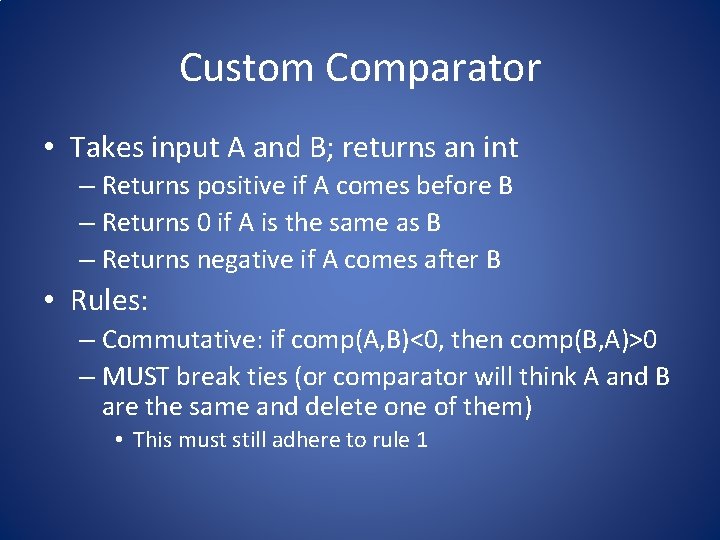

Custom Comparator • Takes input A and B; returns an int – Returns positive if A comes before B – Returns 0 if A is the same as B – Returns negative if A comes after B • Rules: – Commutative: if comp(A, B)<0, then comp(B, A)>0 – MUST break ties (or comparator will think A and B are the same and delete one of them) • This must still adhere to rule 1

Shortest Distance • BFS allows us to calculate distance in unweighted graphs, how do we do it in weighted graphs? • For an edge of length n, insert n-1 “fake” nodes, so all edges are length 1 • Graph is now unweighted • Run BFS!

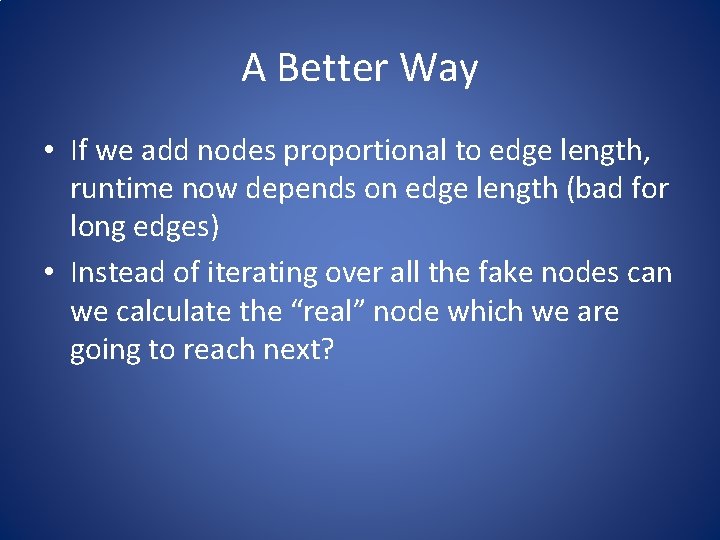

A Better Way • If we add nodes proportional to edge length, runtime now depends on edge length (bad for long edges) • Instead of iterating over all the fake nodes can we calculate the “real” node which we are going to reach next?

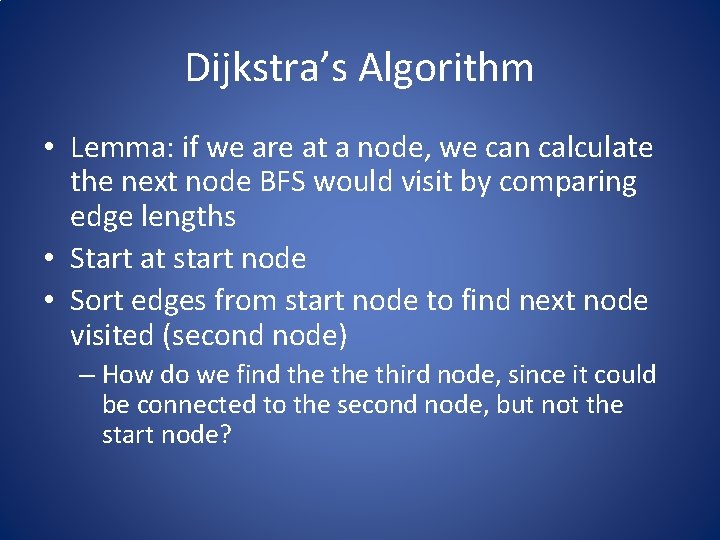

Dijkstra’s Algorithm • Lemma: if we are at a node, we can calculate the next node BFS would visit by comparing edge lengths • Start at start node • Sort edges from start node to find next node visited (second node) – How do we find the third node, since it could be connected to the second node, but not the start node?

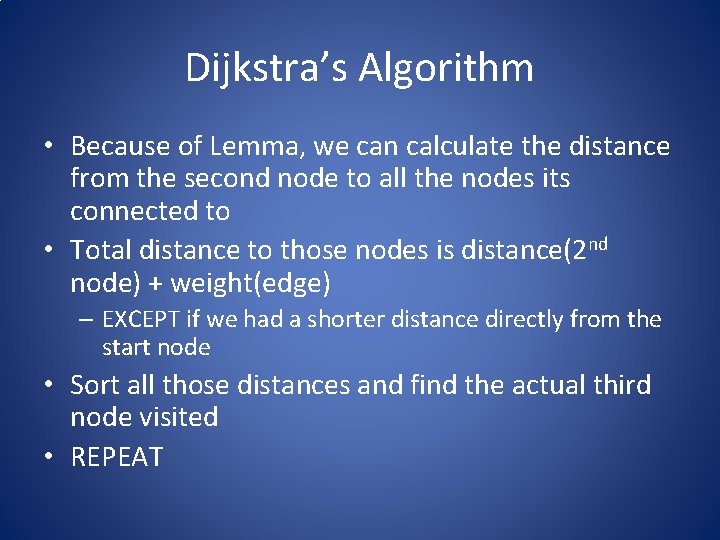

Dijkstra’s Algorithm • Because of Lemma, we can calculate the distance from the second node to all the nodes its connected to • Total distance to those nodes is distance(2 nd node) + weight(edge) – EXCEPT if we had a shorter distance directly from the start node • Sort all those distances and find the actual third node visited • REPEAT

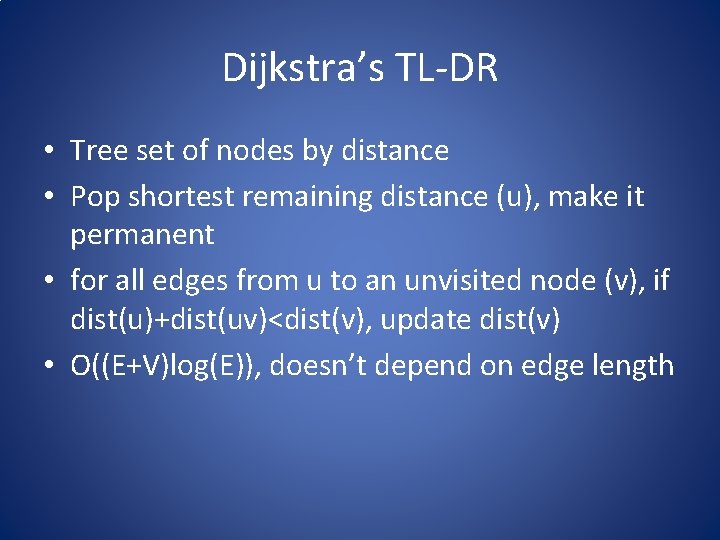

Dijkstra’s TL-DR • Tree set of nodes by distance • Pop shortest remaining distance (u), make it permanent • for all edges from u to an unvisited node (v), if dist(u)+dist(uv)<dist(v), update dist(v) • O((E+V)log(E)), doesn’t depend on edge length

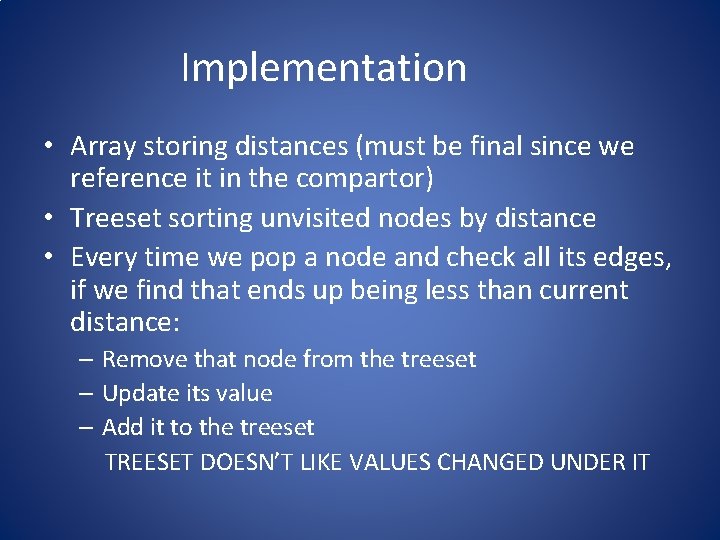

Implementation • Array storing distances (must be final since we reference it in the compartor) • Treeset sorting unvisited nodes by distance • Every time we pop a node and check all its edges, if we find that ends up being less than current distance: – Remove that node from the treeset – Update its value – Add it to the treeset TREESET DOESN’T LIKE VALUES CHANGED UNDER IT
