Graphing Techniques Transformations Objectives Graph Functions using Horizontal

Graphing Techniques Transformations Objectives: Graph Functions using Horizontal and Vertical Shifts Graph Functions using Compressions and Stretches Graph Functions using Reflections about the x-axis or y-axis

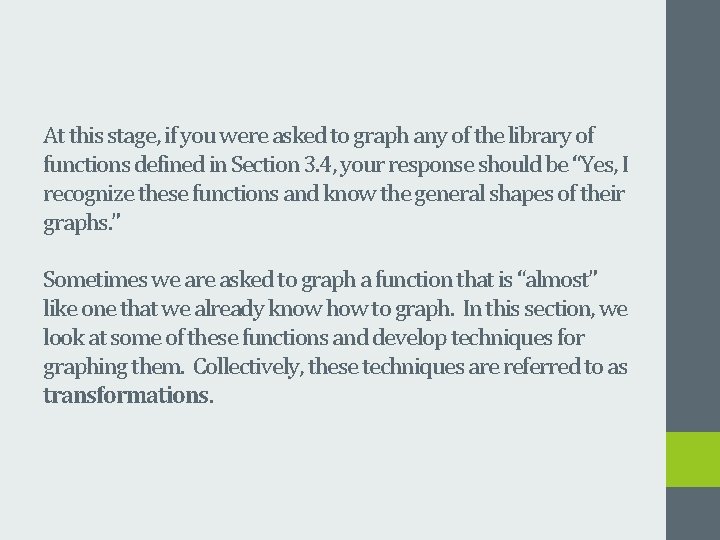

At this stage, if you were asked to graph any of the library of functions defined in Section 3. 4, your response should be “Yes, I recognize these functions and know the general shapes of their graphs. ” Sometimes we are asked to graph a function that is “almost” like one that we already know how to graph. In this section, we look at some of these functions and develop techniques for graphing them. Collectively, these techniques are referred to as transformations.

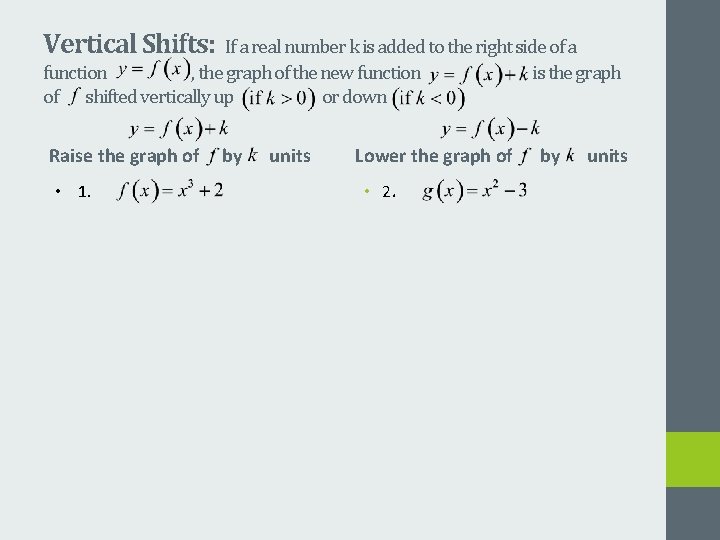

Vertical Shifts: If a real number k is added to the right side of a function , the graph of the new function is the graph of shifted vertically up or down Raise the graph of • 1. by units Lower the graph of • 2. by units

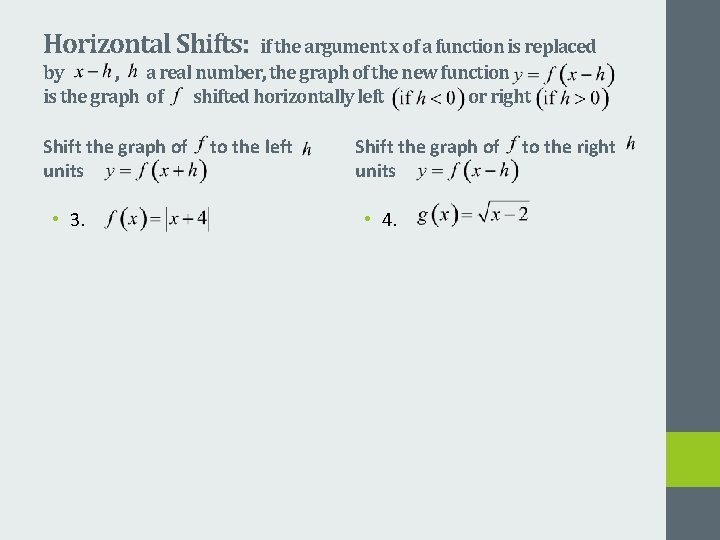

Horizontal Shifts: if the argument x of a function is replaced by , a real number, the graph of the new function is the graph of shifted horizontally left or right Shift the graph of units • 3. to the left Shift the graph of units • 4. to the right

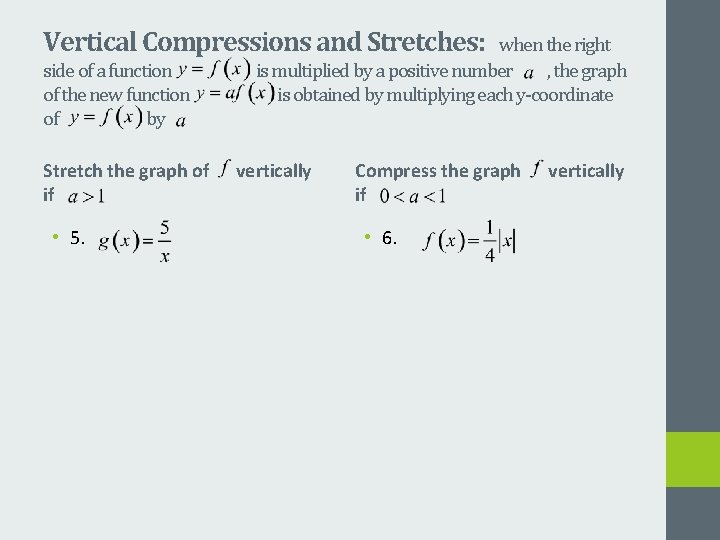

Vertical Compressions and Stretches: side of a function of the new function of by Stretch the graph of if • 5. when the right is multiplied by a positive number , the graph is obtained by multiplying each y-coordinate vertically Compress the graph if • 6. vertically

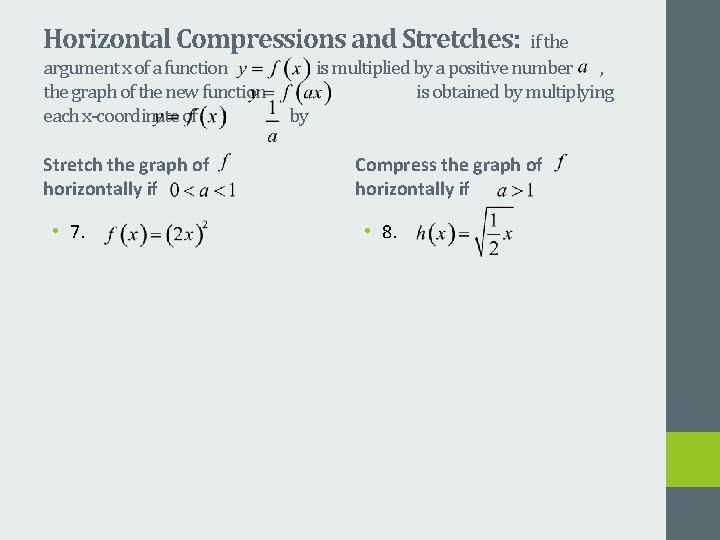

Horizontal Compressions and Stretches: argument x of a function the graph of the new function each x-coordinate of Stretch the graph of horizontally if • 7. if the is multiplied by a positive number , is obtained by multiplying by Compress the graph of horizontally if • 8.

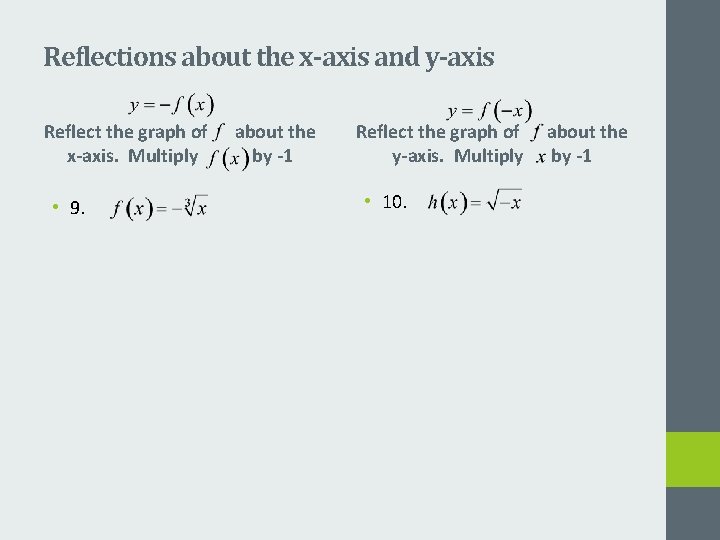

Reflections about the x-axis and y-axis Reflect the graph of x-axis. Multiply • 9. about the by -1 Reflect the graph of y-axis. Multiply • 10. about the by -1

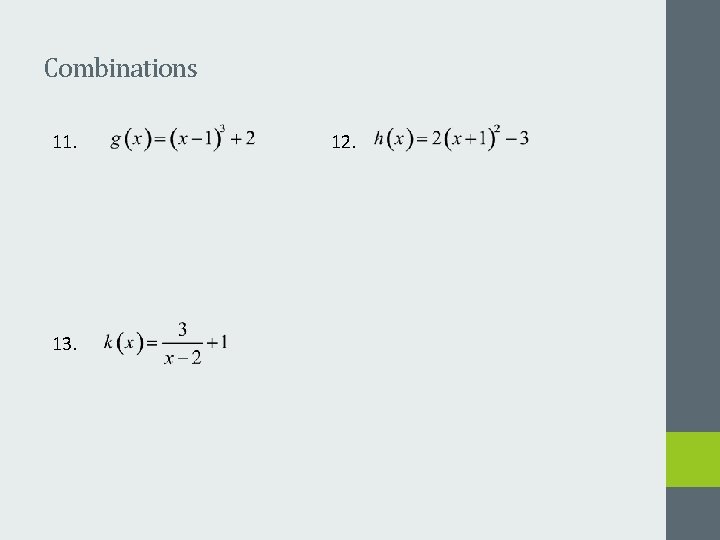

Combinations 11. 13. 12.

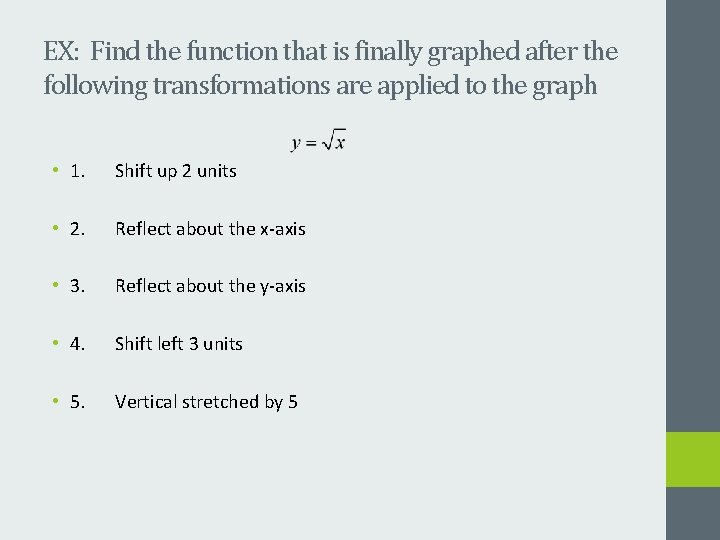

EX: Find the function that is finally graphed after the following transformations are applied to the graph • 1. Shift up 2 units • 2. Reflect about the x-axis • 3. Reflect about the y-axis • 4. Shift left 3 units • 5. Vertical stretched by 5
