Graphing Quadratic Functions Standard Form It is assumed

Graphing Quadratic Functions – Standard Form • It is assumed that you have already viewed the previous slide show titled Graphing Quadratic Functions – Concept. • A quadratic function in what we will call Standard Form is given by: • The summary of the Concept slide show is given again on the next page. Table of Contents

SUMMARY Vertex Face Up Face Down Axis of symmetry Narrow Wide Table of Contents

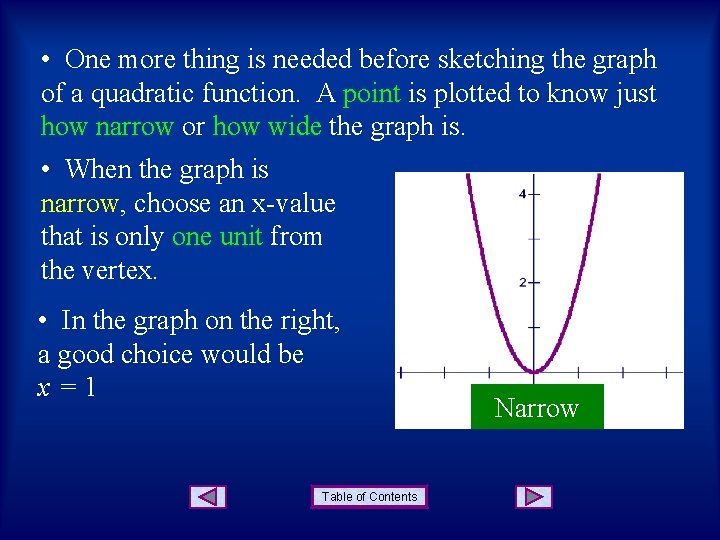

• One more thing is needed before sketching the graph of a quadratic function. A point is plotted to know just how narrow or how wide the graph is. • When the graph is narrow, choose an x-value that is only one unit from the vertex. • In the graph on the right, a good choice would be x=1 Table of Contents Narrow

• If the value x = 2 were chosen, then the corresponding y-value would be off the graph. Table of Contents

• When the graph is wide, choose an x-value that is more than one unit from the vertex. • In the graph on the right, a good choice would be x = 2 or x = 3 • Note that x = 1 would not be very helpful in determining just how wide the graph would be. Table of Contents Wide

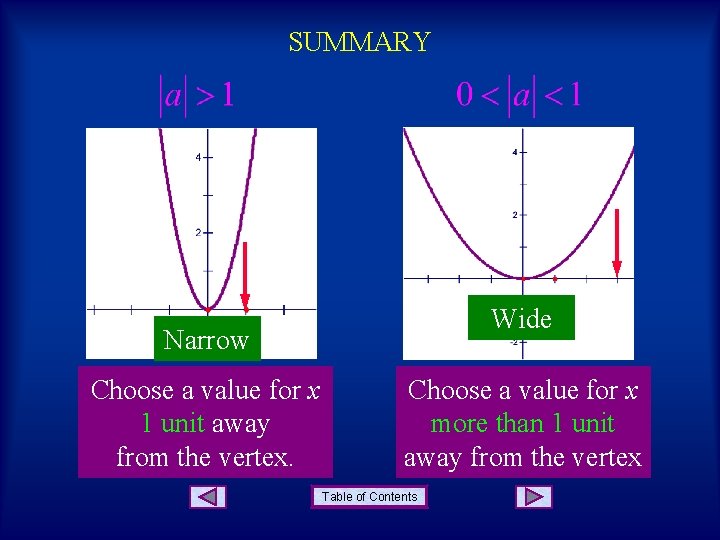

SUMMARY Wide Narrow Choose a value for x 1 unit away from the vertex. Choose a value for x more than 1 unit away from the vertex Table of Contents

• Example 1: Sketch the graph of the following function: Table of Contents

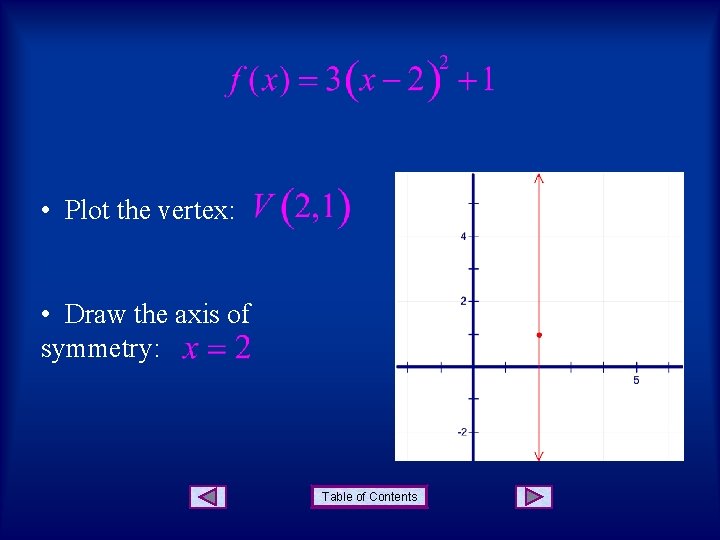

• Plot the vertex: • Draw the axis of symmetry: Table of Contents

• Since the graph is narrow, find a point that is only 1 unit from the vertex. Try x = 3. Table of Contents

• Draw the right branch of the parabola using the vertex and the point (3, 4). • Now use symmetry to draw the left branch. • Label the axis and important points. Table of Contents

• Example 2: Sketch the graph of the following function: Face Down Vertex: Wide Axis: Table of Contents

• Plot the vertex: • Draw the axis of symmetry: Table of Contents

• Since the graph is wide, find a point that is more than 1 unit from the vertex (-1, -2). • This problem presents another challenge, which is to avoid fractions if possible. Table of Contents

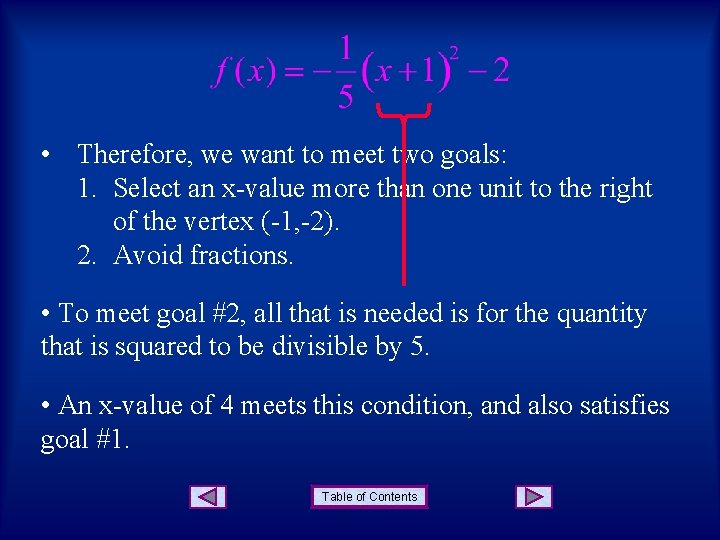

• Therefore, we want to meet two goals: 1. Select an x-value more than one unit to the right of the vertex (-1, -2). 2. Avoid fractions. • To meet goal #2, all that is needed is for the quantity that is squared to be divisible by 5. • An x-value of 4 meets this condition, and also satisfies goal #1. Table of Contents

Table of Contents

• Draw the right branch of the parabola using the vertex and the point (4, -7). • Now use symmetry to draw the left branch. • Label the axis and important points. Table of Contents

Table of Contents
