GRAPHING DISPLACEMENT HONORS PHYSICS DIFFERENT WAYS TO DESCRIBE
GRAPHING DISPLACEMENT HONORS PHYSICS
DIFFERENT WAYS TO DESCRIBE DISPLACEMENT • Verbally • Mathematically • Graphically
STROBE PHOTOS • One way to graph motion is with a strobe photo. • This method takes a picture at equal time intervals. • For example: take a picture every 0. 1 s and overlay the photos.

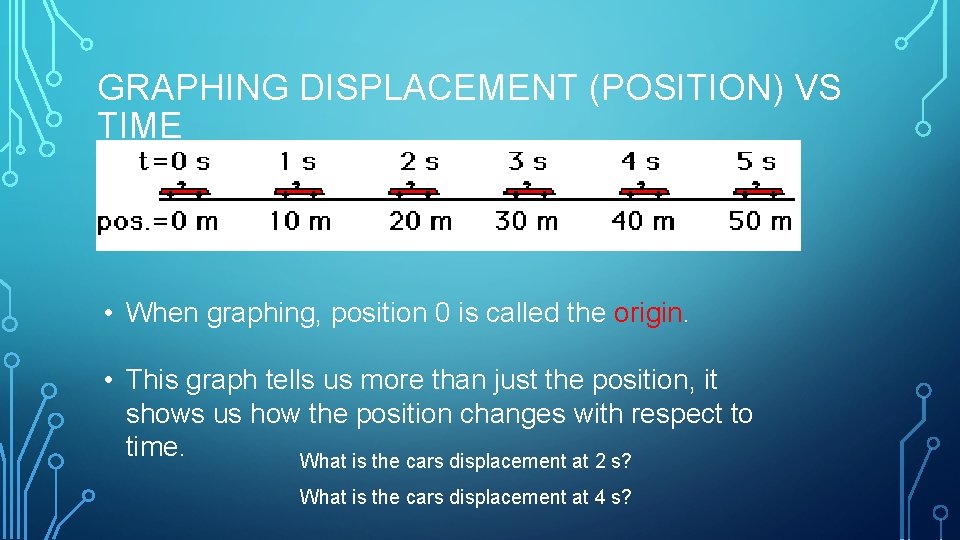

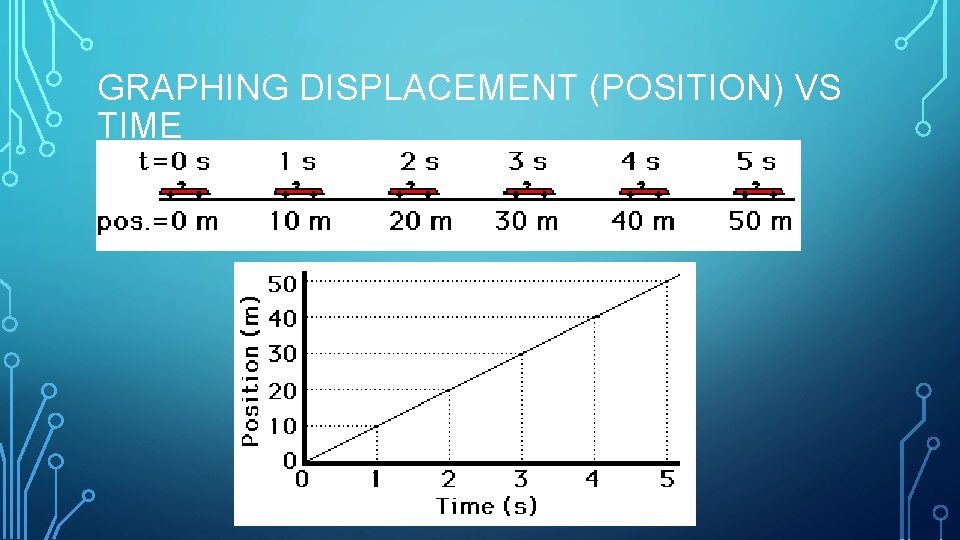

GRAPHING DISPLACEMENT (POSITION) VS TIME • When graphing, position 0 is called the origin. • This graph tells us more than just the position, it shows us how the position changes with respect to time. What is the cars displacement at 2 s? What is the cars displacement at 4 s?

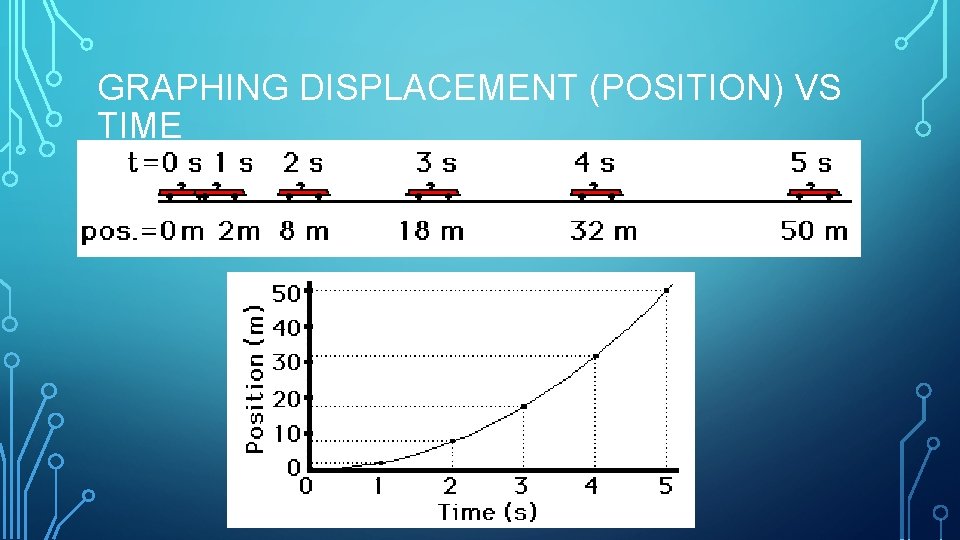

GRAPHING DISPLACEMENT (POSITION) VS TIME
GRAPHING DISPLACEMENT (POSITION) VS TIME

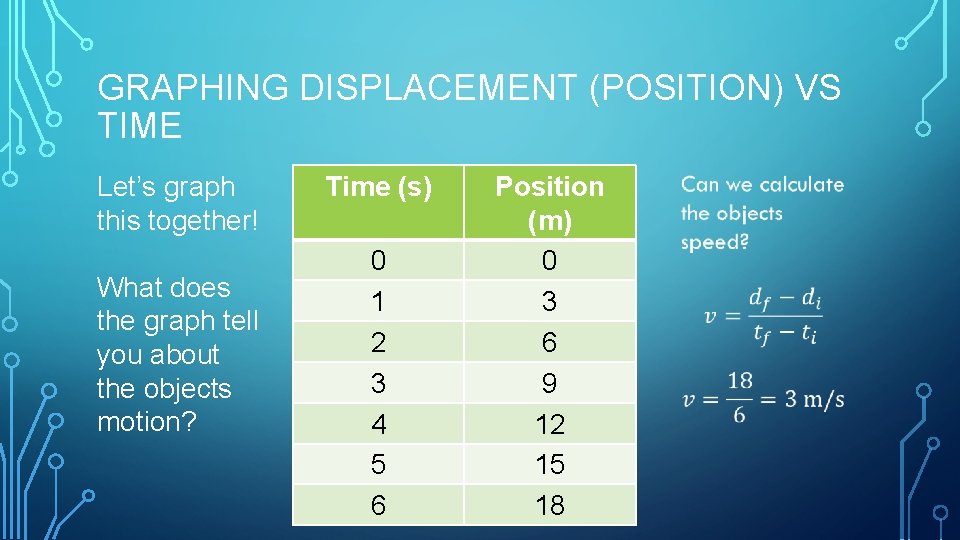

GRAPHING DISPLACEMENT (POSITION) VS TIME Let’s graph this together! What does the graph tell you about the objects motion? Time (s) 0 1 2 3 4 5 6 Position (m) 0 3 6 9 12 15 18

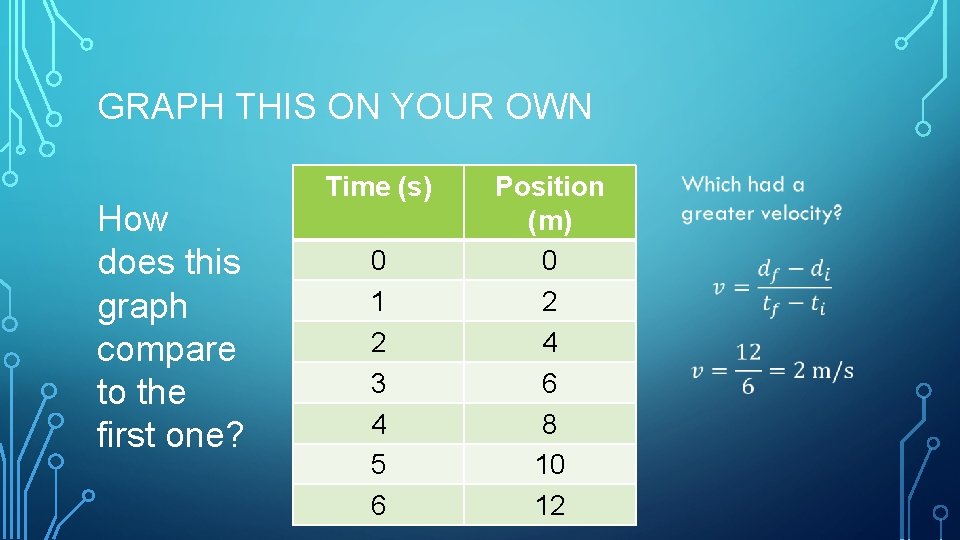

GRAPH THIS ON YOUR OWN How does this graph compare to the first one? Time (s) 0 1 2 3 4 5 6 Position (m) 0 2 4 6 8 10 12

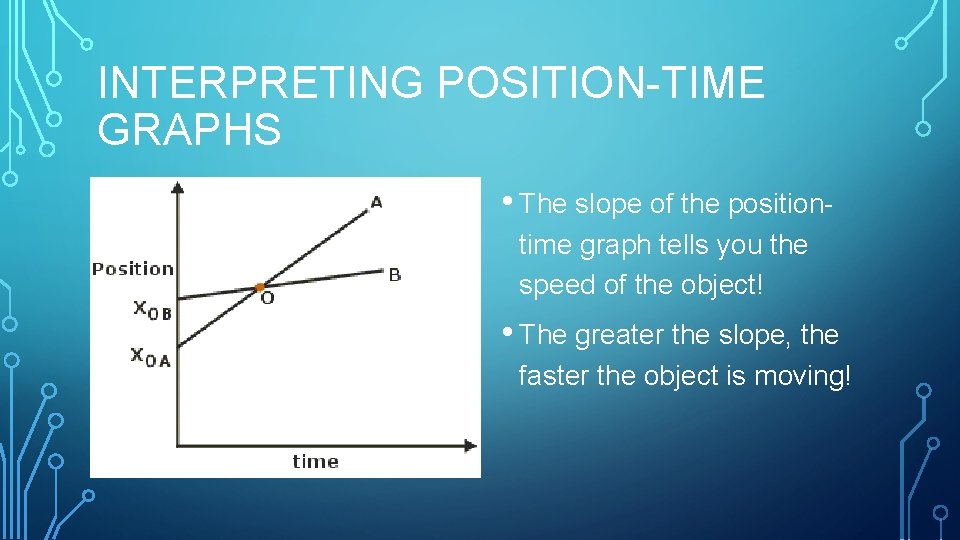

INTERPRETING POSITION-TIME GRAPHS • The slope of the positiontime graph tells you the speed of the object! • The greater the slope, the faster the object is moving!
INTERPRETING POSITION-TIME GRAPHS • The slope of the positiontime graph tells you the speed of the object! • The greater the slope, the faster the object is moving! THIS IS REALLY IMPORTANT!!!

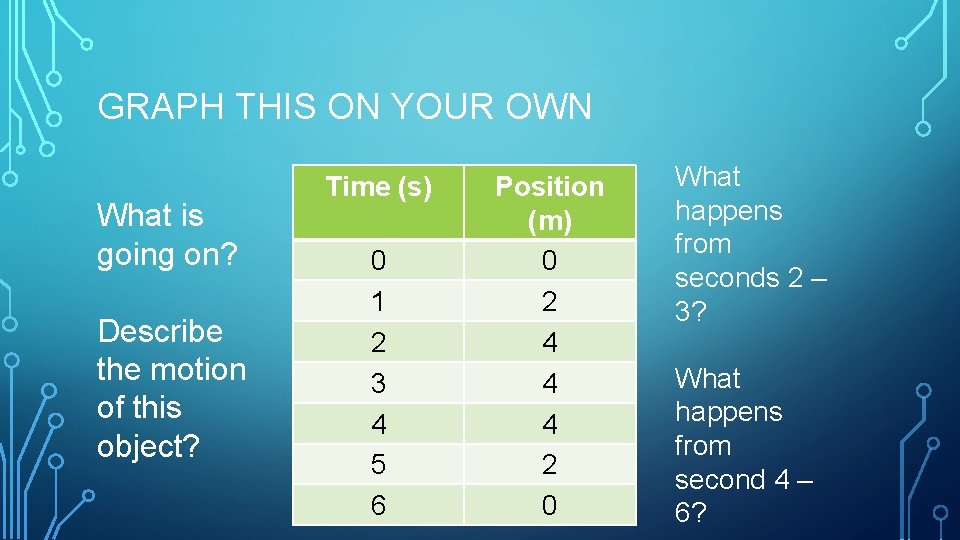

GRAPH THIS ON YOUR OWN What is going on? Describe the motion of this object? Time (s) 0 1 2 3 4 5 6 Position (m) 0 2 4 4 4 2 0 What happens from seconds 2 – 3? What happens from second 4 – 6?
