Graphics Texture Mapping 고려대학교 컴퓨터 그래픽스 연구실 http: //kucg. korea. ac. kr Graphics Lab @ Korea University

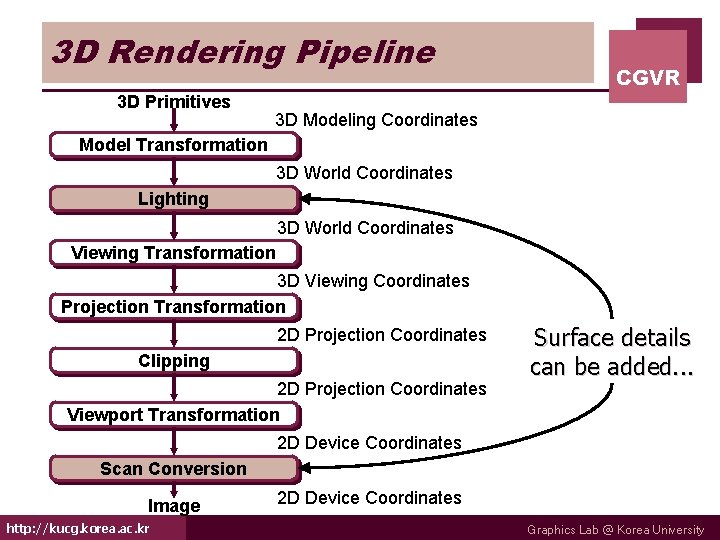

3 D Rendering Pipeline 3 D Primitives CGVR 3 D Modeling Coordinates Model Transformation 3 D World Coordinates Lighting 3 D World Coordinates Viewing Transformation 3 D Viewing Coordinates Projection Transformation 2 D Projection Coordinates Clipping 2 D Projection Coordinates Viewport Transformation Surface details can be added. . . 2 D Device Coordinates Scan Conversion Image http: //kucg. korea. ac. kr 2 D Device Coordinates Graphics Lab @ Korea University
Overview n Texture mapping methods n Texture mapping applications CGVR Modulation texture n Bump mapping n http: //kucg. korea. ac. kr Graphics Lab @ Korea University
Texture Surface n CGVR Add visual detail to surfaces of 3 D objects With Surface Texture Polygonal Model http: //kucg. korea. ac. kr Graphics Lab @ Korea University
Texture Mapping n CGVR 2 D projective transformation Texture coordinate system (s, t) to n Device coordinate system (x, y) n http: //kucg. korea. ac. kr Graphics Lab @ Korea University
Textures n CGVR Color variation in interior of 3 D polygon n When scan converting a polygon o Vary pixel colors according to values fetched from a texture y t Texture-Surface Transformation ys Viewing and Projection Transformation x s z Texture Space http: //kucg. korea. ac. kr Object Space xs Image Space Graphics Lab @ Korea University
Texture Mapping CGVR Steps: n Define texture n Specify mapping from texture to surface n Lookup texture values during scan conversion n (0, 1) t v s Texture Coordinate System http: //kucg. korea. ac. kr (0, 0) u Modeling Coordinate System (1, 0) y x Device Coordinate System Graphics Lab @ Korea University
Texture Mapping n CGVR Scan conversion Interpolate texture coordinates n Distortion due to the bilinear interpolation n o Subdivide the polygon into smaller ones (u 1, v 1) α (u 2, v 2) http: //kucg. korea. ac. kr β (u 3, v 3) Graphics Lab @ Korea University
Texture Mapping Linear Interpolation of Texture Coordinate http: //kucg. korea. ac. kr CGVR Corrected Interpolation Graphics Lab @ Korea University
Texture Sampling n CGVR To determine color at each pixel in image y ys t s x xs z http: //kucg. korea. ac. kr Graphics Lab @ Korea University
Overview n Texture mapping methods n Texture mapping applications CGVR Modulation texture n Bump mapping n http: //kucg. korea. ac. kr Graphics Lab @ Korea University
Modulation Texture CGVR Texture Shaded Color Texture Value http: //kucg. korea. ac. kr Graphics Lab @ Korea University
Bump Mapping n CGVR Perturbate surface normals http: //kucg. korea. ac. kr Graphics Lab @ Korea University
Bump Mapping http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University
Summary n CGVR Texture mapping methods Mapping n Filtering n n Texture mapping applications Modulation textures n Bump mapping n http: //kucg. korea. ac. kr Graphics Lab @ Korea University
Wireframe http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University
Ambient Illumination Only http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University
Flat Shaded Polygons with Diffuse Reflection http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University
Gouraud Shaded Polygons with Diffuse Reflection http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University
Gouraud Shaded Polygons with Specular Reflection http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University
Phong Shaded Polygons with Specular Reflection http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University
Curved Surfaces with Specular Reflection http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University

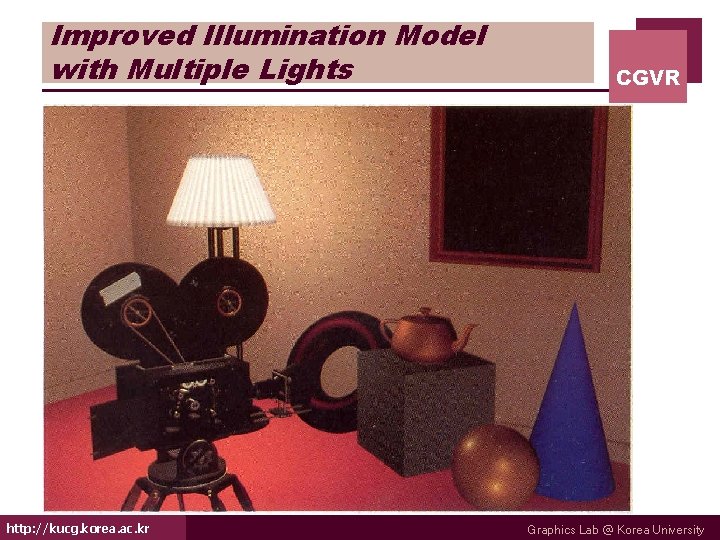

Improved Illumination Model with Multiple Lights http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University
Original Texture Mapping http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University
Bump Mapping http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University
Reflection Mapping http: //kucg. korea. ac. kr CGVR Graphics Lab @ Korea University
