Graphics Solid Modeling cgvr korea ac kr Graphics
- Slides: 26
Graphics Solid Modeling 고려대학교 컴퓨터 그래픽스 연구실 cgvr. korea. ac. kr Graphics Lab @ Korea University
Solid Modeling n CGVR Represent Solid Interiors of Objects n Surface may not be described explicitly cgvr. korea. ac. kr Graphics Lab @ Korea University
Motivation n CGVR Some Acquisition Methods Generate Solids n Example: CAT scan cgvr. korea. ac. kr Graphics Lab @ Korea University
Motivation n CGVR Some Applications Require Solids n Example: CAD/CAM cgvr. korea. ac. kr Graphics Lab @ Korea University
Motivation n CGVR Some Algorithms Require Solids n Example: ray tracing with refraction cgvr. korea. ac. kr Graphics Lab @ Korea University
Solid Modeling Representation CGVR Voxels n Quadtrees & Octrees n Binary Space Partitions n Constructive Solid Geometry n cgvr. korea. ac. kr Graphics Lab @ Korea University
Voxels n Partition Space into Uniform Grid n n CGVR Grid cells are called a voxels (like pixels) Store Properties of Solid Object with Each Voxel n n n Occupancy Color Density Temperature Etc. cgvr. korea. ac. kr Graphics Lab @ Korea University
Voxel Acquisition n CGVR Scanning Devices MRI n CAT n n Simulation n FEM cgvr. korea. ac. kr Graphics Lab @ Korea University
Voxel Storage n CGVR O(n 3) Storage for n x n Grid n 1 billion voxels for 1000 x 1000 cgvr. korea. ac. kr Graphics Lab @ Korea University

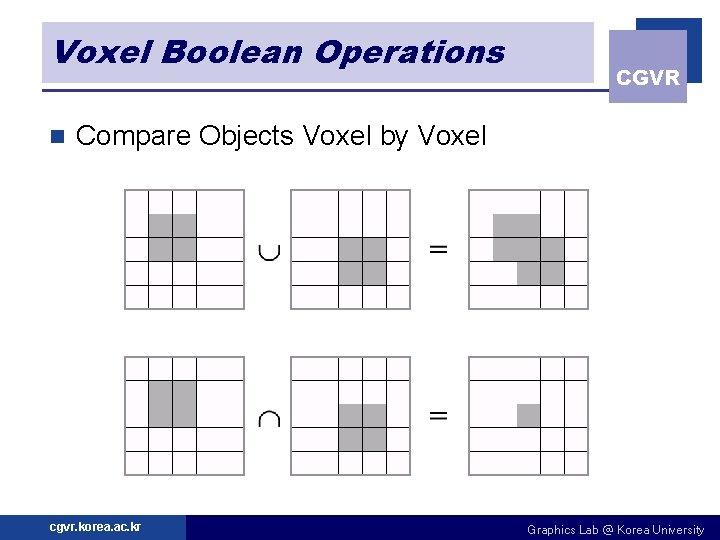

Voxel Boolean Operations n CGVR Compare Objects Voxel by Voxel cgvr. korea. ac. kr Graphics Lab @ Korea University

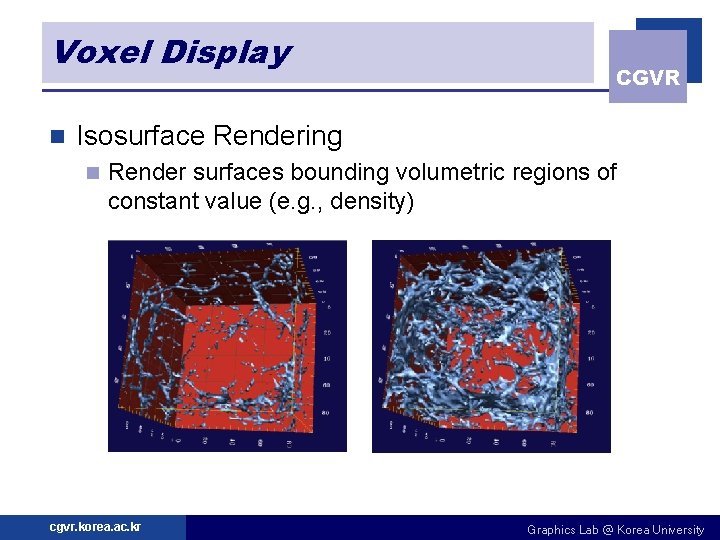

Voxel Display n CGVR Isosurface Rendering n Render surfaces bounding volumetric regions of constant value (e. g. , density) cgvr. korea. ac. kr Graphics Lab @ Korea University

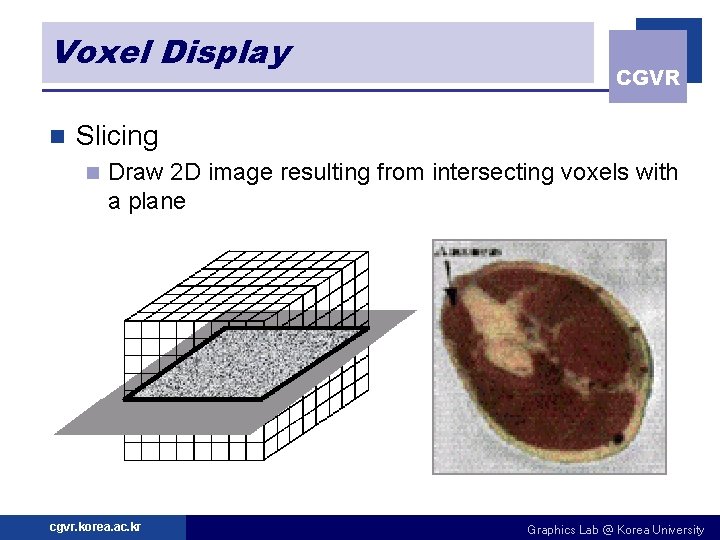

Voxel Display n CGVR Slicing n Draw 2 D image resulting from intersecting voxels with a plane cgvr. korea. ac. kr Graphics Lab @ Korea University
Voxel Display n CGVR Ray Casting n Integrate density along rays through pixels cgvr. korea. ac. kr Graphics Lab @ Korea University

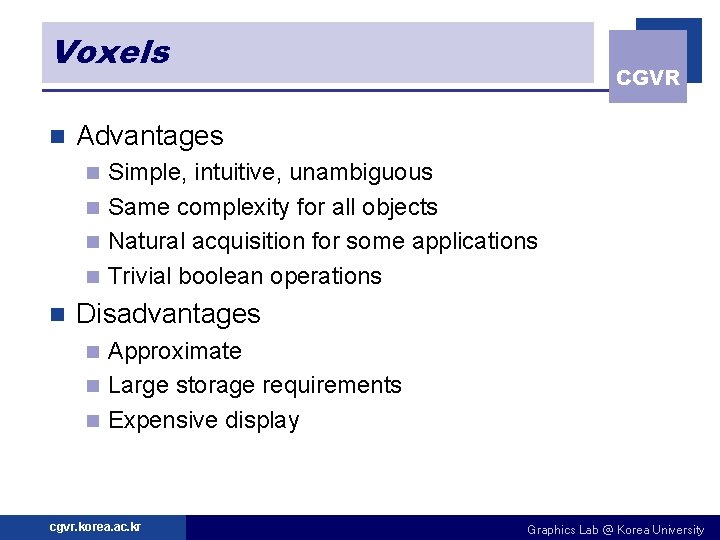

Voxels n CGVR Advantages Simple, intuitive, unambiguous n Same complexity for all objects n Natural acquisition for some applications n Trivial boolean operations n n Disadvantages Approximate n Large storage requirements n Expensive display n cgvr. korea. ac. kr Graphics Lab @ Korea University
Solid Modeling Representation CGVR Voxels n Quadtrees & Octrees n Binary Space Partitions n Constructive Solid Geometry n cgvr. korea. ac. kr Graphics Lab @ Korea University

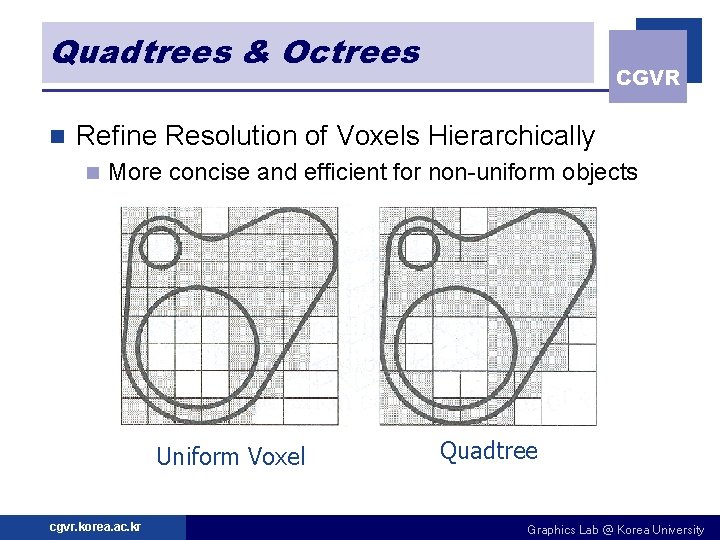

Quadtrees & Octrees n CGVR Refine Resolution of Voxels Hierarchically n More concise and efficient for non-uniform objects Uniform Voxel cgvr. korea. ac. kr Quadtree Graphics Lab @ Korea University
Quadtree Boolean Operations cgvr. korea. ac. kr CGVR Graphics Lab @ Korea University
Solid Modeling Representation CGVR Voxels n Quadtrees & Octrees n Binary Space Partitions n Constructive Solid Geometry n cgvr. korea. ac. kr Graphics Lab @ Korea University
Binary Space Partitions (BSPs) n CGVR Recursive Partition of Space by Planes n Mark leaf cells as inside or outside object a 1 g a a 6 f f 5 e e b d c b 7 4 d g cgvr. korea. ac. kr 2 c 3 c 2 Object 1 b Binary Spatial Partition 3 d e 4 f 5 6 7 BSP Tree Graphics Lab @ Korea University
BSP Fundamentals n Single Geometric Operation n n CGVR Partition a convex region by a hyperplane Single Combinatorial Operation n Two child nodes added as leaf nodes cgvr. korea. ac. kr Graphics Lab @ Korea University
BSP Display n CGVR Visibility Ordering n Determine on which side of plane the viewer lies o Near-subtree -> polygons on split -> far-subtree Partitioning Tree A o 2 A B o 4 B o 1 C o 3 Viewer cgvr. korea. ac. kr o 1 3 rd C o 2 4 th o 3 1 st o 4 2 nd Viewer Graphics Lab @ Korea University
Solid Modeling Representation CGVR Voxels n Quadtrees & Octrees n Binary Space Partitions n Constructive Solid Geometry n cgvr. korea. ac. kr Graphics Lab @ Korea University
Constructive Solid Geometry (CSG) n CGVR Represent Solid Object as Hierarchy of Boolean Operations Union n Intersection n Difference n cgvr. korea. ac. kr Graphics Lab @ Korea University

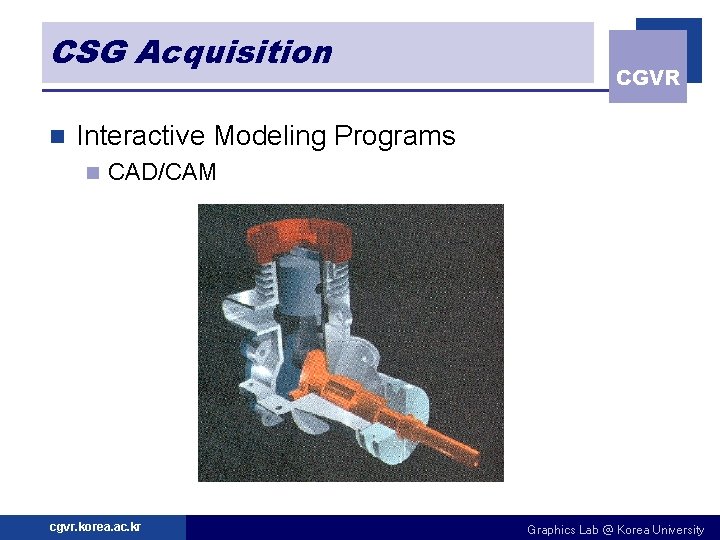

CSG Acquisition n CGVR Interactive Modeling Programs n CAD/CAM cgvr. korea. ac. kr Graphics Lab @ Korea University
CSG Display & Analysis n CGVR Ray Casting Union Circle cgvr. korea. ac. kr Box Graphics Lab @ Korea University

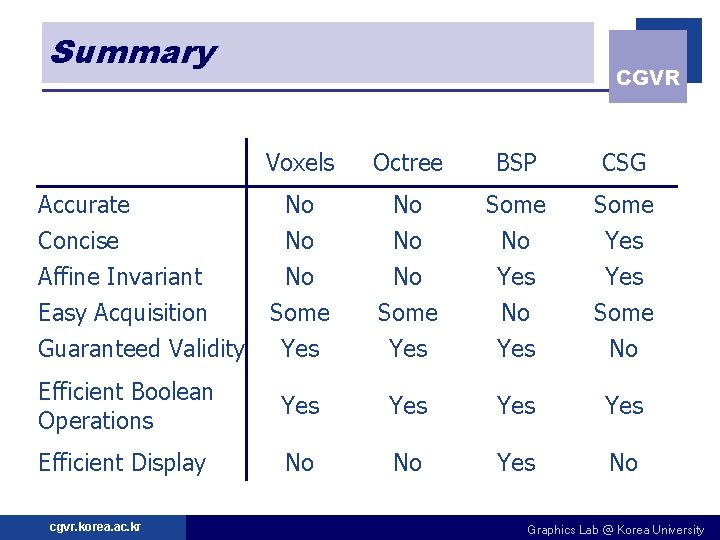

Summary CGVR Voxels Octree BSP CSG No No No Some Yes Some No Yes Some No Efficient Boolean Operations Yes Yes Efficient Display No No Yes No Accurate Concise Affine Invariant Easy Acquisition Guaranteed Validity cgvr. korea. ac. kr Graphics Lab @ Korea University
