Graphics Cards and Monitors

Graphics Cards and Monitors

GRAPHICS CARDS l components • • n video processor (and GPU) video RAM video

GRAPHICS CARDS l components • • n video processor (and GPU) video RAM video ROM BIOS video DAC (DVI adapters don’t) resolution and colors old: MDA, HGC, CGA, EGA, VGA (up to 640 x 480 pixels and 256 colors) è new: SVGA, UVGA, SXGA, etc (up to 2, 048 x 1536 pixels and 16 million colors) è

GRAPHICS CARDS l Connections to motherboard Peripheral component interconnect (PCI) è Advanced graphics port

GRAPHICS CARDS l Connections to motherboard Peripheral component interconnect (PCI) è Advanced graphics port (AGP) è PCI Express (PCIe) è l Depth and more From 2 D to 3 D è Direct. X è Open. GL è comparisons è

GRAPHICS CARDS Calculations • Colors (4 to 32 bits) – old: 16 = 2^4

GRAPHICS CARDS Calculations • Colors (4 to 32 bits) – old: 16 = 2^4 ; 256 = 2^8 – new: 32 K = 2^15; 64 K = 2^16; 16 million = 2^24; 4 billion = 2^32 • Resolution (pixels) – – 800 x 600 = 480, 000 1024 x 768 = 786, 432 1280 x 768 = 984, 040 1280 x 1024 = 1, 310, 720 • Video memory (examples) – 800 x 600, 256 colors = 480, 000 x 8 /1024 = 469 K – 1, 024 x 768, 64 K colors = 786, 432 x 16 / 8 /1024 = 1. 54 MB – 1, 280 x 1024, 4 billion = 1, 310, 720 x 32 / 8 /1024 = 5. 1 MB

MONITORS • Components (CRT) – electronic circuitry – power transformer – picture tube •

MONITORS • Components (CRT) – electronic circuitry – power transformer – picture tube • Specifications – vertical frequency: redraw frequency horizontal frequency: lines per second – display resolution vs. card resolution – screen size: different for CRT and LCD – connectors: analog and digital – Dot pitch

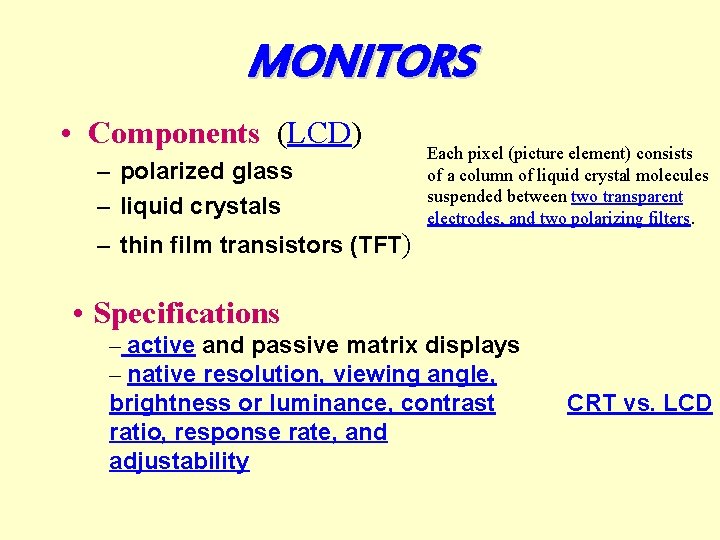

MONITORS • Components (LCD) – polarized glass – liquid crystals Each pixel (picture element)

MONITORS • Components (LCD) – polarized glass – liquid crystals Each pixel (picture element) consists of a column of liquid crystal molecules suspended between two transparent electrodes, and two polarizing filters. – thin film transistors (TFT) • Specifications – active and passive matrix displays – native resolution, viewing angle, brightness or luminance, contrast ratio, response rate, and adjustability CRT vs. LCD

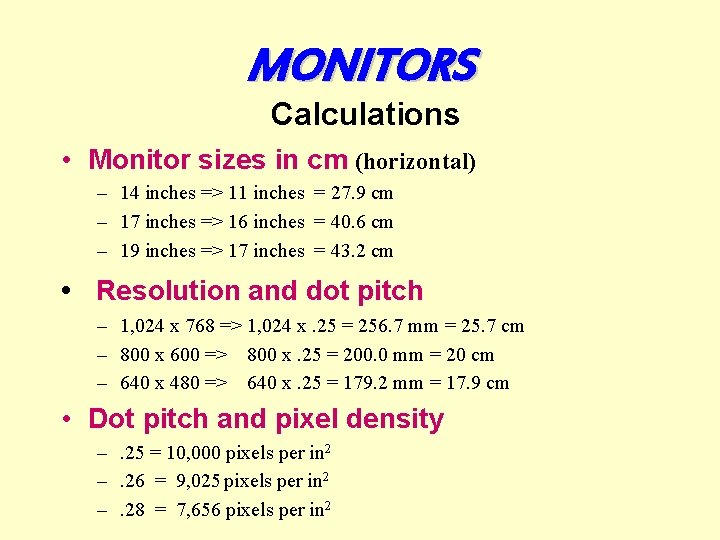

MONITORS Calculations • Monitor sizes in cm (horizontal) – 14 inches => 11 inches

MONITORS Calculations • Monitor sizes in cm (horizontal) – 14 inches => 11 inches = 27. 9 cm – 17 inches => 16 inches = 40. 6 cm – 19 inches => 17 inches = 43. 2 cm • Resolution and dot pitch – 1, 024 x 768 => 1, 024 x. 25 = 256. 7 mm = 25. 7 cm – 800 x 600 => 800 x. 25 = 200. 0 mm = 20 cm – 640 x 480 => 640 x. 25 = 179. 2 mm = 17. 9 cm • Dot pitch and pixel density –. 25 = 10, 000 pixels per in 2 –. 26 = 9, 025 pixels per in 2 –. 28 = 7, 656 pixels per in 2
