Graphic Communication Dimensioning 170203 Designed by Barry Forbes

Graphic Communication Dimensioning 17/02/03 Designed by Barry Forbes

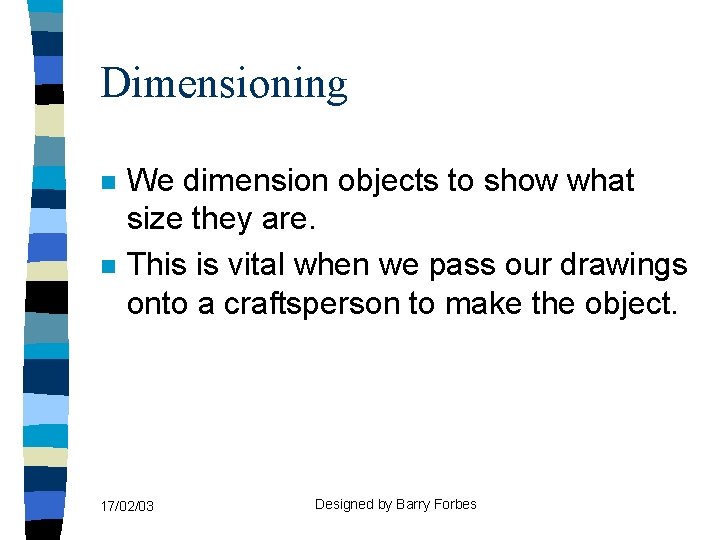

Dimensioning n n We dimension objects to show what size they are. This is vital when we pass our drawings onto a craftsperson to make the object. 17/02/03 Designed by Barry Forbes

Dimensioning n n n Dimensions are drawn to British Standards. This means that all dimensions are always drawn the same way. Dimensions you show will always be measured in millimetres so you do not have to show units. 17/02/03 Designed by Barry Forbes

Dimensioning 50 17/02/03 Horizontal dimensions are read from the bottom of the page. Designed by Barry Forbes

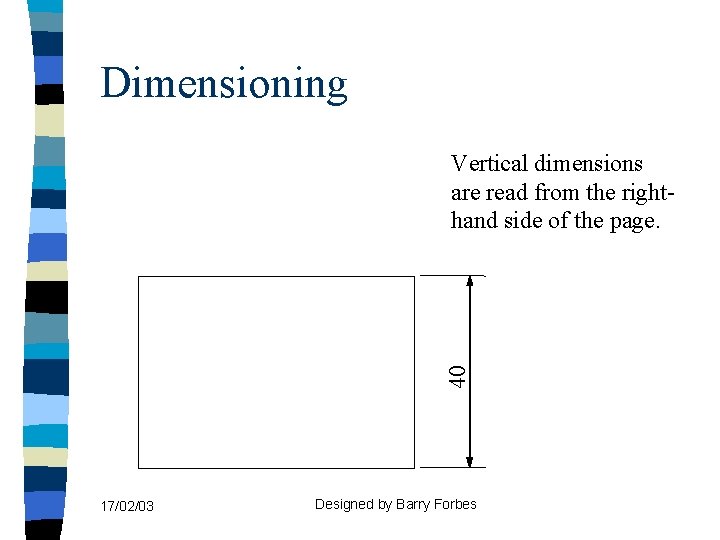

Dimensioning 40 Vertical dimensions are read from the righthand side of the page. 17/02/03 Designed by Barry Forbes

40 Dimensioning 40 Vertical dimensions are read from the righthand side of the page. dimension figures should never touch the outline of the object.

Dimensioning 40 Leader lines are used to bring the dimension away from the drawing. There should always be a gap left between the object and the leader line.

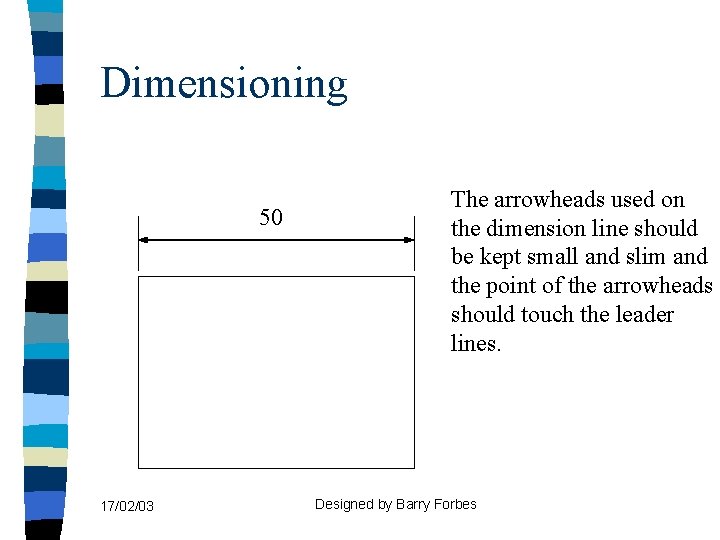

Dimensioning 50 17/02/03 The arrowheads used on the dimension line should be kept small and slim and the point of the arrowheads should touch the leader lines. Designed by Barry Forbes

Dimensioning Larger dimensions should be drawn further away from the object. 100 25 25 Smaller dimensions like these should be placed in line.

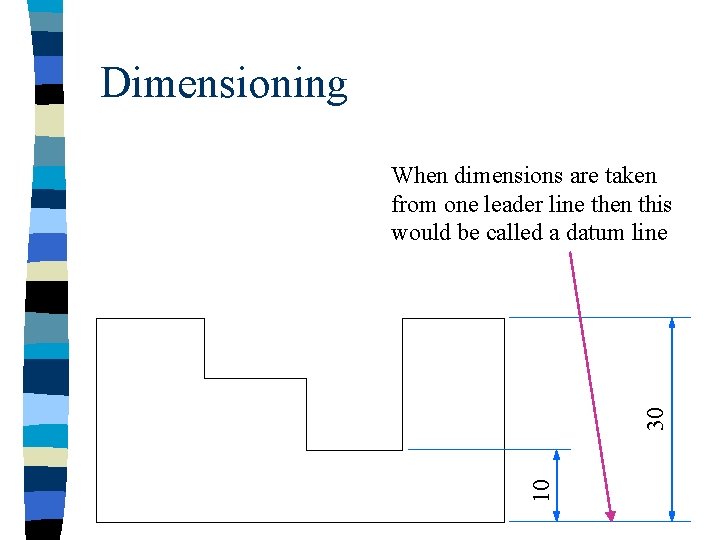

Dimensioning 10 30 When dimensions are taken from one leader line then this would be called a datum line

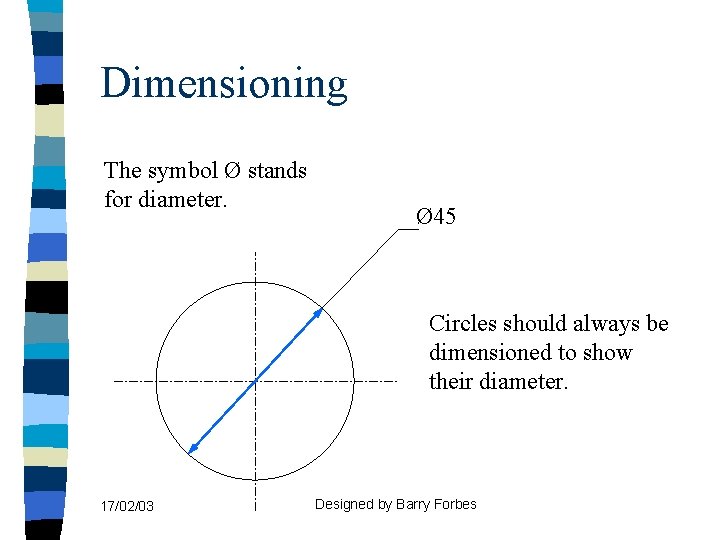

Dimensioning The symbol Ø stands for diameter. Ø 45 Circles should always be dimensioned to show their diameter. 17/02/03 Designed by Barry Forbes

Dimensioning The symbol R stands for radius. R 20 Curves should always be dimensioned to show their radius.

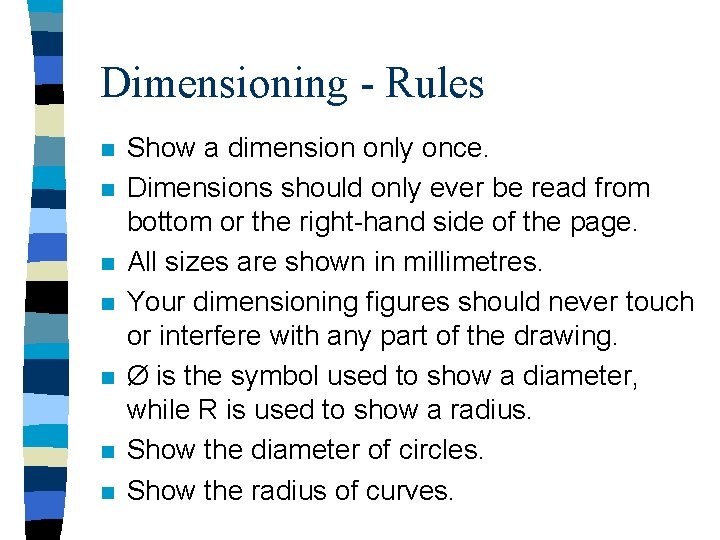

Dimensioning - Rules n n n n Show a dimension only once. Dimensions should only ever be read from bottom or the right-hand side of the page. All sizes are shown in millimetres. Your dimensioning figures should never touch or interfere with any part of the drawing. Ø is the symbol used to show a diameter, while R is used to show a radius. Show the diameter of circles. Show the radius of curves.
