Graph P Reducing Communication for PIMbased Graph Processing

Graph. P: Reducing Communication for PIM-based Graph Processing with Efficient Data Partition Mingxing Zhang, Youwei Zhuo (equal contribution), Chao Wang, Mingyu Gao, Yongwei Wu, Kang Chen, Christos Kozyrakis, Xuehai Qian Tsinghua University of Southern California Stanford University

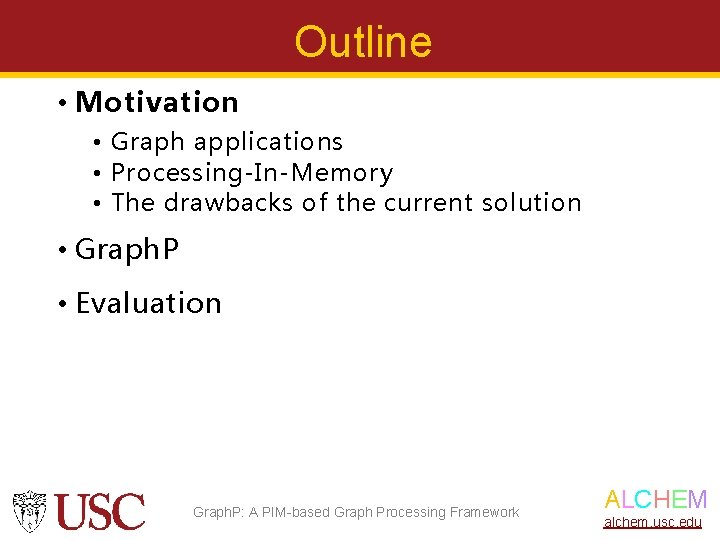

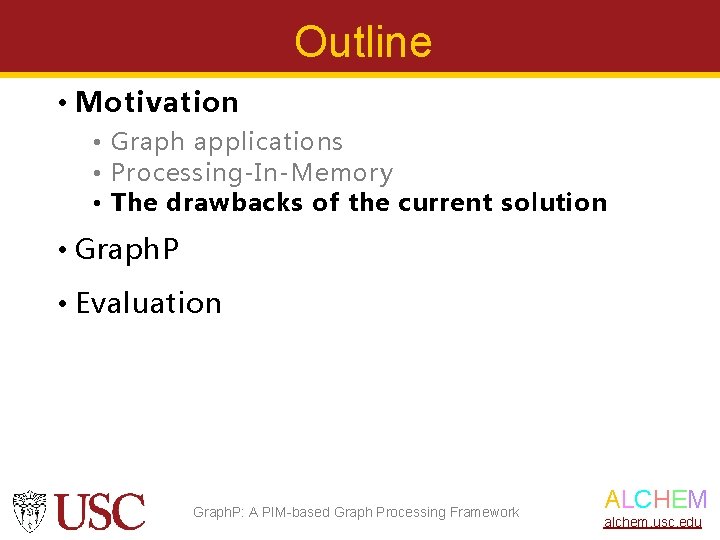

Outline • Motivation • Graph applications • Processing-In-Memory • The drawbacks of the current solution • Graph. P • Evaluation Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

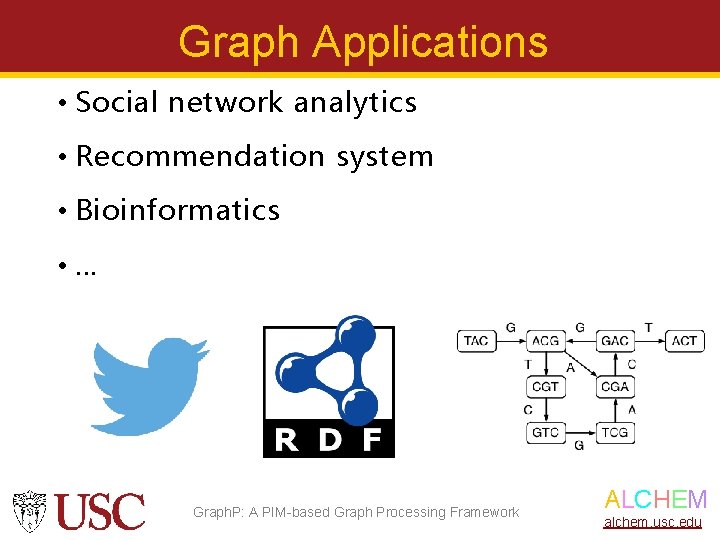

Graph Applications • Social network analytics • Recommendation system • Bioinformatics • … Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

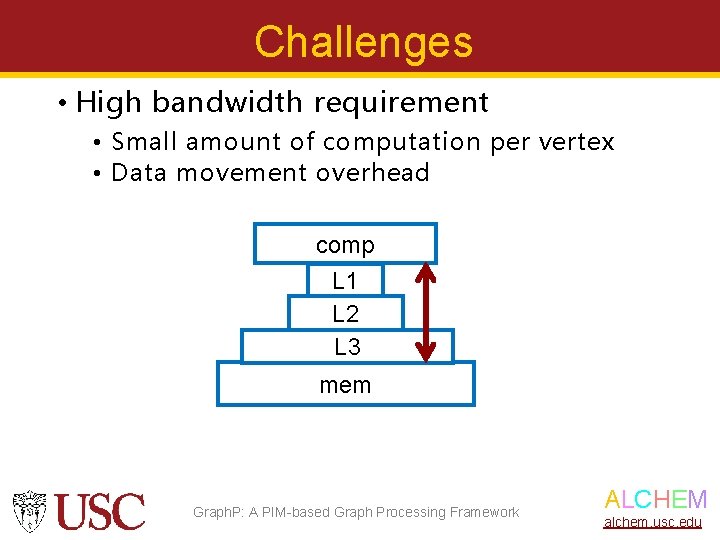

Challenges • High bandwidth requirement • Small amount of computation per vertex • Data movement overhead comp L 1 L 2 L 3 mem Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

PIM: Processing-In-Memory • Idea: Computation logic inside memory • Advantage: High memory bandwidth • Example: Hybrid Memory Cubes (HMC) mem …. . 320 GB/s intra-cube mem mem comp 4 x 120 GB/s inter-cube Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

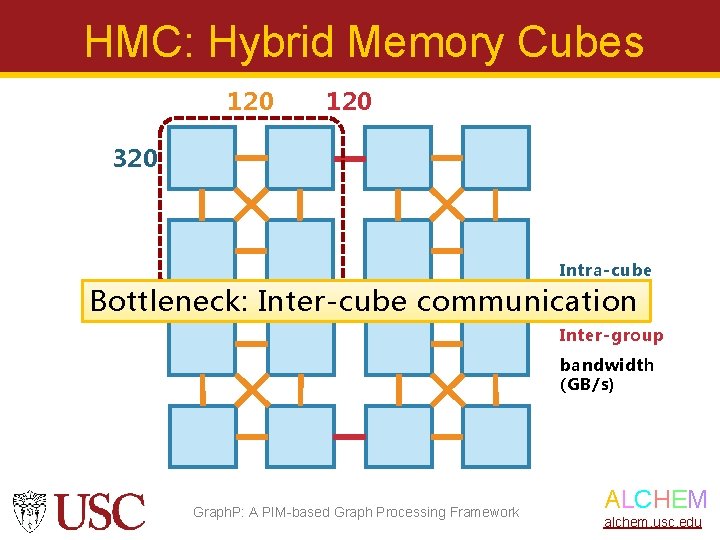

HMC: Hybrid Memory Cubes 120 320 Intra-cube Inter-cube Bottleneck: Inter-cube communication Inter-group bandwidth (GB/s) Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

Outline • Motivation • Graph applications • Processing-In-Memory • The drawbacks of the current solution • Graph. P • Evaluation Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

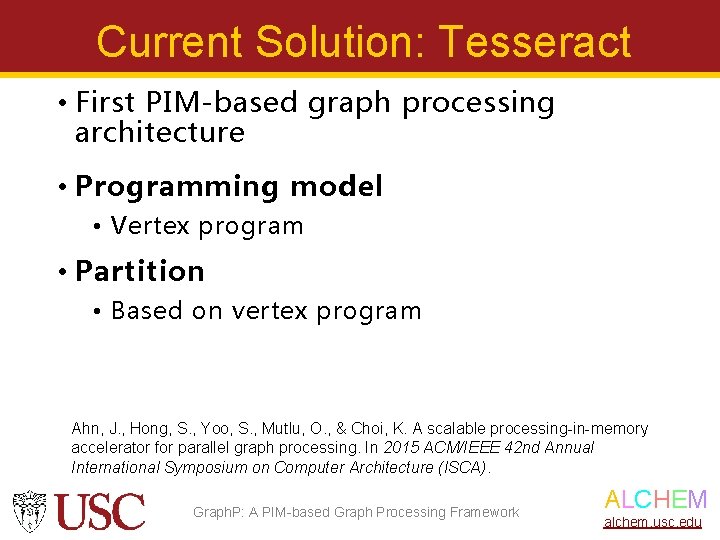

Current Solution: Tesseract • First PIM-based graph processing architecture • Programming model • Vertex program • Partition • Based on vertex program Ahn, J. , Hong, S. , Yoo, S. , Mutlu, O. , & Choi, K. A scalable processing-in-memory accelerator for parallel graph processing. In 2015 ACM/IEEE 42 nd Annual International Symposium on Computer Architecture (ISCA). Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

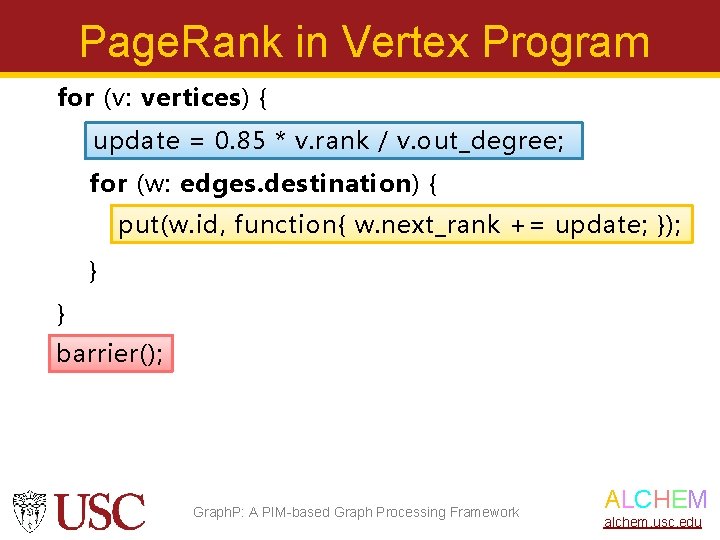

Page. Rank in Vertex Program for (v: vertices) { update = 0. 85 * v. rank / v. out_degree; for (w: edges. destination) { put(w. id, function{ w. next_rank += update; }); } } barrier(); Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

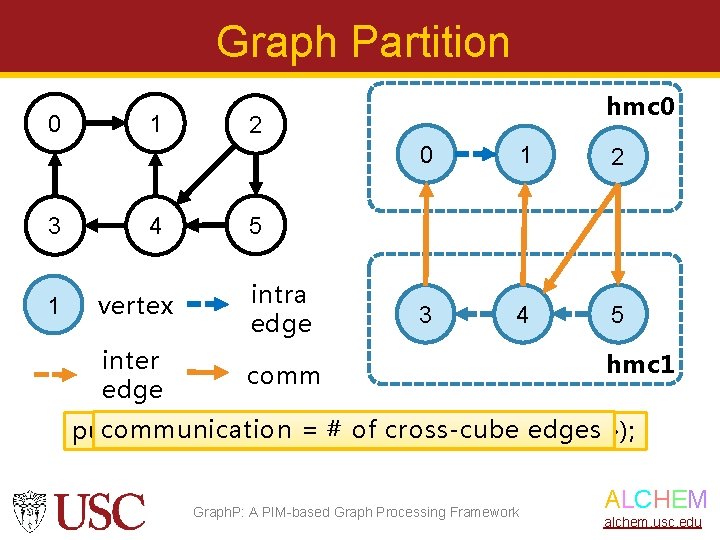

Graph Partition 0 3 1 1 4 hmc 0 2 0 1 2 3 4 5 5 vertex intra edge inter edge comm hmc 1 communication # of cross-cube edges }); put(w. id, function{ =w. next_rank += update; Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

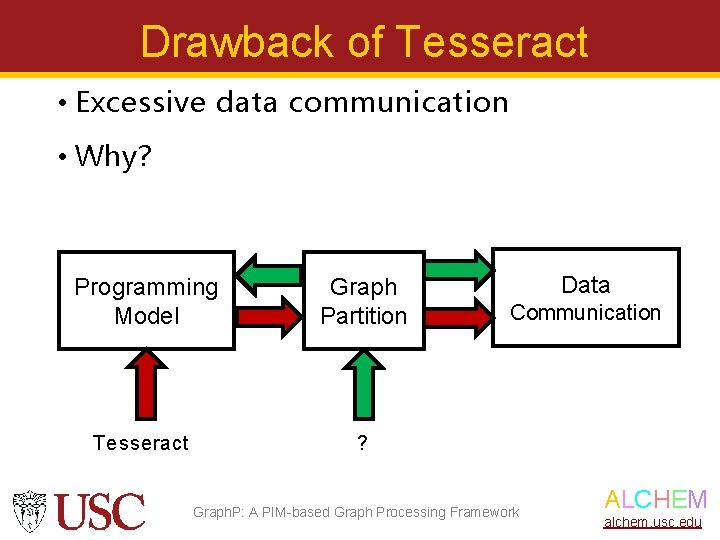

Drawback of Tesseract • Excessive data communication • Why? Programming Model Graph Partition Tesseract ? Data Communication Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

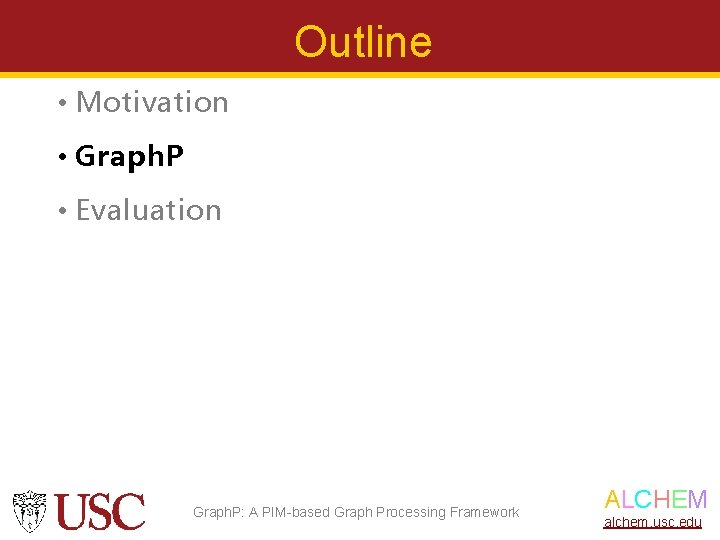

Outline • Motivation • Graph. P • Evaluation Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

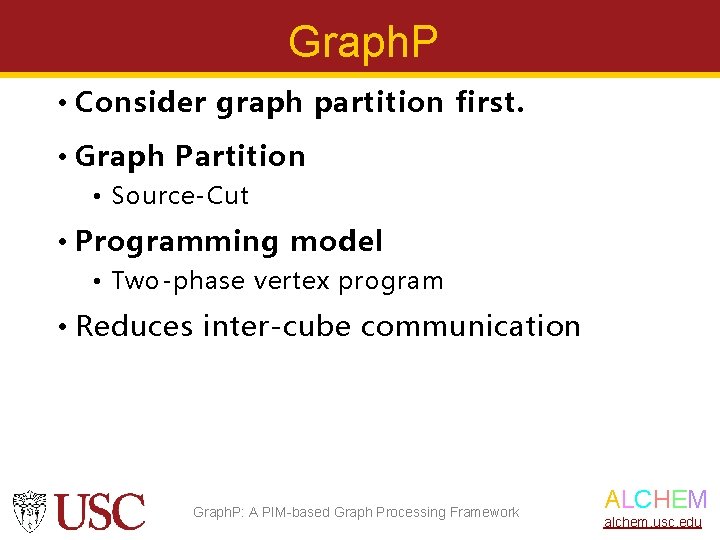

Graph. P • Consider graph partition first. • Graph Partition • Source-Cut • Programming model • Two-phase vertex program • Reduces inter-cube communication Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

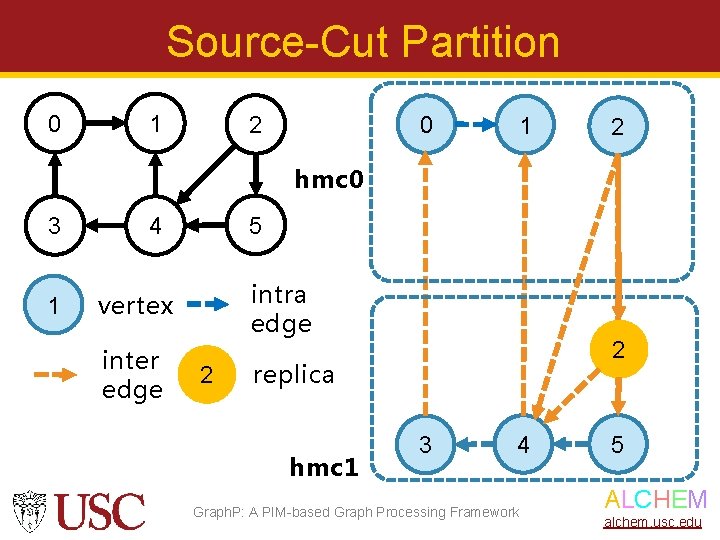

Source-Cut Partition 0 1 0 2 1 2 hmc 0 3 1 5 4 intra edge vertex inter edge 2 2 replica hmc 1 3 4 Graph. P: A PIM-based Graph Processing Framework 5 ALCHEM alchem. usc. edu

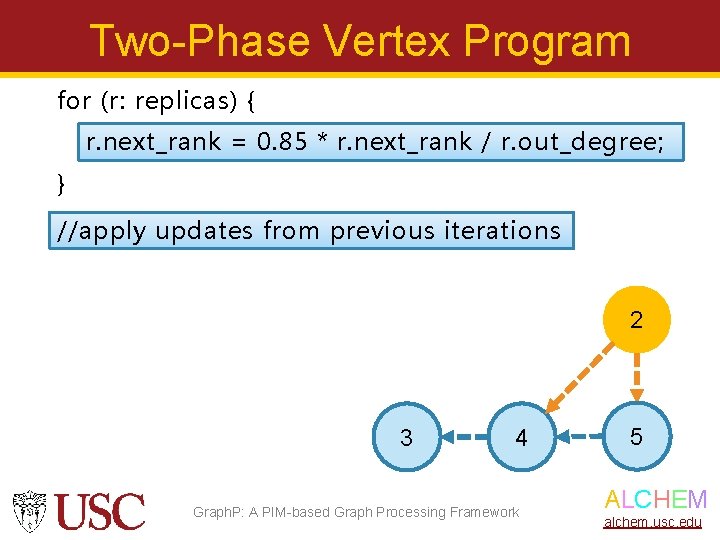

Two-Phase Vertex Program for (r: replicas) { r. next_rank = 0. 85 * r. next_rank / r. out_degree; } //apply updates from previous iterations 2 3 4 Graph. P: A PIM-based Graph Processing Framework 5 ALCHEM alchem. usc. edu

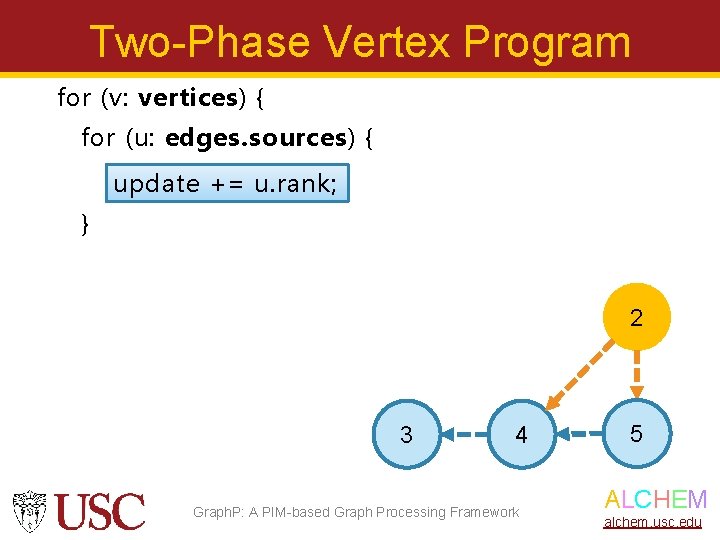

Two-Phase Vertex Program for (v: vertices) { for (u: edges. sources) { update += u. rank; } 2 3 4 Graph. P: A PIM-based Graph Processing Framework 5 ALCHEM alchem. usc. edu

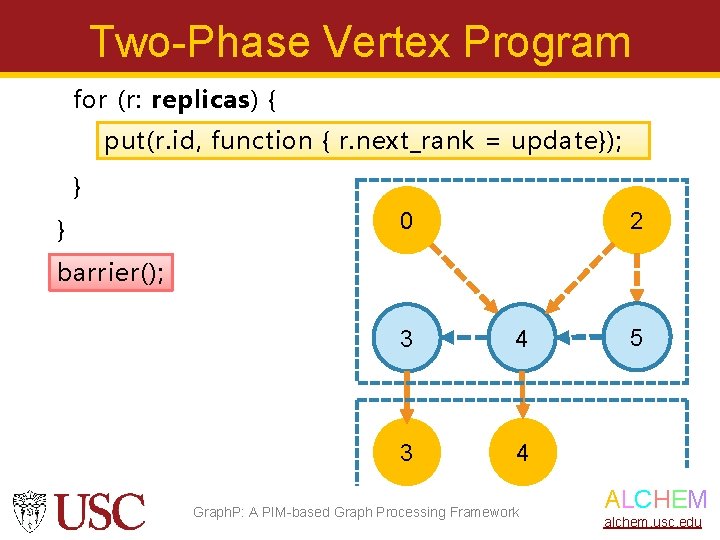

Two-Phase Vertex Program for (r: replicas) { put(r. id, function { r. next_rank = update}); } } 0 2 barrier(); 3 4 Graph. P: A PIM-based Graph Processing Framework 5 ALCHEM alchem. usc. edu

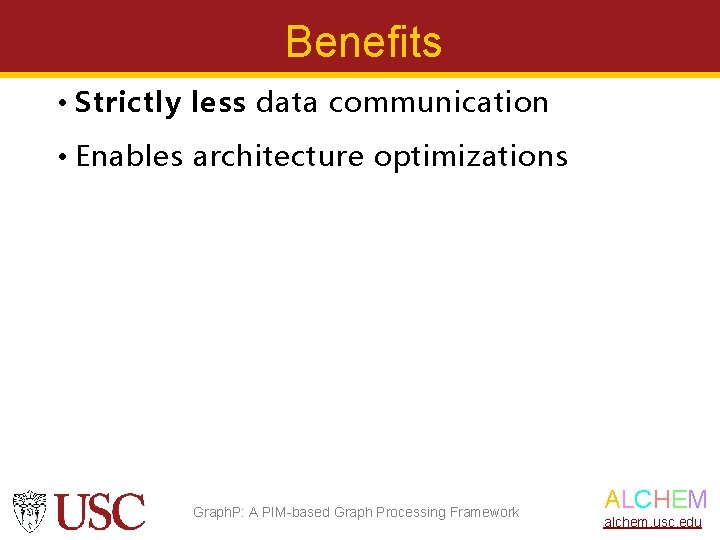

Benefits • Strictly less data communication • Enables architecture optimizations Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

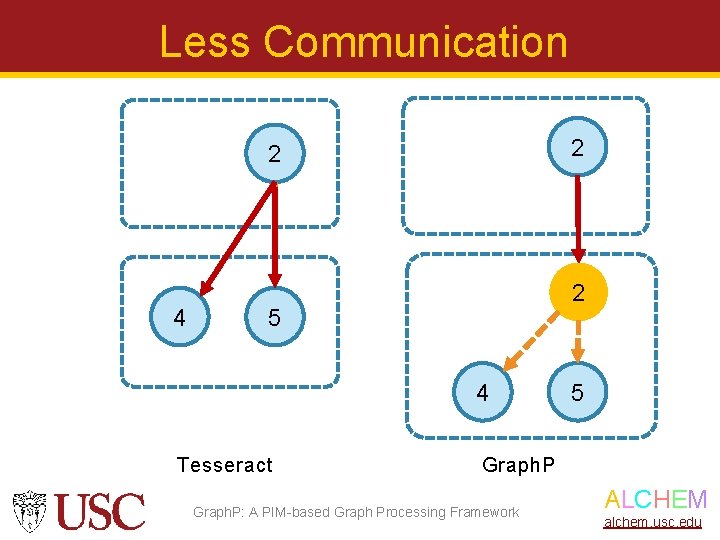

Less Communication 2 2 4 2 5 4 Tesseract 5 Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

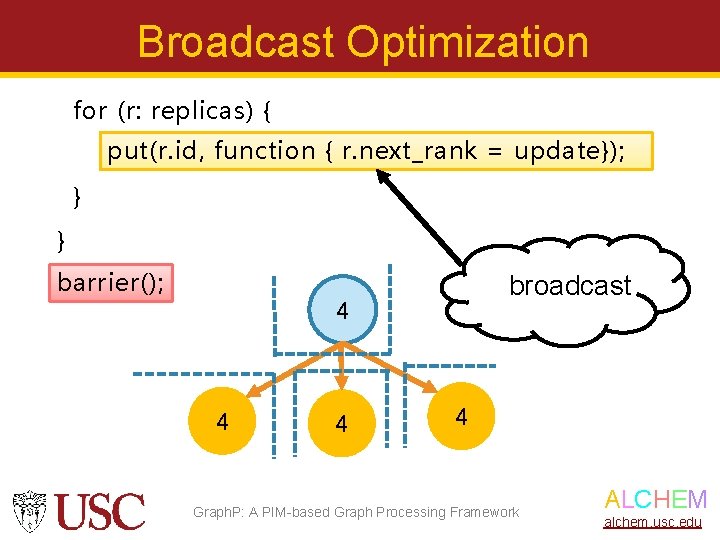

Broadcast Optimization for (r: replicas) { put(r. id, function { r. next_rank = update}); } } barrier(); broadcast 4 4 Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

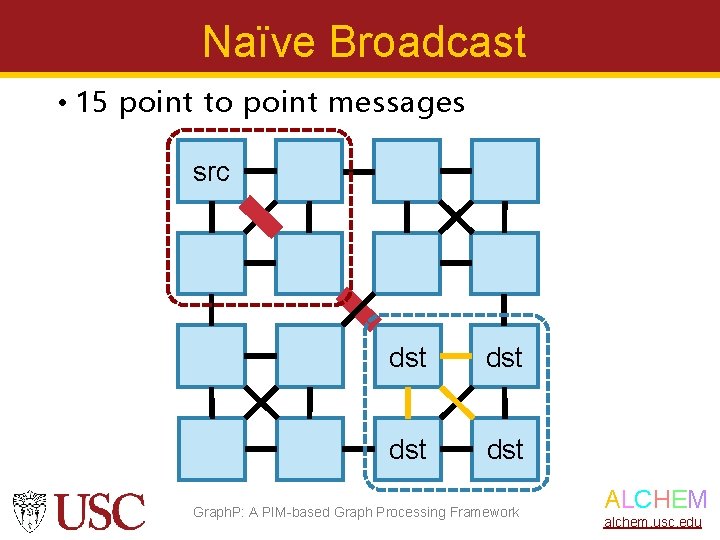

Naïve Broadcast • 15 point to point messages src dst dst Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

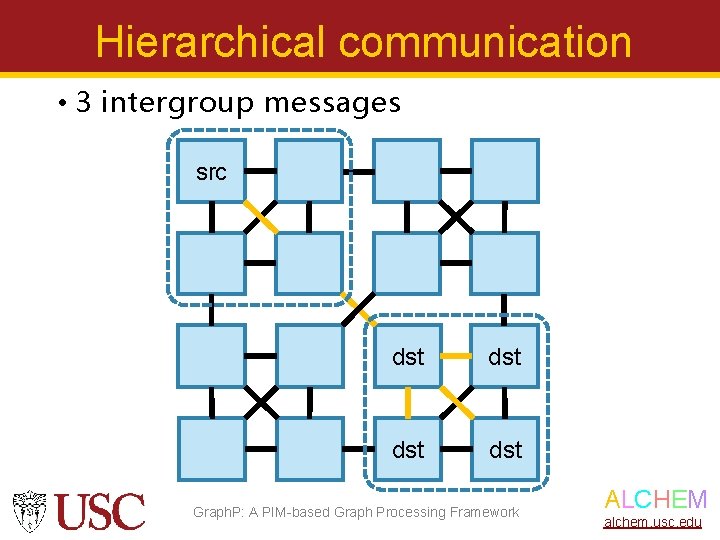

Hierarchical communication • 3 intergroup messages src dst dst Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

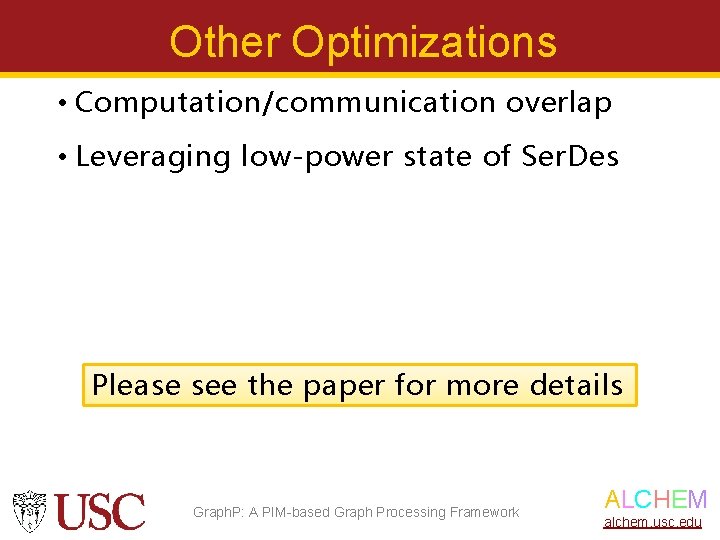

Other Optimizations • Computation/communication overlap • Leveraging low-power state of Ser. Des Please see the paper for more details Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

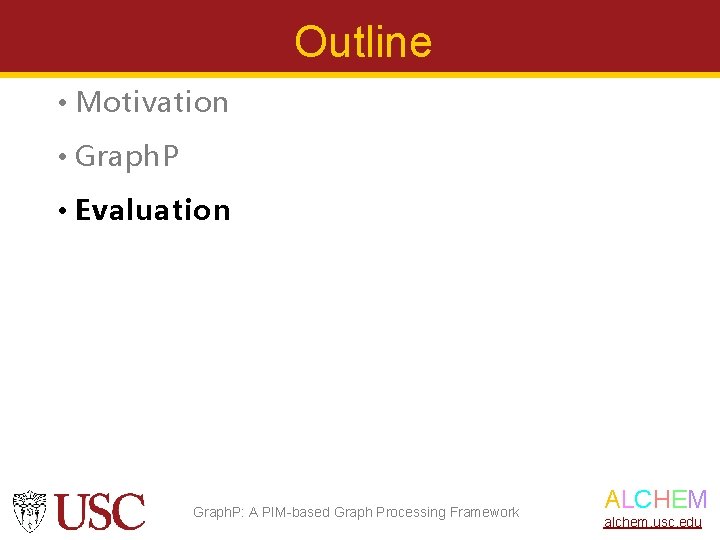

Outline • Motivation • Graph. P • Evaluation Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

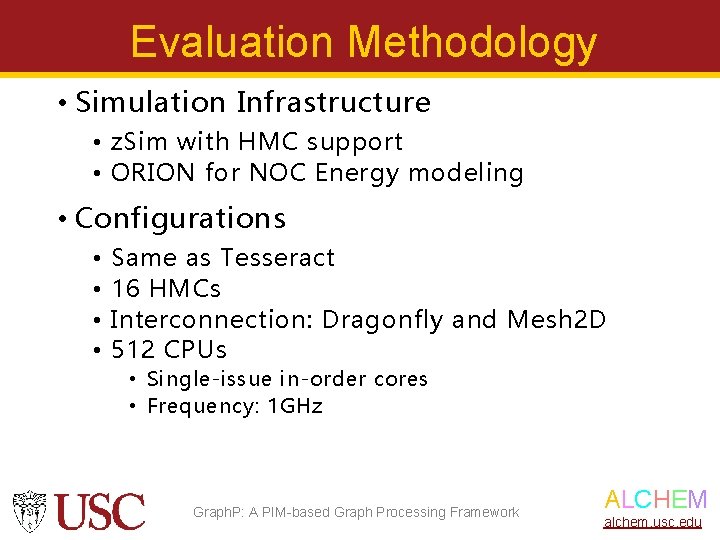

Evaluation Methodology • Simulation Infrastructure • z. Sim with HMC support • ORION for NOC Energy modeling • Configurations • • Same as Tesseract 16 HMCs Interconnection: Dragonfly and Mesh 2 D 512 CPUs • Single-issue in-order cores • Frequency: 1 GHz Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

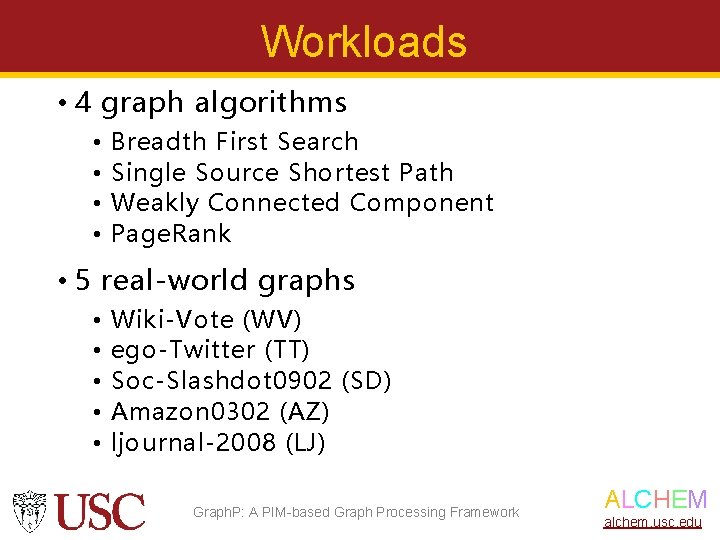

Workloads • 4 graph algorithms • • Breadth First Search Single Source Shortest Path Weakly Connected Component Page. Rank • 5 real-world graphs • • • Wiki-Vote (WV) ego-Twitter (TT) Soc-Slashdot 0902 (SD) Amazon 0302 (AZ) ljournal-2008 (LJ) Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

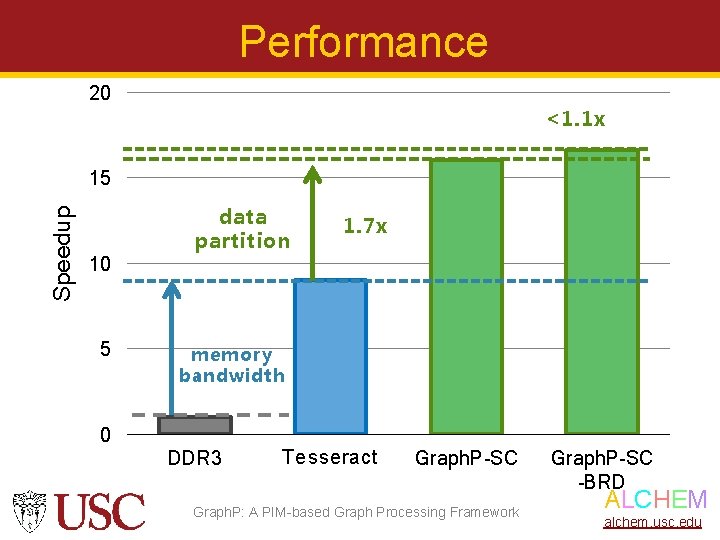

Performance 20 <1. 1 x Speedup 15 10 5 data partition 1. 7 x memory bandwidth 0 DDR 3 Tesseract SOTA Graph. P-SC Graph. P: A PIM-based Graph Processing Framework Graph. P-SC -BRD ALCHEM alchem. usc. edu

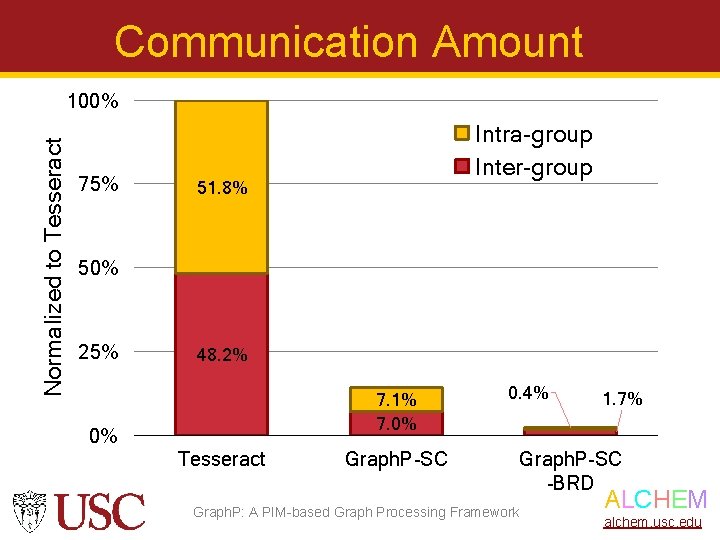

Communication Amount Normalized to Tesseract 100% 75% Intra-group Inter-group 51. 8% 50% 25% 48. 2% 7. 1% 7. 0% 0% Tesseract Graph. P-SC 0. 4% 1. 7% Graph. P-SC -BRD Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

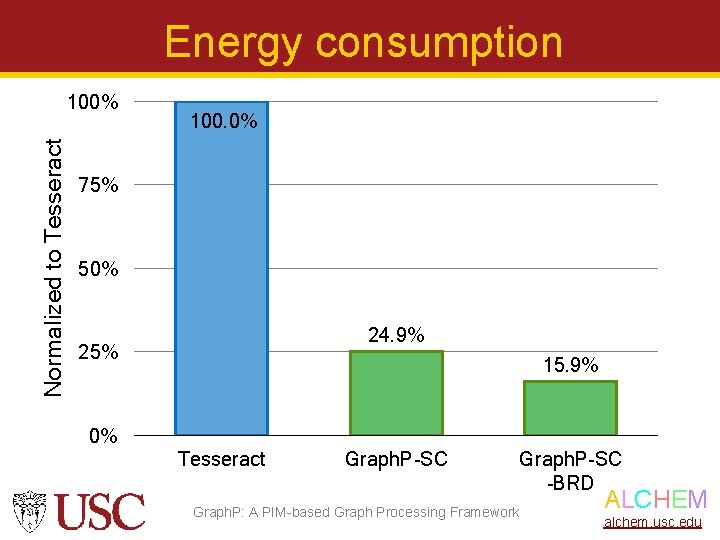

Energy consumption Normalized to Tesseract 100% 100. 0% 75% 50% 24. 9% 25% 15. 9% 0% Tesseract Graph. P-SC -BRD Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

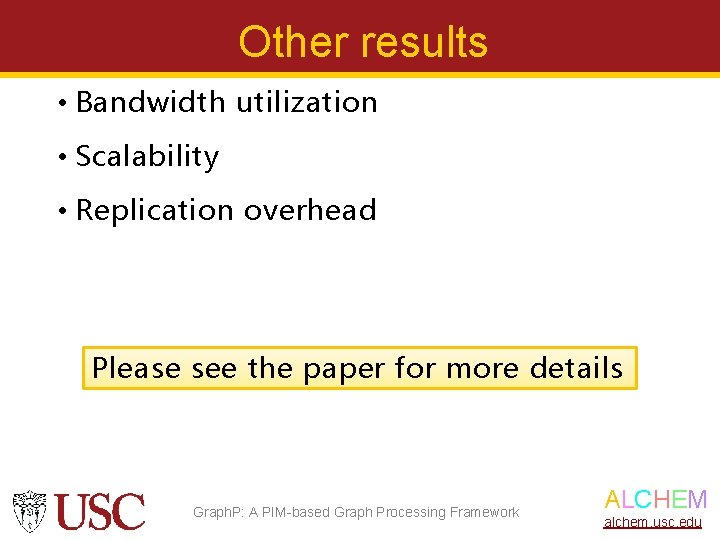

Other results • Bandwidth utilization • Scalability • Replication overhead Please see the paper for more details Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

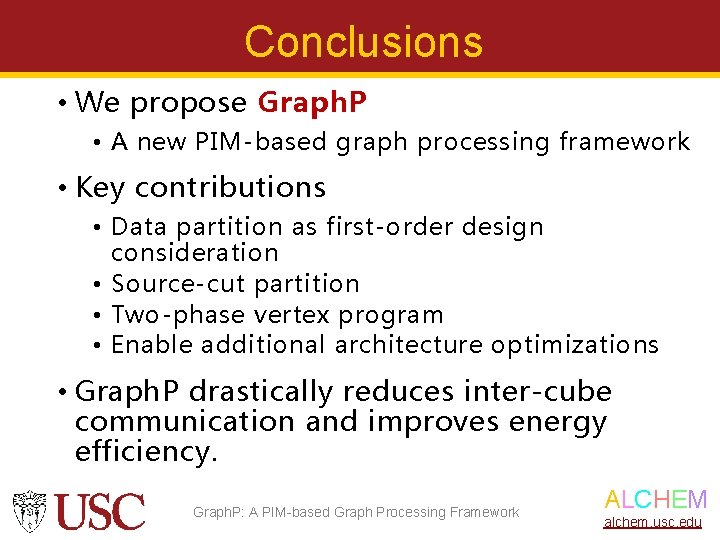

Conclusions • We propose Graph. P • A new PIM-based graph processing framework • Key contributions • Data partition as first-order design consideration • Source-cut partition • Two-phase vertex program • Enable additional architecture optimizations • Graph. P drastically reduces inter-cube communication and improves energy efficiency. Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

Graph. P: Reducing Communication for PIM-based Graph Processing with Efficient Data Partition Mingxing Zhang, Youwei Zhuo (equal contribution), Chao Wang, Mingyu Gao, Yongwei Wu, Kang Chen, Christos Kozyrakis, Xuehai Qian Tsinghua University of Southern California Stanford University

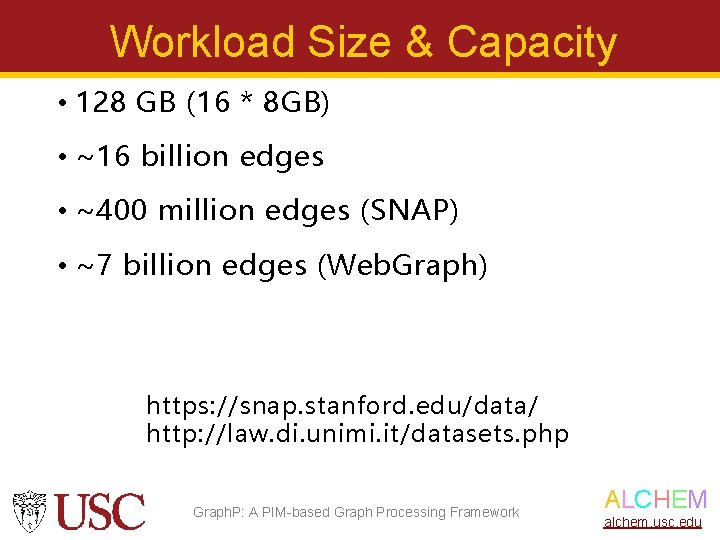

Workload Size & Capacity • 128 GB (16 * 8 GB) • ~16 billion edges • ~400 million edges (SNAP) • ~7 billion edges (Web. Graph) https: //snap. stanford. edu/data/ http: //law. di. unimi. it/datasets. php Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu

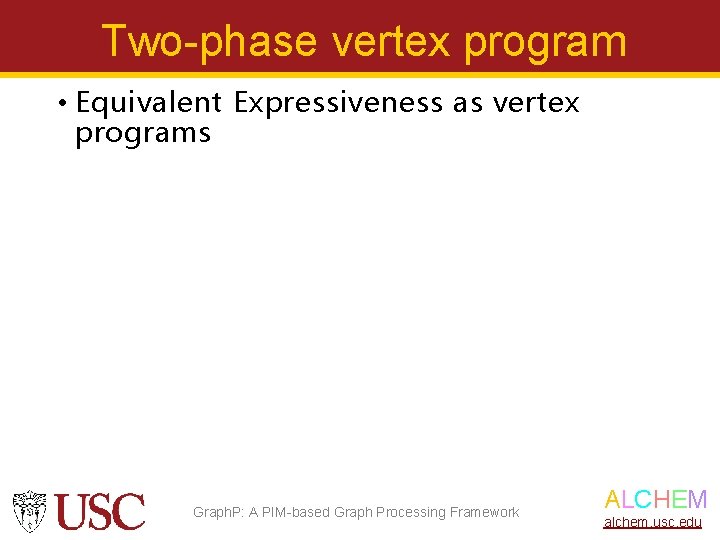

Two-phase vertex program • Equivalent Expressiveness as vertex programs Graph. P: A PIM-based Graph Processing Framework ALCHEM alchem. usc. edu
