Graph Coloring Vertex Coloring problem in VLSI routing
Graph Coloring

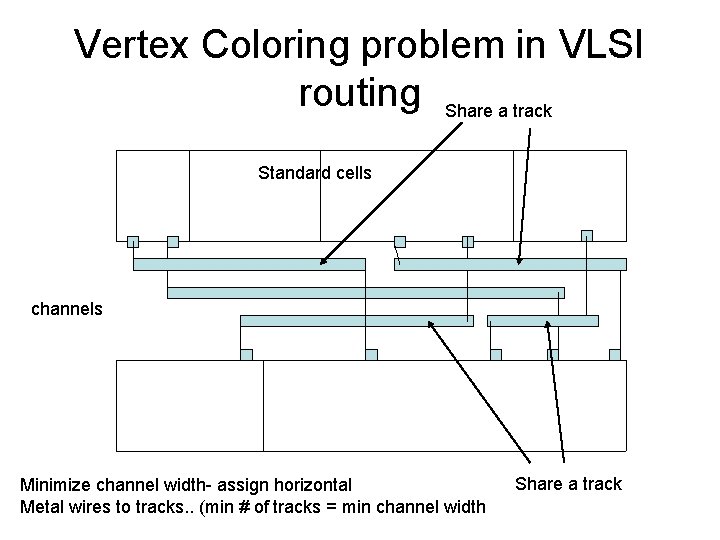

Vertex Coloring problem in VLSI routing Share a track Standard cells channels Minimize channel width- assign horizontal Metal wires to tracks. . (min # of tracks = min channel width Share a track
Vertex Coloring problem in VLSI routing Standard cells 1 channels 2 3 4 Minimize channel width- assign horizontal Metal wires to tracks. . (min # of tracks = min channel width 5
Vertex=wire edge=overlapped wires color = track R 1 B R 2 4 5 3 G CHORDAL GRAPH B

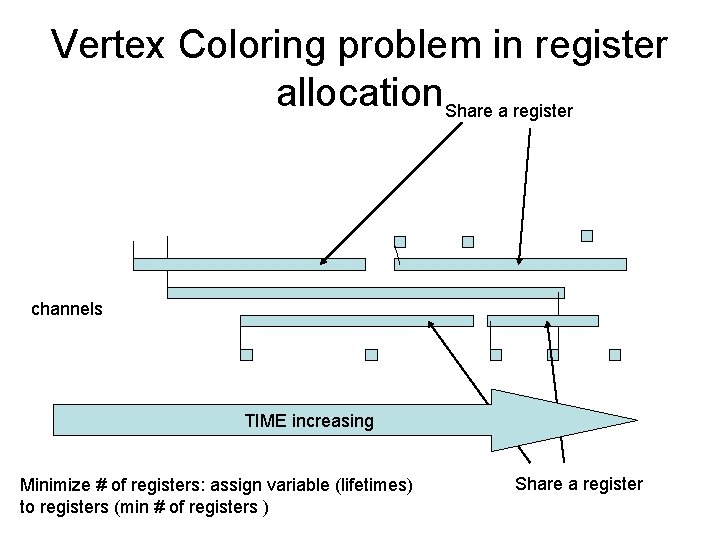

Vertex Coloring problem in register allocation. Share a register channels TIME increasing Minimize # of registers: assign variable (lifetimes) to registers (min # of registers ) Share a register

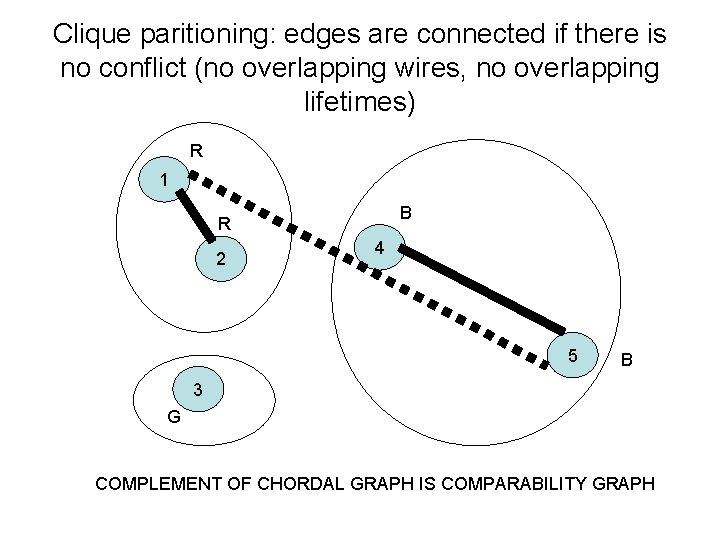

Clique paritioning: edges are connected if there is no conflict (no overlapping wires, no overlapping lifetimes) R 1 B R 2 4 5 B 3 G COMPLEMENT OF CHORDAL GRAPH IS COMPARABILITY GRAPH
Clique paritioning: example R 4 1 R B 2 5 B 3 G

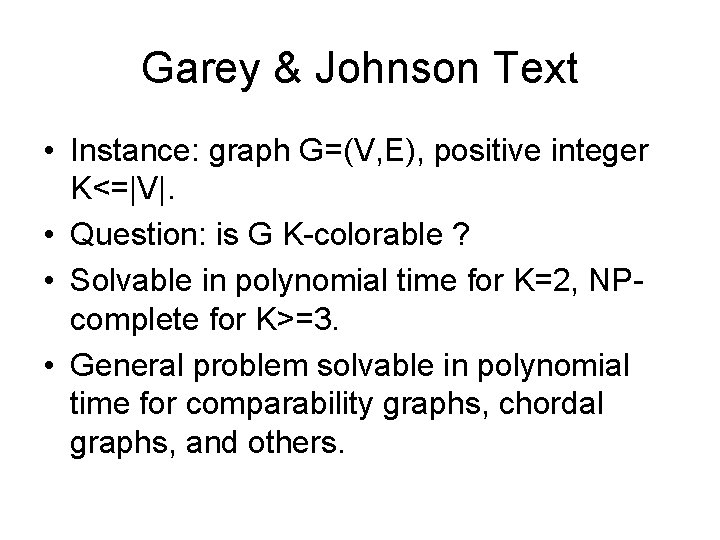

Garey & Johnson Text • Instance: graph G=(V, E), positive integer K<=|V|. • Question: is G K-colorable ? • Solvable in polynomial time for K=2, NPcomplete for K>=3. • General problem solvable in polynomial time for comparability graphs, chordal graphs, and others.

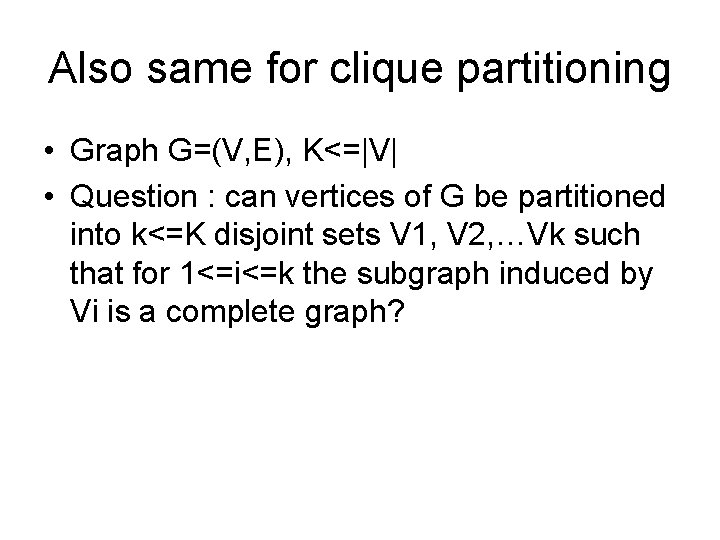

Also same for clique partitioning • Graph G=(V, E), K<=|V| • Question : can vertices of G be partitioned into k<=K disjoint sets V 1, V 2, …Vk such that for 1<=i<=k the subgraph induced by Vi is a complete graph?

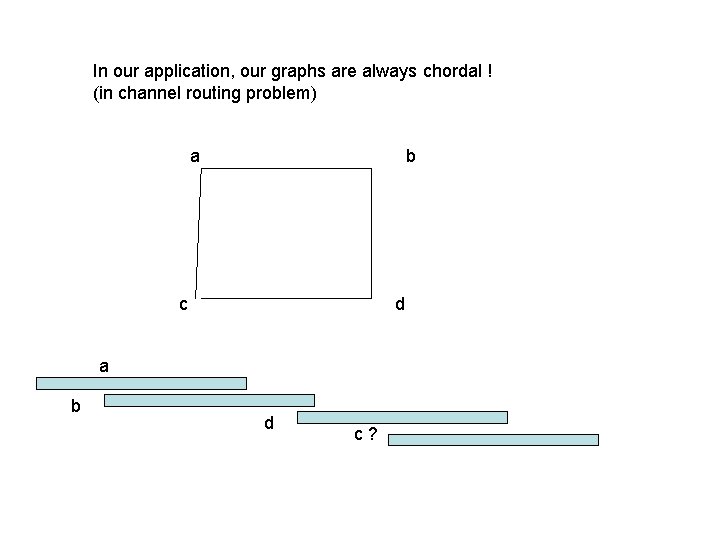

In our application, our graphs are always chordal ! (in channel routing problem) a b c d a b d c?
Register allocation in loops coloring of a circular arc graph which is NP-complete a b c? d c? LOOP- variable c is defined in loop iteration i and used in the next loop iteration i+1 LOOP Time increasing

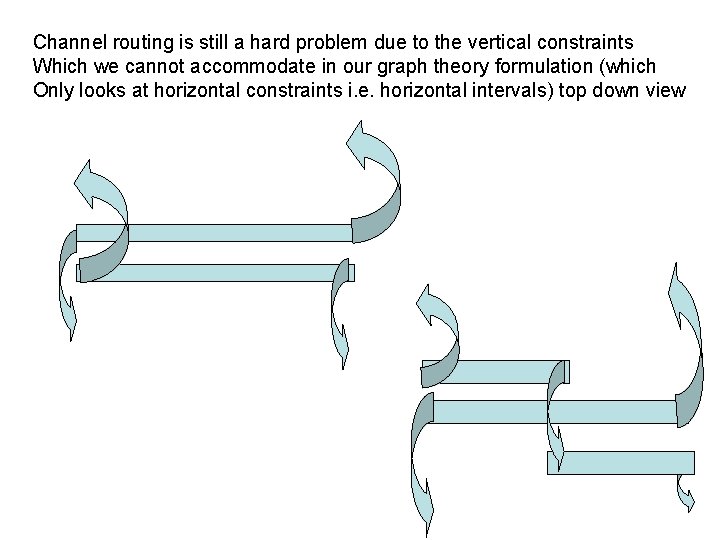

Channel routing is still a hard problem due to the vertical constraints Which we cannot accommodate in our graph theory formulation (which Only looks at horizontal constraints i. e. horizontal intervals) top down view
Berge’s Algorithm(contractconnect) for Vertex Coloring a e Consider a, b c a d e d b c e b d c ba
a c e e d b d a e d c b e ad c ba
a c e d b e ad a e c c e d b be a e c c b d be ad b c SMALLEST Completebe ad graph

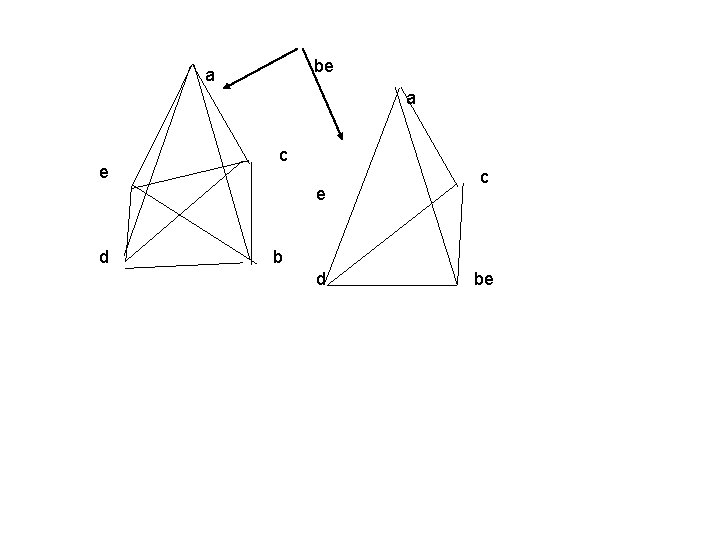

be a a e c e d c b d be

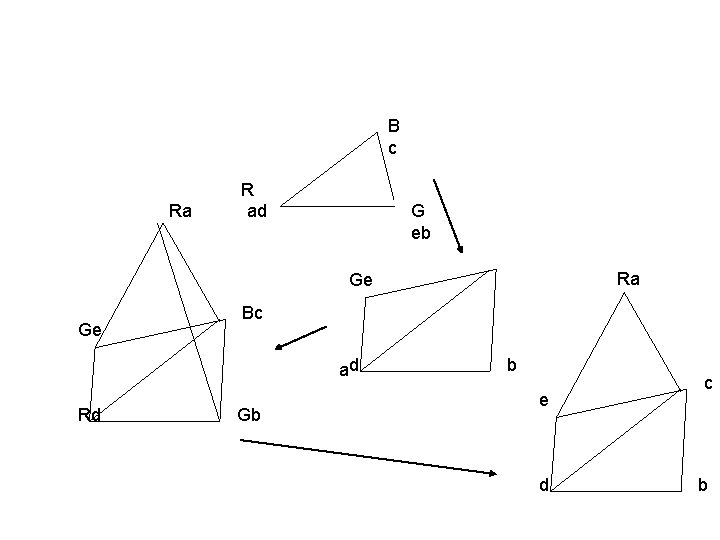

B c Ra R ad G eb Ra Ge Ge Bc ad Rd Gb b e d c b
