Grade 6 Physical Sciences Electricity Created by Kshamta

Grade 6: Physical Sciences – Electricity Created by Kshamta Hunter and Marina Milner-Bolotin Email: marina. milner-bolotin@ubc. ca kshamta@interchange. ubc. ca

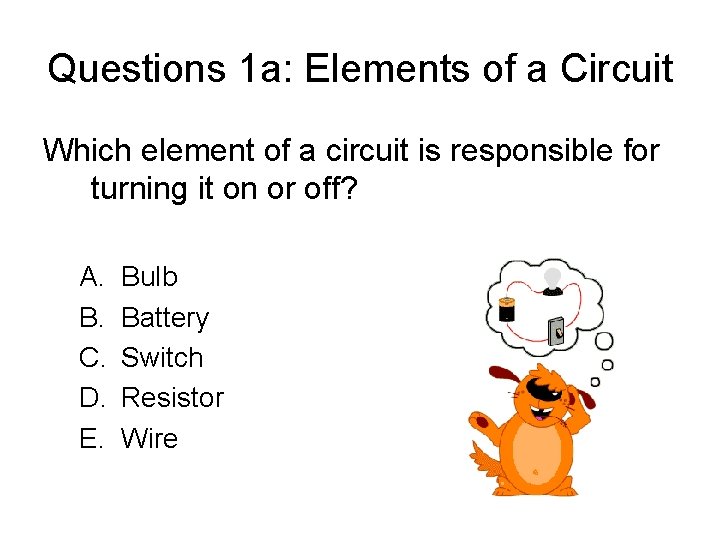

Questions 1 a: Elements of a Circuit Which element of a circuit is responsible for turning it on or off? A. B. C. D. E. Bulb Battery Switch Resistor Wire

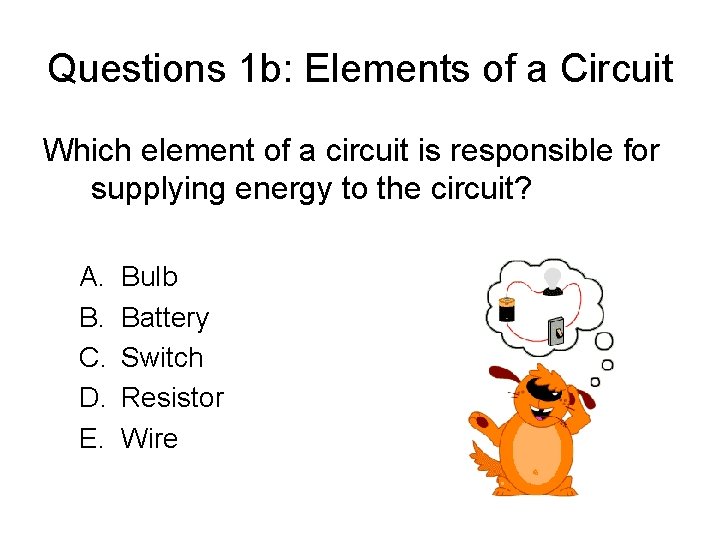

Questions 1 b: Elements of a Circuit Which element of a circuit is responsible for supplying energy to the circuit? A. B. C. D. E. Bulb Battery Switch Resistor Wire

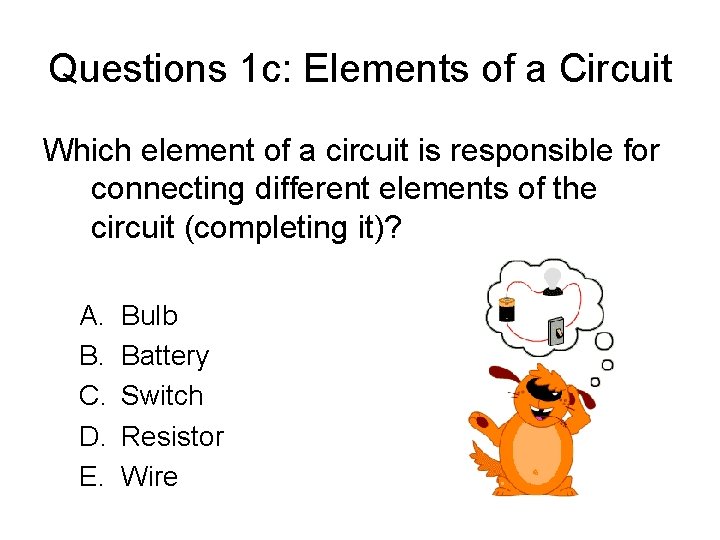

Questions 1 c: Elements of a Circuit Which element of a circuit is responsible for connecting different elements of the circuit (completing it)? A. B. C. D. E. Bulb Battery Switch Resistor Wire

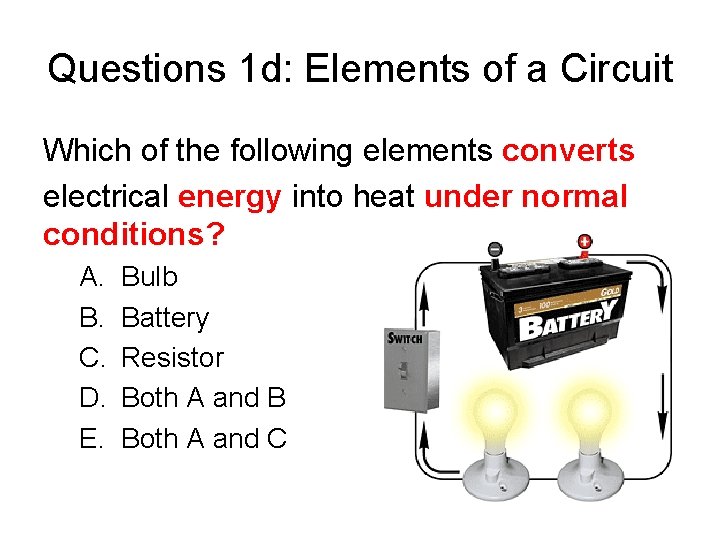

Questions 1 d: Elements of a Circuit Which of the following elements converts electrical energy into heat under normal conditions? A. B. C. D. E. Bulb Battery Resistor Both A and B Both A and C

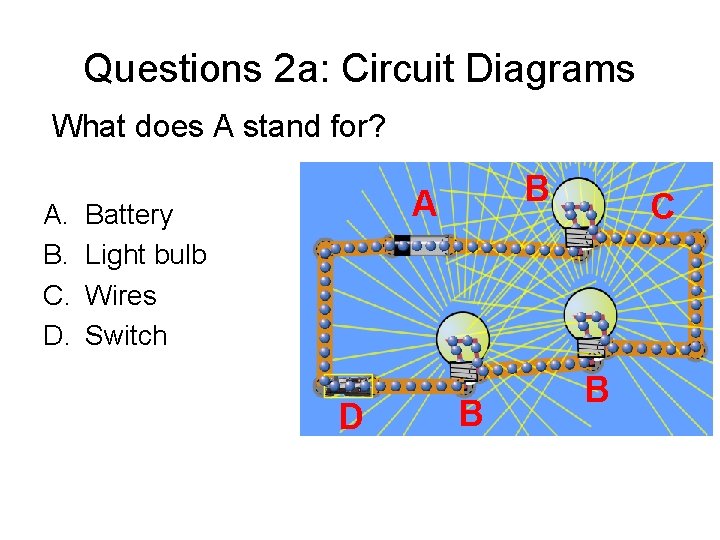

Questions 2 a: Circuit Diagrams What does A stand for? A. B. C. D. B A Battery Light bulb Wires Switch D B C B

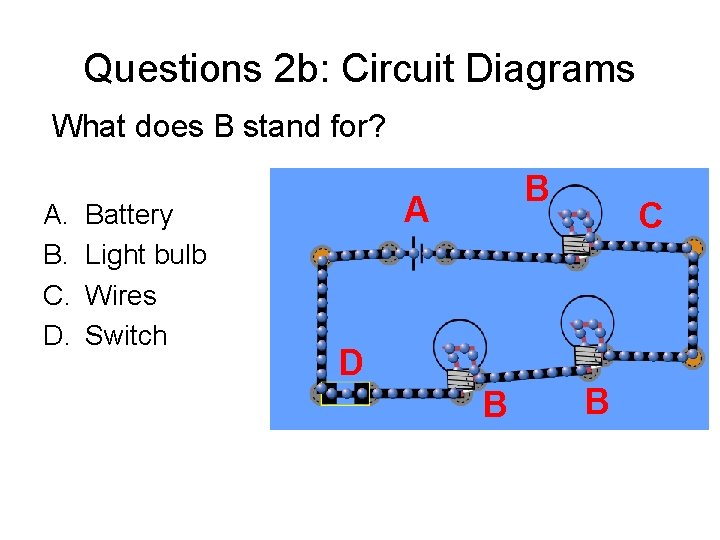

Questions 2 b: Circuit Diagrams What does B stand for? A. B. C. D. Battery Light bulb Wires Switch B A D B C B

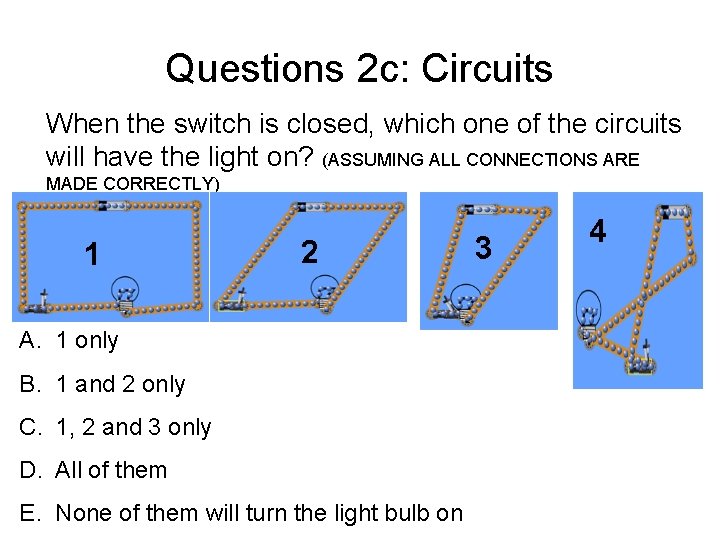

Questions 2 c: Circuits When the switch is closed, which one of the circuits will have the light on? (ASSUMING ALL CONNECTIONS ARE MADE CORRECTLY) 1 2 A. 1 only B. 1 and 2 only C. 1, 2 and 3 only D. All of them E. None of them will turn the light bulb on 3 4

Questions 2 d: Circuit Diagrams Which of the circuits below corresponds to the circuit above? Battery A. B. C. D. Circuit A Circuit B Both circuits None of them A Light bulb B Wire

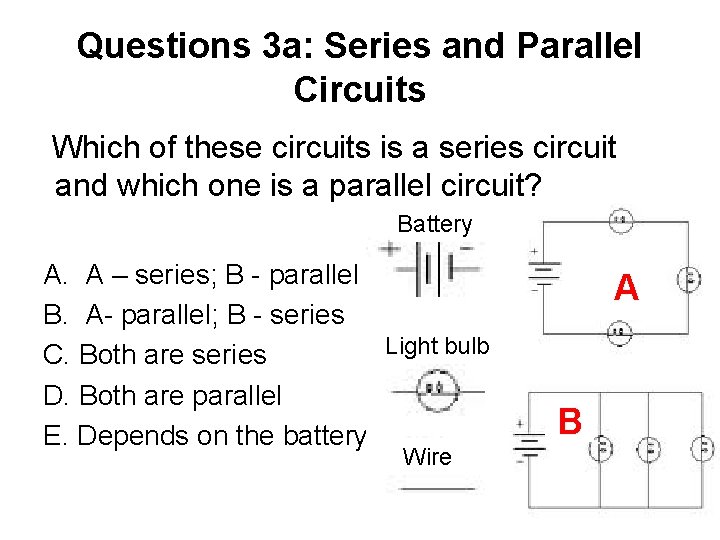

Questions 3 a: Series and Parallel Circuits Which of these circuits is a series circuit and which one is a parallel circuit? Battery A. A – series; B - parallel B. A- parallel; B - series Light bulb C. Both are series D. Both are parallel E. Depends on the battery Wire A B

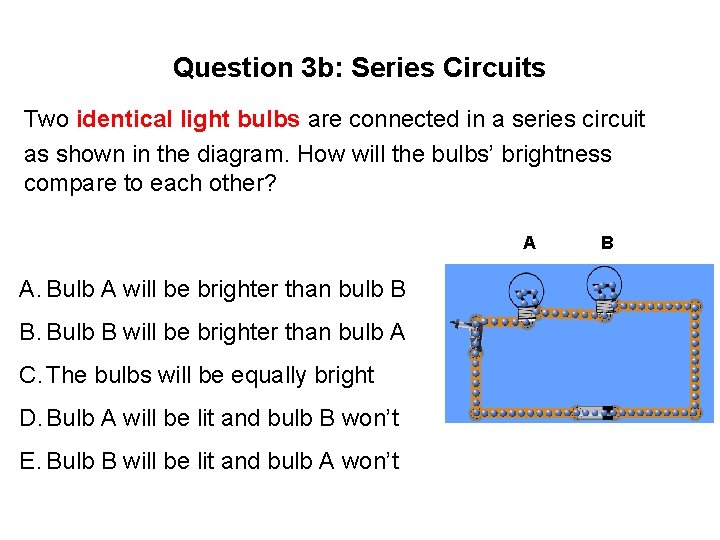

Question 3 b: Series Circuits Two identical light bulbs are connected in a series circuit as shown in the diagram. How will the bulbs’ brightness compare to each other? A A. Bulb A will be brighter than bulb B B. Bulb B will be brighter than bulb A C. The bulbs will be equally bright D. Bulb A will be lit and bulb B won’t E. Bulb B will be lit and bulb A won’t B

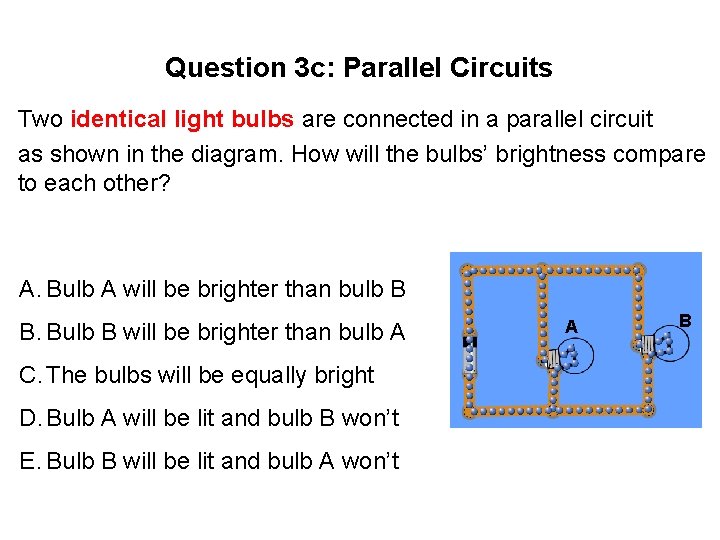

Question 3 c: Parallel Circuits Two identical light bulbs are connected in a parallel circuit as shown in the diagram. How will the bulbs’ brightness compare to each other? A. Bulb A will be brighter than bulb B B. Bulb B will be brighter than bulb A C. The bulbs will be equally bright D. Bulb A will be lit and bulb B won’t E. Bulb B will be lit and bulb A won’t A B

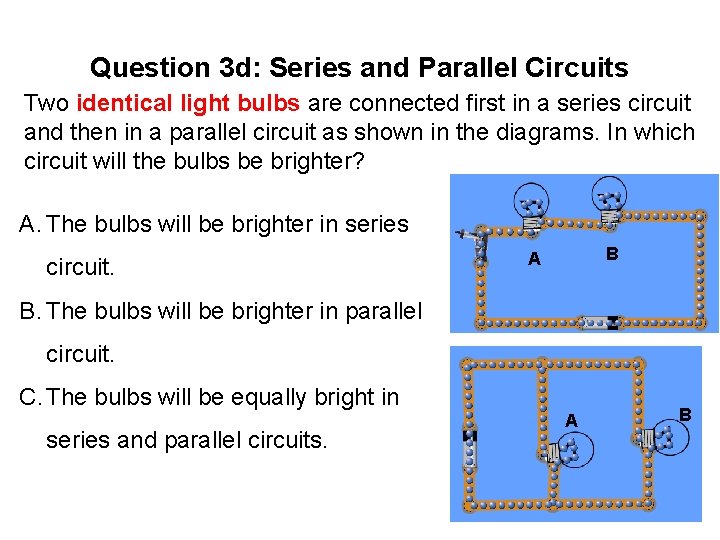

Question 3 d: Series and Parallel Circuits Two identical light bulbs are connected first in a series circuit and then in a parallel circuit as shown in the diagrams. In which circuit will the bulbs be brighter? A. The bulbs will be brighter in series circuit. B A B. The bulbs will be brighter in parallel circuit. C. The bulbs will be equally bright in series and parallel circuits. A B

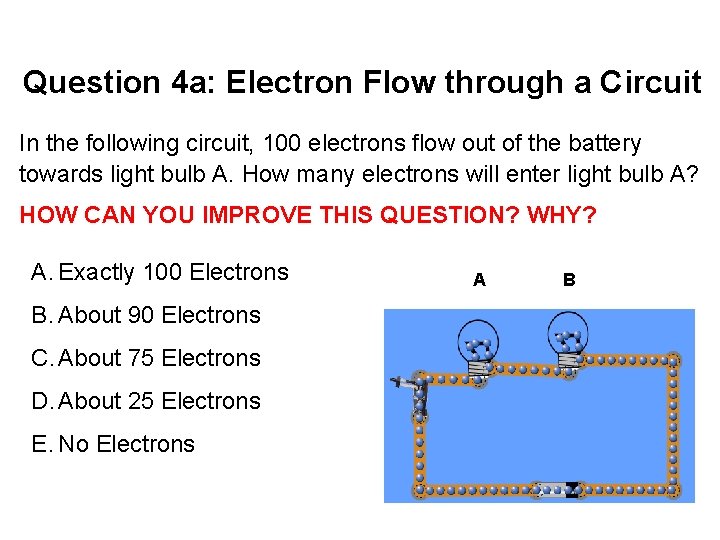

Question 4 a: Electron Flow through a Circuit In the following circuit, 100 electrons flow out of the battery towards light bulb A. How many electrons will enter light bulb A? HOW CAN YOU IMPROVE THIS QUESTION? WHY? A. Exactly 100 Electrons B. About 90 Electrons C. About 75 Electrons D. About 25 Electrons E. No Electrons A B

Question 4 b: Electron Flow through a Circuit In the following circuit electrons flow out of the battery towards light bulb B. Then they flow towards light bulb A. Which bulb will have more electrons flowing through it? A A. Bulb A B. Bulb B C. Same D. Impossible to determine B

Question 5 a: Brightness of a light bulb What determines the brightness of a light bulb? A. B. C. D. Voltage across it Current through it Its Resistance All of the above

Question 5 b: Brightness of a light bulb What would you do if you wanted to increase the rate at which electrons (the blue dots) are flowing from the battery to the light bulb? A. Increase Resistance and decreases Voltage B. Increase Resistance and increase Voltage C. Decrease Resistance and increase Voltage D. Decrease Resistance and decrease Voltage

Question 5 c: Current What is electric current? A. B. C. D. E. It is the measure of the brightness of a light bulb It is the strength of a battery or the power supply It is the number of electrons that flow from a battery It is the number of electron flowing at a given time from a battery All of the above
