GPSGNSS Oct 2019 SLIDE 2 SBAS GPSGNSS Oct
GPS/GNSSシンポジウム - Oct. 2019 SLIDE 2 (1) SBASの概要

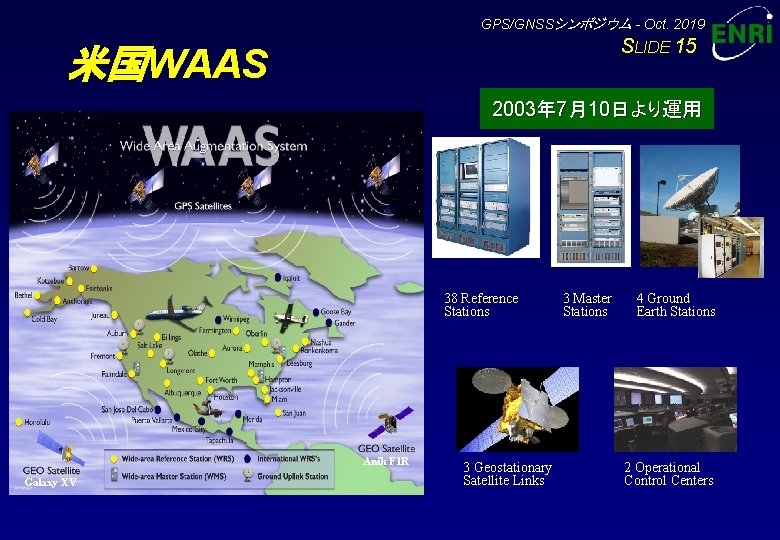

GPS/GNSSシンポジウム - Oct. 2019 SLIDE 15 米国WAAS 2003年 7月10日より運用 38 Reference Stations Anik F 1 R Galaxy XV 3 Geostationary Satellite Links 3 Master Stations 4 Ground Earth Stations 2 Operational Control Centers

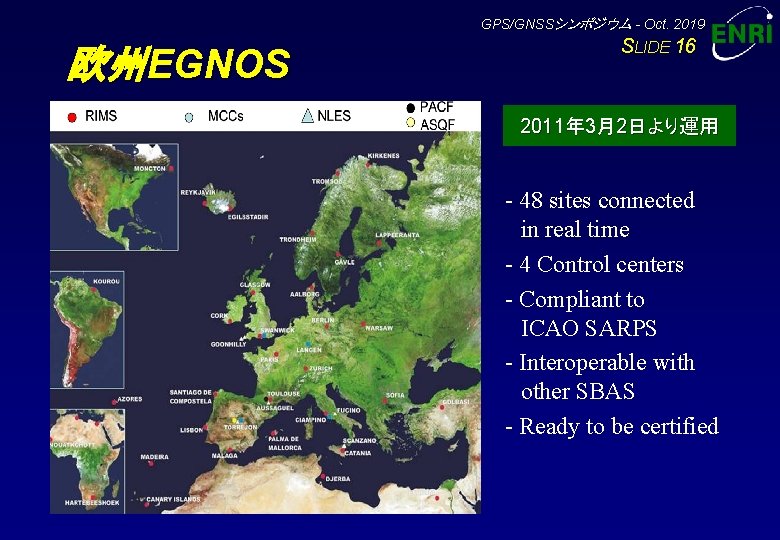

GPS/GNSSシンポジウム - Oct. 2019 欧州EGNOS SLIDE 16 2011年 3月2日より運用 - 48 sites connected in real time - 4 Control centers - Compliant to ICAO SARPS - Interoperable with other SBAS - Ready to be certified
GPS/GNSSシンポジウム - Oct. 2019 SLIDE 18 (3) MSASの性能向上

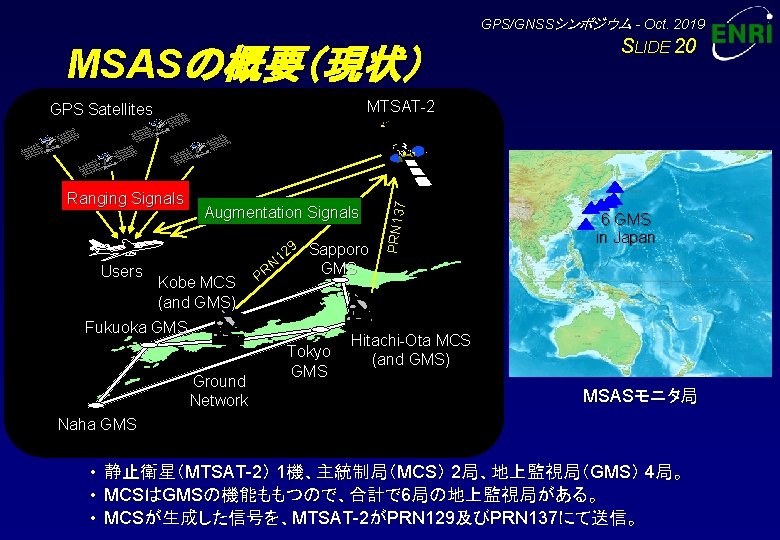

GPS/GNSSシンポジウム - Oct. 2019 MSASの概要(現状) Ranging Signals Augmentation Signals Kobe MCS (and GMS) 29 Sapporo 1 N GMS PR Fukuoka GMS Ground Network Tokyo GMS PRN 13 7 MTSAT-2 GPS Satellites Users SLIDE 20 6 GMS in Japan Hitachi-Ota MCS (and GMS) MSASモニタ局 Naha GMS • • • 静止衛星(MTSAT-2) 1機、主統制局(MCS) 2局、地上監視局(GMS) 4局。 MCSはGMSの機能ももつので、合計で 6局の地上監視局がある。 MCSが生成した信号を、MTSAT-2がPRN 129及びPRN 137にて送信。

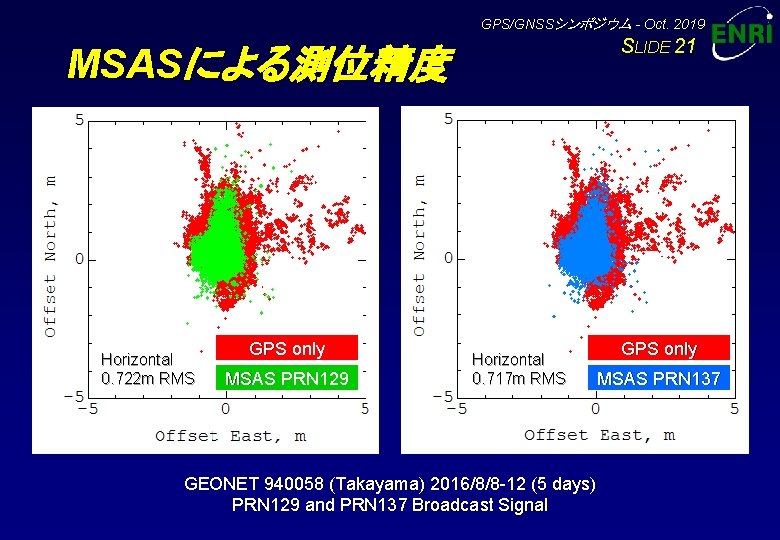

GPS/GNSSシンポジウム - Oct. 2019 SLIDE 21 MSASによる測位精度 Horizontal 0. 722 m RMS GPS only MSAS PRN 129 Horizontal 0. 717 m RMS GPS only MSAS PRN 137 GEONET 940058 (Takayama) 2016/8/8 -12 (5 days) PRN 129 and PRN 137 Broadcast Signal

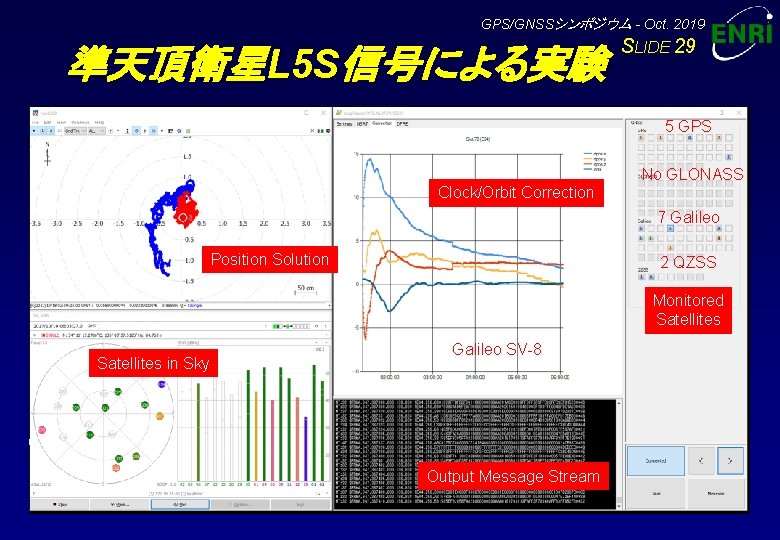

GPS/GNSSシンポジウム - Oct. 2019 準天頂衛星L 5 S信号による実験 SLIDE 29 5 GPS No GLONASS Clock/Orbit Correction 7 Galileo Position Solution 2 QZSS Monitored Satellites in Sky Galileo SV-8 Output Message Stream
