GPS Tracker with RFID Tracker Multiplied Now successfully

GPS Tracker with RFID Tracker Multiplied Now, successfully integrated with e. Tech. School Copyright (c) Techlead Software Engg. Pvt. Ltd.

GPS Tracker Introduction �What is Tracking: � Locating the current geographic position of the object (person, vehicle, asset etc) � Tracking the object of your desire 24 x 7 around the world � Obtaining current location information and viewing it on the Maps �GPS Tracking Unit: � A Device that uses the Global Positioning System satellites to determine the precise location of a vehicle, person, or other asset � Records the position of the asset at regular intervals � Light weight, easy to install and runs on car battery consuming very little power Copyright (c) Techlead Software Engg. Pvt. Ltd.

RFID Introduction �RFID : Radio Frequency Identification � A small chip or a smart card � Thin enough to stick on boxes or carry in wallets � Carries information to uniquely identify item or user � Secure - Unauthorized person can not get personal information from this card �RFID : Latest pervasive technology to identify individual items � Fast replacing the older and less efficient ‘bar code’ system of identifying package information � RFID electronic tags do not require a visual scan and can carry significantly more information � Along with tracking packages, persons can also be tracked � All major offices have already allotted their employees with RFID cards for security concerns Copyright (c) Techlead Software Engg. Pvt. Ltd.

RFID Utility �RFID as an access control method � RFID has been in use as an access control mechanism for a long time now � Employees use their allotted RFID cards at the Entrance to the office � Can avoid trespassing in restricted areas by allotting different Privileges � Can also be used as an Attendance System by capturing the time information each time the user flashes his RFID card in front of the reader RFID has proved its capability in these static environments. The same technology can be made to work in similar manner in moving assets as well. In the next slide we present this situation and the merits. Copyright (c) Techlead Software Engg. Pvt. Ltd.

Tracker + RFID : Complete Solution �Tracker as a way to know geographical position �RFID as a way to identify individual item/persons �RFID + Tracker : Whereabouts of the individual items/person can be determined where Person : Carrying RFID (No Tracker needed) Vehicle : Fitted with Tracker �RFID combined with Tracker has a diversified utility as will be evident in the subsequent slides Copyright (c) Techlead Software Engg. Pvt. Ltd.

Application : Overview �RFID : Applications in the following fields � Offices : To identify persons � Shopping Malls : To identify items/products � Logistics : To identify cargo shipments �RFID + Tracker : Several Solutions such as � Cabs – For security of passengers � School Buses – For children’s safety and Parents’ Concern � Cargo Tracking – For better control over cargo and distribution management � Public Transport System Copyright (c) Techlead Software Engg. Pvt. Ltd.

Application : School Buses �Problem: �Guardians always concerned of the safety of children �School children are not allowed to carry cell phones to school �Not feasible for the school authorities to call each parent �For working parents another situation of concern is whether their children have reached home in time after the school or not Copyright (c) Techlead Software Engg. Pvt. Ltd.

Application : School Buses �Solution with RFID enabled Tracker � Tracking + RFID is an effective solution in relieving the parents of this worry � School buses fitted with RFID enabled tracker and children carrying RFID nametags can let parents track where their children are � The system can be configured to alert the parents of their child getting out of or getting onto the bus in real time � The Tracker unit can be interfaced with external sensor hardware to make bus more safe or to call for help during crisis � Many more alerts can be configured with system in cases such as: � � � If their child does not board the bus when it leaves from school If bus takes a halt between school and home If the bus breaks down Copyright (c) Techlead Software Engg. Pvt. Ltd.

RFID School Bus System Copyright (c) Techlead Software Engg. Pvt. Ltd.

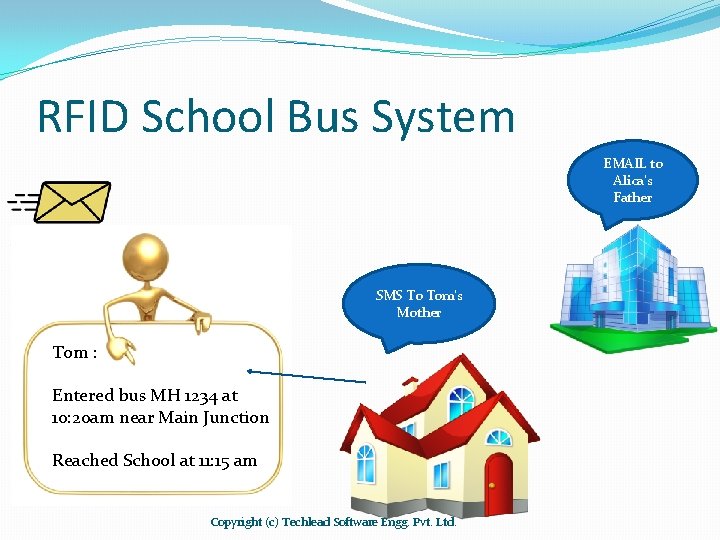

RFID School Bus System EMAIL to Alica’s Father SMS To Tom’s Mother Tom : Entered bus MH 1234 at 10: 20 am near Main Junction Reached School at 11: 15 am Copyright (c) Techlead Software Engg. Pvt. Ltd.

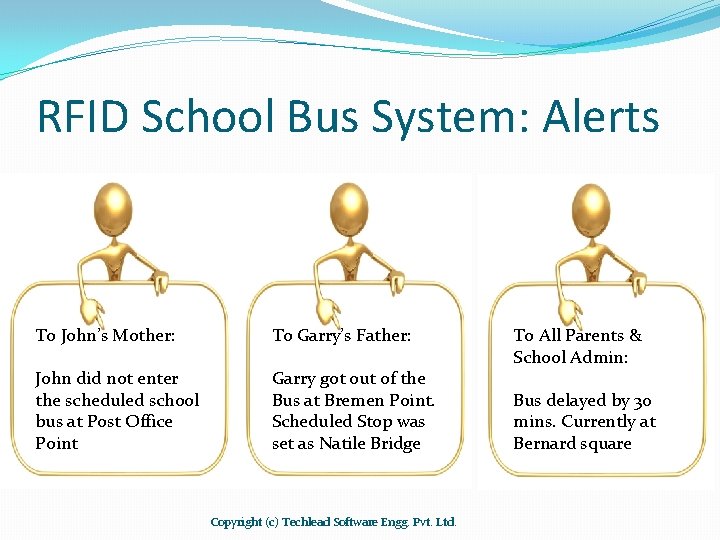

RFID School Bus System: Alerts To John’s Mother: To Garry’s Father: John did not enter the scheduled school bus at Post Office Point Garry got out of the Bus at Bremen Point. Scheduled Stop was set as Natile Bridge Copyright (c) Techlead Software Engg. Pvt. Ltd. To All Parents & School Admin: Bus delayed by 30 mins. Currently at Bernard square

Application : Pickup Cabs �Problem: � A lot of incidences where passengers were victimized � Main Reason - the increasing popularity of small vehicles (cabs) for pick ups and drops, which are intrinsically less secure � Such small vehicles are easy target for miscreants because of ease in hijacking � Many firms have tried assigning security personnel to escort lady commuters, but it is an infeasible solution considering the large number of private cabs Copyright (c) Techlead Software Engg. Pvt. Ltd.

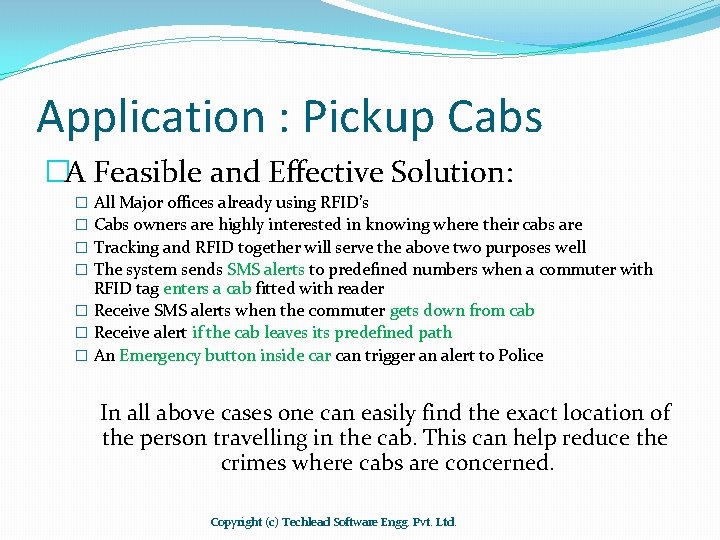

Application : Pickup Cabs �A Feasible and Effective Solution: � All Major offices already using RFID’s � Cabs owners are highly interested in knowing where their cabs are � Tracking and RFID together will serve the above two purposes well � The system sends SMS alerts to predefined numbers when a commuter with RFID tag enters a cab fitted with reader � Receive SMS alerts when the commuter gets down from cab � Receive alert if the cab leaves its predefined path � An Emergency button inside car can trigger an alert to Police In all above cases one can easily find the exact location of the person travelling in the cab. This can help reduce the crimes where cabs are concerned. Copyright (c) Techlead Software Engg. Pvt. Ltd.

Suresh, Pooja & Neha To Pooja’s Parents : Cab Late. Pooja left the cab at W. River Suresh left the cab at Club Neha left the cab at Club Cab Near Highwat Exit No. 13 entered the cab near office at Road at 10: 45 PM. Late by 45 Road at 9: 15 PMc Road at 8: 15 PM Estimated Time of Arrival : 1 hr 7 : 30 PM mins Copyright (c) Techlead Software Engg. Pvt. Ltd.

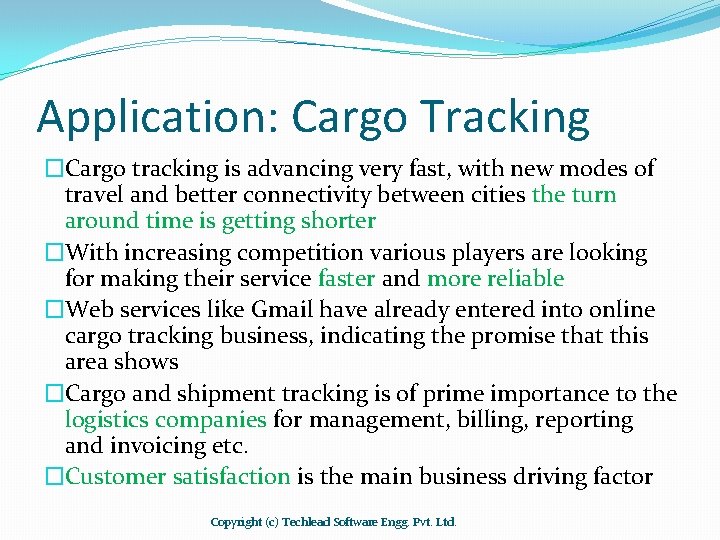

Application: Cargo Tracking �Cargo tracking is advancing very fast, with new modes of travel and better connectivity between cities the turn around time is getting shorter �With increasing competition various players are looking for making their service faster and more reliable �Web services like Gmail have already entered into online cargo tracking business, indicating the promise that this area shows �Cargo and shipment tracking is of prime importance to the logistics companies for management, billing, reporting and invoicing etc. �Customer satisfaction is the main business driving factor Copyright (c) Techlead Software Engg. Pvt. Ltd.

Application: Cargo Tracking Copyright (c) Techlead Software Engg. Pvt. Ltd.

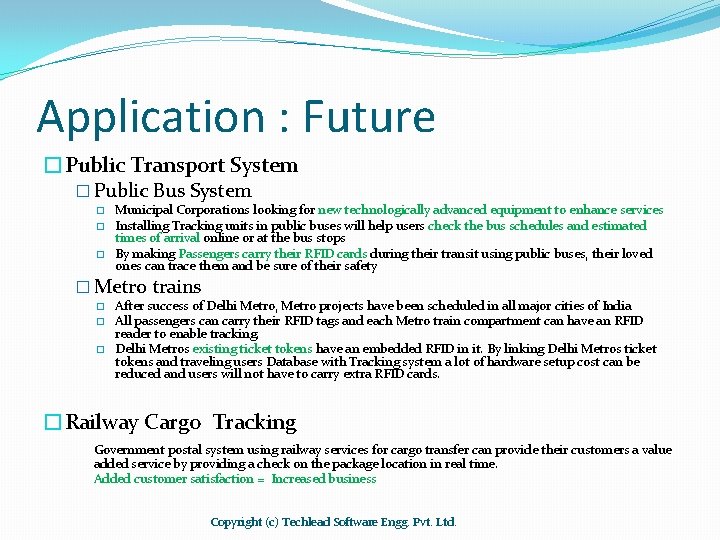

Application : Future �Public Transport System � Public Bus System � � � Municipal Corporations looking for new technologically advanced equipment to enhance services Installing Tracking units in public buses will help users check the bus schedules and estimated times of arrival online or at the bus stops By making Passengers carry their RFID cards during their transit using public buses, their loved ones can trace them and be sure of their safety � Metro trains � � � After success of Delhi Metro, Metro projects have been scheduled in all major cities of India All passengers can carry their RFID tags and each Metro train compartment can have an RFID reader to enable tracking. Delhi Metros existing ticket tokens have an embedded RFID in it. By linking Delhi Metros ticket tokens and traveling users Database with Tracking system a lot of hardware setup cost can be reduced and users will not have to carry extra RFID cards. �Railway Cargo Tracking Government postal system using railway services for cargo transfer can provide their customers a value added service by providing a check on the package location in real time. Added customer satisfaction = Increased business Copyright (c) Techlead Software Engg. Pvt. Ltd.

Conclusion �Tracker has a lot of potential in helping in many facets of our personal and work environment. If we bring the RFID solution together with the Tracker, it will open up a gateway to many more applications. �Tracker + RFID solution can help provide safety to people and cargo. Along with this it will also help in increasing the efficiency of a system. �We are sure that investing such a solution will help in more ways than are currently evident. Copyright (c) Techlead Software Engg. Pvt. Ltd.

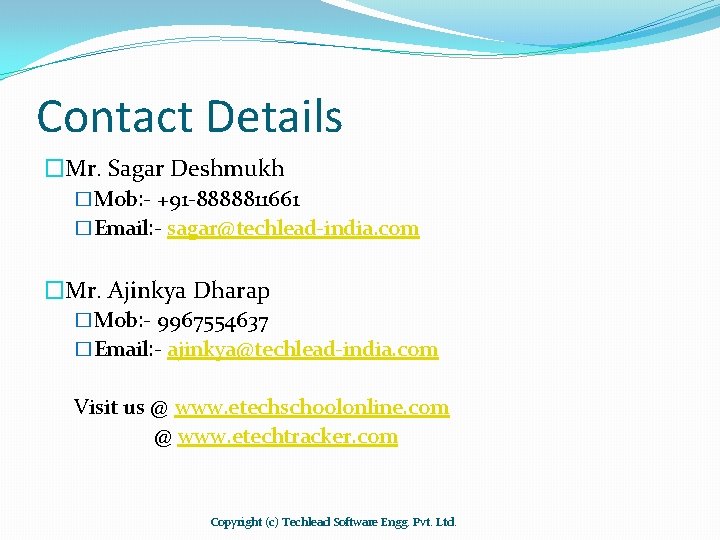

Contact Details �Mr. Sagar Deshmukh �Mob: - +91 -8888811661 �Email: - sagar@techlead-india. com �Mr. Ajinkya Dharap �Mob: - 9967554637 �Email: - ajinkya@techlead-india. com Visit us @ www. etechschoolonline. com @ www. etechtracker. com Copyright (c) Techlead Software Engg. Pvt. Ltd.

THANK YOU Copyright (c) Techlead Software Engg. Pvt. Ltd.
