GPRS Operation of CMCC China Mobile Communications Corporation
GPRS Operation of CMCC China Mobile Communications Corporation © China Mobile Communications Corporation www. chinamobile. com
Agenda 4 Brief Introduction Of CMCC 4 Brief Introduction Of CMNet 4 CMCC GPRS Trial 4 Structure of CMCC GPRS Network 4 GPRS Service Plan © China Mobile Communications Corporation www. chinamobile. com
Agenda 4 Brief Introduction Of CMCC 4 Brief Introduction Of CMNet 4 CMCC GPRS Trial 4 Structure of CMCC GPRS Network 4 GPRS Service Plan © China Mobile Communications Corporation www. chinamobile. com

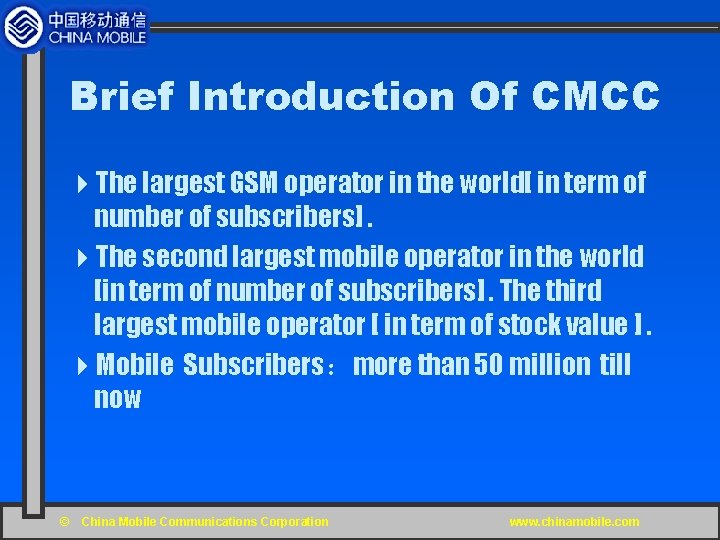

Brief Introduction Of CMCC 4 The largest GSM operator in the world[ in term of number of subscribers]. 4 The second largest mobile operator in the world [in term of number of subscribers]. The third largest mobile operator [ in term of stock value ]. 4 Mobile Subscribers：more than 50 million till now © China Mobile Communications Corporation www. chinamobile. com
Brief Introduction Of CMCC 4 The largest mobile communications operator in China 4 Market Share in China(>80%) , Coverage： 2038 cities of county level and higher 4 International roaming： 84 operators in 49 countries or regions © China Mobile Communications Corporation www. chinamobile. com

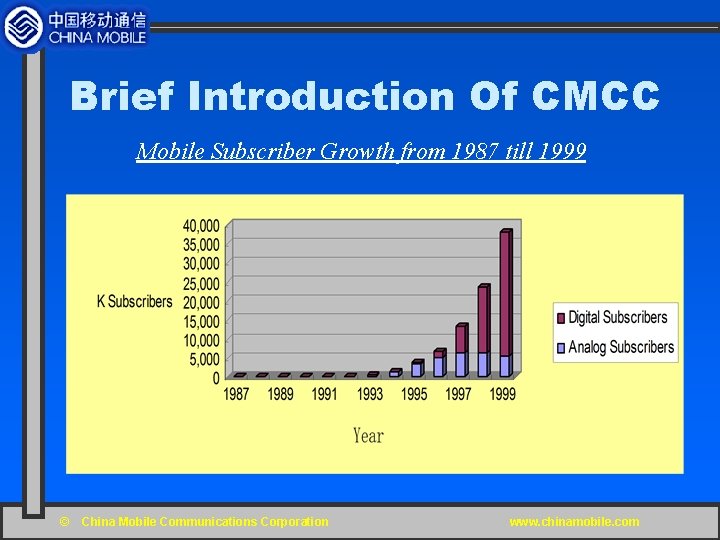

Brief Introduction Of CMCC Mobile Subscriber Growth from 1987 till 1999 © China Mobile Communications Corporation www. chinamobile. com
Brief Introduction Of CMCC 4 Fifth Internet service operator in China 4 A newcomer for Internet service and with a goal of becoming a world-class communications enterprise © China Mobile Communications Corporation www. chinamobile. com

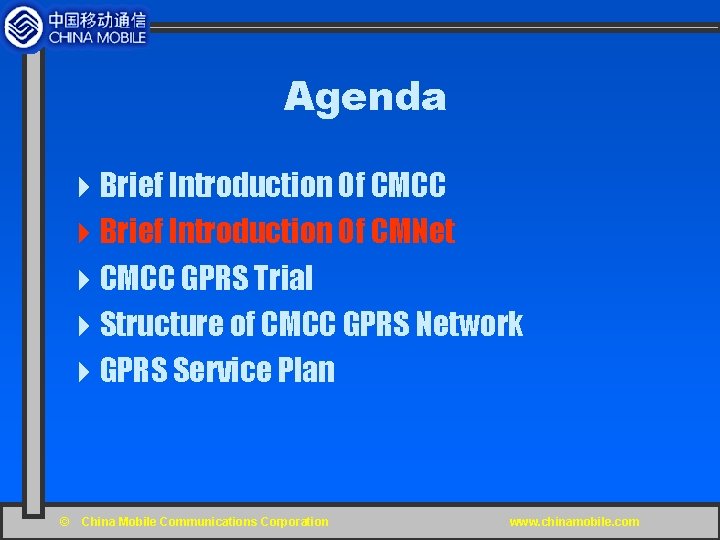

Agenda 4 Brief Introduction Of CMCC 4 Brief Introduction Of CMNet 4 CMCC GPRS Trial 4 Structure of CMCC GPRS Network 4 GPRS Service Plan © China Mobile Communications Corporation www. chinamobile. com

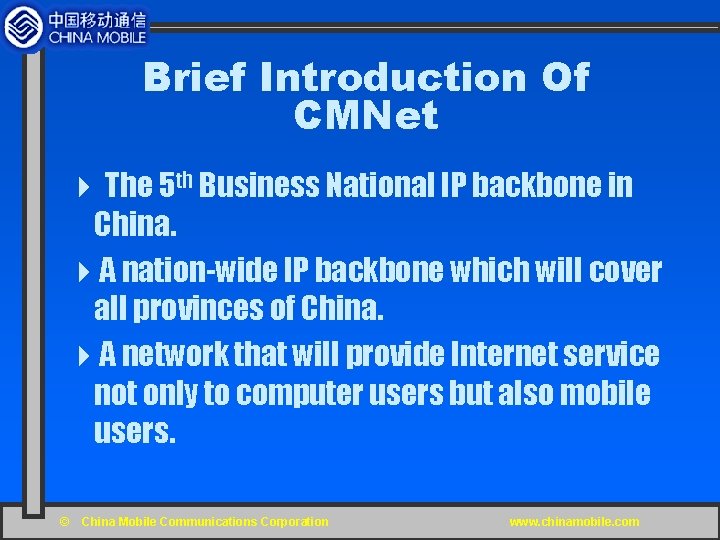

Brief Introduction Of CMNet 4 The 5 th Business National IP backbone in China. 4 A nation-wide IP backbone which will cover all provinces of China. 4 A network that will provide Internet service not only to computer users but also mobile users. © China Mobile Communications Corporation www. chinamobile. com

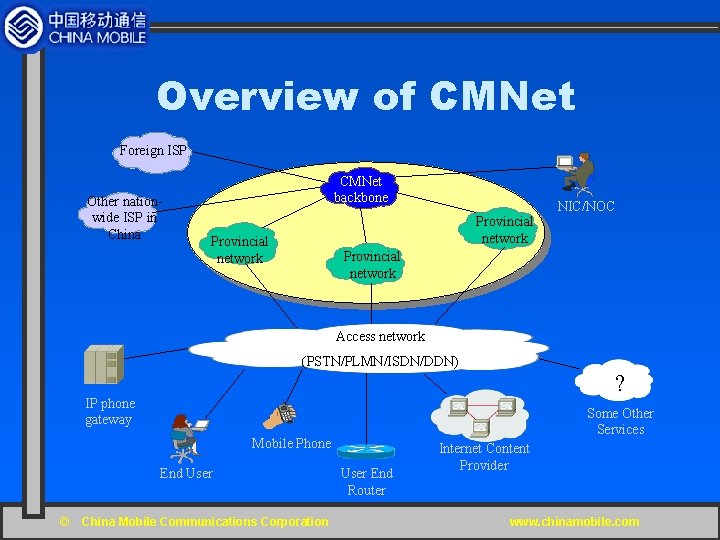

Overview of CMNet Foreign ISP Other nationwide ISP in China CMNet backbone Provincial network NIC/NOC Provincial network Access network (PSTN/PLMN/ISDN/DDN) ? IP phone gateway Some Other Services Mobile Phone End User © China Mobile Communications Corporation User End Router Internet Content Provider www. chinamobile. com

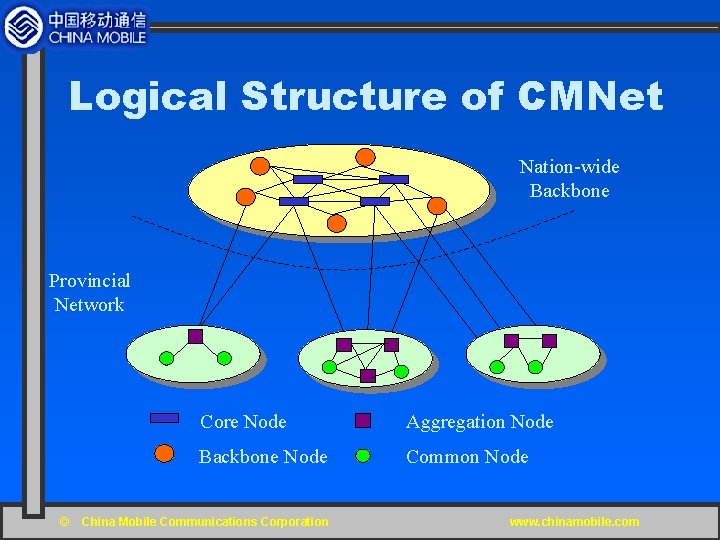

Logical Structure of CMNet Nation-wide Backbone Provincial Network © Core Node Aggregation Node Backbone Node Common Node China Mobile Communications Corporation www. chinamobile. com

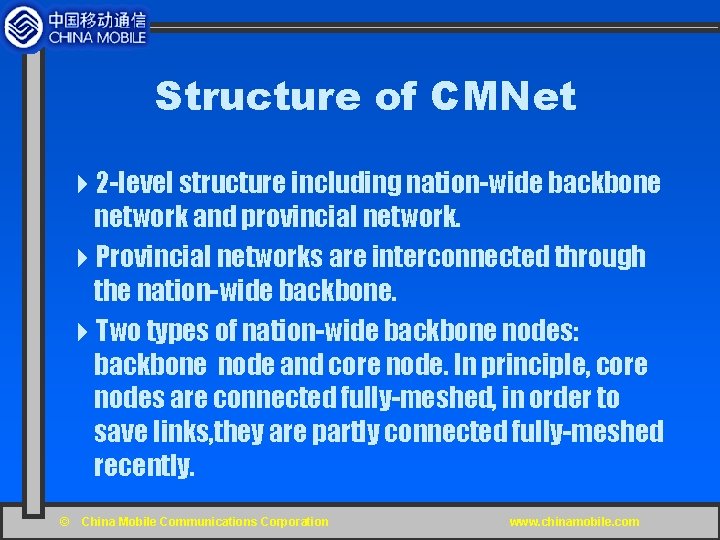

Structure of CMNet 42 -level structure including nation-wide backbone network and provincial network. 4 Provincial networks are interconnected through the nation-wide backbone. 4 Two types of nation-wide backbone nodes: backbone node and core node. In principle, core nodes are connected fully-meshed, in order to save links, they are partly connected fully-meshed recently. © China Mobile Communications Corporation www. chinamobile. com

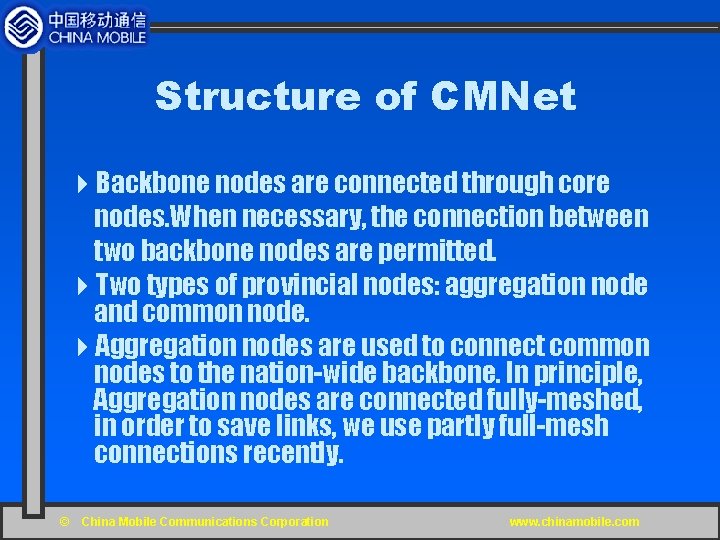

Structure of CMNet 4 Backbone nodes are connected through core nodes. When necessary, the connection between two backbone nodes are permitted. 4 Two types of provincial nodes: aggregation node and common node. 4 Aggregation nodes are used to connect common nodes to the nation-wide backbone. In principle, Aggregation nodes are connected fully-meshed, in order to save links, we use partly full-mesh connections recently. © China Mobile Communications Corporation www. chinamobile. com

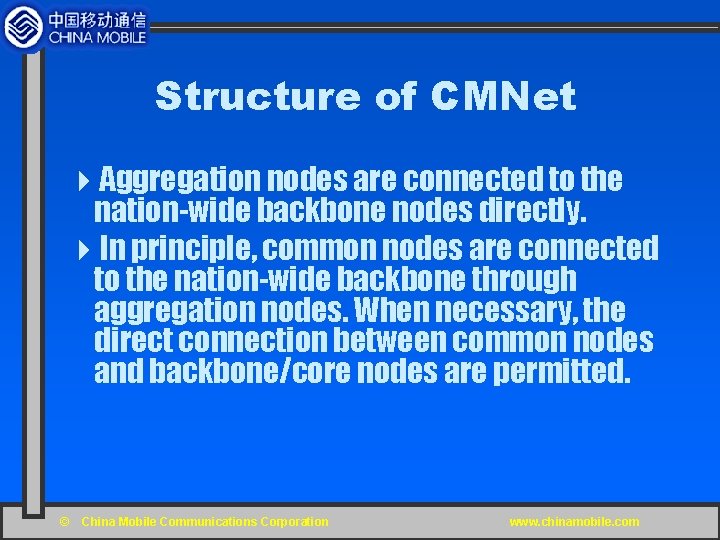

Structure of CMNet 4 Aggregation nodes are connected to the nation-wide backbone nodes directly. 4 In principle, common nodes are connected to the nation-wide backbone through aggregation nodes. When necessary, the direct connection between common nodes and backbone/core nodes are permitted. © China Mobile Communications Corporation www. chinamobile. com
Agenda 4 Brief Introduction Of CMCC 4 Brief Introduction Of CMNet 4 CMCC GPRS Trial 4 Structure of CMCC GPRS Network 4 GPRS Service Plan © China Mobile Communications Corporation www. chinamobile. com

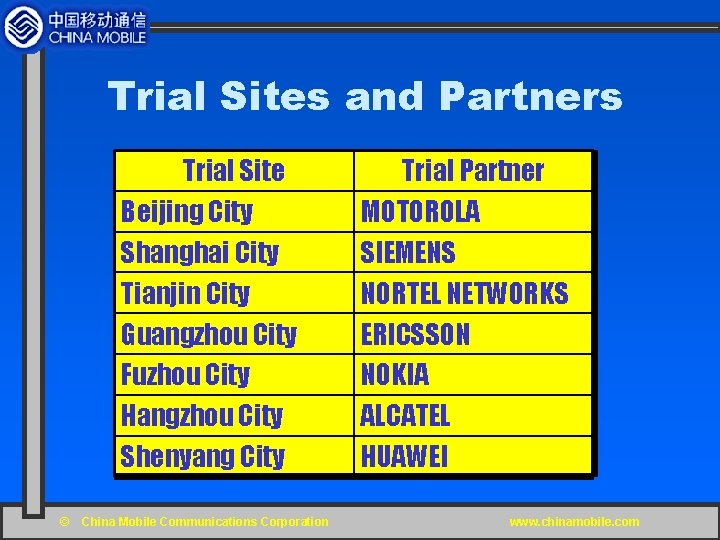

Trial Sites and Partners Trial Site Beijing City Shanghai City Tianjin City Guangzhou City Fuzhou City Hangzhou City Shenyang City © China Mobile Communications Corporation Trial Partner MOTOROLA SIEMENS NORTEL NETWORKS ERICSSON NOKIA ALCATEL HUAWEI www. chinamobile. com
Road Map 43 Q 1999 partners 44 Q 1999 41999. 12. 25 PDP Context 42 Q 2000 31 4 June 2000 test © Determine trial sites and Prepare for lab trial Successfully initiate the first Upgrade trial systems to SMG Begin to make single-system China Mobile Communications Corporation www. chinamobile. com

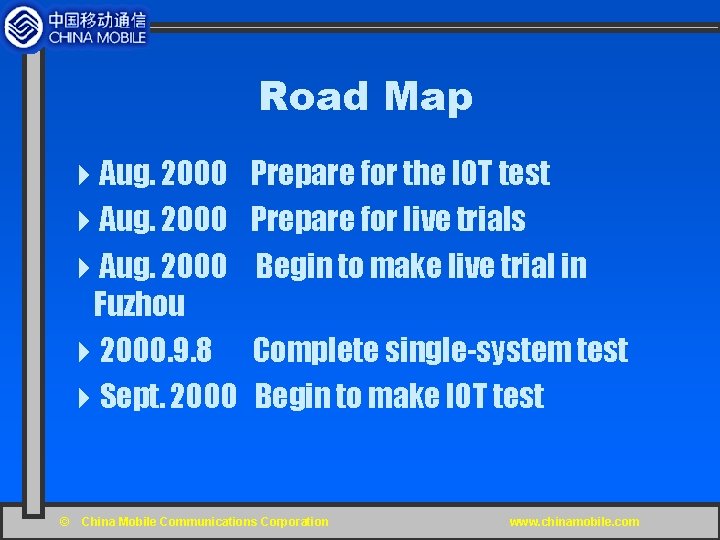

Road Map 4 Aug. 2000 Fuzhou 42000. 9. 8 4 Sept. 2000 © Prepare for the IOT test Prepare for live trials Begin to make live trial in Complete single-system test Begin to make IOT test China Mobile Communications Corporation www. chinamobile. com

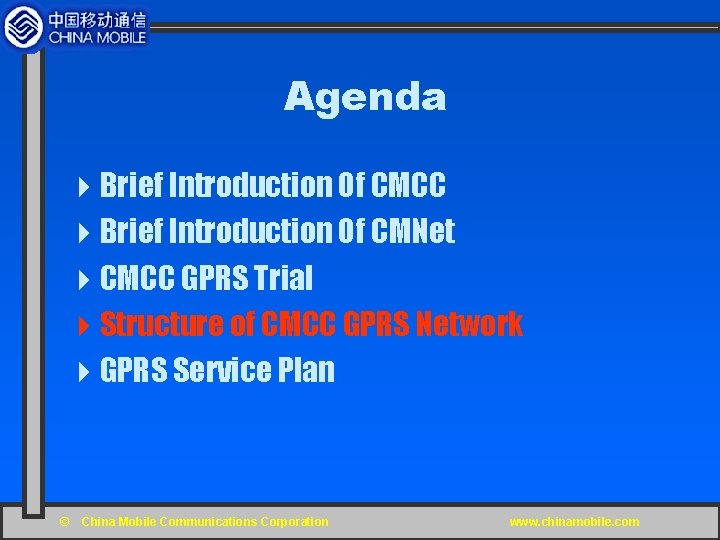

Agenda 4 Brief Introduction Of CMCC 4 Brief Introduction Of CMNet 4 CMCC GPRS Trial 4 Structure of CMCC GPRS Network 4 GPRS Service Plan © China Mobile Communications Corporation www. chinamobile. com
What is GPRS? 4 General Packet Radio Service 4 An extension to traditional GSM technology 4 End to End Packet Based 4 Higher transmission rate up to 171. 4 bps 4 A kind of 2. 5 generation wireless technology, a smooth way of evolving from GSM to 3 G © China Mobile Communications Corporation www. chinamobile. com

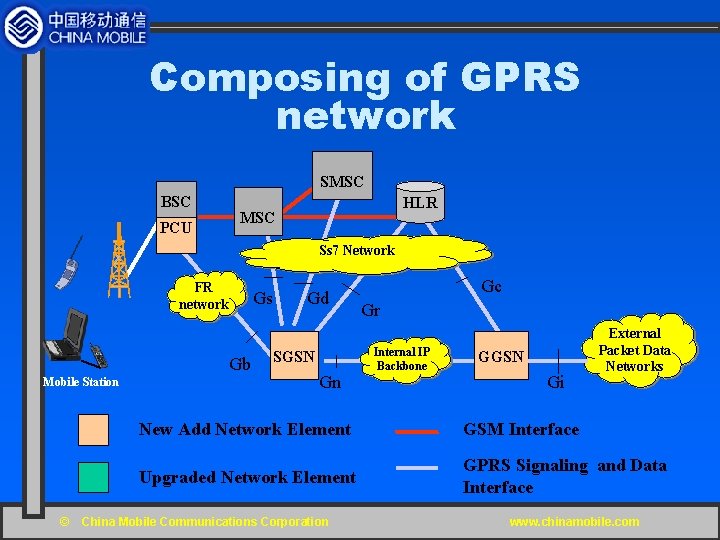

Composing of GPRS network SMSC BSC PCU HLR MSC Ss 7 Network FR network Gs Gb Mobile Station © Gd SGSN Gn Gc Gr Internal IP Backbone GGSN Gi External Packet Data Networks New Add Network Element GSM Interface Upgraded Network Element GPRS Signaling and Data Interface China Mobile Communications Corporation www. chinamobile. com

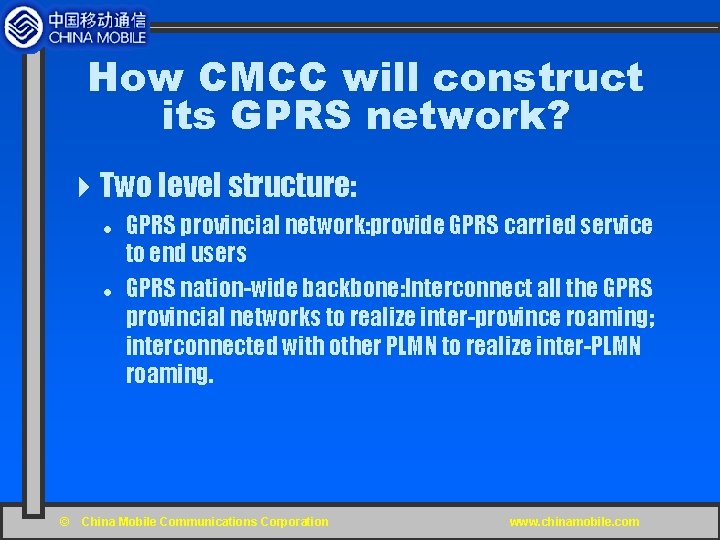

How CMCC will construct its GPRS network? 4 Two level structure: l l © GPRS provincial network: provide GPRS carried service to end users GPRS nation-wide backbone: Interconnect all the GPRS provincial networks to realize inter-province roaming; interconnected with other PLMN to realize inter-PLMN roaming. China Mobile Communications Corporation www. chinamobile. com

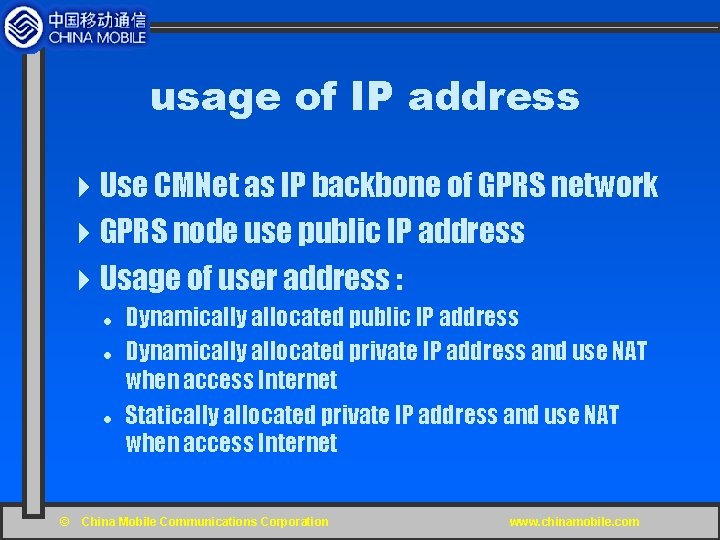

usage of IP address 4 Use CMNet as IP backbone of GPRS network 4 GPRS node use public IP address 4 Usage of user address : l l l © Dynamically allocated public IP address Dynamically allocated private IP address and use NAT when access Internet Statically allocated private IP address and use NAT when access Internet China Mobile Communications Corporation www. chinamobile. com

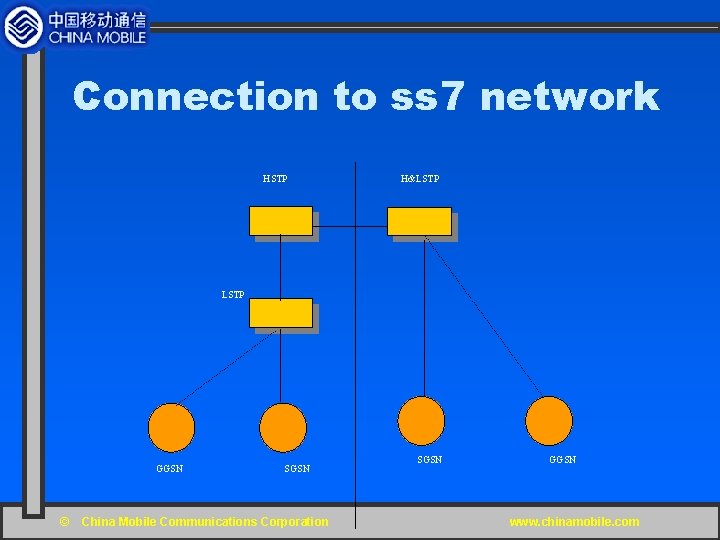

Connection to ss 7 network HSTP H&LSTP GGSN © SGSN China Mobile Communications Corporation SGSN GGSN www. chinamobile. com

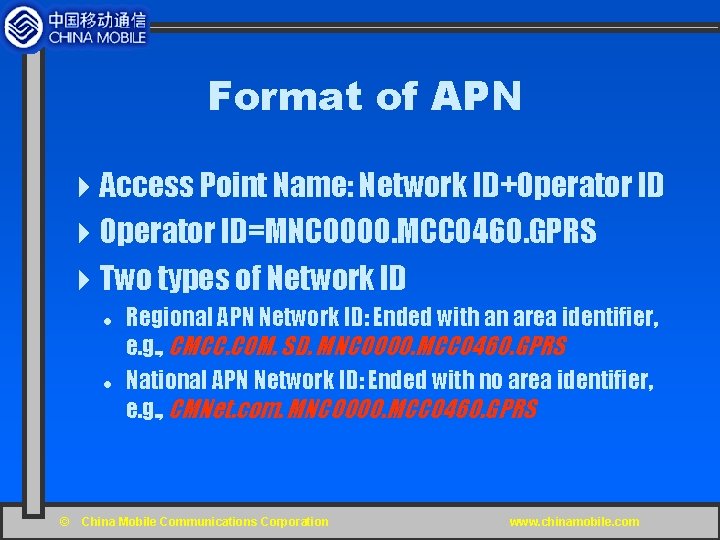

Format of APN 4 Access Point Name: Network ID+Operator ID 4 Operator ID=MNC 0000. MCC 0460. GPRS 4 Two types of Network ID l l © Regional APN Network ID: Ended with an area identifier, e. g. , CMCC. COM. SD. MNC 0000. MCC 0460. GPRS National APN Network ID: Ended with no area identifier, e. g. , CMNet. com. MNC 0000. MCC 0460. GPRS China Mobile Communications Corporation www. chinamobile. com

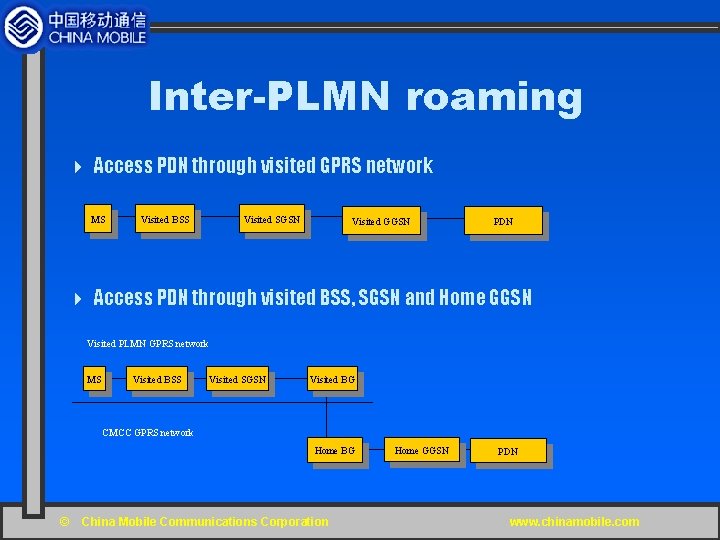

Inter-PLMN roaming 4 Access PDN through visited GPRS network MS Visited BSS Visited SGSN Visited GGSN PDN 4 Access PDN through visited BSS, SGSN and Home GGSN Visited PLMN GPRS network MS Visited BSS Visited SGSN Visited BG CMCC GPRS network Home BG © China Mobile Communications Corporation Home GGSN PDN www. chinamobile. com

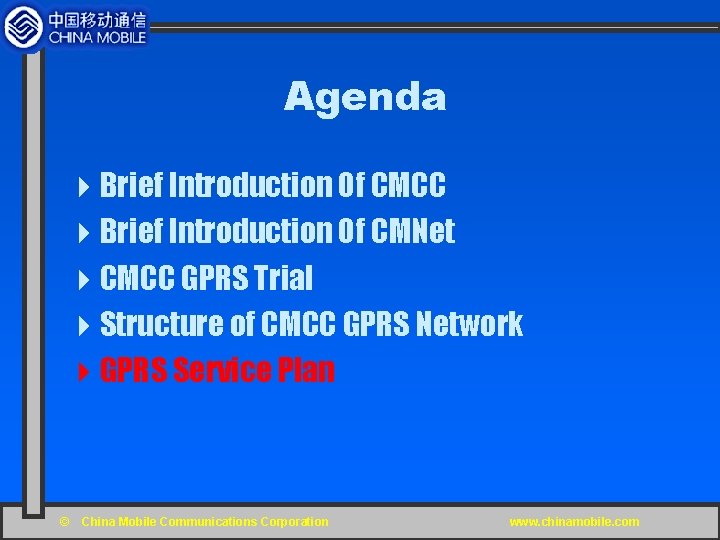

Agenda 4 Brief Introduction Of CMCC 4 Brief Introduction Of CMNet 4 CMCC GPRS Trial 4 Structure of CMCC GPRS Network 4 GPRS Service Plan © China Mobile Communications Corporation www. chinamobile. com

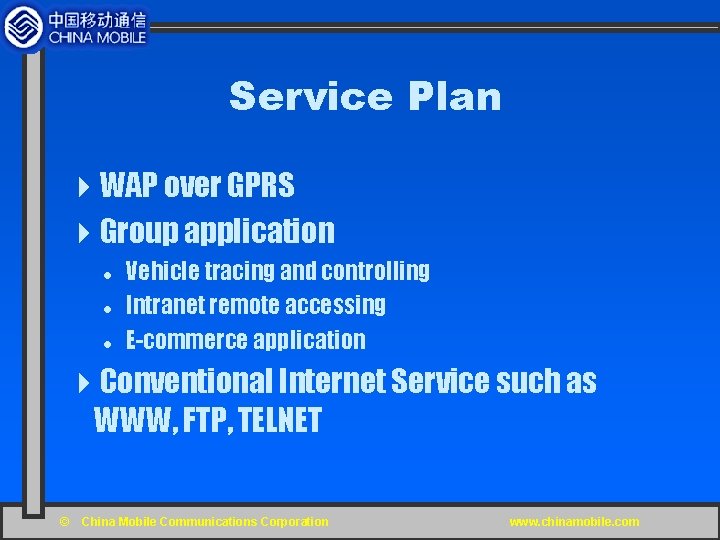

Service Plan 4 WAP over GPRS 4 Group application l l l Vehicle tracing and controlling Intranet remote accessing E-commerce application 4 Conventional Internet Service such as WWW, FTP, TELNET © China Mobile Communications Corporation www. chinamobile. com
