Good Vibrations For Good Vibrations Agenda What is
Good Vibrations - For Good Vibrations. . .
Agenda § What is Skako Comessa § Vibration technology in general § Vibrating drives § Vibrating Feeders and Vibrating conveyors § ON – OFF Systems § Lift Tippers - For Good Vibrations. . .
SKAKO COMESSA Customers • • • Quarries/Mining Iron & Steelworks Foundries Hardware Slag and scrap handling • Batching plants Cement, Concrete and Asphalt plants • Handling of chemicals • Fertilizer plants • Food industry - For Good Vibrations. . .

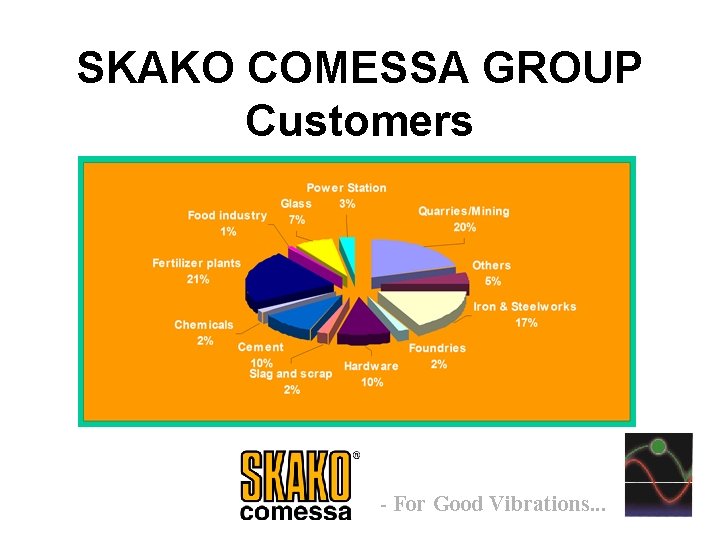

SKAKO COMESSA GROUP Customers - For Good Vibrations. . .
SKAKO COMESSA GROUP locations Denmark: Bygmestervej, Faaborg Great Britain: Tadcaster, North Yorkshire France: Rue du Rhin Napoléon Strasbourg Cédex Germany: Papenbrückstrasse, Haltern am See - For Good Vibrations. . .
SKAKO COMESSA Working as a global company Customer Raute in Finland have a request. Final products are delivered to Finland. Final products sold to eg. China Products comes from Polen or Czeck Final products sold to eg. Mexico Detail Drawings made in India I Denmark all products are designed, developed and mounted - For Good Vibrations. . .
WWW. SKAKO-VIBRATION. COM - For Good Vibrations. . .
Advantages using vibration: • • • Simple construction Less moving parts No spillage Easy to inspect Possible to handle hot and sticky products • Gentle handling of fragile and interlocking products • Safe solution for operator - For Good Vibrations. . .

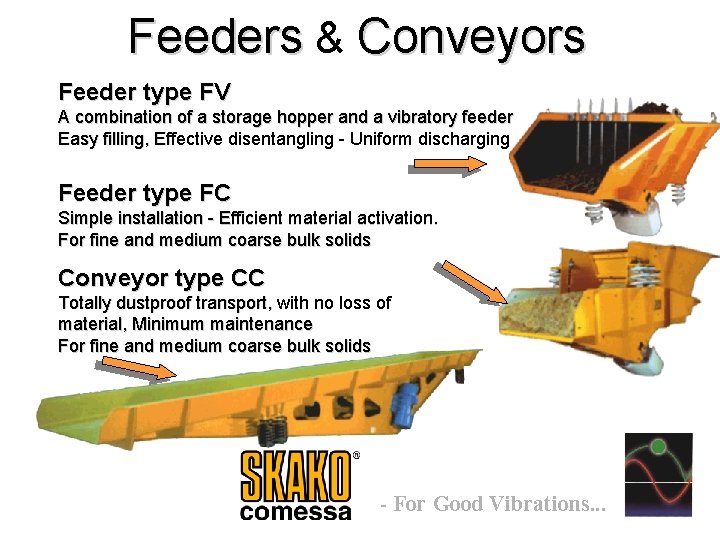

Feeders & Conveyors Feeder type FV A combination of a storage hopper and a vibratory feeder Easy filling, Effective disentangling - Uniform discharging Feeder type FC Simple installation - Efficient material activation. For fine and medium coarse bulk solids Conveyor type CC Totally dustproof transport, with no loss of material, Minimum maintenance For fine and medium coarse bulk solids - For Good Vibrations. . .
Feeders type FC - For Good Vibrations. . .

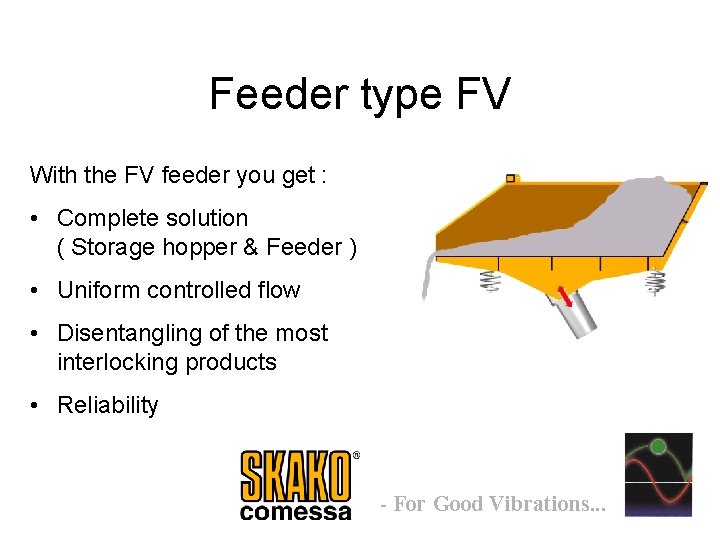

Feeder type FV With the FV feeder you get : • Complete solution ( Storage hopper & Feeder ) • Uniform controlled flow • Disentangling of the most interlocking products • Reliability - For Good Vibrations. . .
3 Types of Vibrators Electromagnetic Vibrator Mechanical Vibrator (Exciter) Motor Vibrator - For Good Vibrations. . .
- For Good Vibrations. . .

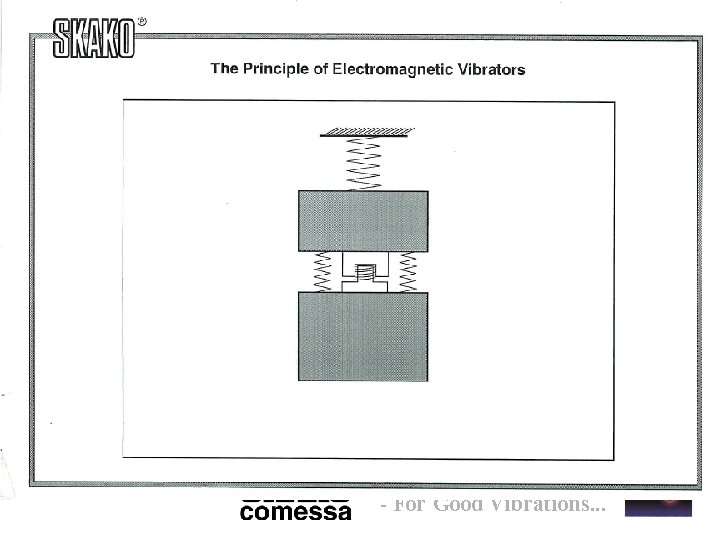

Electromagnetic Vibrator - For Good Vibrations. . .

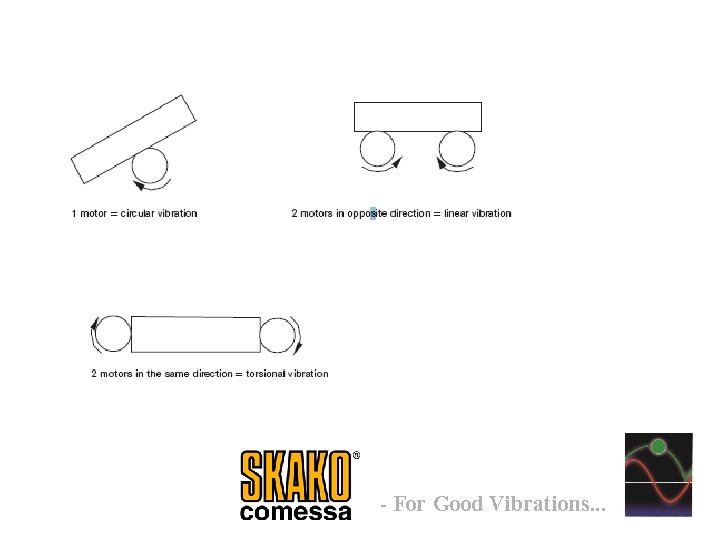

Motor Vibrator - For Good Vibrations. . .
- For Good Vibrations. . .
- For Good Vibrations. . .

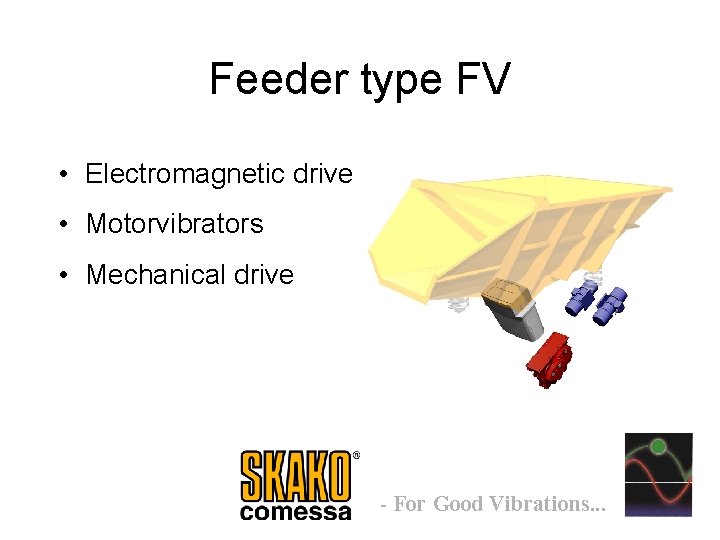

Feeder type FV • Electromagnetic drive • Motorvibrators • Mechanical drive - For Good Vibrations. . .
Feeder type FV - additional equipment Discharge chute Drain Finger gate - For Good Vibrations. . .
Catchgate Retaining bars Chicannes - For Good Vibrations. . .
Outlet gate Trough lining Level sensor SKAKOWEIGH weigh systems - For Good Vibrations. . .
Product, possible to dose by FV-Feeders - For Good Vibrations. . .
Feeding to ball feeders - For Good Vibrations. . .
Feeding to tread rollers - For Good Vibrations. . .
Charge loading to Paint Basket - For Good Vibrations. . .
ON – OFF Systems - For an automatic, even and continuous flow of materials - For disentangling of even the most interlocking products - For Good Vibrations. . .

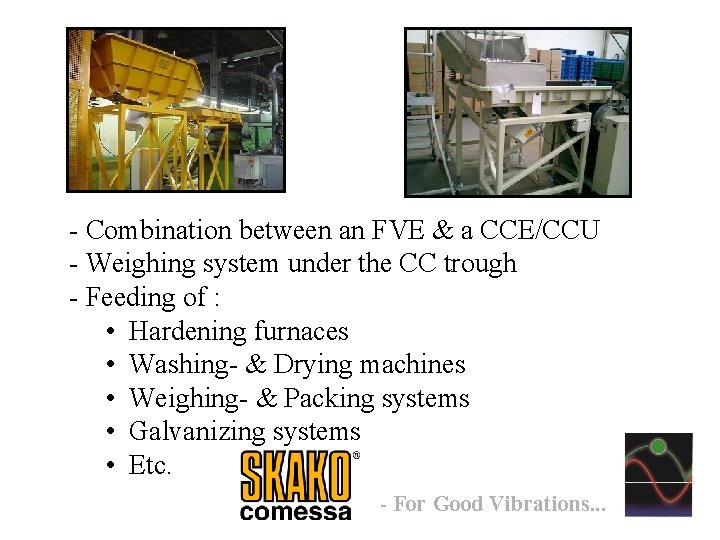

- Combination between an FVE & a CCE/CCU - Weighing system under the CC trough - Feeding of : • Hardening furnaces • Washing- & Drying machines • Weighing- & Packing systems • Galvanizing systems • Etc. - For Good Vibrations. . .
LIFT TIPPERS Ø Safely handling Ø Lifting storage 100 kg – 3 t ØTipping height 1, 5 m – 5 m - For Good Vibrations. . .
SKAKO Comessa Lift Tipper - TILD Locking Bar Arrangement Pneumatic/Hydraulic Operated Cover Pneumatic/Hydraulic Clamping Arrangement Control Panel – for manual or automatically controlled system - For Good Vibrations. . .
Large Service Access Doors Direct Access to Chain Adjuster Tipping in steps - For Good Vibrations. . .
- For Good Vibrations. . .
Good Vibrations - For Good Vibrations. . .
