Liquid Filtration . Types of Filtration Process Industrial Power Generation (Rotary Equipment) Gas Filtration, Separation, Coalescing Liquid/Liquid Separation

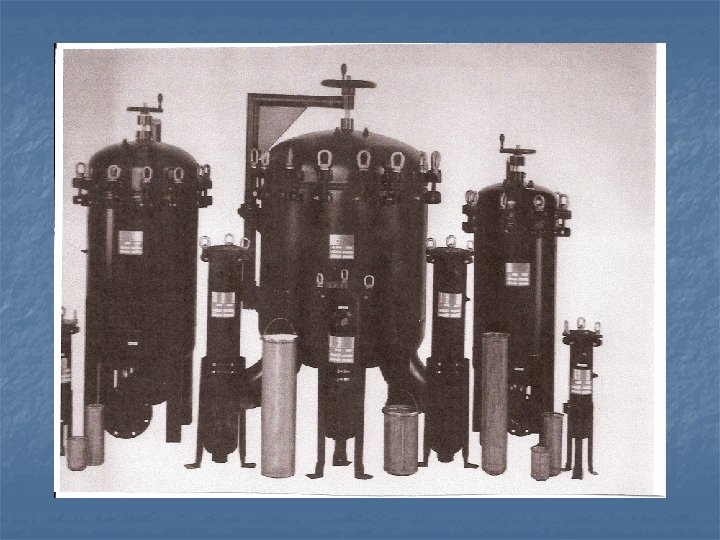

Process Filtration . . . Own Style of Vessel and Element Swing Bolts and legs Elements are normally 2. 5” OD x 1” ID X 10” Long – 40” Long Many Sealing Devices Many Materials of Construction Teflon Polyethersulfone Nylon Rayon Polyester Polypropylene Microglass Cotton Metal Tubes Glass (Baked and Unbaked)
. Terminology of Process Vessel Internals . Top Seat Plate Assembly – Cap and Spring as one piece Tube Guide Universal Seat Cup will Accommodate 222 “O” Ring single closed end Double Open End w/ Gaskets Standard Open End W/Spring 222 “O” Ring with Fin End 226 Closed End Extended Core (Open or Poly Spring, Closed End
Centercore for Process Elements 2. 5” OD x Lengths 10” 20” 30” & 40” Materials: Polypropylene Tin Plated 304 SS, 316 SS Bayonet End (Millipore Style) Element Extender (plugs into seat cup) Interlock Cap, SOE “ 226” Single O Ring, (plugs into seat cup) “ 222” O Ring End (plugs into seat cup) Standard Closed End Cap Standard End Cap when Gasket is needed Poly Spring w/open end

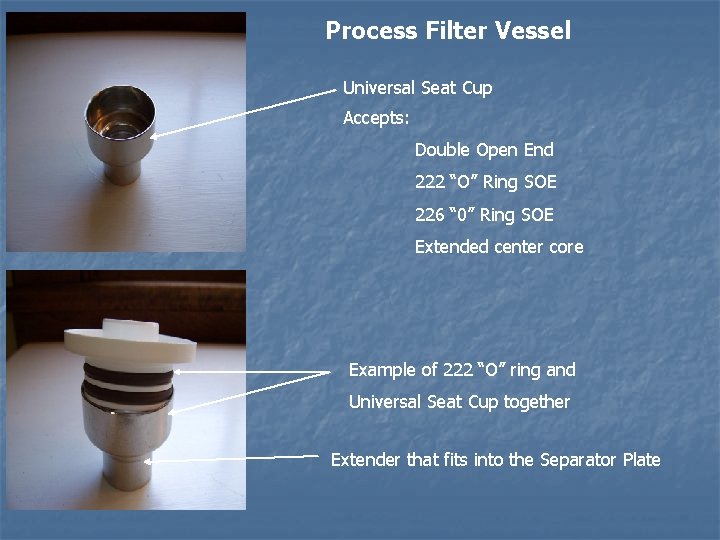

Process Filter Vessel Universal Seat Cup Accepts: Double Open End 222 “O” Ring SOE 226 “ 0” Ring SOE Extended center core Example of 222 “O” ring and Universal Seat Cup together Extender that fits into the Separator Plate
Typical Process Vessel and Internal Set up
Industrial Filtration & Power Generation . . . Own Style of Vessel and Element Straight Through Bolts Elements are normally 6” OD x 2. 5” ID X 18” Long – 44” Long Internal set up versus Process – Very Simple Materials of Construction Cellulose (Paper) Polyester Microglass Pleated Metal
ASME Code Simplex & Duplex
Standard Polyester Pleated Media Sizes 3” OD x 1 ¼” ID x 10” long 6” OD x 2 5/8” ID x 18” Long 6” OD x 2 5/8” ID x 36” long 6” OD x 39” ID x 39” long
1600 1 u. M 3 u. M 6 u. M 12 u. M 25 u. M Beta Ratio 800 400 2 4 6 8 10 12 14 16 18 20 22 24 26 MIcron
Metal Strainers 2200 Series Elements Available in Metal Micron ranges from 5 micron to 100 Micron Helps with Temperature and Compatibility Interchangeability with “ 2200”, ‘C’, ‘S’, and “V” Series elements Versatility of Applications
Chemicals Electronic Food & Beverage Magnetic Media Pharmaceuticals Cosmetics Medical Photographic Potable Liquids Organic Solvents Lubricants Process Water Cooking Oils Photoprocessing Amines Chemical Process R. O. Prefiltration Disposal Well Animal Oils Concentrated Alkalies Dilute Acids & Alkalies Mineral Acids Organic Acids & Solvents Oxidizing Agents Petroleum Oils Photo Solutions Potable Liquids Vegetable Oils Water Prefilter for Membranes Amines Photographics Plating Solutions High Technology Coatings Food & Beverages Membrane Prefiltration DI Water Chemical Processing
Power Generation – Rotating Equipment Compressors, Gas Turbines, Steam Turbines, Generators, Couplings Liquid – Lube – Fuel - Water Natural Gas
2710 E 1 VO NFS Part Number 2710 E 1 NFS Part Number
2300 AJ NFS Part Number 2200 A 4 NFS Part Number P 718 -0030 -SH-1 -7 Old NFS Part P 426 -0250 -PC-1 -7 Old Part Number S 186 -0030 -F-1 HYCOA Part Number V 264 -0250 -F-1 HYCOA Part Number
8” OD x 20” L and 11” OD x 21” L HYG 15129 E Air Atomizing Element Two Sizes for GE Part 363 A 4330 P 002 & P 003
Polypropylene Process Element 2600 M 6 NFS Part Number M 330 -0010 -SS-1 -0 Old Number
Sizing based on actual applications: Design Flow Rate: 100 USGPM of Heat Transfer Fluid Design Temperature: -20 o F to 650 o F Design Pressure: 125 PSI ASME Code and Stamp Construction in Carbon Steel. 06” Corrosion Allowance 2” Butt Weld connections 3/4” FNPT vent and drain (Plugged) Nickel plated bolting for corrosion resistance at high temperature High temperature 304 SS spiral wound closure gasket per EES VED 1003 A Element Rated 98% @ 5 u. M Modified Silicone Paint. Elements: Data Sheets & Assembly Drawing WPS/PQR/Weld Map ASME Code Calcs NDE Testing and examiner qualifications Material Test Reports Nameplate Detail U-1 Form Recommend and size a vessel

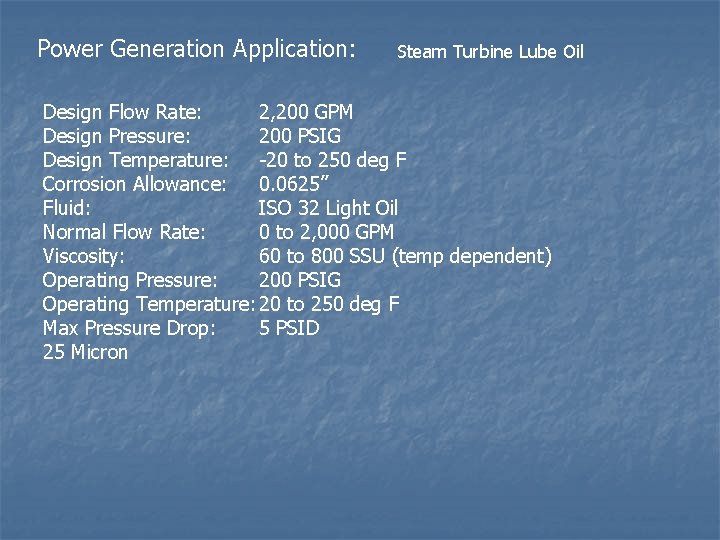

Power Generation Application: Steam Turbine Lube Oil Design Flow Rate: 2, 200 GPM Design Pressure: 200 PSIG Design Temperature: -20 to 250 deg F Corrosion Allowance: 0. 0625” Fluid: ISO 32 Light Oil Normal Flow Rate: 0 to 2, 000 GPM Viscosity: 60 to 800 SSU (temp dependent) Operating Pressure: 200 PSIG Operating Temperature: 20 to 250 deg F Max Pressure Drop: 5 PSID 25 Micron
General Industrial Application: Hydraulic Oil Design Flow Rate: 100 GPM Of ISO VG 46 Oil Design Temperature: -20 o F to 200 o F Design Pressure: 1000 PSI Non-Code Carbon Steel 1000 PSI Design @ -20 to 1750 F 2” in/out Connections 3/4” NPT vent and drain connections 25 Micron 99% Duplex Design
Process Design: Salt Water (2) salt water filters, carbon steel with internal coating is ok. Flow : 250 GPM Line Pressure 100 psig DP: 2 psi Micron: 40

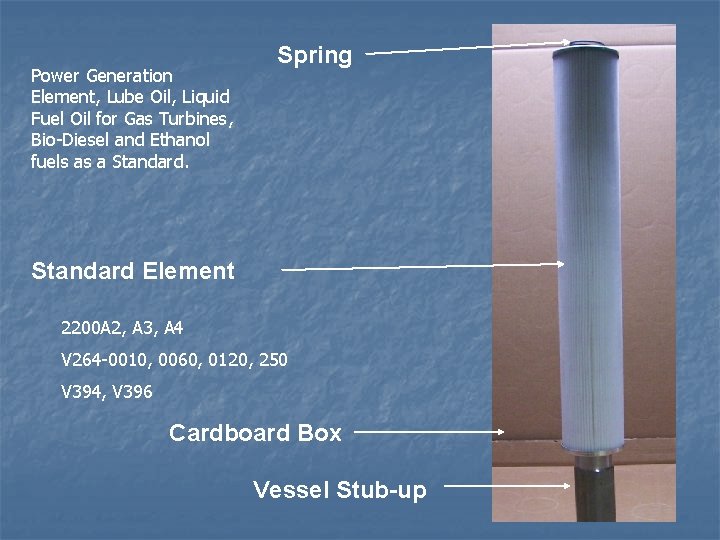

Power Generation Element, Lube Oil, Liquid Fuel Oil for Gas Turbines, Bio-Diesel and Ethanol fuels as a Standard. Spring Standard Element 2200 A 2, A 3, A 4 V 264 -0010, 0060, 0120, 250 V 394, V 396 Cardboard Box Vessel Stub-up
Incoming Request for Vessels or Systems Gas Filtration, Separation, Coalescing National Filtration Systems, Inc. Liquid/Liquid Separation Dwight Coy Aftermarket Element Quotes and Orders Includes: Gaskets, Shoe Kits for HYCOA, Process Elements, Mahle, Power Generation and General Industrial Elements, Set up new accounts. Tom Tokar
