GOES-12 Imager Striping Timothy J. Schmit, etc Sa. Tellite Applications and Research (STAR) Advanced Satellite Products Team (ASPT) in collaboration a lot of folks • The problem • A plan • What’s next? May 23, 2003 UW-Madison

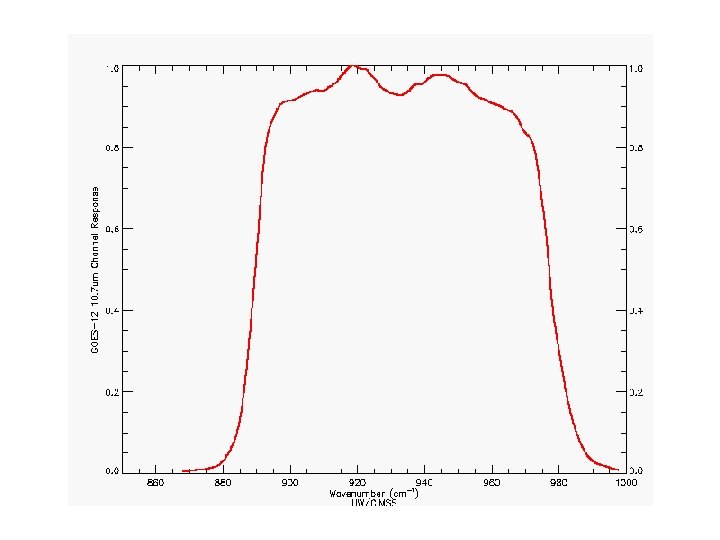

TC 1, TC 2 (or alpha and beta’s) only remove the fixed bias due to any spectral response differences. So, individual conversion from radiance to brightness temperature will not help if the striping is a random component in the radiances. Radiometric Conversions. Planck Function constants are used to make the conversion between radiance and brightness temperature or vice versa. To convert from radiance (m. W/m 2/ster/cm-1) to temperature: temp = [ fk 2 / (alog((fk 1 / rad) + 1)) - bc 1 ] / bc 2 To convert from temperature (K) to radiance (m. W/m 2/ster/cm-1): rad = fk 1 / [ exp (fk 2 / (bc 1 + (bc 2 * temp))) - 1 ]

Mike W: The basic cause of the striping is low-frequency noise in the detectors. It affects the detector outputs during scene measurement, causing differences between the outputs of the two detectors that change within a frame but which can also extend fairly uniformly over several lines, single lines, or fractions of lines. It also affects the half-hourly calibrations, causing differences between the two detectors of a pair that are consistent within a frame (e. g. , a CONUS) but change from frame to frame. There also may be systematic differences between the two detectors caused by I don't know what, but those are usually relatively small.

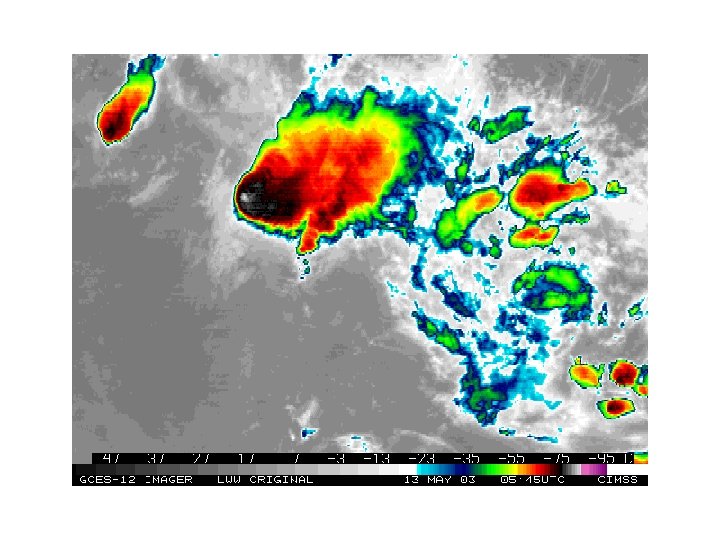

IR

Rainfall from Bob K.

Fog – from Gary E.

Clouds – from Tony S.

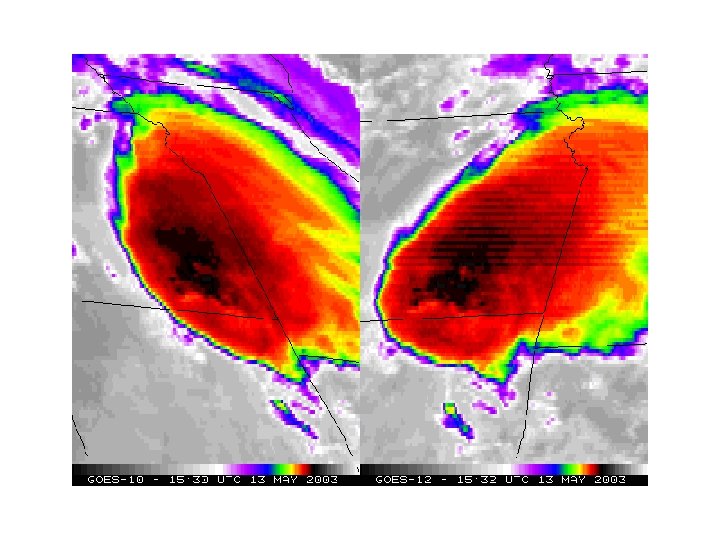

IR

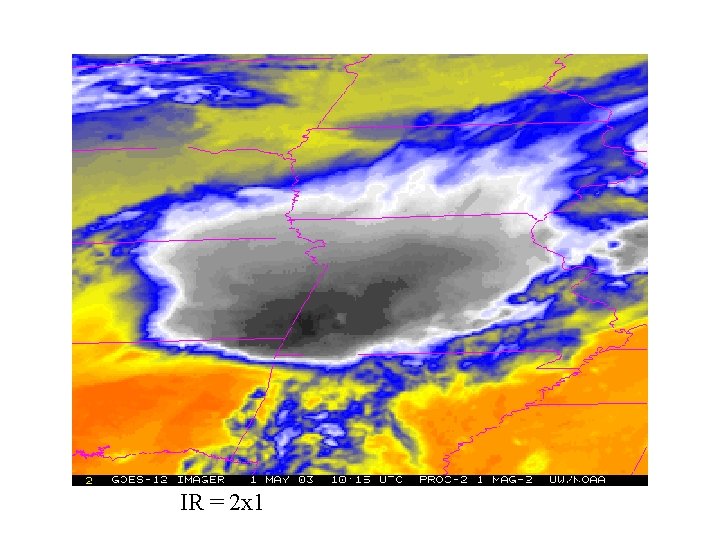

IR = 2 x 1

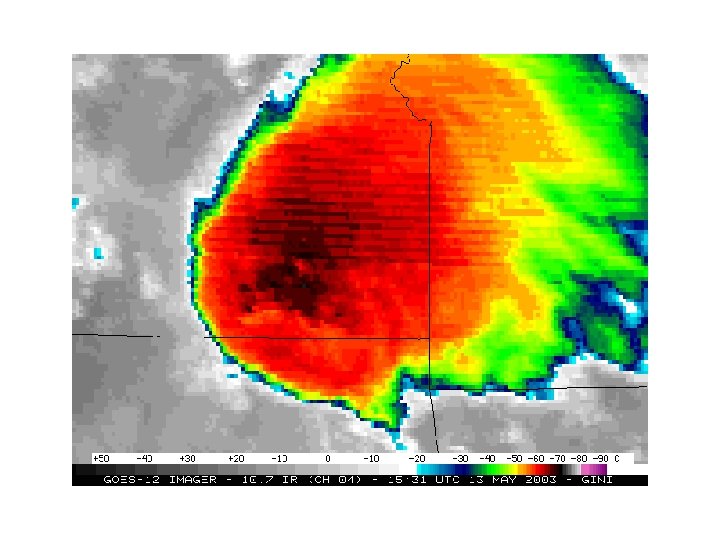

IR

Weighted average of each line with that above and below IR – triangle filter

Table 4. 6: GOES-12 Imager Striping Compared to GOES-11. (Don Hillger)

IR – check for gt 10 TBB

1) Need a separate dataset 2) Need to output as full bit depth GVAR data 3) May want to work on multiple band images 4) Put application on server side? Implementation
