Goal To understand the basics of interference Objectives

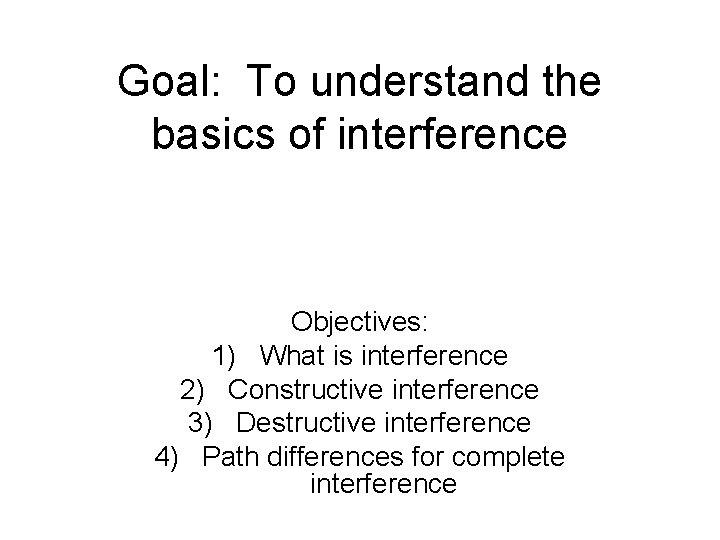

Goal: To understand the basics of interference Objectives: 1) What is interference 2) Constructive interference 3) Destructive interference 4) Path differences for complete interference

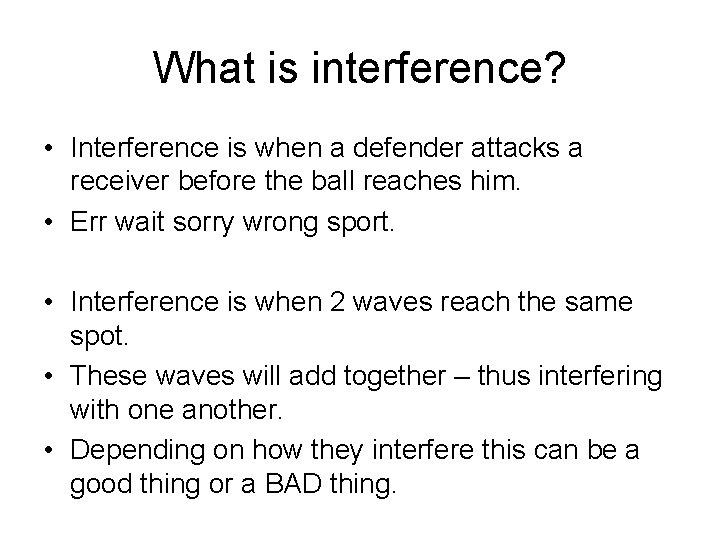

What is interference? • Interference is when a defender attacks a receiver before the ball reaches him. • Err wait sorry wrong sport. • Interference is when 2 waves reach the same spot. • These waves will add together – thus interfering with one another. • Depending on how they interfere this can be a good thing or a BAD thing.

Constructive interference • If two waves land on top of each other they can add together if their positives and negatives match up (this is called “in phase”). • If the waves peak at exactly the same time, they will add together making a bigger wave. • This is called constructive interference.

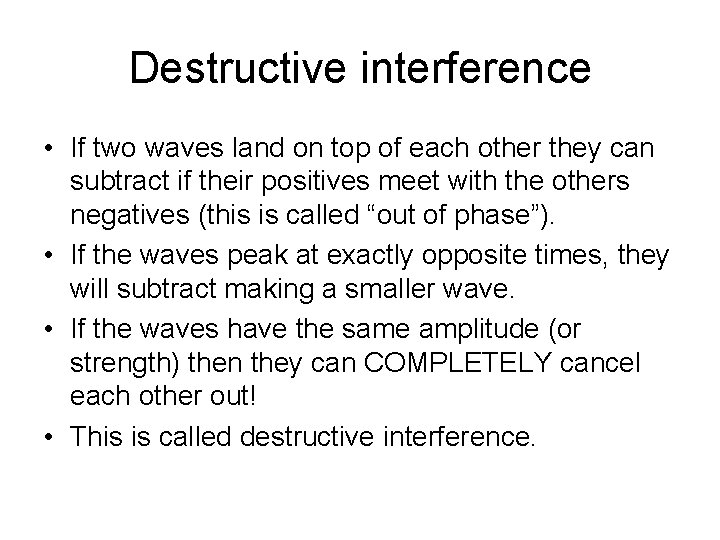

Destructive interference • If two waves land on top of each other they can subtract if their positives meet with the others negatives (this is called “out of phase”). • If the waves peak at exactly opposite times, they will subtract making a smaller wave. • If the waves have the same amplitude (or strength) then they can COMPLETELY cancel each other out! • This is called destructive interference.

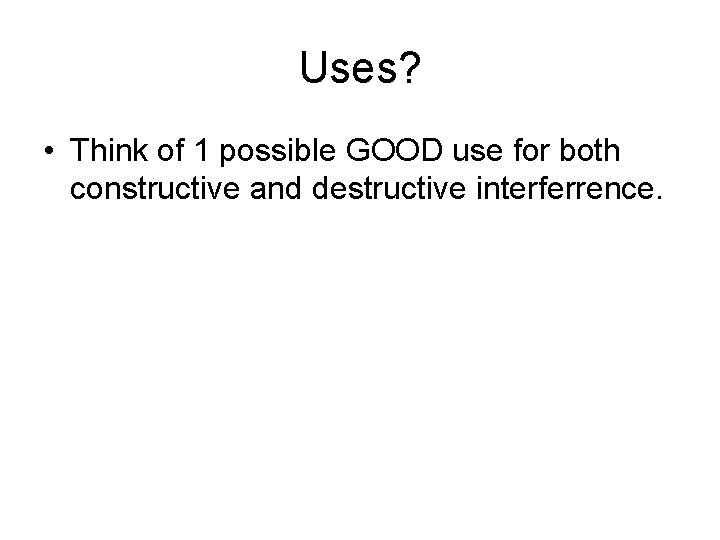

Uses? • Think of 1 possible GOOD use for both constructive and destructive interferrence.

Path differences for complete interference • If a source emits photons of a specific wavelength in 2 different directions it is possible (due to reflection or something else) that those two paths will cross. • When they cross you can possibly get interference. • However, what type of interference will you get?

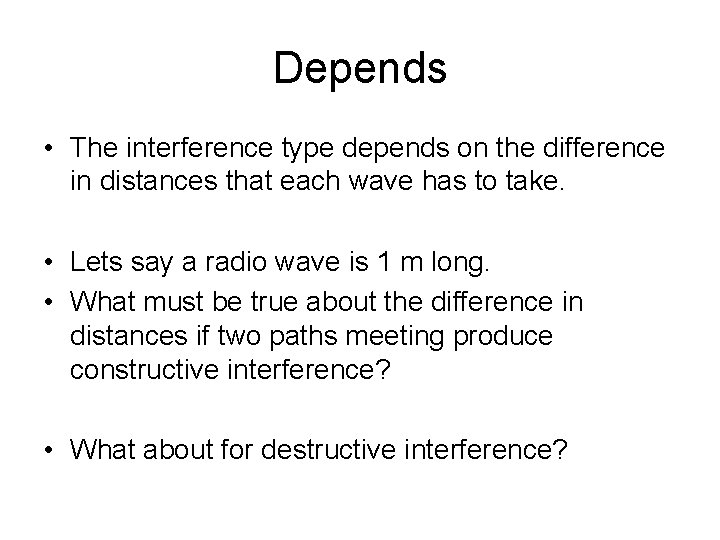

Depends • The interference type depends on the difference in distances that each wave has to take. • Lets say a radio wave is 1 m long. • What must be true about the difference in distances if two paths meeting produce constructive interference? • What about for destructive interference?

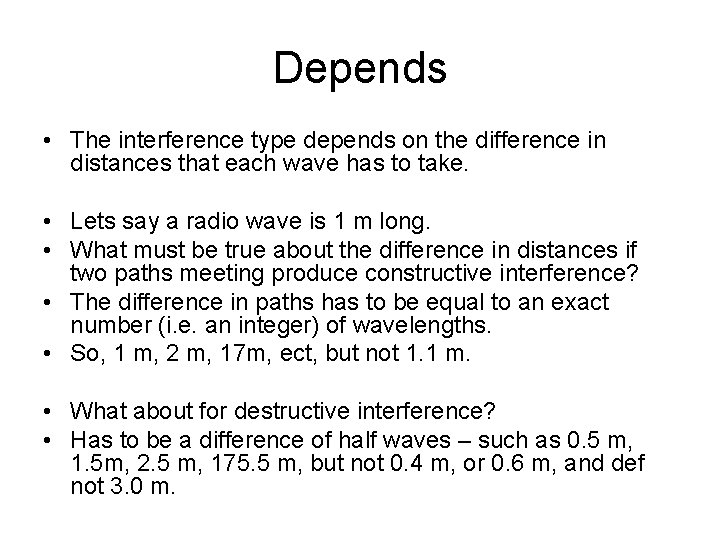

Depends • The interference type depends on the difference in distances that each wave has to take. • Lets say a radio wave is 1 m long. • What must be true about the difference in distances if two paths meeting produce constructive interference? • The difference in paths has to be equal to an exact number (i. e. an integer) of wavelengths. • So, 1 m, 2 m, 17 m, ect, but not 1. 1 m. • What about for destructive interference? • Has to be a difference of half waves – such as 0. 5 m, 1. 5 m, 2. 5 m, 175. 5 m, but not 0. 4 m, or 0. 6 m, and def not 3. 0 m.

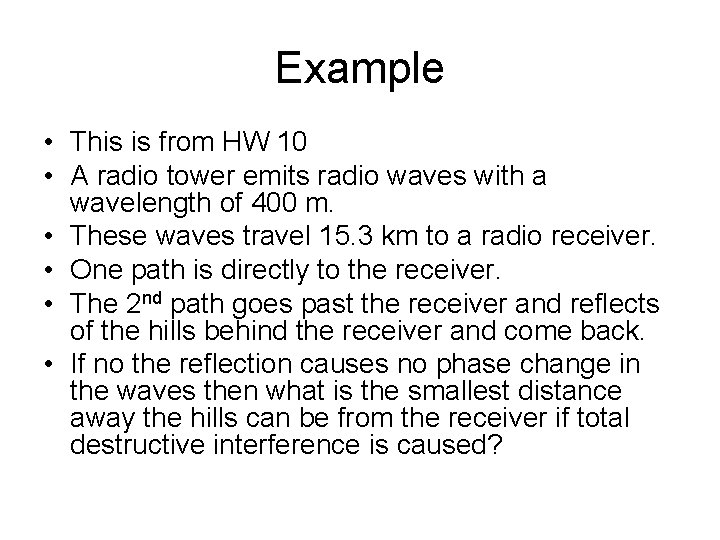

Example • This is from HW 10 • A radio tower emits radio waves with a wavelength of 400 m. • These waves travel 15. 3 km to a radio receiver. • One path is directly to the receiver. • The 2 nd path goes past the receiver and reflects of the hills behind the receiver and come back. • If no the reflection causes no phase change in the waves then what is the smallest distance away the hills can be from the receiver if total destructive interference is caused?

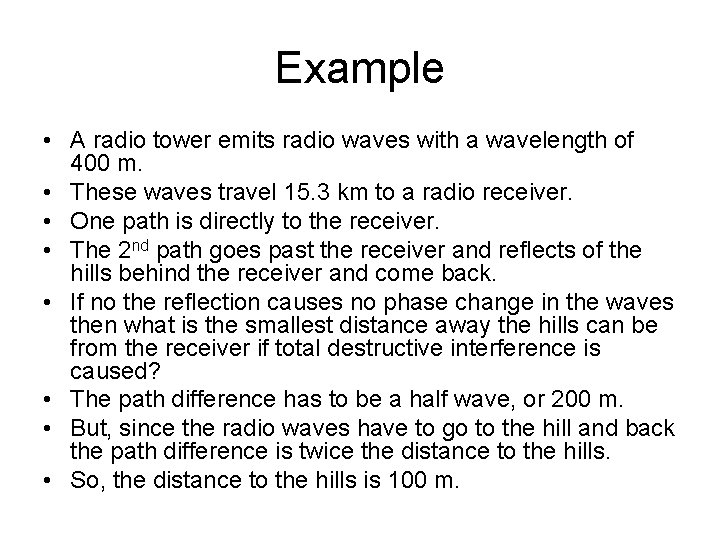

Example • A radio tower emits radio waves with a wavelength of 400 m. • These waves travel 15. 3 km to a radio receiver. • One path is directly to the receiver. • The 2 nd path goes past the receiver and reflects of the hills behind the receiver and come back. • If no the reflection causes no phase change in the waves then what is the smallest distance away the hills can be from the receiver if total destructive interference is caused? • The path difference has to be a half wave, or 200 m. • But, since the radio waves have to go to the hill and back the path difference is twice the distance to the hills. • So, the distance to the hills is 100 m.

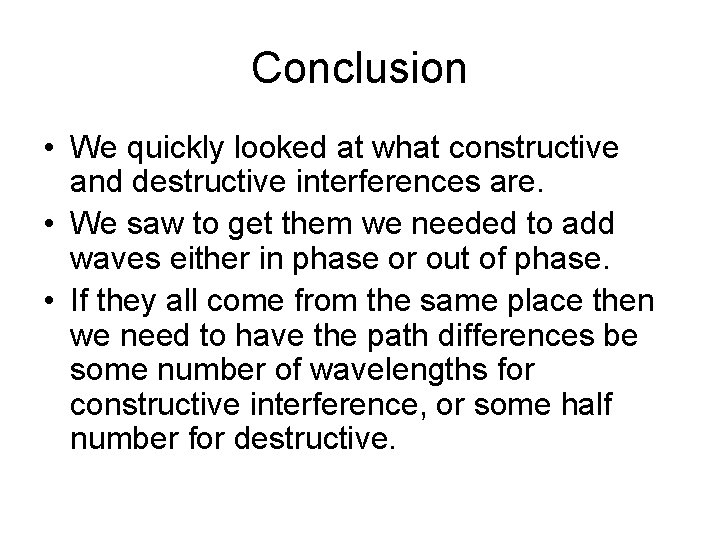

Conclusion • We quickly looked at what constructive and destructive interferences are. • We saw to get them we needed to add waves either in phase or out of phase. • If they all come from the same place then we need to have the path differences be some number of wavelengths for constructive interference, or some half number for destructive.
