Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications The open, flexible and modular PC 100 concept offers highest application flexibility, today and in the future! PC 100 in 8. 4“ up to 24“ for the Ex-Zones 1, 2, 22 or non-Ex area. Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 1

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Computing • The open and modular PC 100 system can be realized in three different concepts. Remote Computing Concept Remote Computing Scope of delivery Local Computing Concept Server Based Computing Concept Computing Possibilities / Alternatives Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 2

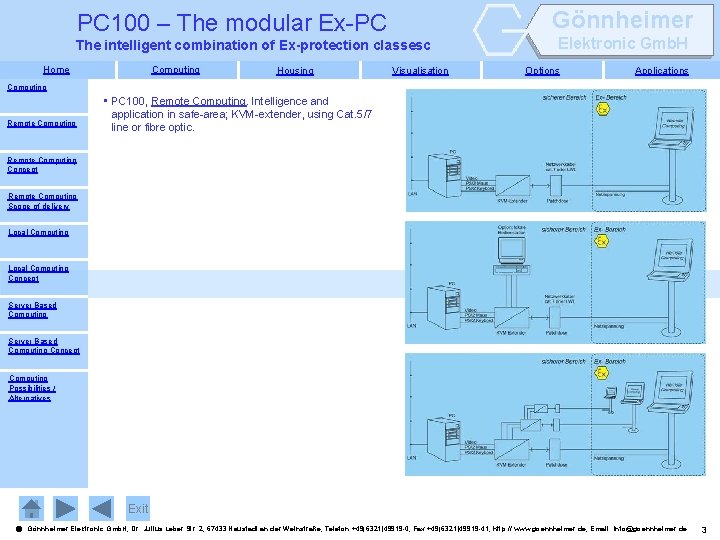

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Computing Remote Computing • PC 100, Remote Computing. Intelligence and application in safe-area; KVM-extender, using Cat. 5/7 line or fibre optic. Remote Computing Concept Remote Computing Scope of delivery Local Computing Concept Server Based Computing Concept Computing Possibilities / Alternatives Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 3

Gönnheimer PC 100 – The modular Ex-PC Elektronic Gmb. H The intelligent combination of Ex-protection classesc Home Computing Housing Options Visualisation Applications Computing • The open and modular PC 100 system. Highest flexibility by intelligent combination of different Ex-protection classes. Remote Computing Non-Ex-Area Remote Computing Concept Remote Computing Scope of delivery Local Computing Ex-q Standard PC Displaymodule KVM- Extender Up to 300 m via copper cable (Cat. 7), >300 m digital fibre optic Standard Ex-e Optional: Touch, Card Reader or Scanner Optional RS 232 Local Computing Concept Server Based Computing Supply voltage 230 V, 115 V, 24 V Server Based Computing Concept Computing Possibilities / Alternatives PC 100 Opt. Ex-e Ex-i Mouse/Trackball Ex-i Keyboard Up to 1000 m copper cable (Cat. 7) for optional 2 nd and 3 rd RS 232 interface Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 4

Gönnheimer PC 100 – The modular Ex-PC Elektronic Gmb. H The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Options Applications Computing Remote Computing • The scope of delivery covers all required components for the installation and start-up. The pictures below show the scope of delivery of the KVM Cat. 7 application. Remote Computing Concept Remote Computing Scope of delivery Local Computing Concept or Plug connection Server Based Computing Preinstalled Server Based Computing Concept or Computing Possibilities / Alternatives • Provided by customer – PC, Supply voltage for PC 100. Non. Ex-Area Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 5

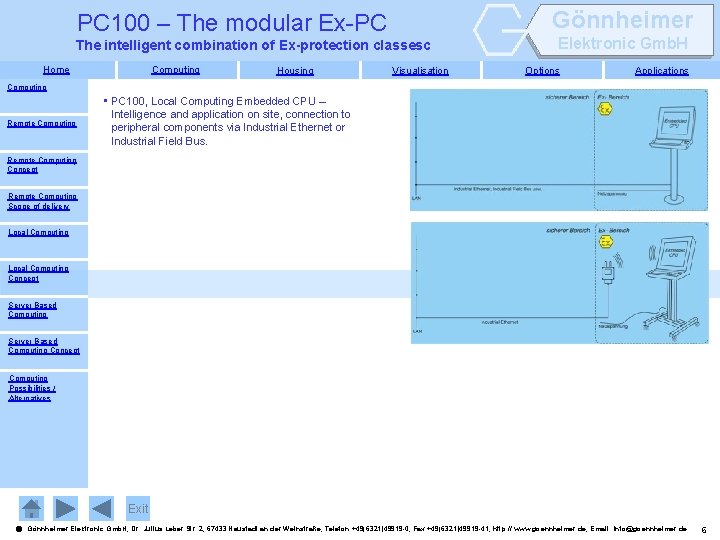

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Computing Remote Computing • PC 100, Local Computing Embedded CPU – Intelligence and application on site, connection to peripheral components via Industrial Ethernet or Industrial Field Bus. Remote Computing Concept Remote Computing Scope of delivery Local Computing Concept Server Based Computing Concept Computing Possibilities / Alternatives Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 6

Gönnheimer PC 100 – The modular Ex-PC Elektronic Gmb. H The intelligent combination of Ex-protection classesc Home Computing Housing Options Visualisation Applications Computing • The open and modular PC 100 system with intelligence directly inside hazardous area. Remote Computing Concept Remote Computing Scope of delivery Local Computing Concept Server Based Computing Concept Computing Possibilities / Alternatives . . . Non-Ex-Area Ex-q Displaymodul Connection : Ex-e ETHERNET, Profibus-DP etc. Embedded CPU Optional: Touch, Card Reader oder Scanner Supply voltage 230 V, 115 V, 24 V, PC 100 Ex-i Mouse/Trackball Ex-i Keyboard Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 7

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Computing Remote Computing • PC 100, Server Based Computing Thin Client – Intelligence on site, server based application, connection to peripheral components via Industrial Ethernet or Industrial Field Bus. Remote Computing Concept Remote Computing Scope of delivery Local Computing Concept Server Based Computing Concept Computing Possibilities / Alternatives Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 8

Gönnheimer PC 100 – The modular Ex-PC Elektronic Gmb. H The intelligent combination of Ex-protection classesc Home Computing Housing Options Visualisation Applications Computing Remote Computing Non-Ex-Area Remote Computing Concept Ex-q Displaymodule Remote Computing Scope of delivery Industrial Ethernet Local Computing Thin Client Ex-e Optional: Touch, Card Reader or Scanner Switch Local Computing Concept Virtual PC n. Virtual PC 5 Virtual PC 4 Computing Possibilities / Alternatives Virtual PC 3 Virtual PC 1 Server Based Computing Concept Virtual PC 2 Server Based Computing Supply voltage 230 V, 115 V, 24 V PC 100 Ex-i Mouse/Trackball Host Operating Server System Server Ex-i Keyboard Simplified illustration Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 9

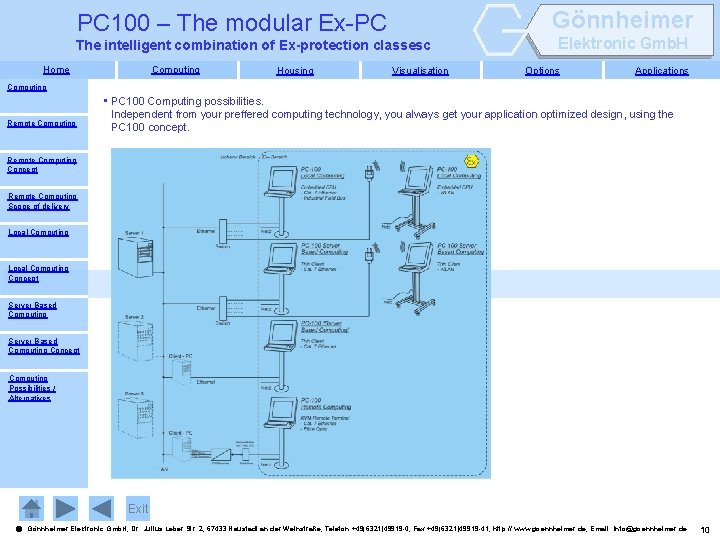

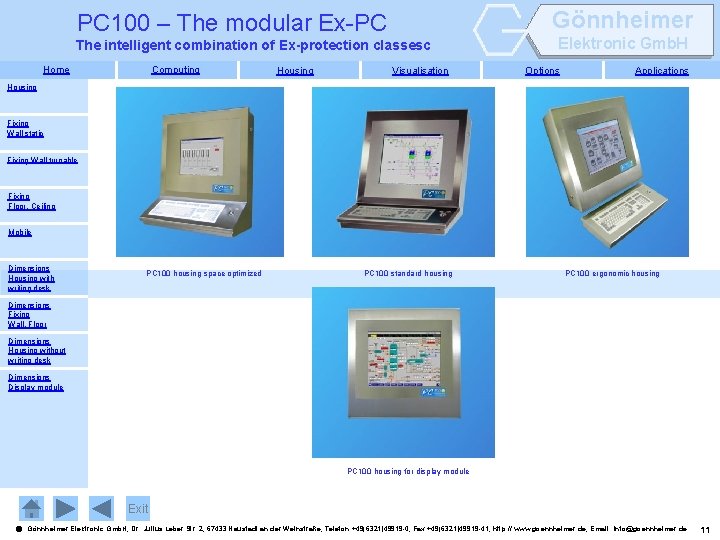

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Computing Remote Computing • PC 100 Computing possibilities. Independent from your preffered computing technology, you always get your application optimized design, using the PC 100 concept. Remote Computing Concept Remote Computing Scope of delivery Local Computing Concept Server Based Computing Concept Computing Possibilities / Alternatives Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 10

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Housing Fixing Wall static Fixing Wall turnable Fixing Floor, Ceiling Mobile Dimensions Housing with writing desk PC 100 housing space optimized PC 100 standard housing PC 100 ergonomic housing Dimensions Fixing Wall, Floor Dimensions Housing without writing desk Dimensions Display module PC 100 housing for display module Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 11

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Housing Fixing Wall static • PC 100, easy mounting through tall and front sided access to inner housing Fixing Wall turnable Fixing Floor, Ceiling Mobile Dimensions Housing with writing desk Dimensions Fixing Wall, Floor Dimensions Housing without writing desk Dimensions Display module The PC 100 can always be opened from the front side PC 100, V 2 A, Standard, direct wall mounting approx. 360 mm deep PC 100, V 2 A, ergonomic Wallmounting corresponding to NAMUR-guideline, approx. 530 mm deep Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 12

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Housing • PC 100, turnable wall mounting in ergonomic design, 15° inclined or at right angle (e. g. in tight space conditions). Fixing Wall static Fixing Wall turnable Fixing Floor, Ceiling Mobile Dimensions Housing with writing desk Dimensions Fixing Wall, Floor Dimensions Housing without writing desk Dimensions Display module PC 100 19“, V 2 A, turnable, ergonomic, Industry mouse PC 100 19“, V 2 A, turnable, right angle, Emmergency-Stop Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 13

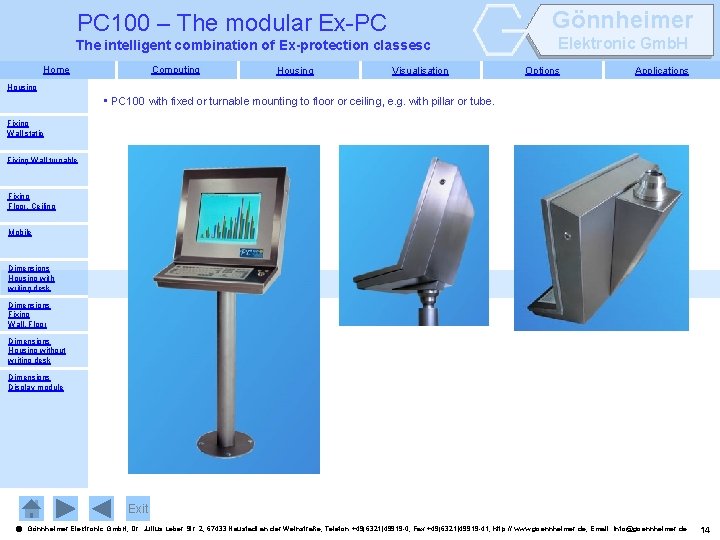

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Housing • PC 100 with fixed or turnable mounting to floor or ceiling, e. g. with pillar or tube. Fixing Wall static Fixing Wall turnable Fixing Floor, Ceiling Mobile Dimensions Housing with writing desk Dimensions Fixing Wall, Floor Dimensions Housing without writing desk Dimensions Display module Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 14

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Housing • PC 100 for mobile operation. Fixing Wall static Fixing Wall turnable Fixing Floor, Ceiling Mobile Dimensions Housing with writing desk Dimensions Fixing Wall, Floor Dimensions Housing without writing desk Dimensions Display module Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 15

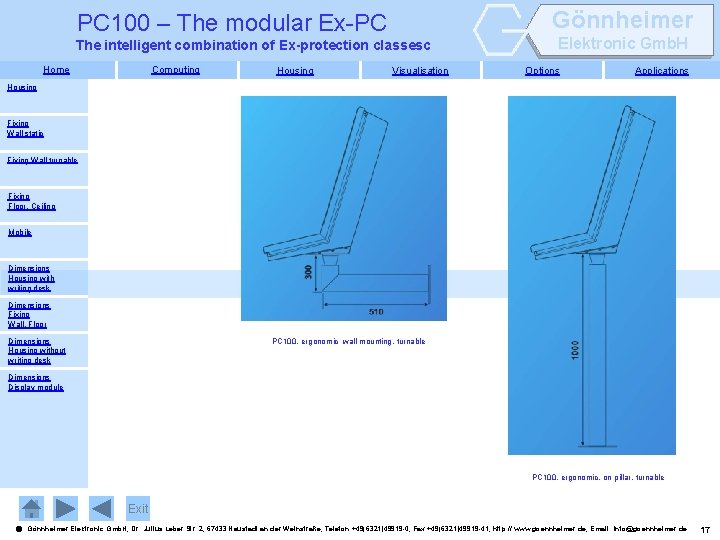

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Housing Fixing Wall static Fixing Wall turnable Fixing Floor, Ceiling Mobile Dimensions Housing with writing desk Dimensions Fixing Wall, Floor Dimensions Housing without writing desk PC 100, approx. 620 mm wide Dimensions Display module PC 100, ergonomic mounting, approx. 620 mm high, 560 mm deep PC 100, direct wall mounting, approx. 730 mm high, 350 mm deep Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 16

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Housing Fixing Wall static Fixing Wall turnable Fixing Floor, Ceiling Mobile Dimensions Housing with writing desk Dimensions Fixing Wall, Floor Dimensions Housing without writing desk PC 100, ergonomic wall mounting, turnable Dimensions Display module PC 100, ergonomic, on pillar, turnable Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 17

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Housing Fixing Wall static Fixing Wall turnable Fixing Floor, Ceiling Mobile Dimensions Housing with writing desk Dimensions Fixing Wall, Floor Dimensions Housing without writing desk Dimensions Display module PC 100 housing, suitable for direct wall mounting Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 18

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Housing Fixing Wall static Fixing Wall turnable Fixing Floor, Ceiling Mobile Dimensions Housing with writing desk Dimensions Fixing Wall, Floor Dimensions Housing without writing desk Dimensions Display module PC 100, displaymodules from 15“ on Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 19

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Visualisation Displaysizes • Due to the manifold project definitions of our customers and the resulting requirements, it is not possible, to cover the whole range with only 15“ and 19“ displays. High Brightness Certificates Future-proof Well temperature ranges Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 20

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Visualisation Computing Housing Visualisation Elektronic Gmb. H Options Applications • To support optimal solutions for all the different requirements, the PC 100 concept offers a wide scope of different display types and display sizes. Displaysizes Displaymodule 8, 4“ Displaymodule 10, 4“ Displaymodule 15“ High Brightness Displaymodule 18, 1“ * Displaymodule 19“ Displaymodule 21“ not longer available Certificates Future-proof Well temperature ranges VGA: 640 x 480 XGA: 1024 x 768 SXGA: 1280 x 1024 UXGA: 1600 x 1200 Diagonal: 21 cm Diagonal: 26 cm Diagonal: 38 cm Diagonal: 45 cm Diagonal: 48 cm Diagonal: 53 cm Picture size: 170 x 128 mm Picture size: 210 x 157 mm Picture size: 304 x 228 mm Picture size: 360 x 293 mm Picture size: 376 x 301 mm Picture size: 432 x 324 mm Image area: 217 cm 2 Image area: 329 cm 2 Image area: 693 cm 2 Image area: 1054 cm 2 Image area: 1131 cm 2 Image area: 1399 cm 2 In comparison to 15“ Module: 68% less image area In comparison to 15“ Module: 51% less image area Reference size In comparison to 15“ Module: 52% more image area In comparison to 15“ Module: 63% more image area In comparison to 15“ Module: 101% more image area Ex- protection class: II 2 G, EEx e q [ib] IIC T 4 EC- type examination certificate: TÜV 00 ATEX 1607 X Mounting: Ex- Area, Zone 1, Zone 22 Supply voltage: 230 V AC, 110 V AC, 24 V DC All details are approx. specifications * The 18, 1“ TFT are discontinued since 2003. Because of this reason, these modules are no longer offered within the PC 100 system. The replacement type is the 19“ module with improved picture quality and less power loss. Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 21

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Visualisation • The PC 100 with High Brightness option with superior screen luminance. Displaysizes • Based on the modular concept of the PC 100, all Display sizes can be delivered as high brightness types. • For the PC 100 High Brightness system, no extra EC-certificate update is needed like at conventional systems. High Brightness Certificates Future-proof Well temperature ranges Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 22

Gönnheimer PC 100 – The modular Ex-PC Elektronic Gmb. H The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Options Applications Visualisation Displaysizes • One main focus during the development and certification of the PC 100 system was, to get greatest flexibility within the concept, e. g. to be able to integrate also future display generations. • Long life cycles of HMI devices require, that a change against the newest available display technology is possible at any time (e. g in case of a possible system update) – without a long ranging update of the EC-certificate! High Brightness Sample: Other manufacturers PC 100 Certificates Future-proof Well temperature ranges 8, 4“ 21“ Prüfbescheinigung 15“ 18, 1“ z. B. Nachtrag zur Prüfbescheinigung 19“ Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 23

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Visualisation Displaysizes Industrie LCD´s Typical parameters: Storage temp. - 20 to + 60°C Operating temp. 0 to + 50°C High Brightness Certificates Future-proof Well temperature ranges 60°C Tmax Storage 50°C Tmax Operating 40°C ΔT * Tu Max ca. 40°C „Well temperature range of standard LCDs“ 0°C -20°C Tmin Operating Tmin Storage * Caused by power loss (Pv) of the LCD panel inside the housing, e. g. by Backlight etc. (Typical values of Pv approx. 30 - 45 Watt ΔT typ. ~10 K) Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 24

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Options • To adapt the PC 100 optimal to your application, a big variety of different options is available. Glas-Touch Keyboards Pointing Devices KVM-Extender Identification Scanner, USB-Stick Heating, Printer Non-Ex PC 100, Optional Inputdevices Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 25

Gönnheimer PC 100 – The modular Ex-PC Elektronic Gmb. H The intelligent combination of Ex-protection classesc Home Computing Housing Options Visualisation Applications Options Glas-Touch • The PC 100 Glas Touch is an operating- and visualization component of an industrial PC within the Ex-area. By use of the combination of TFT and Touch, the operator can work without further input devices like keyboard and mouse. Keyboards Glas-Touch Pointing Devices Contrast ratio KVM-Extender Cleaning Viewing angle Identification Durability Scanner, USB-Stick Mechanical durability Heating, Printer Non-Ex PC 100, Optional Inputdevices Available sizes Resistive-Touch PC 100, 19“, Glas-Touch, display module for wall mounting ü ü ü ü X Shock tested, with excellent attributes – see below Excellent, because of the glas surface and no contrast reducing polyester foils Harmless, because of glas surface. No sensitive plastic foils. Excellent, glas surface without disturbing foil sandwiches. Hardened glas surface (11 x harder than standard window glas!) Highly robust against „unsuitable“ input devices like screwdrivers, because of shock proof glas surface and no sensitive front foil. All sizes available: 8, 4“, 10, 4“, 15“, 19“, 21“ Not recommended and not offered for rough industrial use. Insufficient attributes because of sensitive front foil with limited life time. PC 100 Touch: Technical Specifications Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 26

Gönnheimer PC 100 – The modular Ex-PC Elektronic Gmb. H The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Options Applications Options Glas-Touch • The different requirements of different production sites require application specific solutions. Keyboards in different variations for different use. KB 153. 0 Standard keyboard Short shift keyboard, IP 65, 105 keys, country specific layouts Keyboards Pointing Devices KB 153. 2 Touchpad keyboard like Standard type, with additional Touchpad KVM-Extender Identification KB 153. 4 Compact keyboard Full function range of Standard type, but only 30 keys! Scanner, USB-Stick Heating, Printer KB 153. 7 “Wireless” keyboard Wireless keyboard with short shift buttons, Water- und Dust-proof, IP 65! Non-Ex PC 100, Optional Inputdevices KB 153. 0 in V 2 A stainless steel housing Standard keyboard, hard-wired, short shift buttons, IP 65, 105 keys, Country-specific Layouts Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 27

Gönnheimer PC 100 – The modular Ex-PC Elektronic Gmb. H The intelligent combination of Ex-protection classesc Home Computing Housing Options Visualisation Applications Options • The Pointing devices are also offered in different types with different options. Glas-Touch Keyboards Pointing Devices KVM-Extender Identification Scanner, USB-Stick Heating, Printer Non-Ex PC 100, Optional Inputdevices TB 153. 0. 0 Stainless steel trackball Intrinsically safe Trackball with 2 or 3 buttons and stainless steel ball 38 mm with PTFE-sealing ring, IP 65! TB 153. 0. 1 Stainless steel trackball Intrinsically safe Trackball with 2 or 3 buttons and stainless steel ball 50 mm with PTFEsealing ring, IP 65! TB 153. 2. 0 Industry Mouse Alternative pointing device without moving parts, IP 66! TB 153. 2. 0 Industry Mouse Alternative pointing device in compact design, IP 65! TB 153. 3 Industry Joysticks Multifunction joysticks USB or PS/2 with contactless sensors (no potentiometers), 2 or 3 buttons interated in the housing or directly in the joystick knob for comfortable one-hand operation. Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 28

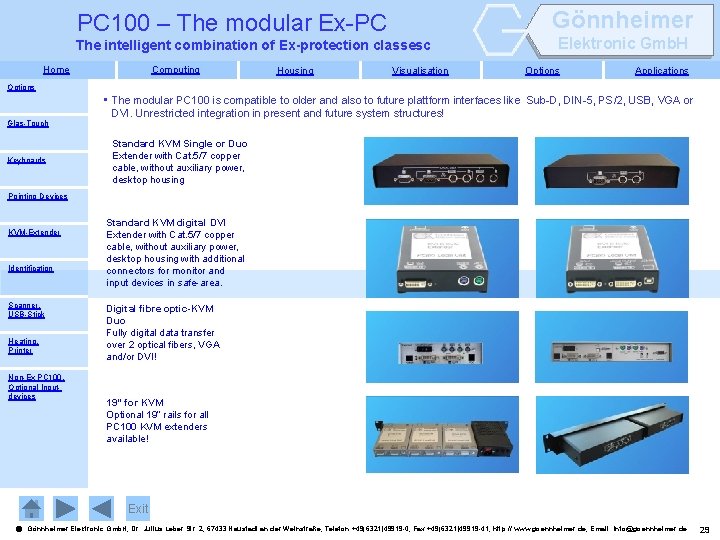

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Options Glas-Touch Keyboards • The modular PC 100 is compatible to older and also to future plattform interfaces like Sub-D, DIN-5, PS/2, USB, VGA or DVI. Unrestricted integration in present and future system structures! Standard KVM Single or Duo Extender with Cat. 5/7 copper cable, without auxiliary power, desktop housing Pointing Devices KVM-Extender Identification Scanner, USB-Stick Heating, Printer Non-Ex PC 100, Optional Inputdevices Standard KVM digital DVI Extender with Cat. 5/7 copper cable, without auxiliary power, desktop housing with additional connectors for monitor and input devices in safe-area. Digital fibre optic-KVM Duo Fully digital data transfer over 2 optical fibers, VGA and/or DVI! 19“ for KVM Optional 19“ rails for all PC 100 KVM extenders available! Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 29

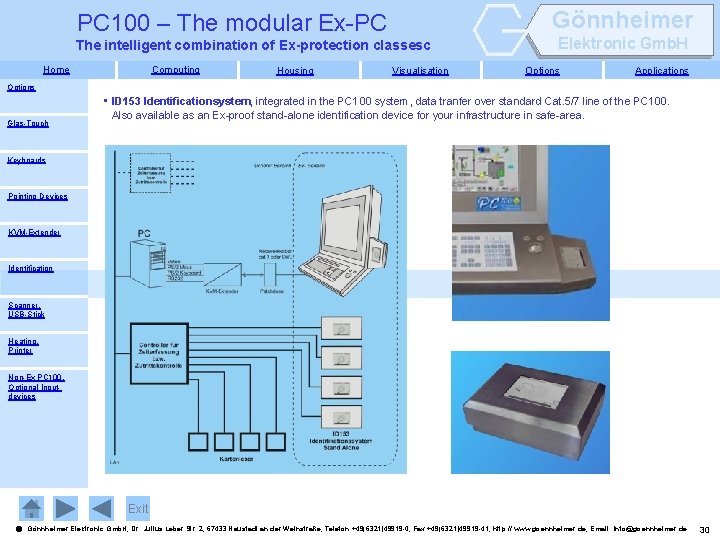

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Options Glas-Touch • ID 153 Identificationsystem, integrated in the PC 100 system, data tranfer over standard Cat. 5/7 line of the PC 100. Also available as an Ex-proof stand-alone identification device for your infrastructure in safe-area. Keyboards Pointing Devices KVM-Extender Identification Scanner, USB-Stick Heating, Printer Non-Ex PC 100, Optional Inputdevices Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 30

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Options Glas-Touch • HS 153 Scanner, available in two different variants for high precision and fast scanning under extreme conditions. • FD 153 Flash disk, USB 2. 0 flash storage medium, e. g. 4 GB, for use in Zone 1 and 21, Intrinsically safe USB 2. 0 Interface, different memory sizes. Keyboards Pointing Devices KVM-Extender Identification Scanner, USB-Stick Heating, Printer Non-Ex PC 100, Optional Inputdevices Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 31

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Options Glas-Touch • PC 100 Heating, for extended operating temperature range, especially for extremely cold environments, supply over Ex-e terminal box of PC 100. • Ex p Printer, for print jobs directly in the Ex -Area, customer- and application- specific stainless steel housings. Keyboards Pointing Devices KVM-Extender Identification Scanner, USB-Stick Heating, Printer Non-Ex PC 100, Optional Inputdevices Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 32

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Options Glas-Touch • Non Ex PC 100, the modular PC 100 concept is also available for non hazardous areas. • Additional keys, lamps and switches, different types for different applications and functions, e. g. emergency stop etc. Keyboards Pointing Devices KVM-Extender Identification Scanner, USB-Stick Heating, Printer Non-Ex PC 100, Optional Inputdevices Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 33

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications • The different conditions in different production processes and sites require different solutions. Application 1 Application 2 Application 3 Application 4 Application 5 Application 6 Application 7 Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 34

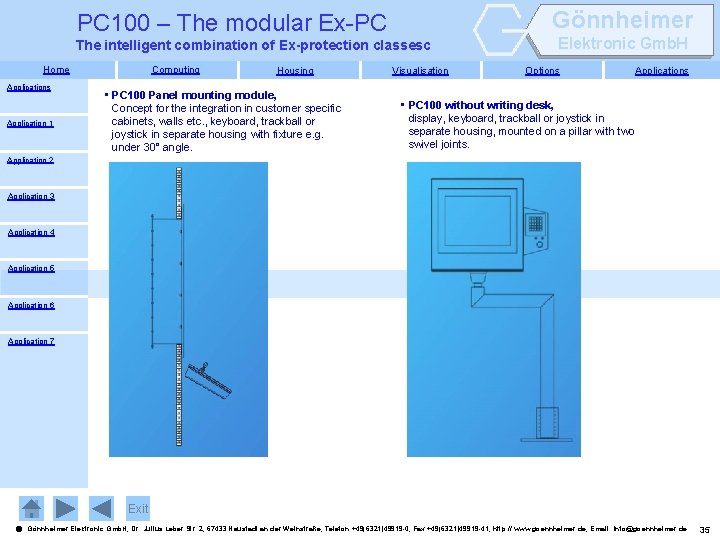

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Applications Application 1 Computing Housing • PC 100 Panel mounting module, Concept for the integration in customer specific cabinets, walls etc. , keyboard, trackball or joystick in separate housing with fixture e. g. under 30° angle. Visualisation Elektronic Gmb. H Options Applications • PC 100 without writing desk, display, keyboard, trackball or joystick in separate housing, mounted on a pillar with two swivel joints. Application 2 Application 3 Application 4 Application 5 Application 6 Application 7 Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 35

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Application 1 • PC 100 Individual, The modular Concept of the PC 100 allows an individual und efficient realization of your application. Application 2 Application 3 Application 4 Application 5 Application 6 Application 7 Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 36

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications • PC 100 Dual-Head, doubled screen size in 15“, 19“ or 21“, for desktop or wall mounting. (Other display sizes also available on demand). Application 1 Application 2 Application 3 Application 4 Application 5 Application 6 Application 7 Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 37

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Application 1 • PC 100 Optimized to working place, e. g. if the NAMUR-requirements and the possibilities for the installation of the real working station on site are different. . Application 2 Application 3 Application 4 Application 5 Application 6 Application 7 Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 38

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Application 1 • PC 100 Ergonomic design, as the first manufacturer of Ex-PCs and Operator stations, Gönnheimer offers the possiblity to adapt the PC 100 working place ergonomically and according to the NAMUR-guideline. Adapt the angles of display and keyboard to meet your wishes and preferences. Application 2 Application 3 Application 4 Application 5 Application 6 Application 7 Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 39

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Application 1 • PC 100 Mobile, 15“ – 21“ for mobile applications, with KVM extender, Thin Client or Embedded CPU. Application 2 Application 3 Application 4 Application 5 Application 6 Application 7 Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 40

Gönnheimer PC 100 – The modular Ex-PC The intelligent combination of Ex-protection classesc Home Computing Housing Visualisation Elektronic Gmb. H Options Applications Application 1 • PC 100 Custom solution, Touch for Pharma cleanroom application, special installation integrated, rotatable slim case. Application 2 Application 3 Application 4 Application 5 Application 6 Application 7 Exit Ó Gönnheimer Elektronic Gmb. H, Dr. Julius Leber Str. 2, 67433 Neustadt an der Weinstraße, Telefon +49(6321)49919 -0, Fax +49(6321)49919 -41, http: // www. goennheimer. de, Email: info@goennheimer. de 41
