Global Security USG-810 Rescue Systems for Multi Story Buildings

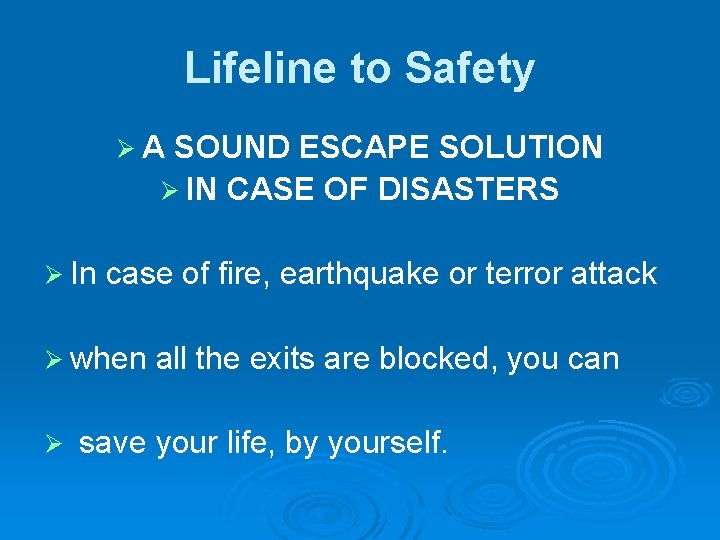

Lifeline to Safety ØA SOUND ESCAPE SOLUTION Ø IN CASE OF DISASTERS Ø In case of fire, earthquake or terror attack Ø when Ø all the exits are blocked, you can save your life, by yourself.

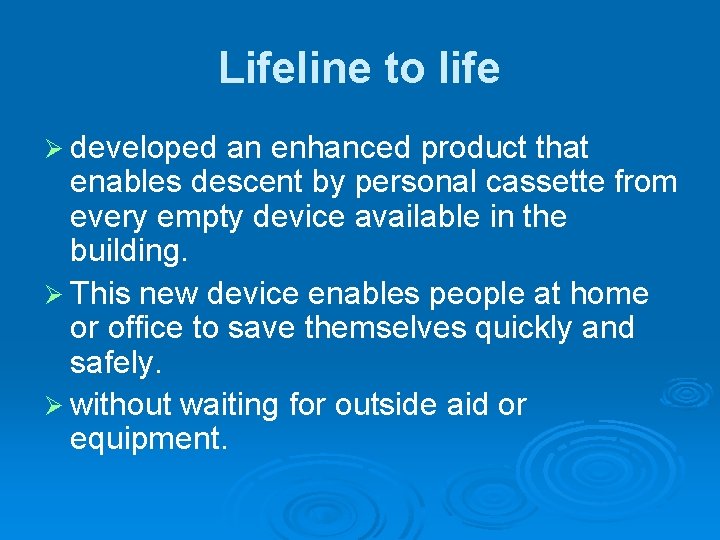

Lifeline to life Ø developed an enhanced product that enables descent by personal cassette from every empty device available in the building. Ø This new device enables people at home or office to save themselves quickly and safely. Ø without waiting for outside aid or equipment.
A SOUND ESCAPE SOLUTION IN CASE OF DISASTERS

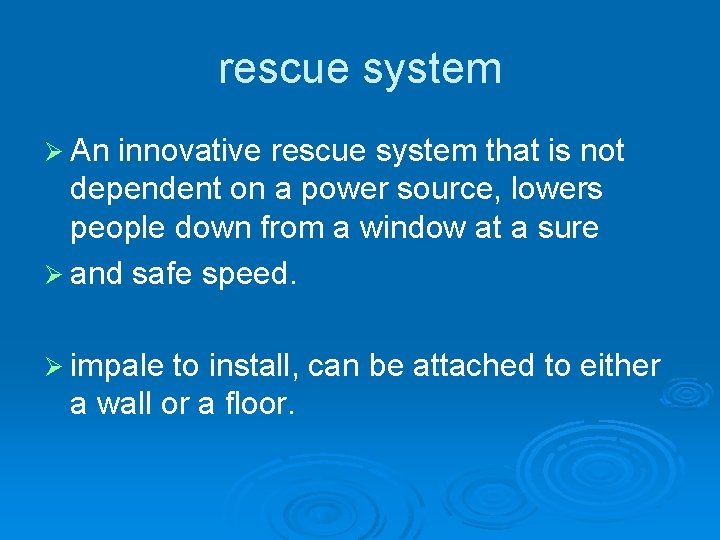

rescue system Ø An innovative rescue system that is not dependent on a power source, lowers people down from a window at a sure Ø and safe speed. Ø impale to install, can be attached to either a wall or a floor.

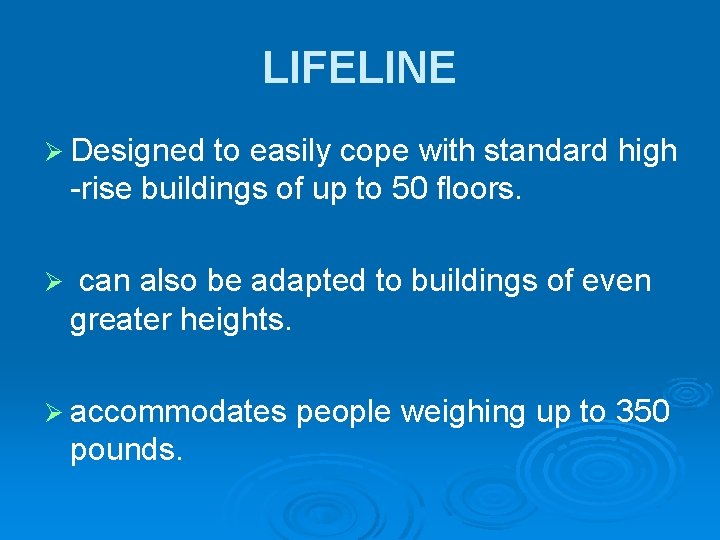

LIFELINE Ø Designed to easily cope with standard high -rise buildings of up to 50 floors. Ø can also be adapted to buildings of even greater heights. Ø accommodates pounds. people weighing up to 350

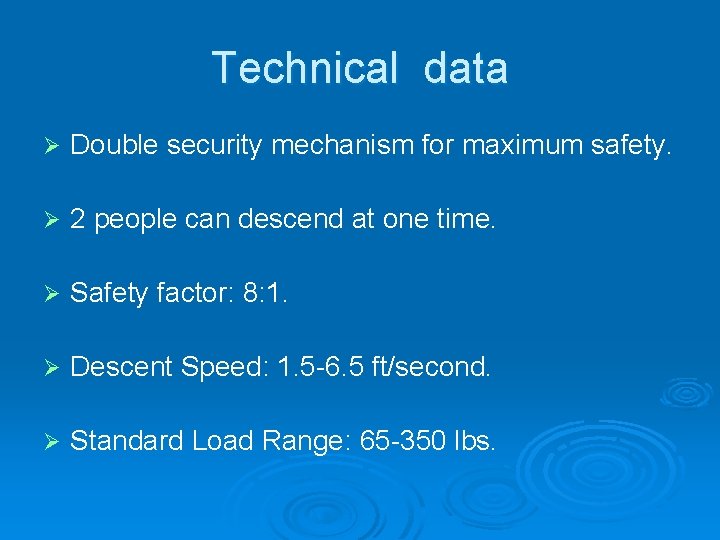

Technical data Ø Double security mechanism for maximum safety. Ø 2 people can descend at one time. Ø Safety factor: 8: 1. Ø Descent Speed: 1. 5 -6. 5 ft/second. Ø Standard Load Range: 65 -350 lbs.

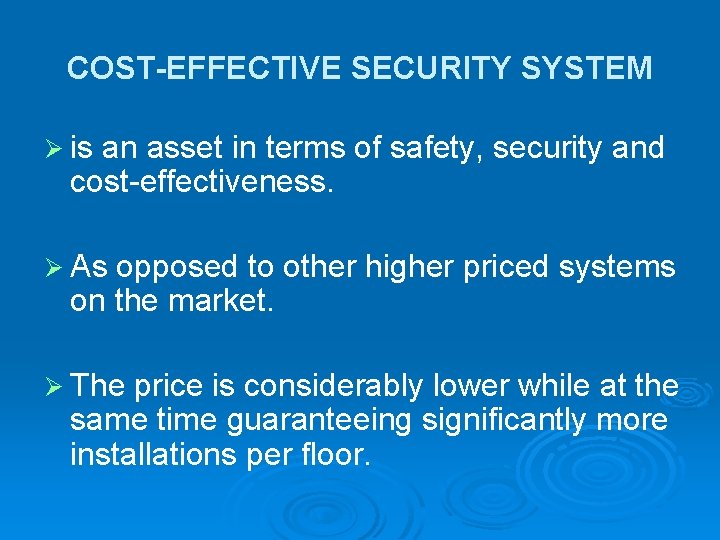

COST-EFFECTIVE SECURITY SYSTEM Ø is an asset in terms of safety, security and cost-effectiveness. Ø As opposed to other higher priced systems on the market. Ø The price is considerably lower while at the same time guaranteeing significantly more installations per floor.

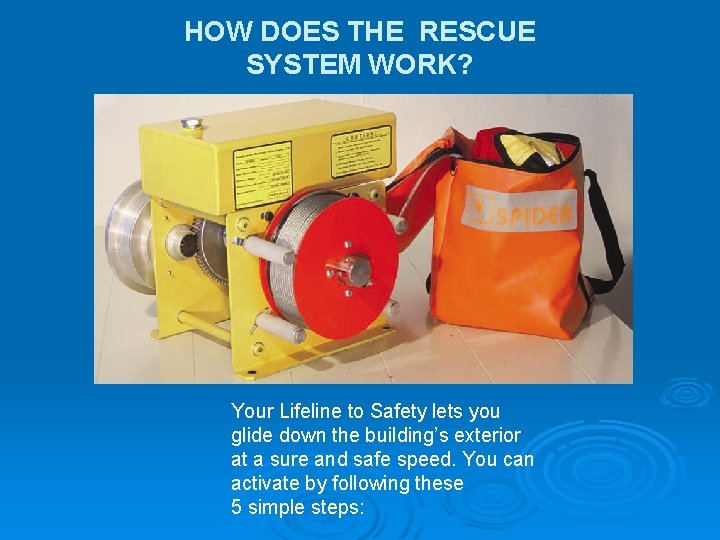

HOW DOES THE RESCUE SYSTEM WORK? Your Lifeline to Safety lets you glide down the building’s exterior at a sure and safe speed. You can activate by following these 5 simple steps:

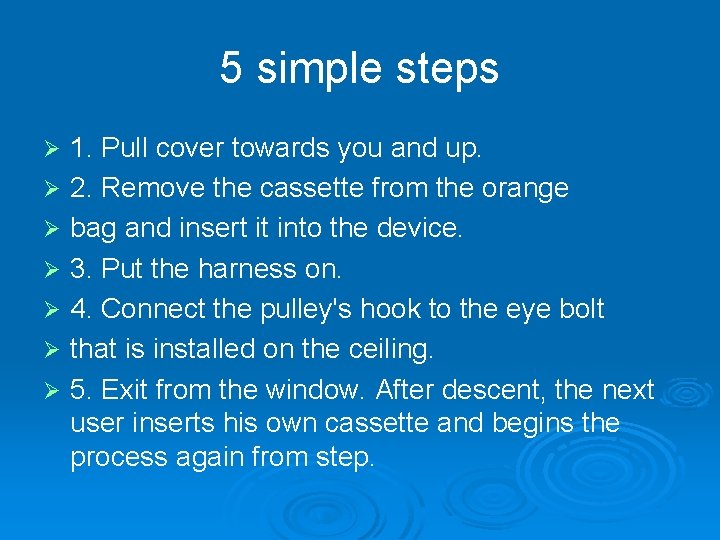

5 simple steps Ø Ø Ø Ø 1. Pull cover towards you and up. 2. Remove the cassette from the orange bag and insert it into the device. 3. Put the harness on. 4. Connect the pulley's hook to the eye bolt that is installed on the ceiling. 5. Exit from the window. After descent, the next user inserts his own cassette and begins the process again from step.

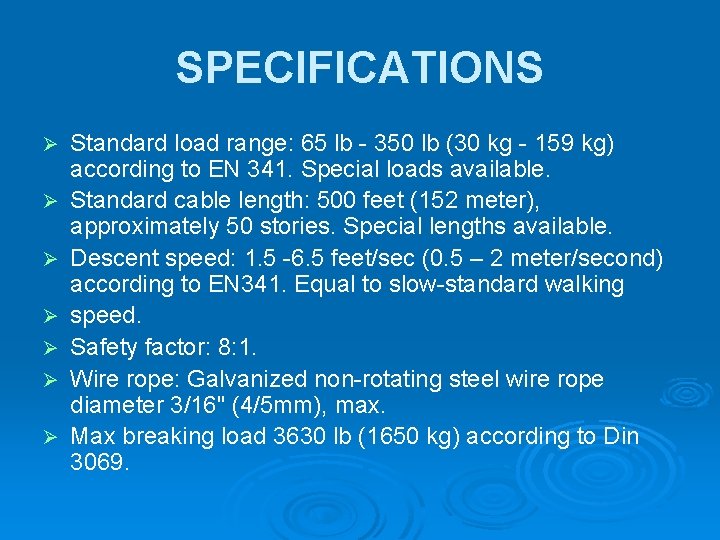

SPECIFICATIONS Ø Ø Ø Ø Standard load range: 65 lb - 350 lb (30 kg - 159 kg) according to EN 341. Special loads available. Standard cable length: 500 feet (152 meter), approximately 50 stories. Special lengths available. Descent speed: 1. 5 -6. 5 feet/sec (0. 5 – 2 meter/second) according to EN 341. Equal to slow-standard walking speed. Safety factor: 8: 1. Wire rope: Galvanized non-rotating steel wire rope diameter 3/16" (4/5 mm), max. Max breaking load 3630 lb (1650 kg) according to Din 3069.

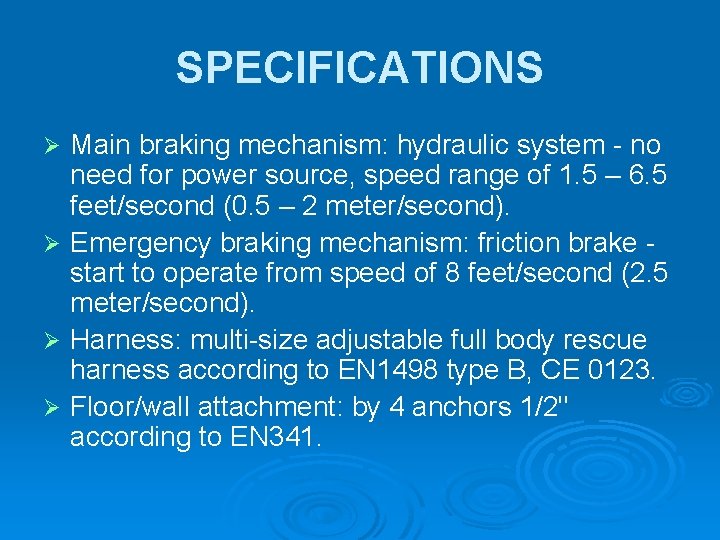

SPECIFICATIONS Main braking mechanism: hydraulic system - no need for power source, speed range of 1. 5 – 6. 5 feet/second (0. 5 – 2 meter/second). Ø Emergency braking mechanism: friction brake start to operate from speed of 8 feet/second (2. 5 meter/second). Ø Harness: multi-size adjustable full body rescue harness according to EN 1498 type B, CE 0123. Ø Floor/wall attachment: by 4 anchors 1/2" according to EN 341. Ø

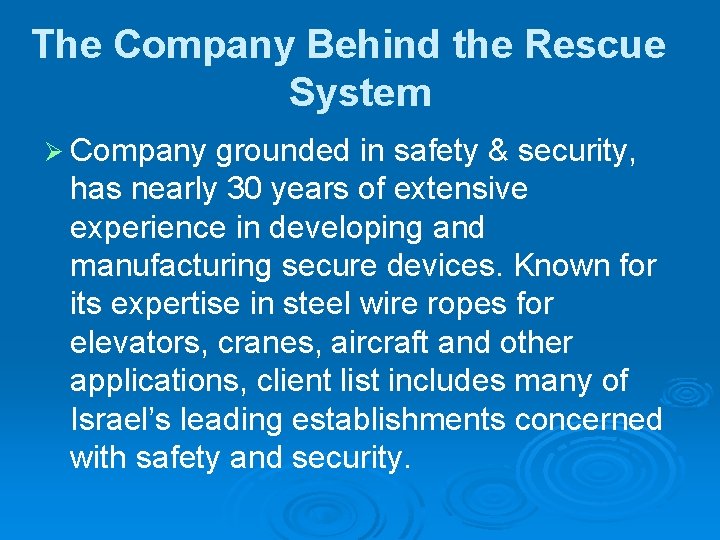

The Company Behind the Rescue System Ø Company grounded in safety & security, has nearly 30 years of extensive experience in developing and manufacturing secure devices. Known for its expertise in steel wire ropes for elevators, cranes, aircraft and other applications, client list includes many of Israel’s leading establishments concerned with safety and security.
