Global Positioning Systems Wing GPS Program Update to ION GNSS 2009 22 September 2009 Col Dave Madden Commander GPS Wing 2008 09 22 GPS Overview to ION v 6

Global Positioning Systems Wing Mission: Acquire and sustain survivable, effective, and affordable global positioning & timing services for our military and civil users Col Dave Madden Deliver and Sustain Global Navigation and Timing Service 2008 09 22 GPS Overview to ION v 6 2

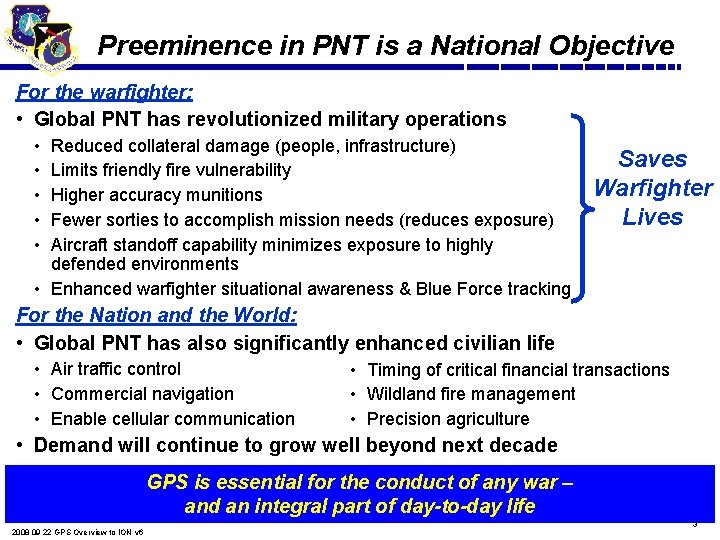

Preeminence in PNT is a National Objective For the warfighter: • Global PNT has revolutionized military operations • • • Reduced collateral damage (people, infrastructure) Limits friendly fire vulnerability Higher accuracy munitions Fewer sorties to accomplish mission needs (reduces exposure) Aircraft standoff capability minimizes exposure to highly defended environments • Enhanced warfighter situational awareness & Blue Force tracking Saves Warfighter Lives For the Nation and the World: • Global PNT has also significantly enhanced civilian life • Air traffic control • Commercial navigation • Enable cellular communication • Timing of critical financial transactions • Wildland fire management • Precision agriculture • Demand will continue to grow well beyond next decade GPS is essential for the conduct of any war – and an integral part of day-to-day life 2008 09 22 GPS Overview to ION v 6 3

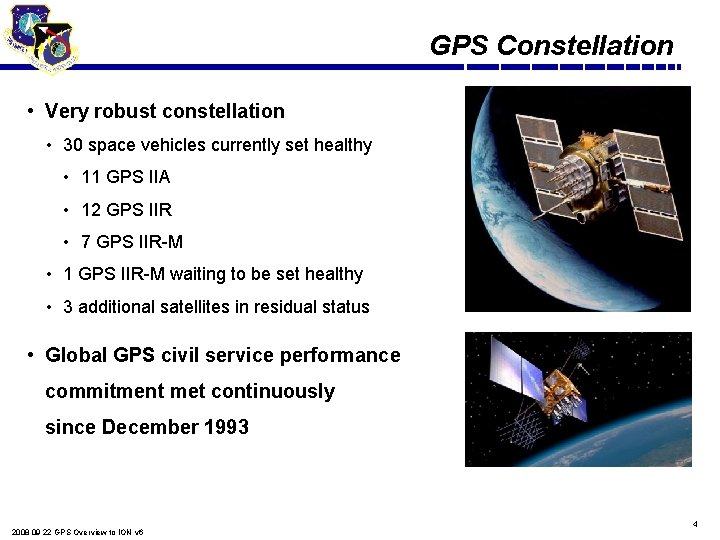

GPS Constellation • Very robust constellation • 30 space vehicles currently set healthy • 11 GPS IIA • 12 GPS IIR • 7 GPS IIR-M • 1 GPS IIR-M waiting to be set healthy • 3 additional satellites in residual status • Global GPS civil service performance commitment met continuously since December 1993 2008 09 22 GPS Overview to ION v 6 4

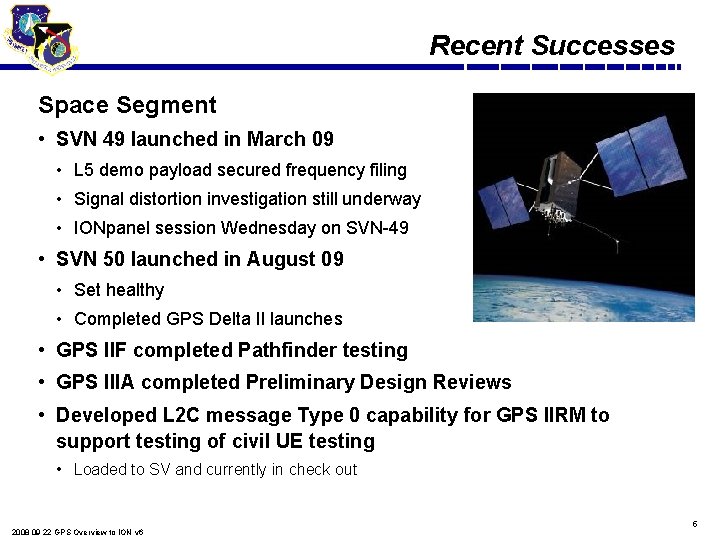

Recent Successes Space Segment • SVN 49 launched in March 09 • L 5 demo payload secured frequency filing • Signal distortion investigation still underway • IONpanel session Wednesday on SVN-49 • SVN 50 launched in August 09 • Set healthy • Completed GPS Delta II launches • GPS IIF completed Pathfinder testing • GPS IIIA completed Preliminary Design Reviews • Developed L 2 C message Type 0 capability for GPS IIRM to support testing of civil UE testing • Loaded to SV and currently in check out 2008 09 22 GPS Overview to ION v 6 5

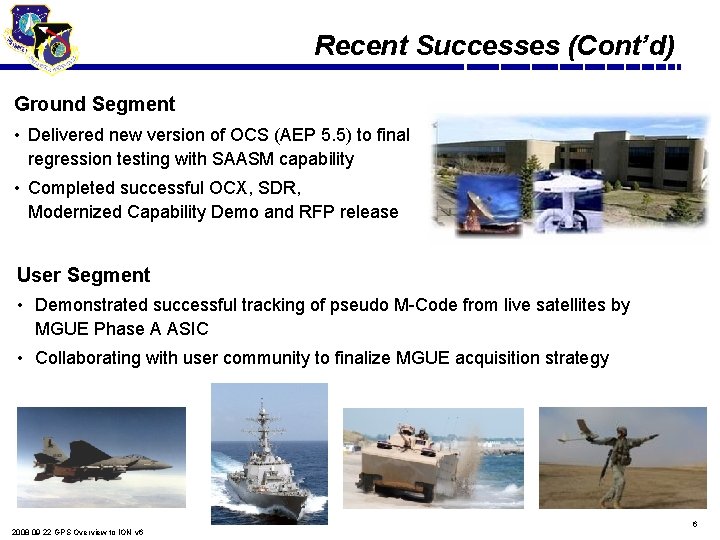

Recent Successes (Cont’d) Ground Segment • Delivered new version of OCS (AEP 5. 5) to final regression testing with SAASM capability • Completed successful OCX, SDR, Modernized Capability Demo and RFP release User Segment • Demonstrated successful tracking of pseudo M-Code from live satellites by MGUE Phase A ASIC • Collaborating with user community to finalize MGUE acquisition strategy 2008 09 22 GPS Overview to ION v 6 6

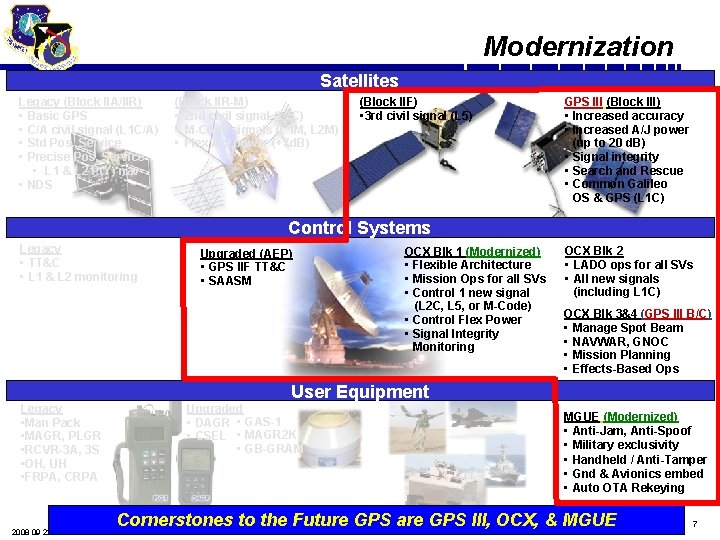

Modernization Satellites Legacy (Block IIA/IIR) • Basic GPS • C/A civil signal (L 1 C/A) • Std Pos. Service • Precise Pos. Service • L 1 & L 2 P(Y) nav • NDS (Block IIR-M) • 2 nd civil signal (L 2 C) • M-Code signals (L 1 M, L 2 M) • Flex A/J power (+7 d. B) (Block IIF) • 3 rd civil signal (L 5) GPS III (Block III) • Increased accuracy • Increased A/J power (up to 20 d. B) • Signal integrity • Search and Rescue • Common Galileo OS & GPS (L 1 C) Control Systems Legacy • TT&C • L 1 & L 2 monitoring Upgraded (AEP) • GPS IIF TT&C • SAASM OCX Blk 1 (Modernized) • Flexible Architecture • Mission Ops for all SVs • Control 1 new signal (L 2 C, L 5, or M-Code) • Control Flex Power • Signal Integrity Monitoring OCX Blk 2 • LADO ops for all SVs • All new signals (including L 1 C) OCX Blk 3&4 (GPS III B/C) • Manage Spot Beam • NAVWAR, GNOC • Mission Planning • Effects-Based Ops User Equipment Legacy • Man Pack • MAGR, PLGR • RCVR-3 A, 3 S • OH, UH • FRPA, CRPA Upgraded • DAGR • GAS-1 • CSEL • MAGR 2 K • GB-GRAM MGUE (Modernized) • Anti-Jam, Anti-Spoof • Military exclusivity • Handheld / Anti-Tamper • Gnd & Avionics embed • Auto OTA Rekeying Cornerstones to the Future GPS are GPS III, OCX, & MGUE 2008 09 22 GPS Overview to ION v 6 7

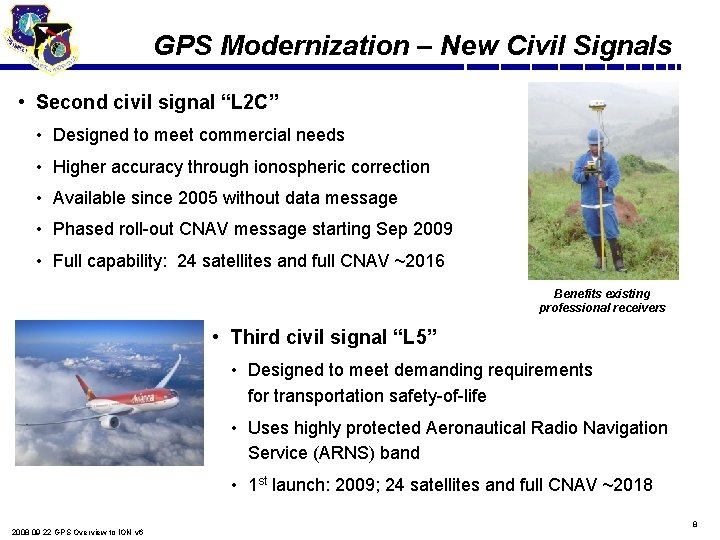

GPS Modernization – New Civil Signals • Second civil signal “L 2 C” • Designed to meet commercial needs • Higher accuracy through ionospheric correction • Available since 2005 without data message • Phased roll-out CNAV message starting Sep 2009 • Full capability: 24 satellites and full CNAV ~2016 Benefits existing professional receivers • Third civil signal “L 5” • Designed to meet demanding requirements for transportation safety-of-life • Uses highly protected Aeronautical Radio Navigation Service (ARNS) band • 1 st launch: 2009; 24 satellites and full CNAV ~2018 2008 09 22 GPS Overview to ION v 6 8

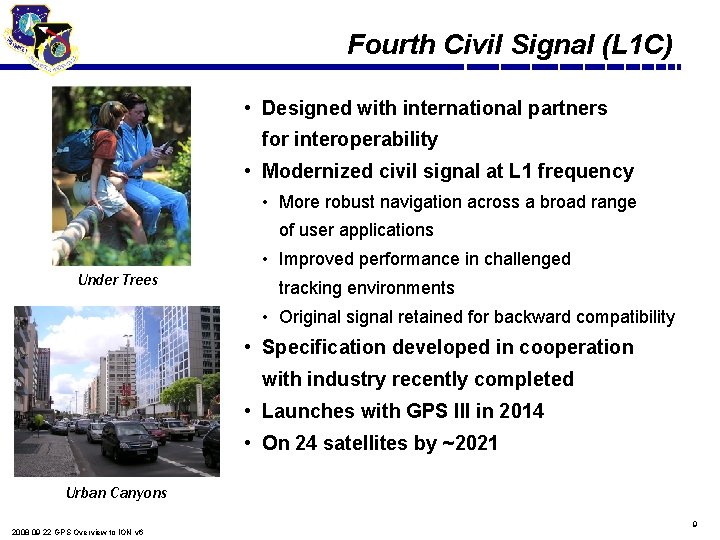

Fourth Civil Signal (L 1 C) • Designed with international partners for interoperability • Modernized civil signal at L 1 frequency • More robust navigation across a broad range of user applications • Improved performance in challenged Under Trees tracking environments • Original signal retained for backward compatibility • Specification developed in cooperation with industry recently completed • Launches with GPS III in 2014 • On 24 satellites by ~2021 Urban Canyons 2008 09 22 GPS Overview to ION v 6 9

IIF Satellites • Delivers all legacy signals, plus new capabilities (L 5) and capability improvements (new clocks for better accuracy) • Primary focus remains on Mission Success activities • Integrated readiness reviews with Boeing, GPSW, and SMC technical staffs • Executive reviews with Boeing VPs, GPSW/CC, SMC/CC and former GPS Directors • Several components redesigned or reworked to ensure success • IIF-1 L 2, L 3, L 5 units replaced and retested successfully • Extensive testing conducted to ensure IIF mission success • Tailored MIL-STD tests in factory • Pathfinder launch site testing • Consolidated System Testing • AEP 5. 5 Transition Exercises • LADO IIF rehearsals • Completing development of On-orbit test plans 2008 09 22 GPS Overview to ION v 6 10

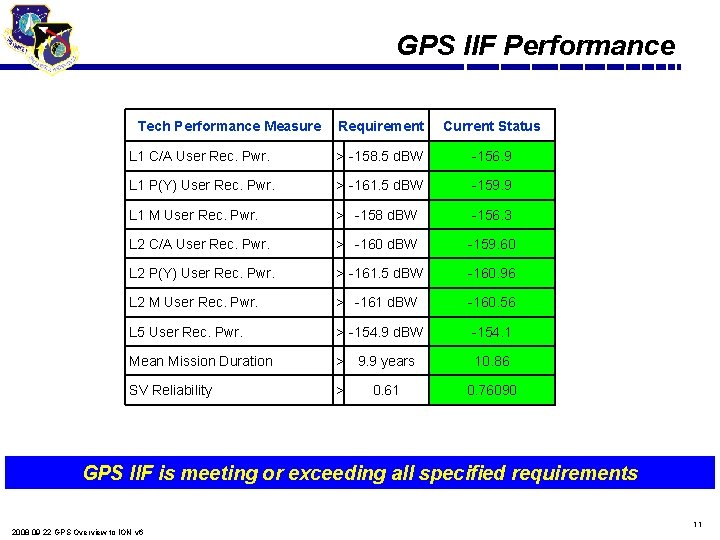

GPS IIF Performance Tech Performance Measure Requirement Current Status L 1 C/A User Rec. Pwr. > -158. 5 d. BW -156. 9 L 1 P(Y) User Rec. Pwr. > -161. 5 d. BW -159. 9 L 1 M User Rec. Pwr. > -158 d. BW -156. 3 L 2 C/A User Rec. Pwr. > -160 d. BW -159. 60 L 2 P(Y) User Rec. Pwr. > -161. 5 d. BW -160. 96 L 2 M User Rec. Pwr. > -161 d. BW -160. 56 L 5 User Rec. Pwr. > -154. 9 d. BW -154. 1 Mean Mission Duration > 9. 9 years 10. 86 SV Reliability > 0. 61 0. 76090 GPS IIF is meeting or exceeding all specified requirements 2008 09 22 GPS Overview to ION v 6 11

IIF Pathfinder (May – Sep 2009) • IIF-2 shipped to Cape for risk mitigation • All transport procedures proven successful • All mechanical activities performed to plan and facility interfaces verified • Consolidated System Testing checked all interfaces to OCS AEP and LADO • Cut IIF-1 critical path to launch by 2 months and reduced schedule risk • Best Practice for future GPS programs 2008 09 22 GPS Overview to ION v 6 12

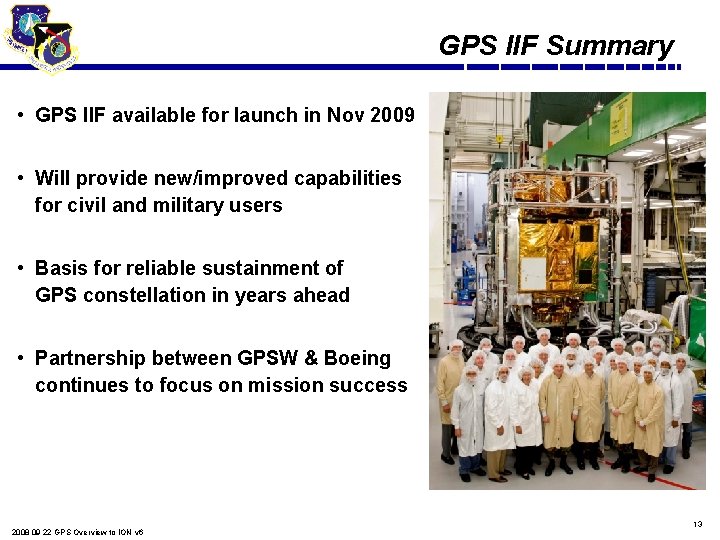

GPS IIF Summary • GPS IIF available for launch in Nov 2009 • Will provide new/improved capabilities for civil and military users • Basis for reliable sustainment of GPS constellation in years ahead • Partnership between GPSW & Boeing continues to focus on mission success 2008 09 22 GPS Overview to ION v 6 13

Military GPS User Equipment (MGUE) provides M-Code to the Warfighter 2008 09 22 GPS Overview to ION v 6 14

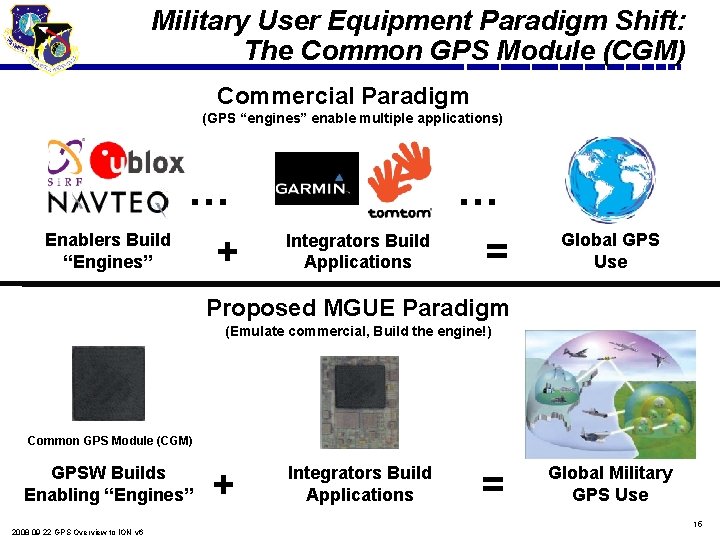

Military User Equipment Paradigm Shift: The Common GPS Module (CGM) Commercial Paradigm (GPS “engines” enable multiple applications) … Enablers Build “Engines” + … Integrators Build Applications = Global GPS Use Proposed MGUE Paradigm (Emulate commercial, Build the engine!) Common GPS Module (CGM) GPSW Builds Enabling “Engines” 2008 09 22 GPS Overview to ION v 6 + Integrators Build Applications = Global Military GPS Use 15

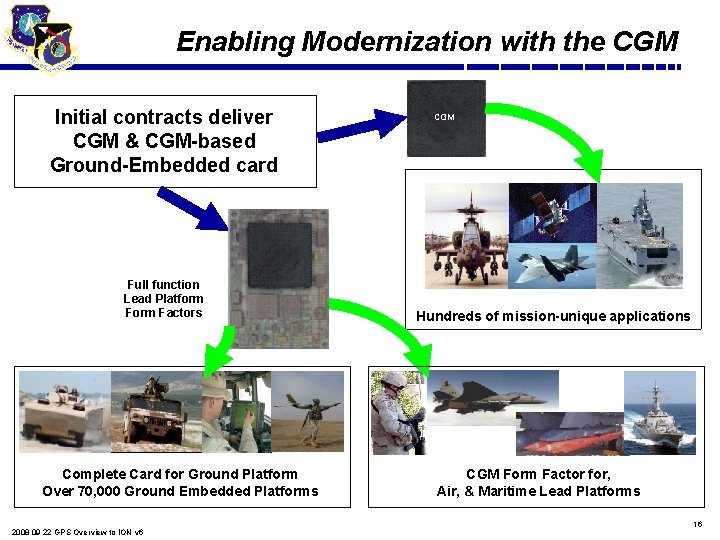

Enabling Modernization with the CGM Initial contracts deliver CGM & CGM-based Ground-Embedded card CGM Full function Lead Platform Factors Complete Card for Ground Platform Over 70, 000 Ground Embedded Platforms 2008 09 22 GPS Overview to ION v 6 Hundreds of mission-unique applications CGM Form Factor for, Air, & Maritime Lead Platforms 16

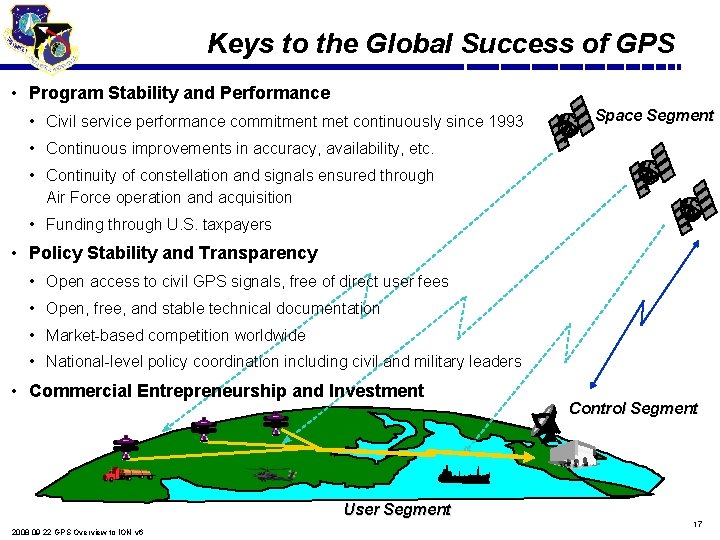

Keys to the Global Success of GPS • Program Stability and Performance • Civil service performance commitment met continuously since 1993 Space Segment • Continuous improvements in accuracy, availability, etc. • Continuity of constellation and signals ensured through Air Force operation and acquisition • Funding through U. S. taxpayers • Policy Stability and Transparency • Open access to civil GPS signals, free of direct user fees • Open, free, and stable technical documentation • Market-based competition worldwide • National-level policy coordination including civil and military leaders • Commercial Entrepreneurship and Investment Control Segment User Segment 2008 09 22 GPS Overview to ION v 6 17

Summary • GPS has continuously met is commitments to all users since FOC • GPS has had multiple operational and acquisition successes in the past year • Modernization of all GPS Segments is on track Maintaining And Improving GPS Services For All Users Is Job #1 2008 09 22 GPS Overview to ION v 6 18
