Global IPv 6 Summit in Japan Osaka Dec 18 - 19, 2000 IPv 6 Activities in Korea Yong-Jin Kim IPv 6 Forum Korea, President yjkim@pec. etri. re. kr ETRI (Electronic Telecommunication Research Institute), Korea

IPv 6 Activities in Korea - Summary n KRv 6 Project 1 st IPv 6 Development /Deployment Project in Korea n IPv 6 Address Delegation & Allocation 5 s. TLAs : ETRI, KT, Dacom, Hitel, hanaro n 6 Bone-KR Experimental IPv 6 Testbed in Korea n IPv 6 Forum Actively involved in IPv 6 Forum National Forum : Korean IPv 6 Forum n IPv 6 Commercial Network Deployment 6 NGIX (IPv 6 Next Generation Internet e. Xchange) ETRI 2

3 KRv 6 Project(1) www. krv 6. net n Period : 1 st Phase : 2000~2001 2 nd Phase : 2002 n Goals Providing IPv 6 deployment / Transition strategies Providing Solutions toward the IPv 6 world n Current R&D activities Progressive IPv 6 deployment/Transition Strategy in Korea IPv 4/IPv 6 Address/Protocol Translator IPv 6 Applications IPv 6 IPv 4/IPv 6 Translation API World IPv 6 Testbed & Trial Site How to transit smoothly & transparently ? ETRI

4 KRv 6 Project(2) n Progressive IPv 6 deployment Strategy in Korea www. krv 6. net Promotion Policy & Address Delegation Scheme n IPv 4/IPv 6 Address Translator Network Address Protocol Translation + Protocol Translation Application Level Gateway n IPv 6 Applications WWW Server/Client, Qo. S-enable application on IPv 6, and so on n IPv 4/IPv 6 Translation API Host-based Translator : possible to use IPv 4 application on the IPv 6 network without any modification n IPv 6 Testbed & Trial Site Native IPv 6 Testbed Tunneling Service Address & Protocol Translation Service ETRI

ETRI IPv 6 Address Delegation and allocation(1) 5 n s. TLA, ETRI, 2001: 0230: : /35 |3 bits| 13 bits | 6 bits | FP TLA | sub-TLA | Reserved | NLA | | 13 bits | | +-------------------+----------+---------+ | 001 | 0 0000 0001 | 0000 0100 0000 0 | 000 | 0 0000 | +----------------------+--------------+ | 2 0 0 1 | 0 2 3 0 | 0 0 | +-------------------------------------+ <------------/35 delegation--------->| | <------------/41 NLA 1 ---------------->| <------------/48 NLA 2 --------------------->| n NLA 1 and NLA 2 | 6 bits | 7 bits | | NLA 1 | NLA 2 | +-------------| | 0 0000 0 | 0000 | +-------------+ ETRI

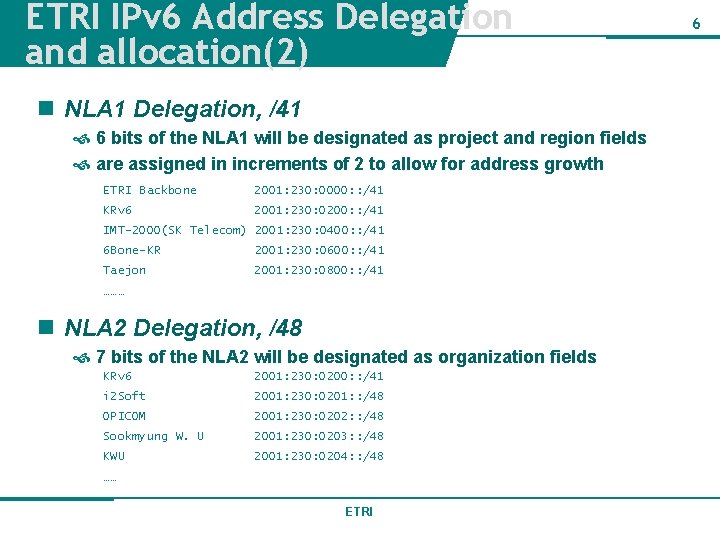

ETRI IPv 6 Address Delegation and allocation(2) n NLA 1 Delegation, /41 6 bits of the NLA 1 will be designated as project and region fields are assigned in increments of 2 to allow for address growth ETRI Backbone 2001: 230: 0000: : /41 KRv 6 2001: 230: 0200: : /41 IMT-2000(SK Telecom) 2001: 230: 0400: : /41 6 Bone-KR 2001: 230: 0600: : /41 Taejon 2001: 230: 0800: : /41 ……… n NLA 2 Delegation, /48 7 bits of the NLA 2 will be designated as organization fields KRv 6 2001: 230: 0200: : /41 i 2 Soft 2001: 230: 0201: : /48 OPICOM 2001: 230: 0202: : /48 Sookmyung W. U 2001: 230: 0203: : /48 KWU 2001: 230: 0204: : /48 …… ETRI 6

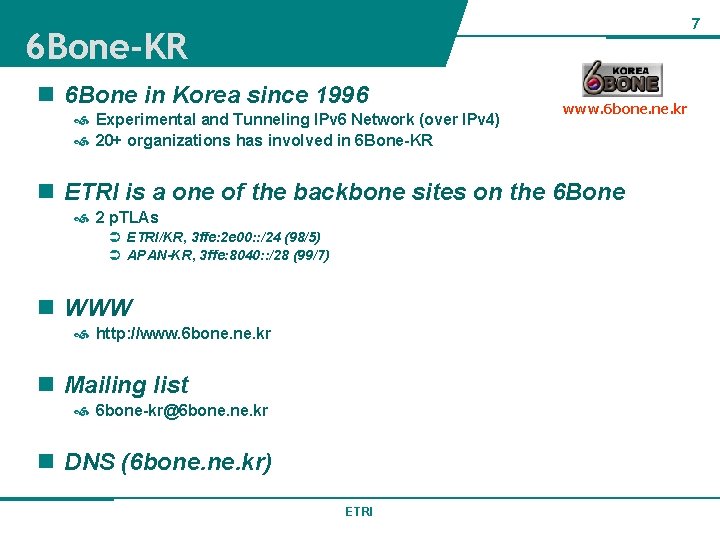

7 6 Bone-KR n 6 Bone in Korea since 1996 Experimental and Tunneling IPv 6 Network (over IPv 4) 20+ organizations has involved in 6 Bone-KR www. 6 bone. kr n ETRI is a one of the backbone sites on the 6 Bone 2 p. TLAs Ü ETRI/KR, 3 ffe: 2 e 00: : /24 (98/5) Ü APAN-KR, 3 ffe: 8040: : /28 (99/7) n WWW http: //www. 6 bone. kr n Mailing list 6 bone-kr@6 bone. kr n DNS (6 bone. kr) ETRI

6 Bone-KR Topology (2000. 11) 8 6 TAP JOIN VIAGENIE AS 1275 {3 ffe: 400: : /34} 128. 176. 191. 66 3 ffe: 2 e 00: e: c: : 1<-> 3 ffe: 2 e 00: e: c: : 0(ETRI) AS 9720{2001: 220: : /35} 2001: 230: e: fffd: : 2/64<-> 2001: 230: e: fffd: : 1/64(ETRI) MERIT CISCO Transpac KOREN AS 10566 {3 ffe: b 00: : /24} 206. 123. 31. 101 3 ffe: b 00: 0 c 18: : 2/127 <-> 3 ffe: b 00: 0 c 18: : 3/127(ETRI) 3 ffe: 2 e 00: : /24, 2001: 230: : /35 ETRI, AS 3748 Cisco AS 237{3 ffe: 1 c 00: : /24} 198. 108. 0. 3 3 ffe: 2 e 00: e: c: : 3/127<-> 3 ffe: 2 e 00: e: c: : 2/127(ETRI) [196: 60] APII/APAN WIDE FORE ASX 200 [0: x] [31: 66] AS 109 {3 ffe: c 00: : /24} 192. 31. 7. 104 3 ffe: c 00: e: c: : 1/126<-> 3 ffe: c 00: e: c: : 2/126(ETRI) SSU KAIST KWU {3 ffe: 2 e 01: 2: : /48} {3 ffe: 2 e 01: 14: : /48} ICU {3 ffe: 2 e 01: 7: : /48} NTT AS 4697 {3 ffe: 1800: : /24} 192. 68. 245. 69 3 ffe: 2 e 00: e: c: : 5/127<-> 3 ffe: 2 e 00: e: c: : 4/127(ETRI) SKTELECOM HITEL DGU {3 ffe: 2 e 01: 8: : /48} CHTTL-TW SWU i 2 soft AS 7622{3 ffe: 8040: : /28} 2001: 230: e: c: : 2/64<-> 2001: 230: e: c: : 1/64(ETRI) {3 ffe: 2 e 01: 13: : /48} {3 ffe: 2 e 01: e: : /48} {3 ffe: 2 e 01: 11: : /48} {3 ffe: 2 e 01: b: : /48} AS 3462 {3 ffe: 3600: : /24} 202. 112. 0. 80 3 ffe: 3600: : 12/127 <-> 3 ffe: 3600: : 13/127(ETRI) ISI-LAP OPICOM DACOM {3 ffe: 2 e 01: 12: : /48} {3 ffe: 2 e 01: 10: : /48} AS 4554 {3 ffe: 3600: : /24} 128. 9. 160. 26 KKU 3 FFE: 800: : FFFD: 0: 0: 9/126 <-> {3 ffe: 2 e 01: c: : /48} 3 FFE: 800: : FFFD: 0: 0: A/126(ETRI) ETRI IPv 6 -in-IPv 4 Tunneling IPv 6 Native (ATM 10 Mbps)

9 BGP 4+ Monitoring n ASPath-tree, developed at CSELT n http: //www. ipv 6. or. kr/ bgp 4+/ASpathtree/htdocs/bgp. html ETRI

10 IPv 6 Forum n International IPv 6 Forum Activities www. ipv 6 forum. com Actively involved in IPv 6 Forum Three General members in Korea (ETRI, KT, and KOREN) Co-chair of One World WG (Dr. Y. J. Kim) n National IPv 6 Forum : IPv 6 Forum Korea Launched at 17 March 2000! Mission www. ipv 6. or. kr Ü Domestic corresponding Forum to IPv 6 Forum in the world Ü To promote IPv 6 improving the market and user awarness of IPv 6 Ü Promote new IPv 6 -based applications and solutions Ü Promote interoperable implementations of IPv 6 standards Ü Resolve issues that create barriers to IPv 6 deployment Ü Study domestic strategies for the deployment of and transition to IPv 6 ETRI

11 IPv 6 Forum Korea n 40 Organizational Members on November! Ü Nonprofit R&D Organization : 6 Ü ISP, Venders : 24 Ü Universities : 10 ETRI

12 Organization Chairman Management Secretarial section. Promotion Group Program WG Public Relation WG Technical Group Mobile Application WG ETRI Home Network & Information Appliance WG IPv 6 Network Operation WG IPv 6 Application WG

IPv 6 Commercial Network Deployment : 6 NGIX 13 n IPv 6 Next Generation Internet e. Xchange Experimental IPv 6 IX on KIX (Korea Internet e. Xchange), Seoul, NCA Will start its real operation in 2001 Q 1 n We are proposing the interconnection plan Will be connected to 6 Bone-KR, KOREN 6 TAP, NSPIXP-6 (via APAN-KR/Transpac) and AMS-IX (via Trans-Eurasia link) Native IPv 6 BGP peering IPv 6 Native Peer - KOREN, ETRI IPv 6 Native Peer - 6 TAP, NSPIXP-6, AMS-IX KIX ATM cloud 6 NGIX IPv 6 Router Cisco 7205 IOS 12. 0 NGIX Registry, Route server IPv 6 Tunnel (over IPv 4) NGIX Tunnel Server (IPv 4/IPv 6) ETRI Cisco Router (IPv 4) IPv 6 Tunnel 6 Bone, 6 Bone-KR Phase 1 : 2001~2002

14 Conclusion n New challenges for Next Generation Internet in Korea More than 15 million users of internet More than 20 million users of cell-phone Wireless internet is emerging as a new market area IMT-2000 service will be initiated in 2002 Home network & home appliance requires internet Vo. IP is a killer application of internet, especially for IPv 6 Secure, Qo. S guaranteed, mobile Internet is requested îNow is the time for IPv 6 ! ETRI
