Glass Fractures bsapp. com

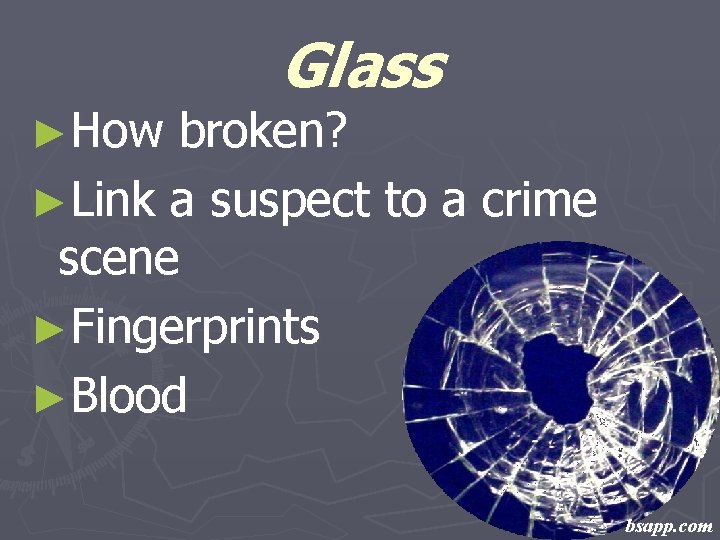

►How Glass broken? ►Link a suspect to a crime scene ►Fingerprints ►Blood bsapp. com

Glass Evidence Collect evidence from crime scene 2) Analysis: 1) a) Physical Properties (color, thickness, type) b) Optical Properties (refractive index: the speed of light in a vacuum divided by the speed of light in the medium or density) c) Elemental Analysis d) Report findings

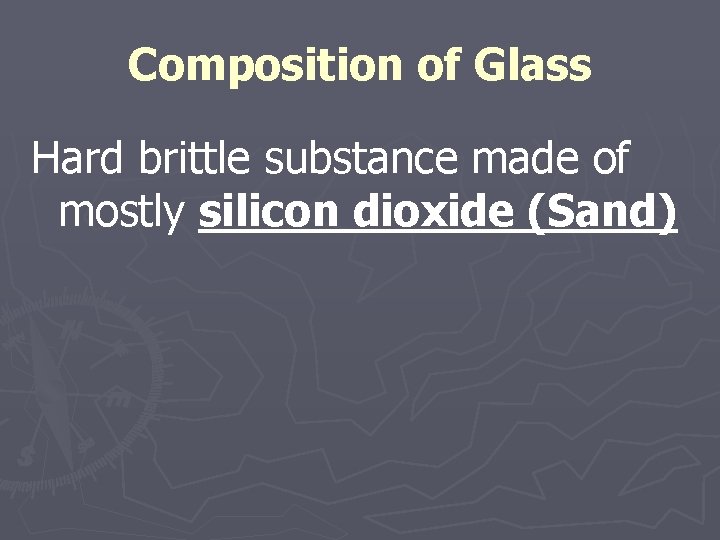

Composition of Glass Hard brittle substance made of mostly silicon dioxide (Sand)

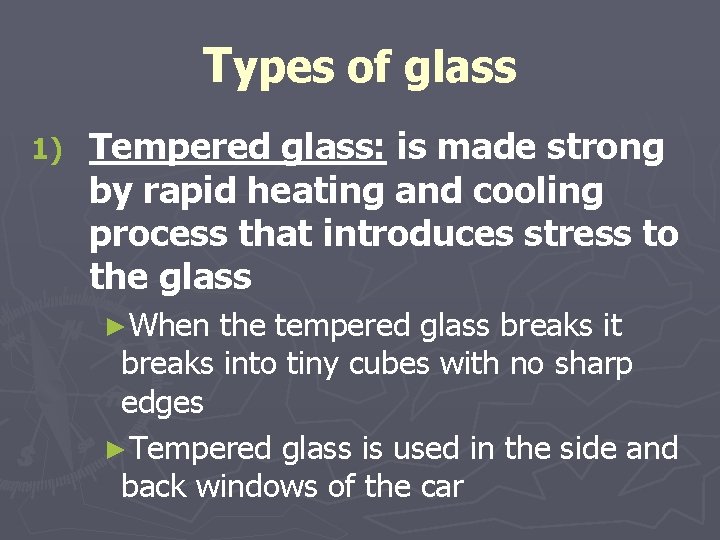

Types of glass 1) Tempered glass: is made strong by rapid heating and cooling process that introduces stress to the glass ►When the tempered glass breaks it breaks into tiny cubes with no sharp edges ►Tempered glass is used in the side and back windows of the car

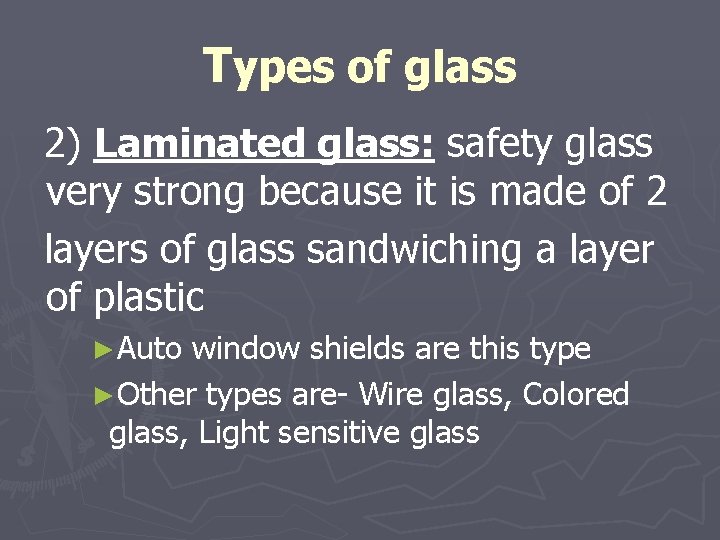

Types of glass 2) Laminated glass: safety glass very strong because it is made of 2 layers of glass sandwiching a layer of plastic ►Auto window shields are this type ►Other types are- Wire glass, Colored glass, Light sensitive glass

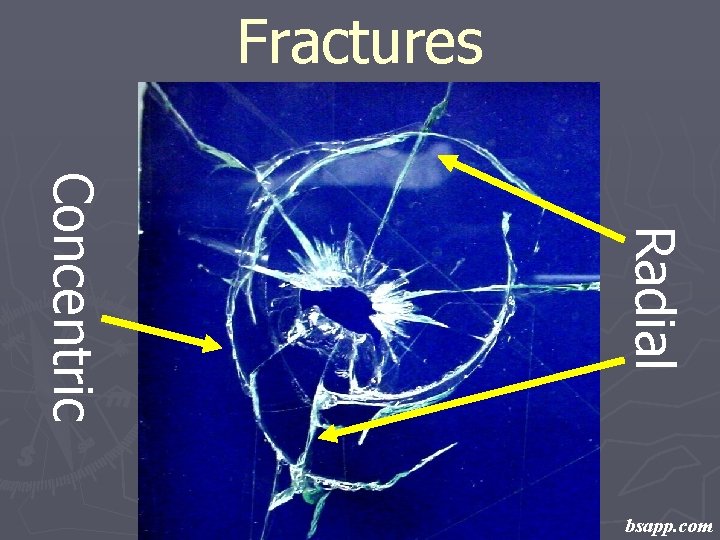

Fractures Radial Concentric bsapp. com

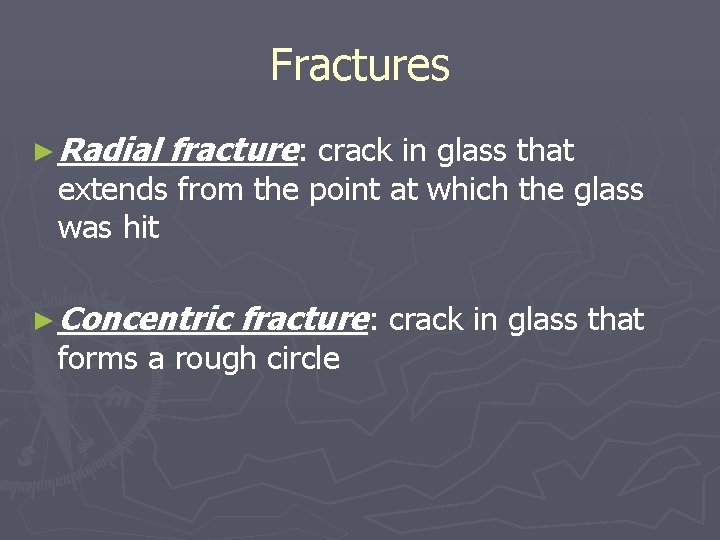

Fractures ► Radial fracture: crack in glass that extends from the point at which the glass was hit ► Concentric fracture: crack in glass that forms a rough circle

bsapp. com

bsapp. com

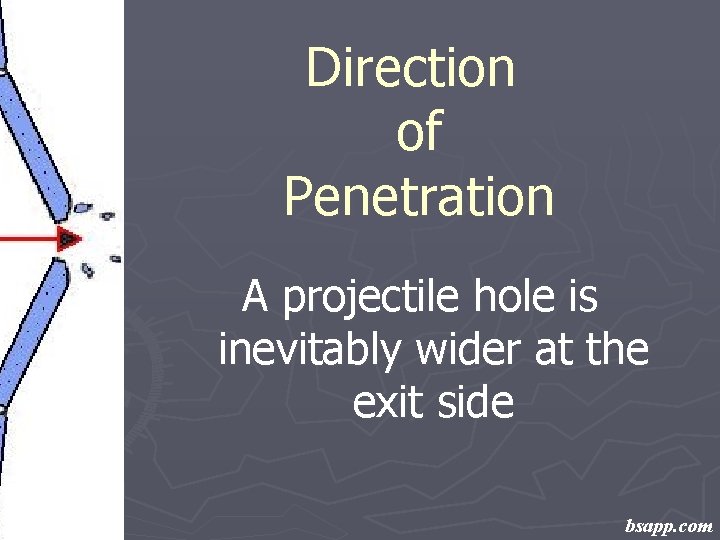

Direction of Penetration A projectile hole is inevitably wider at the exit side bsapp. com

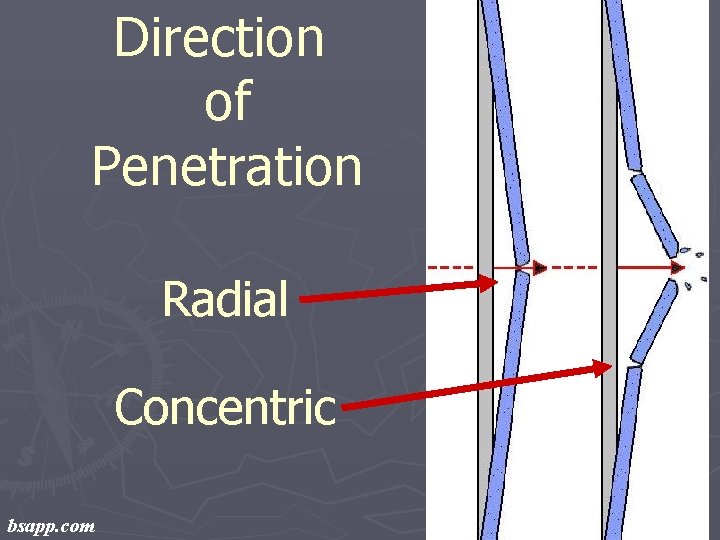

Direction of Penetration Radial Concentric bsapp. com

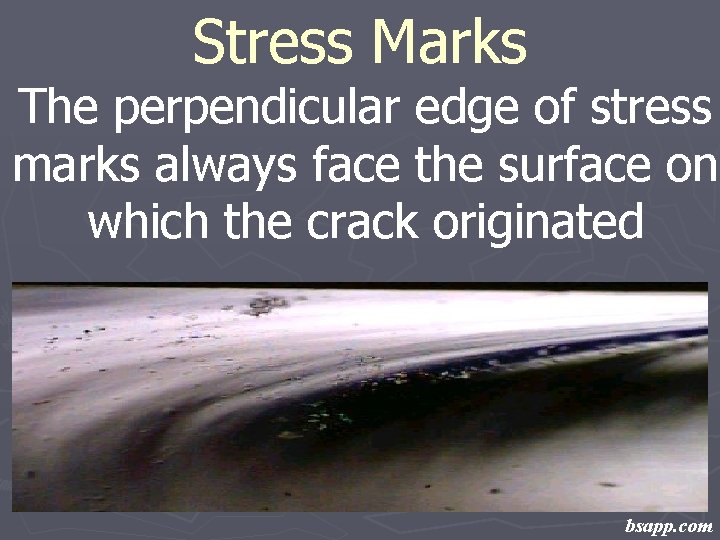

Stress Marks The perpendicular edge of stress marks always face the surface on which the crack originated bsapp. com

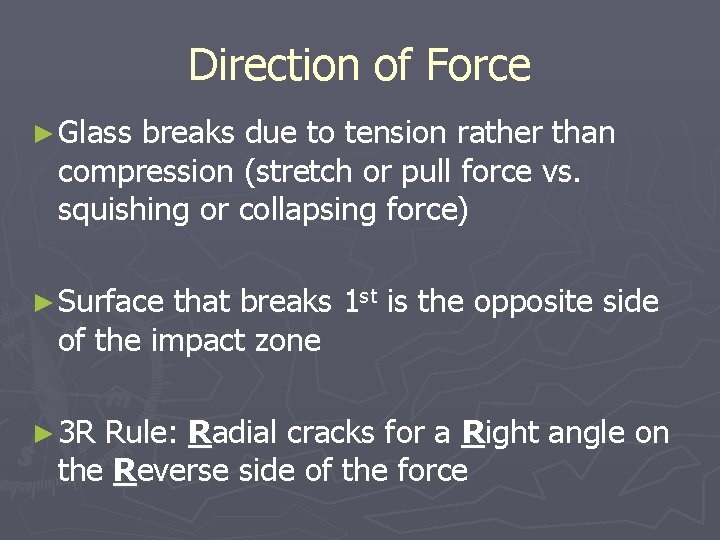

Direction of Force ► Glass breaks due to tension rather than compression (stretch or pull force vs. squishing or collapsing force) ► Surface that breaks 1 st is the opposite side of the impact zone ► 3 R Rule: Radial cracks for a Right angle on the Reverse side of the force

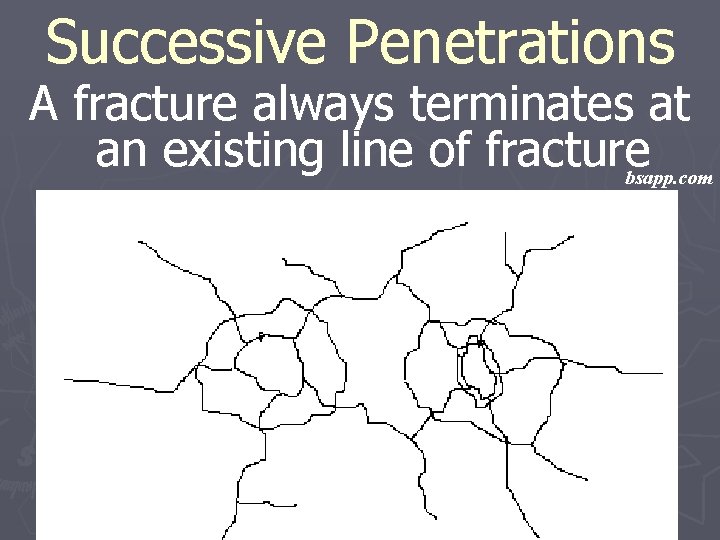

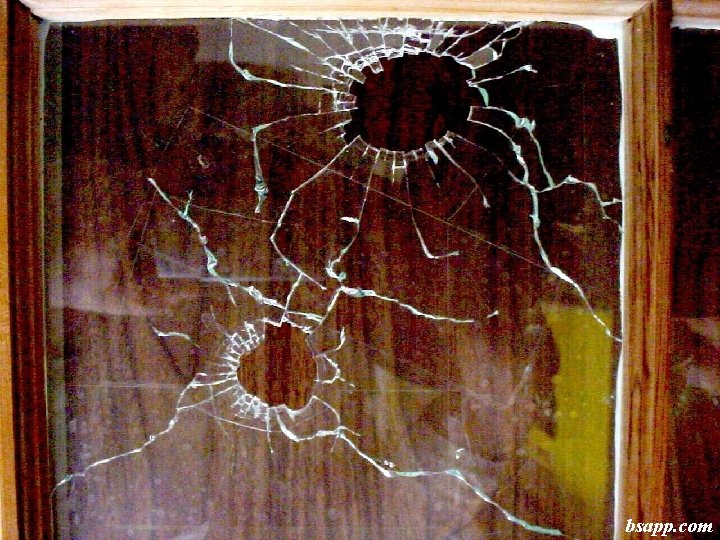

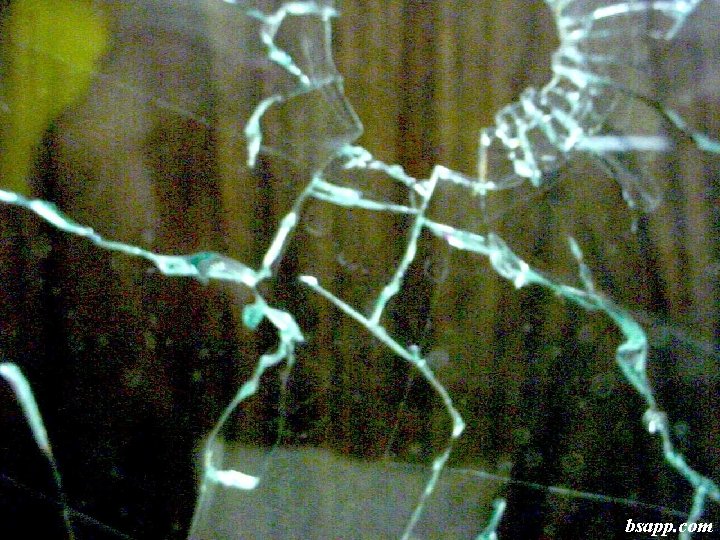

Successive Penetrations A fracture always terminates at an existing line of fracture bsapp. com
