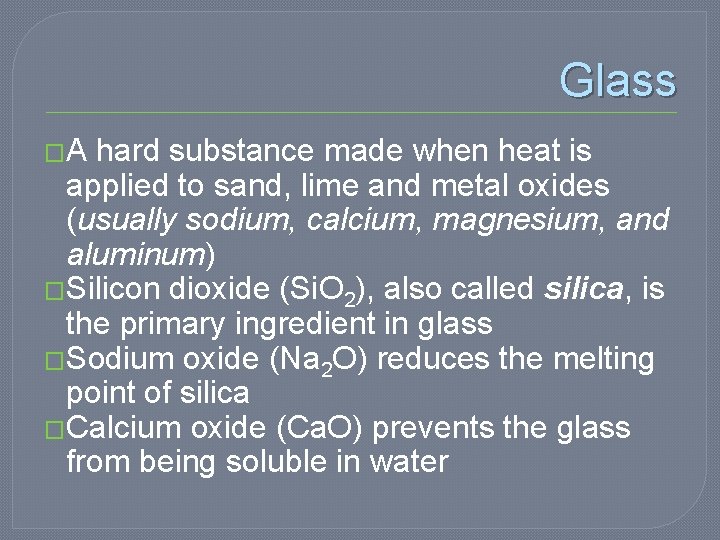

Glass �A hard substance made when heat is applied to sand, lime and metal oxides (usually sodium, calcium, magnesium, and aluminum) �Silicon dioxide (Si. O 2), also called silica, is the primary ingredient in glass �Sodium oxide (Na 2 O) reduces the melting point of silica �Calcium oxide (Ca. O) prevents the glass from being soluble in water

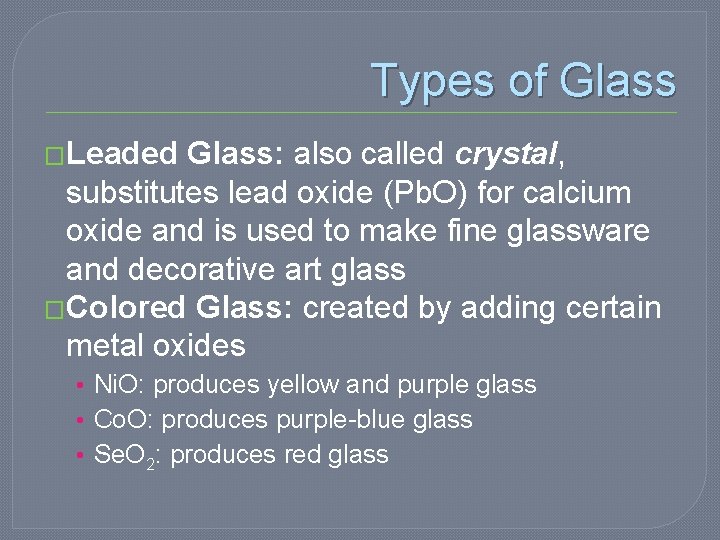

Types of Glass �Leaded Glass: also called crystal, substitutes lead oxide (Pb. O) for calcium oxide and is used to make fine glassware and decorative art glass �Colored Glass: created by adding certain metal oxides • Ni. O: produces yellow and purple glass • Co. O: produces purple-blue glass • Se. O 2: produces red glass

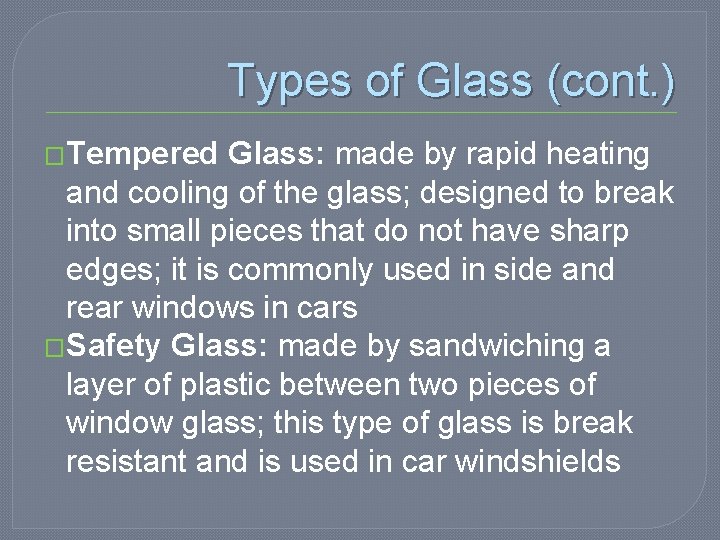

Types of Glass (cont. ) �Tempered Glass: made by rapid heating and cooling of the glass; designed to break into small pieces that do not have sharp edges; it is commonly used in side and rear windows in cars �Safety Glass: made by sandwiching a layer of plastic between two pieces of window glass; this type of glass is break resistant and is used in car windshields

Properties of Glass �Density: each type of glass has a density that is specific to that glass �Color �Refractive Index

Refractive Index �Refraction is the change in the direction of light as it speeds up or slows down when moving from one medium into another; the direction and amount the light bends varies with the densities of the two mediums �Refractive index: calculated by dividing the speed of light in a vacuum (300, 000 km/s) by the speed of light through that particular substance

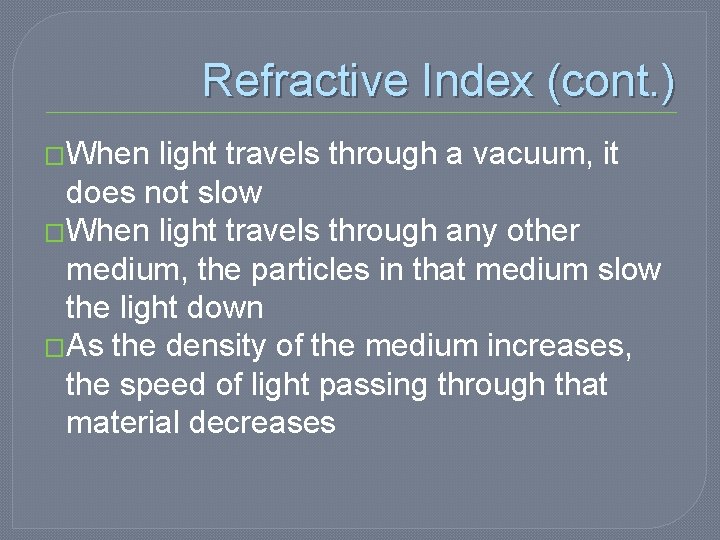

Refractive Index (cont. ) �When light travels through a vacuum, it does not slow �When light travels through any other medium, the particles in that medium slow the light down �As the density of the medium increases, the speed of light passing through that material decreases

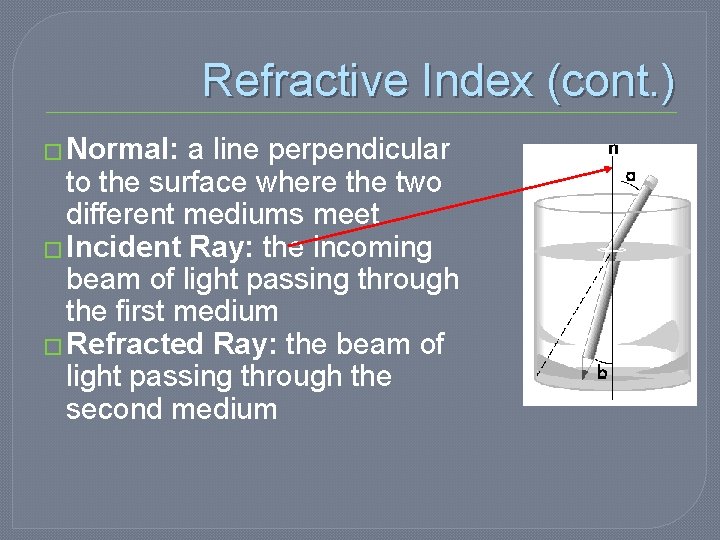

Refractive Index (cont. ) � Normal: a line perpendicular to the surface where the two different mediums meet � Incident Ray: the incoming beam of light passing through the first medium � Refracted Ray: the beam of light passing through the second medium

Refractive Index (cont. ) �Angle of Incidence: the angle the incident ray in medium 1 forms with the normal �Angle of Refraction: the angle the refracted ray in medium 2 forms with the normal

Snell’s Law �Describes the behavior of light as it travels from one medium into a different medium �Written as: n 1 (sine angle 1) = n 2 (sine angle 2) Where n 1 is the refractive index of medium 1 n 2 is the refractive index of medium 2 angle 1 is the angle of incidence angle 2 is the angle of refraction

Application of Refractive Index to Forensics �Submersion method: involves placing the glass fragment into different liquids of known refractive indexes; the glass fragment will seem to disappear when placed in the liquid with the same refractive index

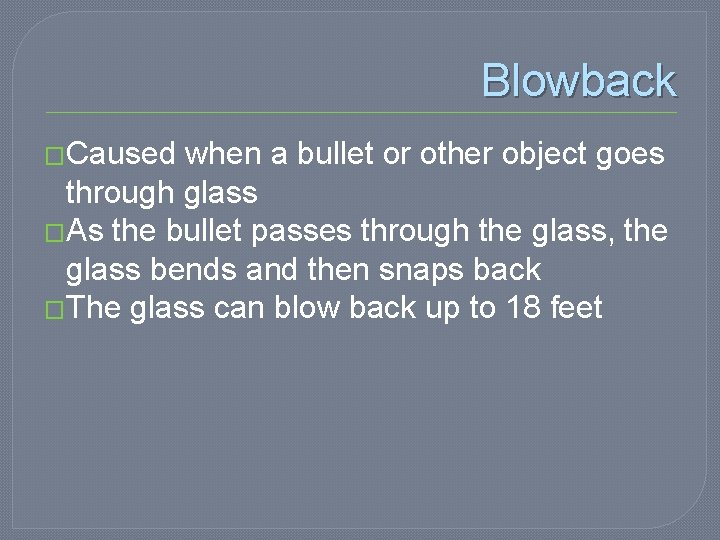

Blowback �Caused when a bullet or other object goes through glass �As the bullet passes through the glass, the glass bends and then snaps back �The glass can blow back up to 18 feet

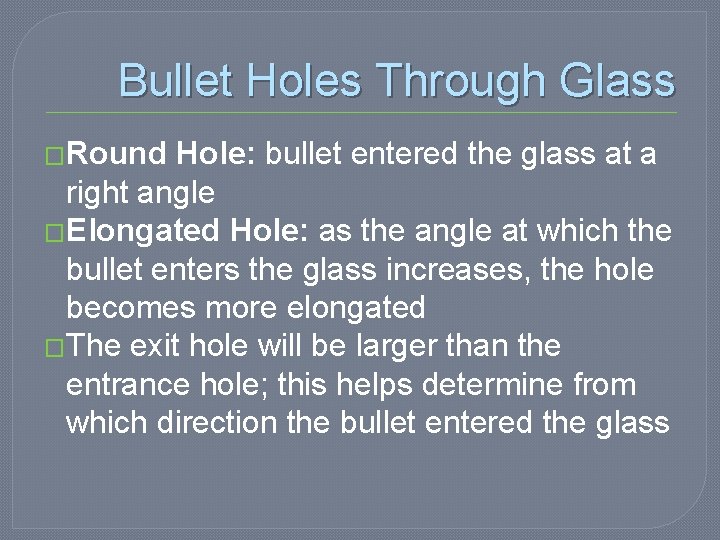

Bullet Holes Through Glass �Round Hole: bullet entered the glass at a right angle �Elongated Hole: as the angle at which the bullet enters the glass increases, the hole becomes more elongated �The exit hole will be larger than the entrance hole; this helps determine from which direction the bullet entered the glass

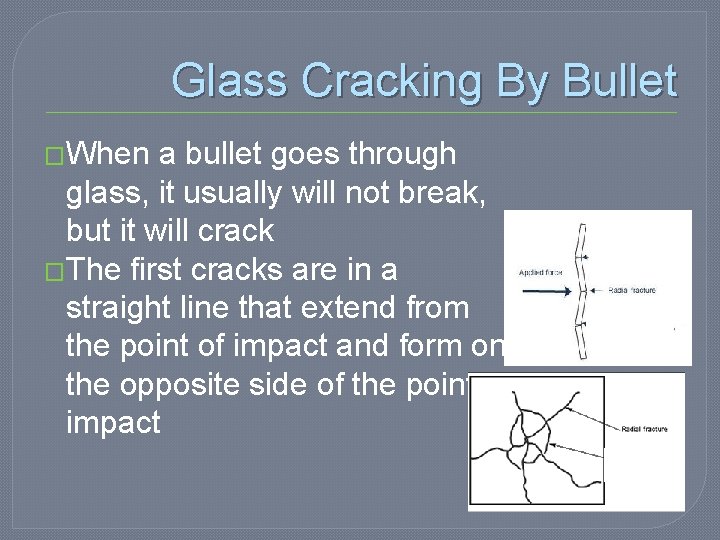

Glass Cracking By Bullet �When a bullet goes through glass, it usually will not break, but it will crack �The first cracks are in a straight line that extend from the point of impact and form on the opposite side of the point of impact

Glass Cracking By Bullet (cont. ) �Concentric or circular cracks form next around the point of impact and form on the same side of impact �When more than one bullet goes through the glass, the first bullet causes long, thin, uninterrupted cracks

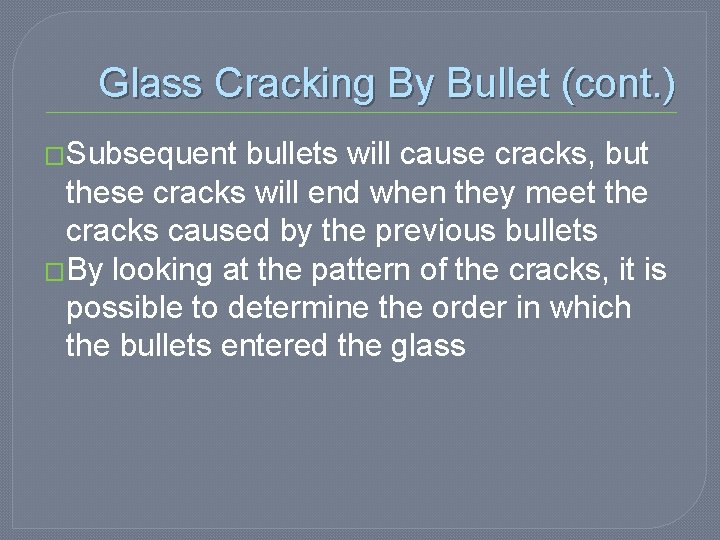

Glass Cracking By Bullet (cont. ) �Subsequent bullets will cause cracks, but these cracks will end when they meet the cracks caused by the previous bullets �By looking at the pattern of the cracks, it is possible to determine the order in which the bullets entered the glass

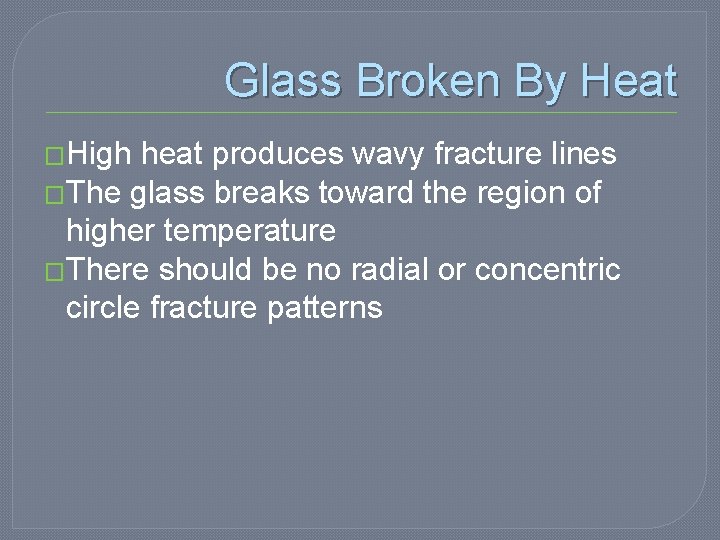

Glass Broken By Heat �High heat produces wavy fracture lines �The glass breaks toward the region of higher temperature �There should be no radial or concentric circle fracture patterns
