GIS Lecture 8 Spatial Data Processing GIS 1
- Slides: 56
GIS Lecture 8 Spatial Data Processing GIS 1
Outline • Extracting Features by Attributes • Location Proximities • Geoprocessing Tools • Model Builder GIS 2
Extracting Features GIS 3
Attribute Query Extraction • You have tracts for state but want one county only GIS 4
Attribute Query Extraction • Select tracts by County ID GIS 5
Export Selected Features Right-click to export selected features GIS 6
Add Exported Layer GIS 7
Location Proximities GIS 8
Select by Location • Identify spatial relationships between layers • Finds features that are within another layer. Input: County Census Tracts Can’t use Select By Attributes Output: City tracts only GIS 9
Select by Location Select feature to extracts to (city outline) GIS 10
Select by Location Selection, Select By Location GIS 11
Export Selection and Add Layer GIS 12

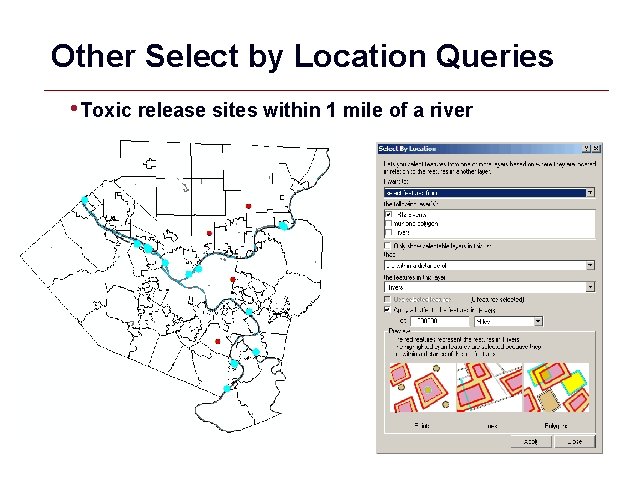

Other Select by Location Queries • Toxic release sites within 1 mile of a river GIS 13
Other Select by Location Queries • Points near points • Schools within ½ mile of polluting companies GIS 14

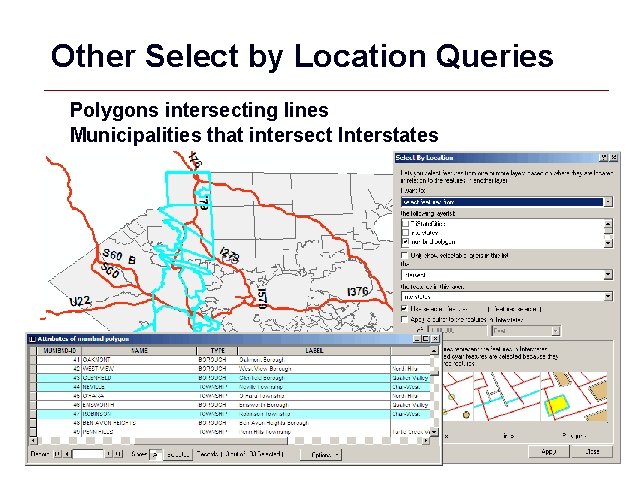

Other Select by Location Queries Polygons intersecting lines Municipalities that intersect Interstates GIS 15
Other Select by Location Queries Lines intersecting polygons GIS 16
Other Select by Location Queries • Buildings whose centers are in emergency zones GIS 17
Geoprocessing Tools Overview Clipping Features GIS 18
Geoprocessing Tools • GIS Operation to manipulate data • Typically take input data sets, manipulate, and produce output data sets • Often use multiple data sets GIS 19

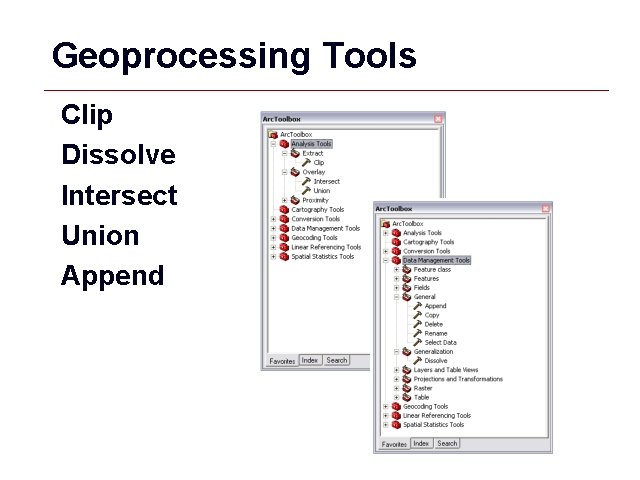

Geoprocessing Tools Clip Dissolve Intersect Union Append GIS 20
Clipping Features GIS 21
Clip “Cookie cutter” to select features = GIS 22
Clipping Features (Points, Lines, Polygons) X Y Z = = = GIS 23
Line (Arc) Clipping Input layer - Streets Clip layer – Central Business District (selected) Output layer - Streets within Central Business District GIS 24
Clip Geoprocessing Tool GIS 25
Difference Between Clipping and Select by Location Clip: Clean “cut” Select by Location: Dangle edges GIS 26
Dissolving Features GIS 27
Dissolve Aggregates items that have the same value # Item 1 C 2 R 3 C 4 I GIS 28
Dissolve Example You have states but need regions GIS 29

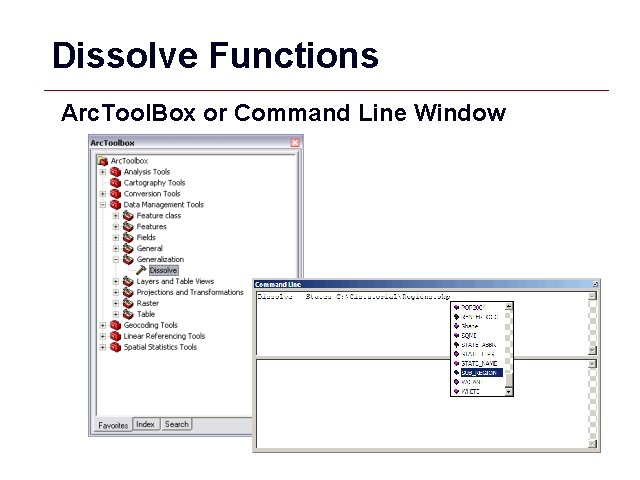

Dissolve Functions Arc. Tool. Box or Command Line Window GIS 30
Dissolve Field with a common value for each feature (e. g. Sub_Region) GIS 31
Statistics Field Aggregated field can be summarized using a statistics type (i. e. state population can be aggregated by population for each region) GIS 32
Resultant Dissolved Regions Layer GIS 33
Appending Features GIS 34
Appends features together GIS 35
Append Streets Separate street layers for neighborhoods GIS 36
Append Streets Choose both street layers to append GIS 37

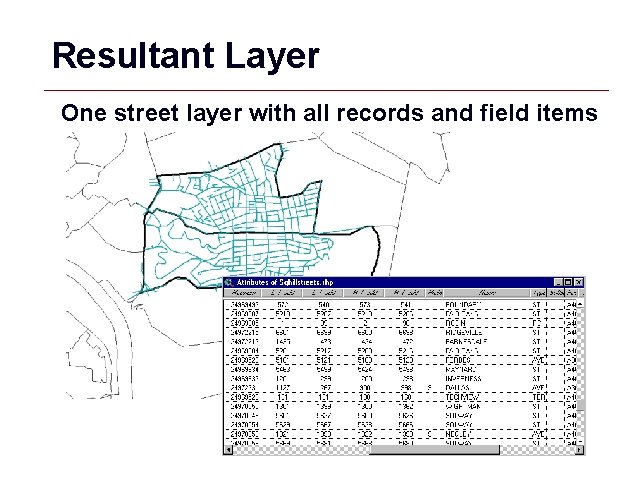

Resultant Layer One street layer with all records and field items GIS 38
Union Features GIS 39
Union Use Union when you want to overlay two polygon layers so that the resulting output layer a) has the combined attribute data of the polygons in the two inputs, and b) contains all the polygons from the inputs, whether or not they overlap. GIS 40
Union Start with Pittsburgh ZIP codes and Neighborhoods GIS 41
Union Attributes tables contain different data GIS 42
Union neighborhoods and ZIP Codes to include the zip on each neighborhood polygon GIS 43
Union Result: Polygons are unioned with same information Tips: Same Projections, Order of Layers GIS 44
Intersecting Features GIS 45
Intersect Use Intersect when you want to overlay a layer with the polygons in another layer so that the resulting output layer - has the combined attribute data of the features in the two inputs, and - only contains features that fall within the spatial extent of the overlay polygons GIS 46

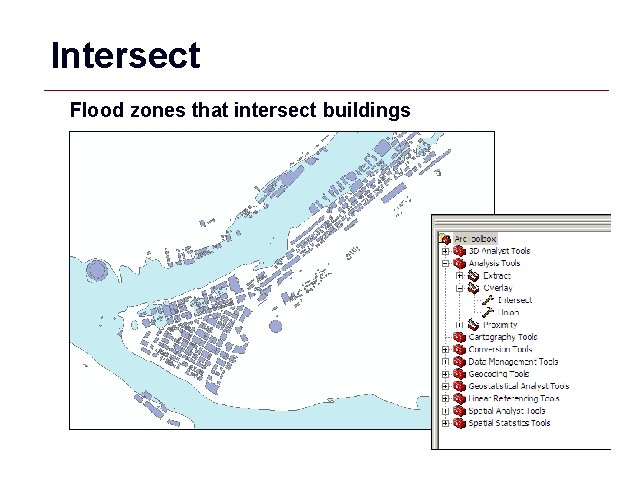

Intersect Flood zones that intersect buildings GIS 47
Intersect Result is only building polygons that intersect floodzones with combined data fields GIS 48
Model Builder GIS 49
Model Builder • Workflow processes can be complicated • Automates and strings functions together GIS 50
Model Builder Problem: • You have census tracts from a state with population data but only want population for neighborhoods in a small region Solution: • Use Model Builder functions to clip census tracts and union to aggregate data to neighborhoods GIS 51
Model Builder Example Begin with census tracts for the state of Pennsylvania GIS 52
Model Builder Example • Clip only tracts whose centers are located within Pittsburgh neighborhoods • Union the census tracts and neighborhoods GIS 53
Model Builder Example Run the model… GIS 54
Model Builder Example Display and query the results GIS 55
Summary Extracting Features • Attribute Queries • Select by Location Converting Shapefiles Geoprocessing Tools • Clip • Dissolve • Union • Intersect • Append Model Builder GIS 56
