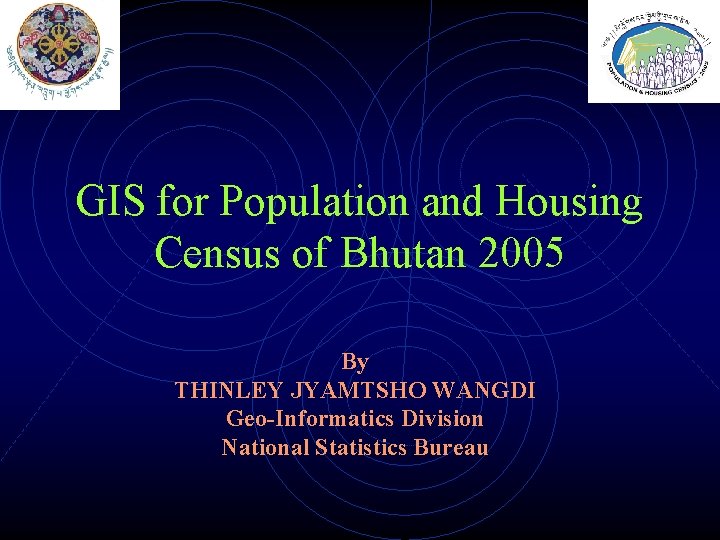

GIS for Population and Housing Census of Bhutan 2005 By THINLEY JYAMTSHO WANGDI Geo-Informatics Division National Statistics Bureau

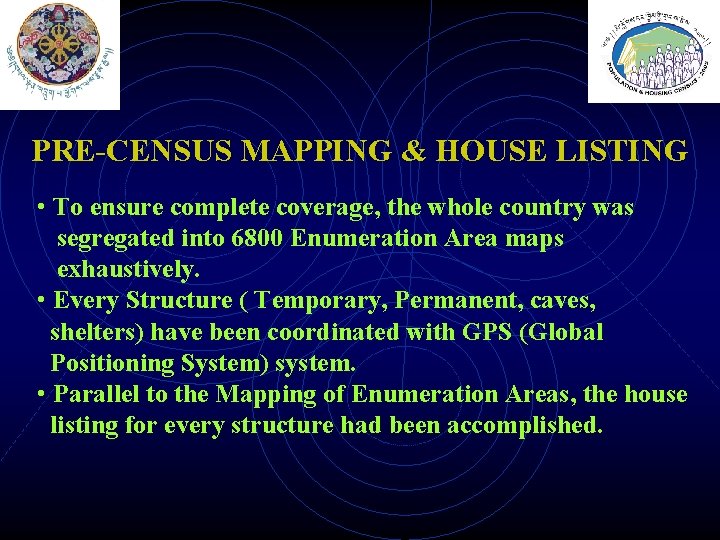

PRE-CENSUS MAPPING & HOUSE LISTING • To ensure complete coverage, the whole country was segregated into 6800 Enumeration Area maps exhaustively. • Every Structure ( Temporary, Permanent, caves, shelters) have been coordinated with GPS (Global Positioning System) system. • Parallel to the Mapping of Enumeration Areas, the house listing for every structure had been accomplished.

GIS for Population & Housing Census 2005 • Data capture from the Topographical maps. • Production of Enumeration Area maps both in digital and analogue forms. • Delineation of Enumeration Area boundary through given administrative units and sub-units (Dzongkhag, Geog & chiwog boundary). • To decide the data dissemination administrative level. • To decide the data analysis administrative level for future planners and policy makers. • To set the base reference for future population and Housing census of Bhutan.

Objectives of GIS for PHCB-2005 • Generation of Geo-database for PHCB 2005 • To facilitate and widen the scope in the use of census data especially at the smaller area level. • To produce the socio-economic maps using the census data at different categories. • Dissemination of Census data at different level for different user organizations. • Finally to create the bench mark data for the next population and housing census of Bhutan.

GIS PROCESSING BUILD DATA DESIGN THE DATABASE INPUT SPATIAL DATA (DIGITIZER) EDIT AND CREATE TOPOLOGY INPUT ATTRIBUTE DATA MANAGE AND MANIPULATE THE DATA ANALYZE THE DATA PRESENT THE RESULT OF ANALYSIS

REQUIREMENTS: • The GIS software used for Population and housing Census 2005 from ESRI products like Arcview or Arc info or Arcgis of latest version. • The office of the census commissioner had procured the one GIS softwares as it entails huge budget. The market rate for one license Arcgis is about Nu. 1. 9 million.

WORK METHODOLOGY • • Digitizing of the Topographical maps in different layers of the available Topographical sheets in 1: 50000 Mosaicing of the same layers to include in the administrative boundary Cropping of the mosaiced layers as per the existing Dzongkhag boundary. Cropping of digital layers to the geog level in Dzongkhag. Cropping of Digital layers to the Chiwog level in Geogs. Creation of Shp. file from GPS coordinates. Preparation of Enumeration Area Maps digitally. Merge EA maps into chiwog maps for further processing. Accordingly merge for geog and Dzongkhag for processing.

Mosaicing of topo sheets

Mosaicing of topo sheets Clipping of topographical layers for Gasa Dzongkhag

Clipped (river) for one Dzongkhag Mosaicing oftopolayer sheets

START Aggregate EAs to chiwog Scanning Chiwog Map Georeferencing Chiwog information *. RLC Digitizing Vector files Aggregate Chiwogs to geog Geog Map Geog information Mosaicing Aggregate Geogs to Dzongkhag Adm. Boundary Dz. cropping Dzongkhag Map Geog cropping GPS data upload Geog Map EA delineation Aggregate Dzongkhag to National level National information Dzongkhag information

Chiwog level Information Geog Level Information Dzongkhag level Information Report Stop Informatio n Disseminat ion CD Rom Stop Programming

Database Design • At what level the information dissemination had to be done • The information in database to be aggregated • To calculate the statistical factors • How to link the processed data with the map layers. • The SPSS or the CSPRO softwares compatibility should be explored for data linking and matching. • The data dissemination strategy should be planned well.

TRAININGS: • Basic concept of GIS • Basics of GIS operations • Spatial operations in GIS • Statistical operations in line with spatial data • Overlay Analysis • More hands on exercise on analysis with emphasis on Population and Housing census • Preparation of different thematic maps • To extract the population indicators • Preparation of Population Atlases • If possible analysis using the other topographical conditions • Any other exercises

DATA DISSEMENATION

Arc. SDE and Arc. IMS Server PHCB 2005 Objectives: 1. 2. 3. 4. 5. 6. To set up the Window 2003 Server on New DELL 2950 server To Set up and configure SQL Server and Arc. SDE server To Set up and configure the Arc. IMS server Data Migration to Arc. SDE Multi-user Geodatabase Application Migration To publish selected Geog, Dzongkhag, rural settlements and urban features 7. Capacity Building

Objective-1: Window 2003 Server - DELL 2950 - Window 2003 Server to host SQL server, Arc. SDE and Arc. IMS - Hosted by National Statistics Bureau (NSB) System Network - Network Interface Card – Local IP for Arc. SDE 192. 168. 124. 11 - Network Interface Card – Global IP for Arc. IMS 203. 175. 8. 86

Window 2003 Server

Objective-2 SQL and Arc. SDE Server • • SQL Server 2000 SP 3 Arc. SDE 9. 1 Optimizing the Performance of Arc. SDE Users and Database Access PHCB 2005 Arc. SDE Multi-user Geo-database Keywords PHCB 2005_VECTOR Keywords PHCB 2005_RASTER

Arc. SDE SQL Window 2003 Server

Objective-3 Arc. IMS Server • Set up the Arc. IMS server to publish the indicator maps through NSB Web Ste

Arc. IMS Components Window 2003 server, IIS Server, Tomcat Servlet Engine, J 2 SDK

Arc. IMS Arc. SDE SQL Window 2003 Server

Objective-4 Data Migration • Personal Geodatabase and Shape Files to PHCB 2005 Arc. SDE Multi-user Geodatabase • Arc. View and Arc. GIS Clients can access the data

NSB Clients Arc. IMS Arc. SDE SQL Window 2003 Server

Objective-5 Application Migration • To migrate Shape File based Arc. IMS website to Arc. SDE Multi-user Geodatabased Arc. IMS Website

GUI Design is the same Tools Titles Layers (Groups) Index Map Query, Buffer, User Interaction

Internet NSB Clients Arc. IMS Arc. SDE SQL Window 2003 Server Internet Clients

Thimphu Wide Area Network (WAN)

Internet NSB Clients Internet Clients Arc. IMS Arc. SDE SQL Window 2003 Server Other organization Thimphu WAN Other organization

Dzongkhag Indicator Maps Based on Published Indicator Map Atlas -Administration -Travel Time -Education -Employment -Health -Migration -Roofing Materials -Wall Materials -Household Heads -Land Plots -Media Access -Drinking water -Energy for lighting -Energy for cooking -Population -Sanitary -Happiness

Geog Indicator Maps Based on Published Indicator Map Atlas -Administration -Population -Education -Travel Time -Employment -Health -Roofing Materials -Wall Materials -Household Heads -Land Plots -Media Access -Drinking water -Energy for lighting -Energy for cooking -Sanitary -Happiness

Urban Blocks and Foot Prints Urban Blocks Urban Foot Prints Urban Roads

Rural Settlements • Individual Rural Settlements with HOH and Remark Attributes

Objective-7: Capacity Building -How to install and configure Window 2003 Server -How to install and configure SQL Server 2000 SP 3 A -How to install, configure and optimize Arc. SDE Server -How to install, configure and optimize the Arc. IMS Server -How to work with - Arc. IMS Author - Arc. IMS Administrator - Arc. IMS Designer - Basics of Arc. XML and HTML viewers -Training to the users - How to use GUI (Half Day) - User Training Manual in PDF Format (Downloadable)
