GIS Decision Support Methods Workflow Chapter 03 Dr

GIS Decision Support Methods & Workflow Chapter. 03 Dr. Ahmad Bin Touq abintouq@uaeu. ac. ae http: //faculty. uaeu. ac. ae/~abintouq GEO 440: GIS for Urban & Regional Planning

Overview Chapter. 3 1. Overview of GIS Capabilities A. B. C. D. E. F. Geocoding Tools, Data Management Tools Map Visualization Tools Feature Analysis Tools Grid Analysis Tools Network Analysis Tools 2. Workflow in GIS Projects A. Basic Workflow B. Nuanced Workflow C. Synthesizing Basic 3. Summary and Review Questions

GIS Capabilities - GIS is known for its ability to integrate various types of data to address complex decision problems. - Difference between a GIS project and a community improvement project. For example, a wastewater treatment facility is a community improvement project, but the process of sitting such a project, as presented in the case study, provides a step-by-step method for undertaking a GIS project. Example

Dumping site Economy Atmosphere Surface water Legality Environment Water Soil Groundwater Biotic life

GIS Capabilities • GIS is a special information technology because it integrates capabilities from three fundamental technologies— 1. Data management capabilities 2. Spatial analysis capabilities 3. Map visualization capabilities

Geographical objects Landuse Topography Soil type Utility Rivers Roads District Lots

Data collection Spatial + Attribute data • Geology, Groundwater • Rivers, Coastal line • Soil, Land use • Airport, Roads • Settlements, Hotels

Steps for data preparation Digitization under Auto. Cad Import to Arc. Map Create topology Build and Clean Check feature accuracy Add attribute data Transform to real coordinate Geographic database Geographic analysis Arc. Mapshape files

Perform spatial operations • Feature extraction from a GIS database (Reselect) • Map overlay (Intersect, Union, Mapjoin) • Proximity searches (Buffering)

Workflow GIS workflows—simple, nuanced, and combined— to show that any two workflows, when compared, can generate at least one more workflow that perhaps might be more informed. Four phases • Simple workflow (comprising four phases) is good enough to learn the basics of GIS. Six phases • Another workflow that has shown considerable success in addressing complex landscape planning problems introduced by Steinitz (1990). • Each phase is a special modelling step. Seven phases • Third workflow is a synthesis of the other two, resulting in a seven-phase workflow. • The main point is not simply to develop one more workflow, but to show that workflows can often take on emergent qualities to address special nuances of decision problems.

Basic Workflow for a GIS Project This simplified workflow method assumes that a decision problem can be solved by a single pass through a workflow, with limited testing of assumptions in each of four phases: (1) Identify project objectives, (2) Develop the database, (3) Perform analysis, and (4) Report the results. It is useful and instructive because of the simplifying assumptions regarding water flow process and impacts, for example, land use, transportation, and/or water resource movement, over space and time.

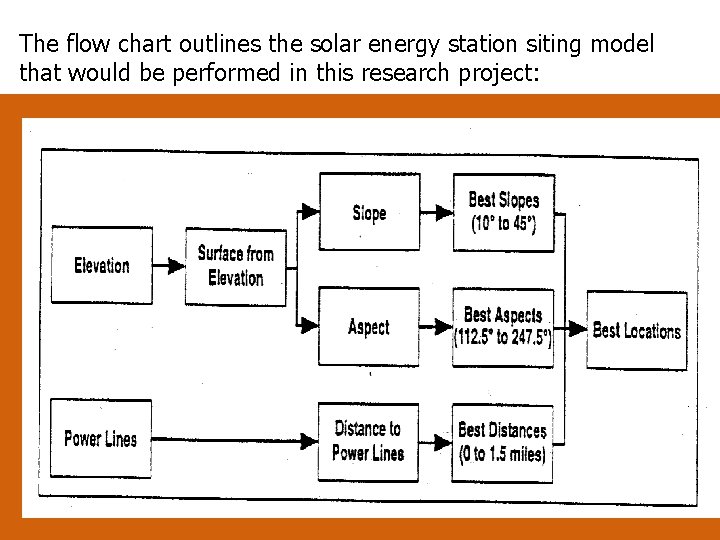

The flow chart outlines the solar energy station siting model that would be performed in this research project:

Example Project Steps Layer 1: Lake Layer 2: Forest Layer 3: Soil Drainage Spread Recode Layer 4: Loggable Species Recode Layer 6: Near Lake Recode Layer 7: Away From Lake Layer 5: Drained Soils Recode Layer 8: Species And Soils Over. Layer 9: Loggable Sites

3. 2 Workflow in GI S Projects Suitable zones Reselect Geology Land use Soil Rainfall Buffer Roads Rivers User interaction Intersect suitable zones for each factor The best zones

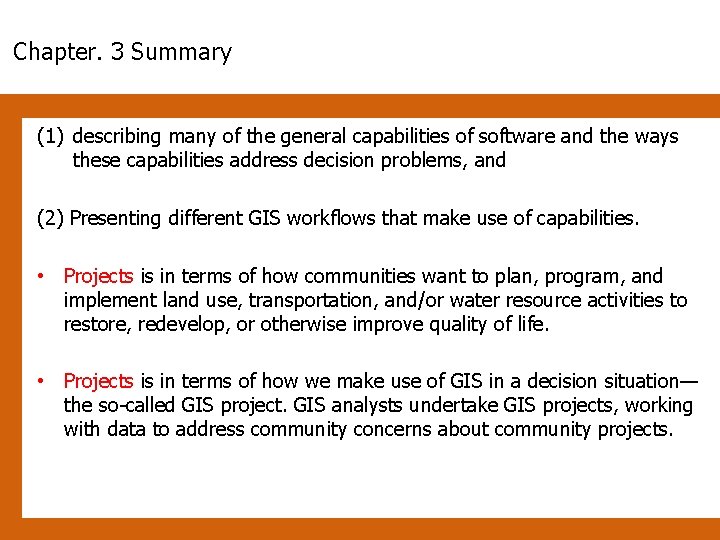

Chapter. 3 Summary (1) describing many of the general capabilities of software and the ways these capabilities address decision problems, and (2) Presenting different GIS workflows that make use of capabilities. • Projects is in terms of how communities want to plan, program, and implement land use, transportation, and/or water resource activities to restore, redevelop, or otherwise improve quality of life. • Projects is in terms of how we make use of GIS in a decision situation— the so-called GIS project. GIS analysts undertake GIS projects, working with data to address community concerns about community projects.
