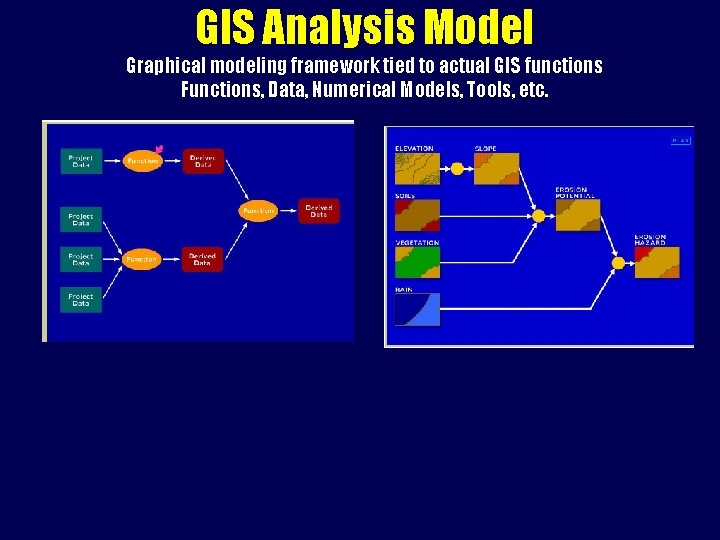

GIS Analysis Model Graphical modeling framework tied to actual GIS functions Functions, Data, Numerical Models, Tools, etc.

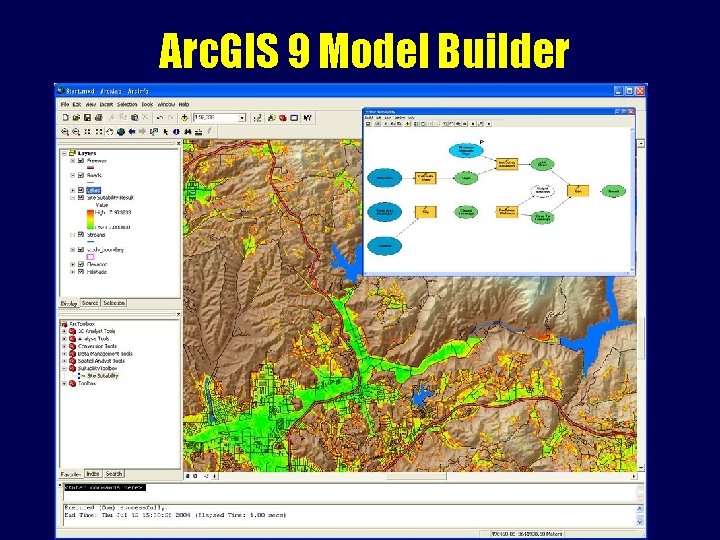

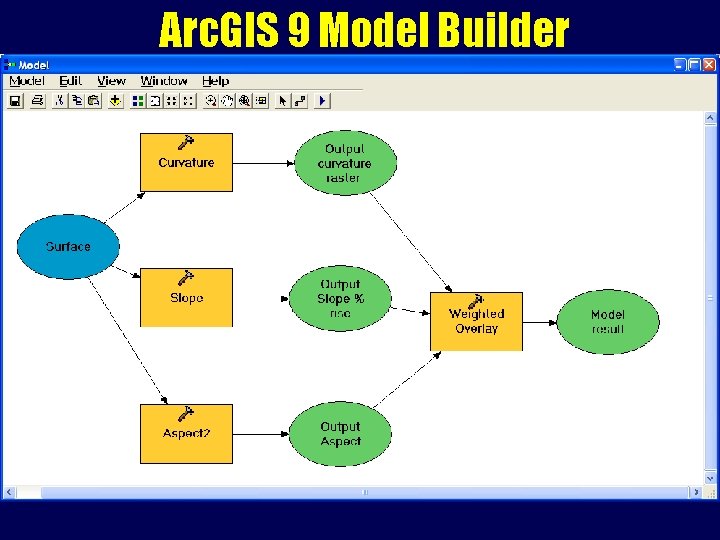

Arc. GIS 9 Model Builder

From Designing Gdbs - Ch 7 Arc Hydro & HEC-RAS Hydrologic Engineering Centers River Analysis System See also “Demo 2” from Apr 13 lecture

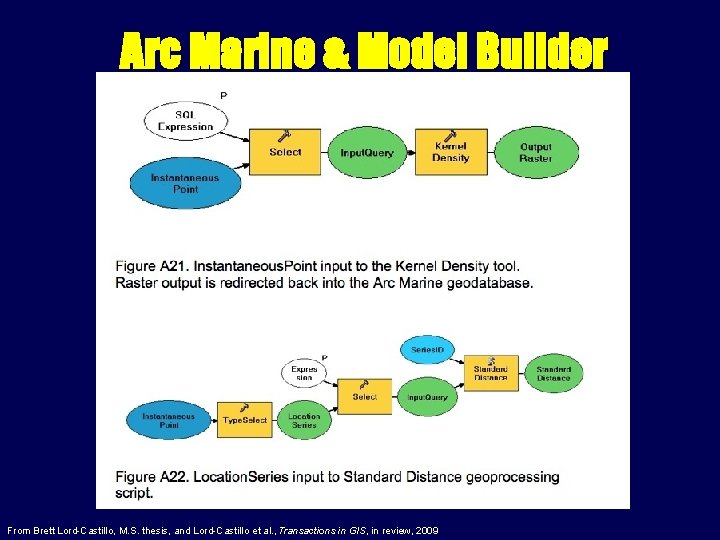

Arc Marine & Model Builder From Brett Lord-Castillo, M. S. thesis, and Lord-Castillo et al. , Transactions in GIS, in review, 2009

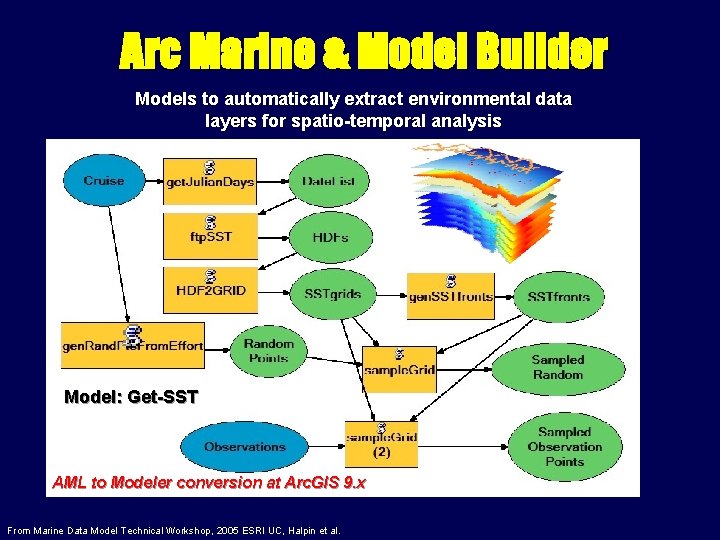

Arc Marine & Model Builder Models to automatically extract environmental data layers for spatio-temporal analysis Model: Get-SST AML to Modeler conversion at Arc. GIS 9. x From Marine Data Model Technical Workshop, 2005 ESRI UC, Halpin et al.

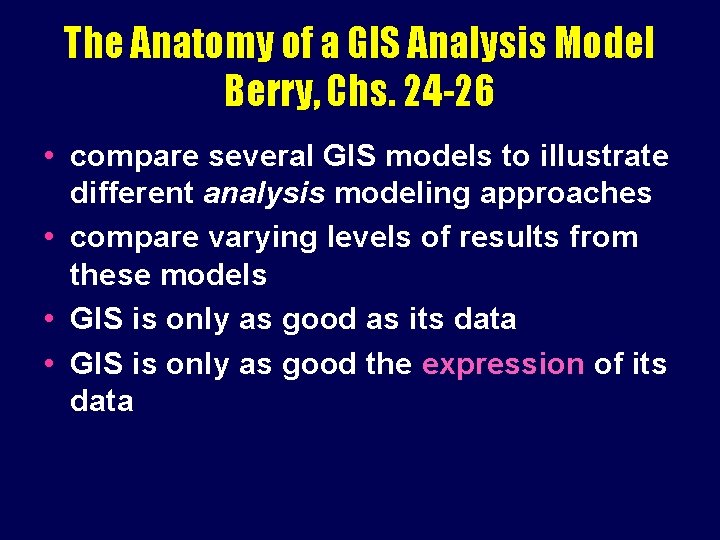

The Anatomy of a GIS Analysis Model Berry, Chs. 24 -26 • compare several GIS models to illustrate different analysis modeling approaches • compare varying levels of results from these models • GIS is only as good as its data • GIS is only as good the expression of its data

“It’s All Downhill from Here” • • the case for landslide susceptibility terrain steepness (high slope/low slope) soil type (unstable/stable) vegetation cover (bare/abundant)

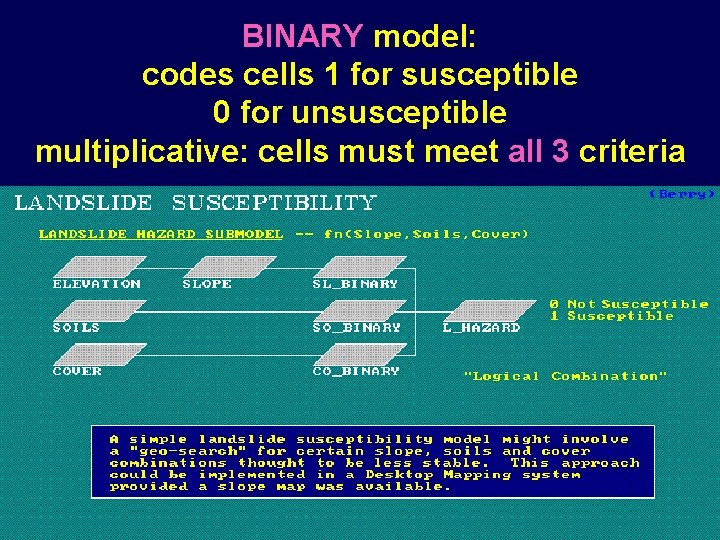

BINARY model: codes cells 1 for susceptible 0 for unsusceptible multiplicative: cells must meet all 3 criteria

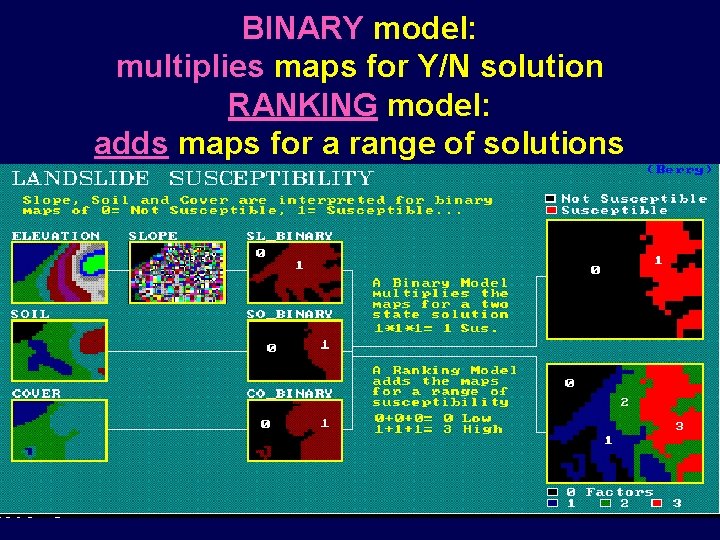

BINARY model: multiplies maps for Y/N solution RANKING model: adds maps for a range of solutions

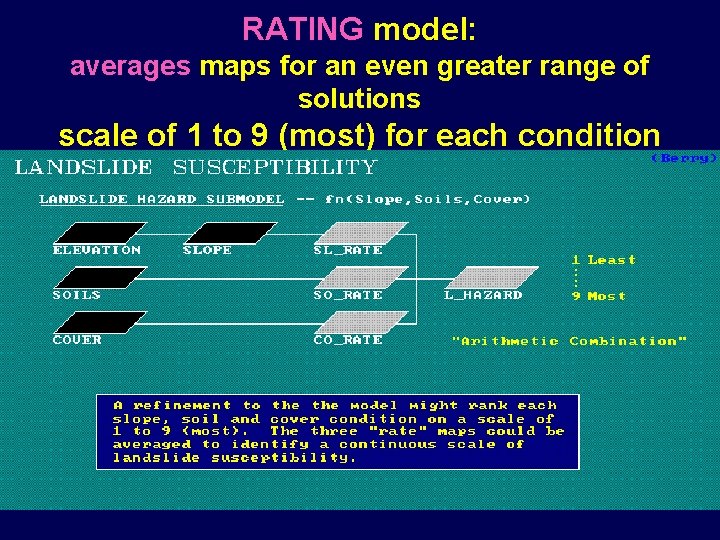

RATING model: averages maps for an even greater range of solutions scale of 1 to 9 (most) for each condition

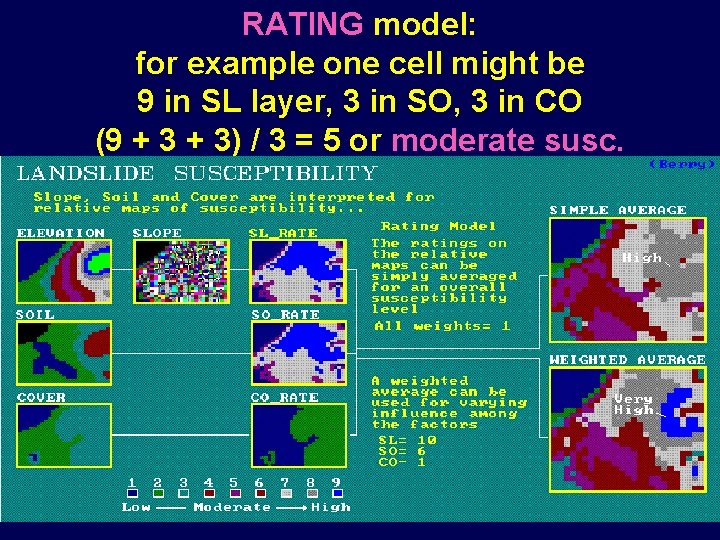

RATING model: for example one cell might be 9 in SL layer, 3 in SO, 3 in CO (9 + 3) / 3 = 5 or moderate susc.

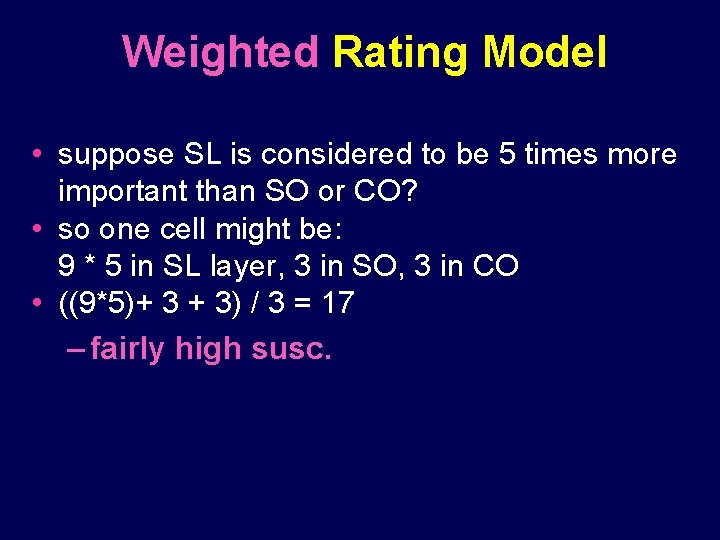

Weighted Rating Model • suppose SL is considered to be 5 times more important than SO or CO? • so one cell might be: 9 * 5 in SL layer, 3 in SO, 3 in CO • ((9*5)+ 3 + 3) / 3 = 17 – fairly high susc.

4 Models for Landslide Susceptibility: Banana Bread to Fruit Cake! • BINARY – 1 for SL, 0 for SO, 0 for CO – 1*0*0=0 NO susceptibility • RANKING – 1 for SL, 0 for SO, 0 for CO – 1+0+0=1 LOW susceptibility • RATING – 9 for SL, 3 for SO, 3 for CO – (9 + 3) / 3 = 5 MODERATE susceptibility • WEIGHTED RATING – 9 for SL, 3 for SO, 3 for CO – ((9*5) + 3) / 3 = 17 HIGH susceptibility

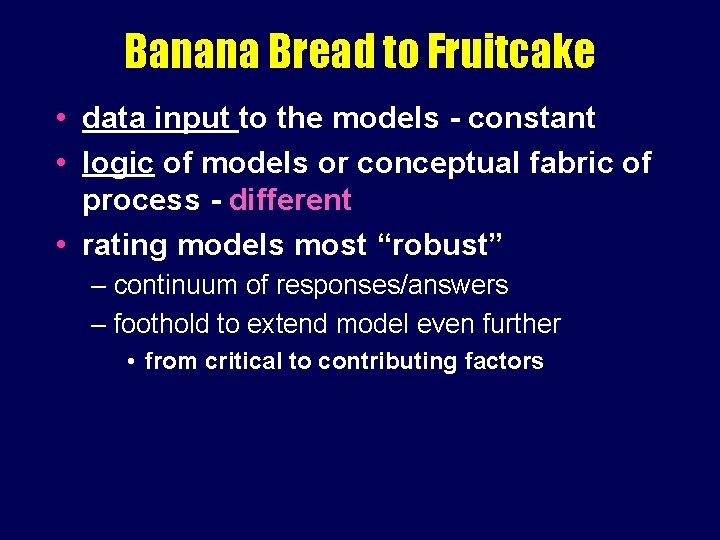

Banana Bread to Fruitcake • data input to the models - constant • logic of models or conceptual fabric of process - different • rating models most “robust” – continuum of responses/answers – foothold to extend model even further • from critical to contributing factors

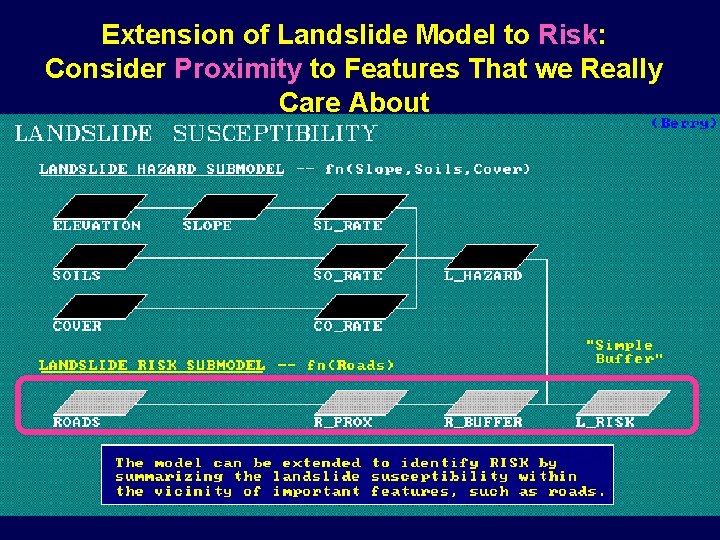

Extension of Landslide Model to Risk: Consider Proximity to Features That we Really Care About

Extending a GIS Model ( cont. ) • Risk – variable width road buffers as a function of SLOPE buffer widens in steep areas • Extending hazard to risk – – weighted roads based on slopes weight roads based on traffic volume, emergency routes, etc. buildings: commercial, residential, etc. economic value of threatened features, potential resource loss

Additional Factors • in addition to or instead of SL, SO, CO other critical factors may be considered: – physical: bedrock type, depth to faulting – disturbance: construction areas, gophers? – environmental: storm frequency, rainfall patterns – seasonal: freezing and thawing cycles in spring – historical: past earthquake events

Benthic Habitat Example: Parameters Important to Benthic Species • • Water depth Sediment depth Substrate type Sediment type Exposure Rugosity/BPI Slope/Aspect • Water chemistry • Water temperature • Voids/caverns (size & depth) • Vegetation • Biotic interactions • Anthropogenic factors What can we measure directly, interpret, or derive? Deidre Sullivan, MATE Center, Monterey, CA

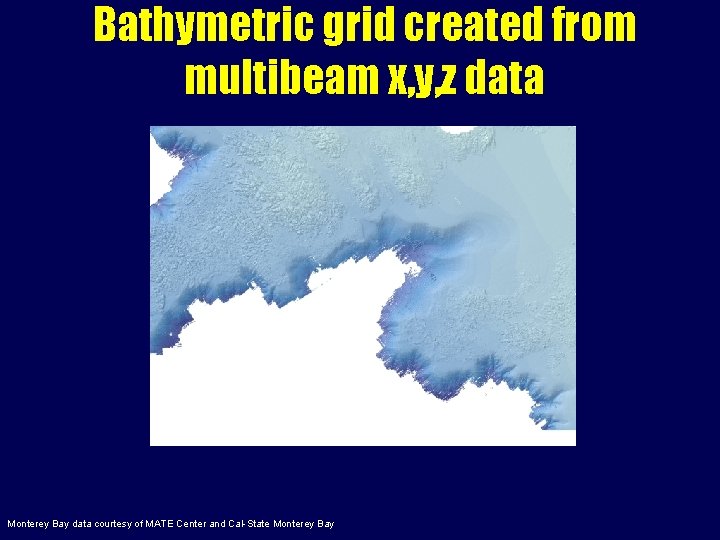

Bathymetric grid created from multibeam x, y, z data Monterey Bay data courtesy of MATE Center and Cal-State Monterey Bay

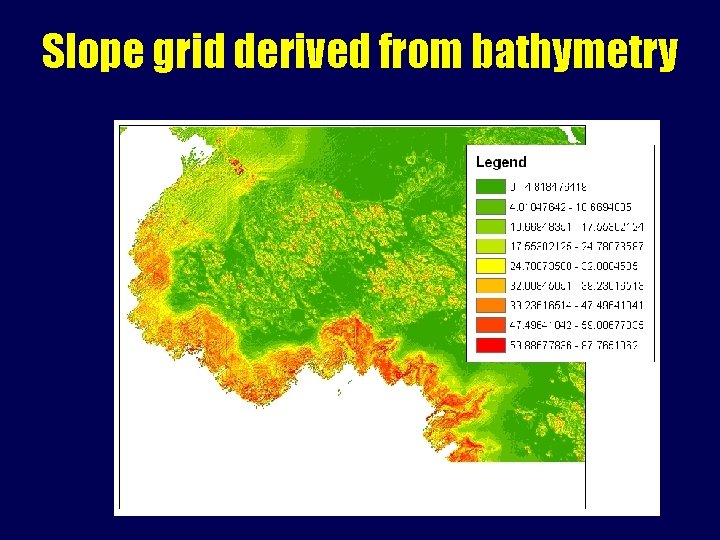

Slope grid derived from bathymetry

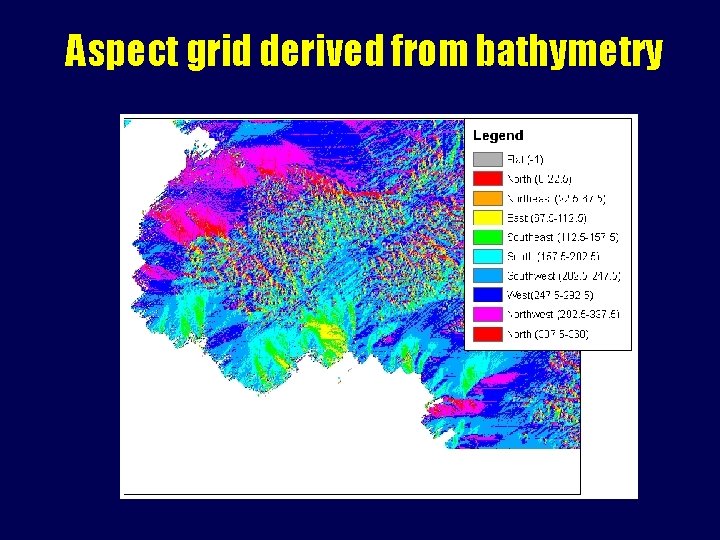

Aspect grid derived from bathymetry

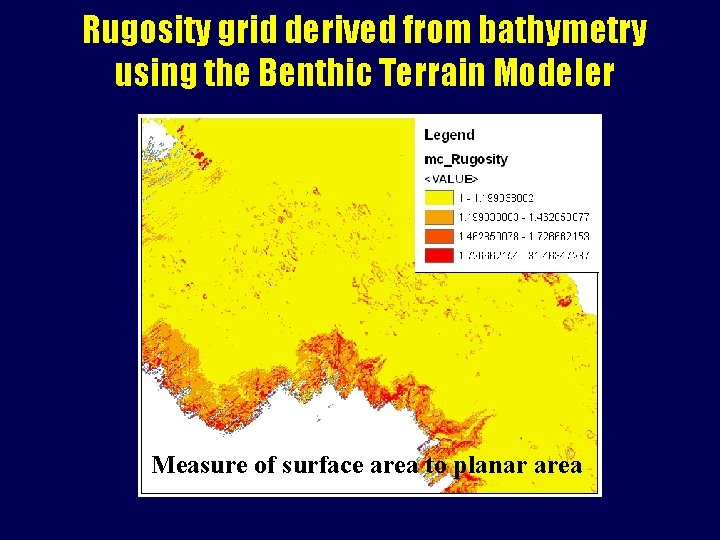

Rugosity grid derived from bathymetry using the Benthic Terrain Modeler Measure of surface area to planar area

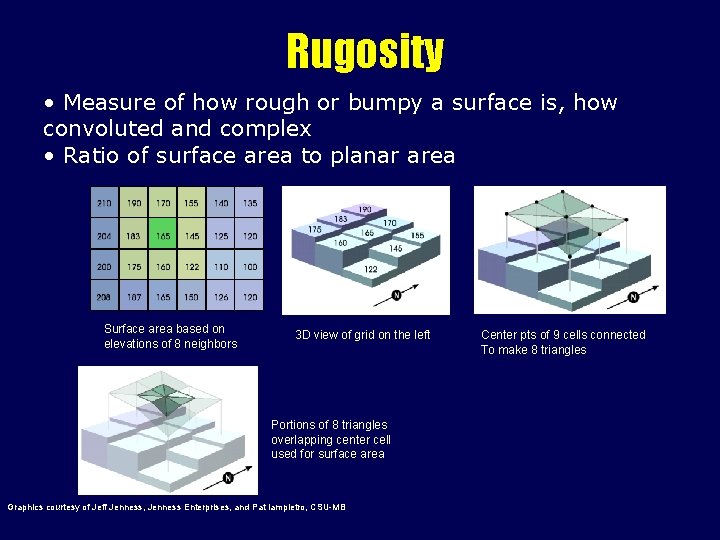

Rugosity • Measure of how rough or bumpy a surface is, how convoluted and complex • Ratio of surface area to planar area Surface area based on elevations of 8 neighbors 3 D view of grid on the left Portions of 8 triangles overlapping center cell used for surface area Graphics courtesy of Jeff Jenness, Jenness Enterprises, and Pat Iampietro, CSU-MB Center pts of 9 cells connected To make 8 triangles

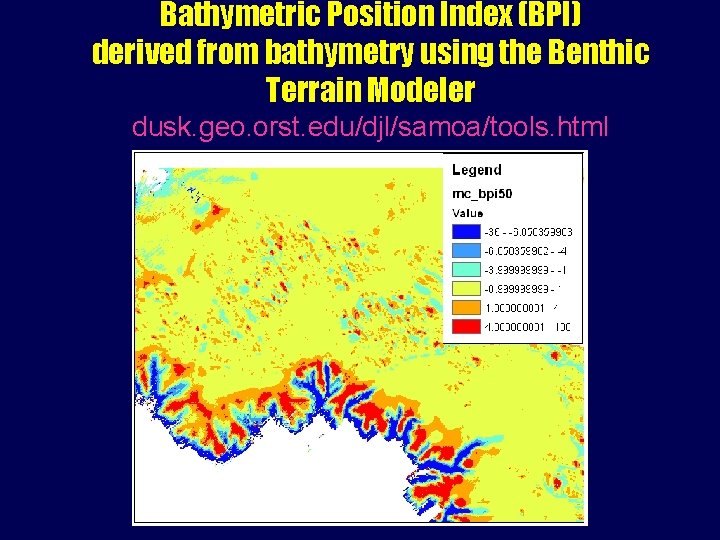

Bathymetric Position Index (BPI) derived from bathymetry using the Benthic Terrain Modeler dusk. geo. orst. edu/djl/samoa/tools. html

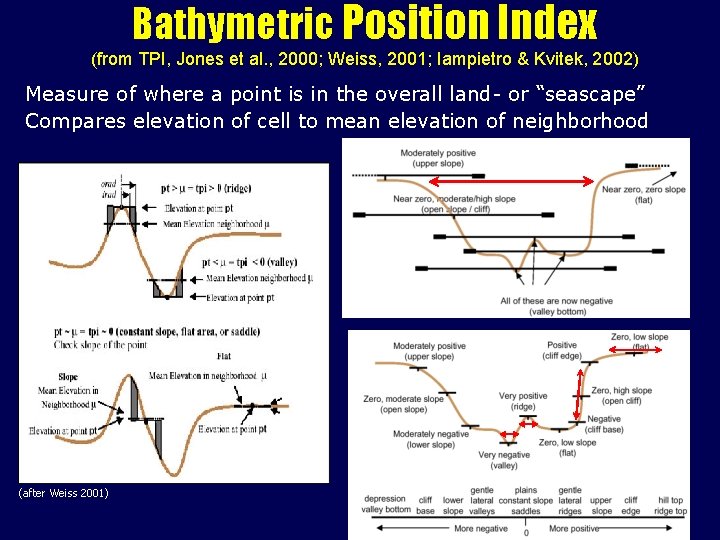

Bathymetric Position Index (from TPI, Jones et al. , 2000; Weiss, 2001; Iampietro & Kvitek, 2002) Measure of where a point is in the overall land- or “seascape” Compares elevation of cell to mean elevation of neighborhood (after Weiss 2001)

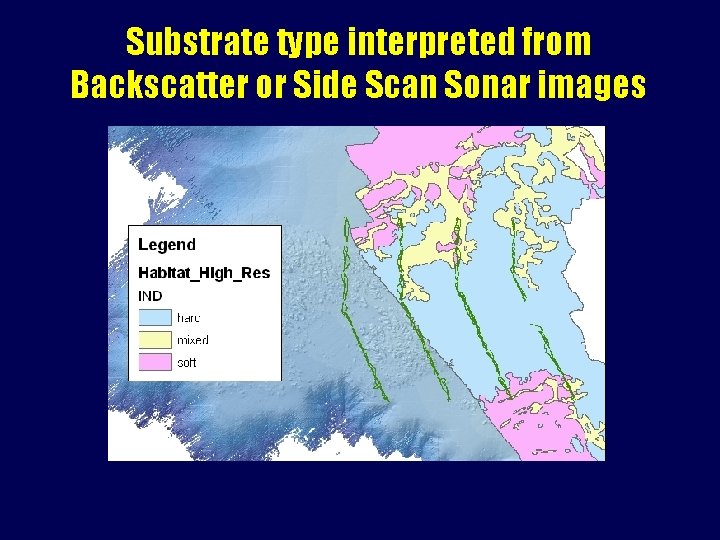

Substrate type interpreted from Backscatter or Side Scan Sonar images

Building a Suitability Model • What do we know about the species’ habitat requirements? • Can we describe these habitat requirements using GIS data? • Do we have enough information? Is it at the right scale? • Does the model work?

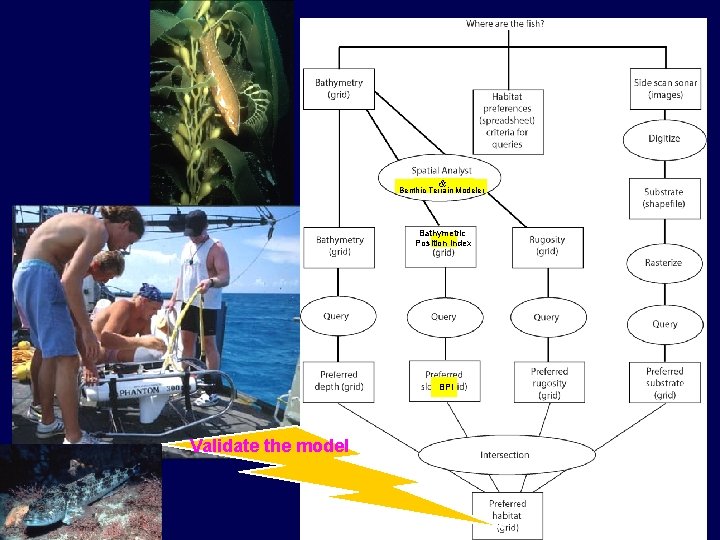

& Benthic Terrain Modeler Bathymetric Position Index BPI Validate the model

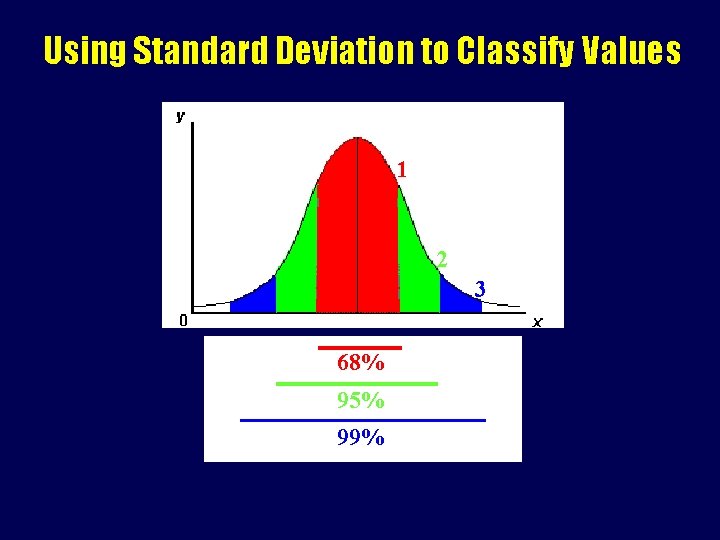

Using Standard Deviation to Classify Values 1 2 3 68% 95% 99%

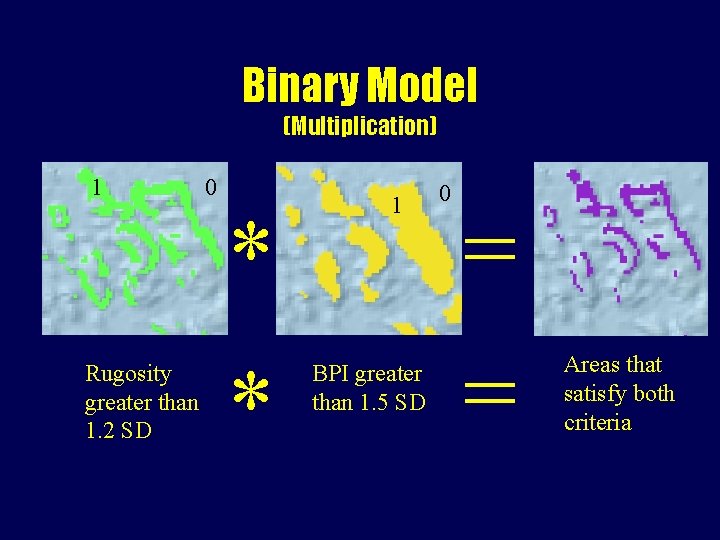

Binary Model (Multiplication) 1 0 * Rugosity greater than 1. 2 SD * 1 BPI greater than 1. 5 SD 0 = = Areas that satisfy both criteria

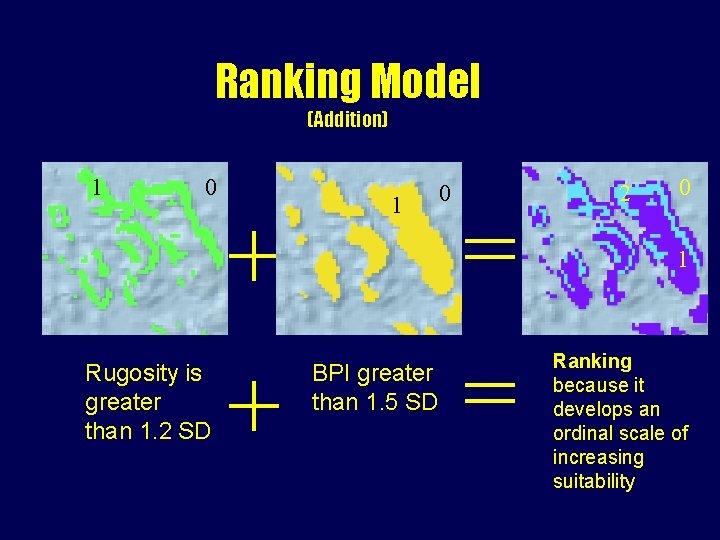

Ranking Model (Addition) 1 0 + Rugosity is greater than 1. 2 SD + 1 BPI greater than 1. 5 SD 0 = = 2 0 1 Ranking because it develops an ordinal scale of increasing suitability

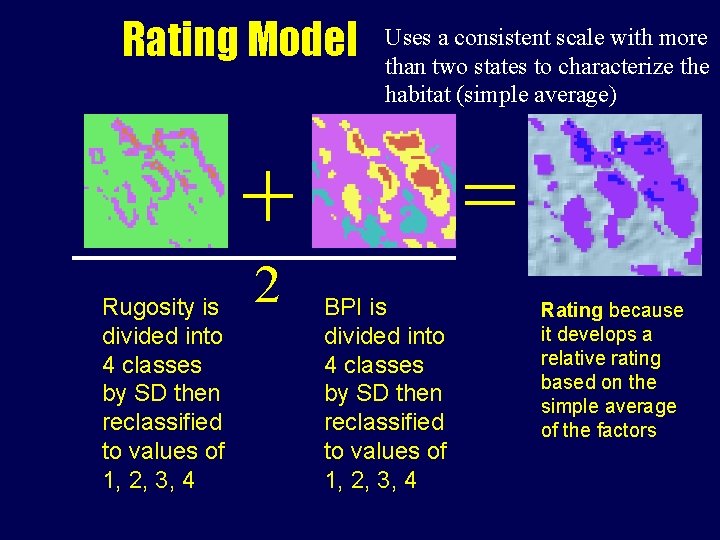

Rating Model 1 0 Rugosity is divided into 4 classes by SD then reclassified to values of 1, 2, 3, 4 + 2 Uses a consistent scale with more than two states to characterize the habitat (simple average) 1 0 BPI is divided into 4 classes by SD then reclassified to values of 1, 2, 3, 4 = 1 Rating because it develops a relative rating based on the simple average of the factors

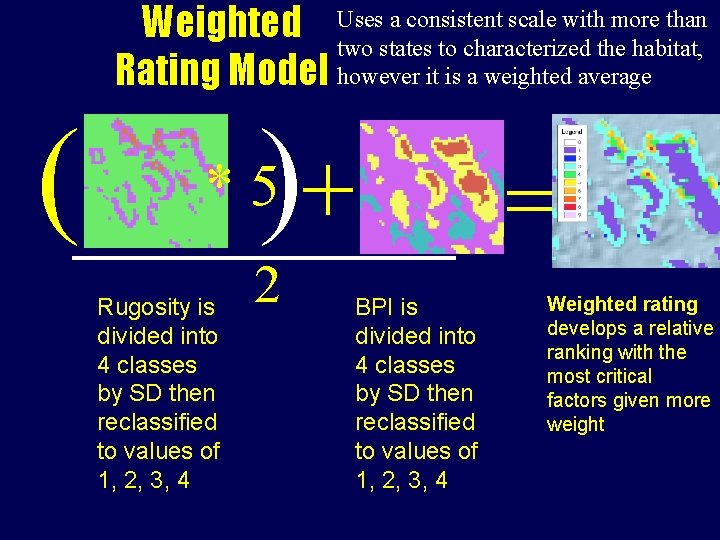

a consistent scale with more than Weighted Uses two states to characterized the habitat, Rating Model however it is a weighted average ( 1 )+ *5 0 Rugosity is divided into 4 classes by SD then reclassified to values of 1, 2, 3, 4 2 1 0 BPI is divided into 4 classes by SD then reclassified to values of 1, 2, 3, 4 = 1 Weighted rating develops a relative ranking with the most critical factors given more weight

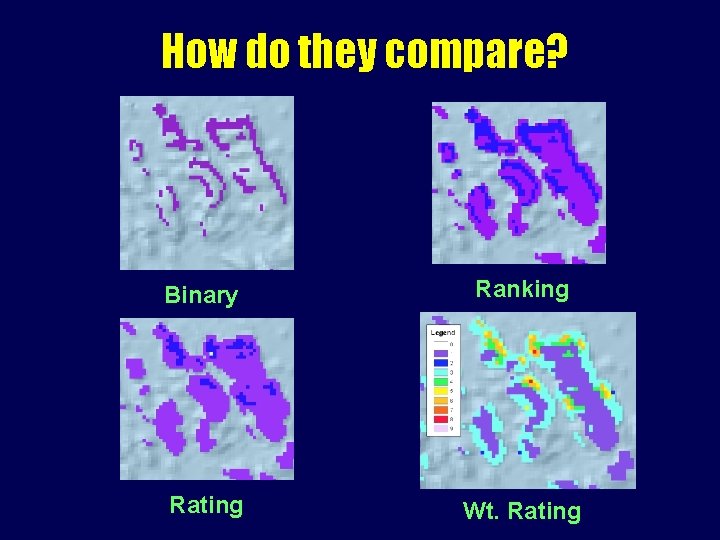

How do they compare? Binary Ranking Rating Wt. Rating

Model Validation

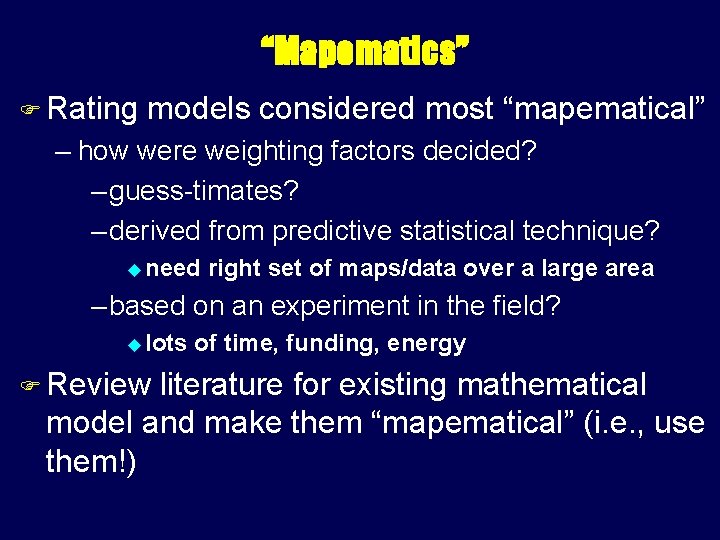

“Mapematics” Rating models considered most “mapematical” – how were weighting factors decided? – guess-timates? – derived from predictive statistical technique? need right set of maps/data over a large area – based on an experiment in the field? lots Review of time, funding, energy literature for existing mathematical model and make them “mapematical” (i. e. , use them!)

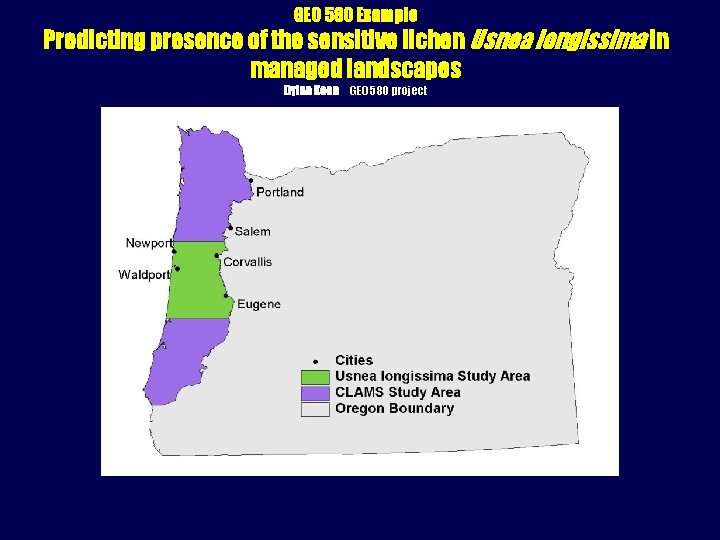

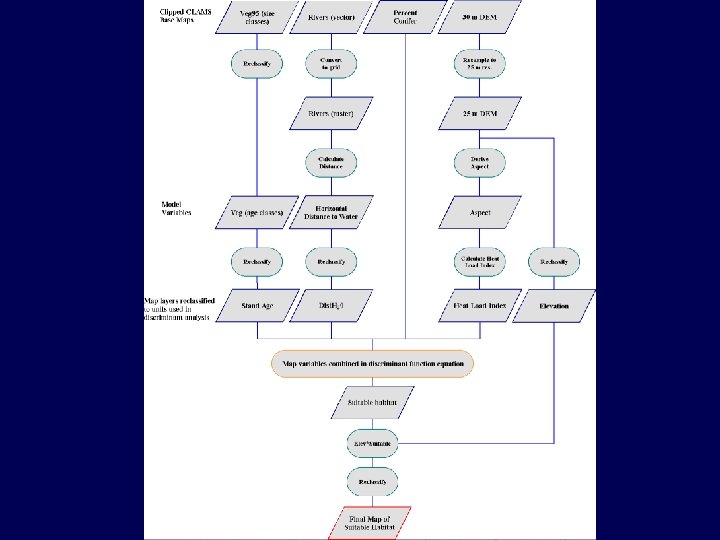

GEO 580 Example Predicting presence of the sensitive lichen Usnea longissima in managed landscapes Dylan Keon GEO 580 project

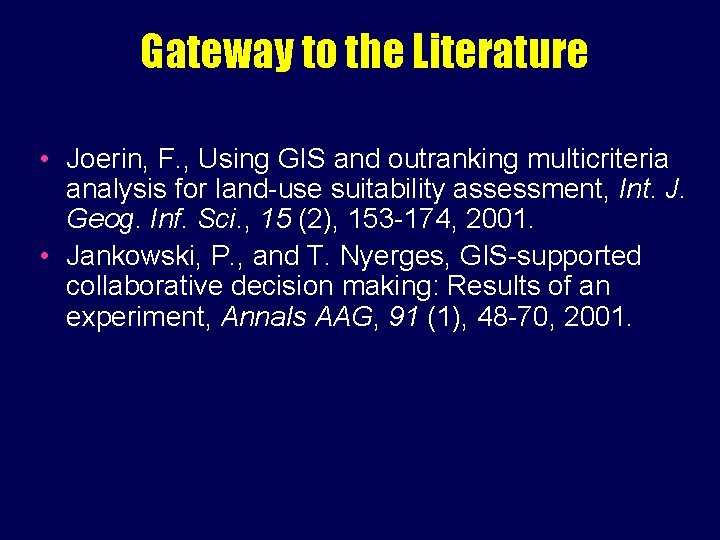

Gateway to the Literature • Joerin, F. , Using GIS and outranking multicriteria analysis for land-use suitability assessment, Int. J. Geog. Inf. Sci. , 15 (2), 153 -174, 2001. • Jankowski, P. , and T. Nyerges, GIS-supported collaborative decision making: Results of an experiment, Annals AAG, 91 (1), 48 -70, 2001.
