Gilian Air Sampling Pumps The Worlds Most Reliable

Gilian Air Sampling Pumps The World’s Most Reliable Air Sampling Equipment

Air Sampling Introduction Air sampling pumps draw air through collection media for the evaluation of worker exposure to a targeted substance during the work shift. Samples are collected using a filter cassette or sorbent tube then later analyzed in a lab.

Introduction to Gilian air sampling pumps are manufactured by Sensidyne in Clearwater, Florida. Product line includes personal and area air sampling pumps for the evaluation of worker exposure to airborne hazards during the work shift.

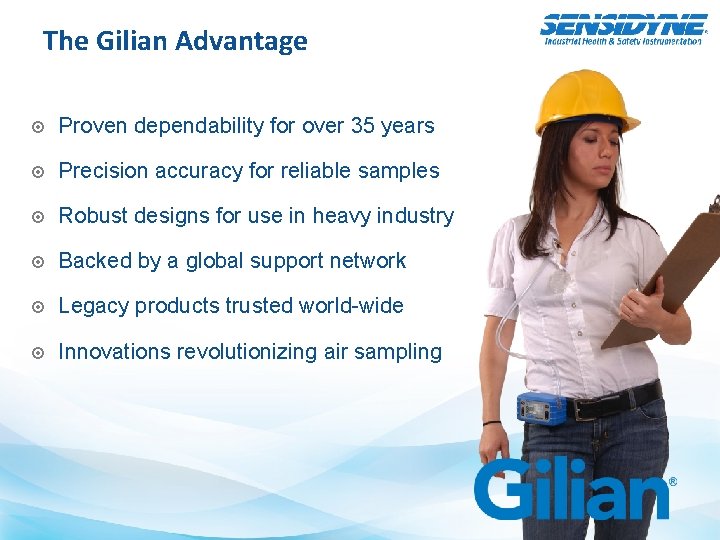

The Gilian Advantage Proven dependability for over 35 years Precision accuracy for reliable samples Robust designs for use in heavy industry Backed by a global support network Legacy products trusted world-wide Innovations revolutionizing air sampling

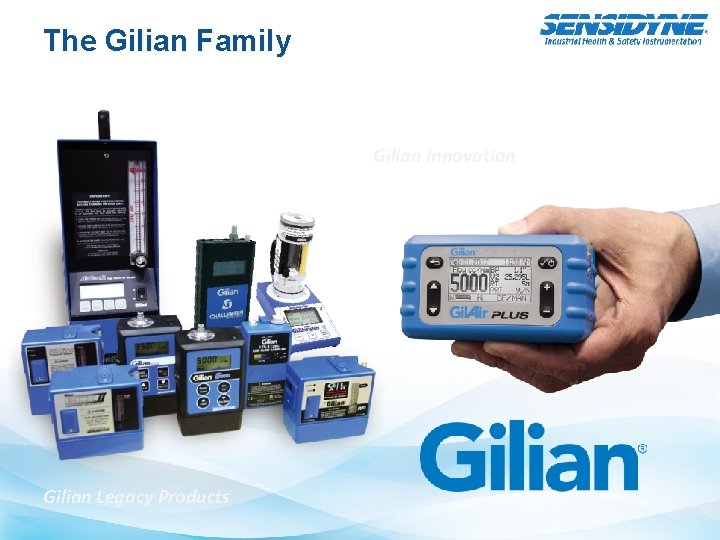

The Gilian Family Gilian Innovation Gilian Legacy Products

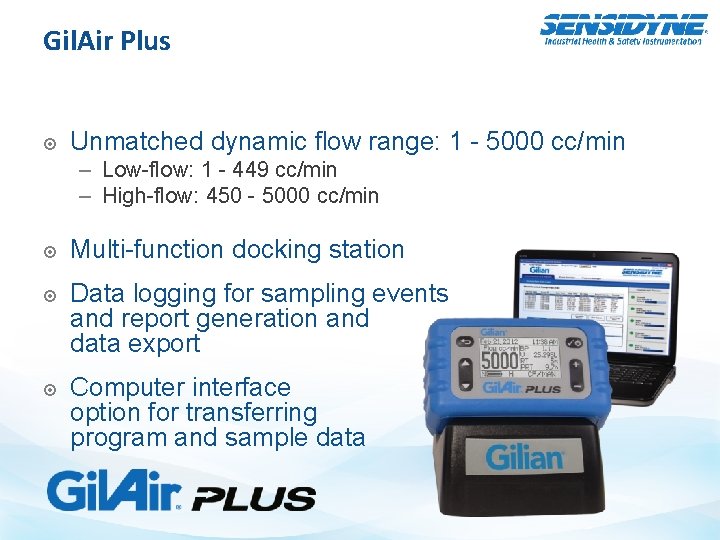

Gil. Air Plus Unmatched dynamic flow range: 1 - 5000 cc/min – Low-flow: 1 - 449 cc/min – High-flow: 450 - 5000 cc/min Multi-function docking station Data logging for sampling events and report generation and data export Computer interface option for transferring program and sample data

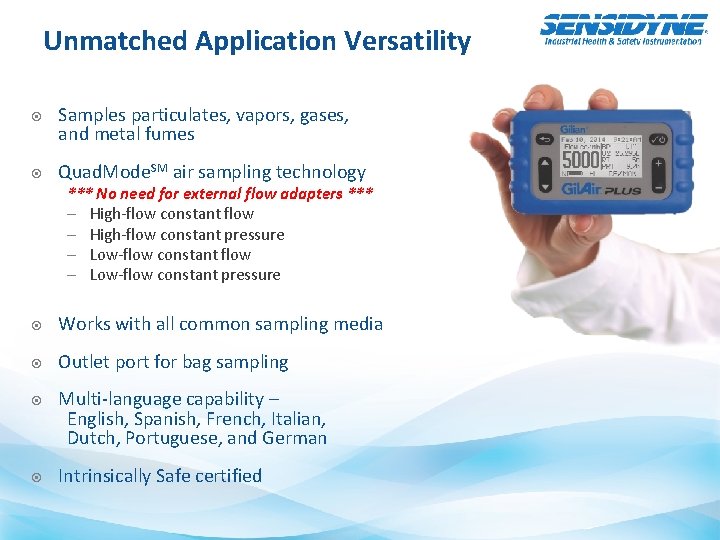

Unmatched Application Versatility Samples particulates, vapors, gases, and metal fumes Quad. Mode. SM air sampling technology *** No need for external flow adapters *** – High-flow constant flow – High-flow constant pressure – Low-flow constant flow – Low-flow constant pressure Works with all common sampling media Outlet port for bag sampling Multi-language capability – English, Spanish, French, Italian, Dutch, Portuguese, and German Intrinsically Safe certified

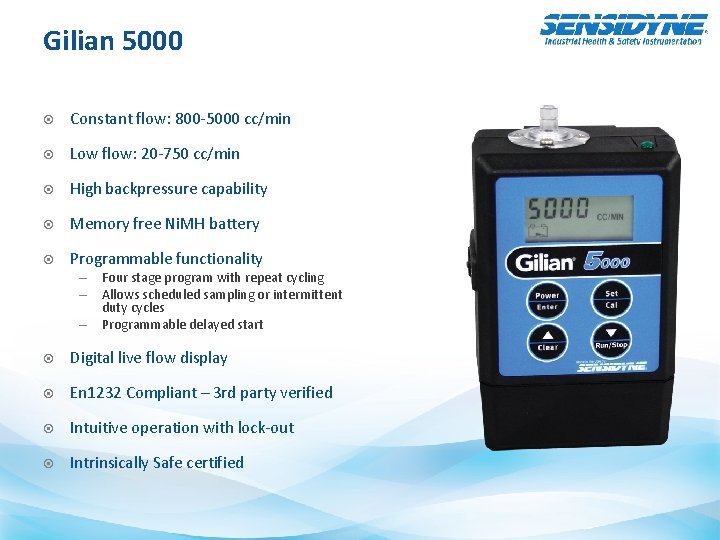

Gilian 5000 Constant flow: 800 -5000 cc/min Low flow: 20 -750 cc/min High backpressure capability Memory free Ni. MH battery Programmable functionality – – – Four stage program with repeat cycling Allows scheduled sampling or intermittent duty cycles Programmable delayed start Digital live flow display En 1232 Compliant – 3 rd party verified Intuitive operation with lock-out Intrinsically Safe certified

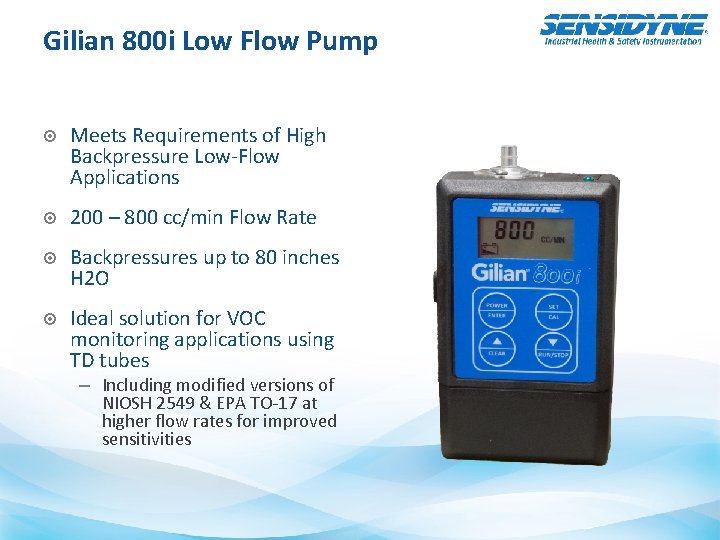

Gilian 800 i Low Flow Pump Meets Requirements of High Backpressure Low-Flow Applications 200 – 800 cc/min Flow Rate Backpressures up to 80 inches H 2 O Ideal solution for VOC monitoring applications using TD tubes – Including modified versions of NIOSH 2549 & EPA TO-17 at higher flow rates for improved sensitivities

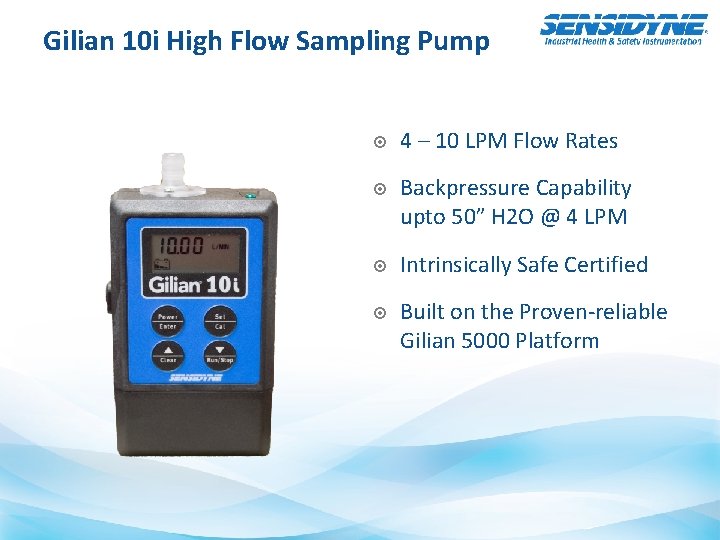

Gilian 10 i High Flow Sampling Pump 4 – 10 LPM Flow Rates Backpressure Capability upto 50” H 2 O @ 4 LPM Intrinsically Safe Certified Built on the Proven-reliable Gilian 5000 Platform

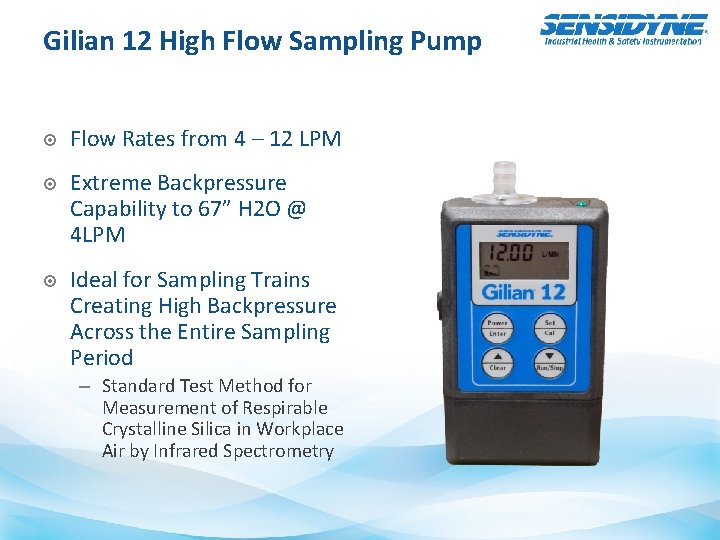

Gilian 12 High Flow Sampling Pump Flow Rates from 4 – 12 LPM Extreme Backpressure Capability to 67” H 2 O @ 4 LPM Ideal for Sampling Trains Creating High Backpressure Across the Entire Sampling Period – Standard Test Method for Measurement of Respirable Crystalline Silica in Workplace Air by Infrared Spectrometry

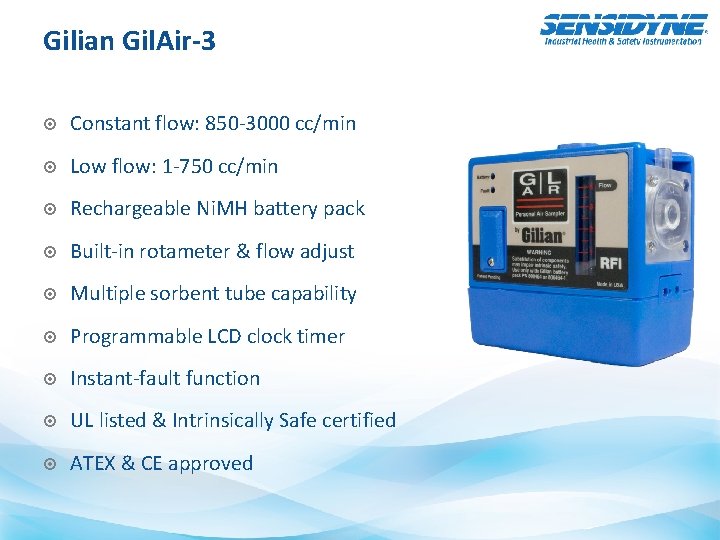

Gilian Gil. Air-3 Constant flow: 850 -3000 cc/min Low flow: 1 -750 cc/min Rechargeable Ni. MH battery pack Built-in rotameter & flow adjust Multiple sorbent tube capability Programmable LCD clock timer Instant-fault function UL listed & Intrinsically Safe certified ATEX & CE approved

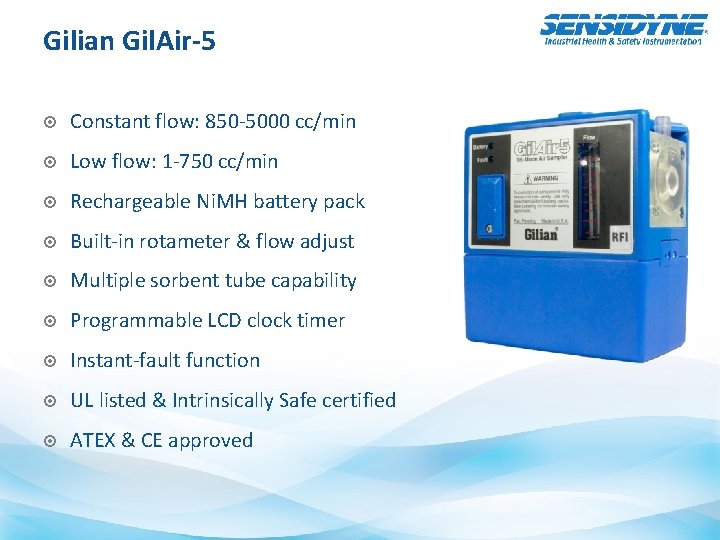

Gilian Gil. Air-5 Constant flow: 850 -5000 cc/min Low flow: 1 -750 cc/min Rechargeable Ni. MH battery pack Built-in rotameter & flow adjust Multiple sorbent tube capability Programmable LCD clock timer Instant-fault function UL listed & Intrinsically Safe certified ATEX & CE approved

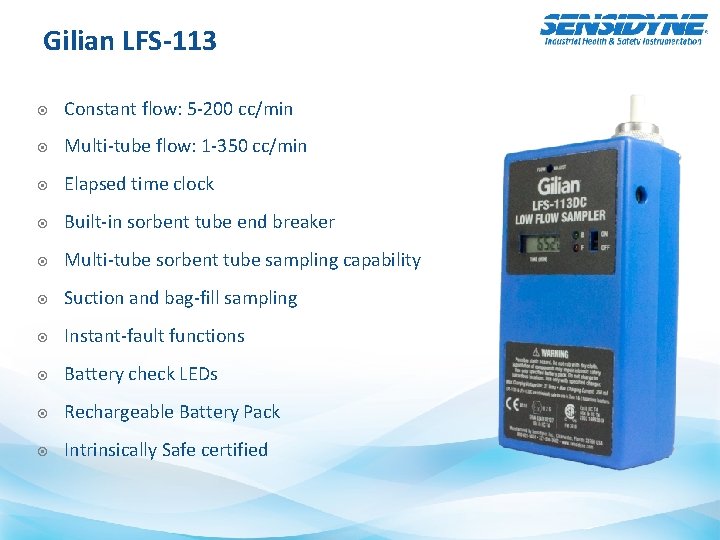

Gilian LFS-113 Constant flow: 5 -200 cc/min Multi-tube flow: 1 -350 cc/min Elapsed time clock Built-in sorbent tube end breaker Multi-tube sorbent tube sampling capability Suction and bag-fill sampling Instant-fault functions Battery check LEDs Rechargeable Battery Pack Intrinsically Safe certified

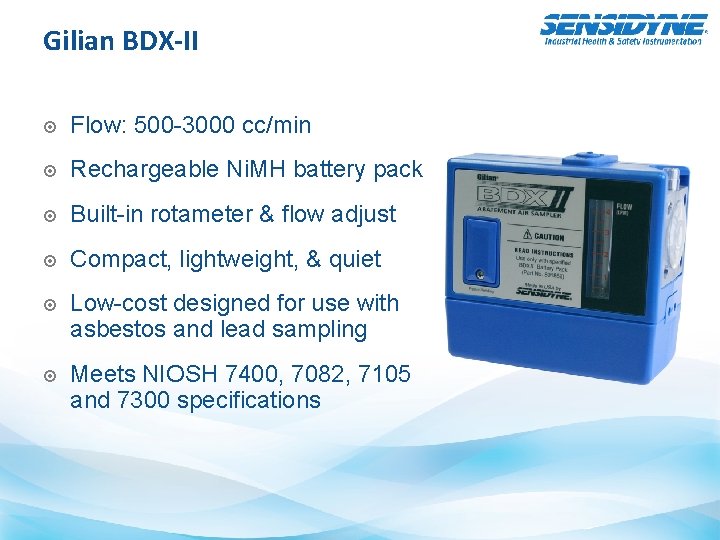

Gilian BDX-II Flow: 500 -3000 cc/min Rechargeable Ni. MH battery pack Built-in rotameter & flow adjust Compact, lightweight, & quiet Low-cost designed for use with asbestos and lead sampling Meets NIOSH 7400, 7082, 7105 and 7300 specifications

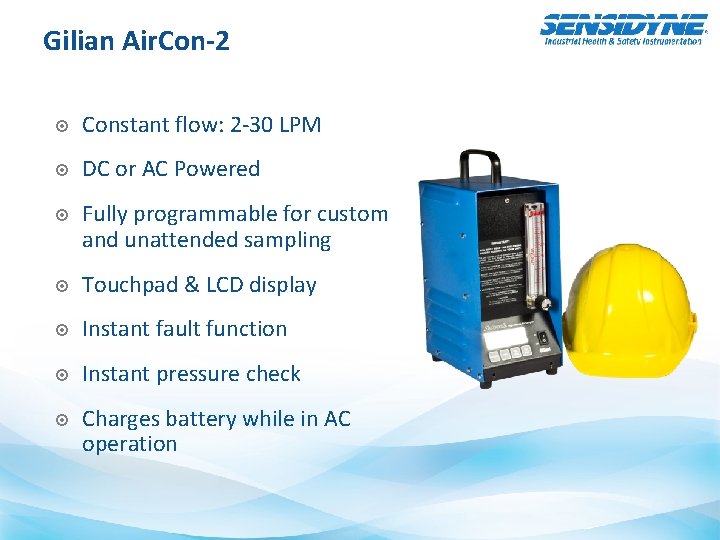

Gilian Air. Con-2 Constant flow: 2 -30 LPM DC or AC Powered Fully programmable for custom and unattended sampling Touchpad & LCD display Instant fault function Instant pressure check Charges battery while in AC operation

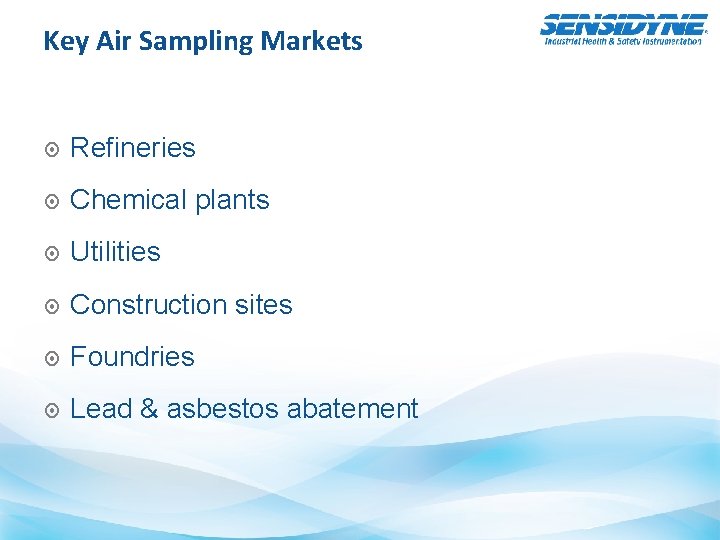

Key Air Sampling Markets Refineries Chemical plants Utilities Construction sites Foundries Lead & asbestos abatement

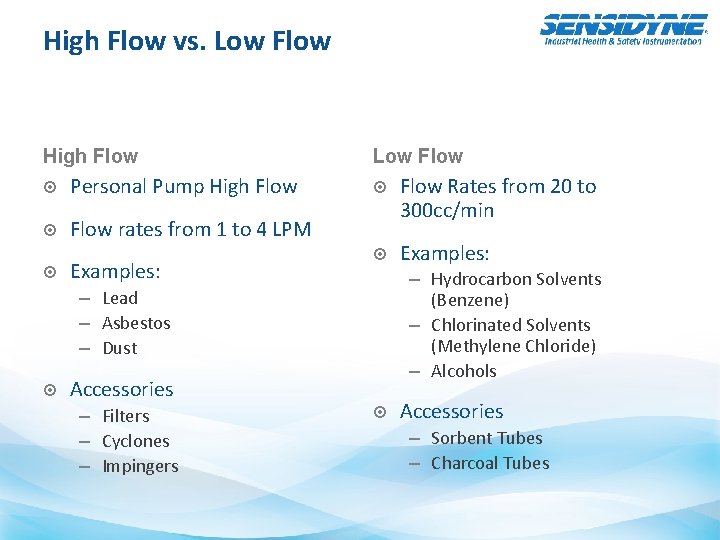

High Flow vs. Low Flow High Flow Personal Pump High Flow rates from 1 to 4 LPM Examples: Low Flow Accessories – Filters – Cyclones – Impingers Examples: – Hydrocarbon Solvents (Benzene) – Chlorinated Solvents (Methylene Chloride) – Alcohols – Lead – Asbestos – Dust Flow Rates from 20 to 300 cc/min Accessories – Sorbent Tubes – Charcoal Tubes

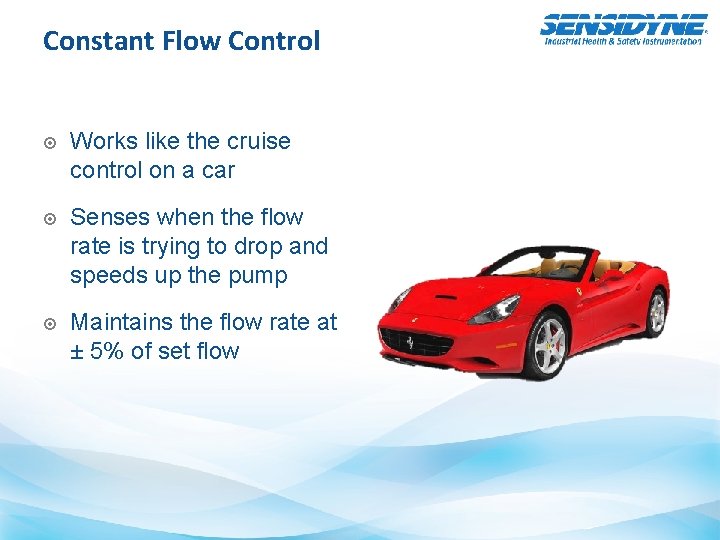

Constant Flow Control Works like the cruise control on a car Senses when the flow rate is trying to drop and speeds up the pump Maintains the flow rate at ± 5% of set flow

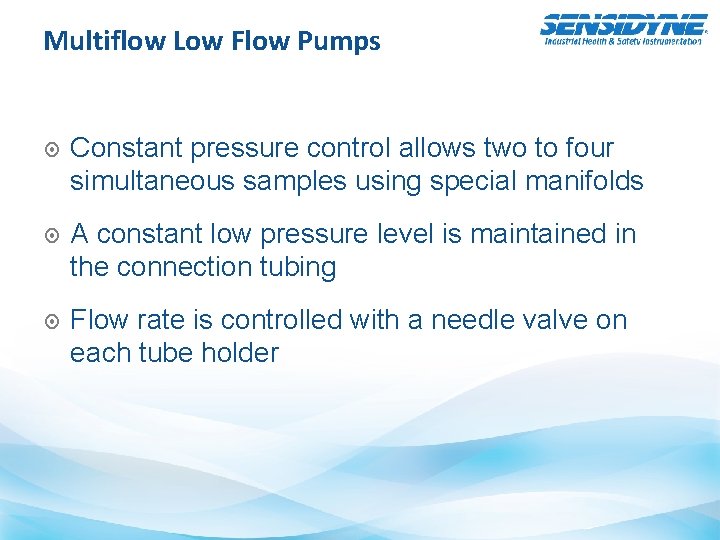

Multiflow Low Flow Pumps Constant pressure control allows two to four simultaneous samples using special manifolds A constant low pressure level is maintained in the connection tubing Flow rate is controlled with a needle valve on each tube holder

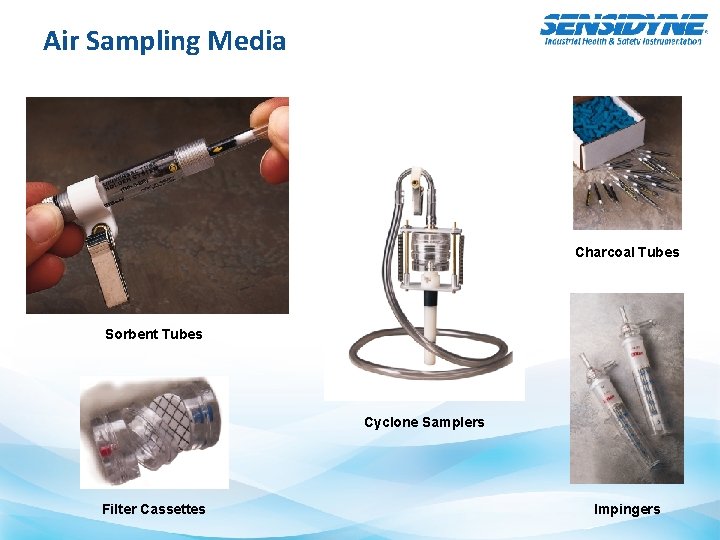

Air Sampling Media Charcoal Tubes Sorbent Tubes Cyclone Samplers Filter Cassettes Impingers

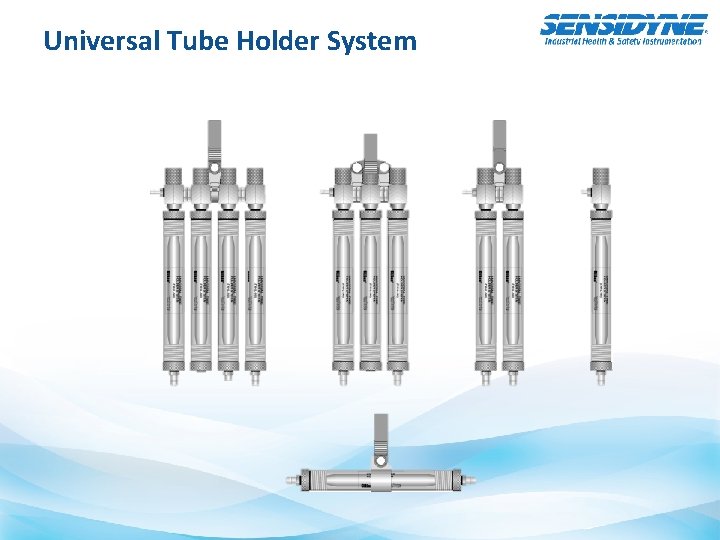

Universal Tube Holder System

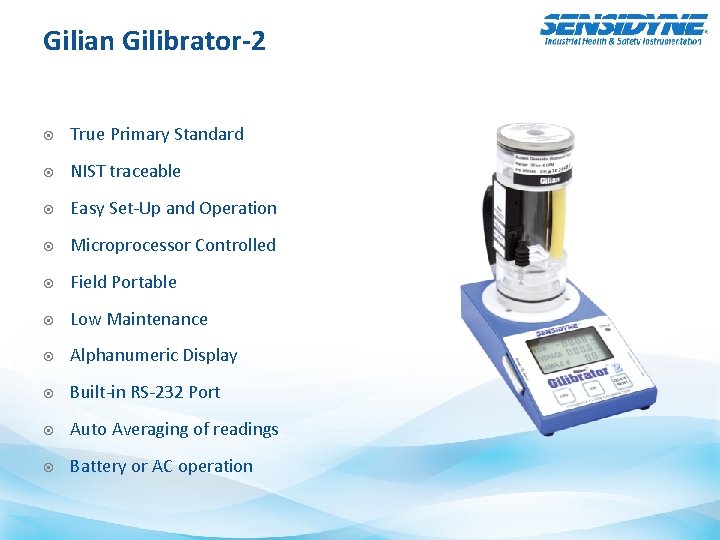

Gilian Gilibrator-2 True Primary Standard NIST traceable Easy Set-Up and Operation Microprocessor Controlled Field Portable Low Maintenance Alphanumeric Display Built-in RS-232 Port Auto Averaging of readings Battery or AC operation

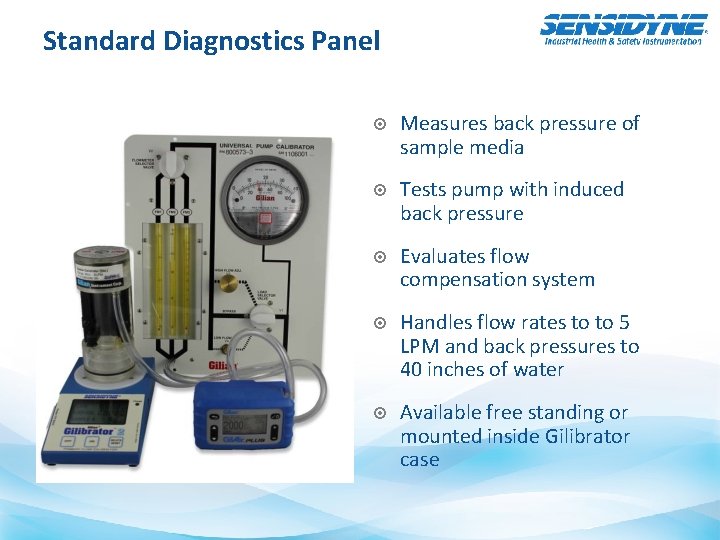

Standard Diagnostics Panel Measures back pressure of sample media Tests pump with induced back pressure Evaluates flow compensation system Handles flow rates to to 5 LPM and back pressures to 40 inches of water Available free standing or mounted inside Gilibrator case

The Gilian Family Gilian Innovation Gilian Legacy Products

THANK YOU www. Sensidyne. com 800 -451 -9444 / 727 -530 -3602
