Gilian Air Sampling Pumps If they were any

Gilian Air Sampling Pumps If they were any tougher they would beat you up and take your lunch money.

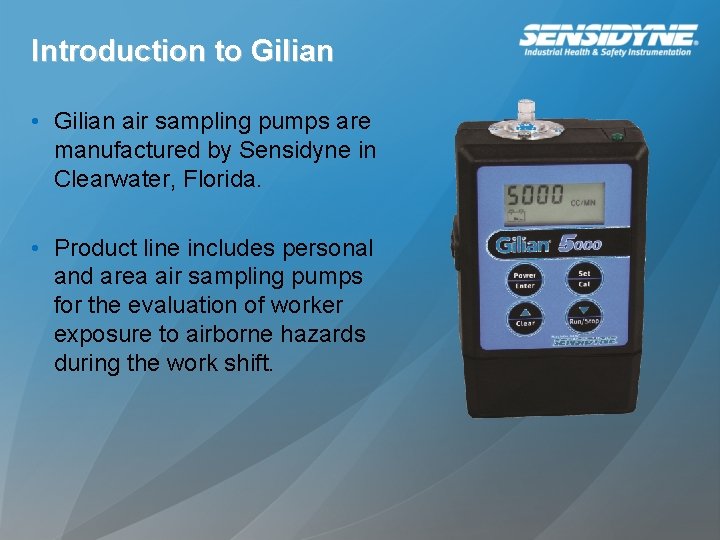

Introduction to Gilian • Gilian air sampling pumps are manufactured by Sensidyne in Clearwater, Florida. • Product line includes personal and area air sampling pumps for the evaluation of worker exposure to airborne hazards during the work shift.

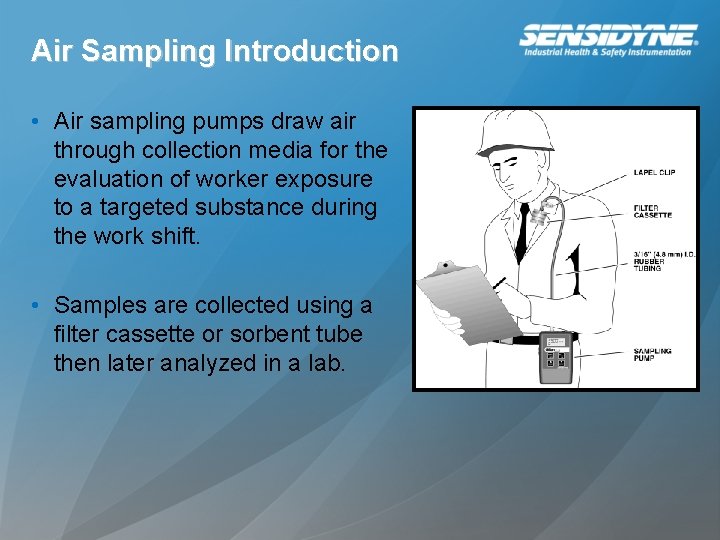

Air Sampling Introduction • Air sampling pumps draw air through collection media for the evaluation of worker exposure to a targeted substance during the work shift. • Samples are collected using a filter cassette or sorbent tube then later analyzed in a lab.

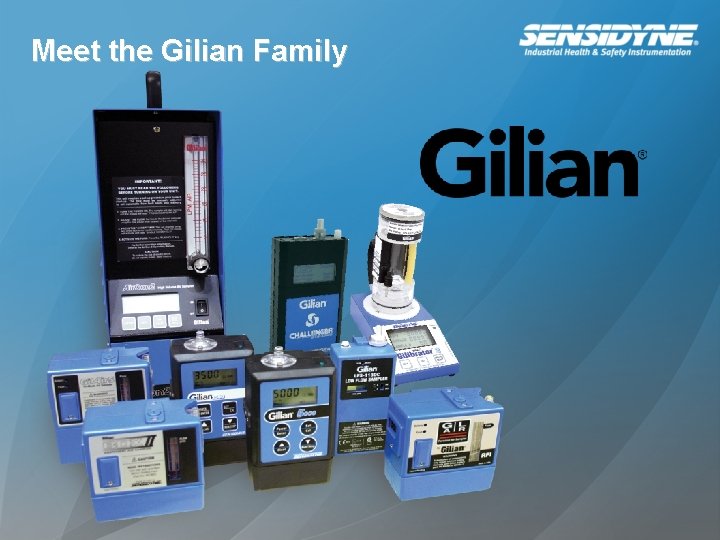

Meet the Gilian Family

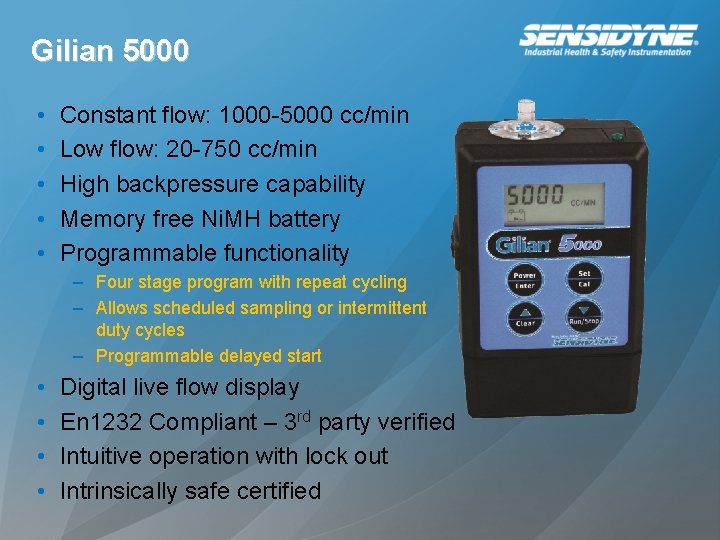

Gilian 5000 • • • Constant flow: 1000 -5000 cc/min Low flow: 20 -750 cc/min High backpressure capability Memory free Ni. MH battery Programmable functionality – Four stage program with repeat cycling – Allows scheduled sampling or intermittent duty cycles – Programmable delayed start • • Digital live flow display En 1232 Compliant – 3 rd party verified Intuitive operation with lock out Intrinsically safe certified

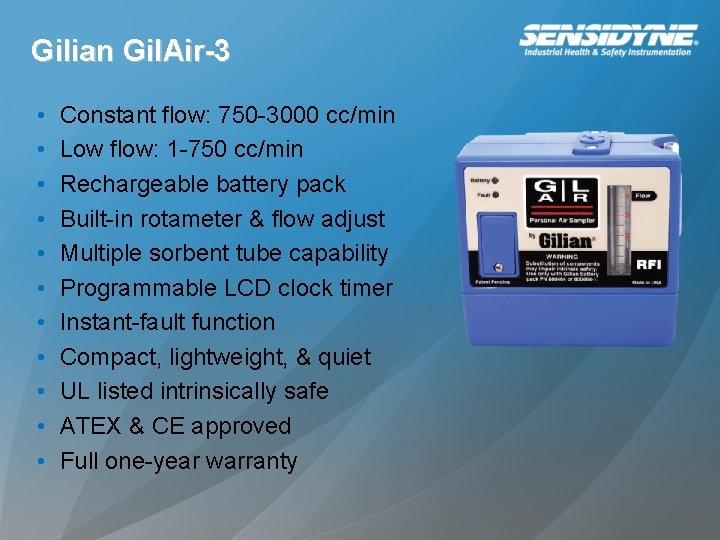

Gilian Gil. Air-3 • • • Constant flow: 750 -3000 cc/min Low flow: 1 -750 cc/min Rechargeable battery pack Built-in rotameter & flow adjust Multiple sorbent tube capability Programmable LCD clock timer Instant-fault function Compact, lightweight, & quiet UL listed intrinsically safe ATEX & CE approved Full one-year warranty

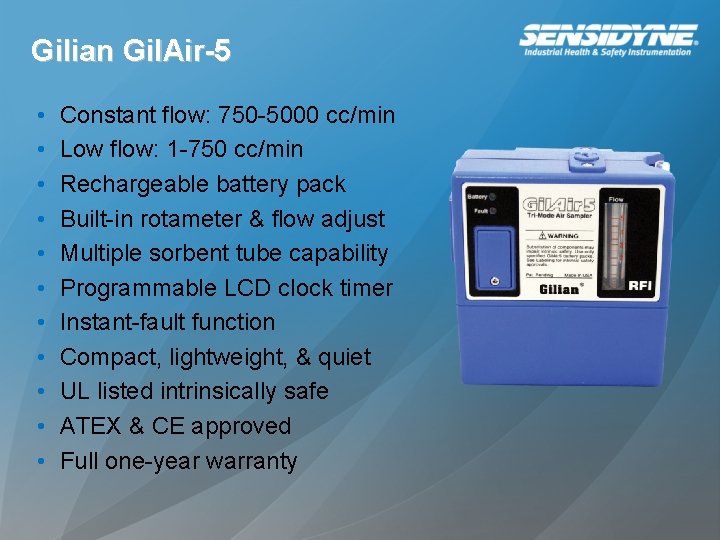

Gilian Gil. Air-5 • • • Constant flow: 750 -5000 cc/min Low flow: 1 -750 cc/min Rechargeable battery pack Built-in rotameter & flow adjust Multiple sorbent tube capability Programmable LCD clock timer Instant-fault function Compact, lightweight, & quiet UL listed intrinsically safe ATEX & CE approved Full one-year warranty

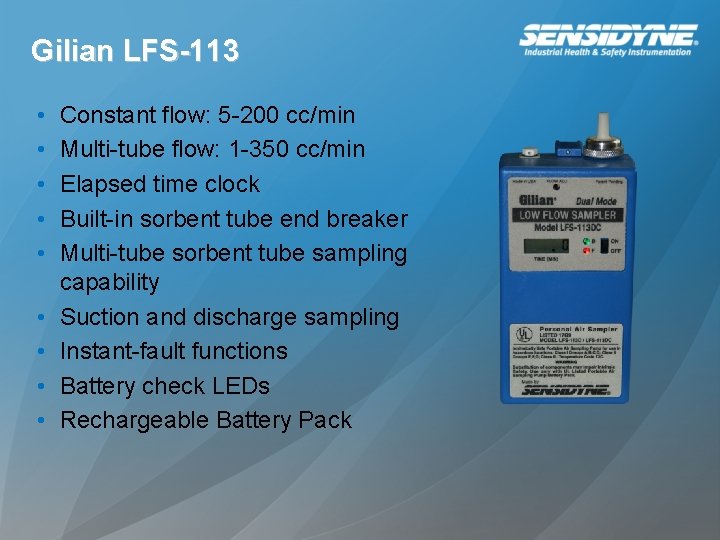

Gilian LFS-113 • • • Constant flow: 5 -200 cc/min Multi-tube flow: 1 -350 cc/min Elapsed time clock Built-in sorbent tube end breaker Multi-tube sorbent tube sampling capability Suction and discharge sampling Instant-fault functions Battery check LEDs Rechargeable Battery Pack

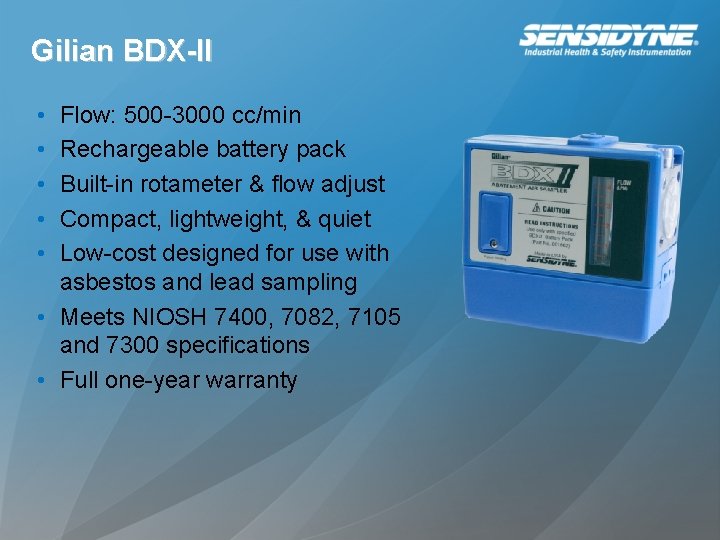

Gilian BDX-II • • • Flow: 500 -3000 cc/min Rechargeable battery pack Built-in rotameter & flow adjust Compact, lightweight, & quiet Low-cost designed for use with asbestos and lead sampling • Meets NIOSH 7400, 7082, 7105 and 7300 specifications • Full one-year warranty

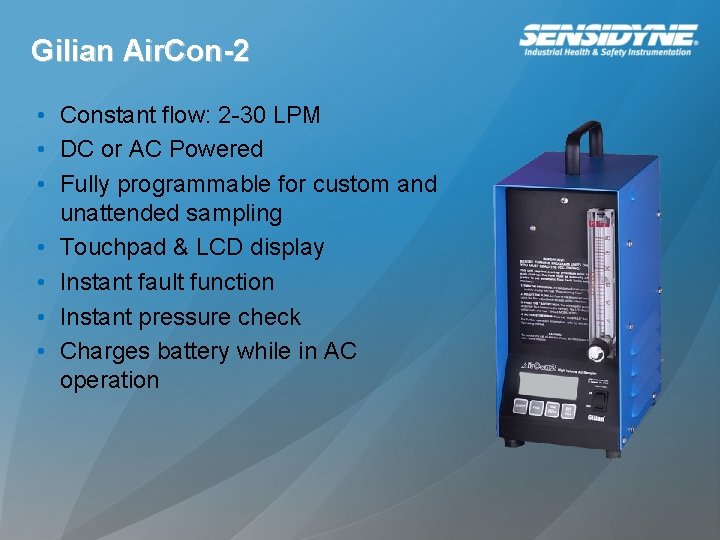

Gilian Air. Con-2 • Constant flow: 2 -30 LPM • DC or AC Powered • Fully programmable for custom and unattended sampling • Touchpad & LCD display • Instant fault function • Instant pressure check • Charges battery while in AC operation

Key Markets • • • Refineries Chemical plants Utilities Construction sites Foundries Lead & asbestos abatement

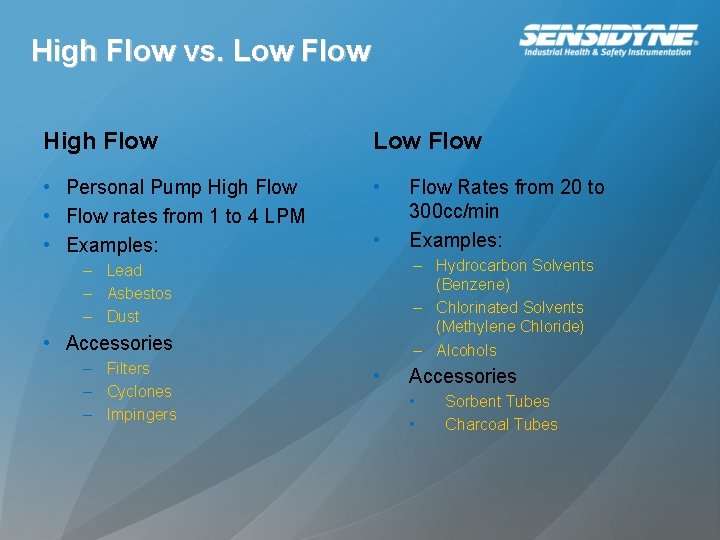

High Flow vs. Low Flow High Flow Low Flow • Personal Pump High Flow • Flow rates from 1 to 4 LPM • Examples: • • – Hydrocarbon Solvents (Benzene) – Chlorinated Solvents (Methylene Chloride) – Alcohols – Lead – Asbestos – Dust • Accessories – Filters – Cyclones – Impingers Flow Rates from 20 to 300 cc/min Examples: • Accessories • • Sorbent Tubes Charcoal Tubes

Constant Flow Control • Works like the cruise control on a car • Senses when the flow rate is trying to drop and speeds up the pump • Maintains the flow rate at ± 5% of set flow

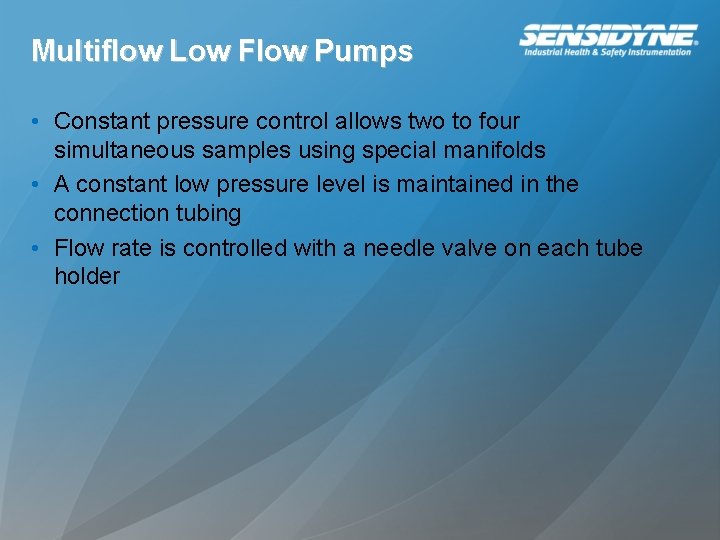

Multiflow Low Flow Pumps • Constant pressure control allows two to four simultaneous samples using special manifolds • A constant low pressure level is maintained in the connection tubing • Flow rate is controlled with a needle valve on each tube holder

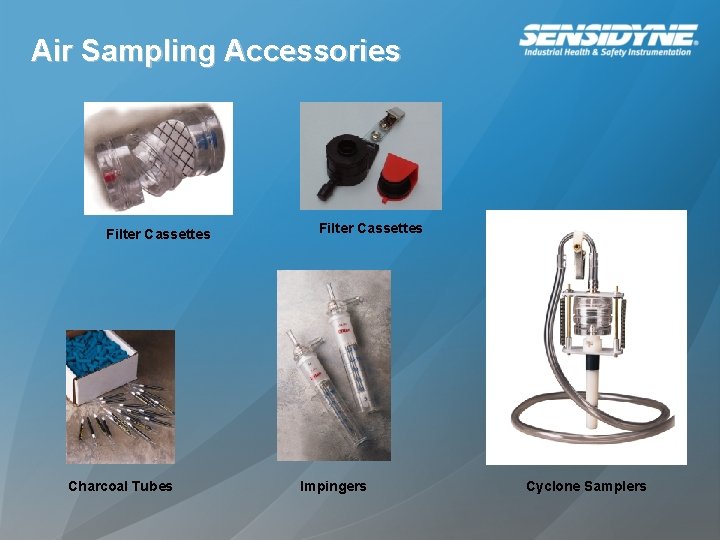

Air Sampling Accessories Filter Cassettes Charcoal Tubes Filter Cassettes Impingers Cyclone Samplers

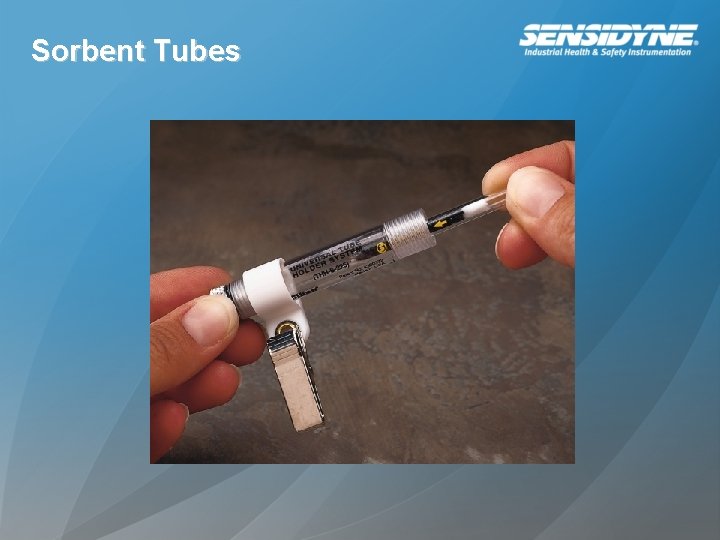

Sorbent Tubes

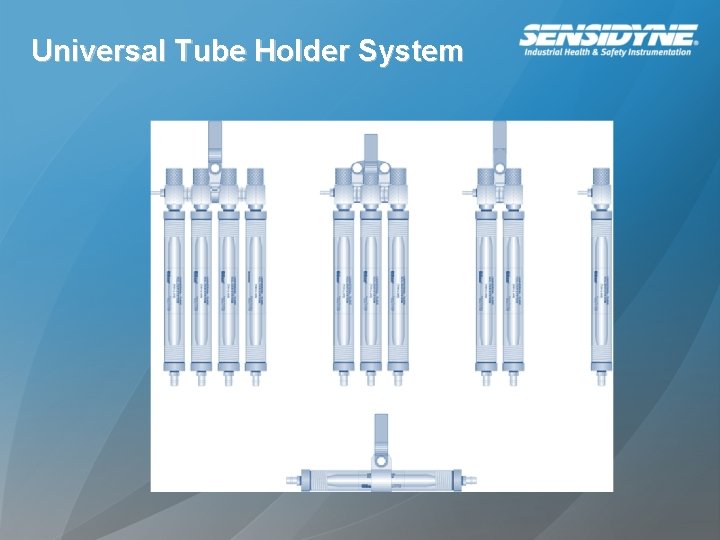

Universal Tube Holder System

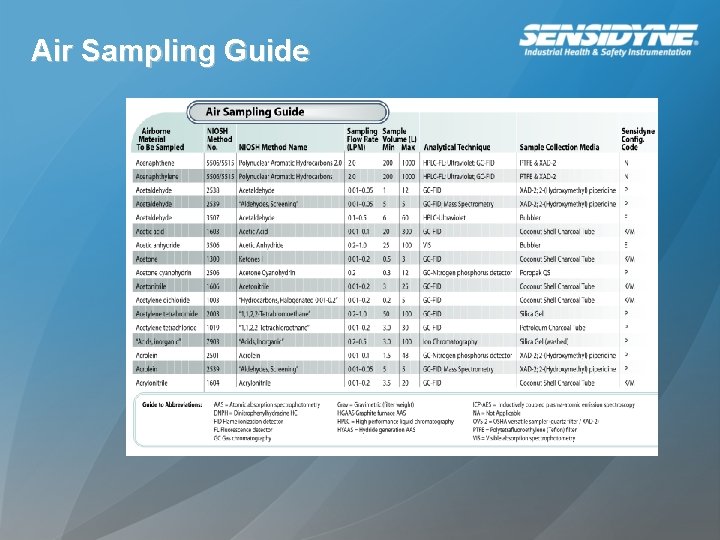

Air Sampling Guide

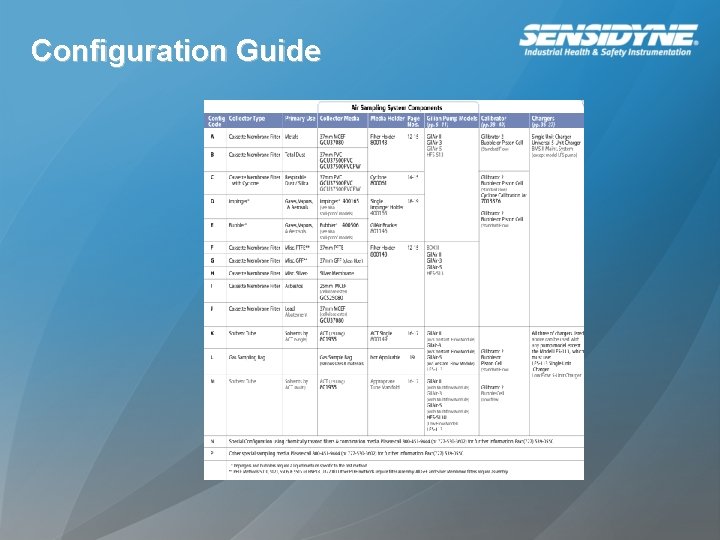

Configuration Guide

Gilian Gilibrator-2 • • • True Primary Standard NIST traceable Easy Set-Up and Operation Microprocessor Controlled Field Portable Low Maintenance Alphanumeric Display Built-in RS-232 Port Auto Averaging of readings Battery or AC operation

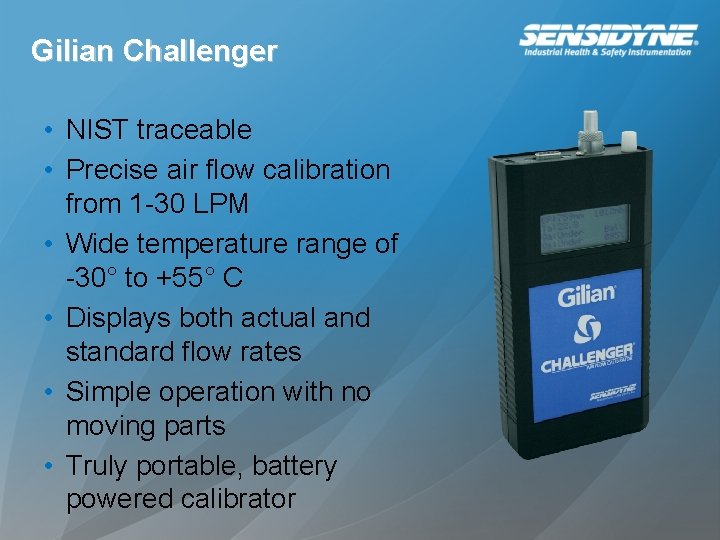

Gilian Challenger • NIST traceable • Precise air flow calibration from 1 -30 LPM • Wide temperature range of -30° to +55° C • Displays both actual and standard flow rates • Simple operation with no moving parts • Truly portable, battery powered calibrator

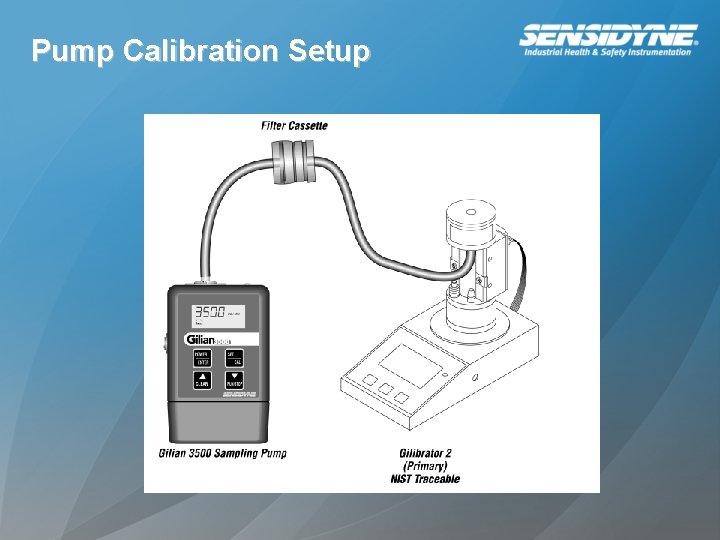

Pump Calibration Setup

Understanding Backpressure

Meet the Gilian Family

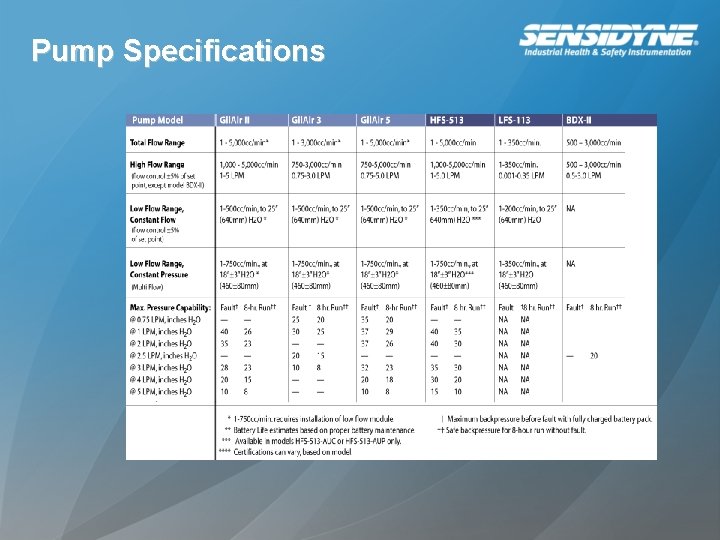

Pump Specifications

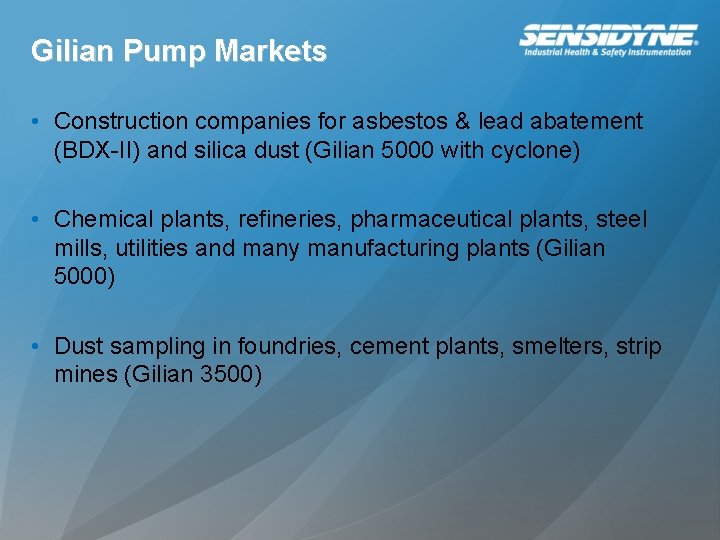

Gilian Pump Markets • Construction companies for asbestos & lead abatement (BDX-II) and silica dust (Gilian 5000 with cyclone) • Chemical plants, refineries, pharmaceutical plants, steel mills, utilities and many manufacturing plants (Gilian 5000) • Dust sampling in foundries, cement plants, smelters, strip mines (Gilian 3500)

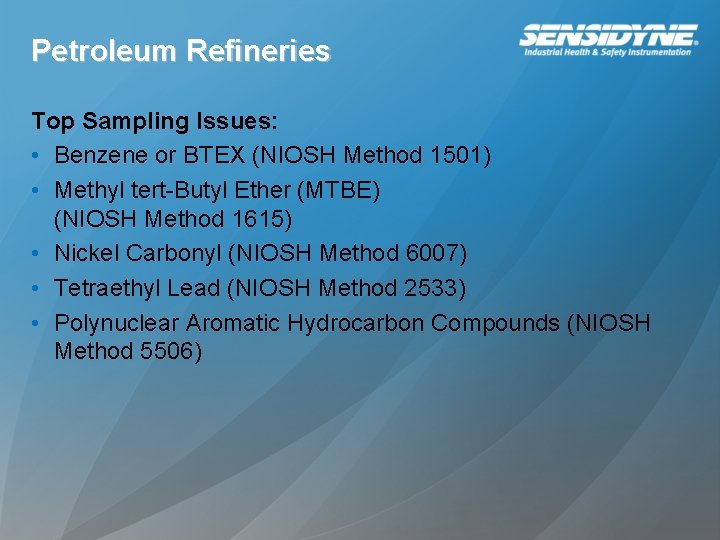

Petroleum Refineries Top Sampling Issues: • Benzene or BTEX (NIOSH Method 1501) • Methyl tert-Butyl Ether (MTBE) (NIOSH Method 1615) • Nickel Carbonyl (NIOSH Method 6007) • Tetraethyl Lead (NIOSH Method 2533) • Polynuclear Aromatic Hydrocarbon Compounds (NIOSH Method 5506)

Power Plants Top Sampling Issues: • Nuisance Dust (NIOSH Methods 0500 (Total dust) and 0600 (Respirable dust with cyclone) • Radioactive Dust (NRC Method uses Aircon at 28. 32 LPM (1 CFM) and 47 mm PVC or glass fiber filter. )

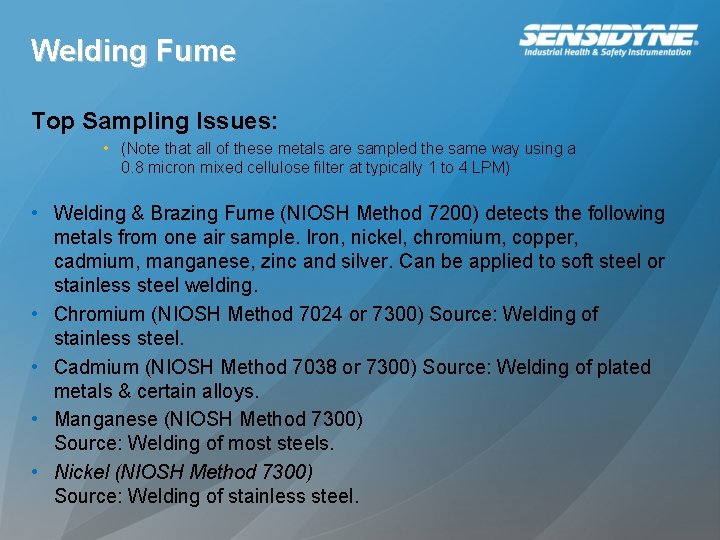

Welding Fume Top Sampling Issues: • (Note that all of these metals are sampled the same way using a 0. 8 micron mixed cellulose filter at typically 1 to 4 LPM) • Welding & Brazing Fume (NIOSH Method 7200) detects the following metals from one air sample. Iron, nickel, chromium, copper, cadmium, manganese, zinc and silver. Can be applied to soft steel or stainless steel welding. • Chromium (NIOSH Method 7024 or 7300) Source: Welding of stainless steel. • Cadmium (NIOSH Method 7038 or 7300) Source: Welding of plated metals & certain alloys. • Manganese (NIOSH Method 7300) Source: Welding of most steels. • Nickel (NIOSH Method 7300) Source: Welding of stainless steel.

Gas Detector Tubes Low-cost Detection of Hazardous Gases & Vapors

DETECTOR TUBES • Detector Tube Product Line - Manufactured by Kitagawa in Japan. • Disposable glass tubes used to identify a targeted gas with in a specified measuring range when fixed amount of air is pumped through it. – – Simple Inexpensive Easy to use ± 25% Accuracy

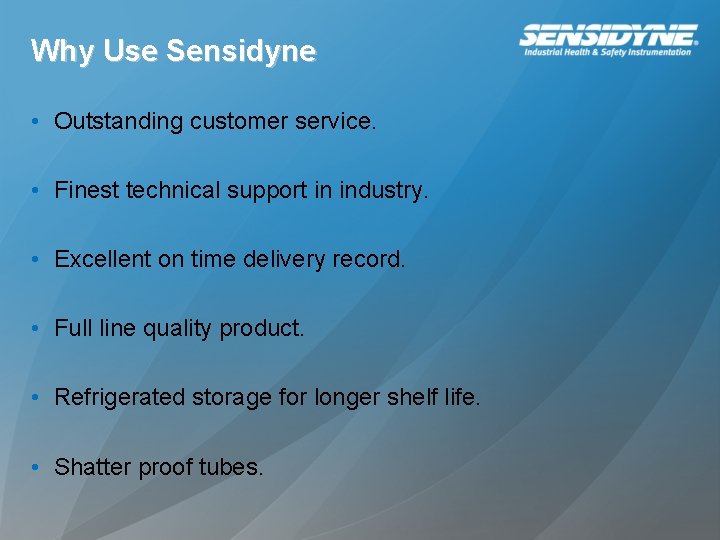

Why Use Sensidyne • Outstanding customer service. • Finest technical support in industry. • Excellent on time delivery record. • Full line quality product. • Refrigerated storage for longer shelf life. • Shatter proof tubes.

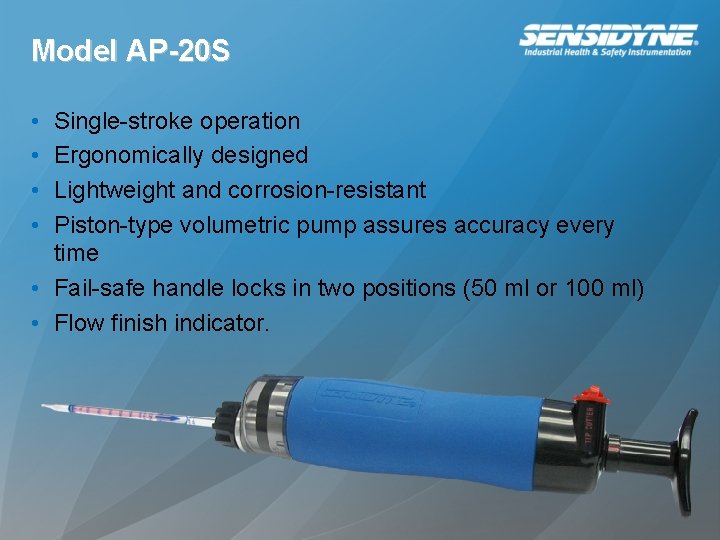

Model AP-20 S • • Single-stroke operation Ergonomically designed Lightweight and corrosion-resistant Piston-type volumetric pump assures accuracy every time • Fail-safe handle locks in two positions (50 ml or 100 ml) • Flow finish indicator.

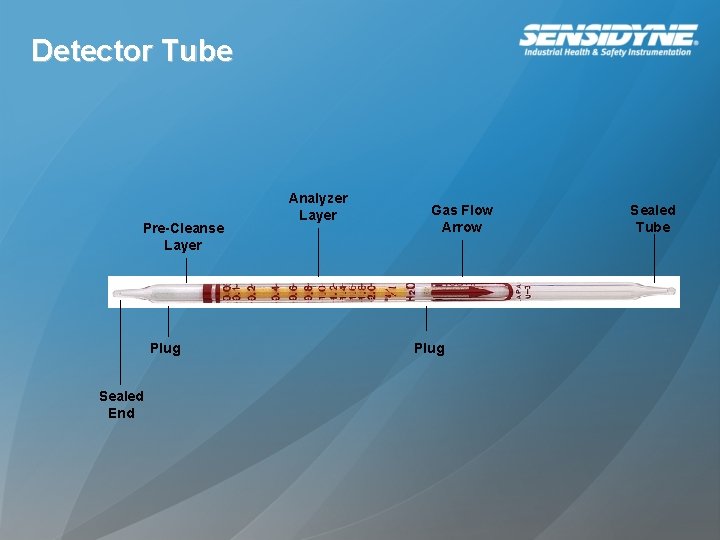

Detector Tube Pre-Cleanse Layer Plug Sealed End Analyzer Layer Gas Flow Arrow Plug Sealed Tube

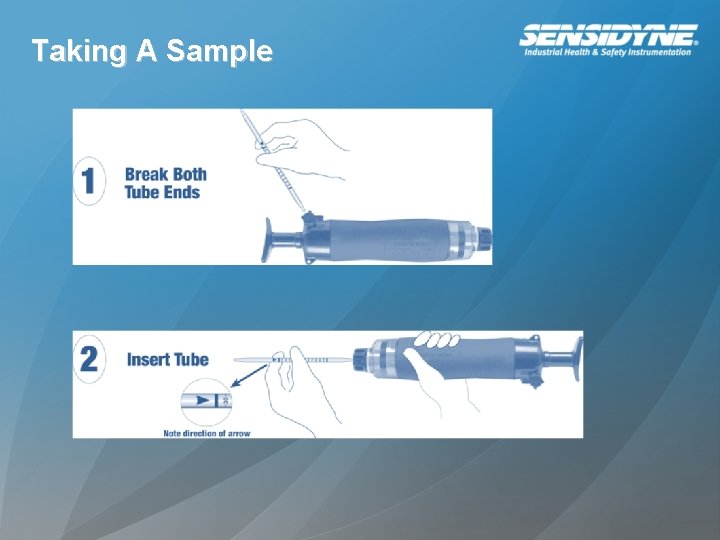

Taking A Sample

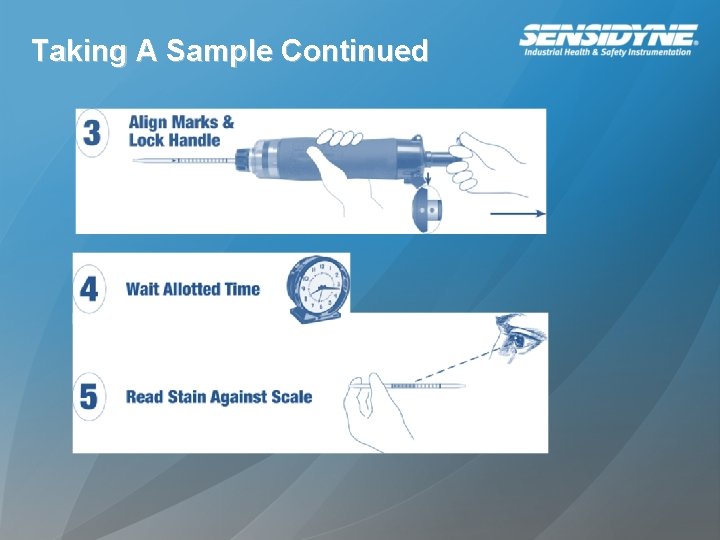

Taking A Sample Continued

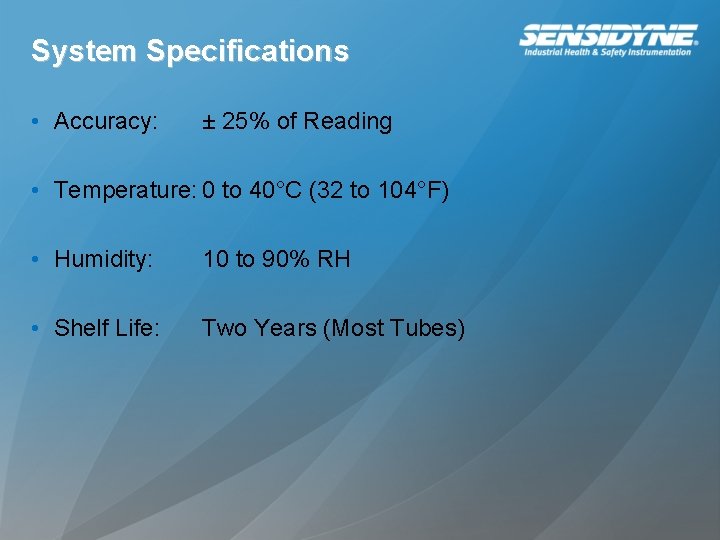

System Specifications • Accuracy: ± 25% of Reading • Temperature: 0 to 40°C (32 to 104°F) • Humidity: 10 to 90% RH • Shelf Life: Two Years (Most Tubes)

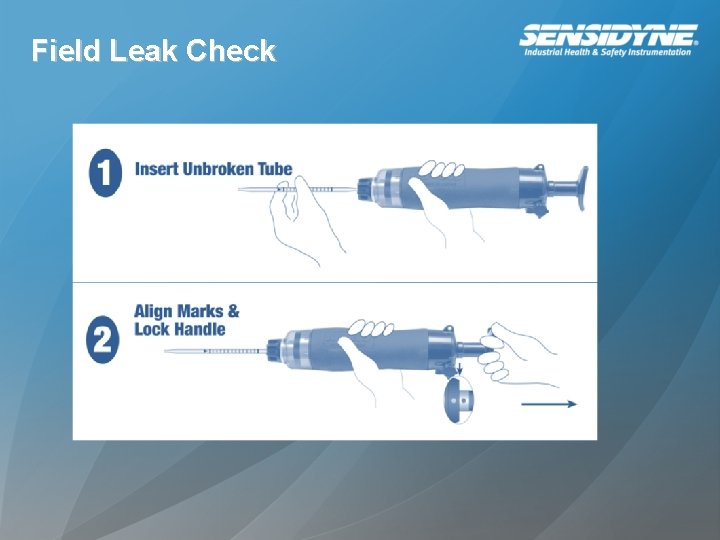

Field Leak Check

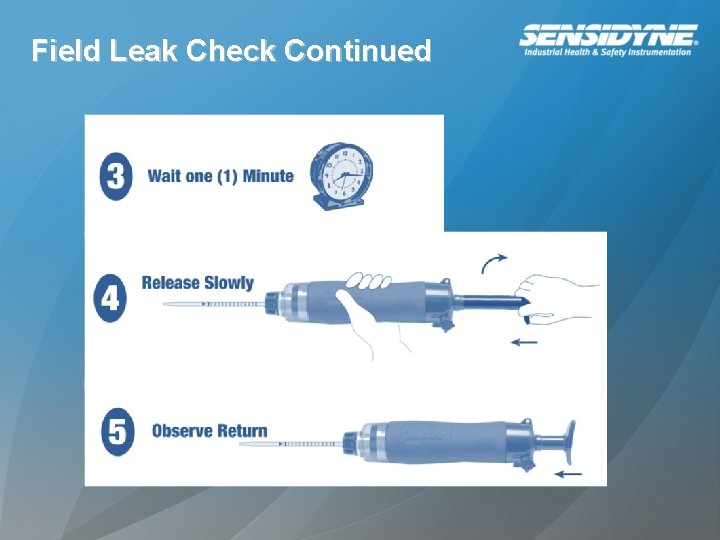

Field Leak Check Continued

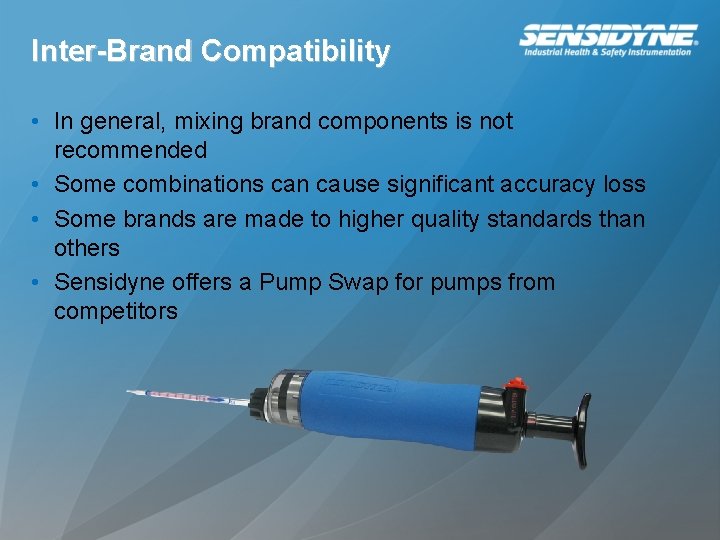

Inter-Brand Compatibility • In general, mixing brand components is not recommended • Some combinations can cause significant accuracy loss • Some brands are made to higher quality standards than others • Sensidyne offers a Pump Swap for pumps from competitors

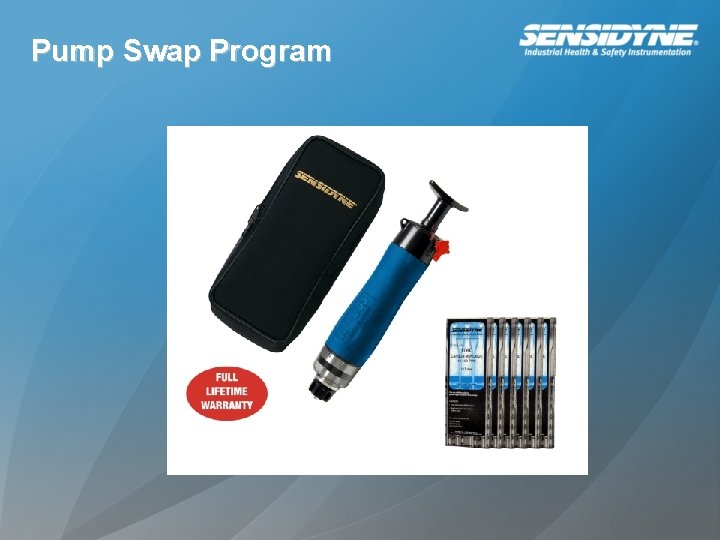

Pump Swap Program

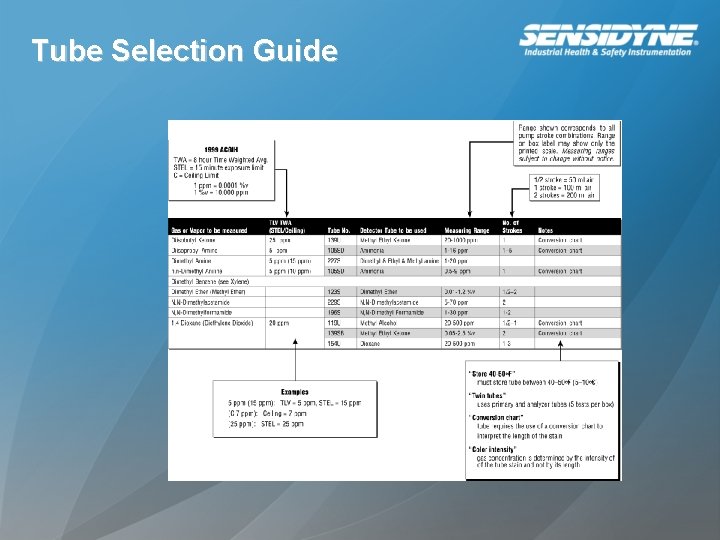

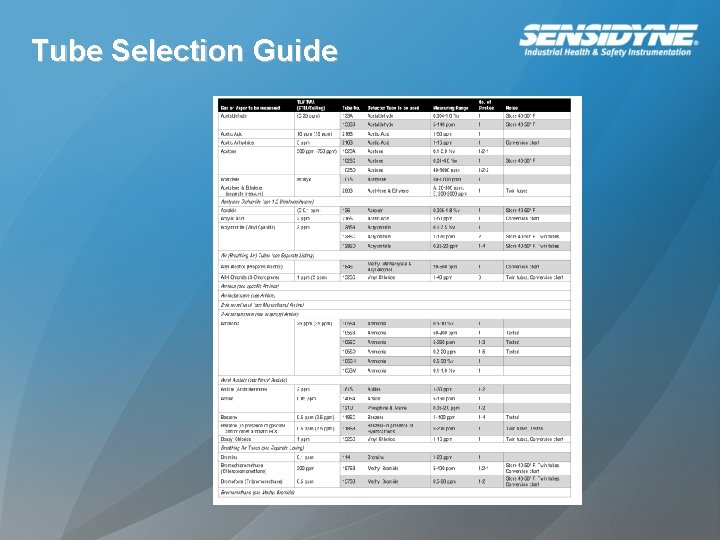

Tube Selection Guide

Tube Selection Guide

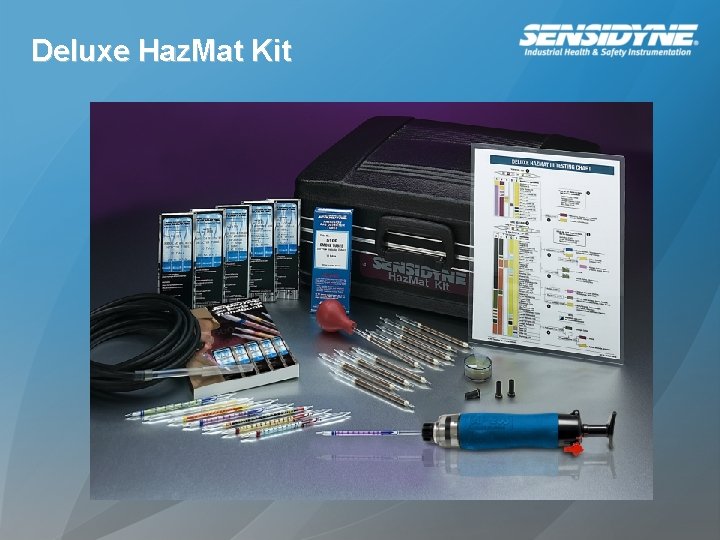

Deluxe Haz. Mat Kit

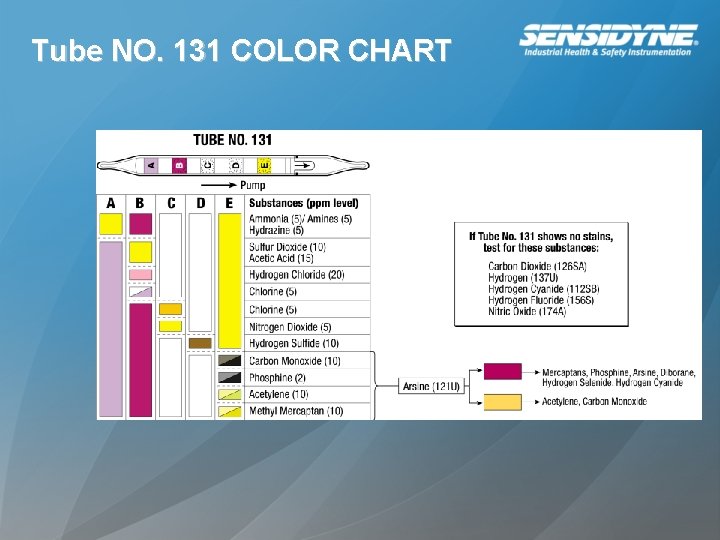

Tube NO. 131 COLOR CHART

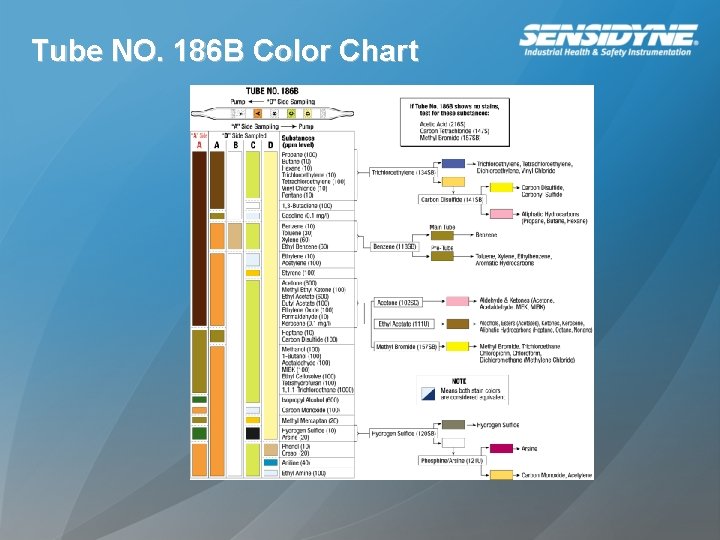

Tube NO. 186 B Color Chart

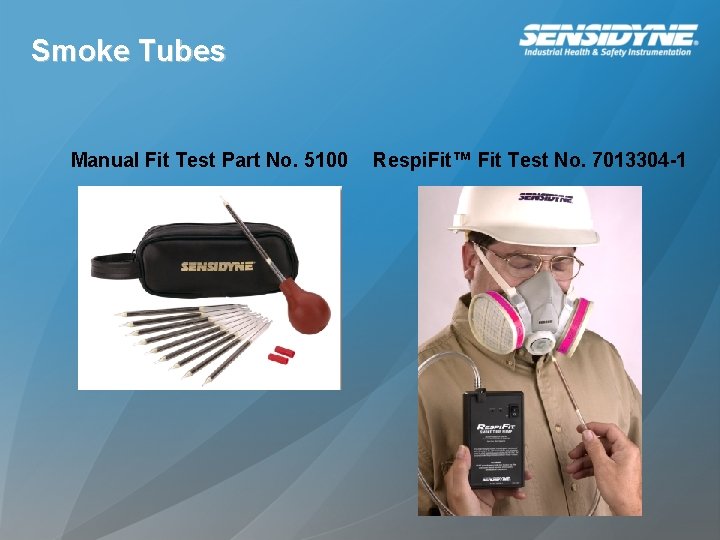

Smoke Tubes Manual Fit Test Part No. 5100 Respi. Fit™ Fit Test No. 7013304 -1

THANK YOU www. Sensidyne. com 800 -451 -9444 / 727 -530 -3602
